1 Basic Information
Product NameDock Leveler
ApplicationWorkshop, Shipboard, Warehouse, Building
Carrying Capacity6t - 10t
Driven TypeHydraulic
MaterialHigh Strength Steel
Power0.75kw
Size2000x2000mm
FeatureExplosion-Proof, Insulating
CertificationGS, CE, RoHS, ISO 9001
Production Capacity1000 pieces/Year

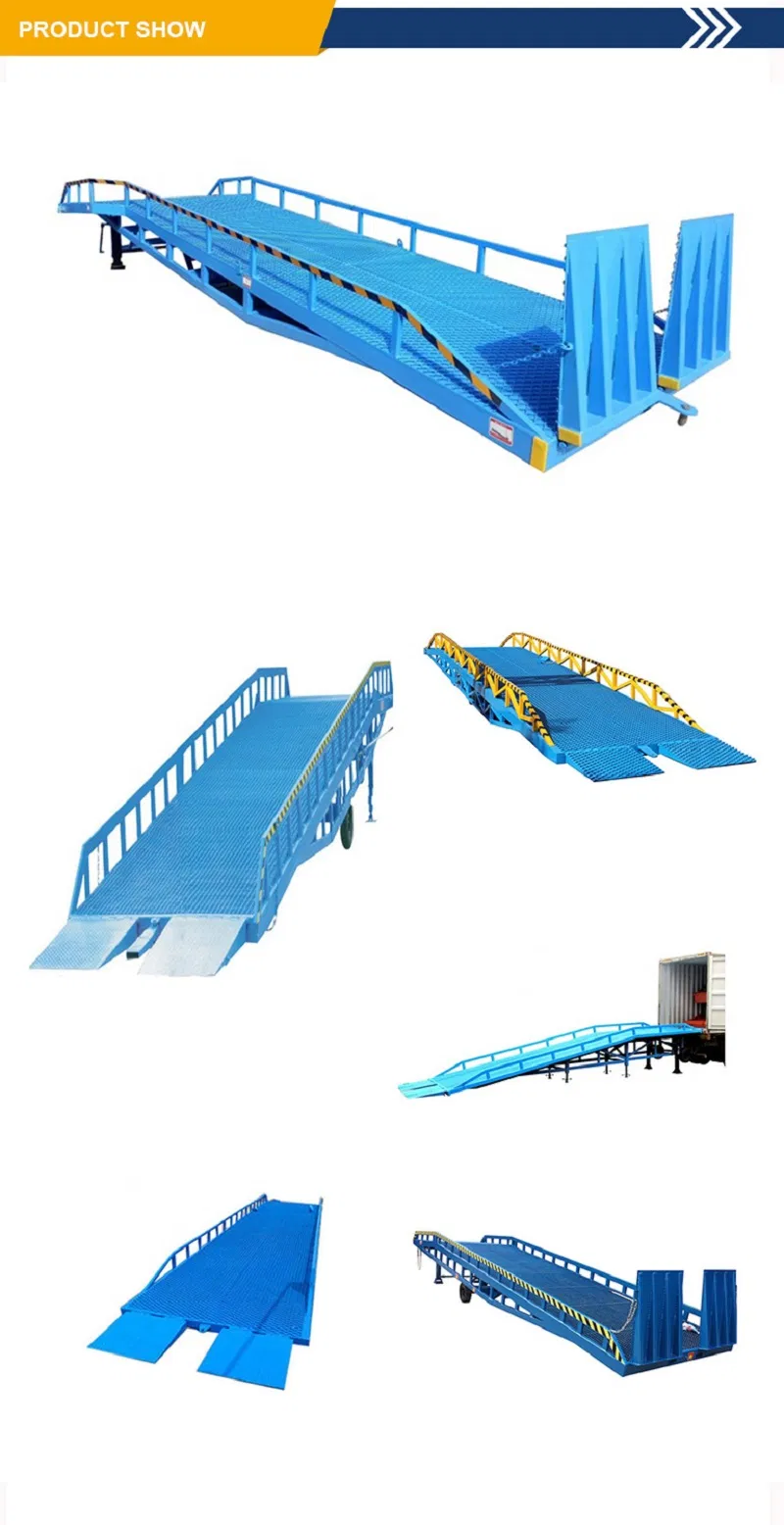

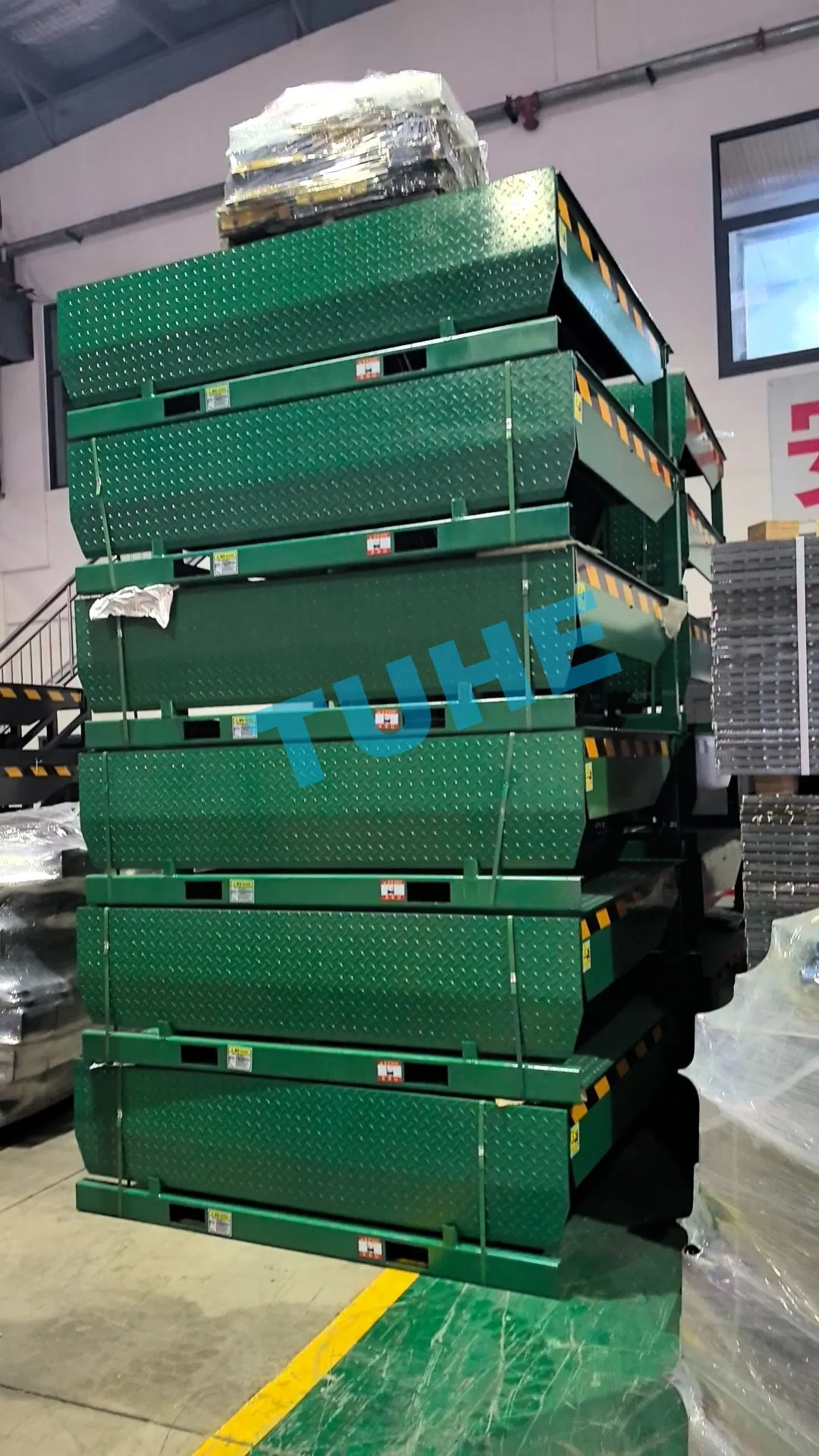

2 Product Presentation
3 Technical Parameters
| YARD RAMP SPECIFICATIONS |
| MODEL |
LOAD (T) |
DIMENSIONS |
MAIN BEAM |
SECONDARY BEAM |
GUARDRAIL |
STEEL PLATE |
TIRE |
CYLINDER |
ADJUSTMENT |
| YDCQ-6 | 6 | 11100x2000x1100mm | 160x80x4 | 100x50x3 | 40x60x3 | 3mm | 600-9 | Ф80xФ50 | 11000x18000 |
| YDCQ-8 | 8 | 11100x2000x1100mm | 160x80x4 | 100x50x4 | 40x60x3 | 3mm | 600-9 | Ф80xФ50 | 11000x18000 |
| YDCQ-10 | 10 | 11100x2000x1100mm | 160x80x5 | 120x60x4 | 40x60x3 | 4mm | 600-9 | Ф80xФ50 | 11000x18000 |
| YDCQ-12 | 12 | 11400x2200x1101mm | 200x100x5 | 120x60x5 | 40x60x3 | 5mm | 700-9 | Ф80xФ50 | 11000x18000 |
| YDCQ-15 | 15 | 11400x2400x1102mm | 250x100x6 | 160x80x5 | 40x60x3 | 6mm | 700-9 | Ф80xФ50 | 11000x18000 |
| STATIONARY DOCK LEVELER |
| MODEL |
LOAD (T) |
PLATFORM SIZE |
WORK GRADE |
TRAVEL |
POWER |
PIT SIZE (L/W/H) |
| UPPER |
LOWER |
L |
W |
H |
| DCQ6-0.55 | 6 | 2000X2000mm | 400mm | 300mm | 250mm | 0.75kw | 2080mm | 2040mm | 600mm |
| DCQ8-0.55 | 8 | 2000X2000mm | 400mm | 300mm | 250mm | 0.75kw | 2080mm | 2040mm | 600mm |
| DCQ10-0.55 | 10 | 2000X2000mm | 400mm | 300mm | 250mm | 0.75kw | 2080mm | 2040mm | 600mm |
4 Enterprise Overview
We are a large-scale professional and standardized machinery manufacturing enterprise integrating R&D, manufacturing and sales. Our facility features automated cutting equipment, automated welding equipment, shot blasting lines, spraying lines, and welding robots to ensure modernized production and high-quality output.
Frequently Asked Questions
Q: What is the load capacity of your dock levelers?
Our standard dock levelers support a load range of 6 tons to 15 tons, depending on the specific model and customer requirements.
Q: What materials are used in the construction of the ramp?
We use high-strength steel for the main and secondary beams to ensure maximum durability and safety during heavy-duty loading operations.
Q: Are the dock levelers certified for international markets?
Yes, our products carry GS, CE, RoHS, and ISO 9001 certifications, meeting rigorous international quality and safety standards.
Q: Can the color and size be customized?
Absolutely. We can adjust dimensions and provide custom colors based on our customers' specific operational requirements and branding.
Q: What kind of driving mechanism is used?
The units utilize a high-performance hydraulic system, providing smooth and reliable adjustment for warehouse and dock logistics.
Q: What are the safety features included?
Features include explosion-proof capabilities, insulating properties, and high-strength guardrails to ensure a safe working environment.
