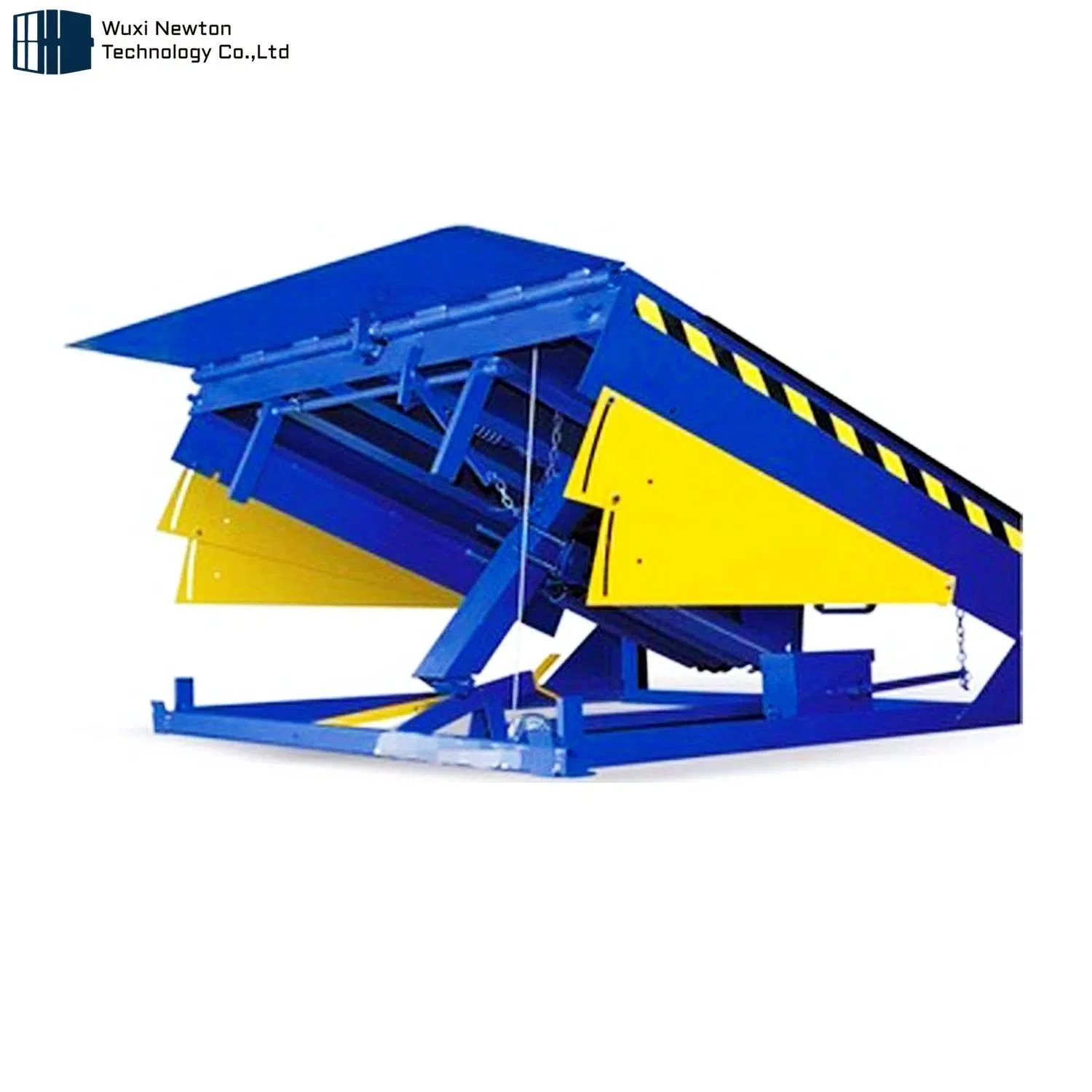

Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
1 / 5
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop
Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop

Electric Small Mechanical Type Edge Dock Leveler Swing Lip Dock Leveler for Machinery Repair Shop

Customization: Available
After-sales Service: Available
Warranty: 5 Years
Send Inquiry

Product Description

Basic Information
Model NO.
NTDL
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Logistics
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Certification
ISO 9001
Product Name
6~15 Ton Container Forklift Loading Dock Equipment
Loading Capacity
10000kg
Table Size
2.0*2.0m
Upper Plate
8mm Thickness Steel
Working Range
-300 to +350mm
Motor Power
0.75kw
Safety System
Self-Locking, Lip Emergency Stop
Product Overview
Dock Leveler Overview
In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.

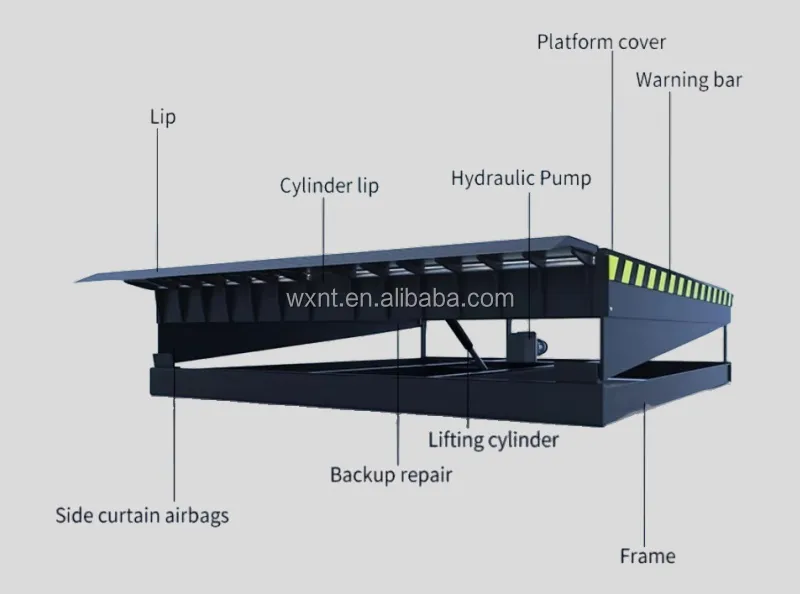

Product Structure
Product Structure

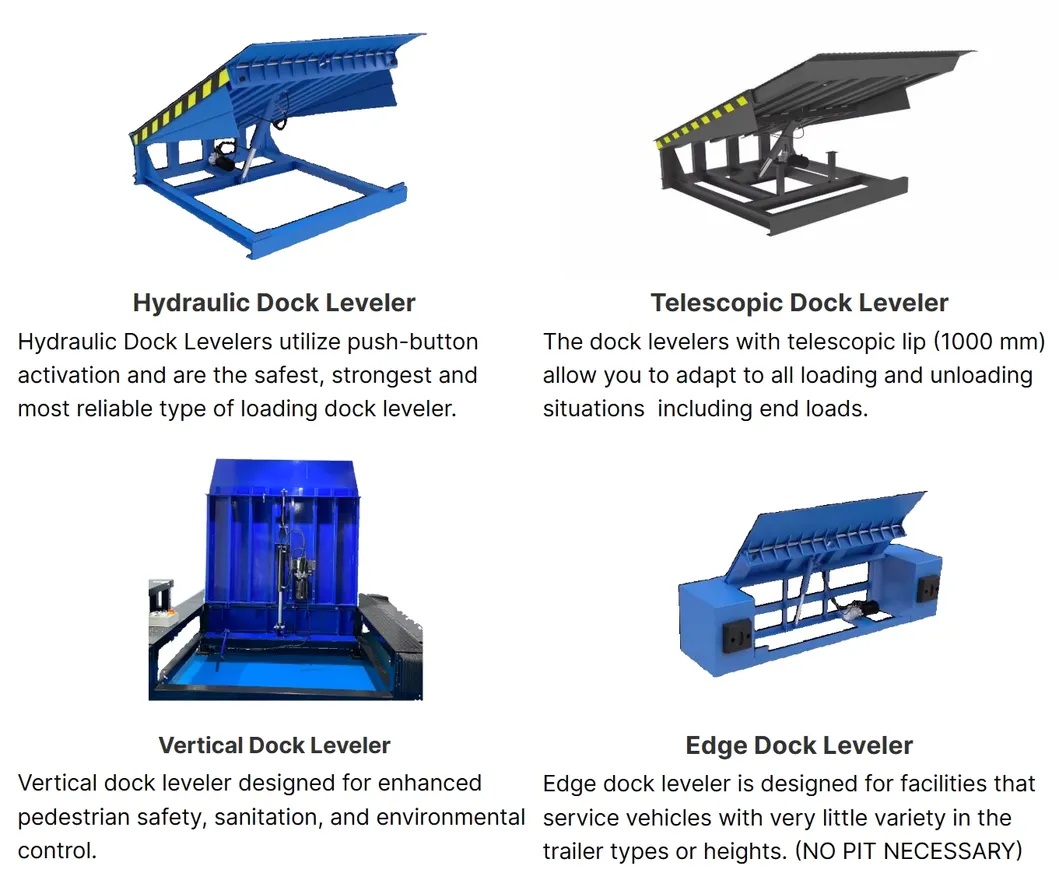

Product Type
Product Type
Technical Specifications

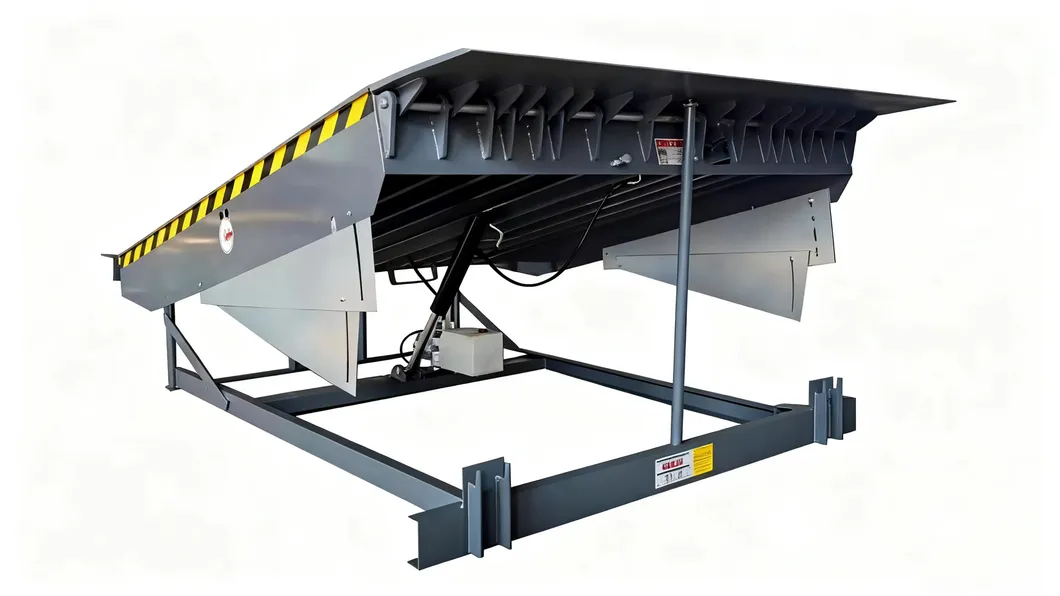

Spec Detail 1

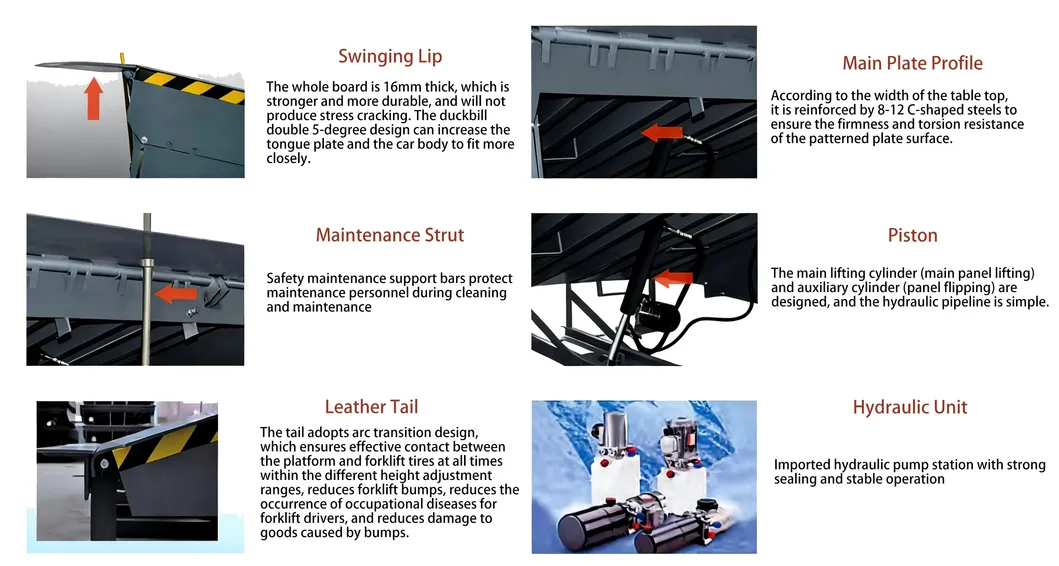

Spec Detail 2
Feature Standard Specification Feature Standard Specification
Standard Size (W*L*H) 2000*2000*500mm Dynamic/Static Load 6000kg/10000kg
Height Adjustment +350mm/-300mm Main Panel 8mm thick anti-slip steel plate
Lip Plate 16mm thickness non-slip steel Standard Colors Dark gray/black
Connected Shaft Diameter 28mm Adjusting Time ≤ 30 seconds
Bone Structure 10X14#"C" STEEL Powertrain Hydraulic power pump station
Oil Tank Capacity 5L Electric Control Box 24V low voltage, IP65 grade

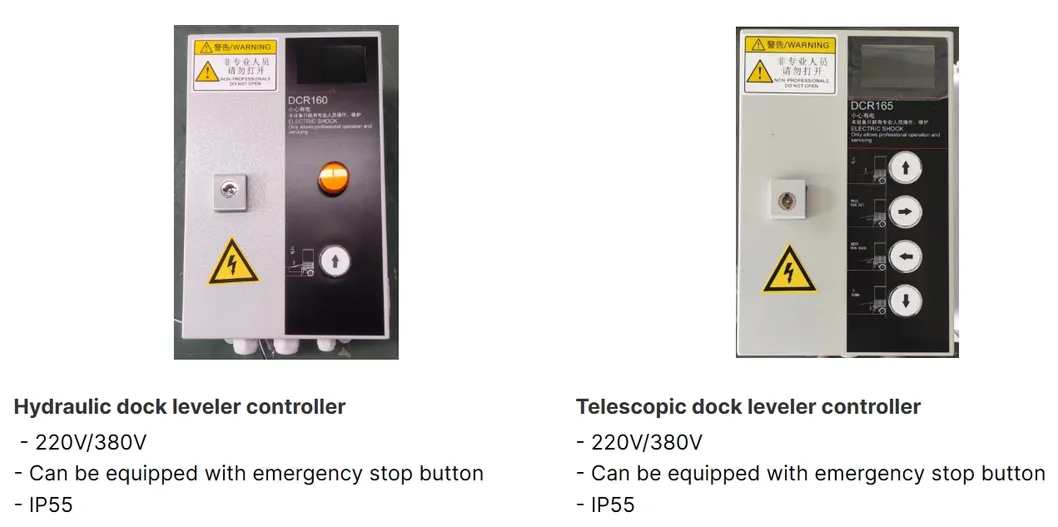

Control System
⚙ CPU integrated control system, with screen display, showing running status, running times, fault code and interlock, linkage expansion function.
Control System

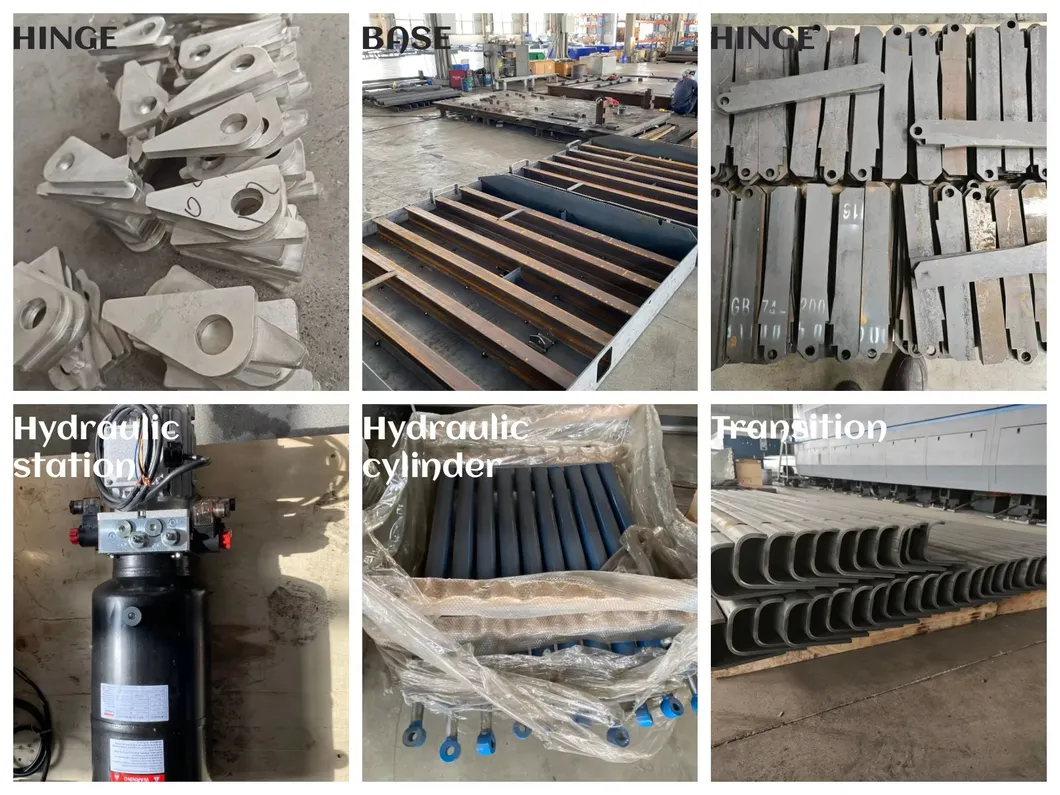

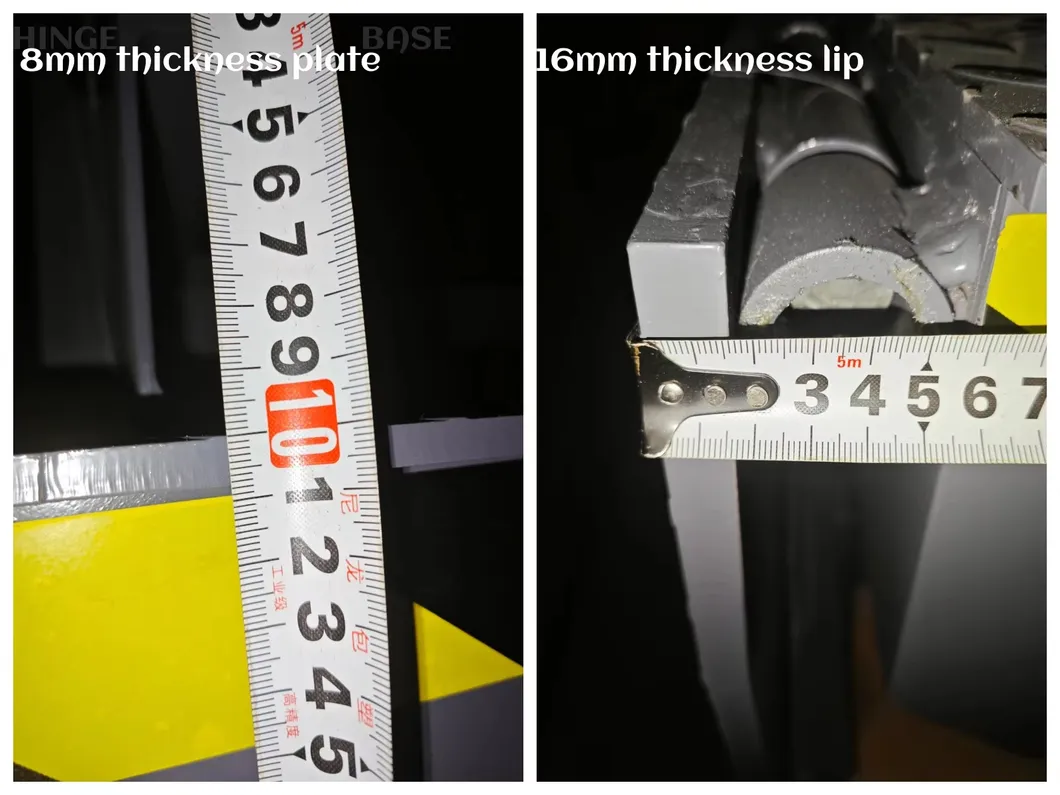

Spare Parts Details
Spare Part 1
Spare Part 2

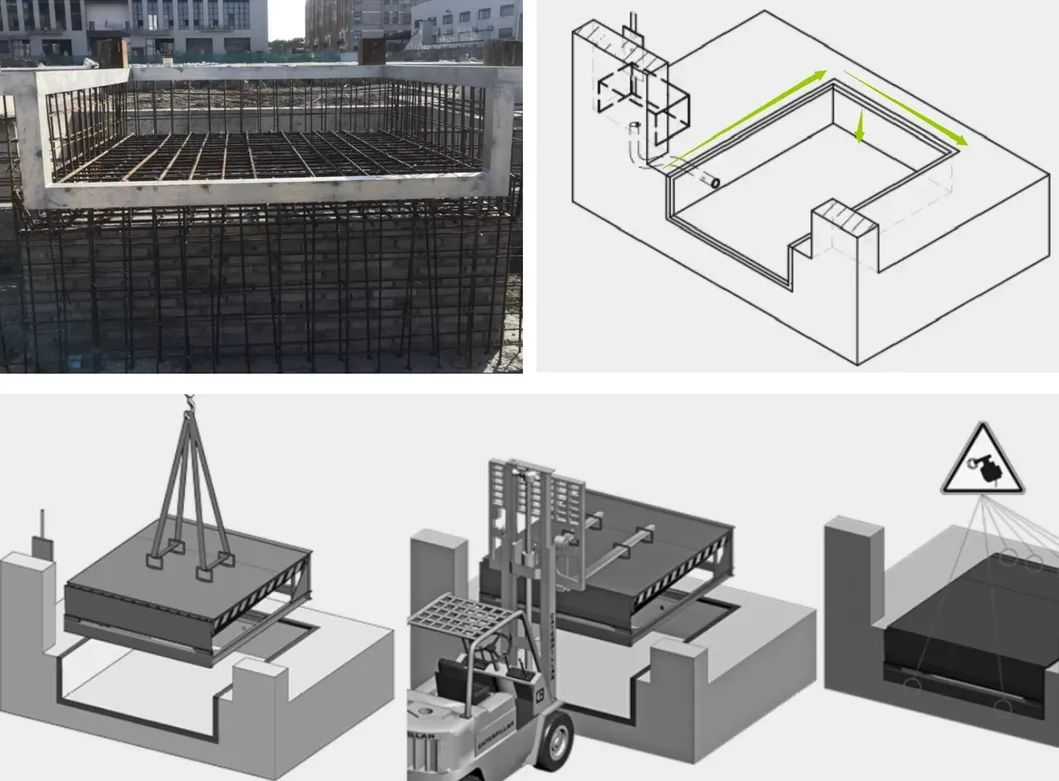

Quick Installation
✔ Our dock leveler is easy for the installation. We provide CAD drawings to prepare the pithead accordingly, alongside instruction manuals and online technical support.
Installation Guide

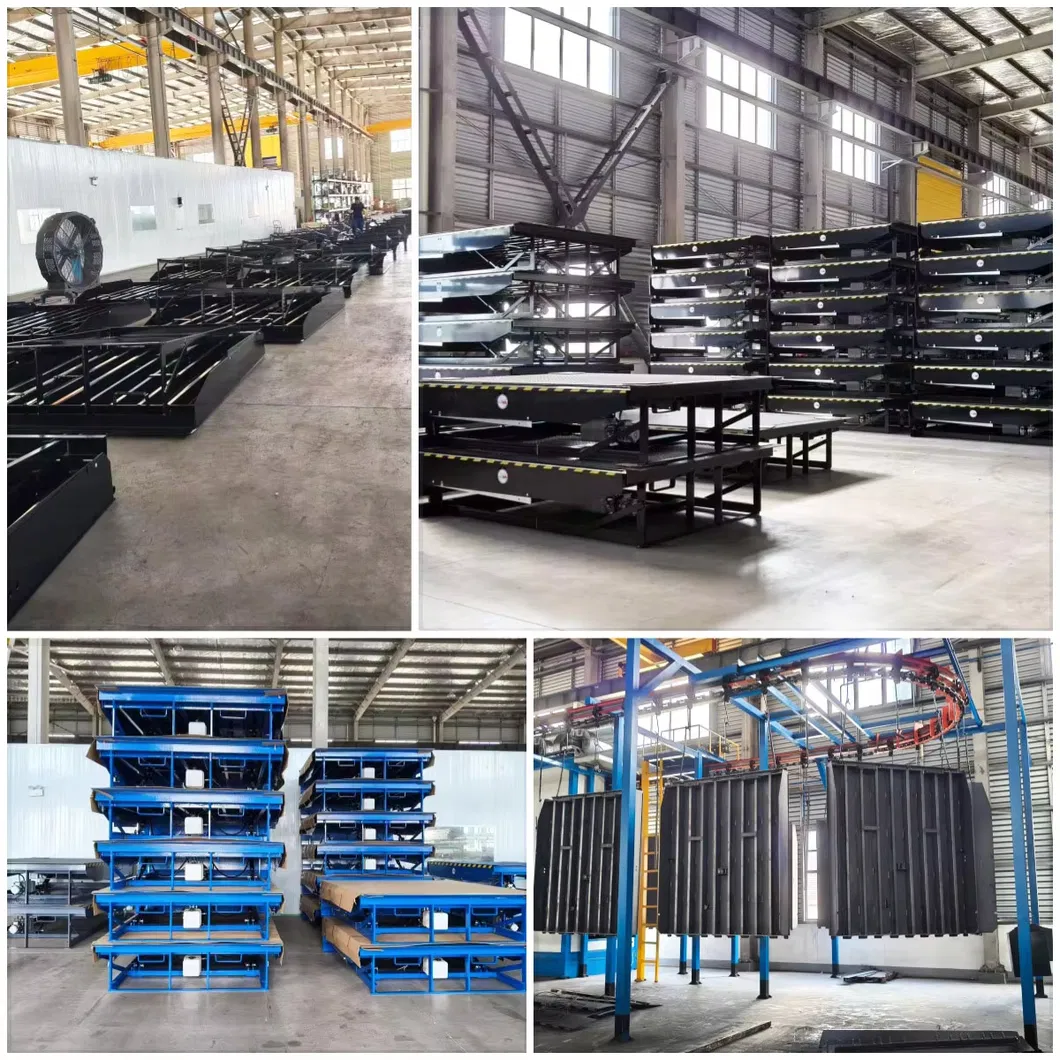

Workshop Display
Workshop 1
Workshop 2
Workshop 3
Workshop 4
Workshop 5
Workshop 6
Frequently Asked Questions
Q1: Are you the manufacturer?
A: Yes, we are the manufacturer in this industry for more than 20 years and have cooperated with customers worldwide.
Q2: What is your main product?
A: Our products include industrial folding doors, commercial doors, sectional garage doors, high-speed PVC doors, hydraulic dock levelers, and different types of dock shelters.
Q3: Is customization available?
A: Yes, we provide customization services tailored to your specific requirements.
Q4: Can I get a sample?
A: Yes, we can provide free samples; however, the shipping cost is on your side.
Q5: What is the lead time?
A: Normally, our lead time is 15-20 days upon receiving the deposit.
Q6: What is the payment term?
A: We accept TT, with a 30% deposit and the 70% balance paid against the Bill of Lading.
