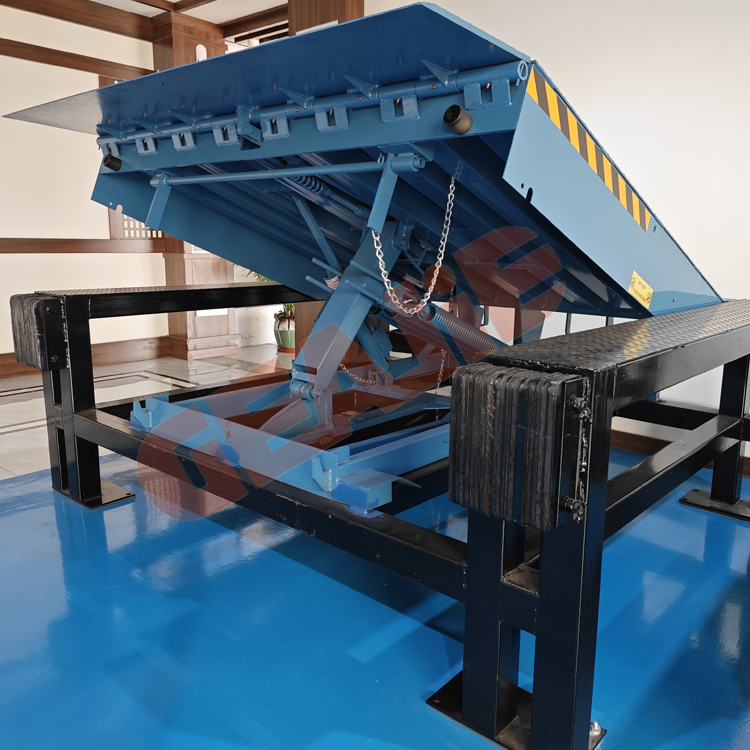

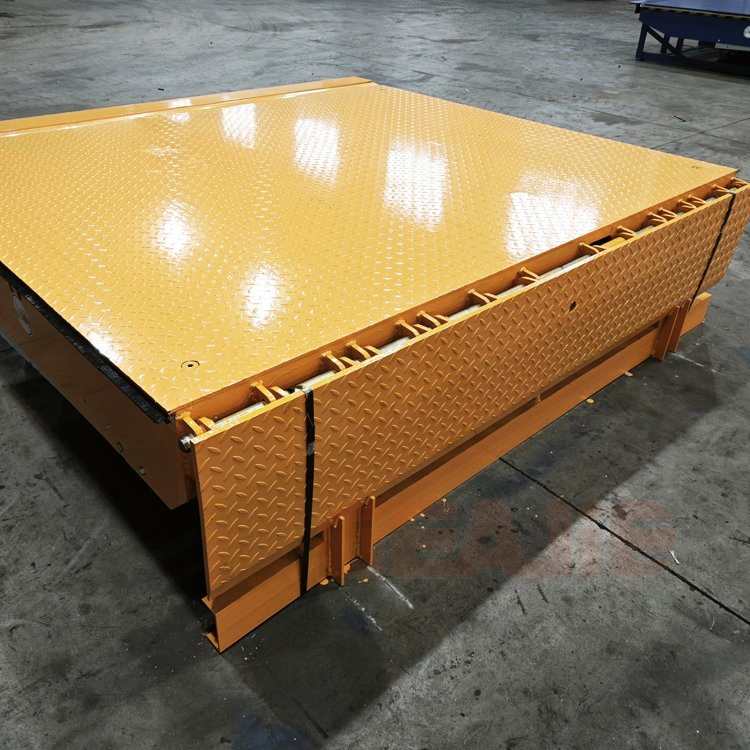

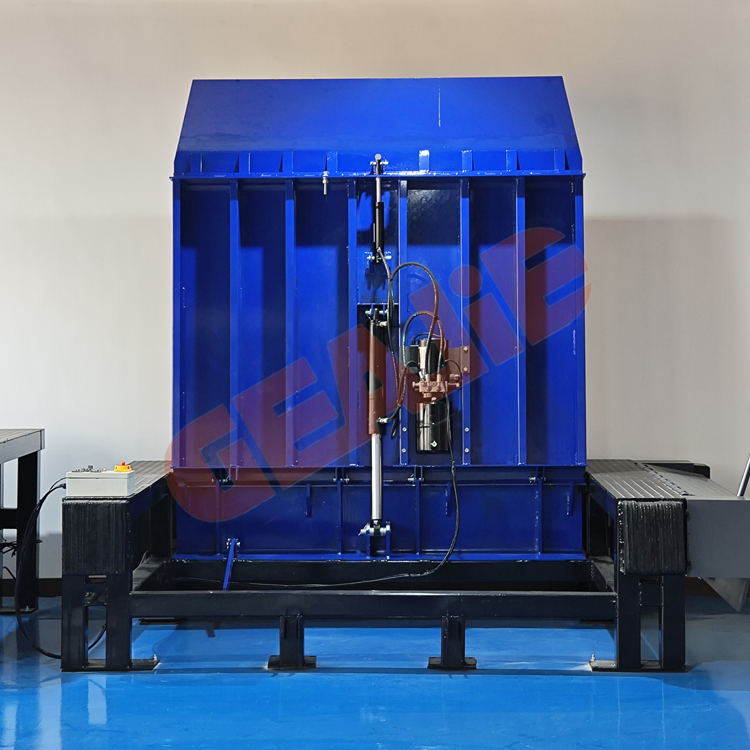

Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
1 / 5
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler
Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler

Hot Sale High Quality 6ton 8ton 10ton Stationary Mechanical Dock Leveler

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
DL09
Application
Warehouse Crane, Charge and Discharge
Lift Mechanism
Articulated Lift
Capacity
10000kg (Weight Level)
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating
Certification
CE, RoHS, ISO 9001, AAA
Power Supply
380V/0.75kw
Hydraulic Unit
Swiss Bucher Hydraulic System
Working Range
-300 to +350mm
Dock Leveler Overview
Product Description

Electric Hydraulic Dock Leveller - High-efficiency solution for logistics unloading ports, designed for quick and safe loading and unloading operations.

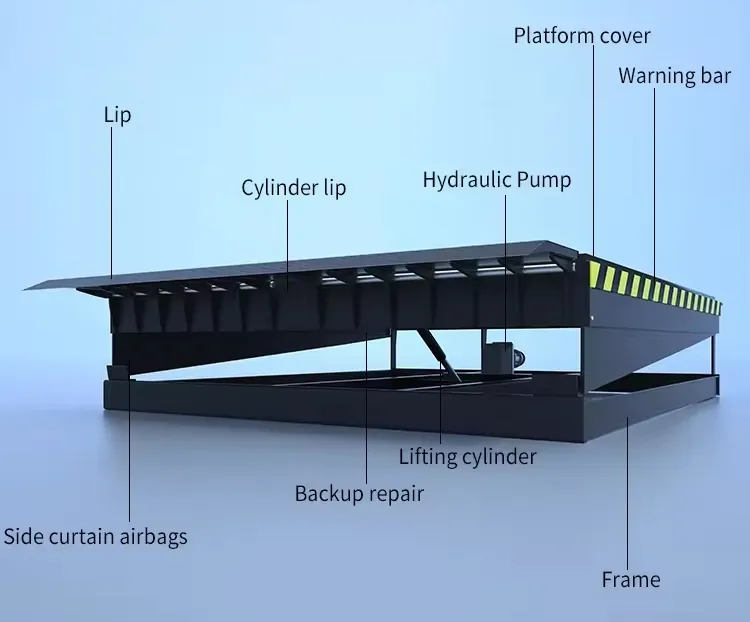

Electric Hydraulic Dock Leveller
Product Show
Product View 1

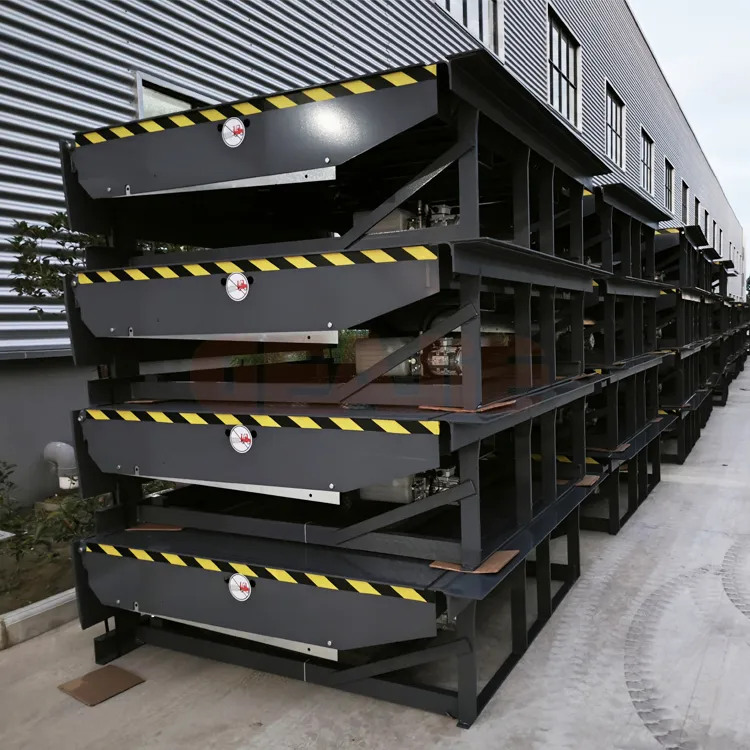

Product View 2

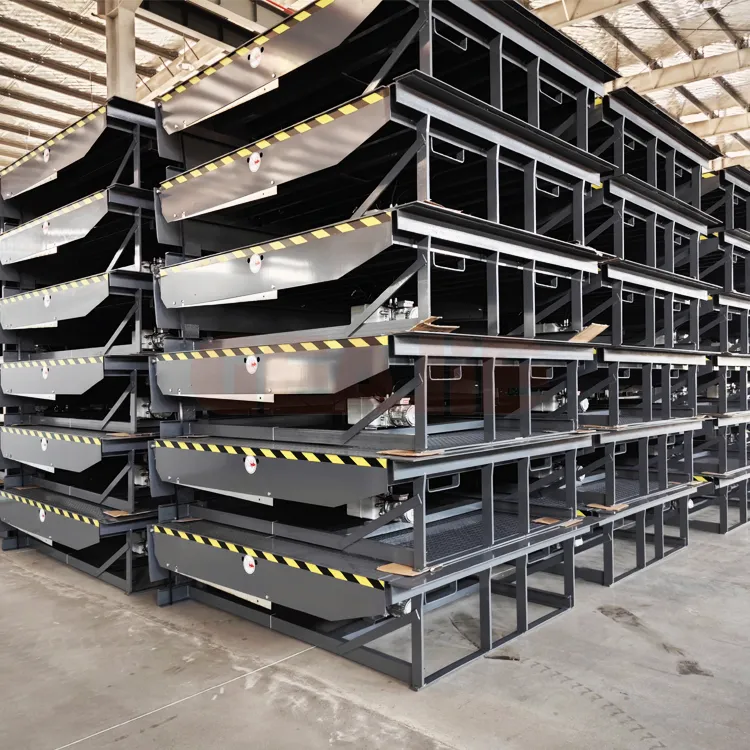

Product View 3

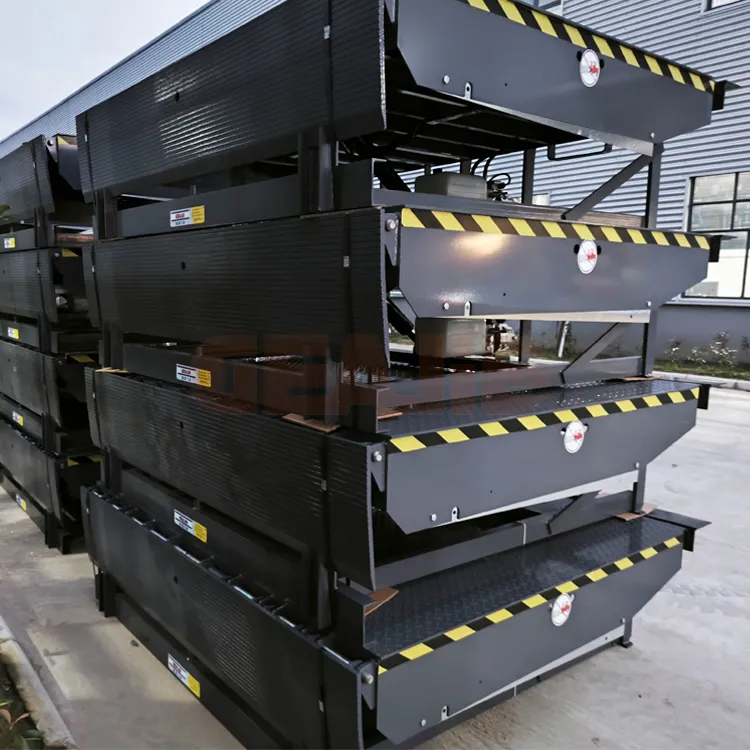

Product View 4

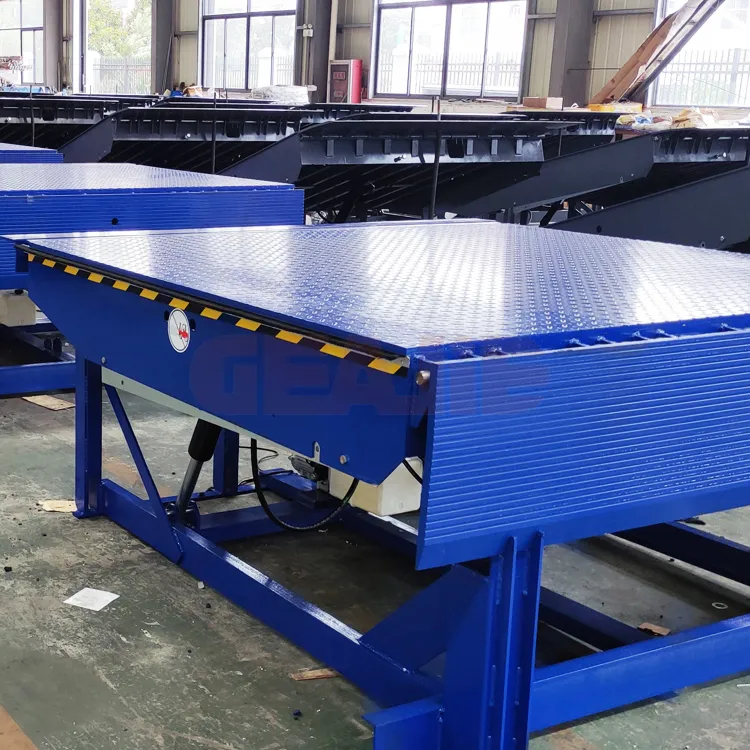

Product View 5
Material Specifications
FeatureDetails
Application EnvironmentLogistics unloading port
Load Capacity6-25 tons
Standard Widths (W)1830mm, 2000mm, 2130mm
Standard Lengths (L)2000mm, 2500mm, 3000mm, 3500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate with bottom reinforcement
Lip Thickness14mm, 16mm, or 20mm high-strength anti-slip pattern steel
Security ConfigurationAnti-fall function, anti-pinch protection, maintenance support rod, night self-locking
Structural Drawing & Components

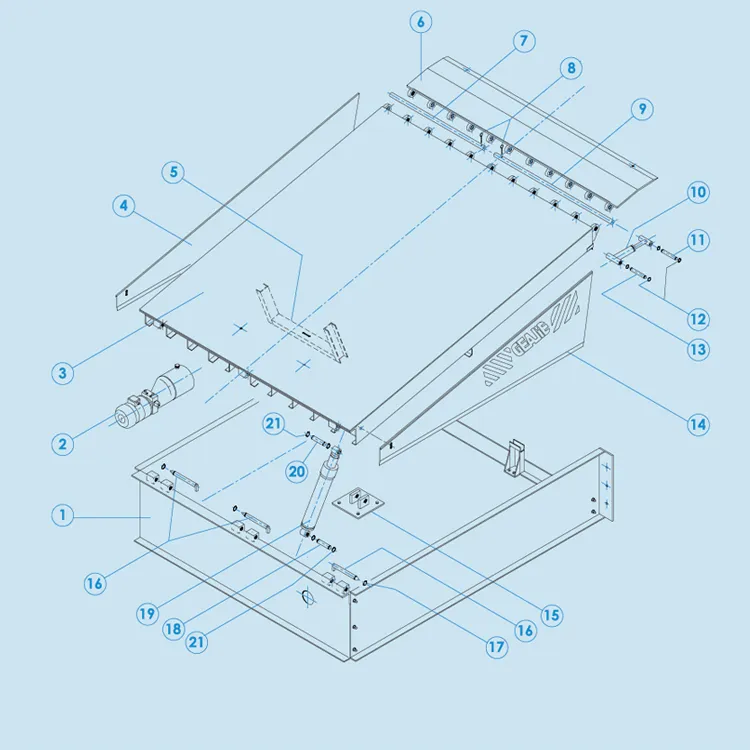

Structural Drawing
1. Mould12. Seeger straight pins of the lip
2. Hydraulic control unit13. Straight Pin body of the body
3. Upper plate14. Right foot guard
4. Left foot guard15. Flange fixing - upper plate cylinder
6. Swinging lip19. Upper plate cylinder
10. Cylinder of the lip20. Upper plate cylinder shaft pin

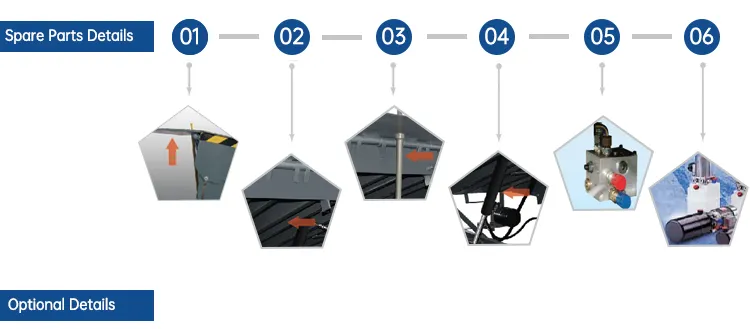

Technical Specifications
Product Advantages
✔
Multiple Types: Available in hydraulic, pneumatic, and mechanical types to suit various requirements.
✔
Durable Material: Made of heavy-duty steel with anti-corrosion treatment for long-term durability.
✔
High Safety: Equipped with anti-slip surfaces, safety barriers, and sensors to protect personnel.
✔
Adjustability: Flexible height adjustment to accommodate different truck and dock levels.
✔
Easy Operation: Automated control systems (buttons/remotes) enhance operational efficiency.
Application Advantage
Manufacturing Facility
Factory 1

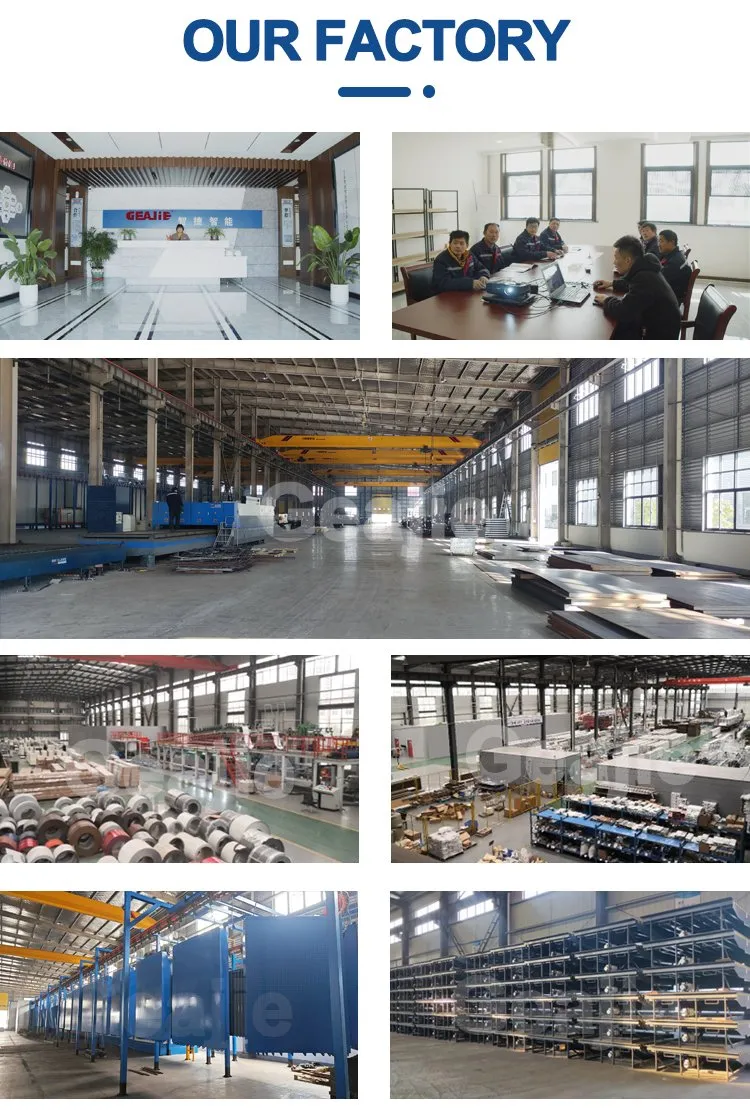

Factory 2

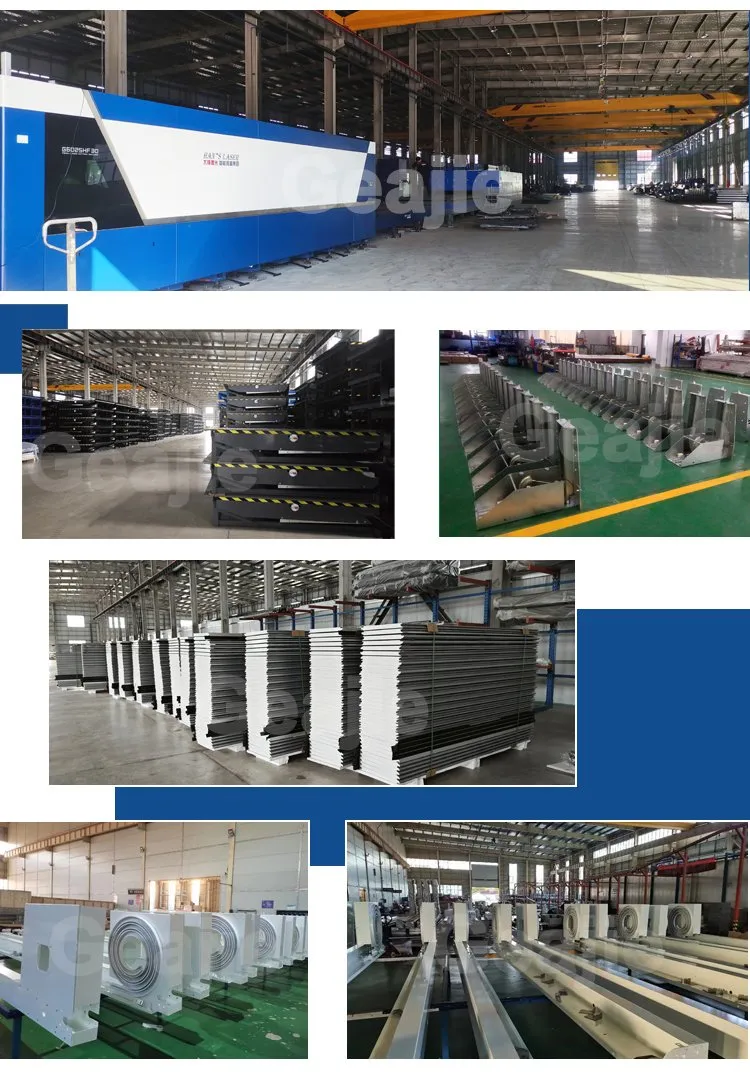

Factory 3
Production Line
Workshop
Quality Control
Frequently Asked Questions
Q1: What is the minimum order quantity (MOQ)?
A: 1 set is acceptable.
Q2: What is the maximum available size for the doors/platforms?
A: The maximum length can be 6.5M and the maximum width is 6M, which is adjustable.
Q3: Do you provide installation support?
A: Yes, our products are designed to be very easy to install.
Q4: Where are dock levelers typically used?
A: They are commonly used at factory outlets and outgoing ports of logistics parks.
Q5: What is the main benefit of using a dock leveler?
A: It significantly improves the efficiency of cargo handling and makes loading/unloading goods much easier and safer.
Q6: Are OEM services available?
A: Yes, OEM is highly welcomed and we provide professional services to meet your specific requirements.
