Mechanical Dock Leveler Warehouse Equipment Hydraulic Dock Leveller

Customization: Available
After-sales Service: Free Spare Parts Will Be Provided for Any Quality-
Warranty: Free Spare Parts Will Be Provided for Any Quality-

Product Description

Basic Specifications

Model NO.
TP-FD-01
Application
Workshop, Shipboard, Warehouse, Building Cranes
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Driven Type
Hydraulic
Certification
GS, CE, RoHS, ISO 9001
Power Source
AC Power
Load Capacity
1-10ton
Lifting Height
0.9m-1.5m
Material
High Strength Steel
Control System
CPU Integrated
Operating Temp
-25 ºC ~ + 50 ºC

Product Presentation

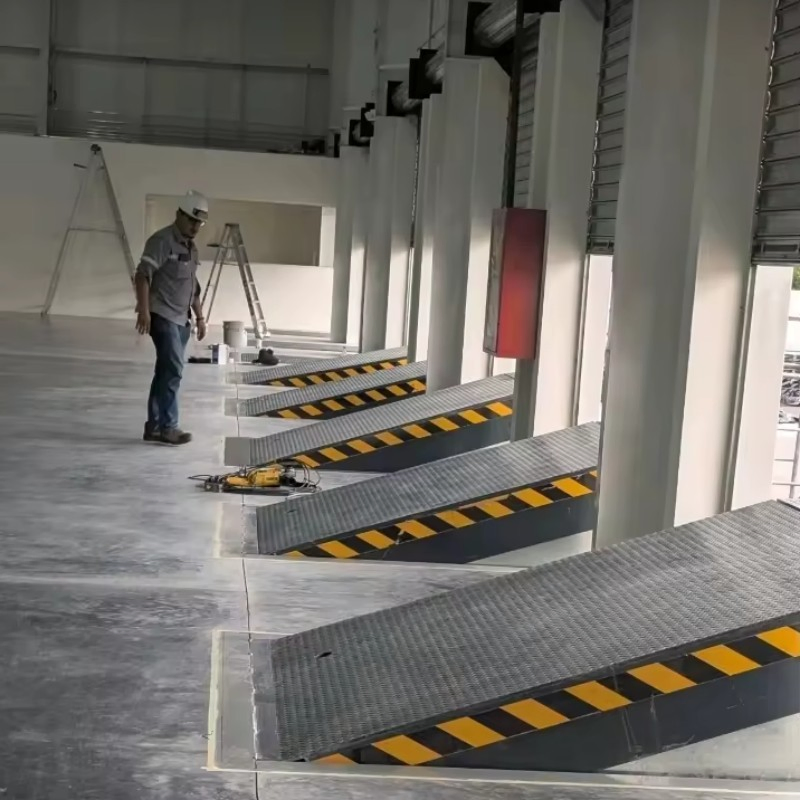

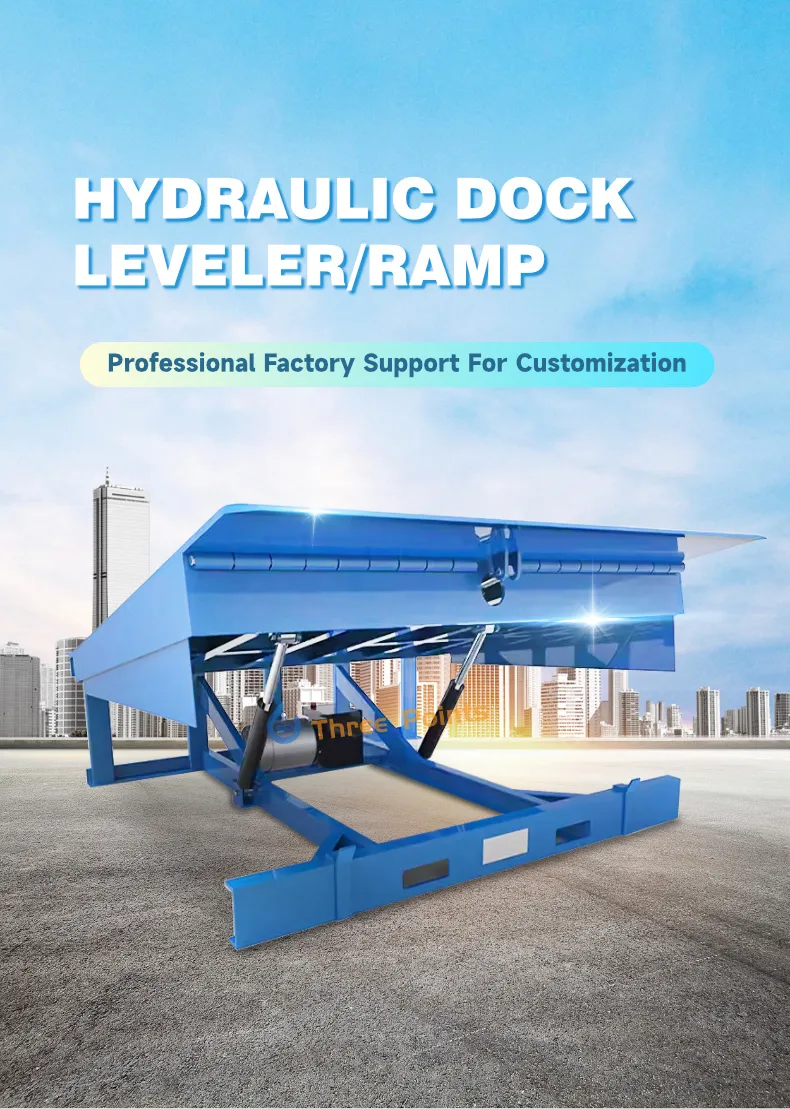

Stationary Dock Leveler for Warehouse | Custom Size | Electric or Manual Operation

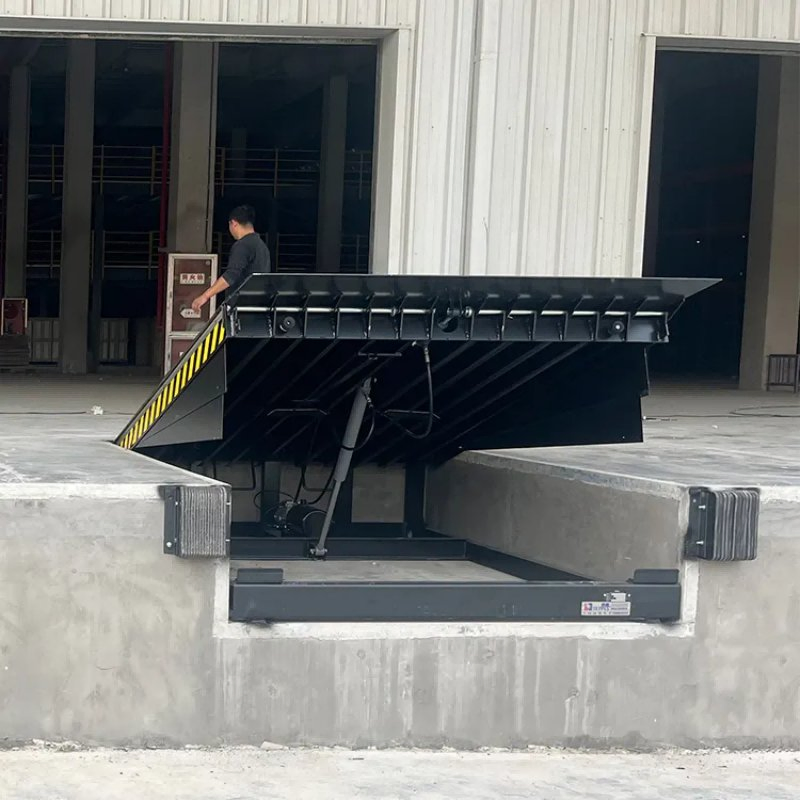

The hydraulic stationary dock leveler is a special auxiliary equipment used for loading and unloading of goods. Its height can be adjusted with the different heights of lorries. Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person for operating. The equipment can help reduce labor force, improve work efficiency and speed up the rate of goods flow, so as to achieve greater economic results.

Visual Overview

Technical Parameters

Model Number Load (T) Platform Size (mm) Overall Size (mm) Power
8A82000*20002000*2000*6001.1kw/380v
8B82000*25002000*2500*600
8C82000*30002000*3000*600
10A102000*20002000*2000*600
10B102000*25002000*2500*600
10C102000*30002000*3000*600
12A122000*20002000*2000*6001.1kw/380v
15A152000*20002000*2000*600
20C202000*30002000*3000*600

About the Manufacturer

We are a professional manufacturer specializing in hydraulic lifting platforms, with a strong focus on quality, innovation, and customer satisfaction.

Our factory covers 8,000 square meters and is equipped with advanced production lines and strict quality control systems to ensure reliable and safe performance of every product. We offer a wide range of lifting equipment, including Scissor lifts, Dock ramps, Cargo lifts, and Aerial work platforms.

All our products comply with CE standards and are widely used in factories, warehouses, logistics centers, and construction sites. With over 15 years of export experience, we have served customers in more than 100 countries across Europe, the Americas, Southeast Asia, and the Middle Middle East.

Frequently Asked Questions

What is the maximum load capacity of the stationary dock leveler?
The stationary dock leveler supports a wide range of load capacities, typically from 1 ton up to 20 tons depending on the specific model and requirements.
What power source is required for operation?
The standard equipment uses AC Power (typically 380V/1.1kw), but configurations can be adjusted based on specific industrial power standards.
Can the platform size be customized?
Yes, we provide custom sizes to fit different warehouse dock dimensions. Common sizes include 2000*2000mm and 2000*2500mm.
What certifications do your lifting products carry?
Our products are fully compliant with international standards and carry GS, CE, RoHS, and ISO 9001 certifications.
What is the operating temperature range for the hydraulic system?
The equipment is designed to operate reliably in environments ranging from -25 ºC to +50 ºC.
Are the safety features included?

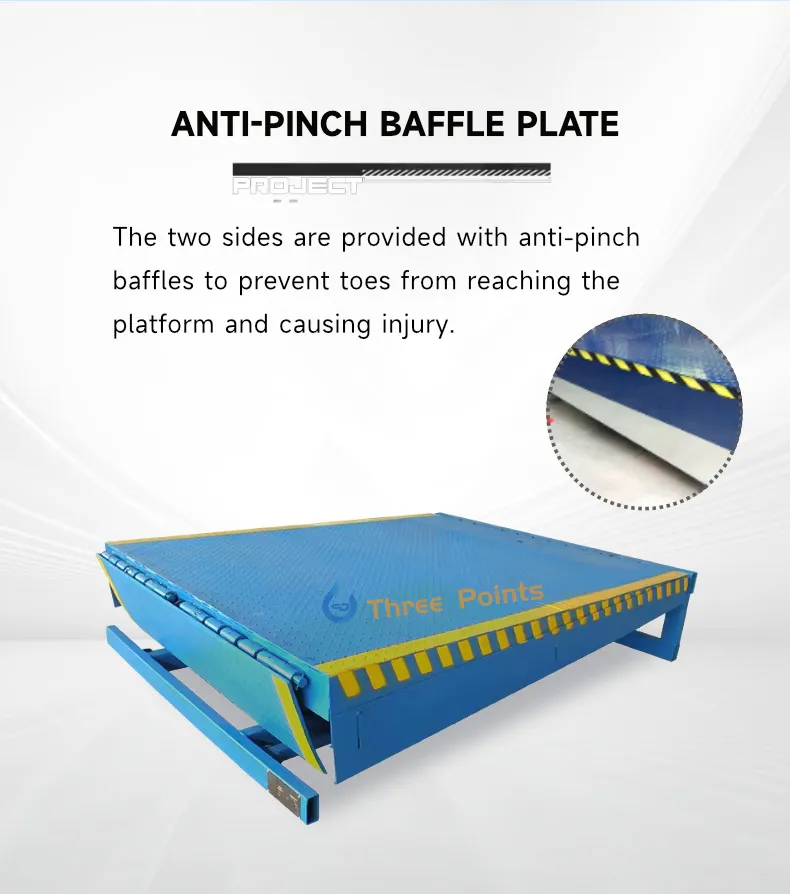

Yes, features include an anti-skid diamond plate platform, explosion-proof valves, and high-strength safety guard boards.
