Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
1 / 5
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler
Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler

Mechanical Warehouse Hydraulic Electric Cargo Lift Forklift Loading Ramp Hydraulic Dock Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

📊 Basic Information
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
Origin
Made in China

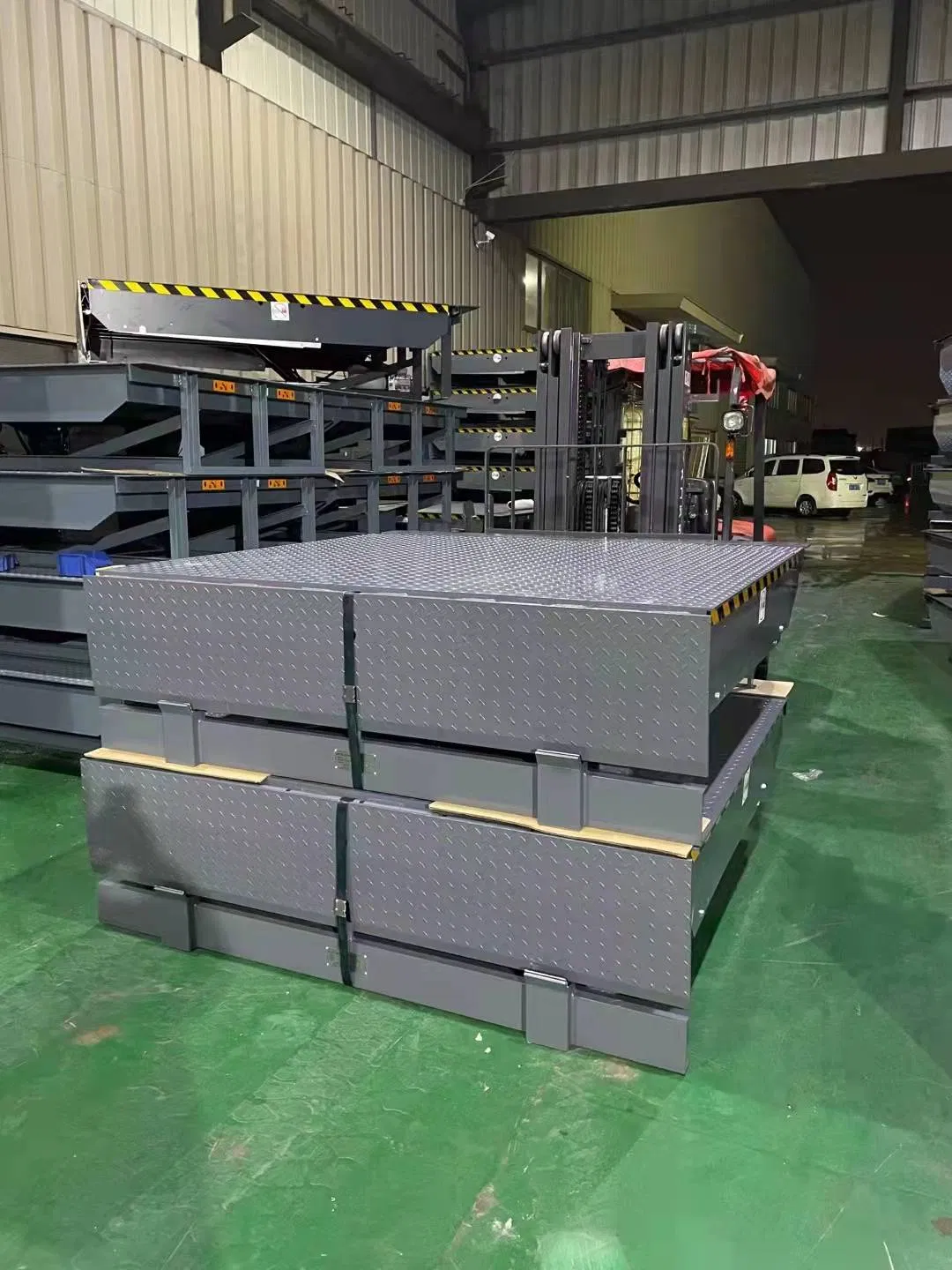

📦 Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
🖼️ Product Gallery

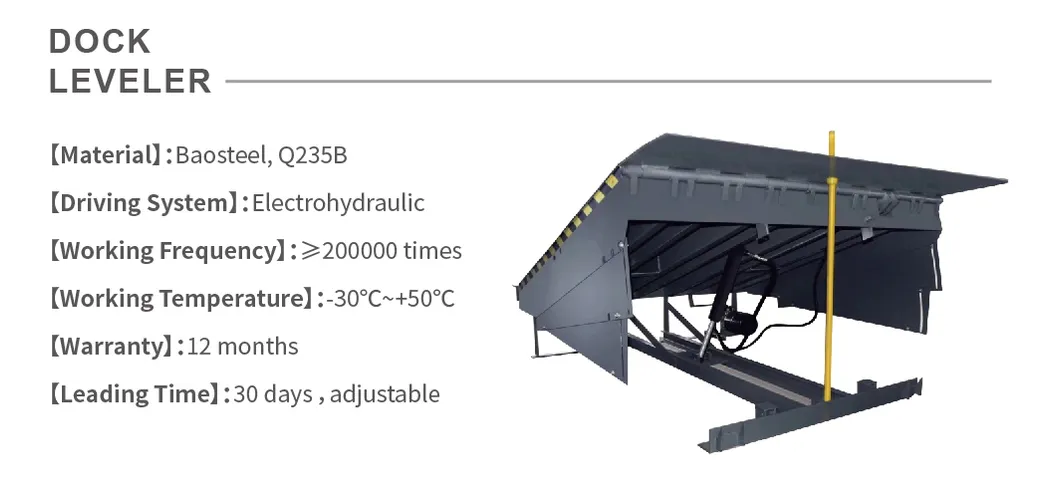

Hydraulic Dock Leveler 1

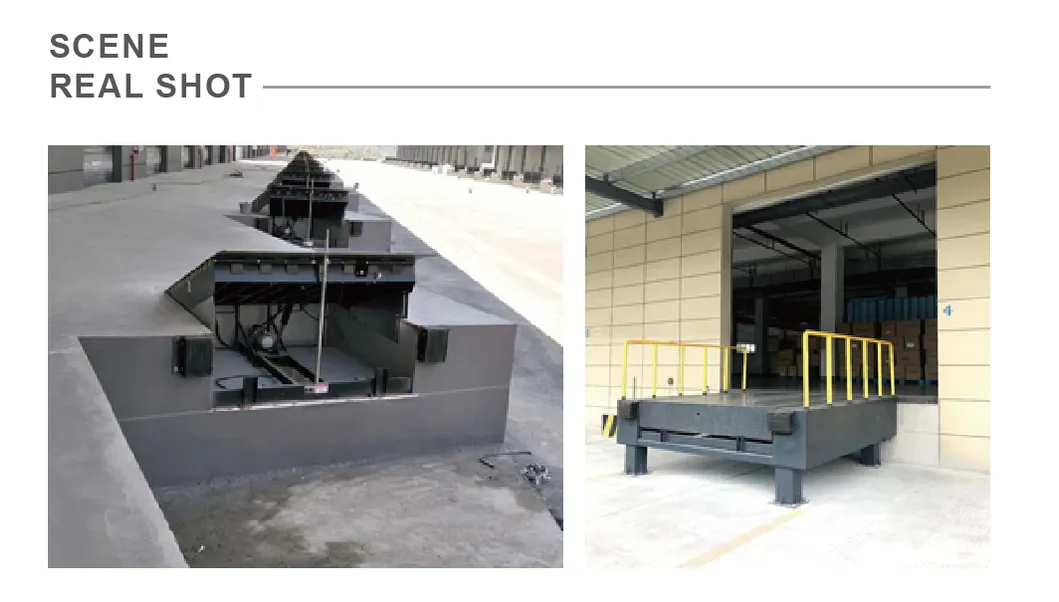

Hydraulic Dock Leveler 2

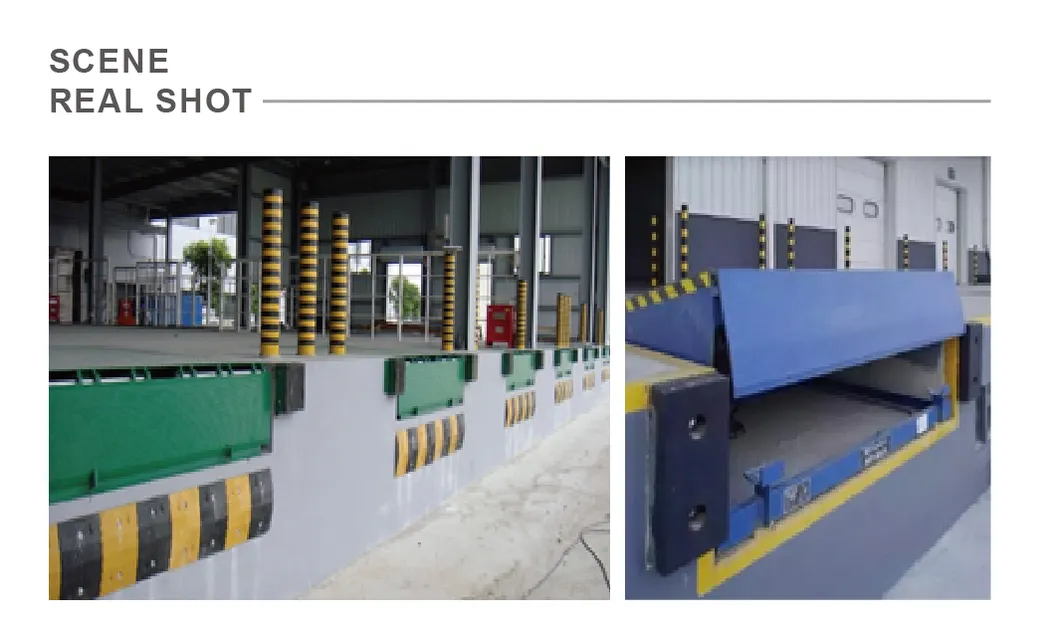

Hydraulic Dock Leveler 3
📝 Product Description

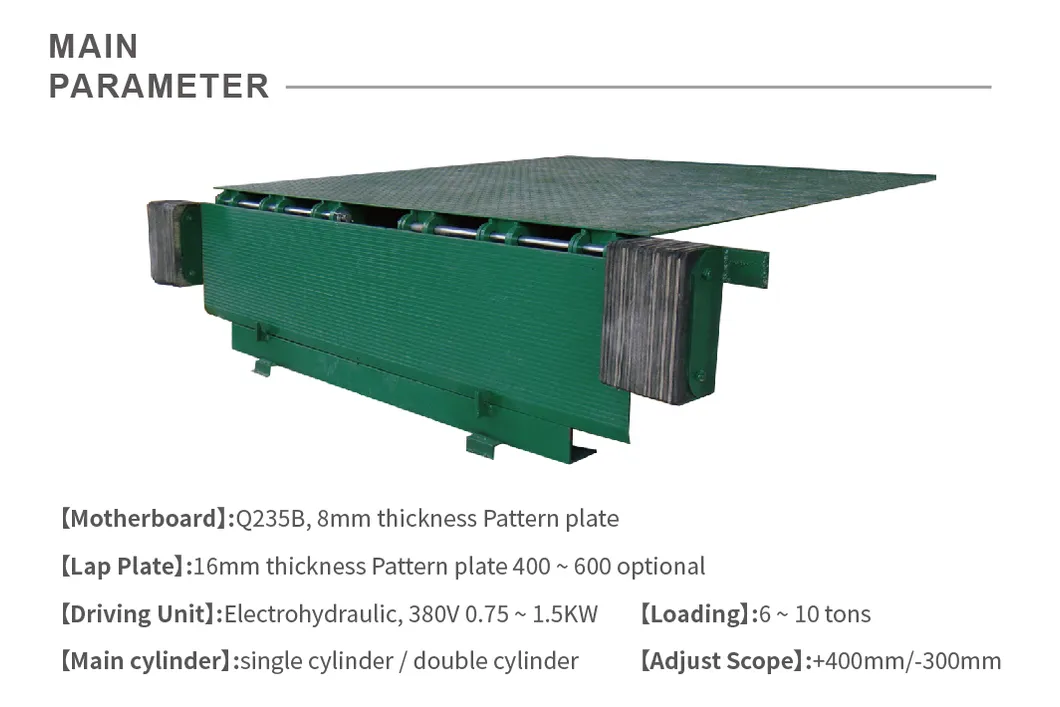

Cargo Lift Features

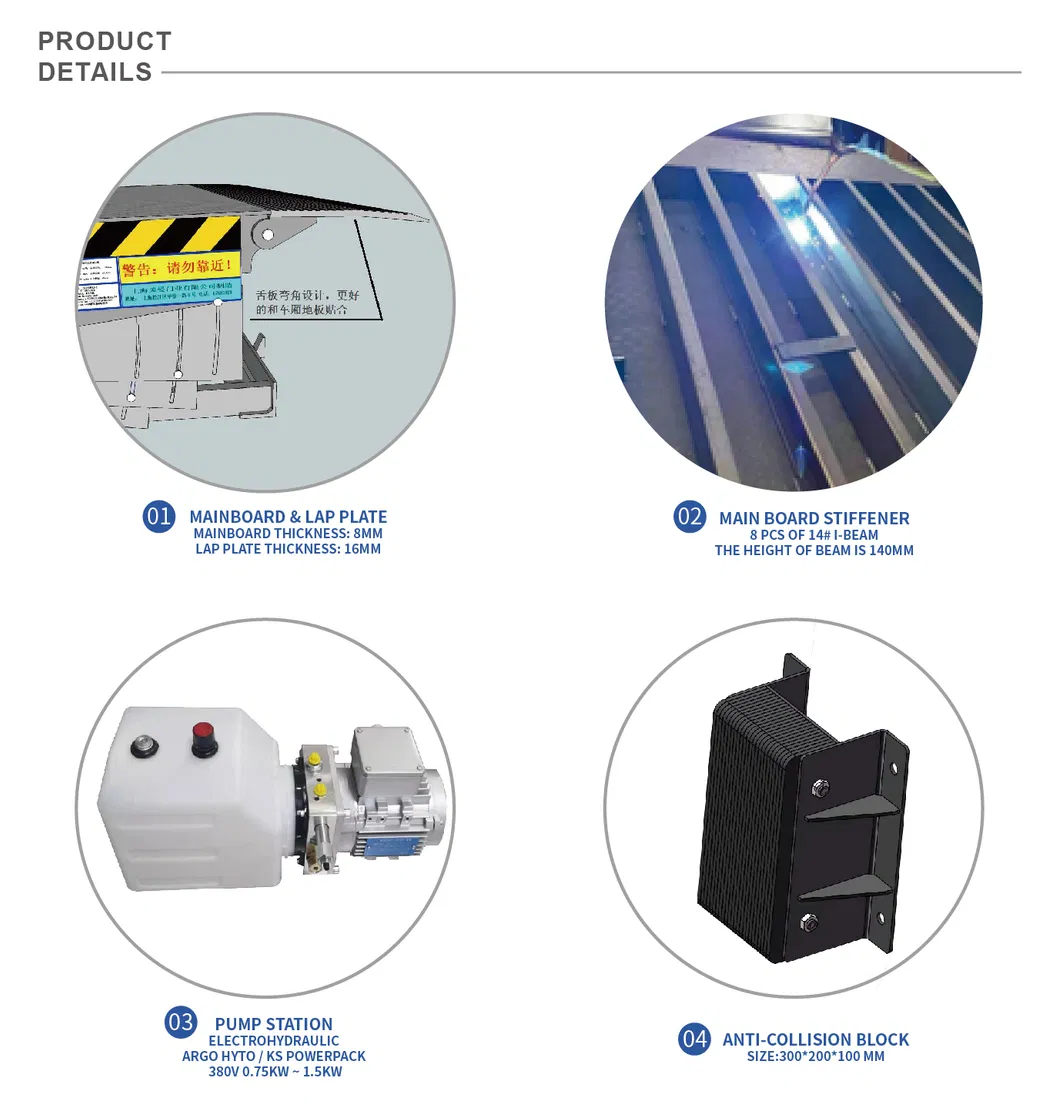

Dock Leveler Detail
Technical Parameters
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
DrivingElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Adjust Scope+400mm / -300mm
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main Board Stiffener8 pcs of 14# I-Beam, height of Beam is 140mm
Safety PartExplosion proof valve and automatic retraction side baffles
Working Temperature-30ºC ~ +50ºC
Working Frequency≥ 200,000 times
Technical Drawing
Installation Guide
❓ Frequently Asked Questions
1. What is the maximum load capacity of the hydraulic dock leveler?
The dynamic load capacity ranges from 6 tons to 15 tons, depending on the specific configuration chosen.
2. What materials are used for the main platform?
The main board is constructed from Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm or 8mm with powder coating for durability.
3. Does the dock leveler operate in extreme temperatures?
Yes, the equipment is designed to operate efficiently within a temperature range of -30ºC to +50ºC.
4. What safety features are included in this model?
It includes an explosion-proof safety valve, automatic retraction side baffles to ensure operator safety, and anti-collision bumpers.
5. What is the vertical adjustment range?
The dock leveler provides an adjustment scope of +400mm upwards and -300mm downwards to accommodate various truck heights.
6. What certifications does this product hold?
The product is fully certified with CE and ISO 9001 management standards, ensuring international quality compliance.

Related Products

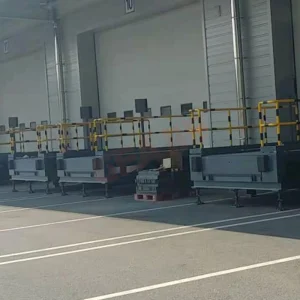

High Quality Hydraulic Price Mechanical Loading Equipment Dock Leveler

High Quality Hydraulic Price Mechanical Loading Equipment Dock Leveler

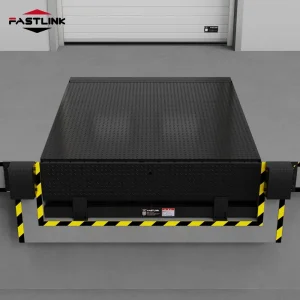

Fastlink Industrial Alloy Increased Safety Protection Automatic Mechanical Hydraulic Dock Leveler

Fastlink Industrial Alloy Increased Safety Protection Automatic Mechanical Hydraulic Dock Leveler
Custom Size Mechanical Dock Leveler with Anti-Corrosion Finish for Logistics Centers and Industrial Loading Dock

Custom Size Mechanical Dock Leveler with Anti-Corrosion Finish for Logistics Centers and Industrial Loading Dock

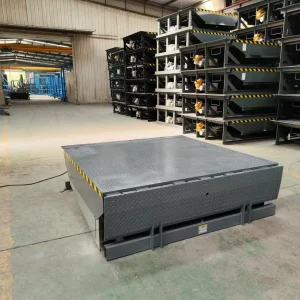

Hydraulic Lift Stationary Mechanical Fixed Truck Dock Leveler

Hydraulic Lift Stationary Mechanical Fixed Truck Dock Leveler
Loading & Unloading Adjustable Stationary Lifting Hydraulic Mechanical Dock Leveler Yard Ramp Crane

Loading & Unloading Adjustable Stationary Lifting Hydraulic Mechanical Dock Leveler Yard Ramp Crane
Fastlink High Quality Wholesale Industrial Electric Alloy Metal Stable Mechanical Hydraulic Dock Leveler

Fastlink High Quality Wholesale Industrial Electric Alloy Metal Stable Mechanical Hydraulic Dock Leveler

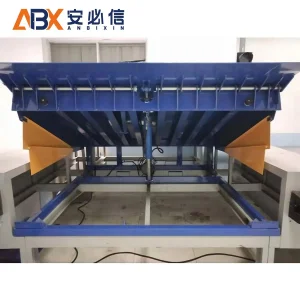

Cost Effective Mechanical Dock Leveler Solution for Budget Warehouse Projects

Cost Effective Mechanical Dock Leveler Solution for Budget Warehouse Projects

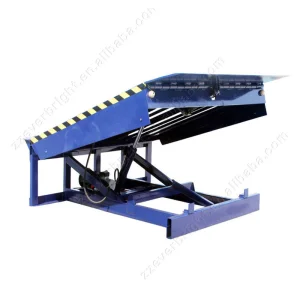

Electrical Hydraulic Dock Leveler Mechanical Loading Dock Levelers Suppliers

Electrical Hydraulic Dock Leveler Mechanical Loading Dock Levelers Suppliers

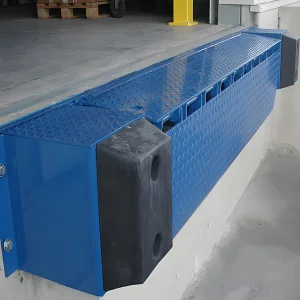

Stationary Fixed Mechanical Edge Dock Leveler for Loading Bay in Warehouse

Stationary Fixed Mechanical Edge Dock Leveler for Loading Bay in Warehouse

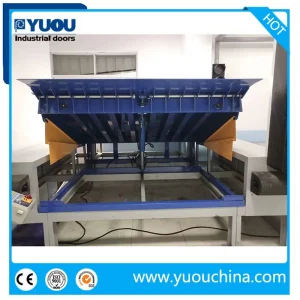

Blasting-Proof Adjustable Electric Wharf Mechanical Warehouse Loading Dock Ramp Leveler
