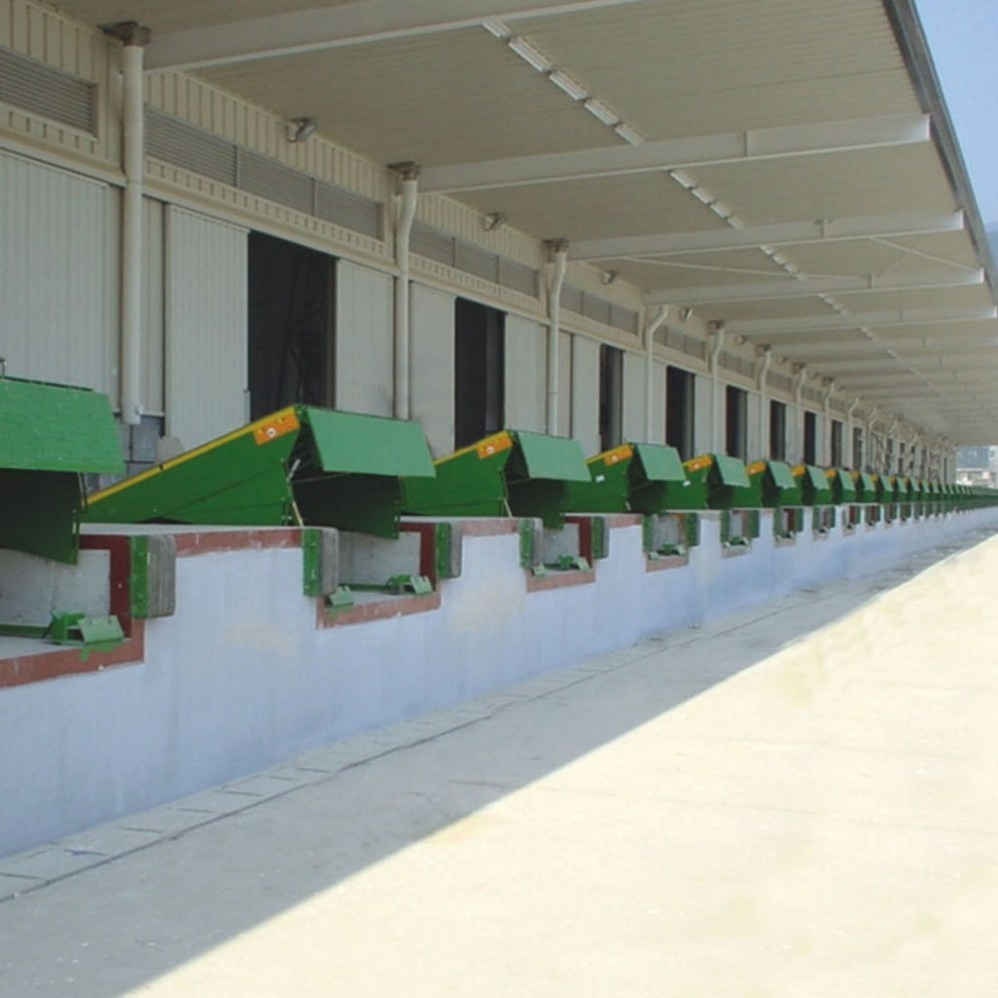

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.
We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

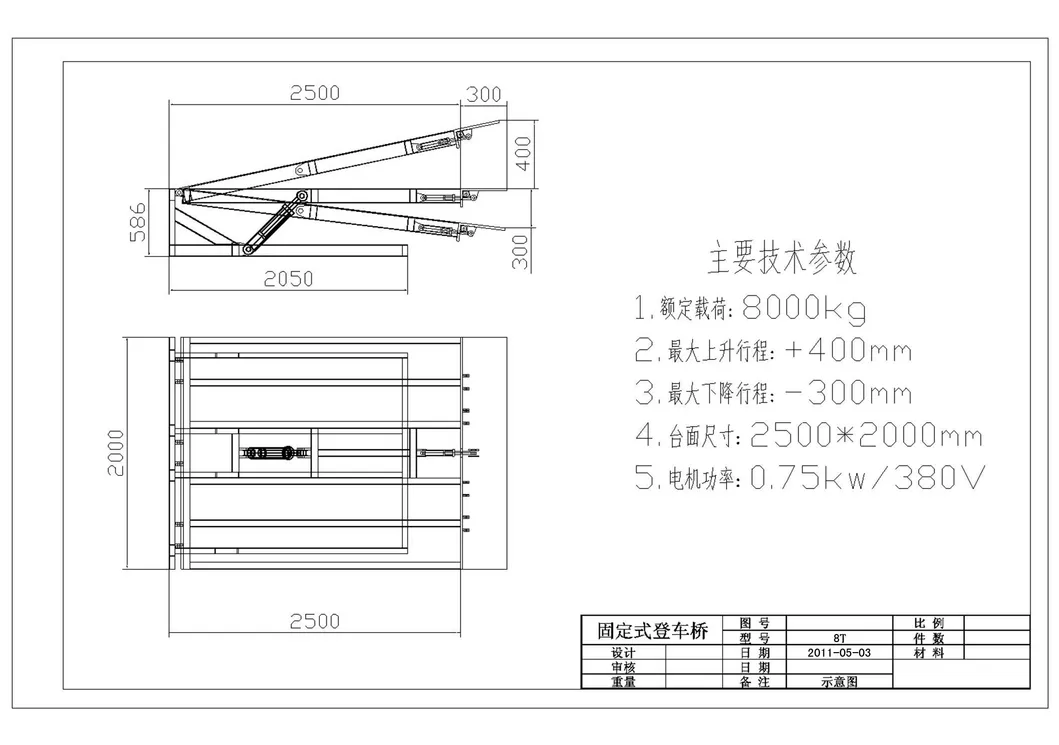

| Model | Capacity (T) | Platform Size | Distance | Lip board size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |

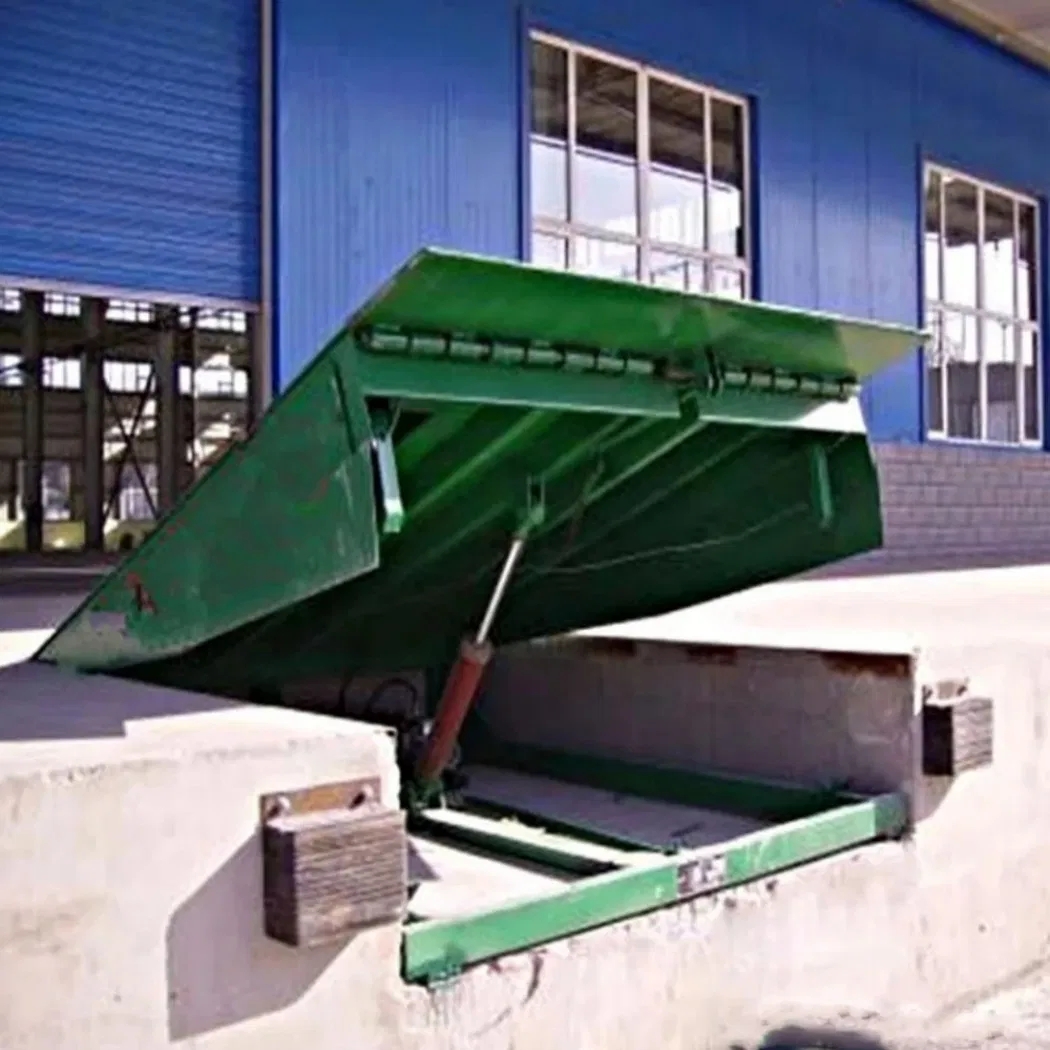

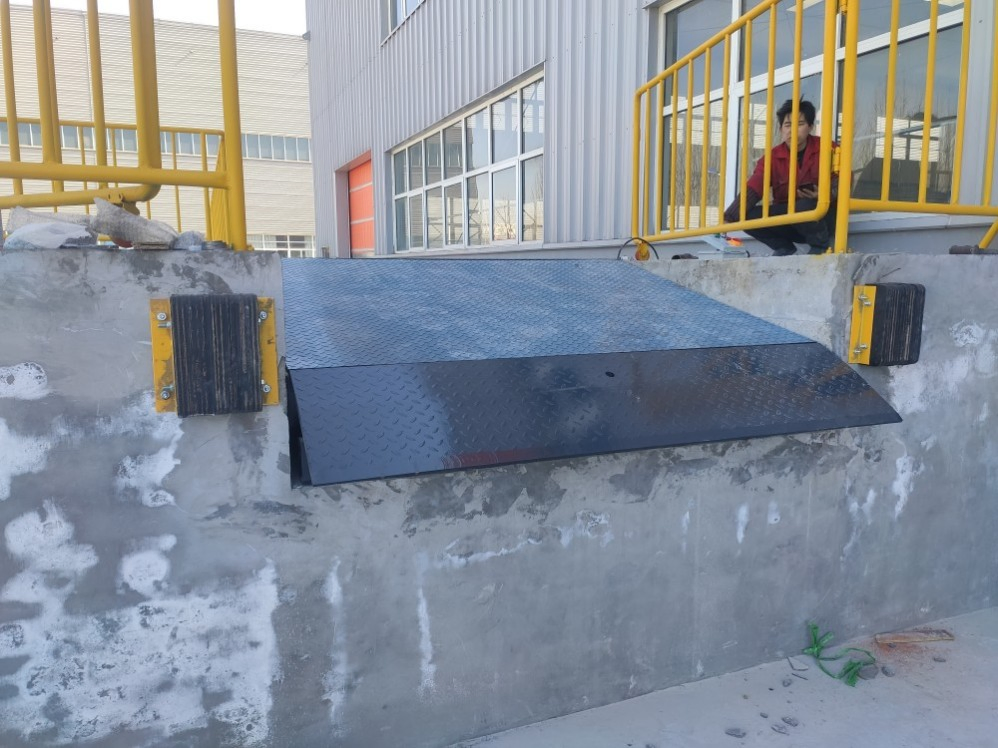

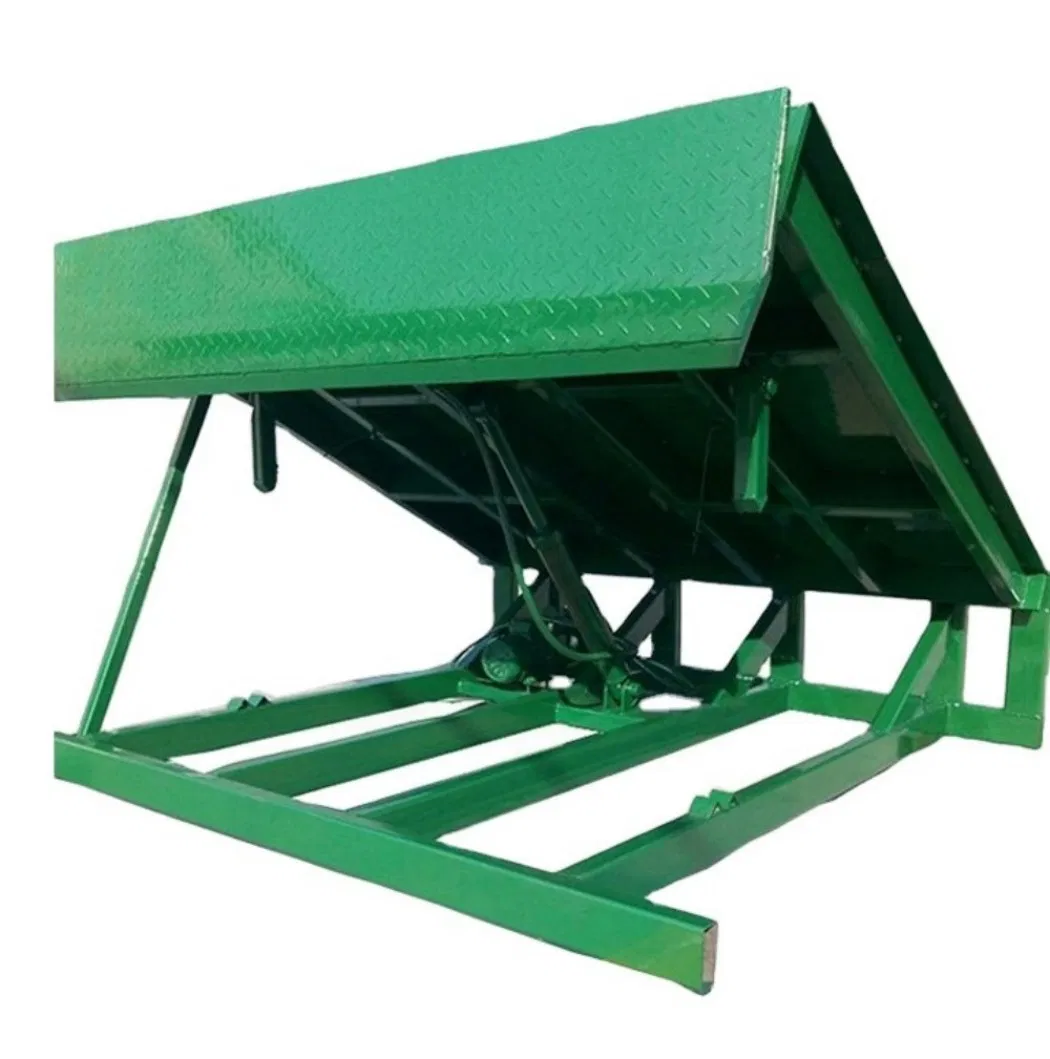

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.

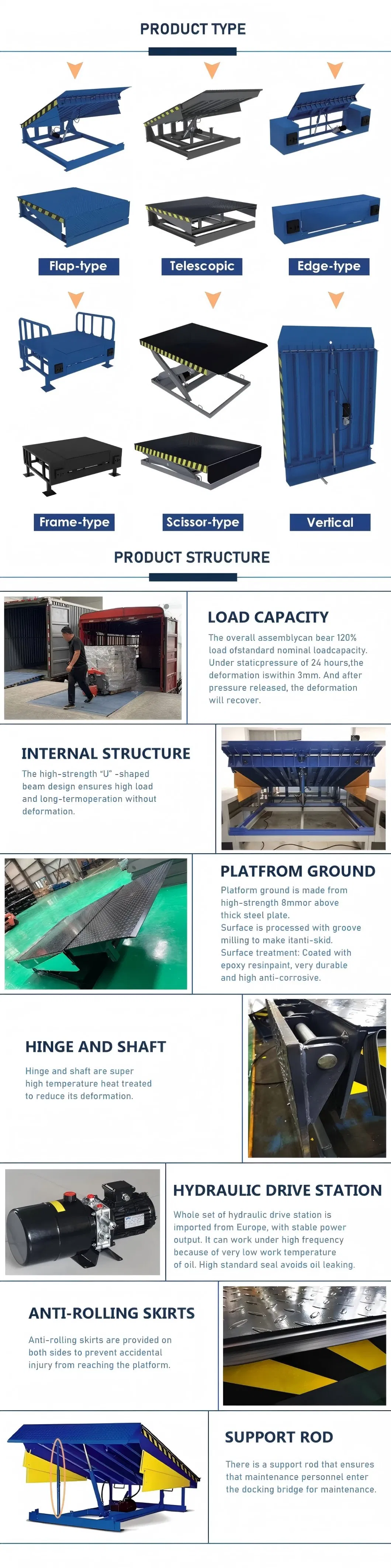

System Design: Free maintenance design for long-term use. Hydraulic driving system controls main deck and lip.
Safety Features: Full range foot guard, safety support bar, and hydraulic velocity fuse to stop heavy loading automatically.
Structure: Main deck made of 8mm high-strength embossed non-slip steel. Extension lip is 15mm thickness.
