Intelligent Smart Asrs System for Optimalinventory Control

1

Basic Specifications

Model NO.	HY-ASRS-4
Usage	Tool Rack, Beverage, Tools, Supermarket, Industrial, Warehouse Rack
Material	Steel (Q235/Q355/Q345)
Type	Pallet Racking
Mobility	Adjustable
Height	>15m
Weight Capacity	500-1300kg/Layer
Colors	Royal Blue, Orange-Red, Light Gray
Dimensions	Length: 1200-3500mm, Depth: 600-1700mm
Upright Column	120135/115/95/70mm, 140135/115/95/70mm

2

Product Description

Originating in the 1960s, this system has now become a core equipment in the field of modern high-density and high-efficiency warehousing and logistics.

Core Components

High-Density Racking: Tall, narrow-aisle structures maximizing vertical space up to 30+ meters.
Stacker Cranes (SRMs): Specialized machines for unit load storage and retrieval.
Conveyor/AGV Systems: Responsible for automated inbound/outbound transfer.
Control & Management (WCS/WMS): Real-time motion control and inventory data optimization.
Identification Systems: Barcode/RFID scanners and safety sensors.

Key Advantages

High Space Utilization: Reduces floor area by 30%-70% and increases density by 3-5 times.
Labour Cost Savings: Minimizes manual handling and picking risks.
High Accuracy: Inventory accuracy reaching over 99.99%.
Real-Time Management: Integrated data for precise demand forecasting.

3

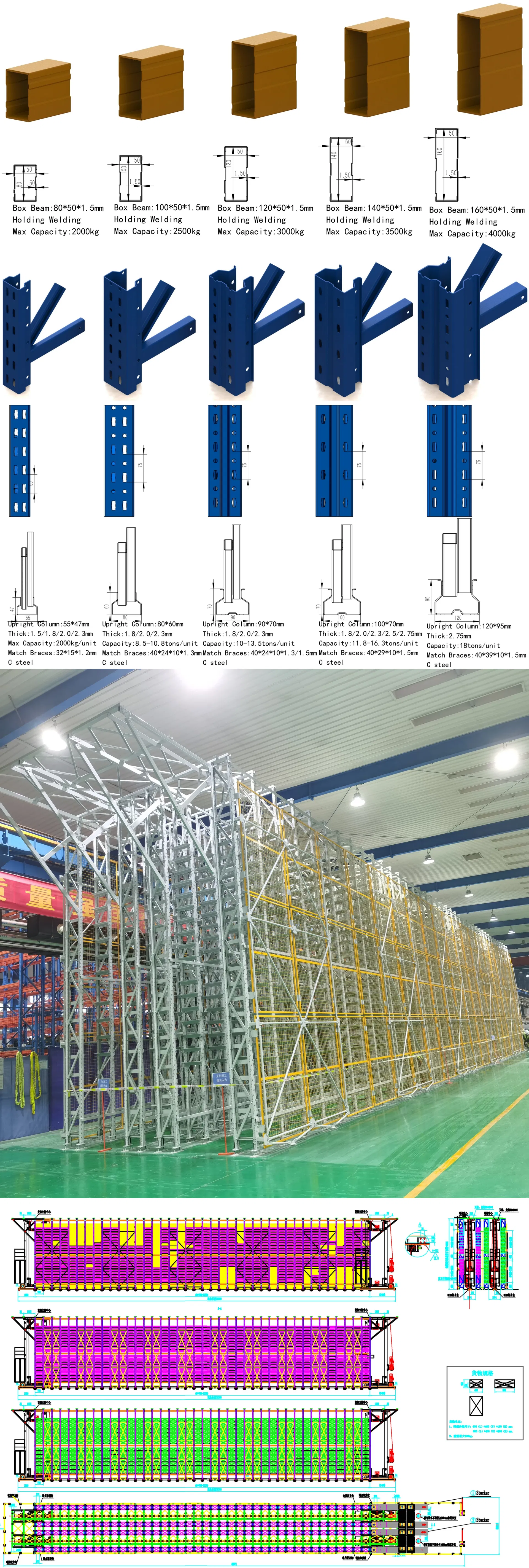

Core System Types

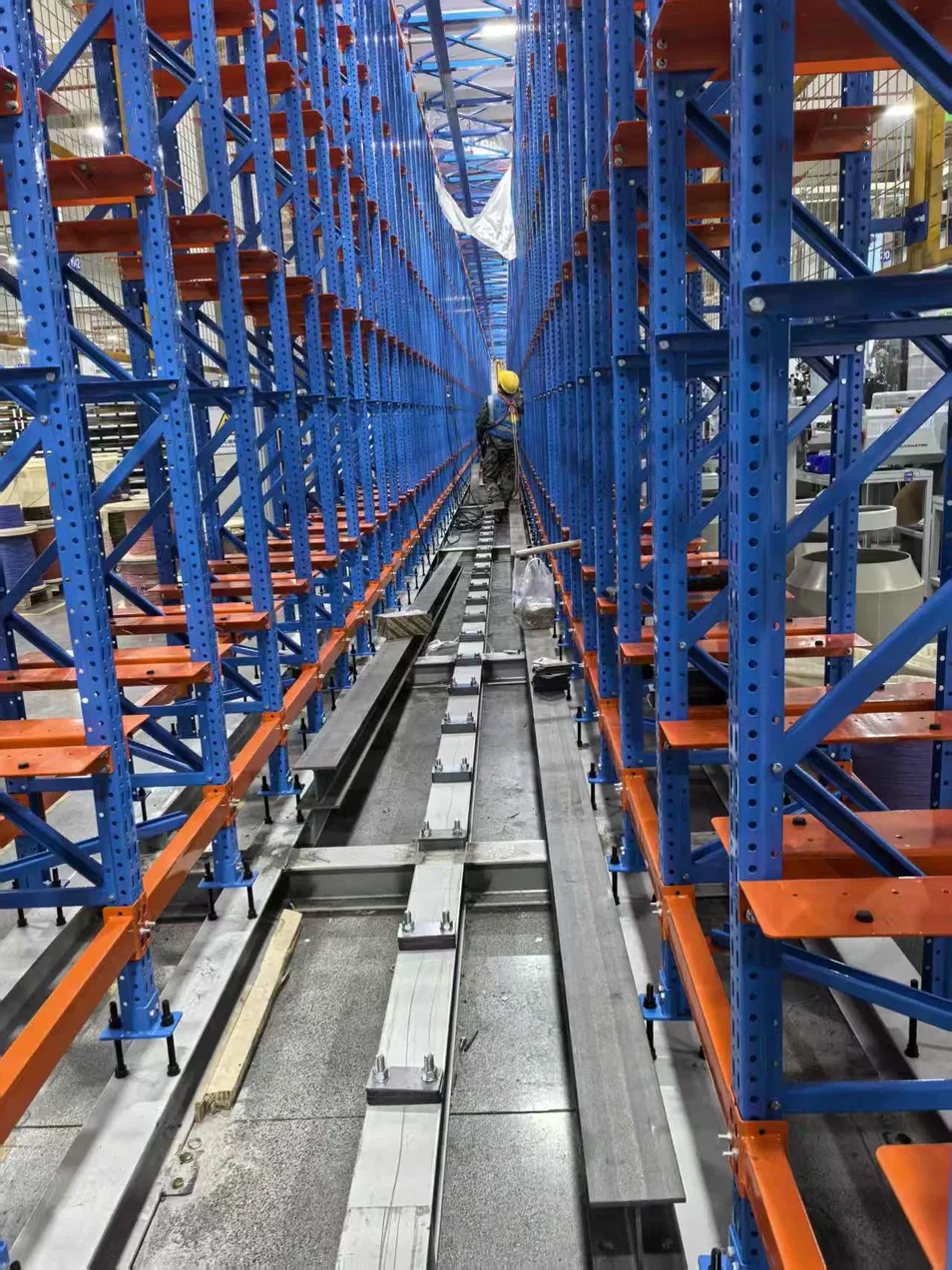

Pallet AS/RS	Suitable for heavy materials in automotive and machinery manufacturing. Height 10-40m.
Shuttle Car System	High-density storage for cold chain, food & beverage. Increases space use by up to 200%.
Mini-load System	Ideal for small parts, pharmaceuticals, and e-commerce sorting with high speed.
Customized Racking	Explosion-proof or corrosion-resistant designs for hazardous or specific environments.

4

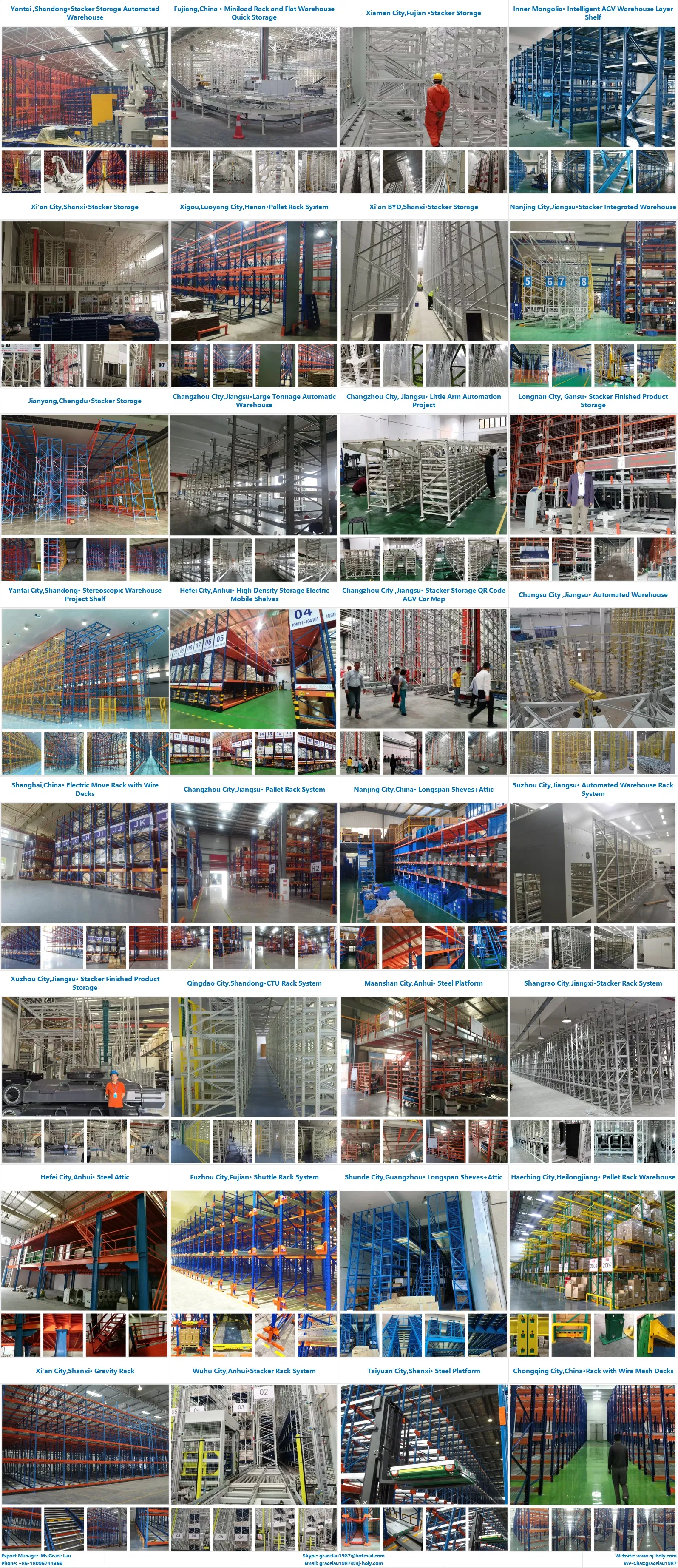

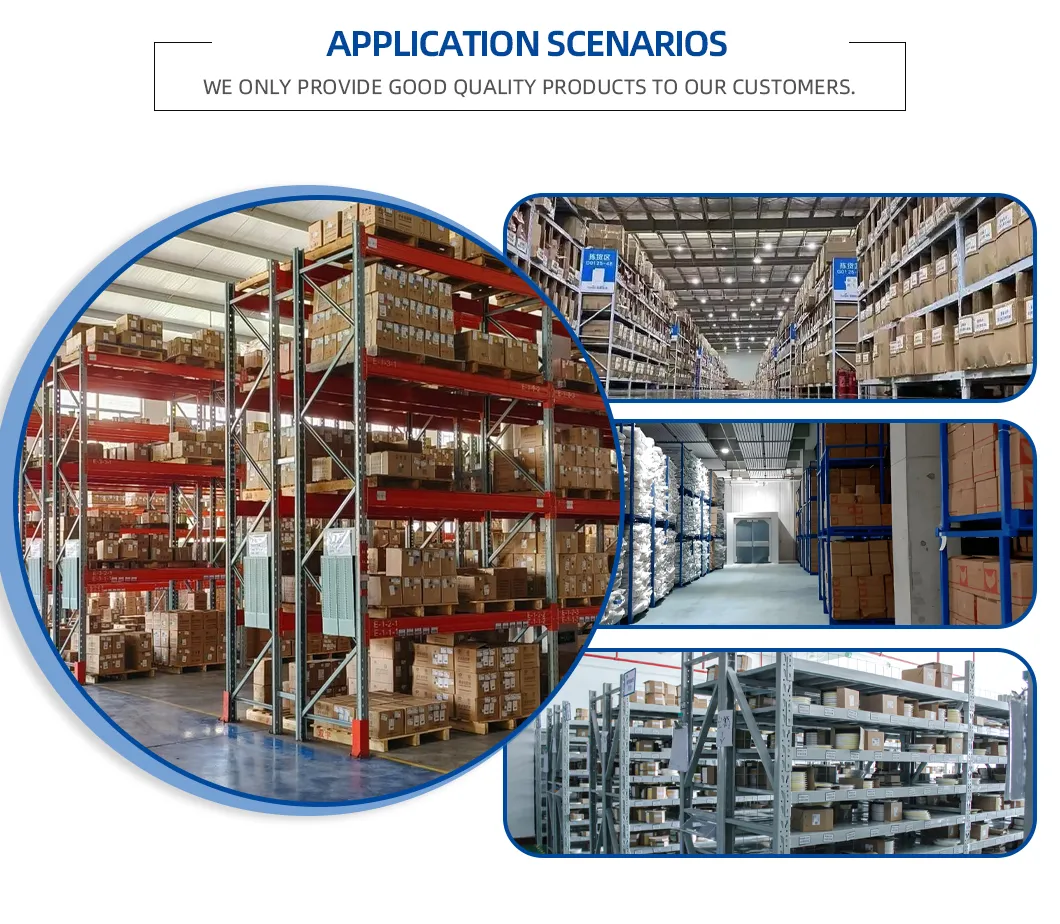

Industry Applications

Our solutions provide significant value across various sectors:

Automotive: JIT feeding and zero production downtime.
Pharmaceutical: GSP compliance with real-time temperature monitoring.
E-commerce: Handling peak season volume with 3-5x picking efficiency.
New Energy: Anti-static and explosion-proof storage for batteries and components.

5

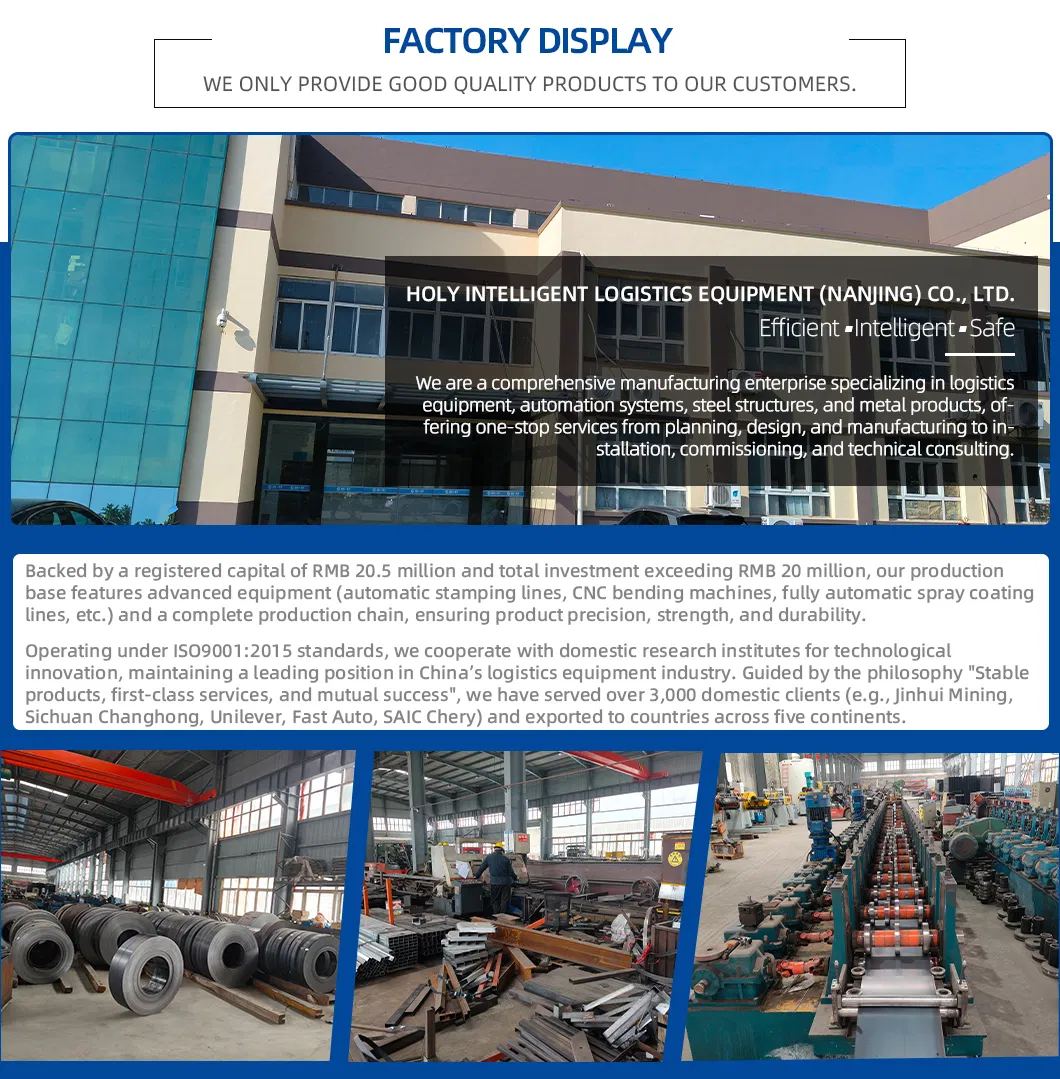

Manufacturing Excellence

Automated Production: Equipped with CNC bending and automatic spray coating lines.
Quality Control: ISO certified using premium Q235/Q355 steel with 99.8% qualification rate.
High Customization: Adaptable size, load capacity, and structure for any warehouse space.
Efficient Delivery: Optimized processes allowing rapid mass production within 7–25 days.

6

Packaging & Shipping

Standard: All components are arranged on export pallets, separated by cardboard, and wrapped with stretch film for moisture protection. We support FCL and LCL global transportation by sea, air, and land.

System Operation Video

?

Frequently Asked Questions

1. Are the storage racks customizable for specific warehouse needs?

Yes, we provide full customization for size, load capacity, color, and structural design based on your specific warehouse requirements.

2. What materials are used in the construction of the AS/RS racking?

We use high-quality Q235, Q355, or Q345 cold-rolled steel, finished with a durable powder coating for maximum strength and rust resistance.

3. What is the typical loading capacity per level?

The loading capacity is flexible, ranging from 100kg to 5000kg per level, depending on the specific design and storage needs of your project.

4. How long does the production and delivery take?

Standard production time ranges from 7 to 25 days. Total delivery time depends on the project scale and shipping method chosen.

5. Do you provide installation support for the automated systems?

Yes, we provide comprehensive installation support, including detailed assembly drawings, instructional videos, and online technical guidance.

6. What happens if parts are damaged during transportation?

We perform full inspections before shipment. If any parts are found missing or damaged upon arrival, please provide photos and we will arrange free replacements immediately.
