Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
1 / 5
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers
Mechanical Edge of Dock Leveler for Conventional Trailers

Mechanical Edge of Dock Leveler for Conventional Trailers

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO.
EL
Application
Workshop, Shipboard, Warehouse Crane
Lift Mechanism
Spring-Assisted
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Mechanical
Feature
No Electricity Required
Certification
ISO 9001
Capacity
20,000 lbs / 25,000 lbs
Material
High-Strength Steel
Adapt to Vehicle
Conventional Trailers
Specification
66'', 72'', 78''
Origin
China
HS Code
8302300000
Product Description

Bridge the gap between the edge of your loading area and semi-trailers or trucks with a Mechanical Edge of Dock Leveler. Less hassle than a dock board, these levelers install directly to your loading dock for quick and easy operation when trucks back up. Manufactured in steel for maximum durability, these levelers are designed to service conventional trailers and come equipped with two bumpers on either side as a safety buffer.

⚙️ Mechanical Operation: Torsion spring lift assist allows operation with only 28-34 lbs. of torque.
📏 Working Range: Efficiently services trailers 5" below or above your dock height.
🛡️ Safety Standards: Fully complies with O.S.H.A. safety standards for loading environments.
🏗️ Robust Build: Manufactured from durable steel with a span of 27.75" from dock to truck.

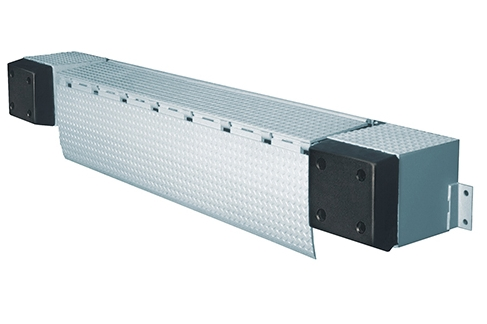

Mechanical Edge of Dock Leveler

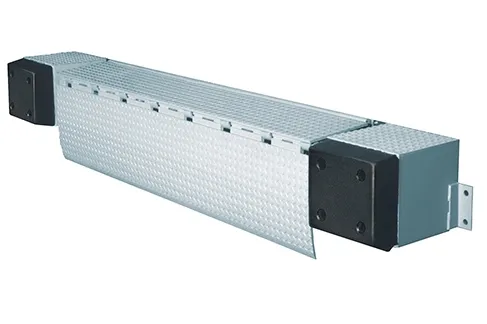

Loading Dock Detail

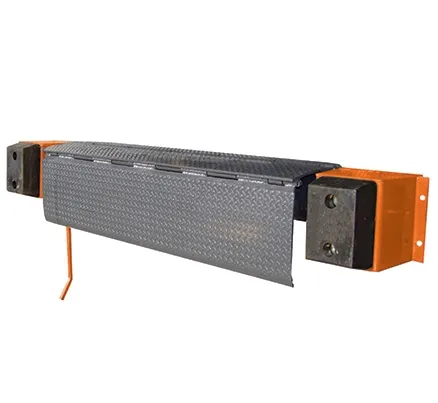

Steel Dock Leveler Components
Spring Assisted Leveler Operation
Edge of Dock Installation
Frequently Asked Questions
What are the available weight capacities for this leveler?
The Edge of Dock Levelers are available in two heavy-duty capacities: 20,000 lbs. and 25,000 lbs.
Does this equipment require an electrical power source?
No, this is a mechanical unit that uses a torsion spring lift assist, making it ideal for locations without electricity.
What is the vertical working range of the leveler?
It is designed to handle a working range of 5 inches above or below the height of your loading dock.
What width options are available for installation?
Standard width options include 66", 72", and 78" to accommodate different dock configurations.
How much effort is required to operate the mechanical lift?
Thanks to the spring-assisted design, it only requires between 28 to 34 lbs. of lifting torque to operate the unit.
Are safety bumpers included with the unit?
Yes, each dock leveler comes with two bumpers that serve as a protective buffer, complying with O.S.H.A. safety standards.
