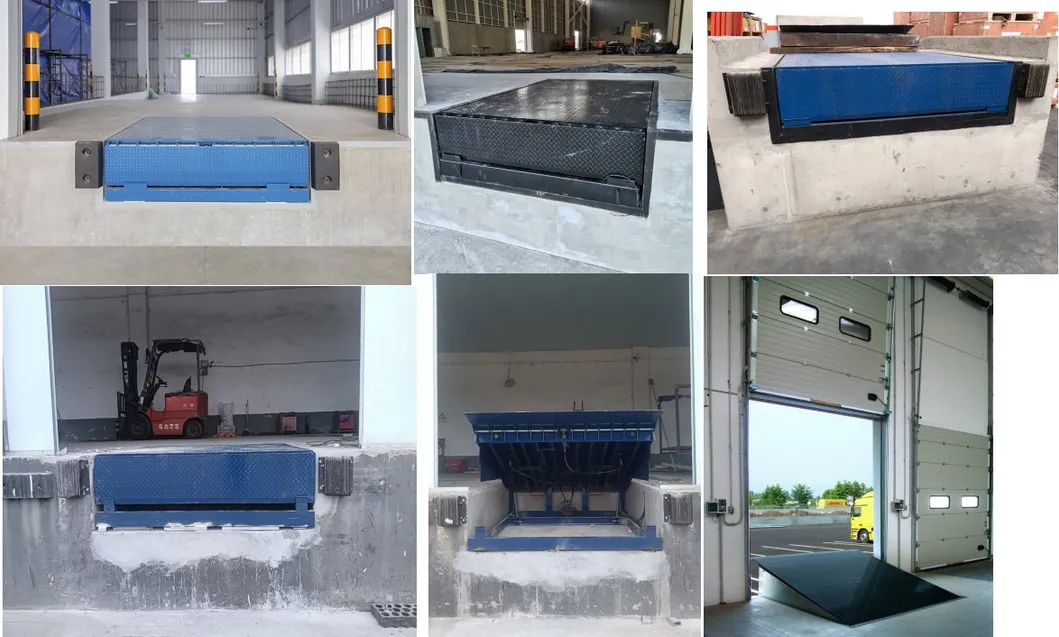

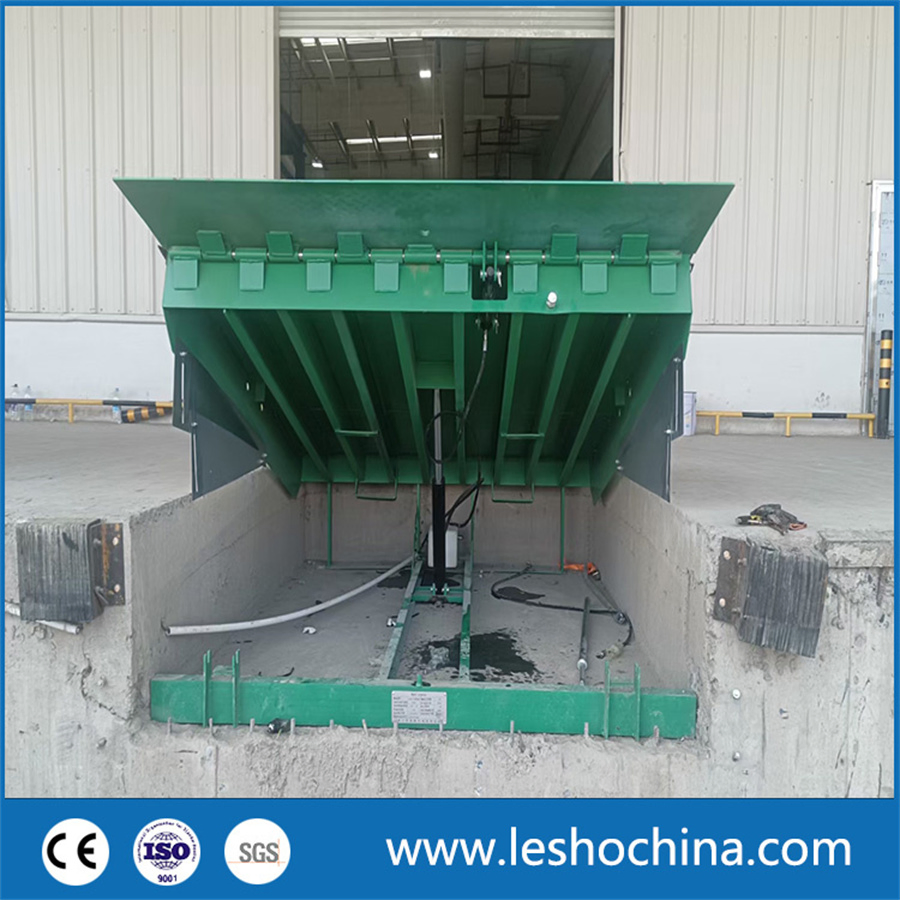

Application: The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, saving manpower and improving efficiency.
Ideal for: Warehouses, stations, docks, logistics distribution bases, and postal transportation.
| Dynamic Load | Panel Thickness | Reinforcement | Mouth Plate | Static Load | Forklift Range |
|---|---|---|---|---|---|
| 5 tons | 6mm | 4mm L steel | 12mm | 8 tons | 2.5 tons |
| 8 tons | 8mm | 4mm L steel | 16mm | 11 tons | 3.5 tons |
| 10 tons | 8mm | 14# I-beam | 16mm | 13 tons | 5 tons |
| 14 tons | 10mm | 16# I-beam | 16mm | 17 tons | 6 tons |

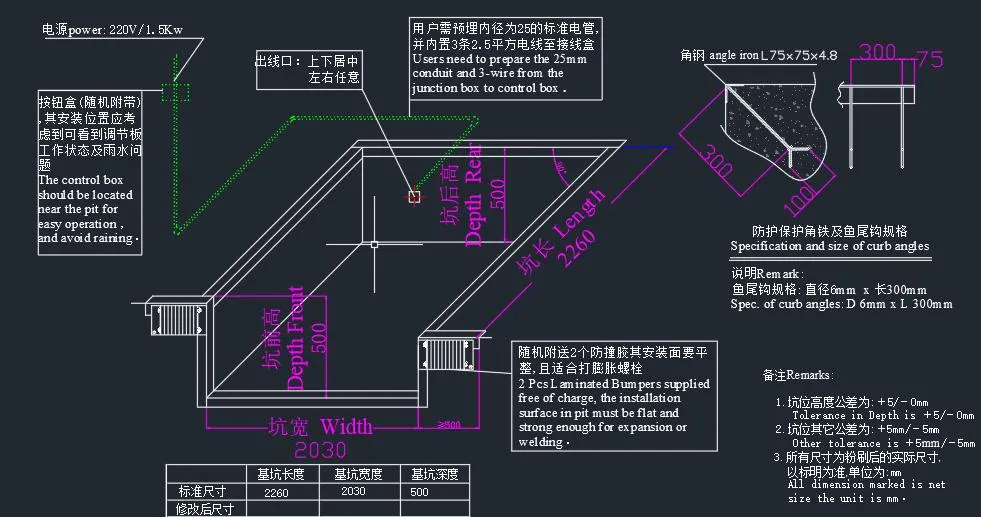

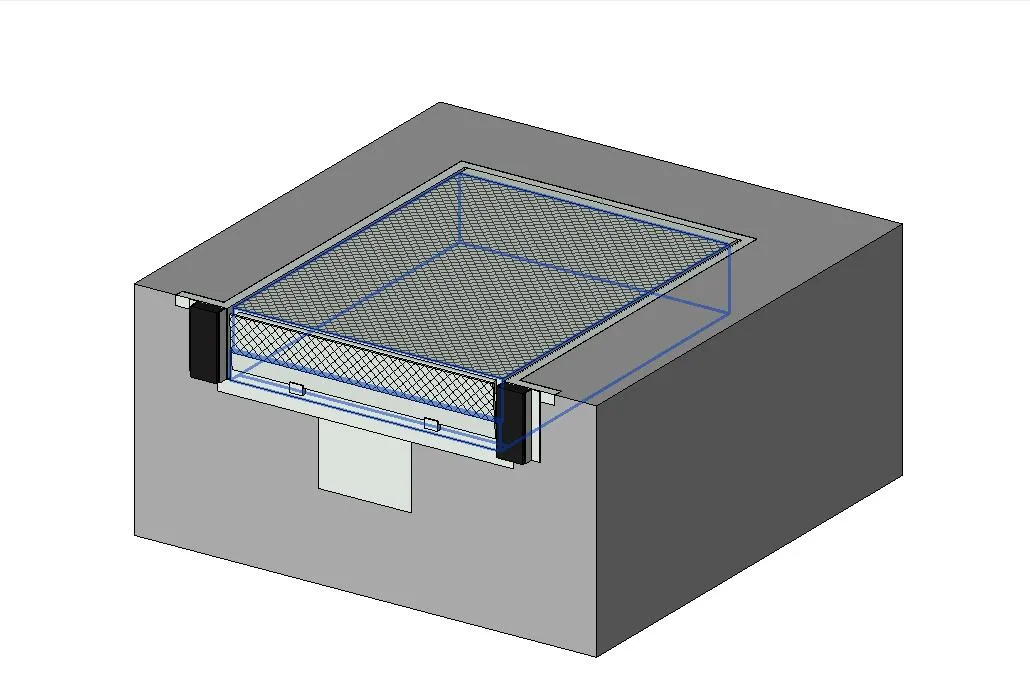

Accurate shop drawings show the pit dimensions clearly, ensuring accurate construction and seamless installation.

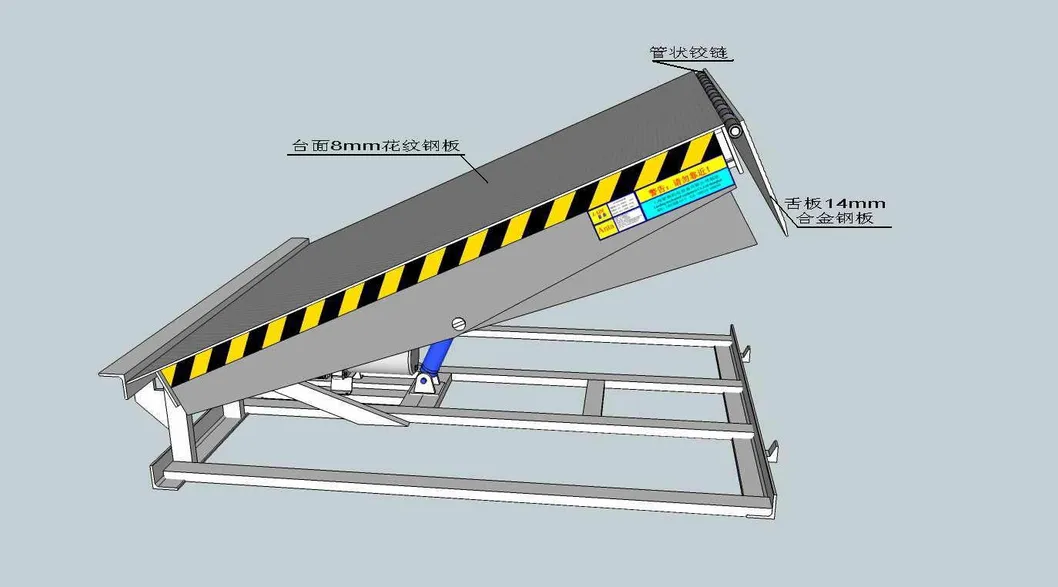

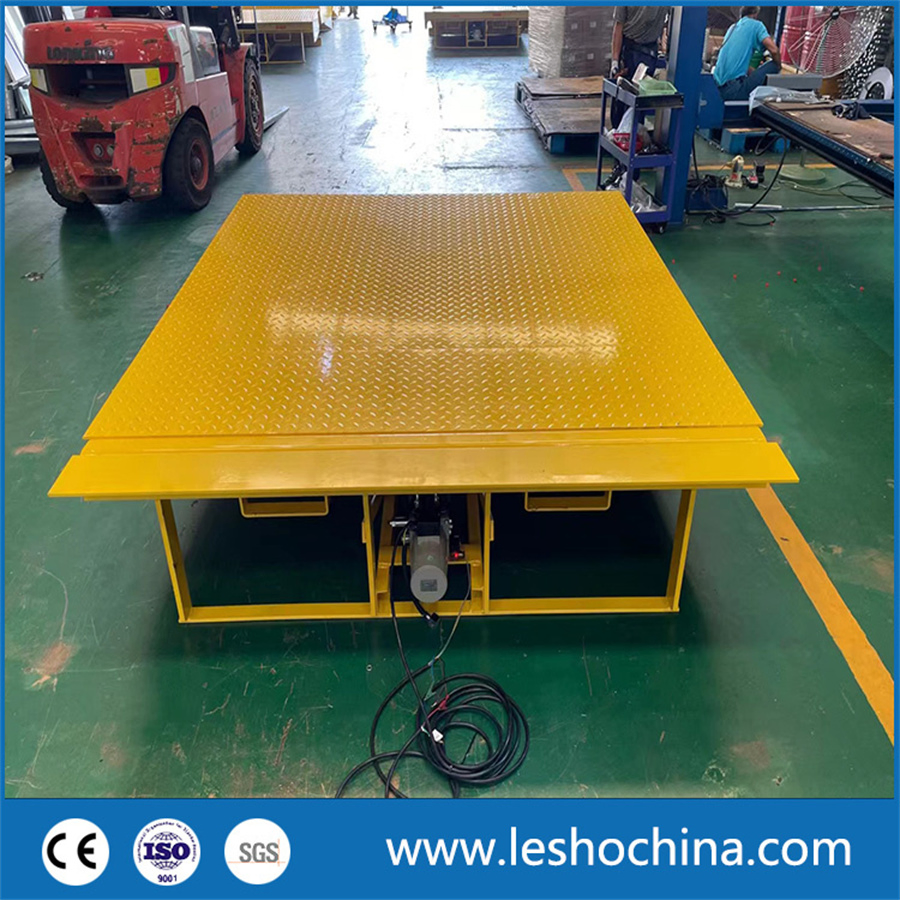

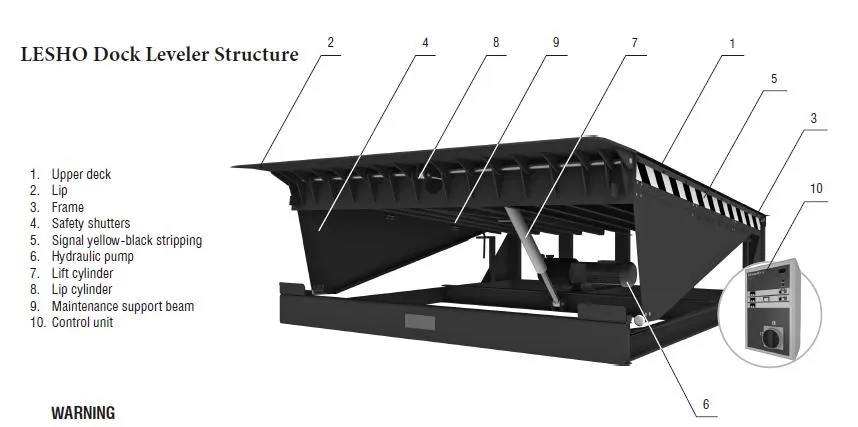

Main Platform: Surface sheet 6mm-8mm thick steel plate. Whole-piece steel sheet for much higher strength and longer work life. Underneath supported by high-density steel tube or C-channel.

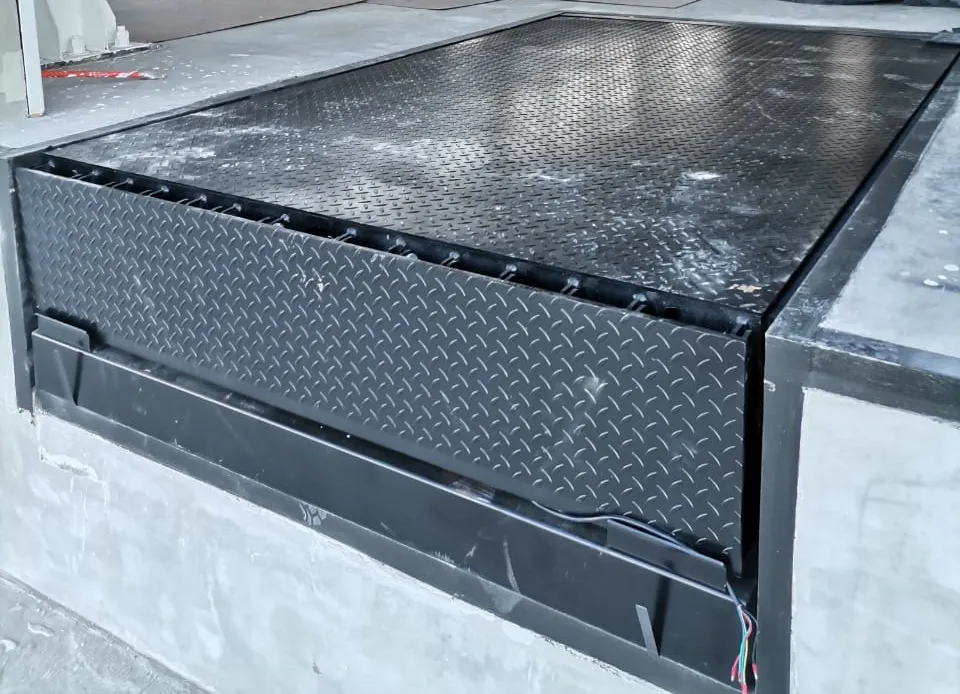

Top Lip: 12-16mm thick steel sheet with special embossed treatment to make it anti-skidding and improve forklift safety.

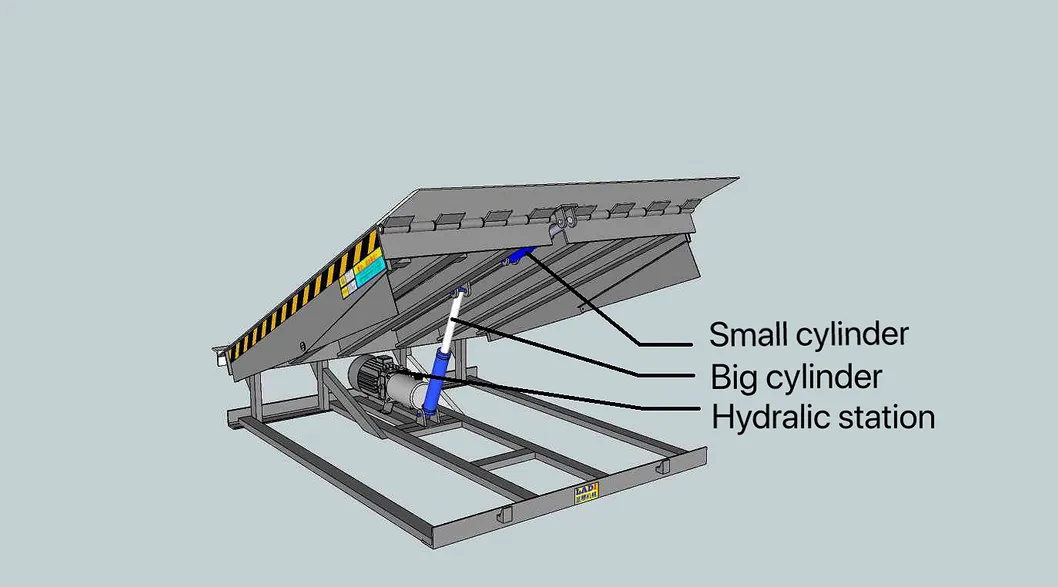

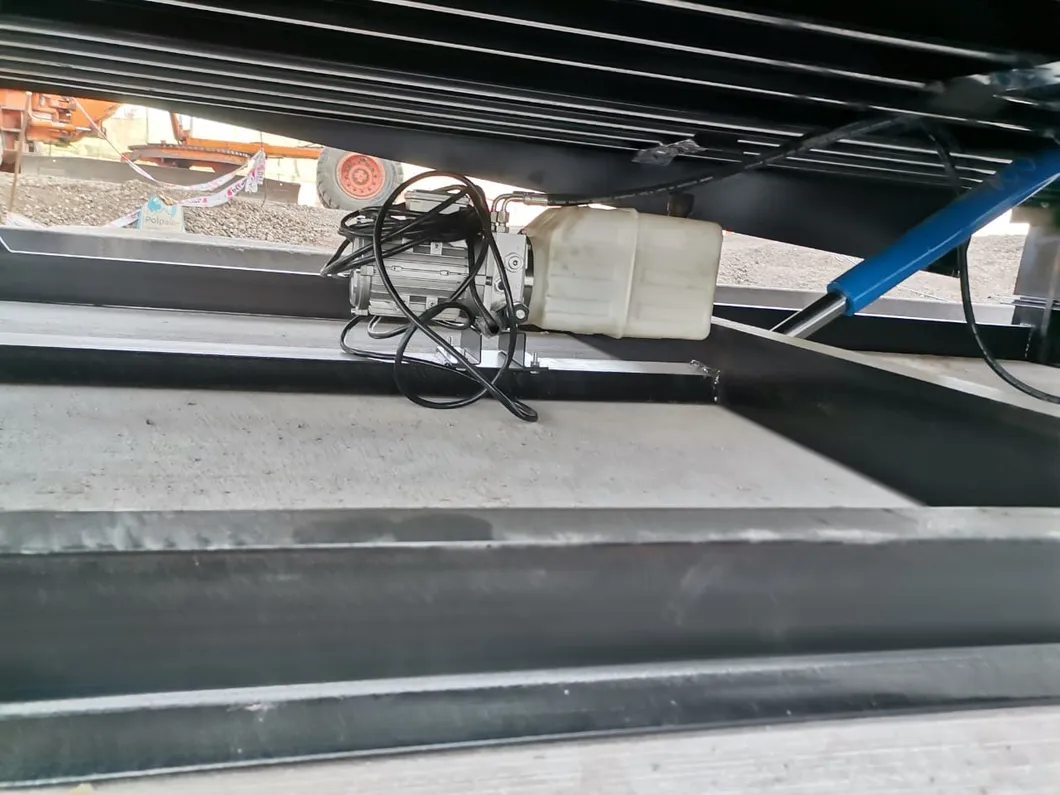

Hydraulic Motor: 3-phase 380V/50Hz power supply with 0.75KW-1.5KW output. Includes overheating self-protection function.

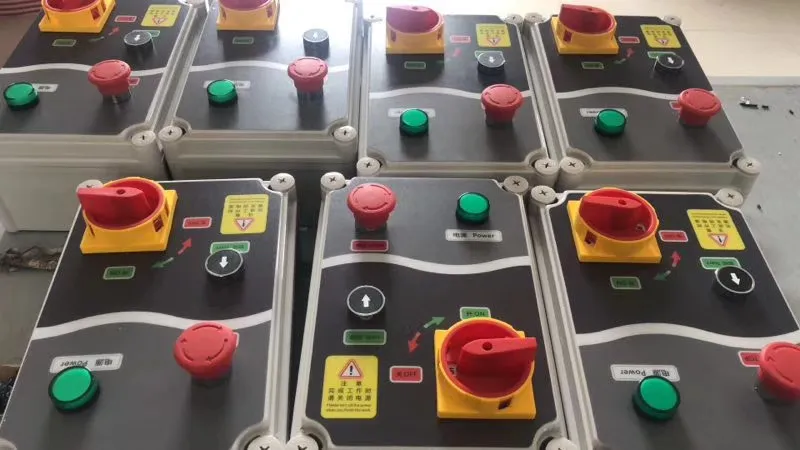

Control Panel: Features multi-function controller with operation button, power-switch, and emergency stop button for worker protection.

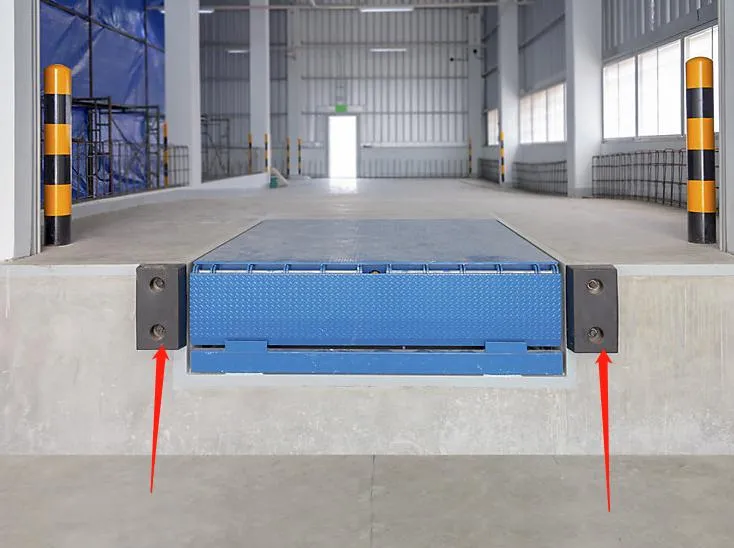

Dock Bumper: One pair per unit, made of wear-proof high-strength rubber material.

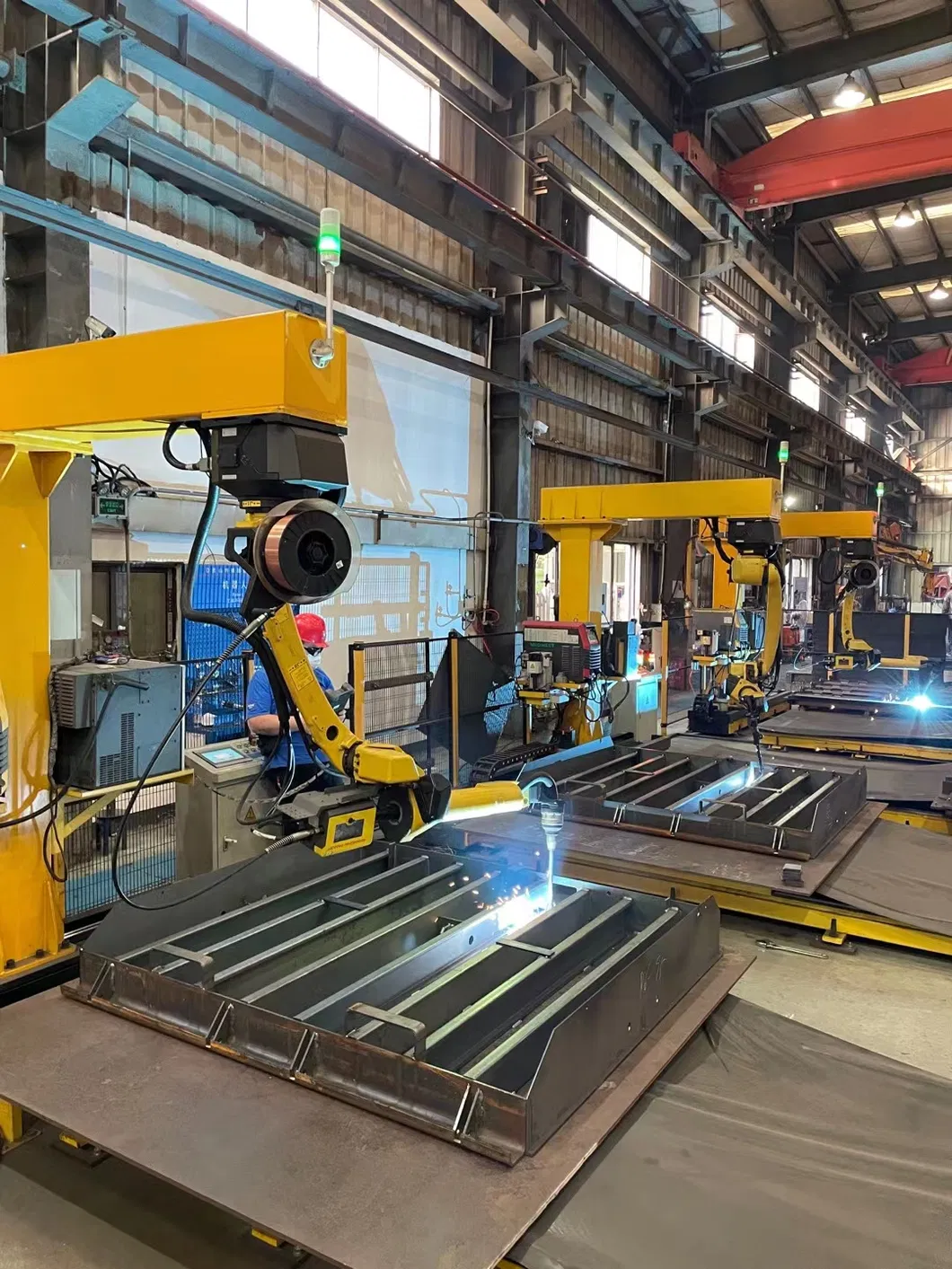

Welding robots ensure all welding work is more accurate and durable.

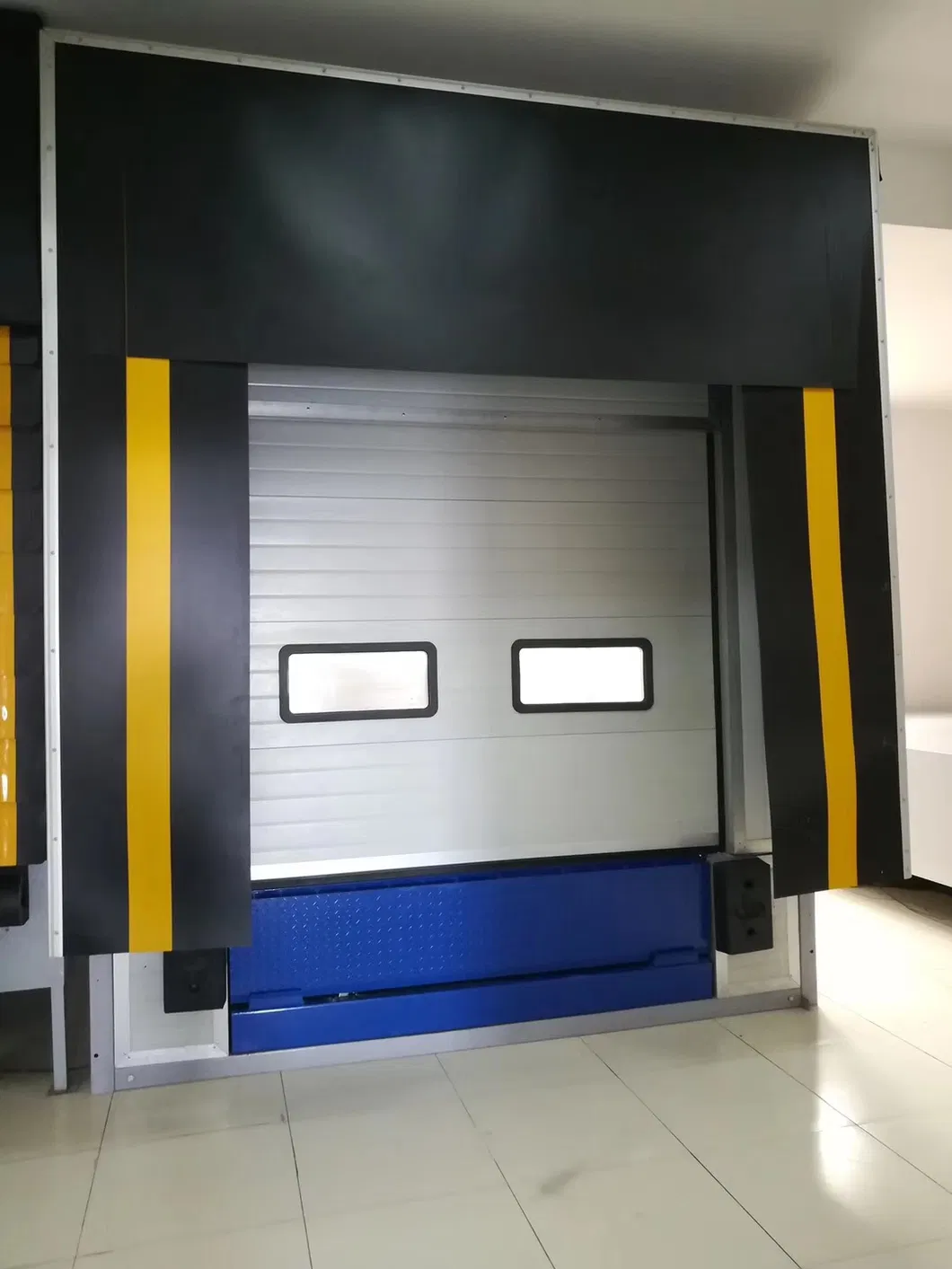

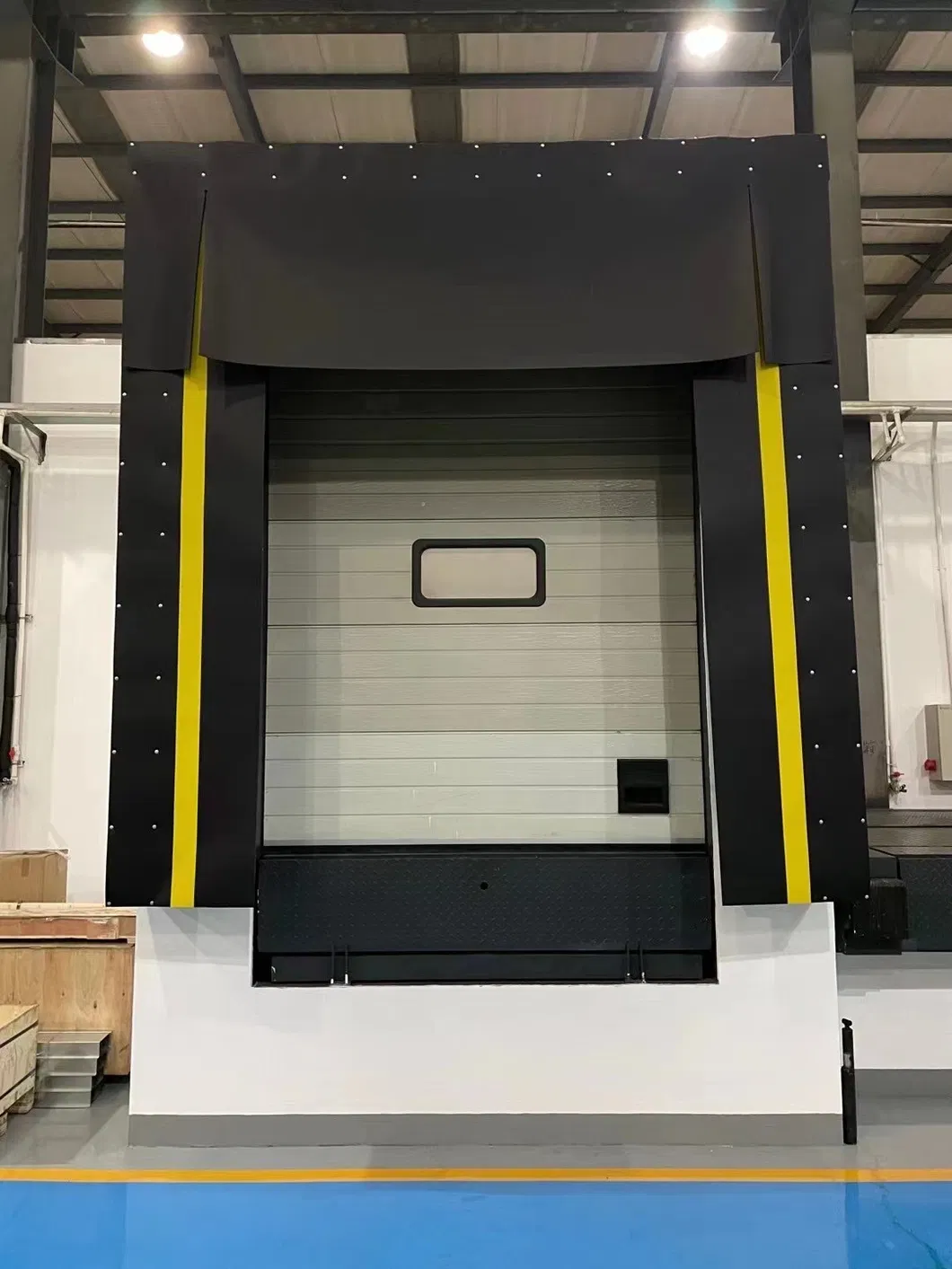

We supply complete assemblies including Sectional Doors, Dock Levelers, and Dock Shelters to improve loading efficiency and protect the indoor environment.

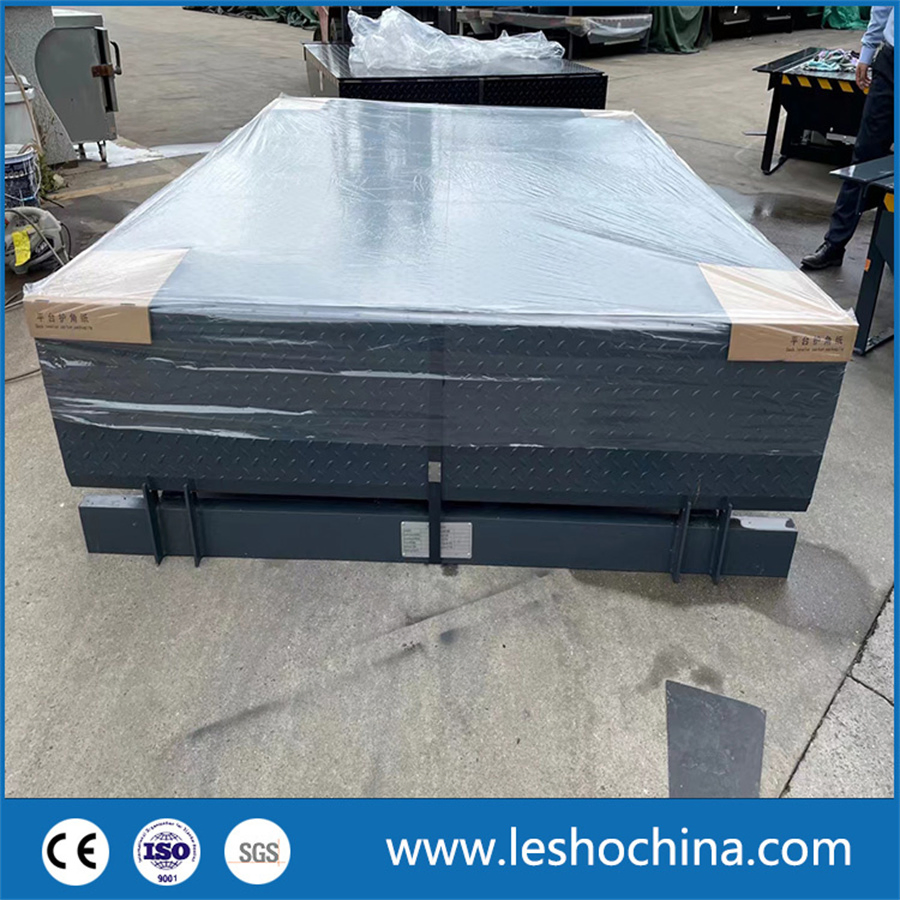

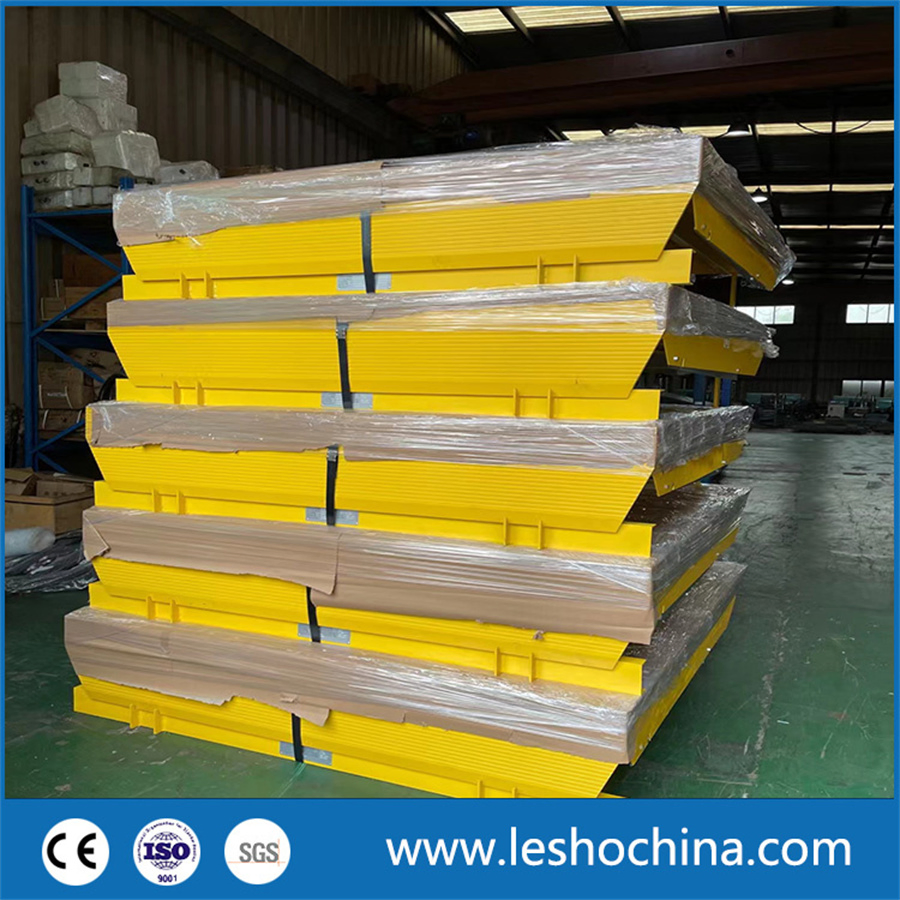

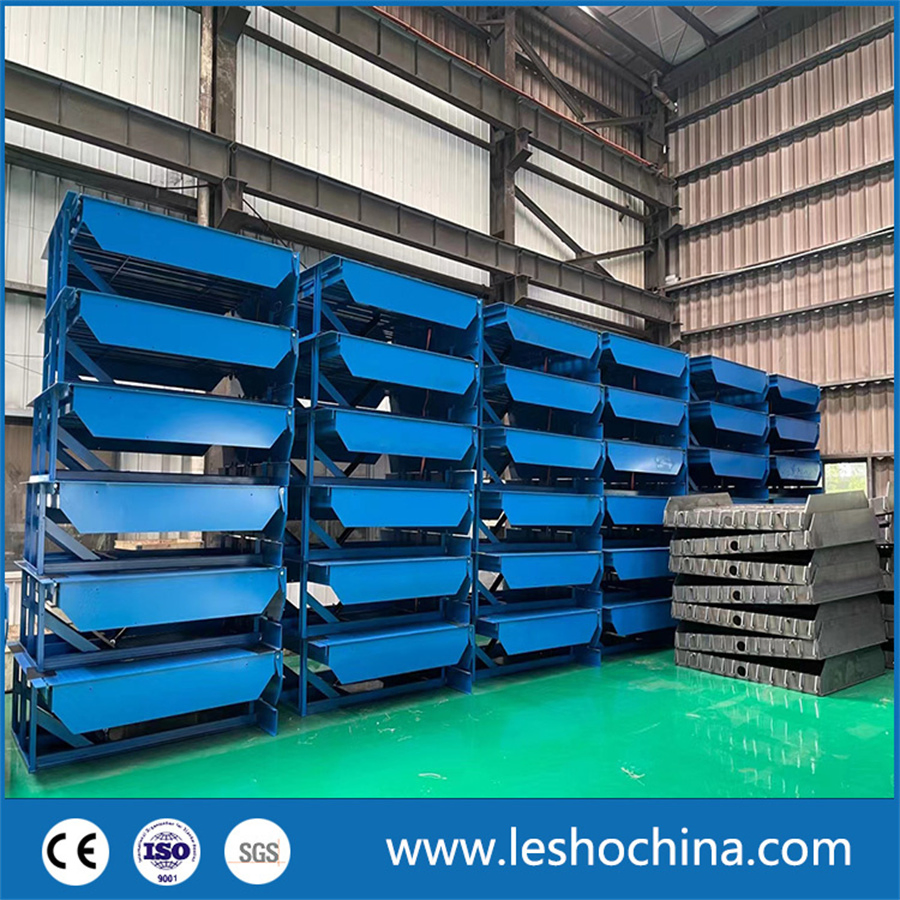

Standard size: L2000*W2000*H600 mm. A 40ft HQ container can load up to 20 sets, while a 20ft container can load 8 sets.
