Mechanical Manual Stationary Fixed Loading Dock Leveler for Loading Bays of Logistics Warehouse

1 / 5

Mechanical Manual Stationary Fixed Loading Dock Leveler for Loading Bays of Logistics Warehouse

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

LESHO-Leveler

Application

Warehouse Crane

Lift Mechanism

Hydraulic Power

Carrying Capacity

6t, 8t, 10t, 15t

Driven Type

Hydraulic

Certification

CE, ISO 9001

Standard Size

L2000*W2000*H600mm (Customized Available)

Power Supply

220V 50Hz / 380V 50Hz

Protection Class

IP55

Working Temp

-35 to 65 Celsius Degree

🛠️ Product Description

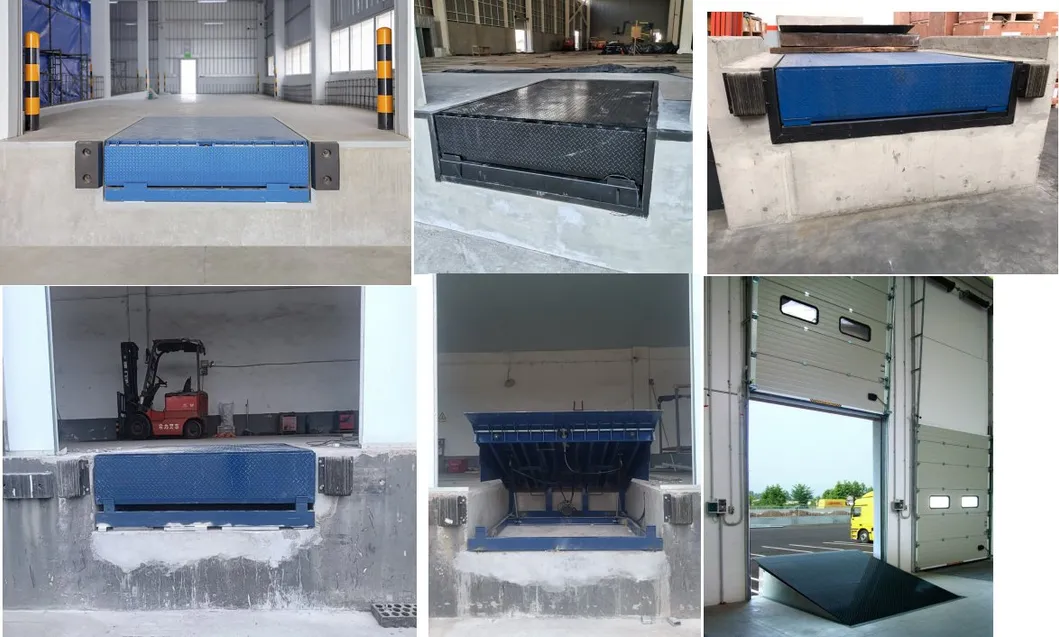

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp:

Application: The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, the adjustment range is large, the loading and unloading efficiency is improved, and manpower is saved.

Widely used for warehouses, stations, docks, warehouse logistics bases, postal transportation, logistics distribution, etc.

Loading Capacity and Type Selection:

Dynamic Load	Panel Thickness	Panel Reinforcement	Mouth Plate	Base Frame	Static Load	Forklift Range
5 tons	6mm	4mm L steel	12mm	60 channel steel	8 tons	2.5 tons plug-in
8 tons	8mm	4mm L steel	16mm	100 channel steel	11 tons	3.5 tons plug-in
10 tons	8mm	14 # I-beam	16mm	100 channel steel	13 tons	5 tons plug-in
14 tons	10mm	16# I-beam	16mm	100 channel steel	17 tons	6 tons plug-in

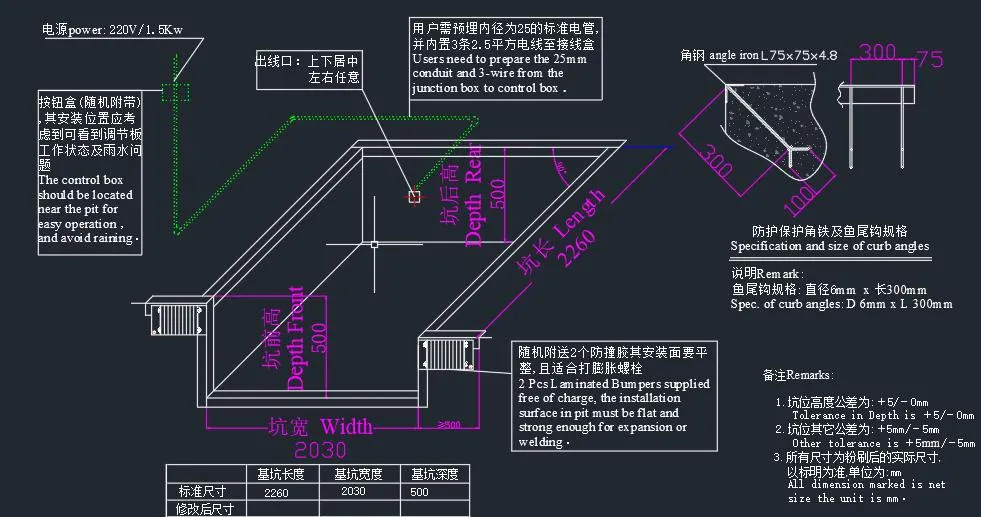

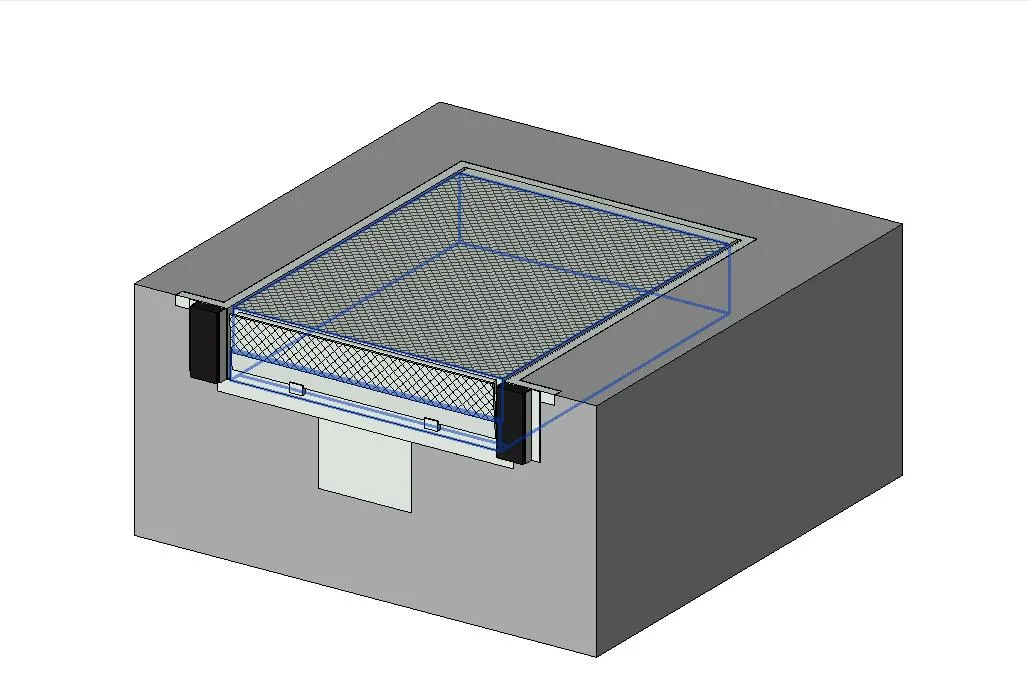

CAD Drawing & Pit Dimensions:

Accurate shop drawings to show the pit dimension clearly, ensuring the pit construction is accurate.

Standard Sizes:

Width=1830mm, Length=2000m, Height=500mm
Width=2000mm, Length=2000m, Height=500mm
Width=2000mm, Length=2500m, Height=500mm

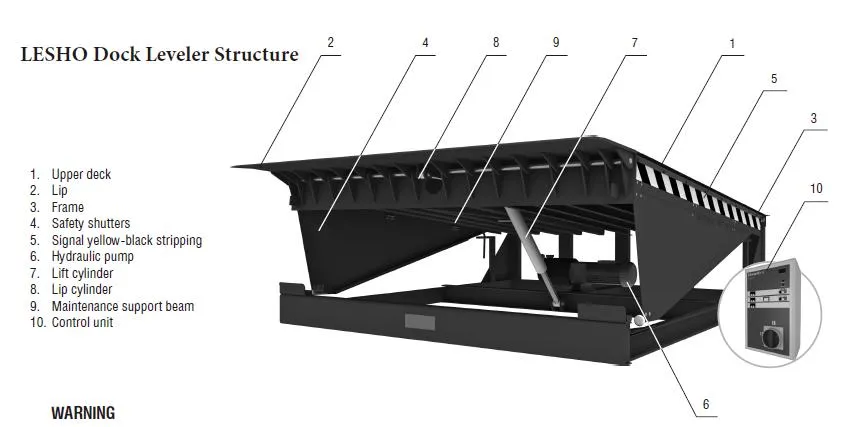

⚙️ Key Components

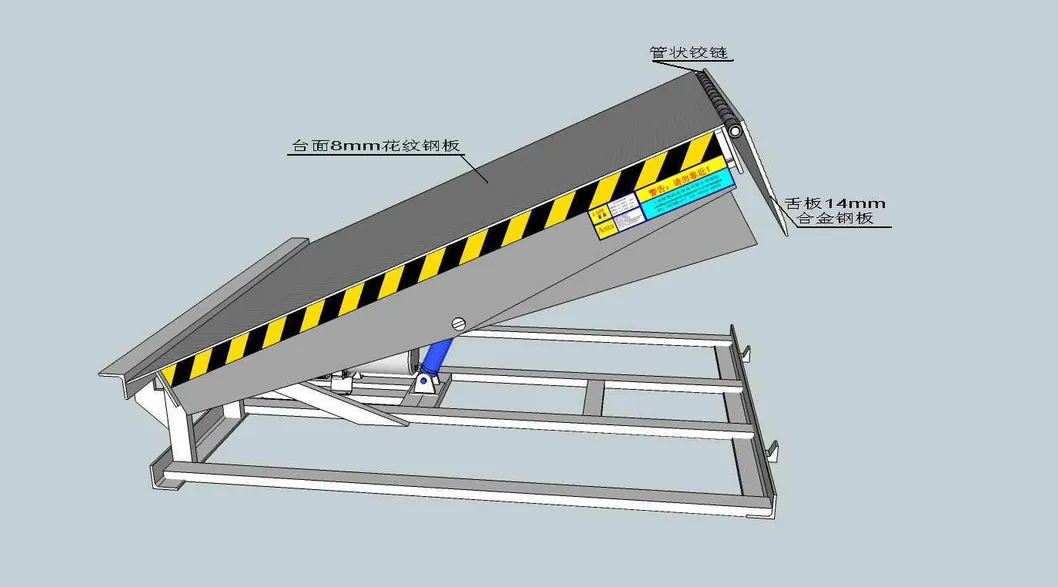

Main Platform:

Surface sheet: 6mm-8mm thick completely whole set steel plate.
Whole-piece steel sheet with higher strength and work life compared to welded joined sheets.
Underneath support: High-density steel tube or C-channel.
Surface treatment: Blasting and powder coating for high rust-proof performance.

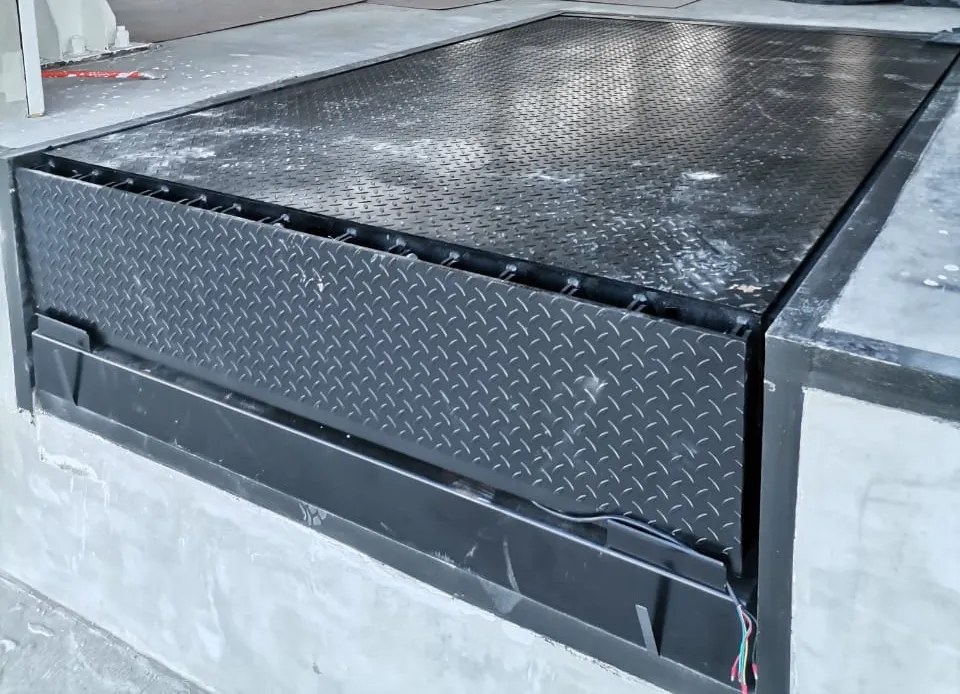

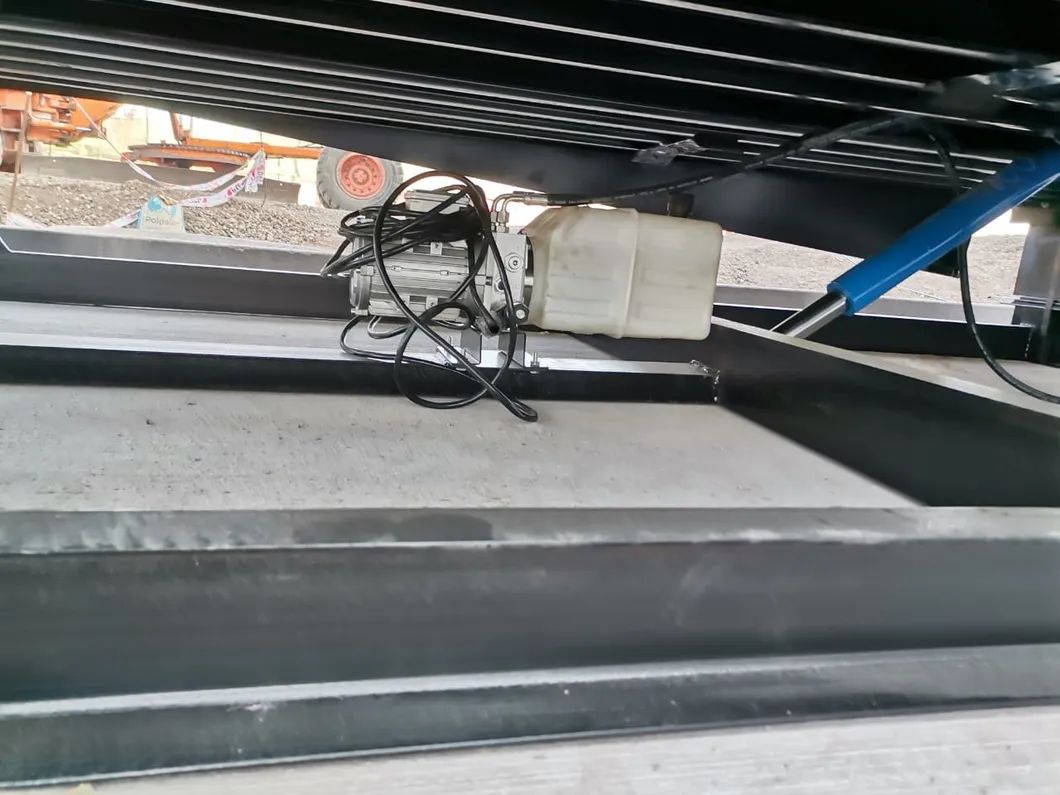

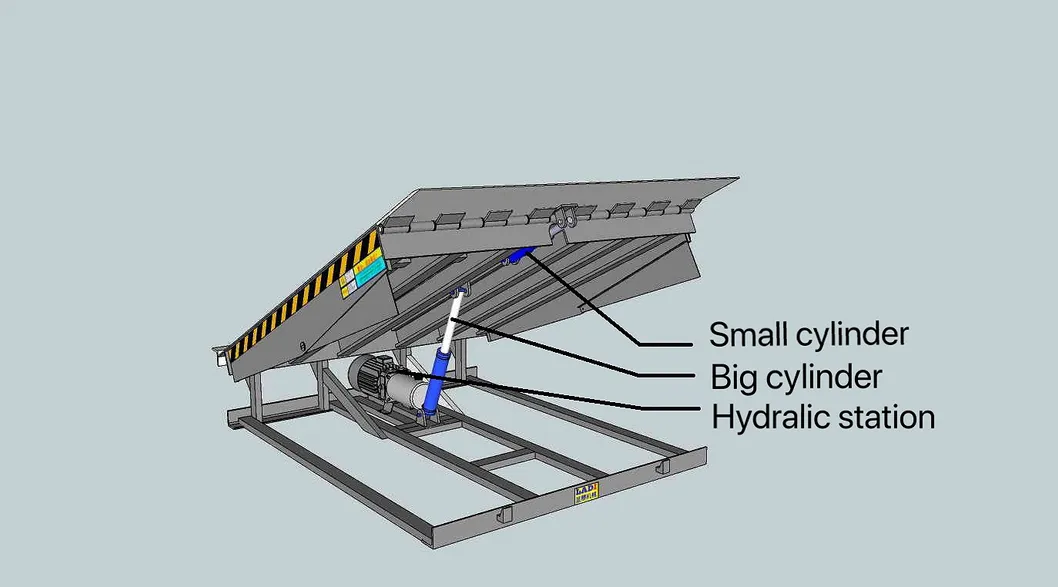

Top Lip & Hydraulic Motor:

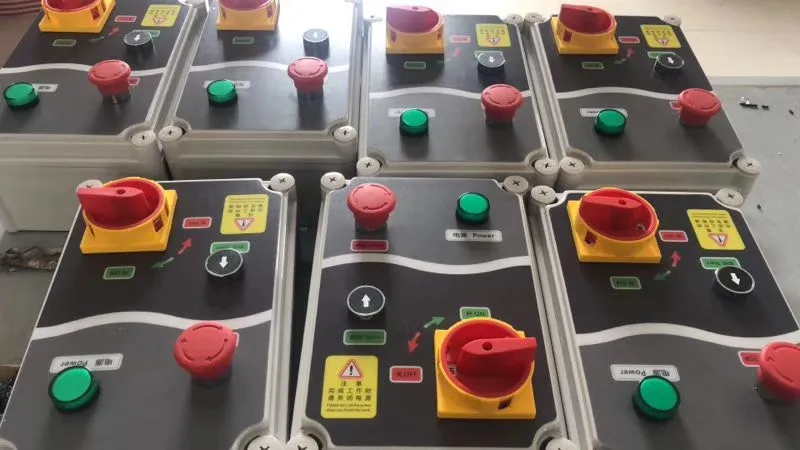

Control Panel & Safety:

⭐ Our Dock Leveler Features

Bear 120% load of standard nominal capacity; deformation is within 3mm under 24h pressure.
Platform made from high-strength 8mm+ steel with anti-skid milling.
Hinge and Shaft are Super-High-Temperature heat treated.
Hydraulic drive station imported from Europe with stable output.
Epoxy resin paint coating, highly anti-corrosive.

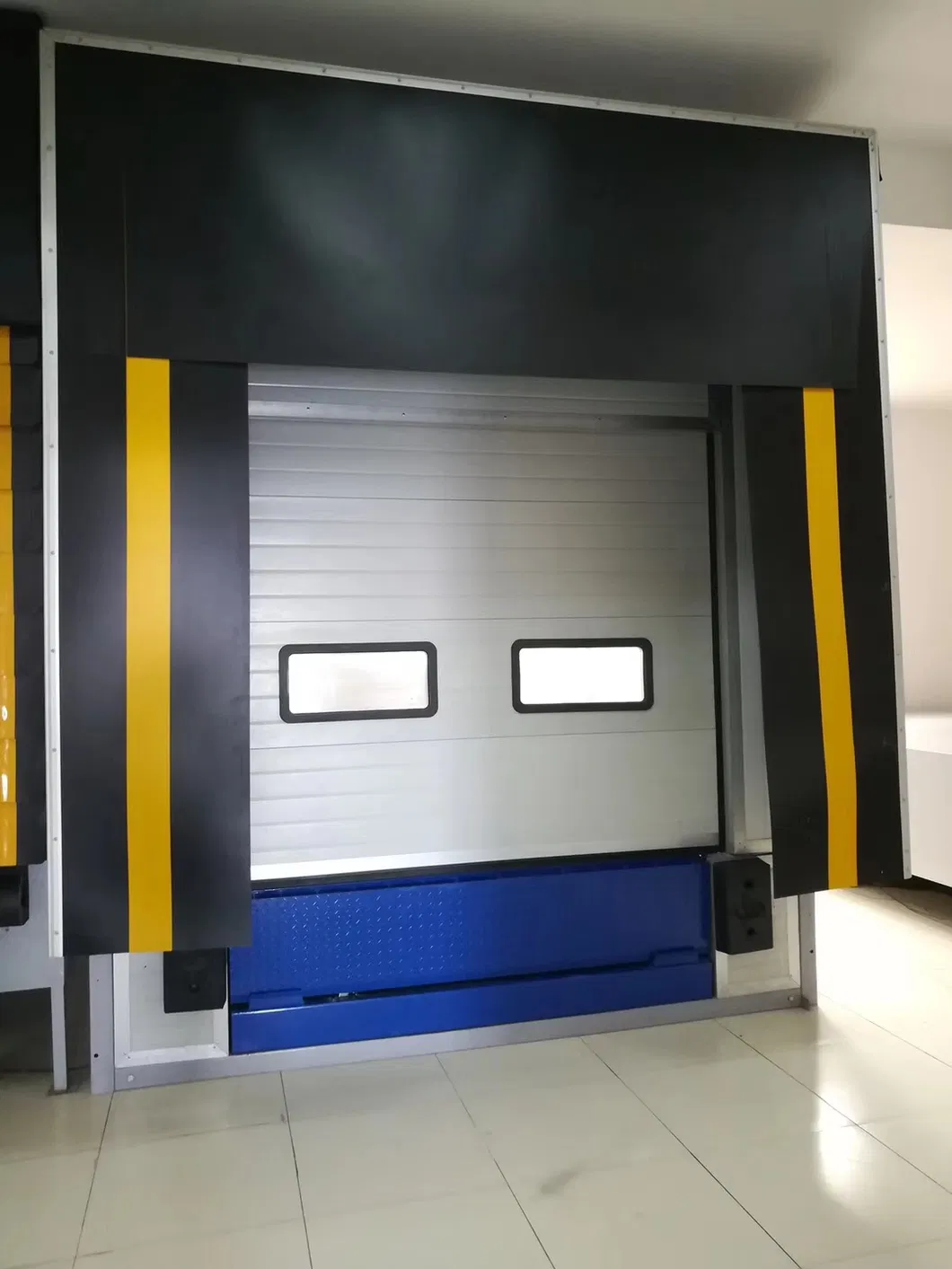

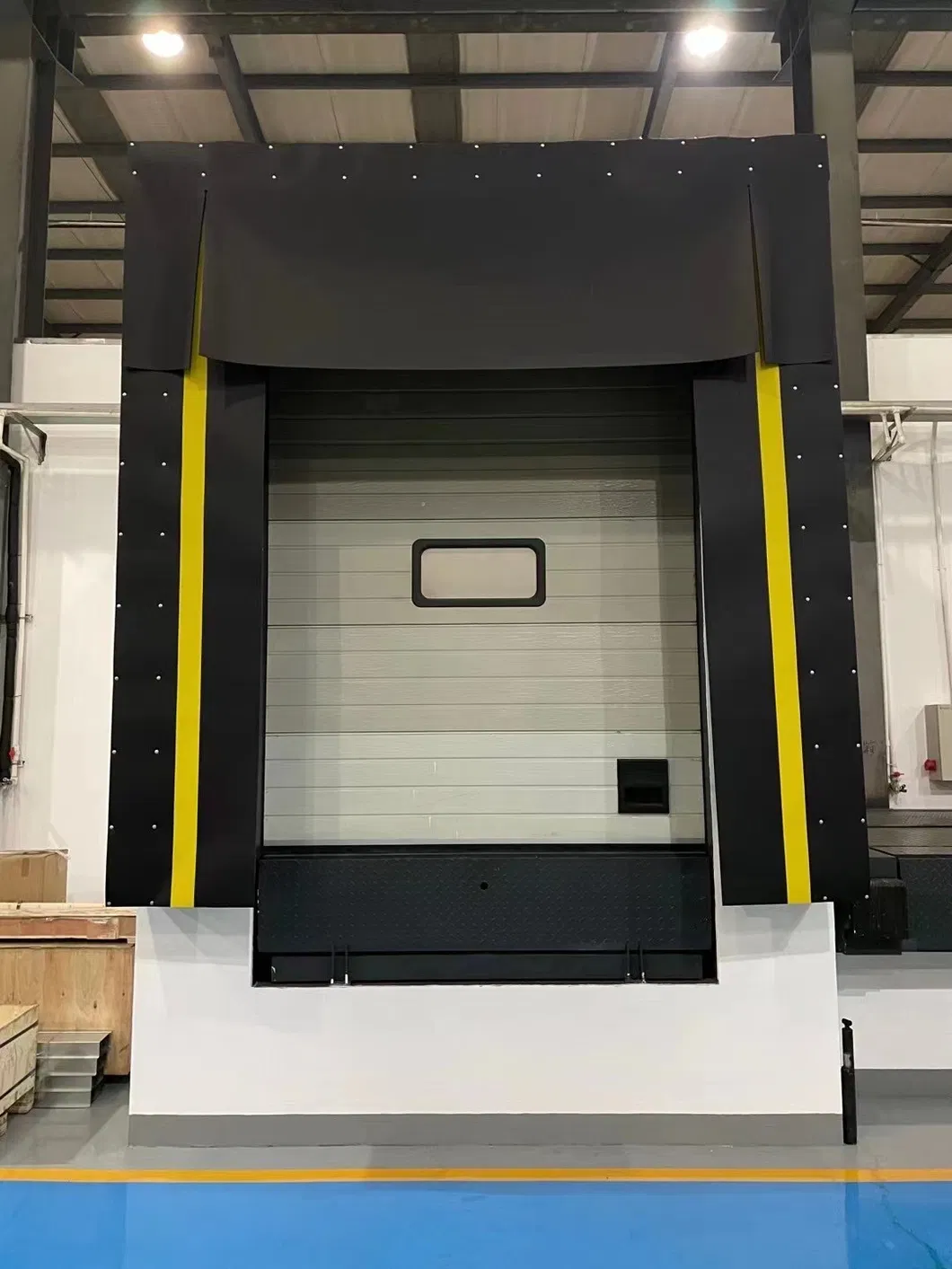

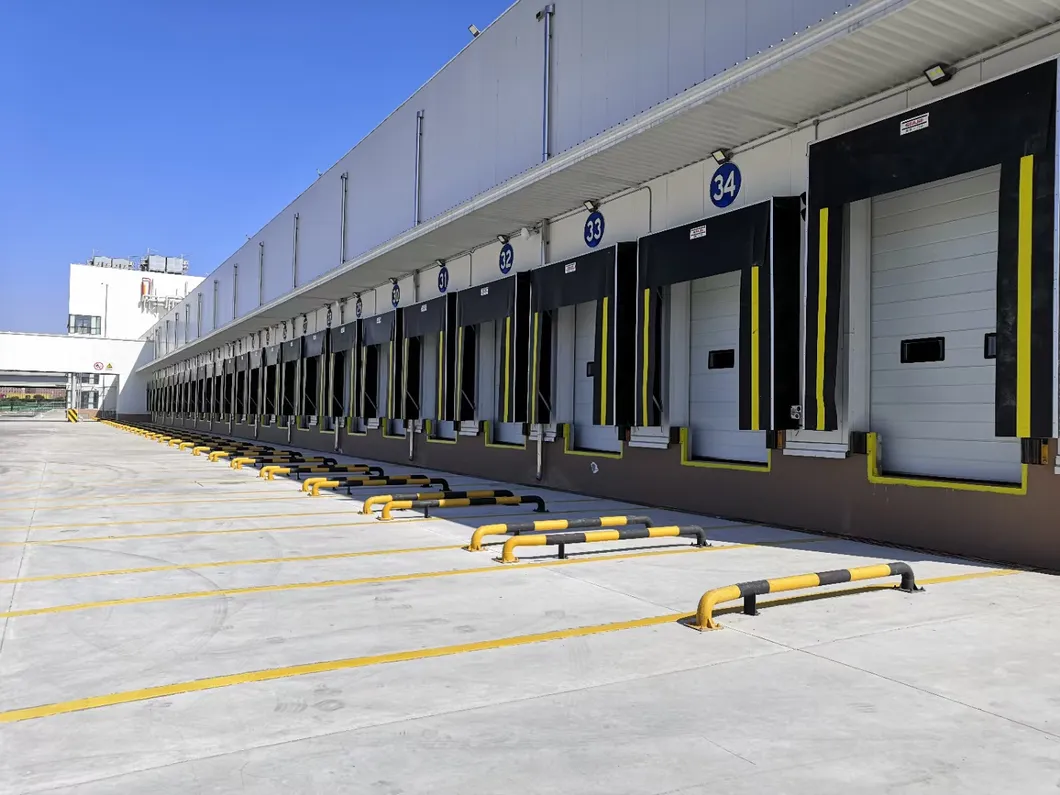

Complete Loading Bay Solution:

We supply the whole set: Dock Leveler, Sectional Door, and Dock Shelter/Seal.

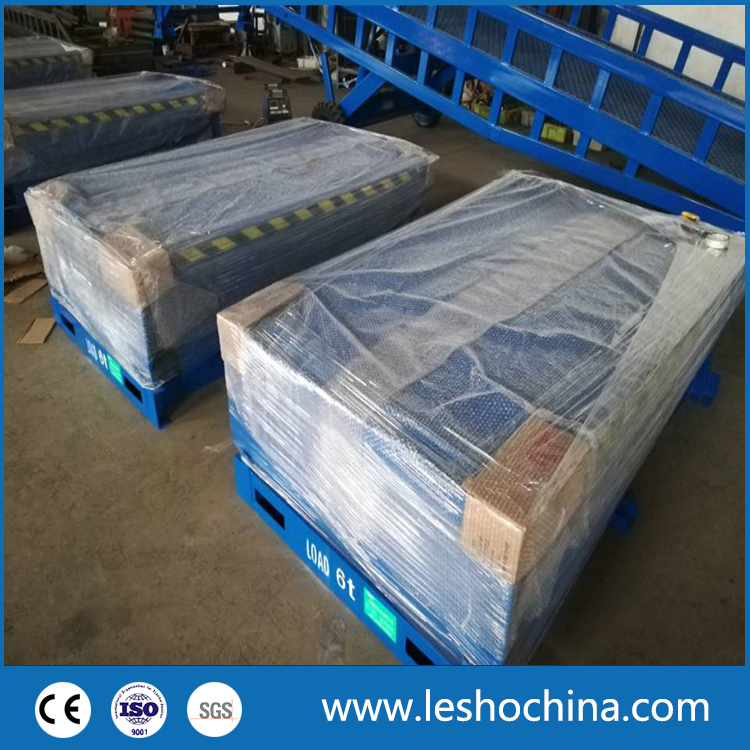

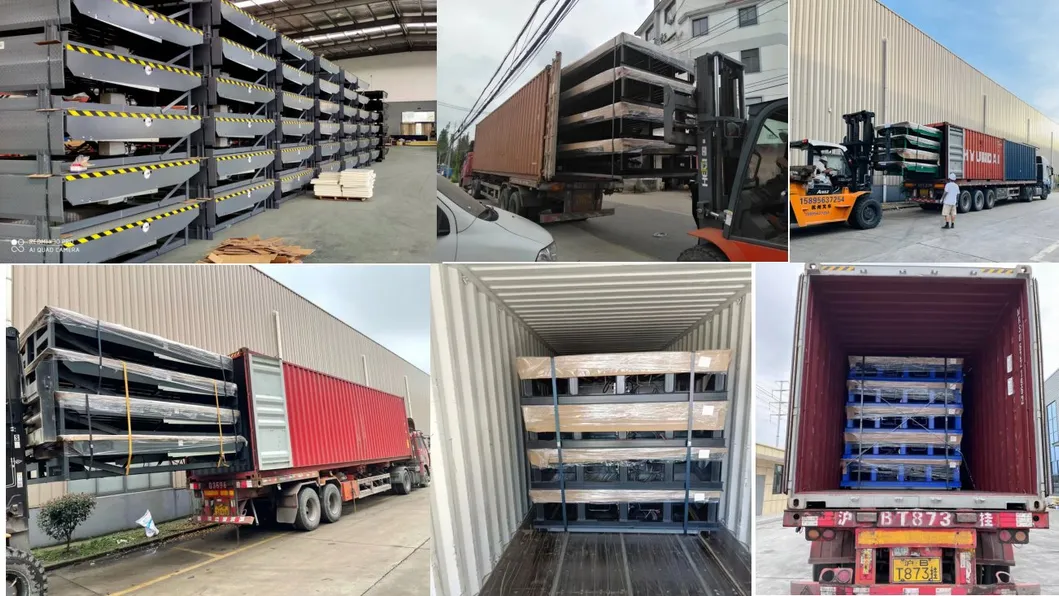

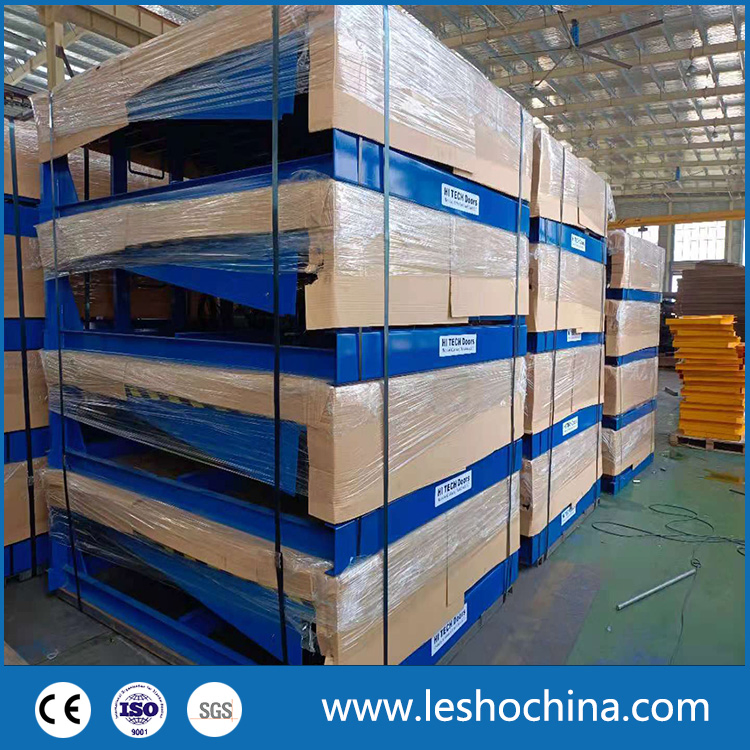

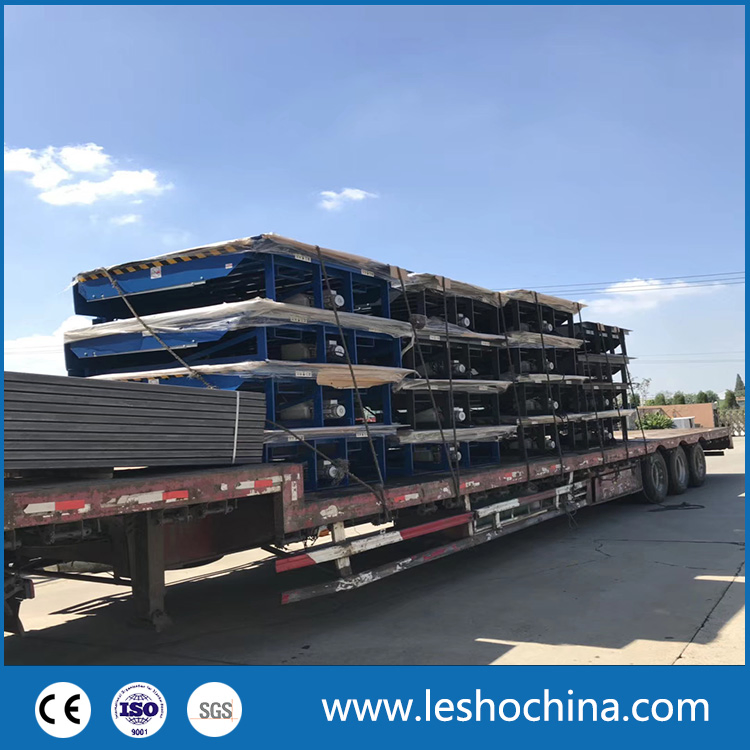

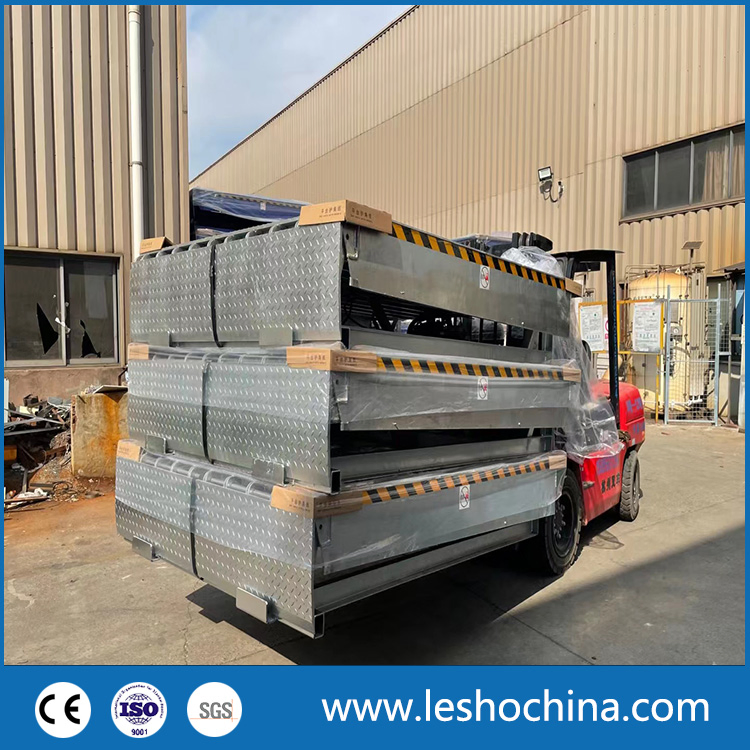

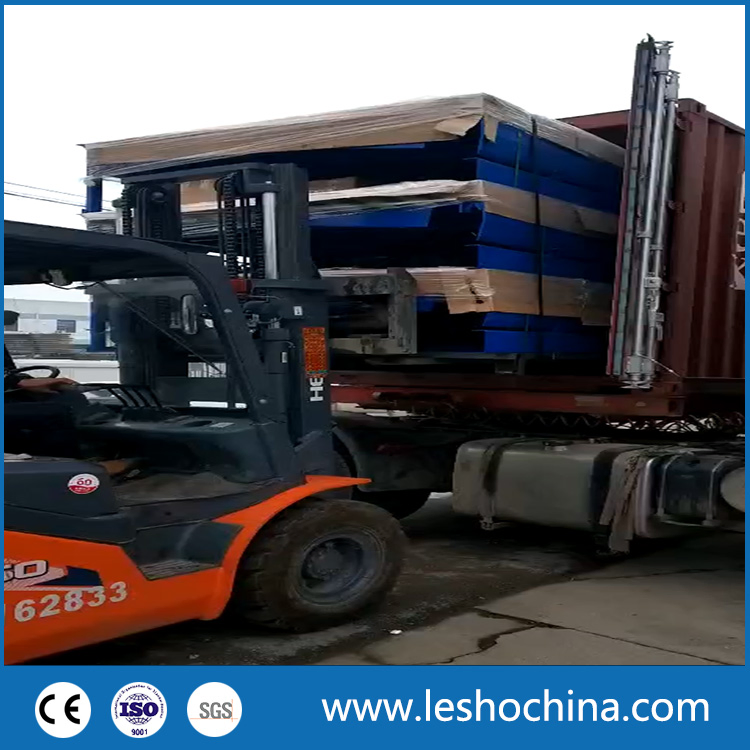

Packing & Loading:

One 40 feet HQ container can load 20 sets of dock levelers.
One 20 feet container can load 8 sets of dock levelers.

🏆 Quality Assurance & Exhibition

❓ Frequently Asked Questions

Why choose our dock levelers?

We provide the most cost-effective products with stable quality, backed by over 20 years of production and customization experience and 10+ years of export expertise.

How can we start a project?

We just need your basic project site information. If you have site plan drawings, that's even better. We can provide a complete solution based on these details.

What about the installation process?

We provide clear installation manuals, videos, and precaution documents. For complex large projects, we can send engineers to the site for guidance.

Which payment terms do you accept?

We usually accept T/T in advance, L/C for large sums, and Western Union. Contact us if you prefer other payment terms.

How long is the lead time?

Standard production typically takes 7-10 days.

How is the after-sale service handled?

Spare parts can be delivered within 24 hours via major couriers like DHL, UPS, or TNT to minimize any downtime.
