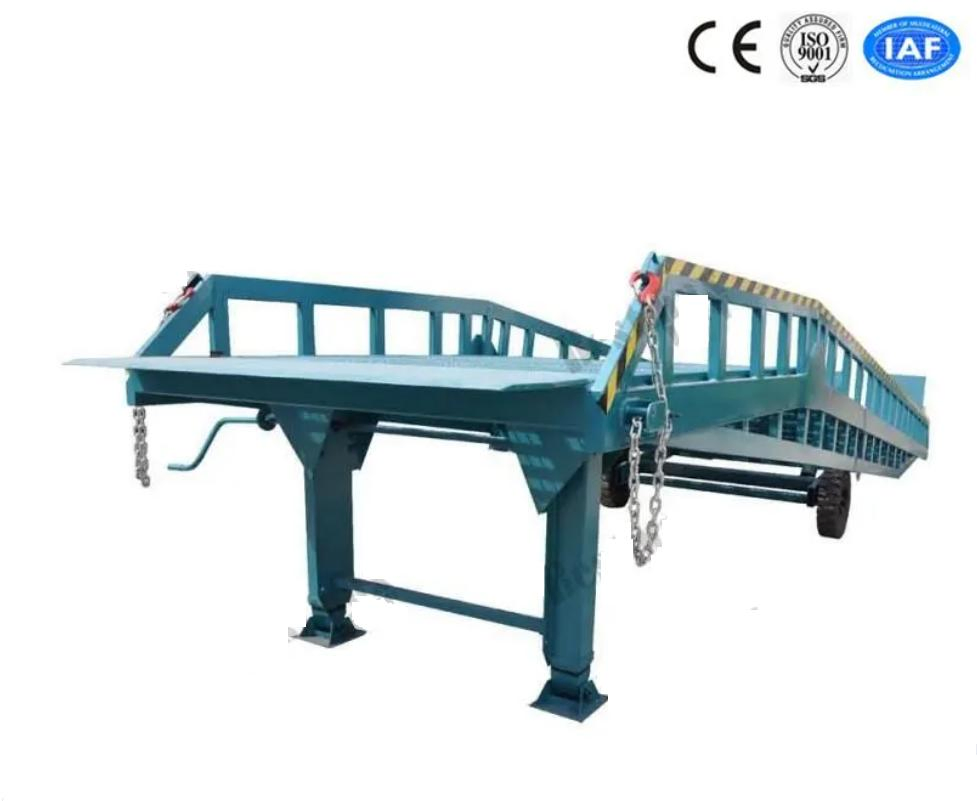

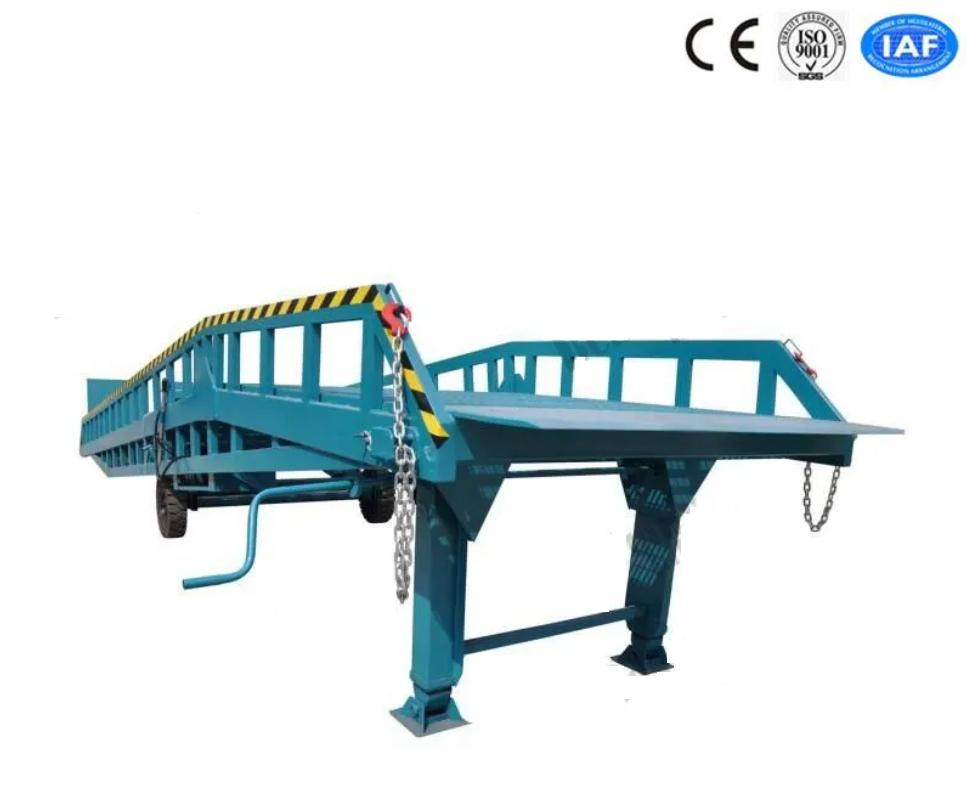

6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
1 / 5
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler
6-10 Tons Mechanical Durable Mobile Loading Dock Leveler

6-10 Tons Mechanical Durable Mobile Loading Dock Leveler

Customization: Available
Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism: Rack&Pinion
Send Inquiry

Product Description

📑 Basic Specifications
Model NO.
DCQY 10-0.6
Driven Type
Hydraulic
Certification
CE, ISO 9001
Loading Capacity
10000kg
Max. Working Height
1.8m
Slope Length
7.5m
Platform Length
2.4m
Lip Length
0.3m
Specification
11.20*2.10m
Origin
China
HS Code
8428909090
Production Capacity
2000 Units Per Year
📦 Product Overview
Movable Dock Ramp with Adjustable Height
Mobile Dock Ramp is an auxiliary machine for loading and unloading cargo with forklift coordination use. The forklift can drive from the ground to the truck compartment to work directly. There is no need to connect to power supply, as it uses manual hydraulic power. Only one man is needed to manipulate the machine safely and fast.

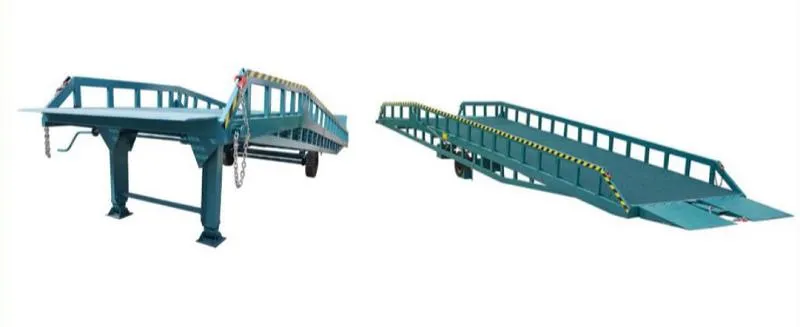

Mobile Loading Dock Leveler
Model DCQY 6-0.8 DCQY 8-0.8 DCQY 10-0.8 DCQY 6-0.6 DCQY 8-0.6 DCQY 10-0.6
Loading Capacity 6000 Kg 8000 Kg 10000 Kg 6000 Kg 8000 Kg 10000 Kg
Overall Length 10.50 m 10.50 m 11.20 m 10.50 m 10.50 m 11.20 m
Working Height 1.00-1.80 m 1.00-1.80 m 1.00-1.80 m 1.20-1.80 m 1.20-1.80 m 1.20-1.80 m
Remarks Without Outriggers With Outriggers

* Customized heavy loading capacity is available upon request.

🛠️ Main Features
Reinforced gusseted lip
Heavy duty deck construction (6-8 box beams)
Non-skid tread plate deck and lip
Full width one-piece lip hinges pin and tube
Heavy duty high pressure cylinders
First-class hydraulic power unit with long life
Forklift pick-up slot

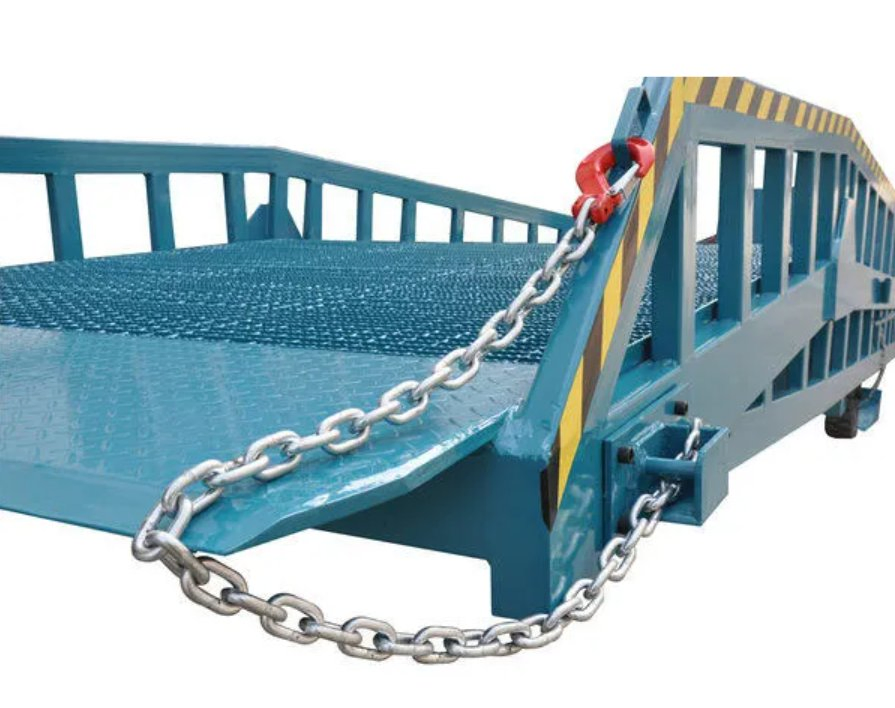

Safety locking chains for vehicle attachment
Brake pads to prevent movement during use
🔍 Product Details & Factory

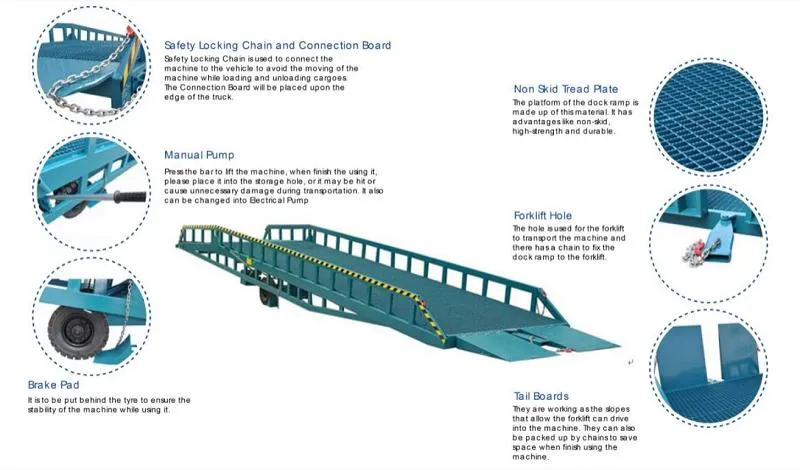

Dock Ramp Detail 1

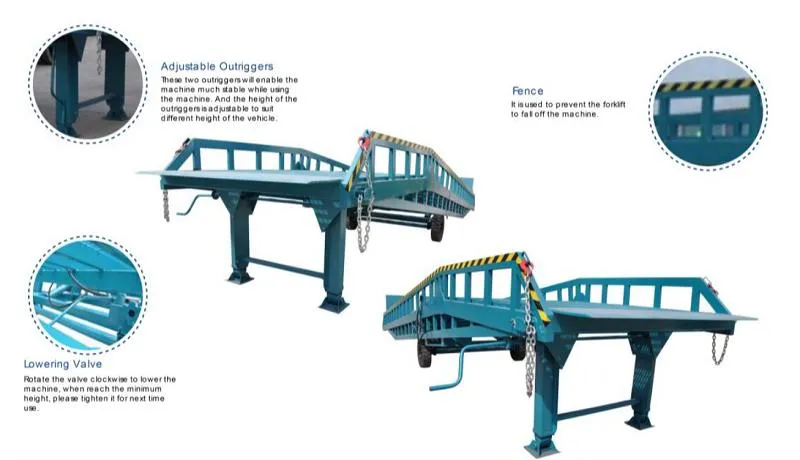

Dock Ramp Detail 2

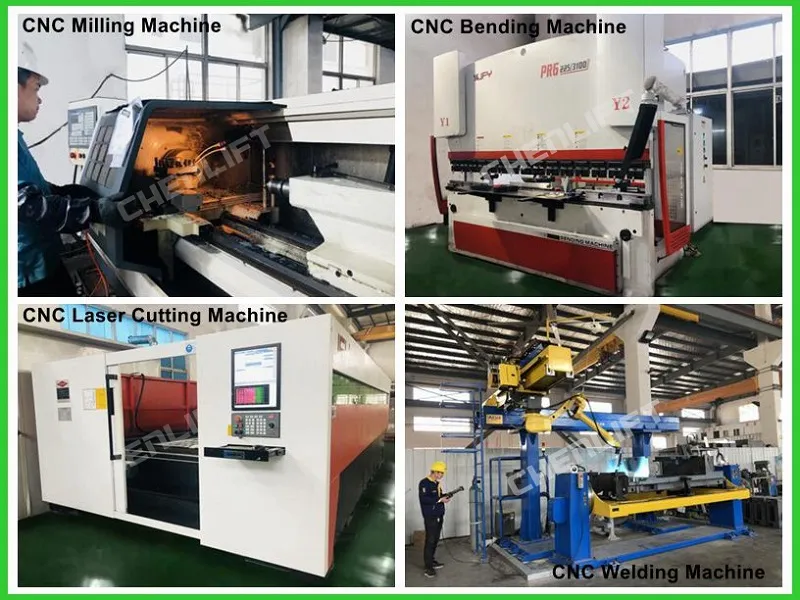

Factory Equipment
Clients Exhibition
⚙️ Main Configuration
Hydraulic System: Φ80*2 Cylinders, NOK sealing
Platform Surface: WB325/1 steel grating
Main Body: 160*60*4.5mm rectangular tube
Tire: Φ500-8 solid tire
Manual Hydraulic Power & Brake pads

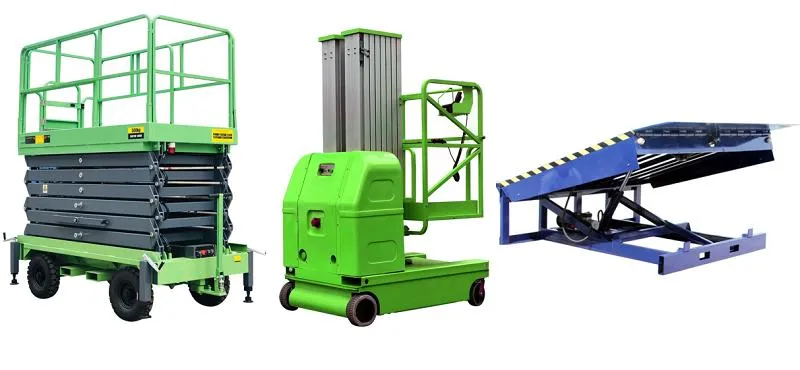

Related Products
🏆 Quality & Certificates
Production Base
Certificates
Frequently Asked Questions
Q1: How do you ensure the quality of the dock ramps? The quality control is strictly in accordance with ISO9001. We perform 100% inspection after production, using imported key components and advanced examination tools to ensure high standards.
Q2: Does the mobile dock ramp require an external power supply? No, it utilizes a manual hydraulic power system, allowing it to be operated anywhere without the need for electricity.
Q3: What safety measures are included to prevent the ramp from moving? The ramp is equipped with safety locking chains to attach it firmly to the rear of the vehicle and brake pads to prevent any sliding during loading operations.
Q4: Can the loading capacity be customized? Yes, while our standard models range from 6 to 10 tons, we can manufacture ramps with heavier loading capacities based on your specific requirements.
Q5: What is the typical delivery time for an order? The standard delivery time is approximately 30 days after the order confirmation.
Q6: What is the warranty period for this equipment? We provide a one-year quality guarantee for our lifting equipment and dock ramps.
