Portable Hydraulic Lift Platform for Efficient Warehouse Operations

Customization:	Available
After-sales Service:	Electronic Components Only Need to Be Replaced, No
Warranty:	1 Year

ℹ️

Basic Information

Model NO.:1000

Application:Warehouse Crane

Lift Mechanism:Telescoping Lift

Carrying Capacity:Special Weight Level

Moves:Stationary

Driven Type:Hydraulic

Certification:CE, ISO 9001

Voltage:AC 220V/380V/440V

Package:Wooden Box (250cm * 300cm * 100cm)

Origin:China

📦

Product Description

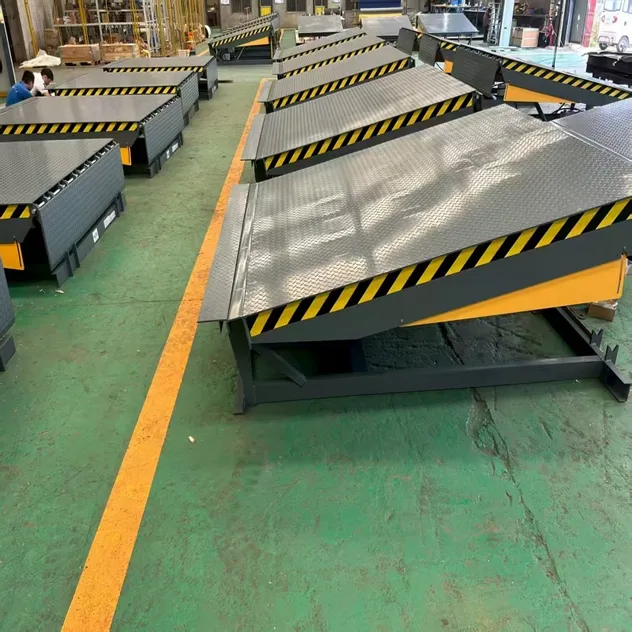

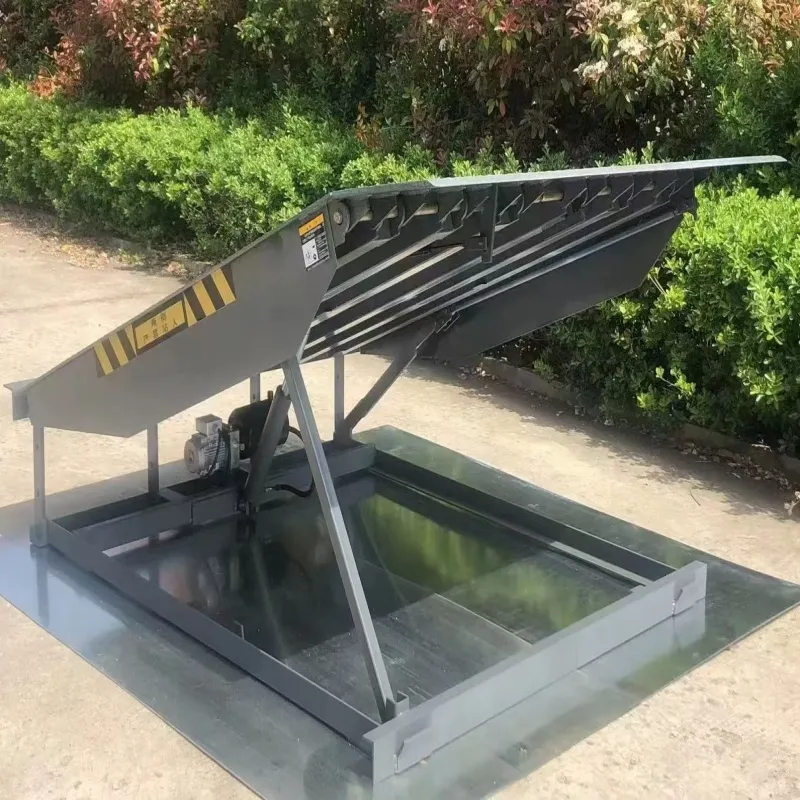

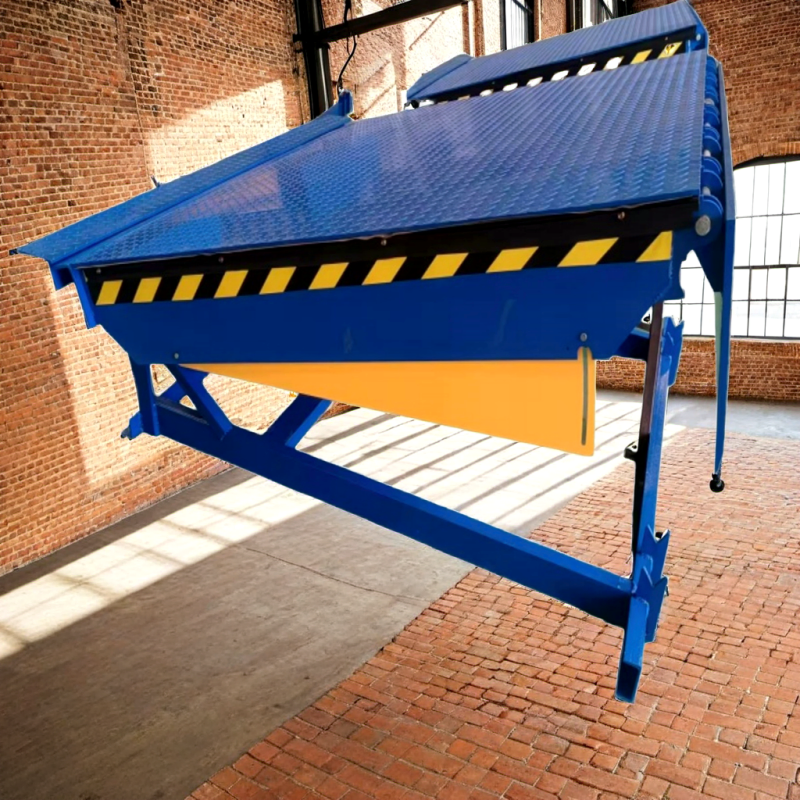

Unloading Platform: Also known as a dock adjustment plate or height adjustment plate, this equipment serves as a critical bridge connecting freight cars with warehouse platforms, efficiently resolving height discrepancies during logistics operations.

Ultimate Efficiency: Rapid docking via hydraulic operations allows forklifts direct access to trucks, increasing loading speeds by over 50%.

Enhanced Safety: Features high-strength anti-slip patterned steel plates and safety blocks to prevent accidental truck departure.

Cost Reduction: Minimizes labor requirements and reduces equipment wear by providing smooth transitions for forklift chassis and tires.

⚙️

Technical Specifications

Parameter	Description
Tongue Board	16mm thick (including pattern)
Main Panel	8mm thick embossed steel plate
Load Capacity	8 Tons
Hydraulic Cylinder	Main cylinder 65mm, Auxiliary 55mm
Panel Skeleton	15# 6 H-beams with 5mm protective plates
Safety Protection	5mm protective plates and safety shields
Surface Finish	Shot blasting, two coats primer, two coats topcoat (0.08mm)
Pump Station	CE certified (380V, 50HZ)
Height Adjustment	+300mm / -300mm
Lifting Time	Up ≤ 16s, Down ≤ 10s

🛠️

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: Comprehensive on-site or remote training for operation and maintenance.

🏢

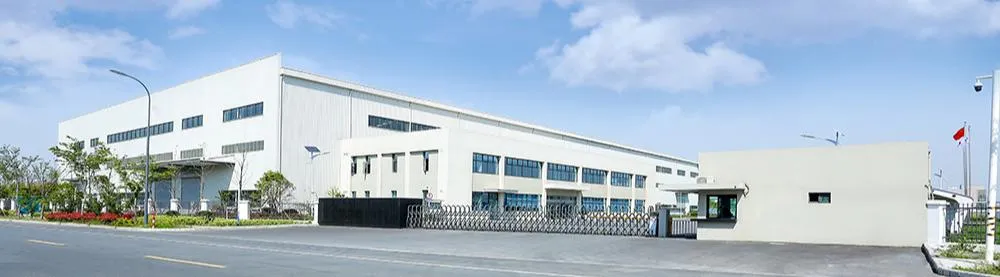

Company Profile

Our company is a leader in the industrial equipment sector with over 10 years of expertise. Holding ISO 9001, CE, and GOST certifications, we export to 50+ countries, delivering robust machinery supported by R&D innovation and stringent quality checks.

Frequently Asked Questions

Q: What's the lead time for orders? A: Standard models typically ship within 15–30 days, while custom units may take 30–45 days.

Q: Do you provide after-sales service overseas? A: Yes, we have partnered service centers available in several key international regions to provide local support.

Q: Can I request a custom unloading platform size? A: Absolutely. We specialize in customized attachments and dimensions tailored to your specific warehouse requirements.

Q: What safety features are included? A: Our platforms include fall protection lip plates, anti-slip surfaces, safety blocks, and toe-guard side plates for maximum operator safety.

Q: What documents are provided for international export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificates of Conformity (COC).

Q: How do I initiate a purchase order? A: Please contact our sales team to receive a formal quotation, which you can then confirm with an official purchase order.
