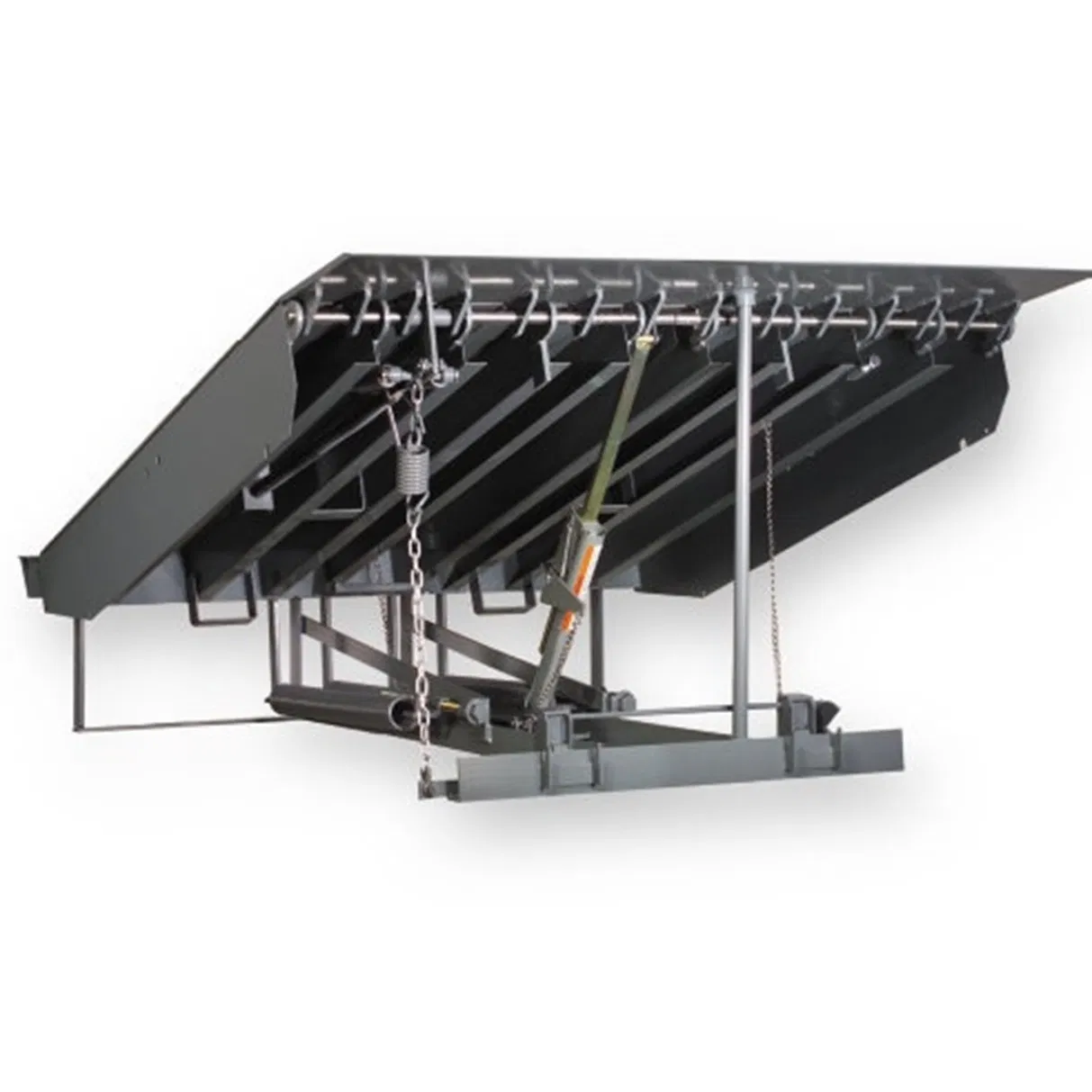

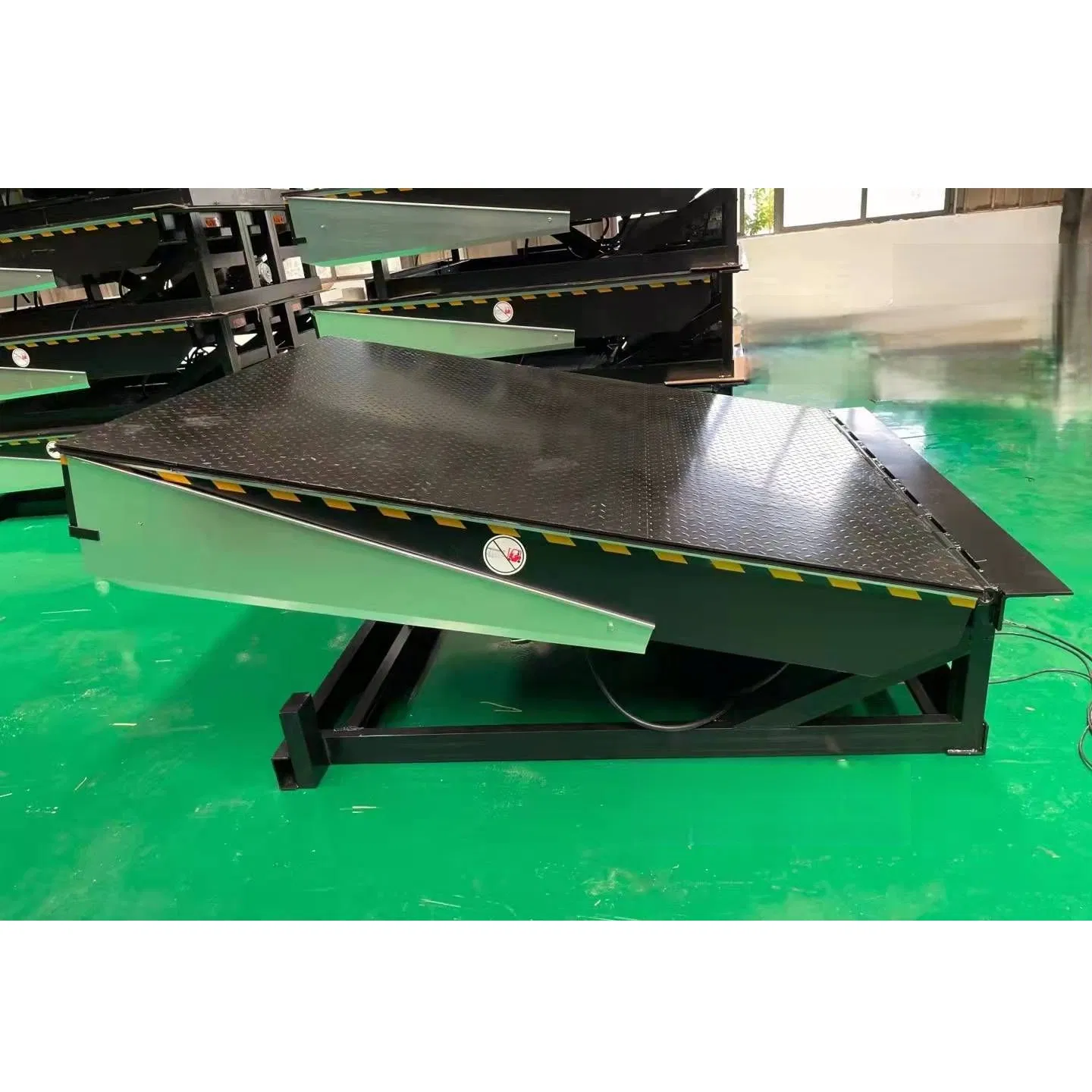

Logistics Adjustable Automatic Stationary Warehouse Loading Ramp Bay Dock Leveler Lifting Equipment

1 / 5

Logistics Adjustable Automatic Stationary Warehouse Loading Ramp Bay Dock Leveler Lifting Equipment

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months After Delivery

Send Inquiry

Product Description

Basic Information

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

Origin

Made in China

Production Capacity

10000/ Year

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Package Gross Weight

1000.000kg

Transport Package

Wrapping Film

Product Description

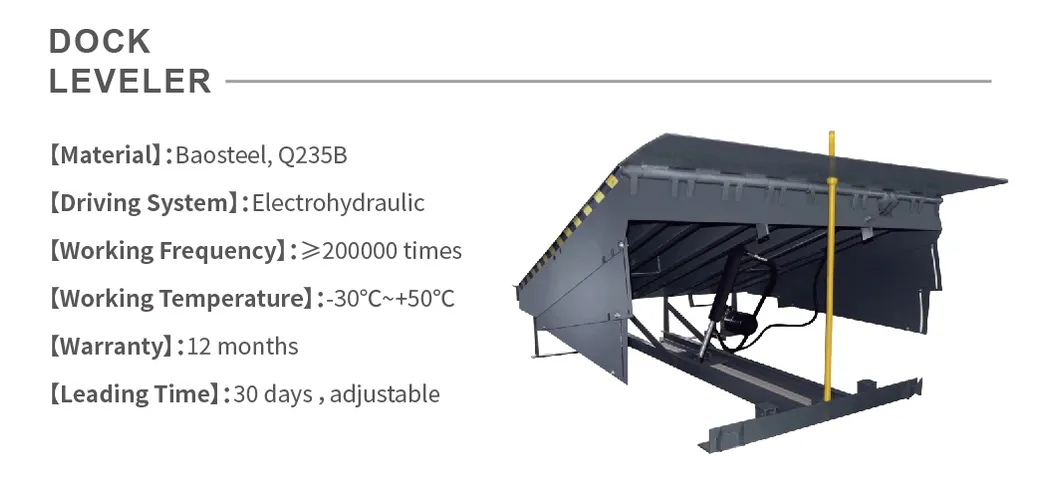

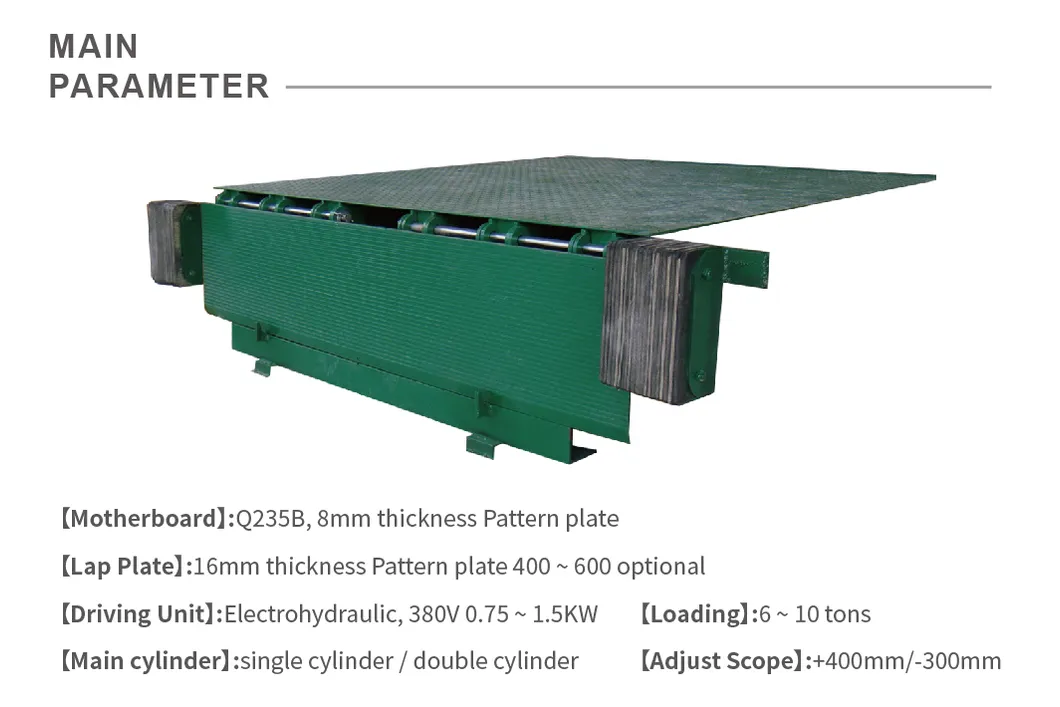

DETAILED PARAMETERS

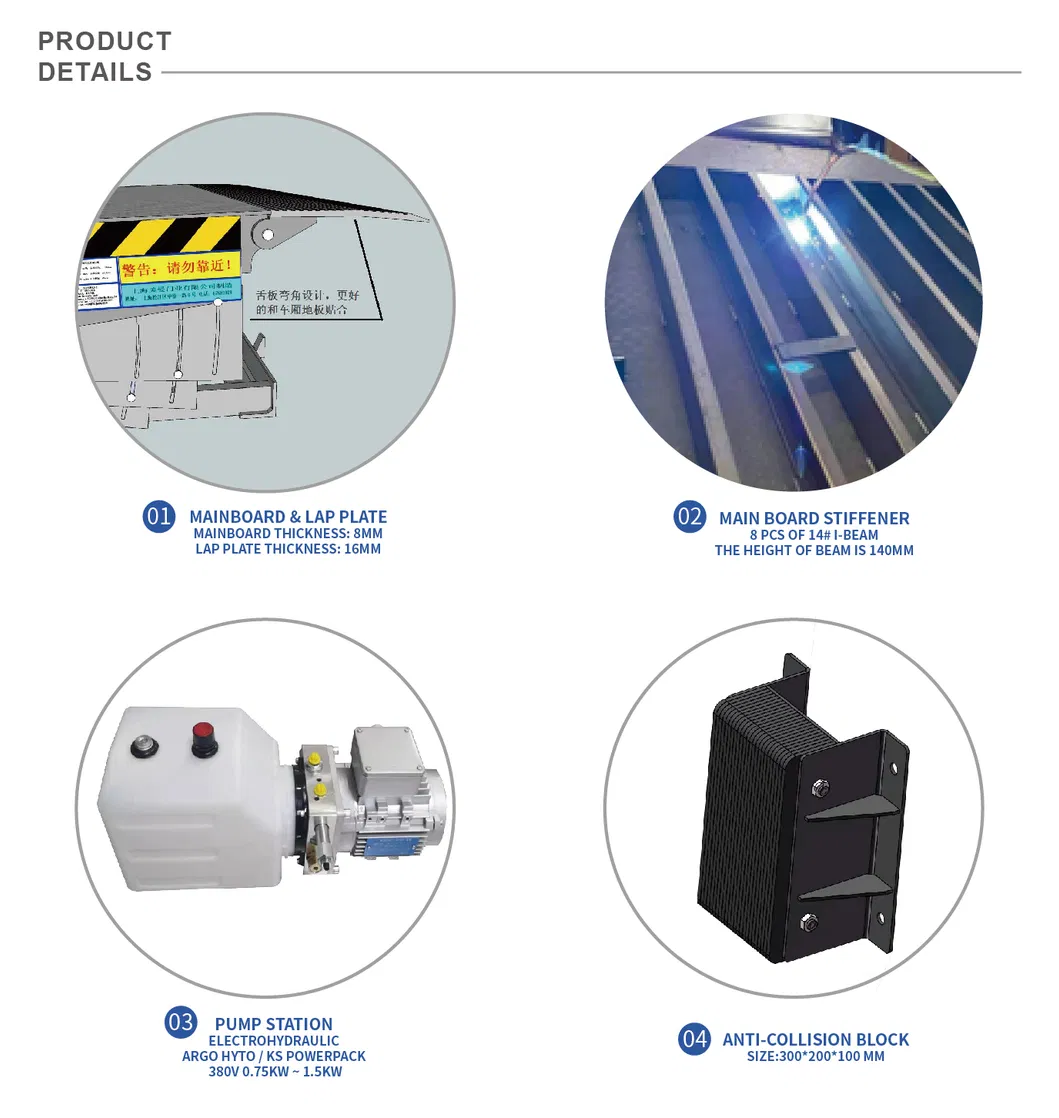

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12T / 15T
Driving	Electrohydraulic, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main Cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, height of Beam is 140mm
High Pressure Oil Pipe	T3683-2001; 60mpa
Safety Features	Automatic retraction side baffles, Explosion proof valve
Working Temperature	-30ºC ~ +50ºC
Working Frequency	≥ 200,000 times

Frequently Asked Questions

What is the dynamic loading capacity of this dock leveler?

The system supports multiple dynamic load options including 6T, 8T, 10T, 12T, and 15T to suit different logistics requirements.

How does the anti-slip surface work?

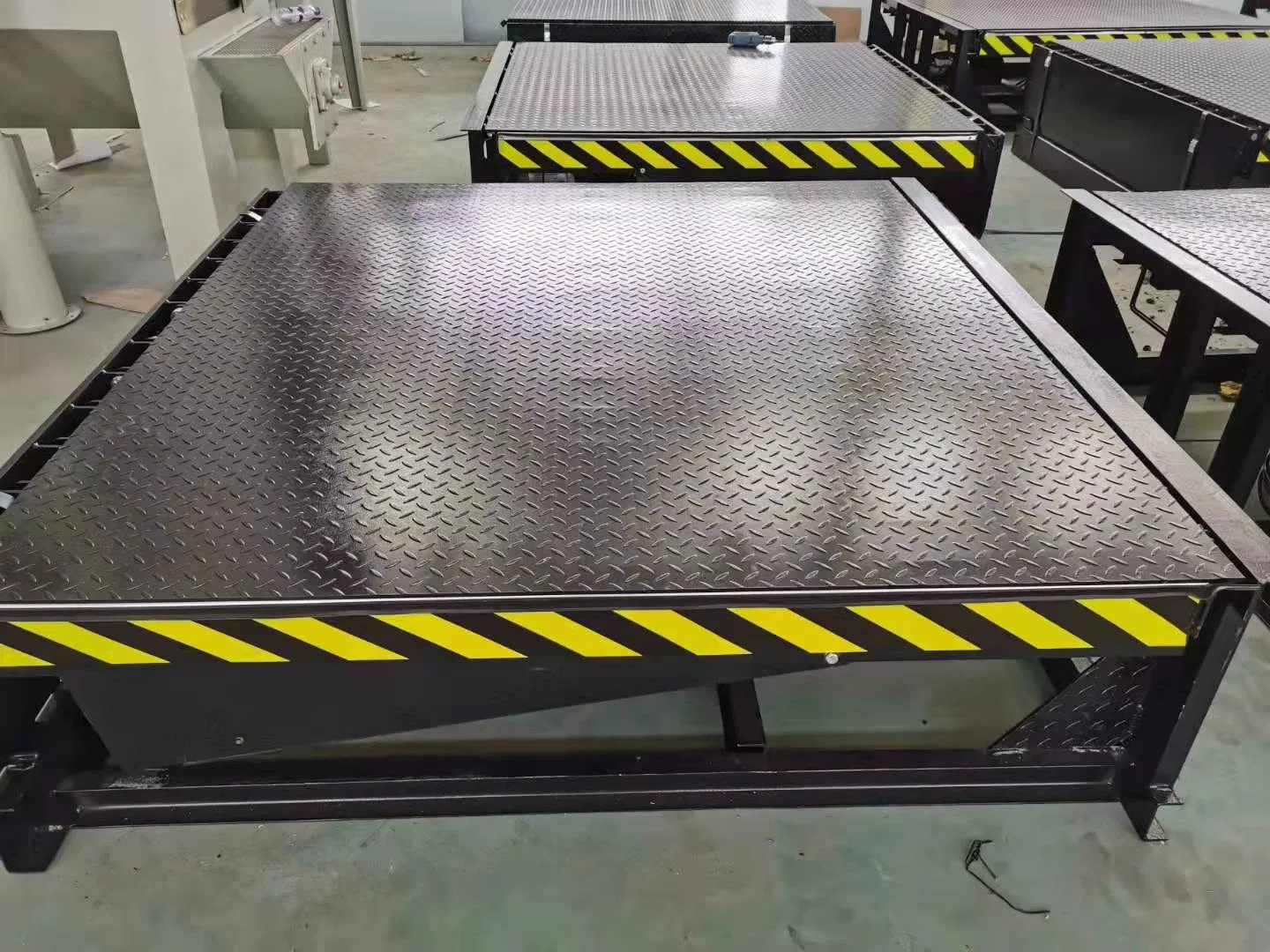

Both the main board and lap plate are constructed from Q235B steel plate featuring an anti-slide pattern to ensure safety during loading and unloading.

What is the vertical adjustment range?

The dock leveler provides a versatile adjustment scope of +400mm upwards and -300mm downwards from the dock level.

Is the equipment suitable for extreme temperatures?

Yes, the hydraulic system and components are designed to operate efficiently in a wide temperature range from -30ºC to +50ºC.

What safety features are included in the hydraulic system?

The unit is equipped with an explosion-proof valve and automatic retraction side baffles to ensure operator safety in case of emergencies.

What power supply is required for operation?

The standard configuration supports 220V/380V at 50Hz, with a power output ranging from 0.75Kw to 1.5kw depending on the model.
