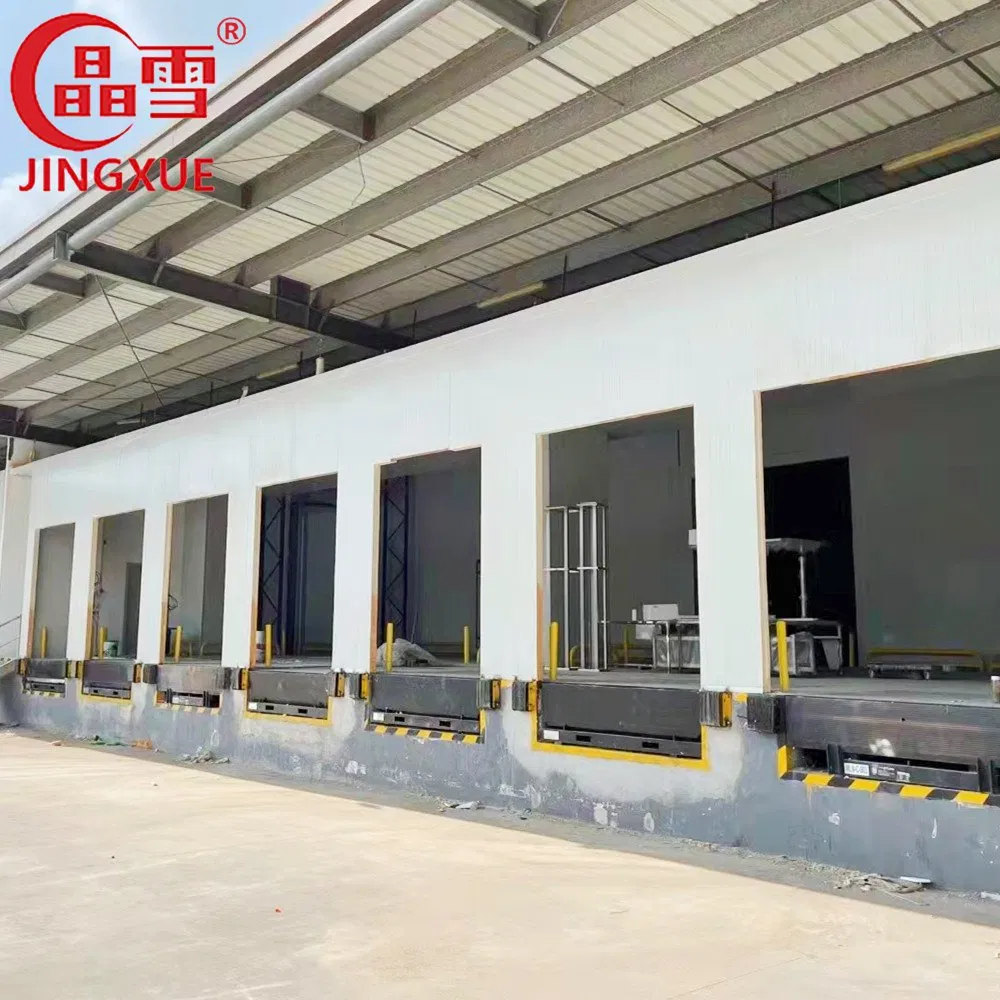

The electric dual cylinder hydraulic dock leveler is designed for facilities utilizing trucks of various heights for cargo loading. By bridging the height gap between the truck carriage and the loading platform, this system creates a stable slope that adjusts automatically as the truck's height changes during loading and unloading. This significantly enhances operational efficiency, allowing forklifts to drive directly into the vehicle.
| Power Source | 3 Phase/380±10%V/50Hz, 3 Wires, 0.75KW |
| Standard Sizes | W2000mm*L2000mm*H500mm / W2000mm*L2500mm*H500mm |
| Adjust Range | ±300mm (Safe Use Angle ± 12.5%) |
| Dock Plate Material | Non-Slip Pattern Steel Plate, 6mm Thickness |
| Toe Guard | 3mm Galvanized Steel Plate |
| Load Capacity | Dynamic Load 6.8 - 8 Tons, Static Load 13.6 - 16 Tons |
| Operating Temp | -40ºC to +60ºC |
| Service Life | ≥ 100,000 Cycles |
| Hydraulic Oil | Aviation Grade (Low-temperature resistant) |

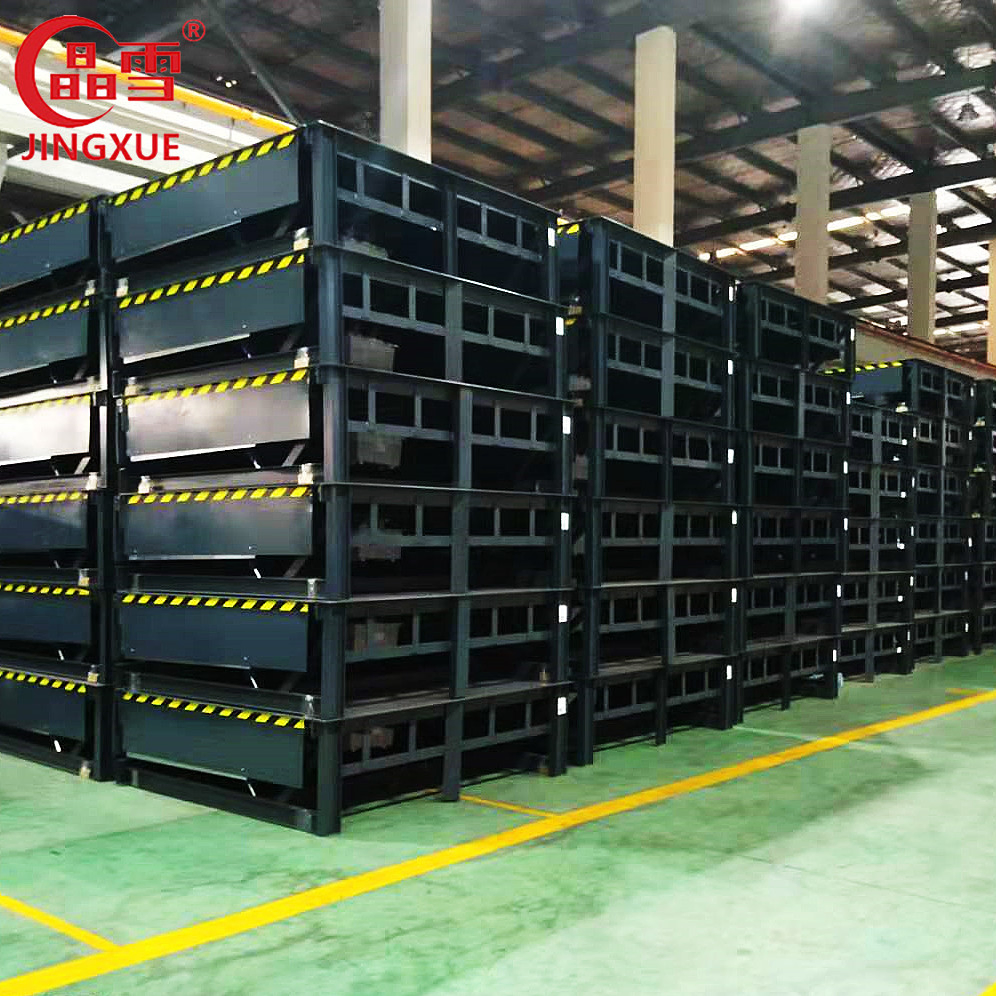

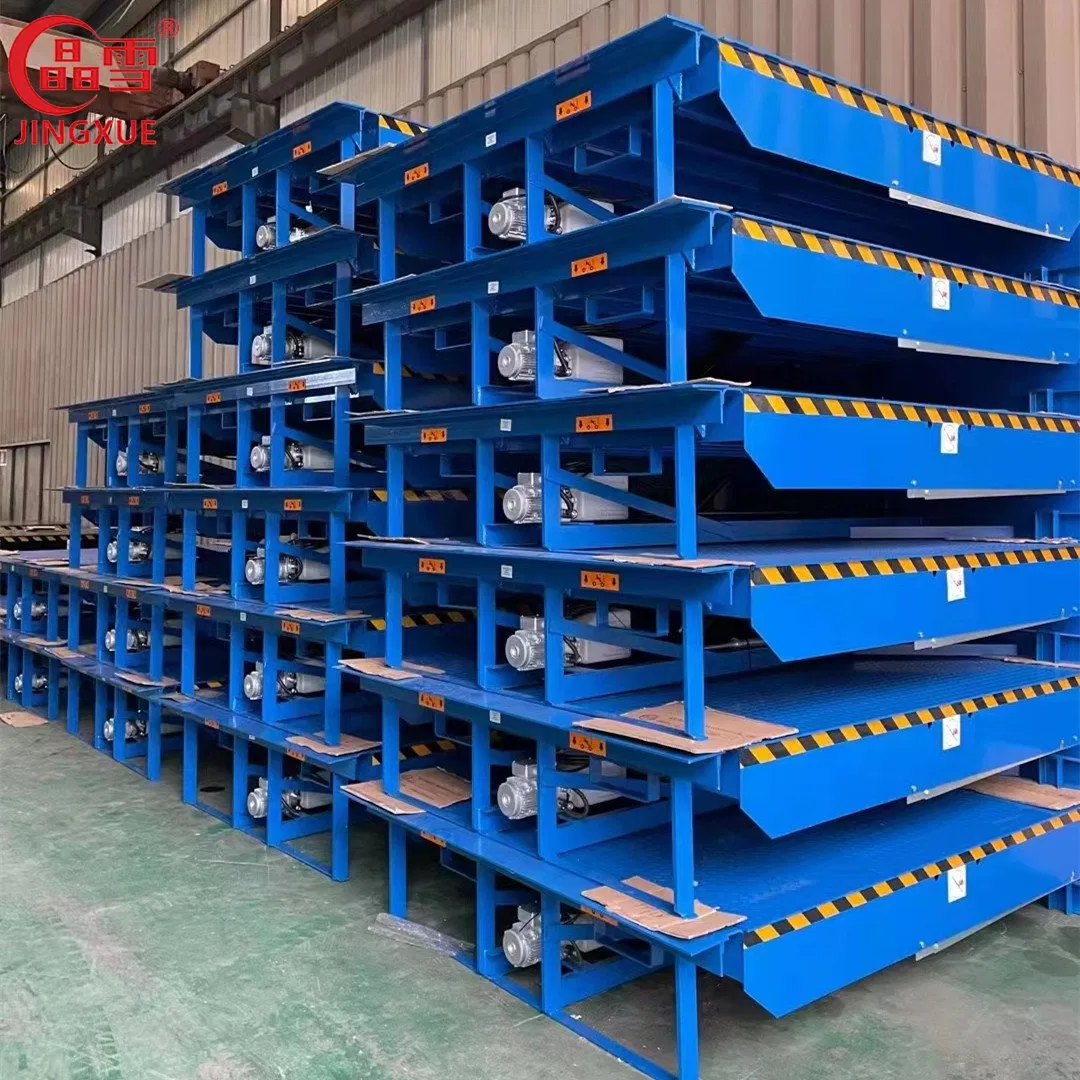

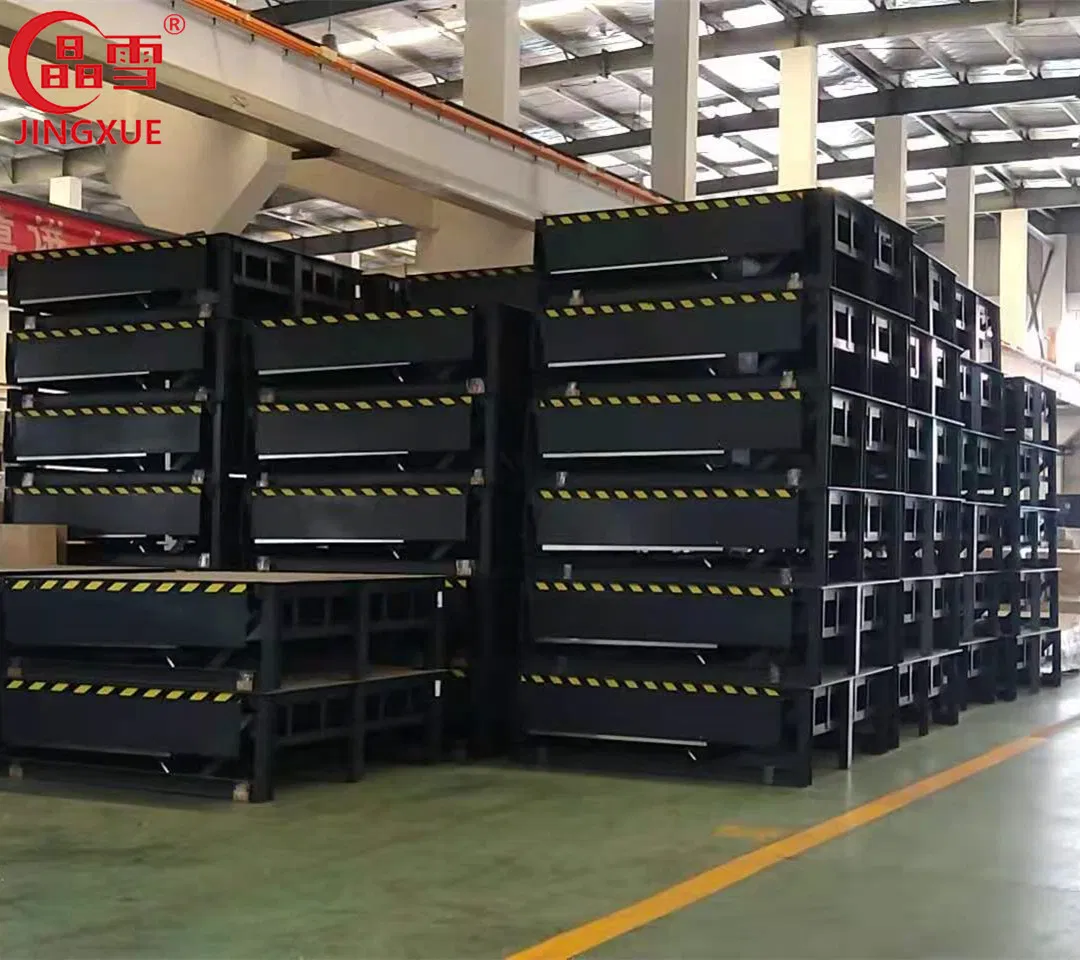

Packing: Hydraulic dock levelers are stack-packed with corrugated paper covering the main plates and corners for protection during transit.
Shipping: Support for EXW, FOB, C&F, CIF, and DDP terms. Typical lead time is 2-4 weeks depending on order volume and season.
