📘 Basic Information
Application
Warehouse Crane
Certification
CE, ISO 9001
Standard Size
L2000*W2000*H600mm (Customized Available)
Power Supply
220V 50Hz / 380V 50Hz
Working Temp
-35 to 65 Celsius Degree
📦 Packaging & Delivery
Package Size
300.00cm * 80.00cm * 80.00cm
Transport Package
Wooden Package
🏗️ Product Description

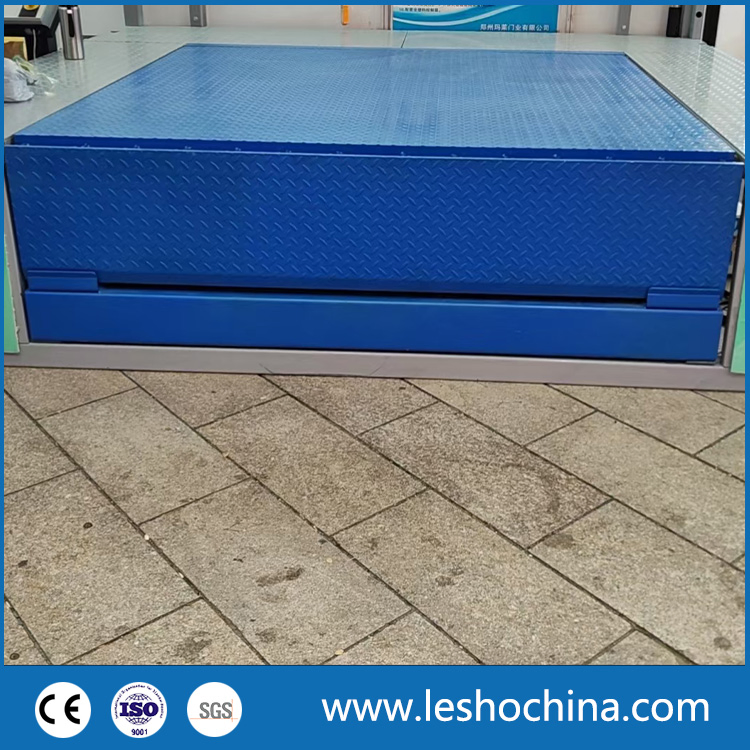

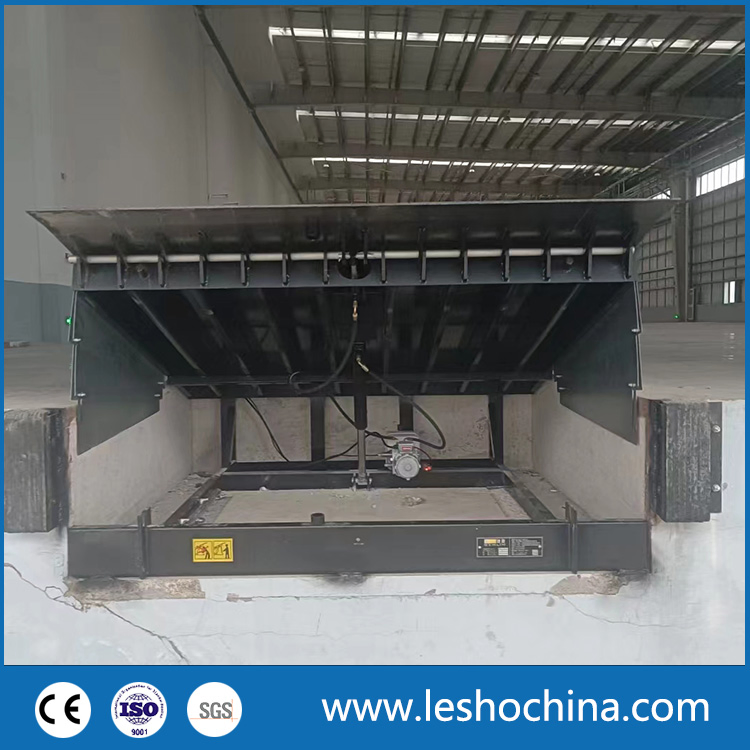

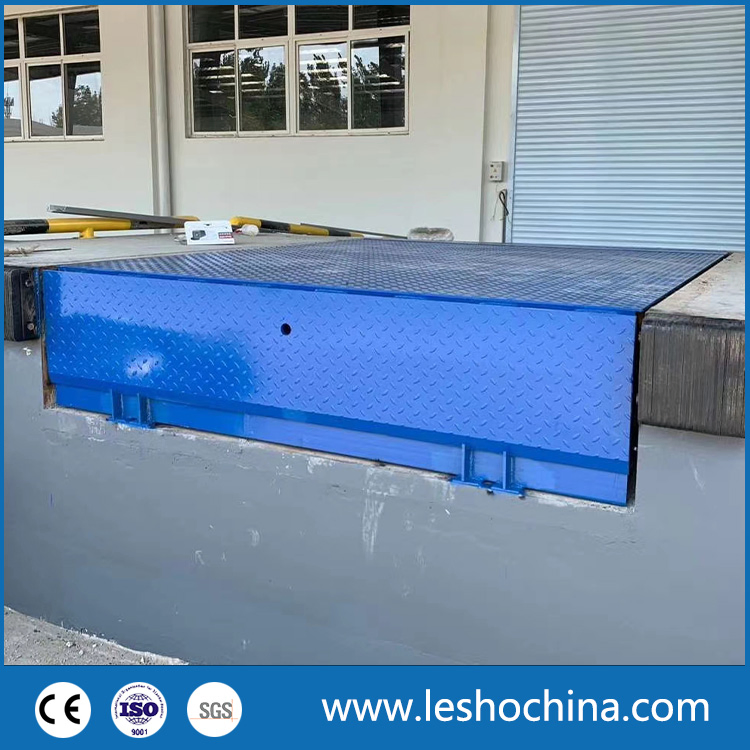

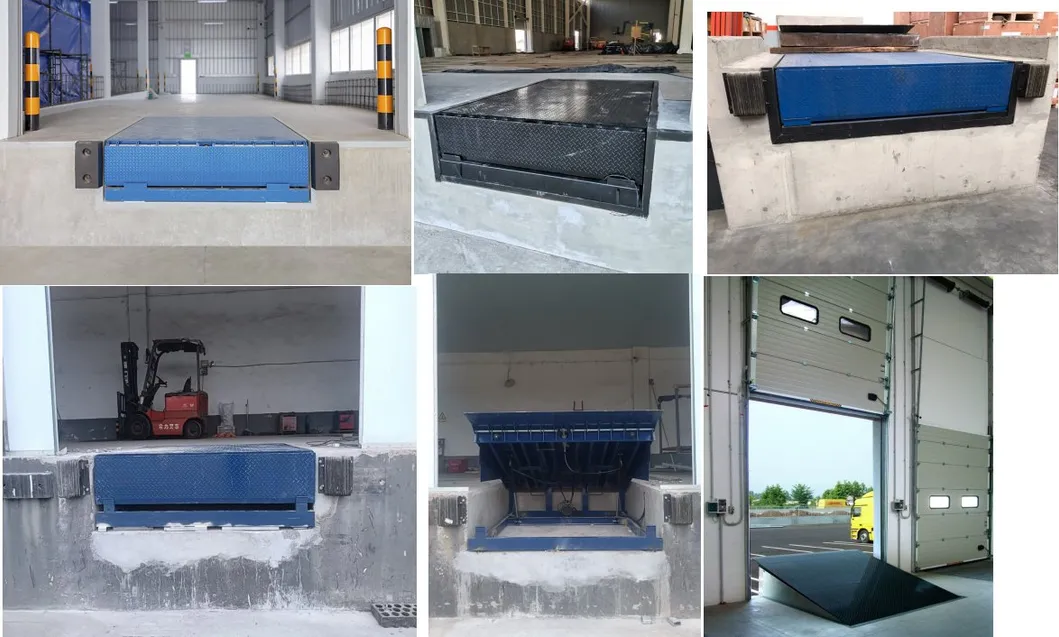

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp
Application:
The dock leveler is the optimal solution for adjusting height differences between the loading platform and container trucks. It allows for arbitrary height adjustment, significantly improving loading and unloading efficiency while saving manpower.
Widely used in warehouses, stations, docks, logistics bases, postal transportation, and distribution centers with frequent vehicle movement.
Loading Capacity Options: 6000 kg, 8000kg, 10000kg, 15000kg.
| Dynamic Load |
Panel Thickness |
Reinforcement |
Mouth Plate |
Base Frame |
Static Load |
| 5 tons | 6mm | 4mm L steel | 12mm | 60 channel steel | 8 tons |
| 8 tons | 8mm | 4mm L steel | 16mm | 100 channel steel | 11 tons |
| 10 tons | 8mm | 14# I-beam | 16mm | 100 channel steel | 13 tons |
| 14 tons | 10mm | 16# I-beam | 16mm | 100 channel steel | 17 tons |

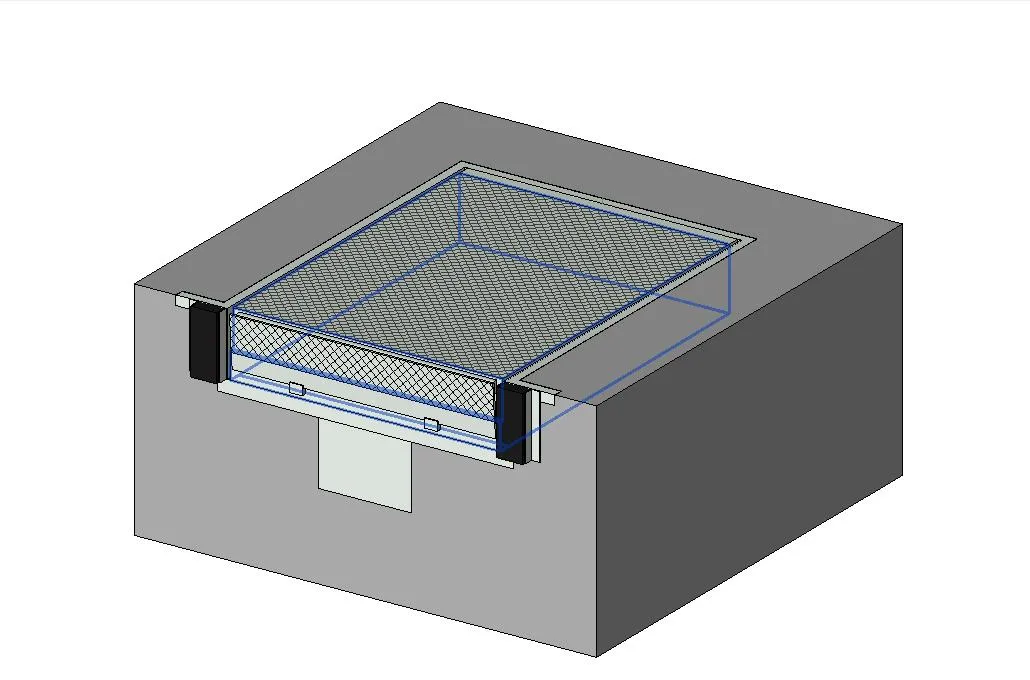

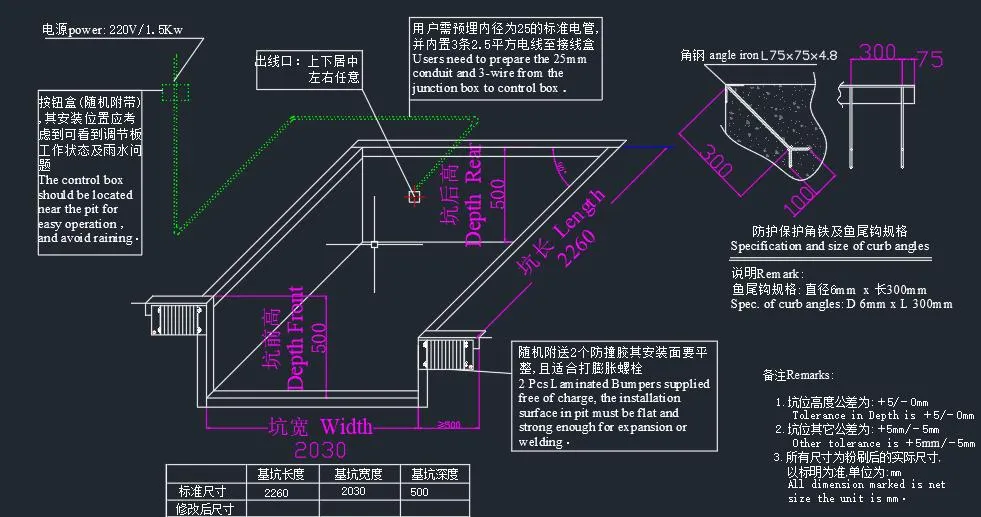

📐 CAD Drawing & Dimensions
Accurate shop drawings ensure precise pit construction and seamless installation.
Standard Sizes:
- Width=1830mm, Length=2000mm, Height=500mm
- Width=2000mm, Length=2000mm, Height=500mm
- Width=2000mm, Length=2500mm, Height=500mm
⚙️ Technical Specifications

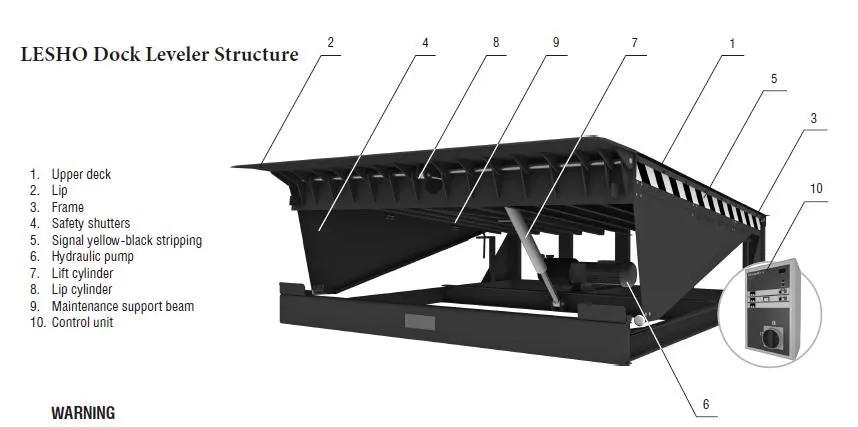

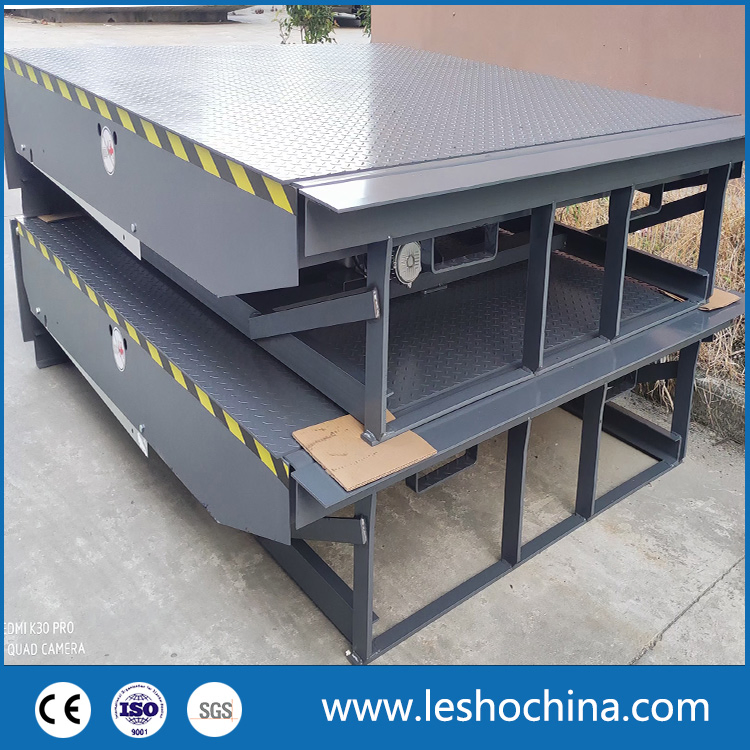

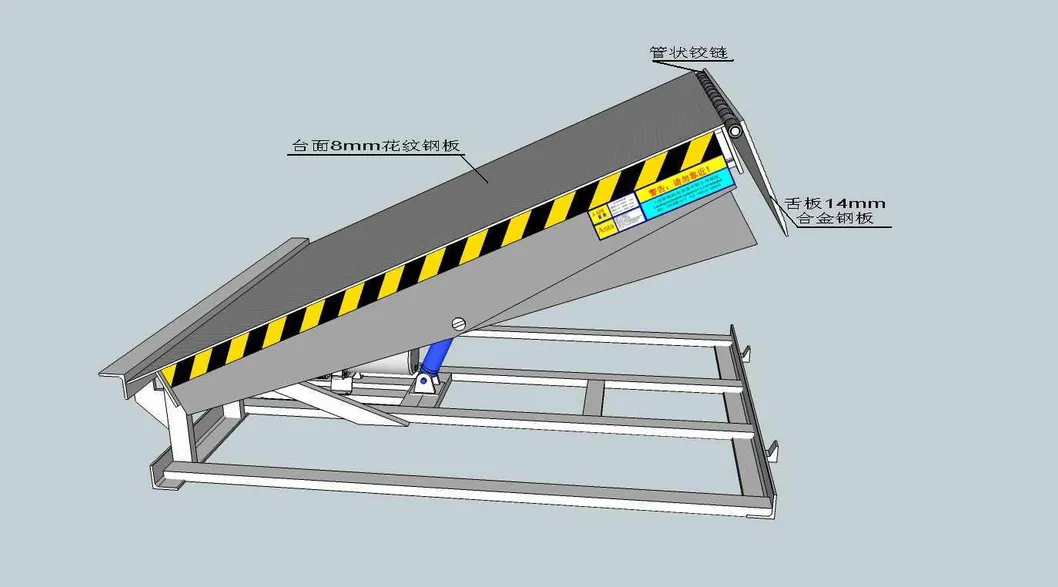

Main Platform:
- Surface sheet: 6mm-8mm thick high-strength whole set steel plate.
- Whole-piece steel sheet design for higher strength and longer life.
- Underneath support: High-density steel tube or C-channel.
- Treatment: Blasting and powder coating for high rust proofing.

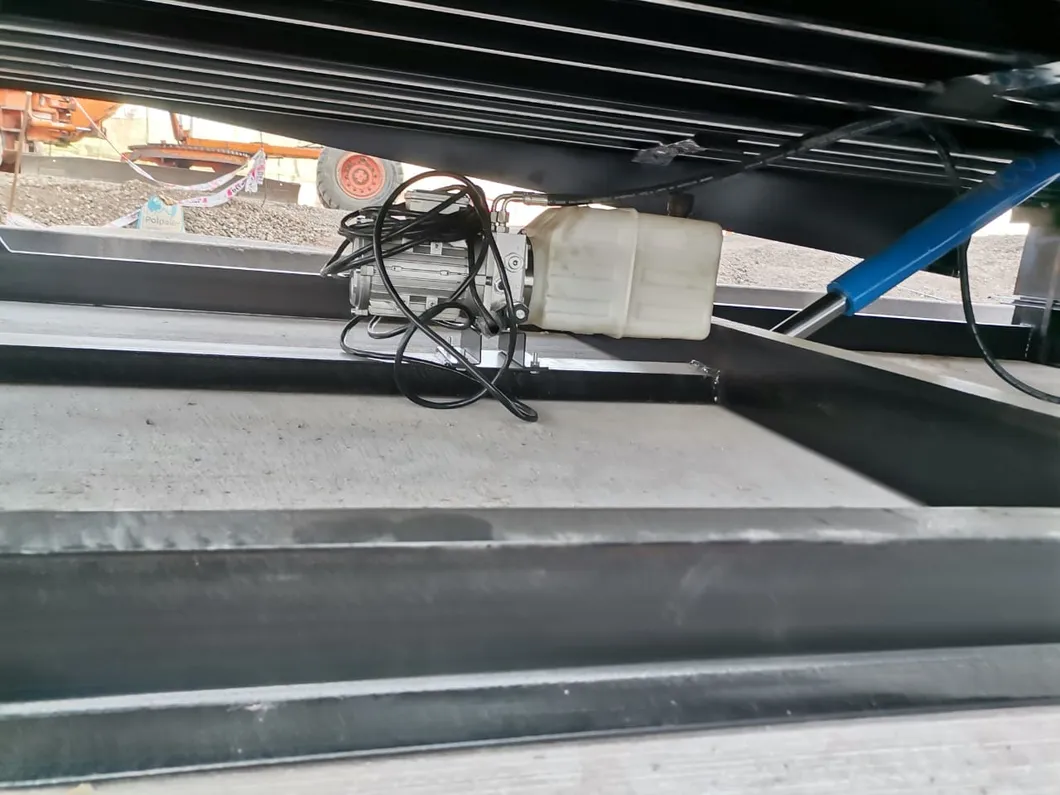

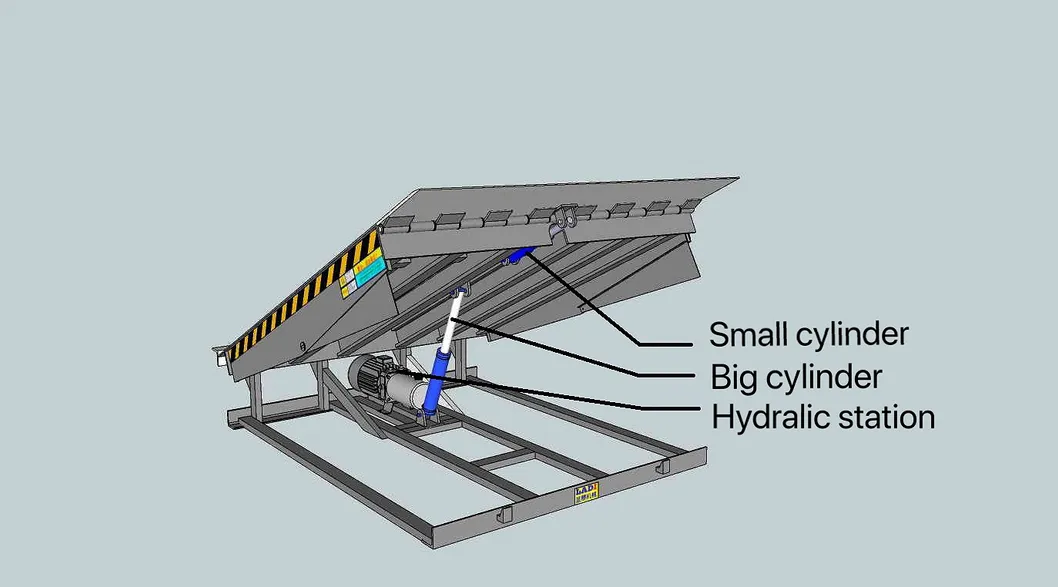

Hydraulic System & Control:
- Power supply: 3-phase 380V/50Hz; Output: 0.75KW-1.5KW.
- Overheating self-protection function included.

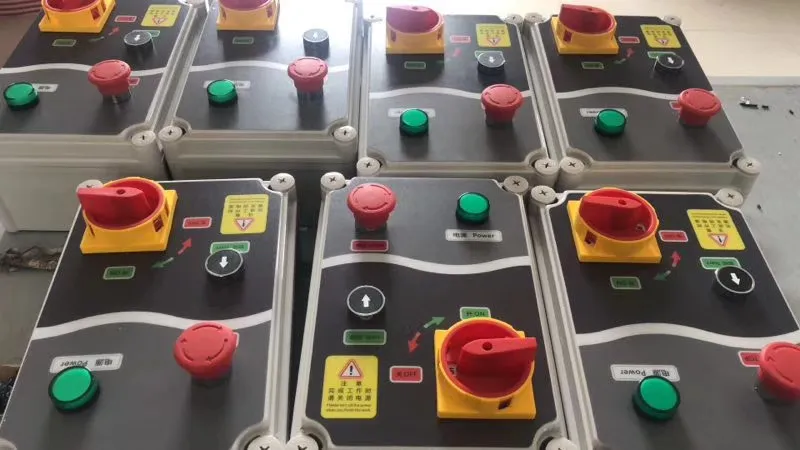

- Multi-function control panel with Emergency Stop and Power Switch.
✨ Key Features
- Overall assembly bears 120% of standard nominal load capacity.

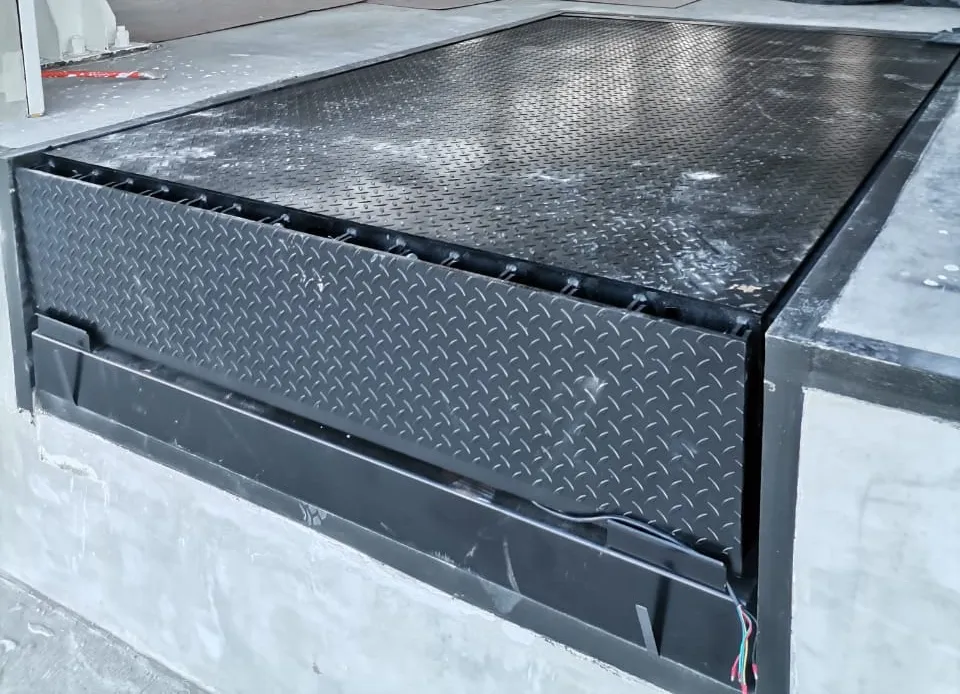

- Anti-skid surface made from milled high-strength steel plate.
- Heat-treated Hinge and Shaft to minimize deformation.
- Imported European hydraulic drive station for stable power output.
- Epoxy resin paint coating for high durability and anti-corrosion.
🚛 Loading & Logistics

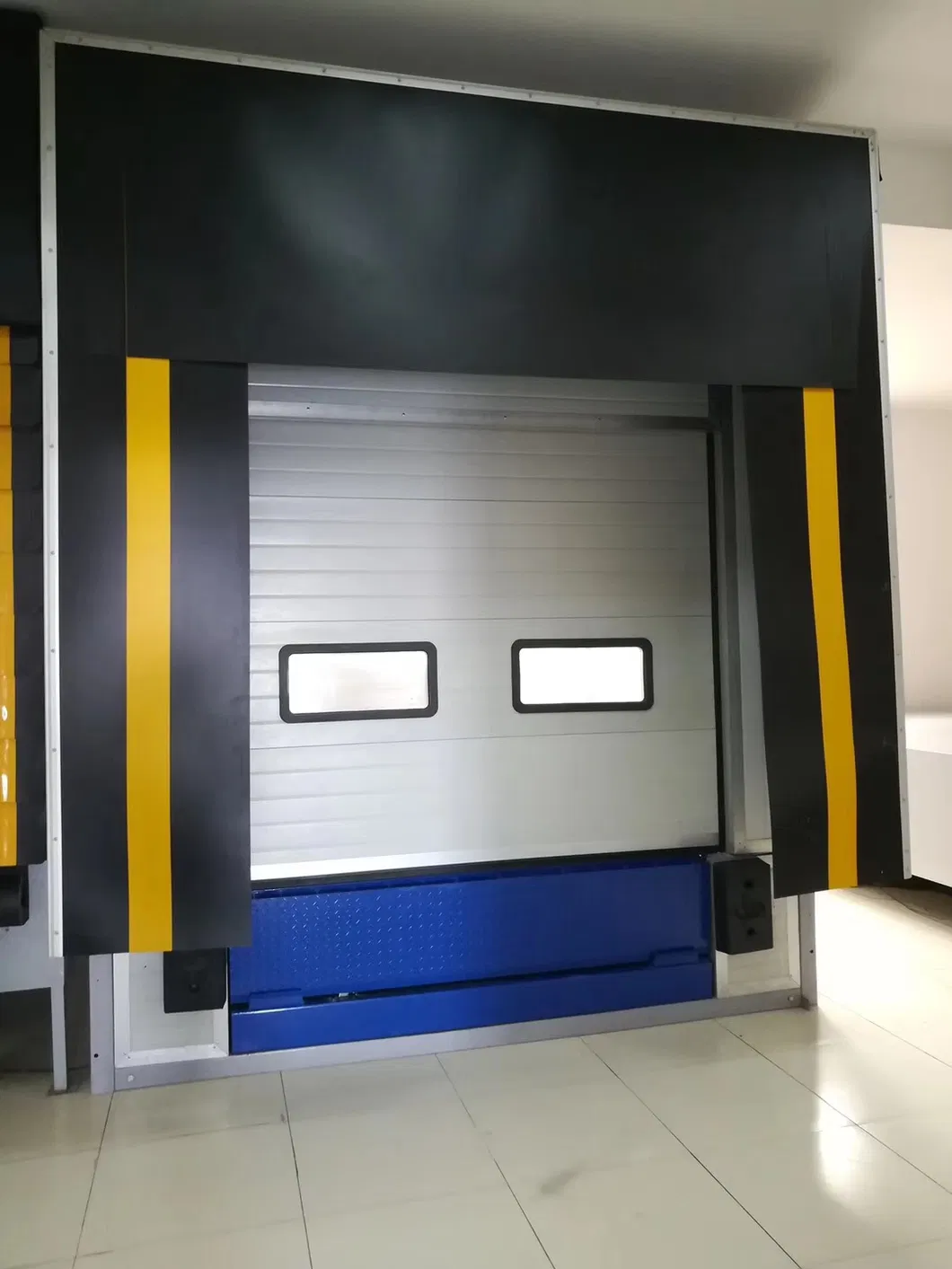

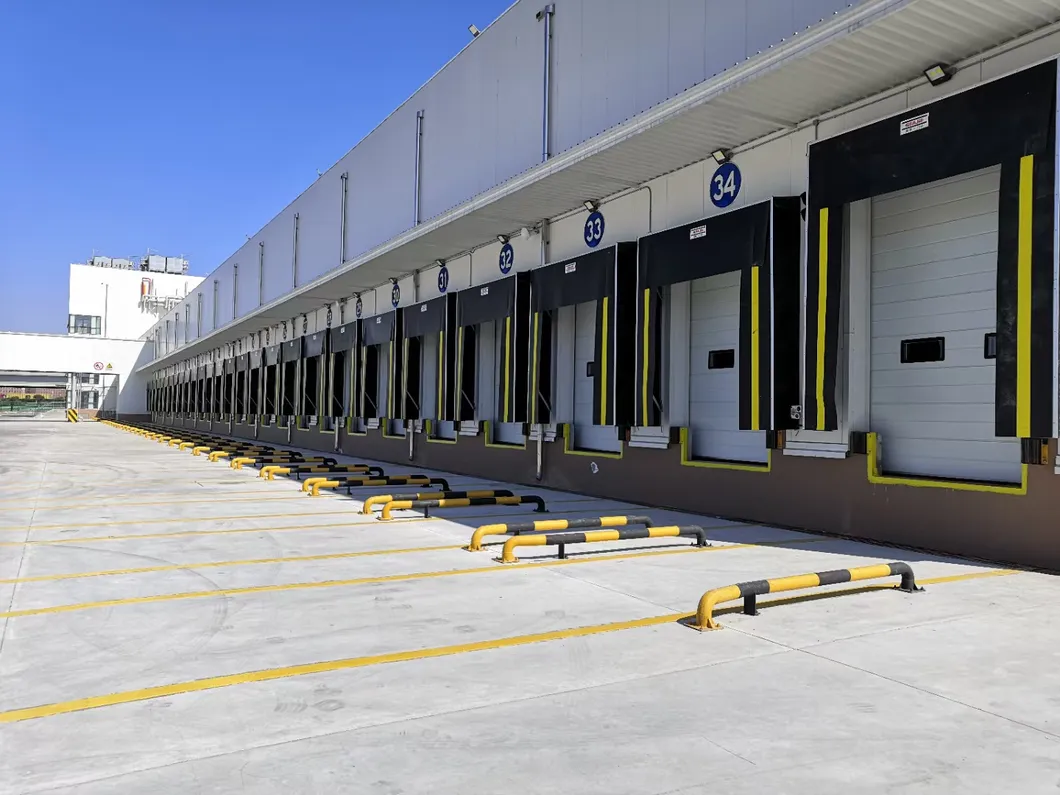

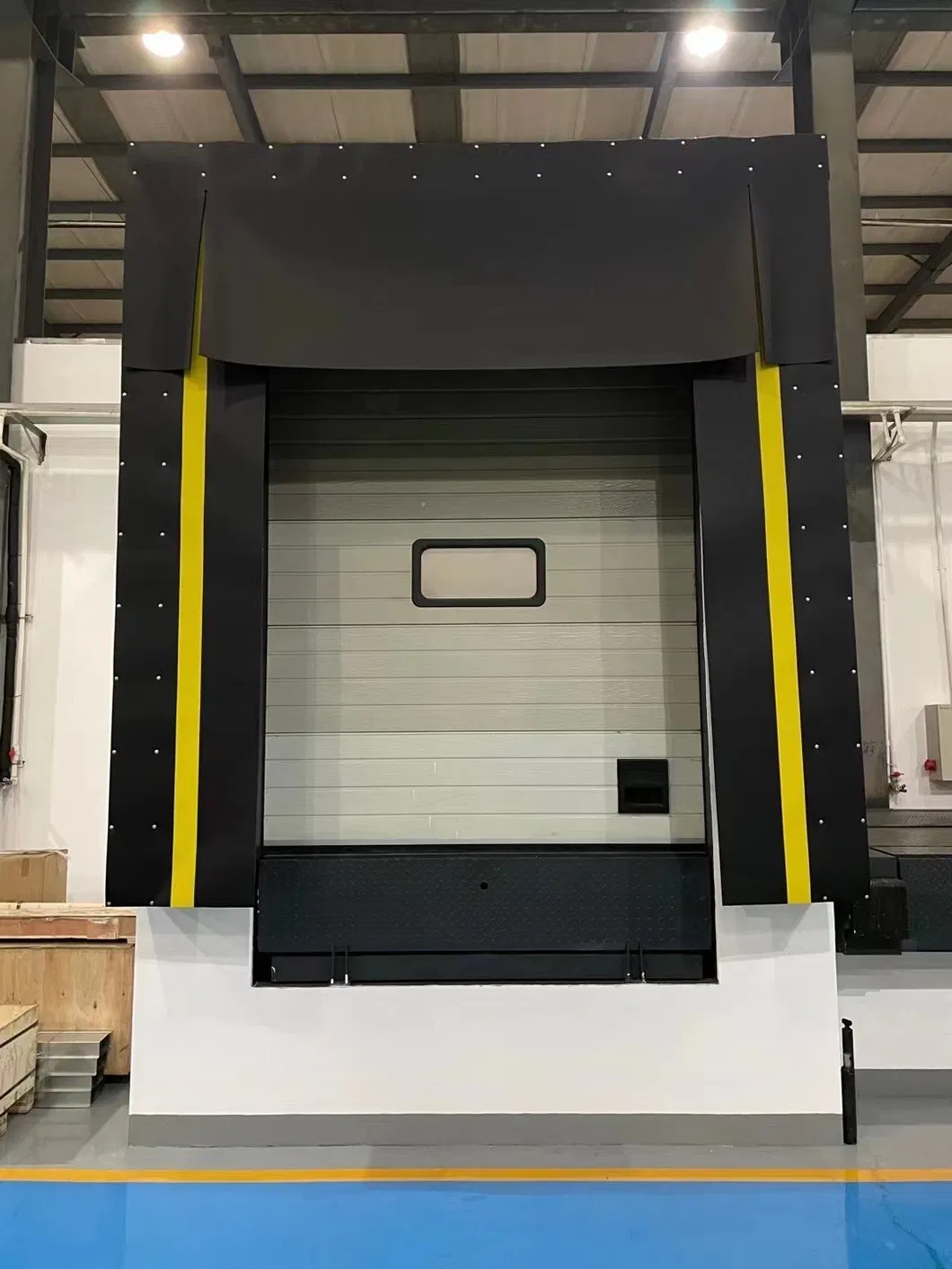

Complete Loading Bay solutions including Sectional Doors and Dock Shelters.

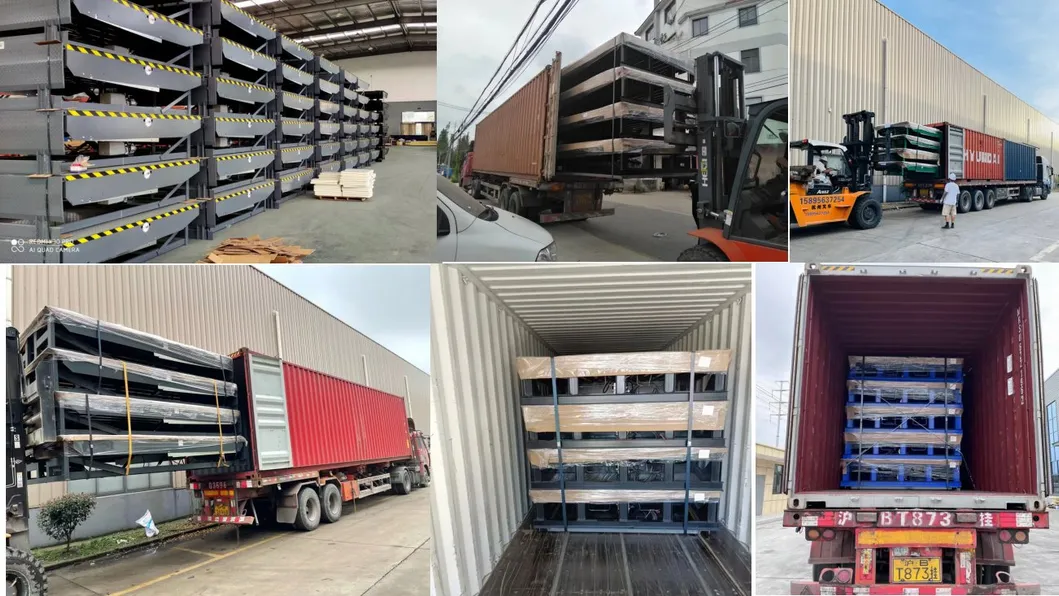

Container Capacity:
One 40ft HQ container can load 20 sets of standard dock levelers.
One 20ft container can load 8 sets of standard dock levelers.

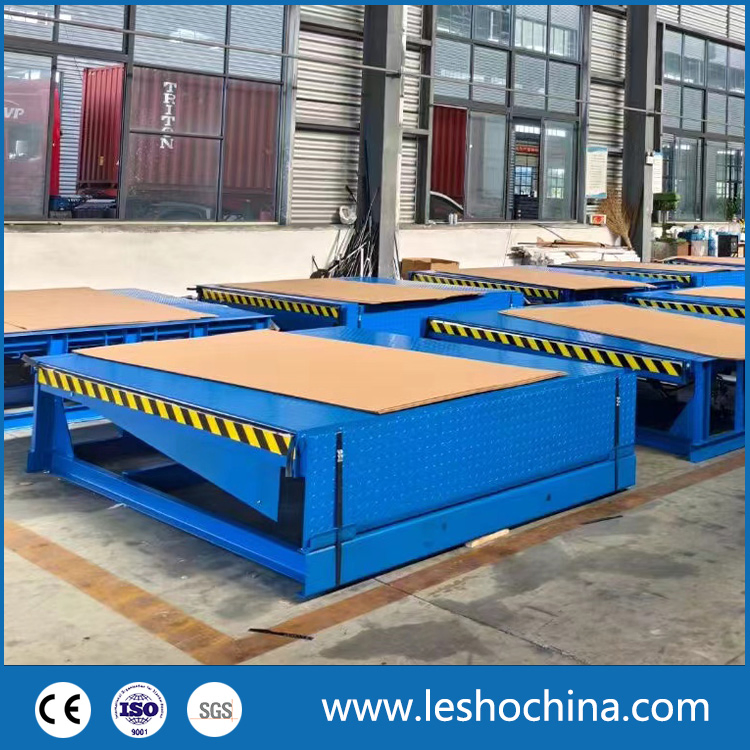

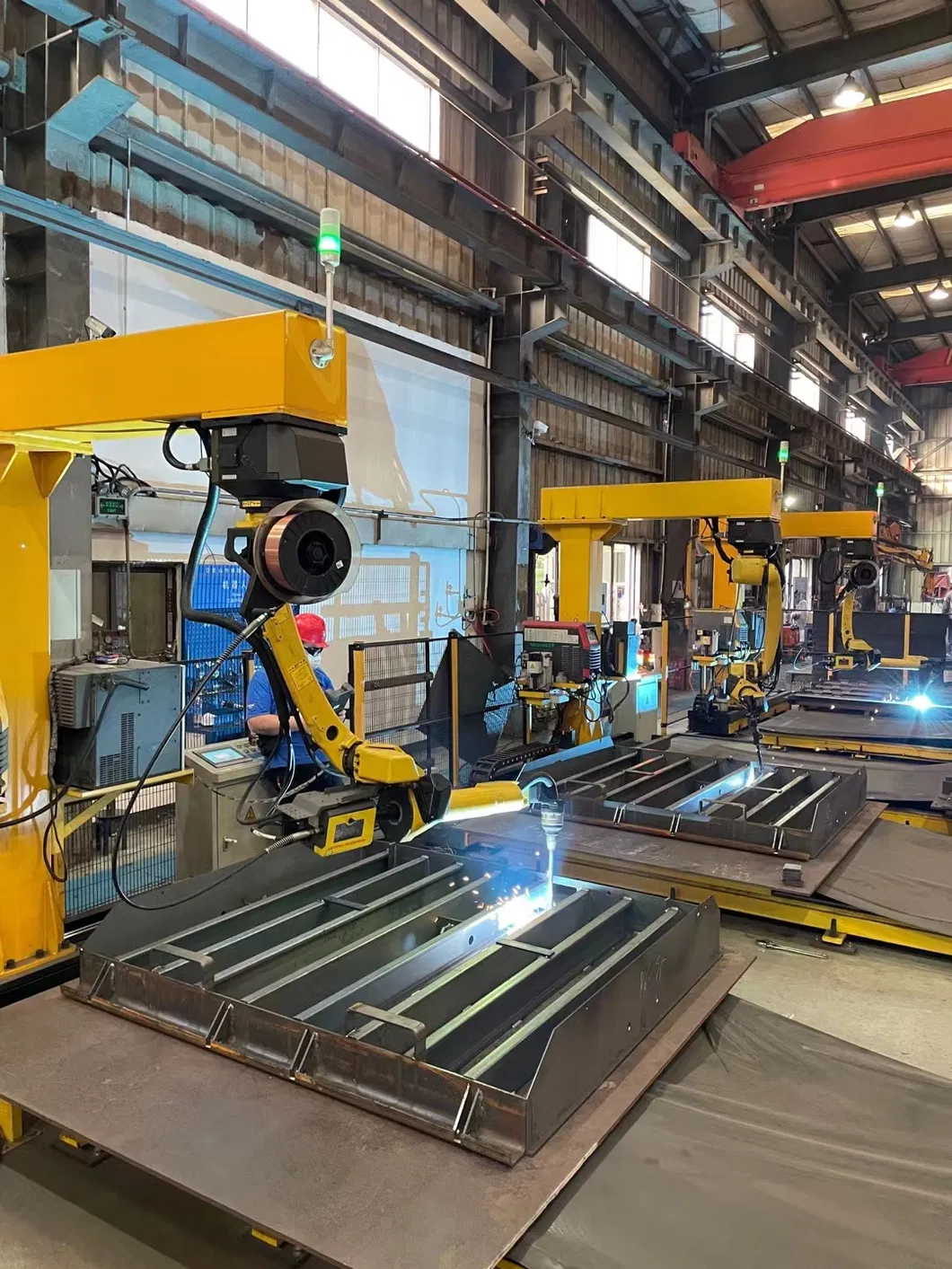

📜 Quality & Production
❓ Frequently Asked Questions
Why should we choose your dock leveler products?
We offer the most cost-effective products with stable quality and professional technical support. With over 20 years of production experience and 10 years of export expertise, we ensure reasonable shipment arrangements and fast delivery.
How do we start a customized project?
We simply need your basic project site information and background requirements. Providing site plan drawings is preferred. Based on this, we can provide a complete solution for your loading bay.
Is the installation process difficult for our workers?
No. We provide clear installation manuals, videos, and precaution documents. Even workers without specific experience can install the equipment correctly. For complex large-scale projects, we can provide remote or on-site guidance.
What payment terms do you accept?
We typically accept T/T in advance, L/C for large amounts, and Western Union. We are open to discussing other payment terms based on your preferences.
What is the typical lead time for production?
Our standard production lead time is approximately 7-10 days, ensuring a fast turnaround for your logistics requirements.
How do you handle after-sales service and spare parts?
Spare parts can be dispatched within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime for your operations.
