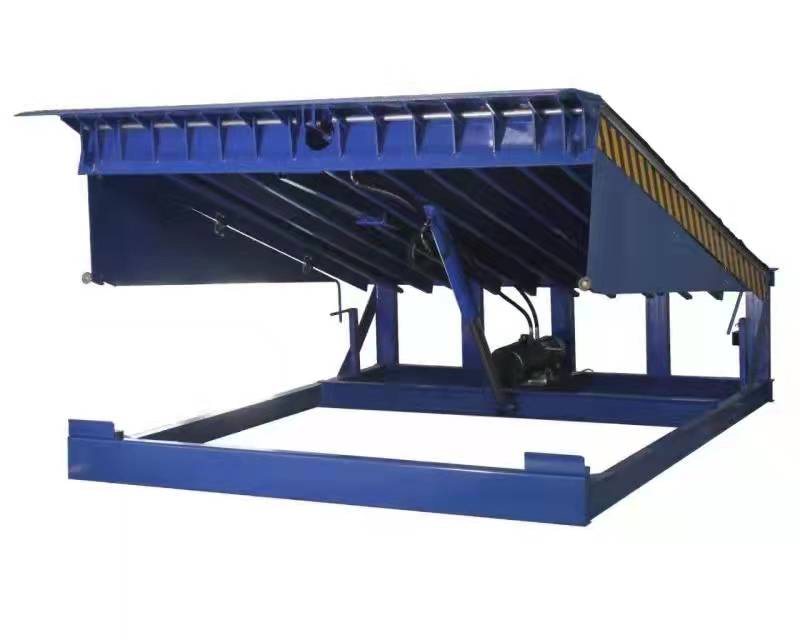

Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
1 / 5
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay

Electric Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
HS Code
84254290
📦

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film
🛠️

Product Description & Visuals

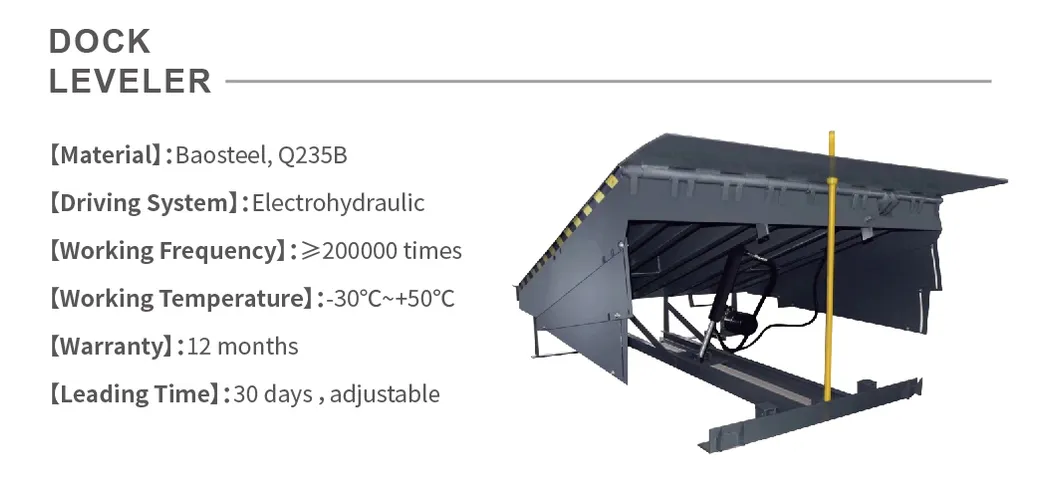

Hydraulic Cylinder Telescoping Dock Leveler

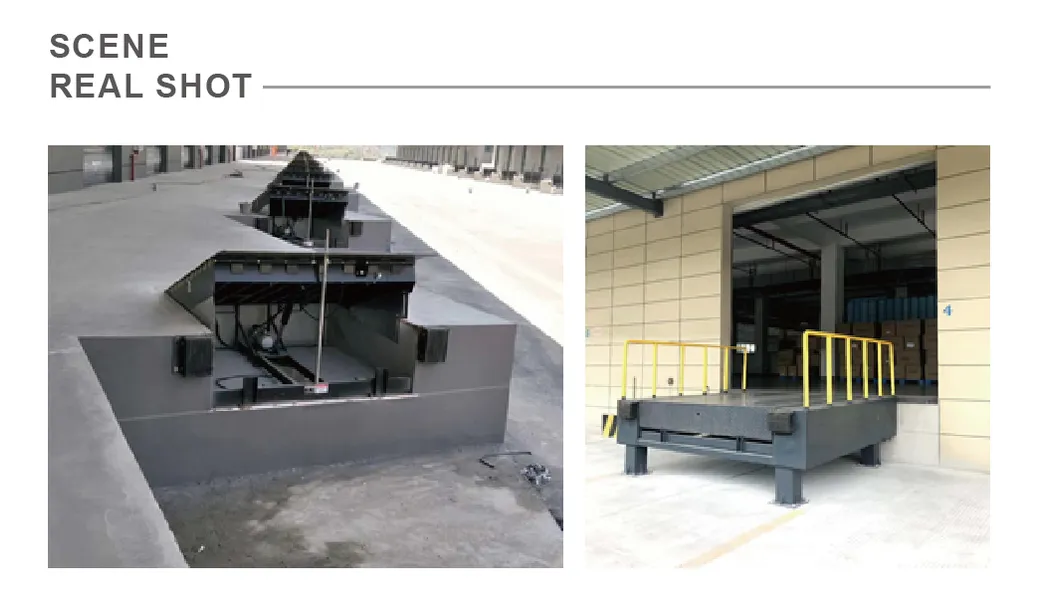

Warehouse Ramp Equipment

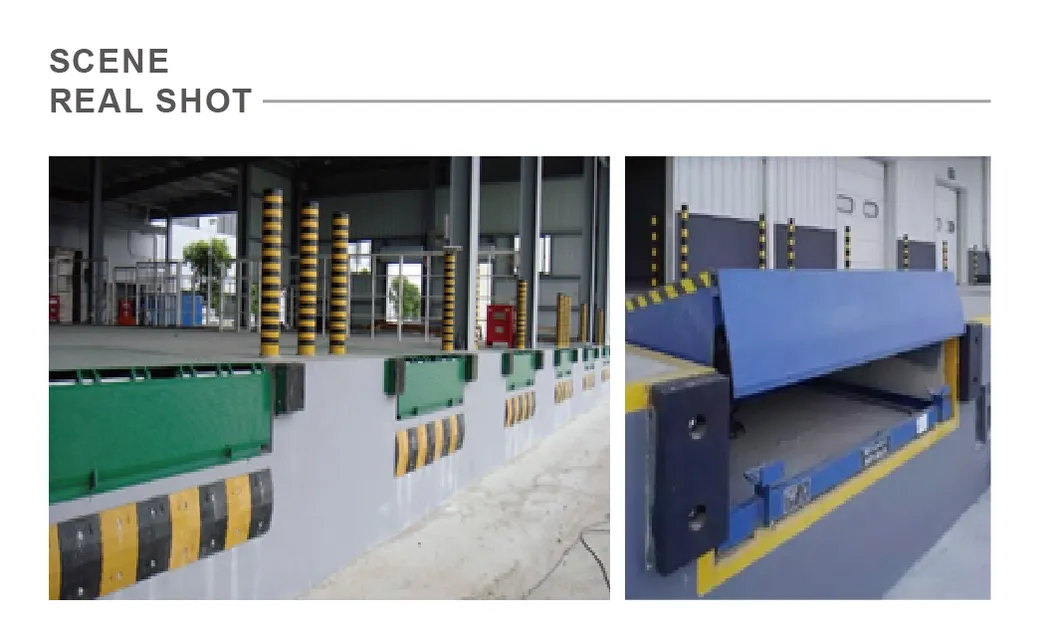

Garage Loading Bay Leveler

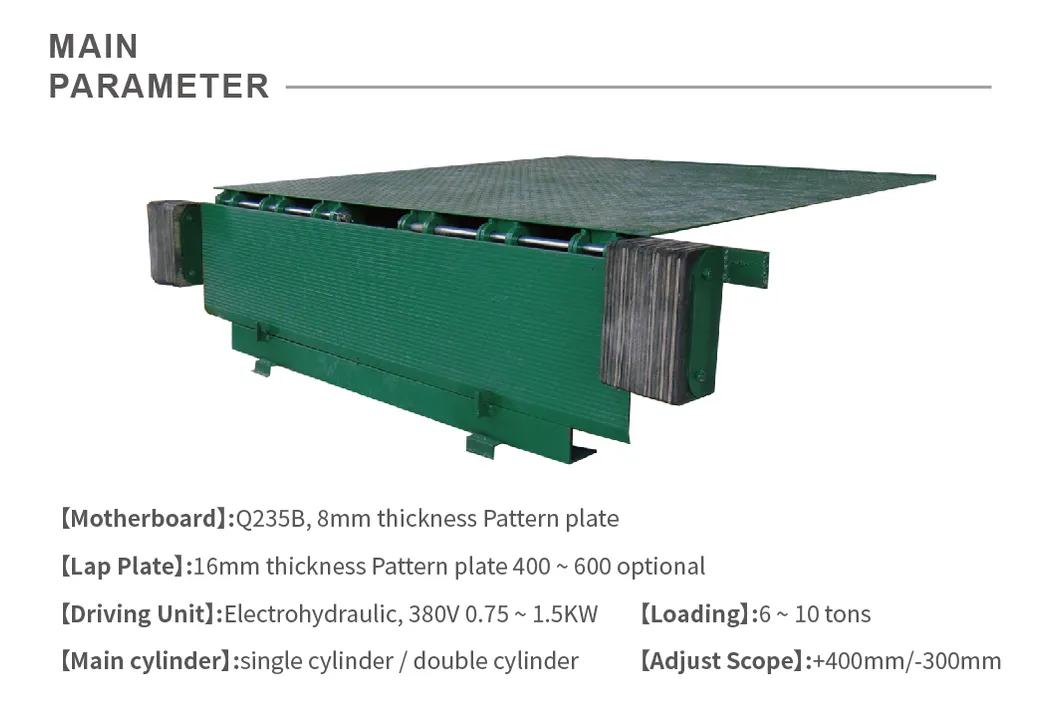

Dock Leveler Detail

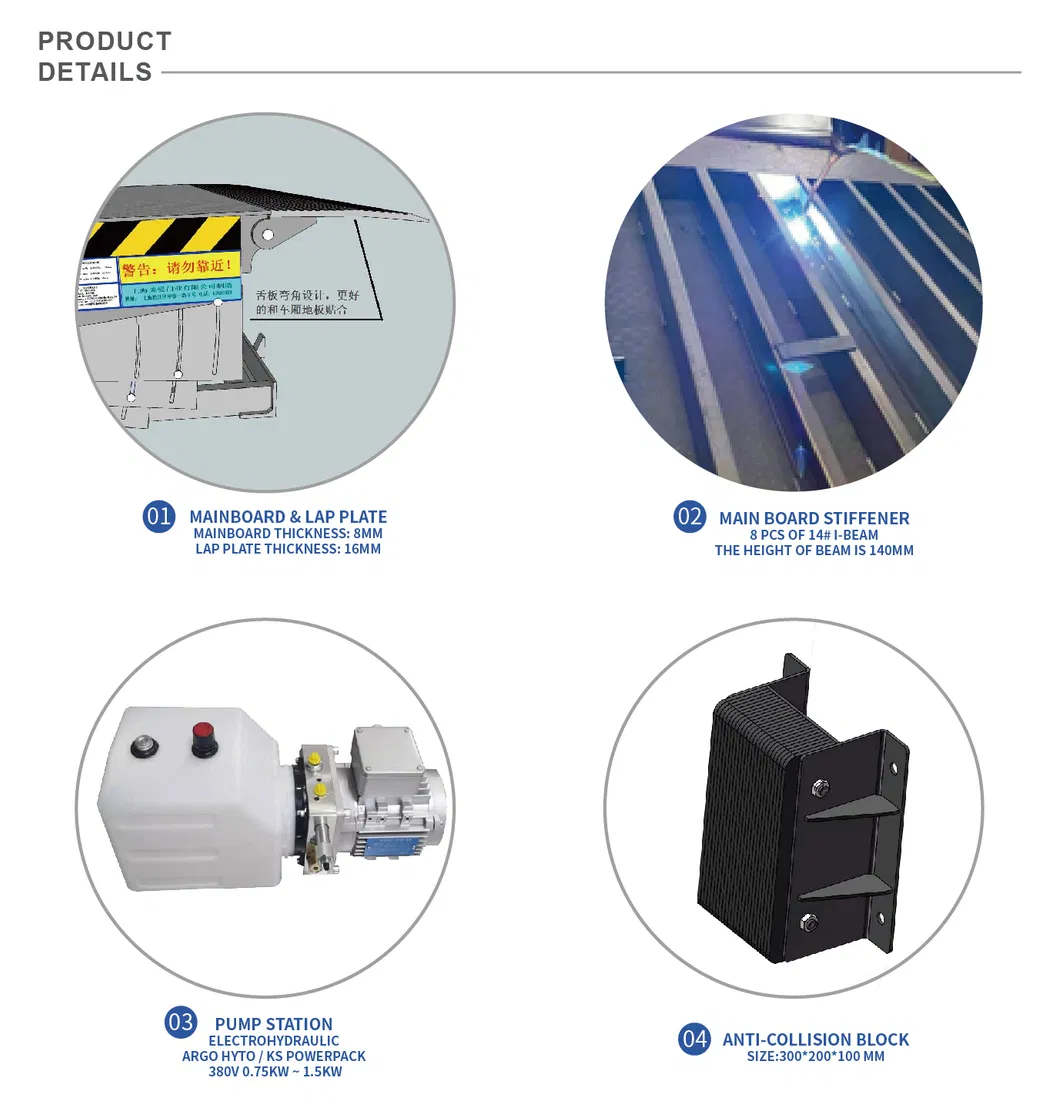

Loading Bay Ramp Structure
Hydraulic Ramp System
Telescoping Dock Leveler Dimensions
📊

Technical Parameters

Comprehensive Performance Data
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6/8 mm; powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14/16mm; powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
Driving SystemElectrohydraulic, ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsNOK A505 complete set of seals for oil cylinder
Main Board Stiffener8 pcs of 14# I-Beam, height 140mm
Oil PipeT3683-2001; 60mpa High Pressure
Working Temp-30ºC ~ +50ºC
Safety PartExplosion proof valve; Side Baffles for safety
🌟

Key Features

  • ✓ Professional design and manufacturing of high-quality industrial docking systems and logistic solutions.
  • ✓ Utilizes advanced equipment and technology to provide customized solutions based on specific warehouse needs.
  • ✓ Comprehensive range of products including fire doors, high-speed doors, and professional logistic docking systems.
  • ✓ Certified Quality Management: Fully compliant with ISO9001:2000 and CE standards for global safety requirements.
❓

Frequently Asked Questions

Q1: What is the maximum dynamic load capacity of this dock leveler? A: The dynamic loading capacity ranges from 6T to 15T, depending on the specific model and requirements chosen.
Q2: What materials are used for the main board and lap plate? A: Both are constructed from high-quality Q235B steel plate featuring an anti-slide pattern and finished with a durable powder coating.
Q3: Can this equipment operate in extreme weather conditions? A: Yes, it is designed to operate efficiently within a temperature range of -30ºC to +50ºC.
Q4: What safety features are included with the hydraulic system? A: It includes an explosion-proof valve, side baffles for safety, and high-pressure oil pipes rated for 60mpa.
Q5: What are the voltage and power specifications? A: The system supports both 220V and 380V (50Hz) configurations with power outputs between 0.75 Kw and 1.5 Kw.
Q6: What certifications does the product hold? A: The product is fully certified with CE and ISO 9001, ensuring compliance with international quality and safety standards.
