Hydraulic Container Handling Equipment for Sale

Customization:	Available
Load Capacity:	5
Working Height Range:	1.0~1.7

Send Inquiry

Product Description

Technical Parameters

Model NO. DCQ

Overall Dimensions 11*2.08*1.3 (M)

Operation Method Manually or Electrical Drive

Safety Features Emergency Buttons

Adjust Range 1200~1700mm

Oil Specifications N32# (Winter), N46# (Summer)

Transport Package Secured by Thick Steel Wire

Certifications CE, ISO, SGS

Origin China

HS Code 842890

Production Capacity 100 sets / Month

Hydraulic Container Handling Equipment

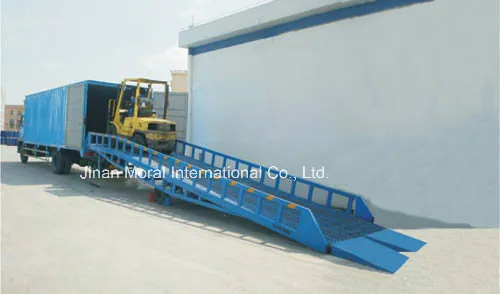

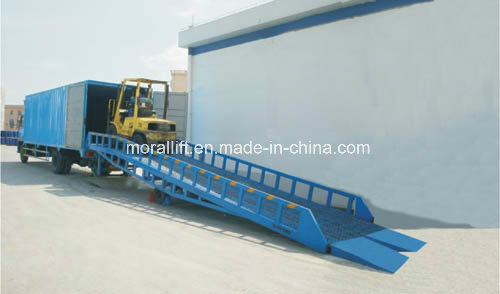

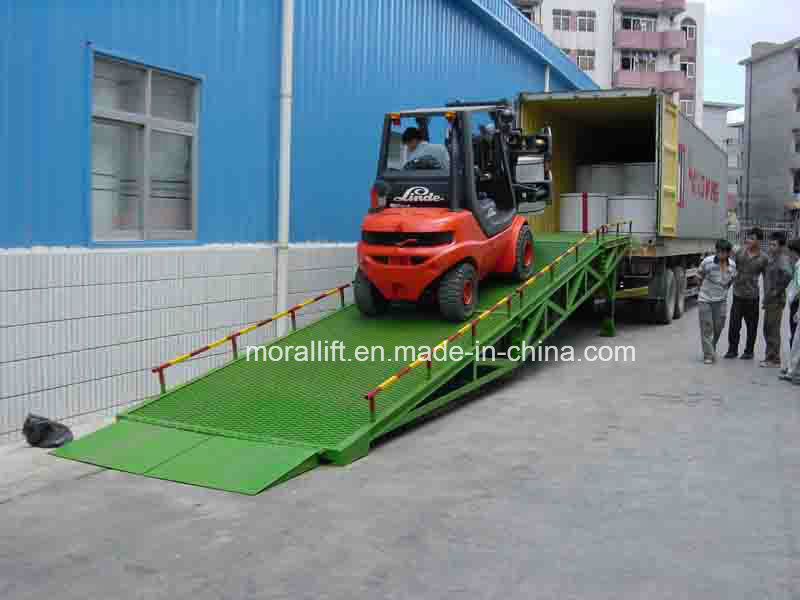

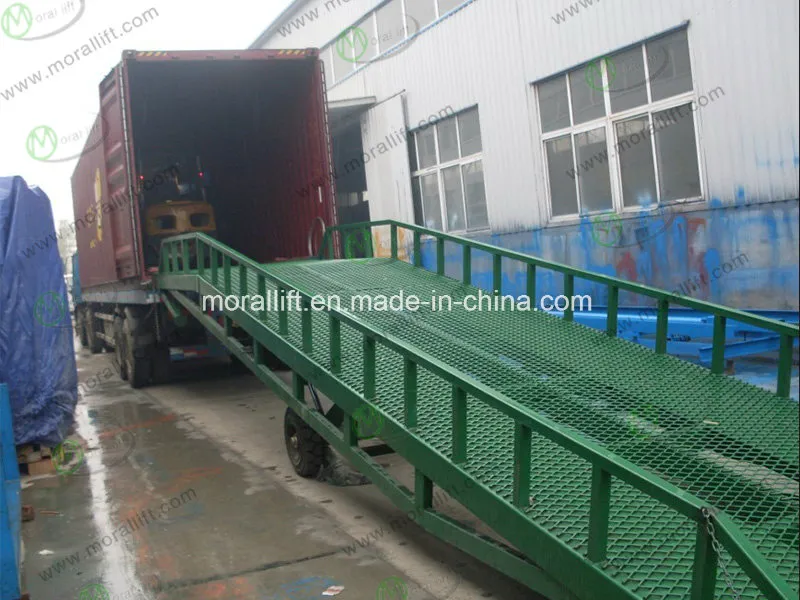

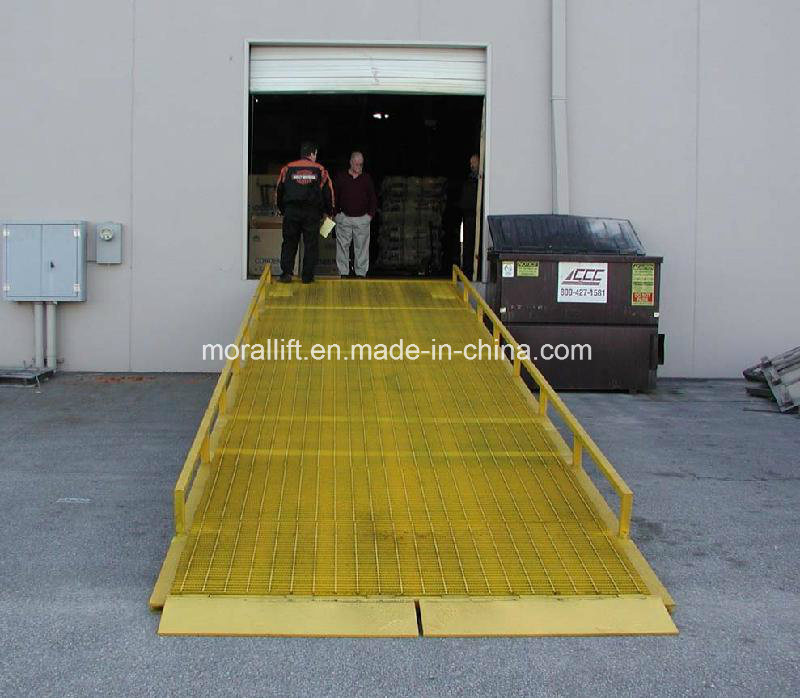

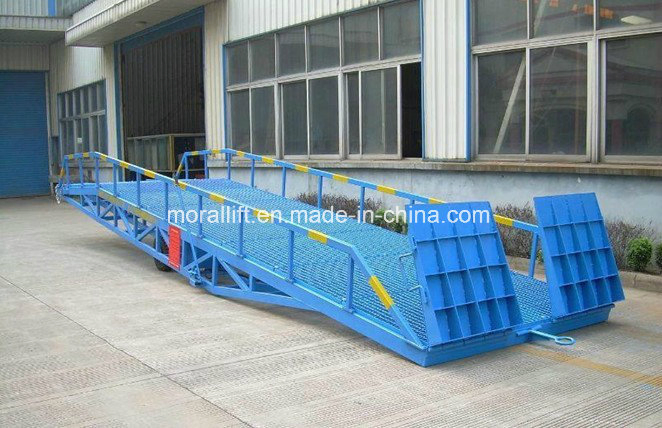

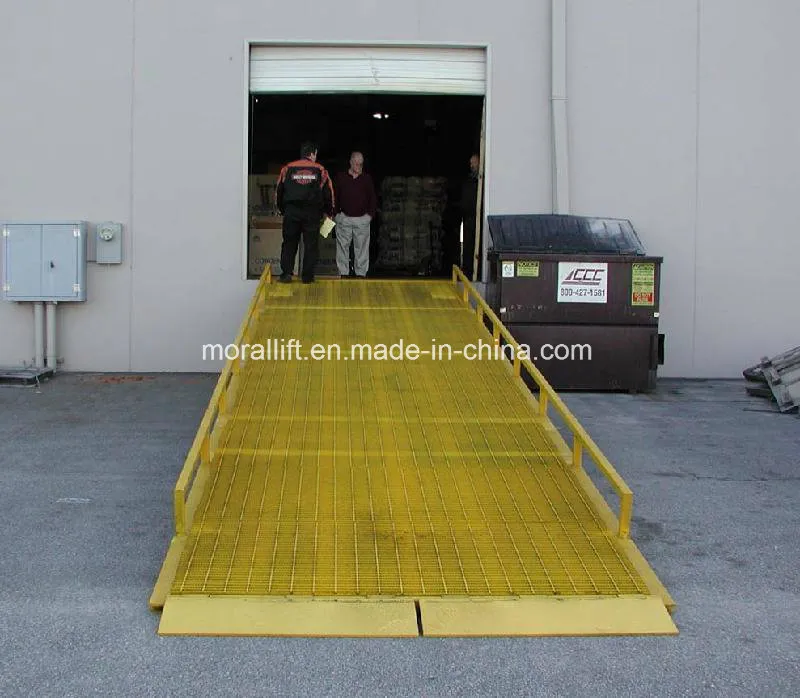

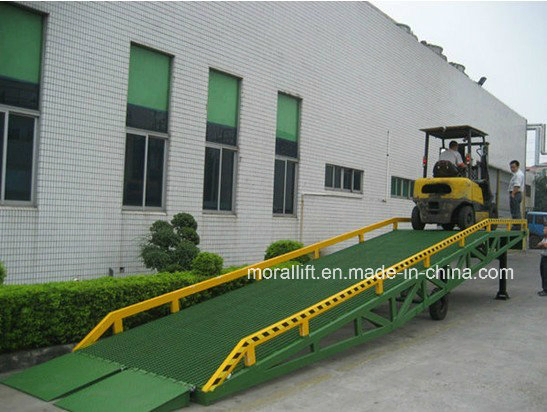

The Mobile Hydraulic Loading Ramp is specialized auxiliary equipment designed for rapid loading and unloading of goods. Its height adjustment feature allows forklifts and other vehicles to enter the truck directly to handle cargo efficiently. Controlled by a manual hydraulic system, this mobile dock ramp enables a single operator to manage the entire process, significantly reducing labor costs and raising working efficiency.

Main Features

1. Advanced Hydraulic System

Equipped with a handle pump and return valve. Screw clockwise to lift the ramp slowly; screw counterclockwise to allow the ramp to descend under its own weight.

2. Heavy-duty Mobile Chakra

Solid tires eliminate the need for inflation. Durable and paired with brake pads to guarantee maximum operation safety.

3. Adjustable Support Legs

Prevents vehicle overturn when forklift gravity concentrates on the vehicle tail, ensuring stable and safe height adjustment for different vehicles.

4. Manual Elevator System

Utilizes artificial hydraulic power, requiring no external electricity to achieve climbing height adjustments.

Product Specifications

Model #	Load Capacity (T)	Working Height (m)	Max Elevation	Overall Dimensions (m)	Operation
YDCQ-5	5	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manual/Electric
YDCQ-6	6	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manual/Electric
YDCQ-8	8	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manual/Electric
YDCQ-10	10	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manual/Electric
YDCQ-12	12	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manual/Electric
YDCQ-15	15	1.0~1.7	≤ 13°	11 × 2.08 × 1.3	Manual/Electric

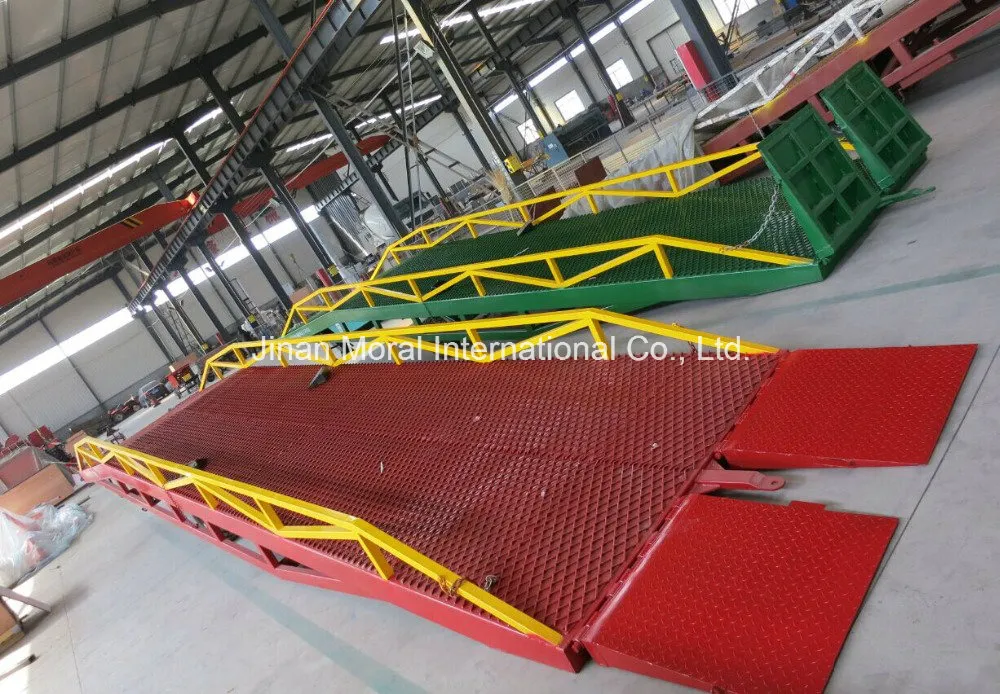

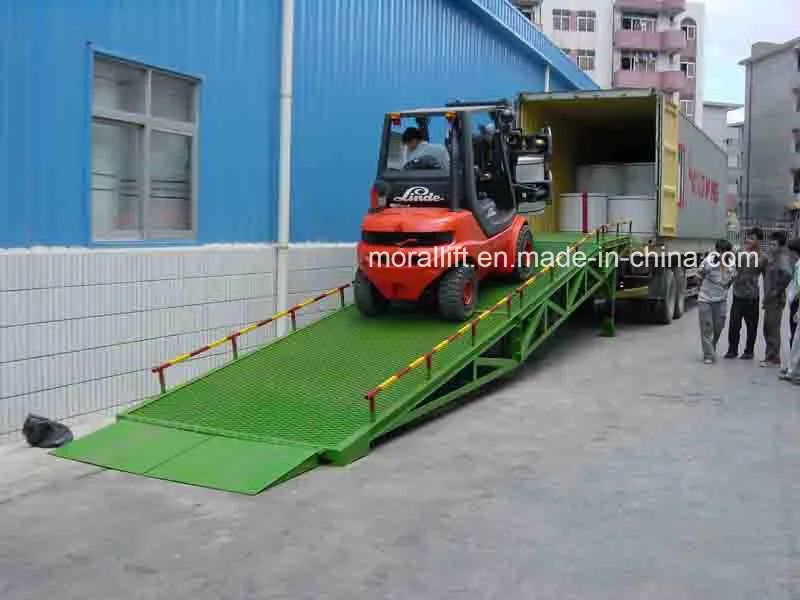

Detailed Product Gallery

Professional Services

Warranty Policy

5 years warranty for the steel structure.
1 year warranty for hydraulic and electrical components.
Spare parts (like oil seals) provided free for container loads.

Technical & After-Sales Support

24-hour technical support via digital channels.
Complete English operation manuals and video guides provided.
Machines are pre-adjusted before dispatch for immediate use.
Lifetime technical consulting and support.

Frequently Asked Questions

Q: What is the load capacity range for these ramps?

A: Our standard models range from 5 tons to 15 tons, but we can customize equipment for load capacities between 6 tons and 30 tons depending on your needs.

Q: Does the ramp require an external power source?

A: No, the ramp utilizes a manual hydraulic elevator system that works without external electricity, though electrical drive options are also available if preferred.

Q: Can the height be adjusted for different types of trucks?

A: Yes, the working height range is typically between 1.0m and 1.7m, making it suitable for most standard containers and transport vehicles.

Q: What safety features are included?

A: The equipment includes emergency buttons, adjustable support legs to prevent overturning, and solid tires with brake pads to ensure stability during operation.

Q: Is it possible to customize the dimensions of the yard ramp?

A: Absolutely. If you need a special size or specific platform dimensions, we can customize the yard ramp to meet your exact requirements.

Q: What maintenance is required for the hydraulic system?

A: Regular checks of the oil levels are recommended. We suggest using N32# hydraulic oil in winter and N46# in summer for optimal performance.
