Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
1 / 5
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay
Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay

Mechanical Boxed up Hydraulic Cylinder Telescoping Dock Leveler Garage Warehouse Ramp Equipment for Loading Bay

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

📋 Basic Specification
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
HS Code
84254290
📦 Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film
🖼️ Product Display

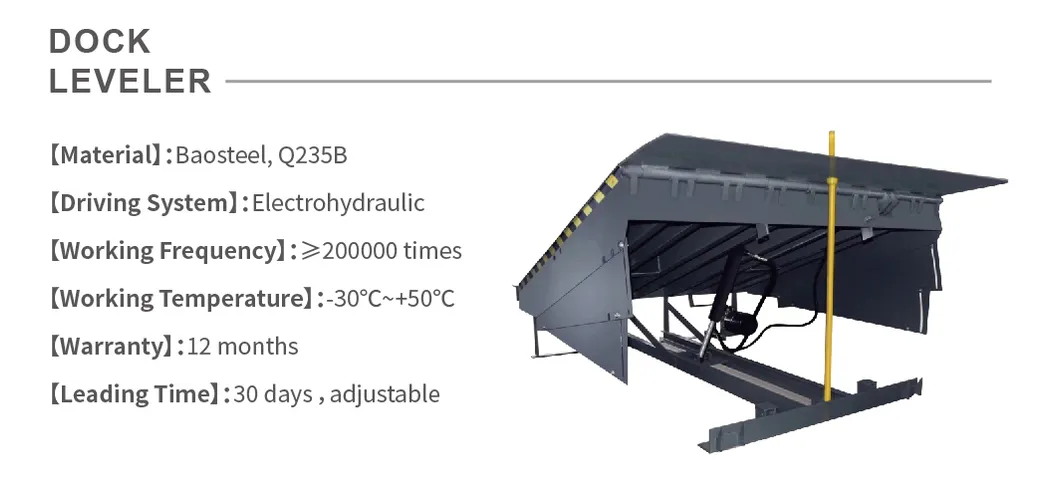

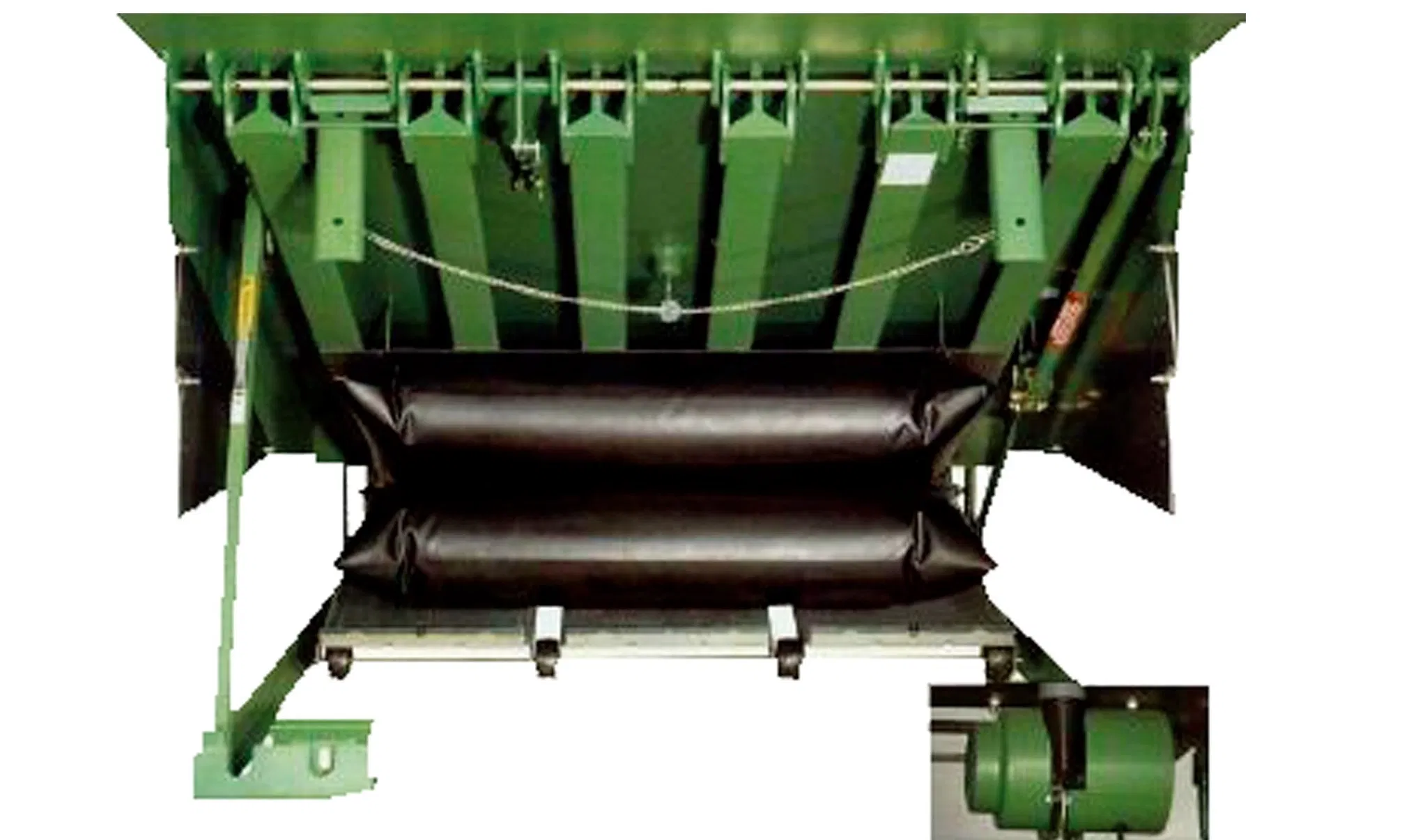

Hydraulic Cylinder Telescoping Dock Leveler

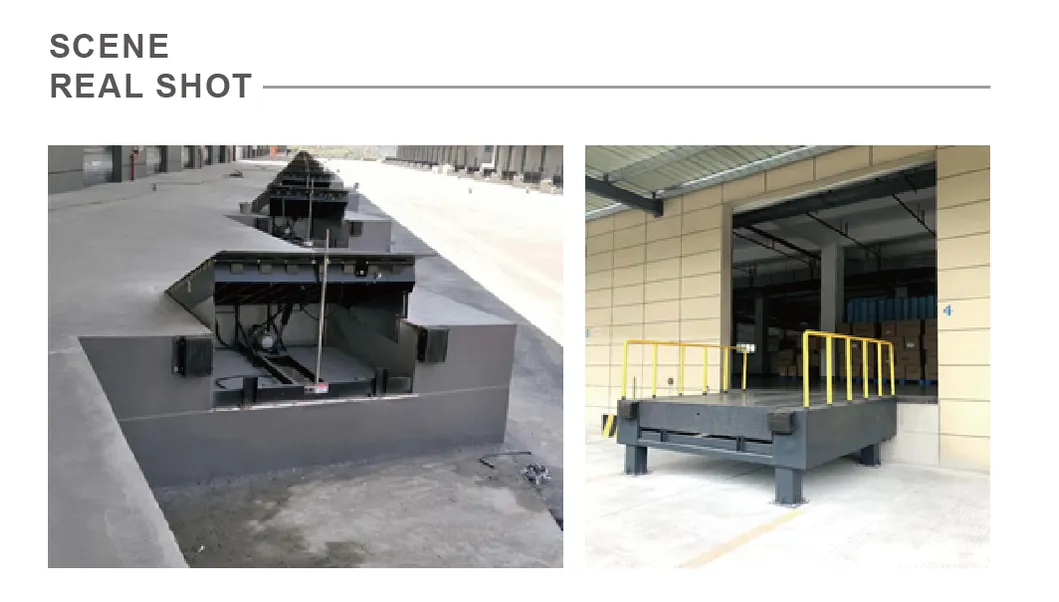

Garage Warehouse Ramp Equipment

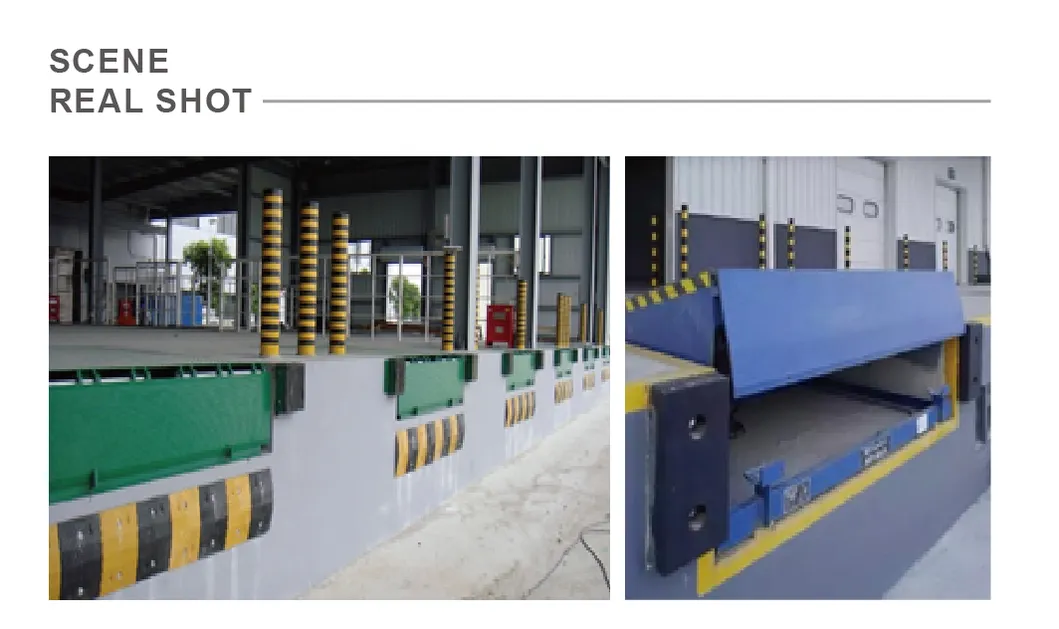

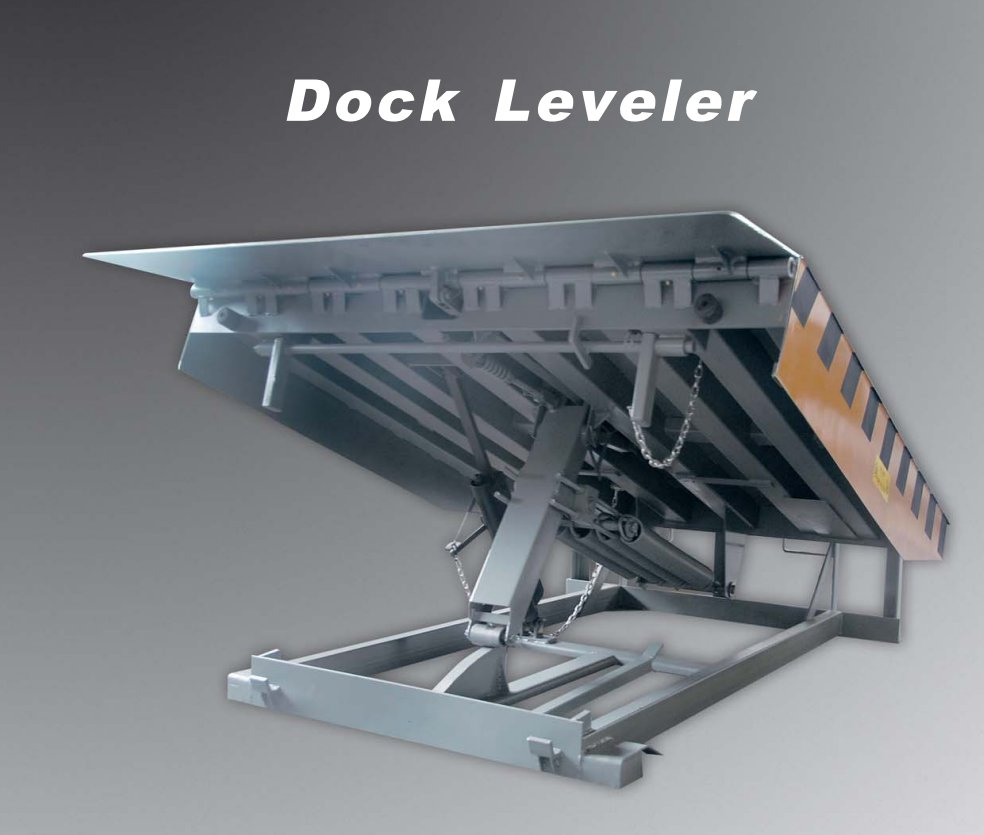

Mechanical Boxed up Dock Leveler

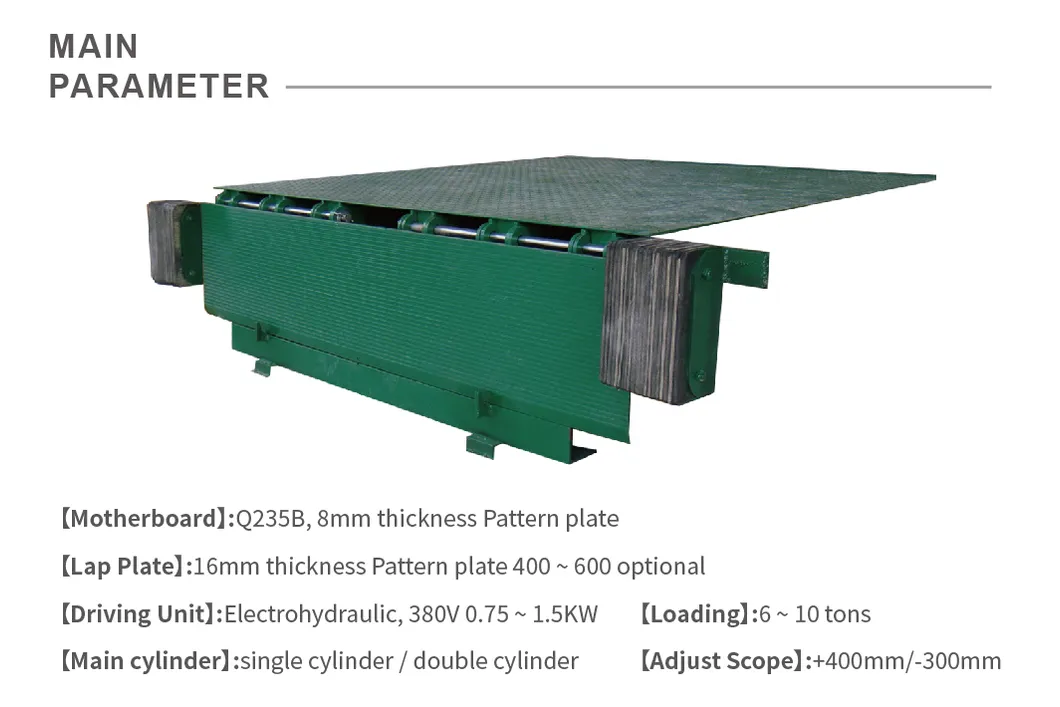

Loading Bay Equipment

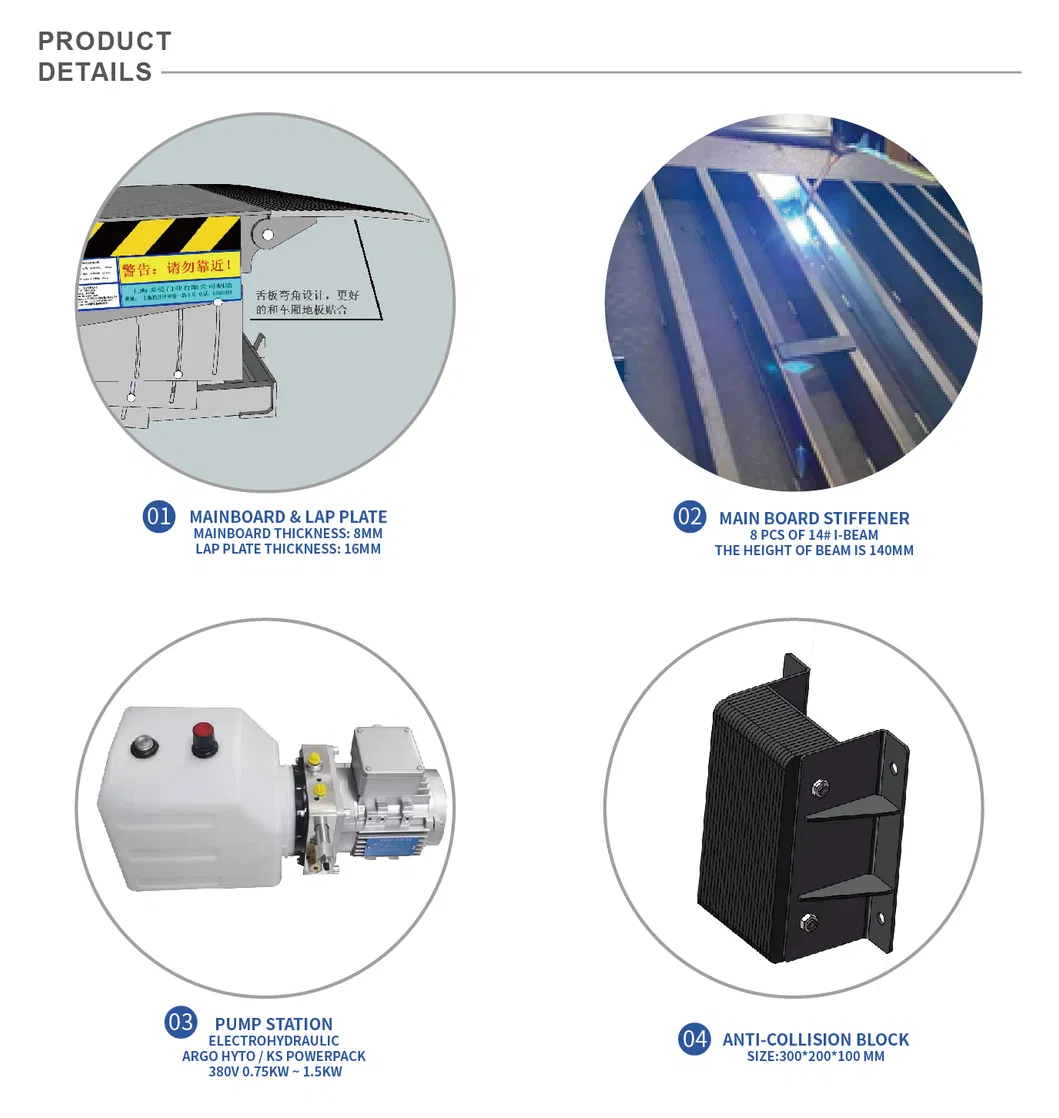

Telescoping Dock Leveler Detail
⚙️ Technical Parameters
MORE PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; The surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
DrivingElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm/-300mm
Adjust TimeUp ≤ 16S ; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main cylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, the height of Beam is 140mm
High Pressure Oil PipeT3683-2001; 60mpa
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times
Dock Leveler Dimensions
Dock Leveler Side View
Notes:
1. Professional industrial design and manufacturing focus on high-quality docking solutions.
2. Advanced equipment and technology are utilized to meet specific customer requirements.
3. Compliance with international standards including CE and ISO9001:2000 management certification.
❓ Frequently Asked Questions
What is the dynamic loading capacity of this dock leveler?
This model supports dynamic loads of 6T, 8T, 10T, 12T, and 15T depending on your specific requirements.
What material is used for the main board?
The main board is made of Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm or 8mm with powder coating.
Does the system include safety features?
Yes, it includes explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm).
Can it operate in extreme cold weather?
Absolutely. The working temperature range for the hydraulic system is from -30ºC to +50ºC.
What is the standard adjustment range?
The dock leveler provides an adjustment scope of +400mm upwards and -300mm downwards.
What are the power requirements?
It is compatible with 220V 50Hz or 380V 50Hz power supplies, utilizing a 0.75Kw to 1.5Kw motor.
