Basic Specifications

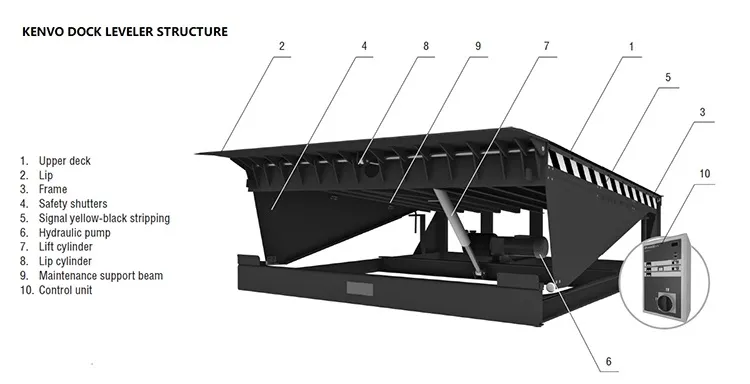

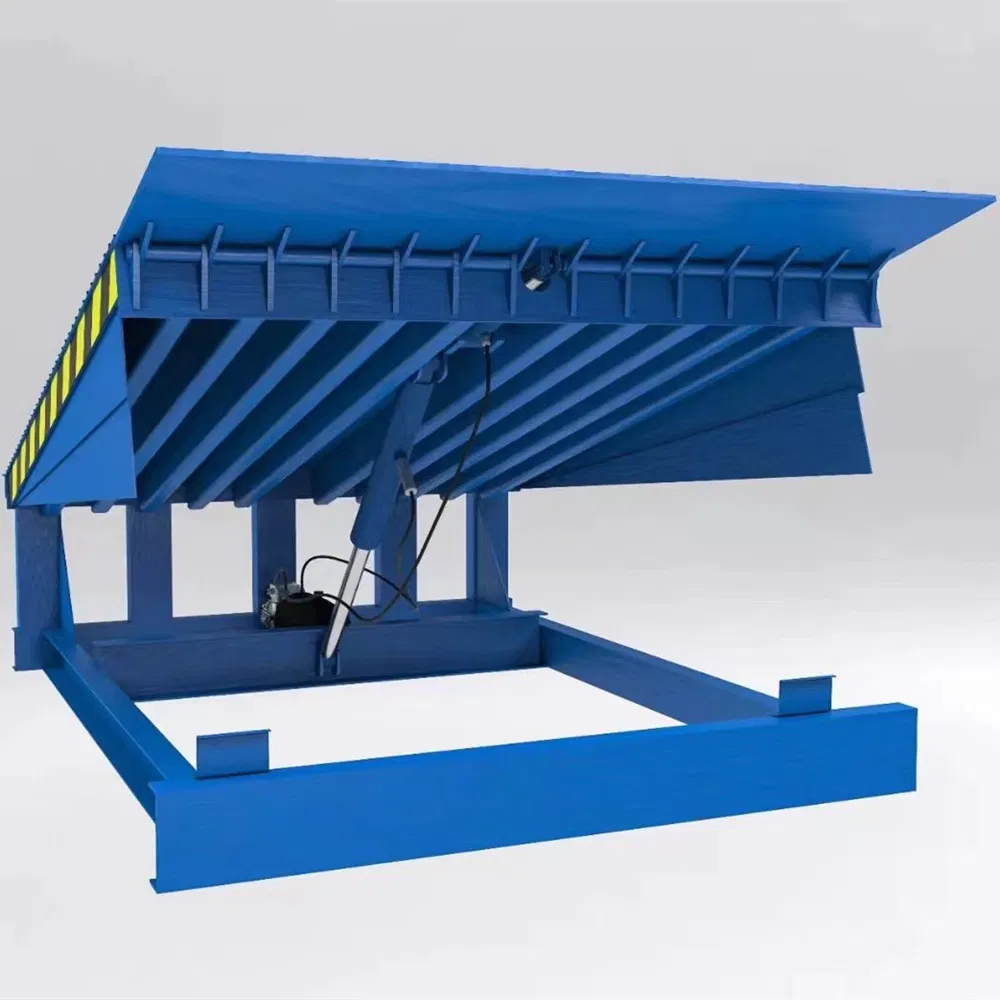

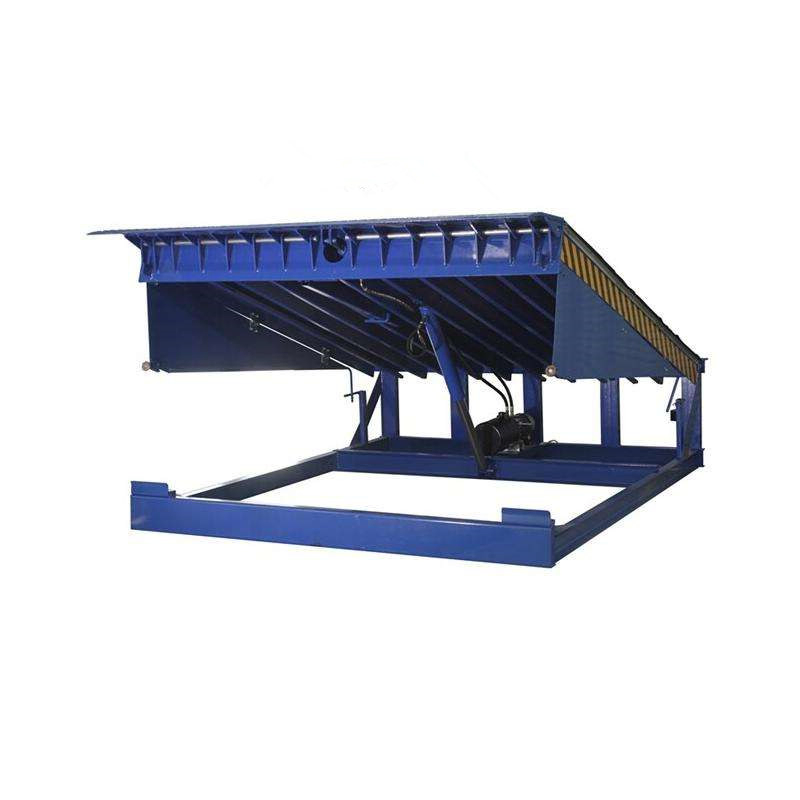

Automatic Stationary Hydraulic Dock Leveler

Optimize Your Logistics Efficiency:

The automatic stationary fixed hydraulic dock leveler is designed for loading bays and docks to facilitate direct forklift entry into truck containers. It significantly enhances loading and unloading efficiency, making it an essential component for modern warehouses and industrial factories.

⚙

Seamless Integration:

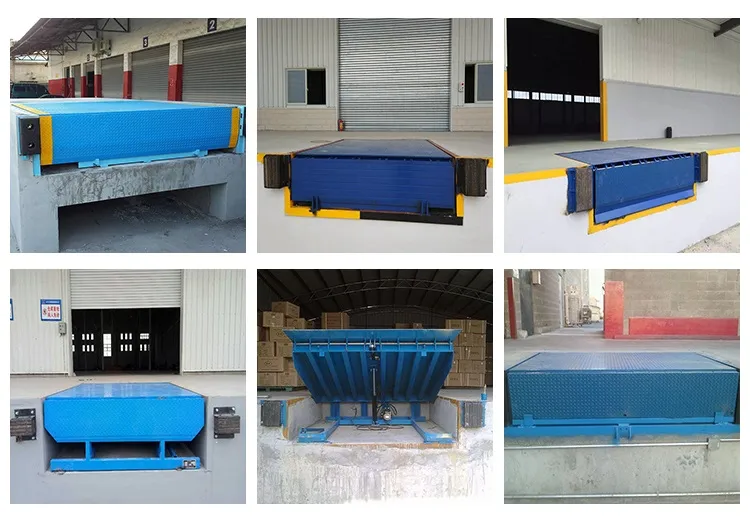

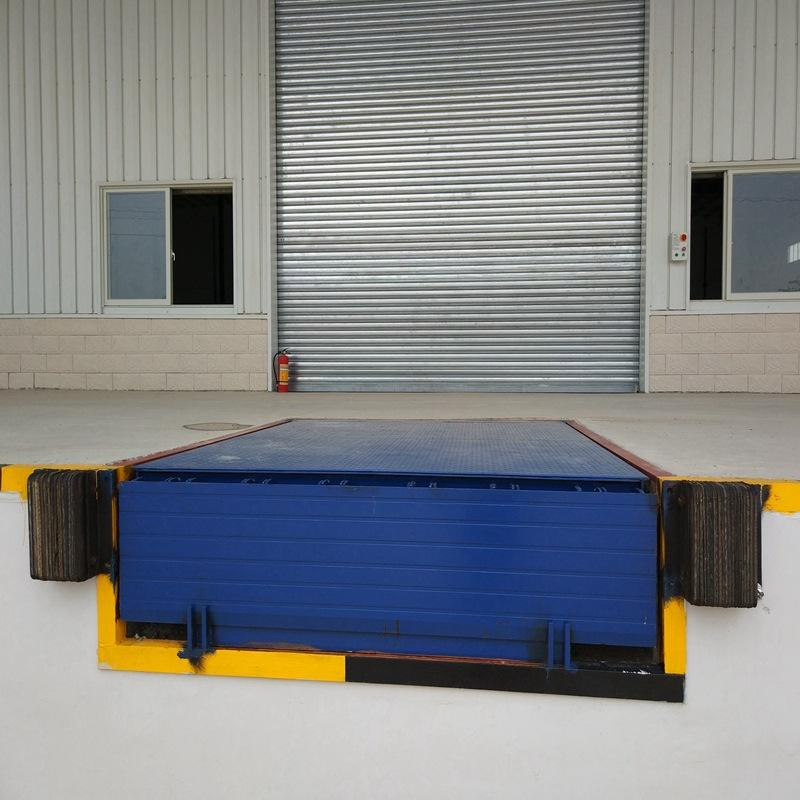

Installed into a pre-built concrete pit, the hydraulic motor drives the platform up and down, creating a seamless joint between the room ground and the truck floor. This allows for rapid transfer of goods via forklifts or trolleys.

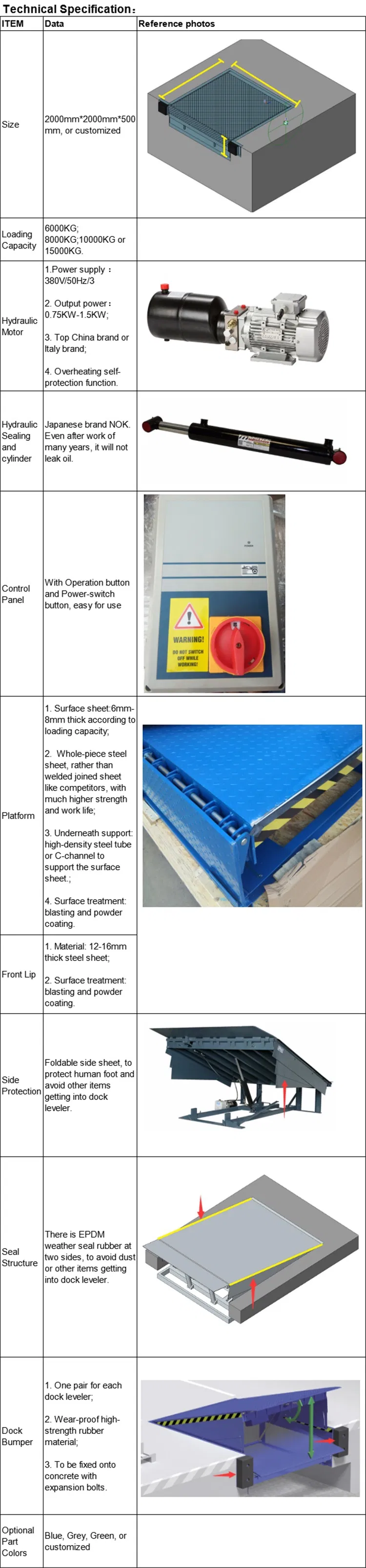

Technical Features

• Superior Load Bearing: The assembly can bear 120% of standard nominal load capacity. Deformation is within 3mm under 24-hour static pressure and recovers fully after release.
• High-Strength Platform: Ground plate is made from 8mm or thicker high-strength steel with anti-skid groove milling.
• Durability Treatment: Hinges and shafts undergo super-high-temperature heat treatment to minimize deformation.
• European Standard Hydraulics: Imported hydraulic drive station ensures stable power and low operating temperatures, preventing oil leaks even under high frequency.
• Anti-Corrosive Finish: Coated with durable epoxy resin paint for long-term protection in harsh environments.

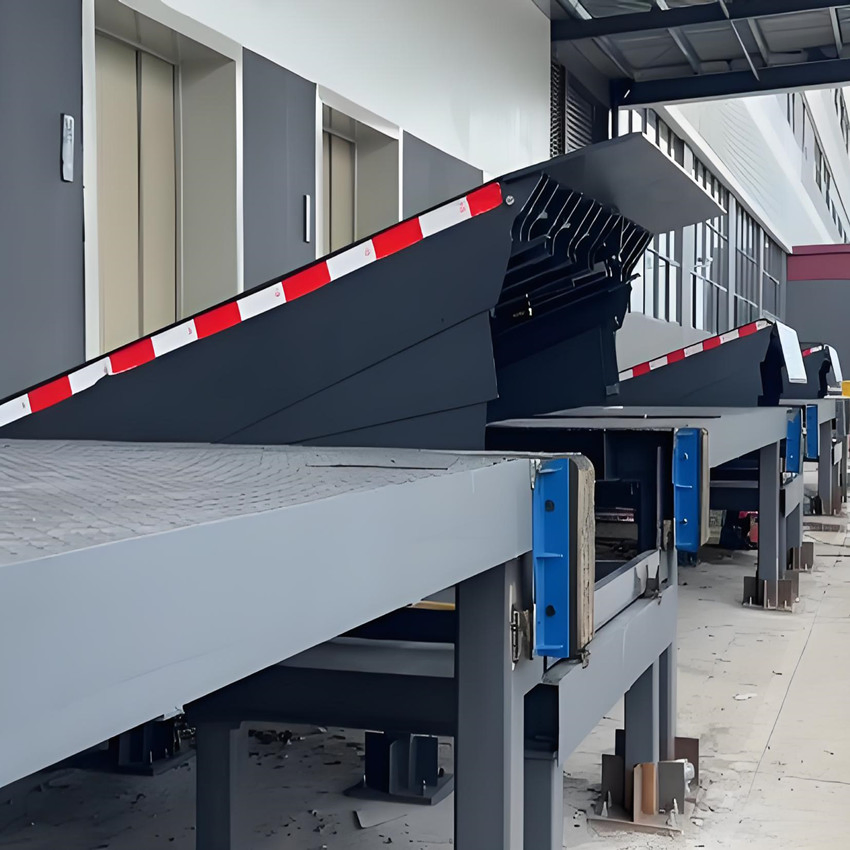

Application & Installation

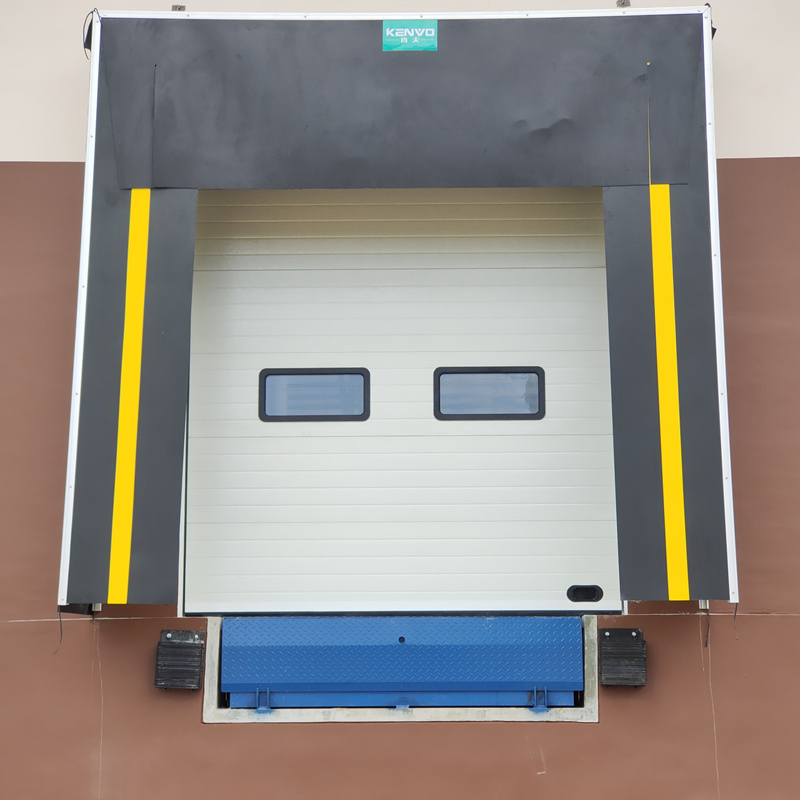

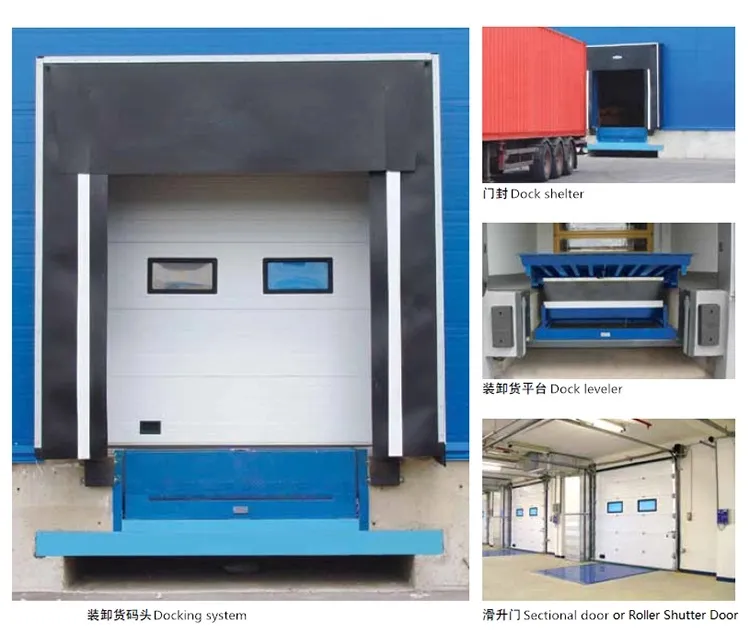

A complete loading bay assembly typically includes an overhead door, dock leveler, and dock shelter. This integrated system protects the indoor environment while maximizing workflow.
