Hydraulic Loading Truck Dock Equipment for Warehouse Loading Bay

Customization: Available
After-sales Service: Spare Parts for Direct Replacement
Warranty: 18 Month Since Shipping Date

Product Description

Basic Specifications
Model NO.
DL
Application
Warehouse Loading Dock
Lift Mechanism
Hydraulic Driving
Carrying Capacity
6-15 Ton
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating, Automatic
Certification
CE, RoHS, ISO 9001
Standard Size
2500*2000*500 (Customized)
Up-Down Scope
Up+350mm, Down-300mm
Surface Treatment
Powder Coated
Power Supply
1-Phase 220V / 3-Phase 380V
Work Power
0.75kw-1.5kw
Color
Blue, Grey, Black, Yellow
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
800.000kg
Product Description

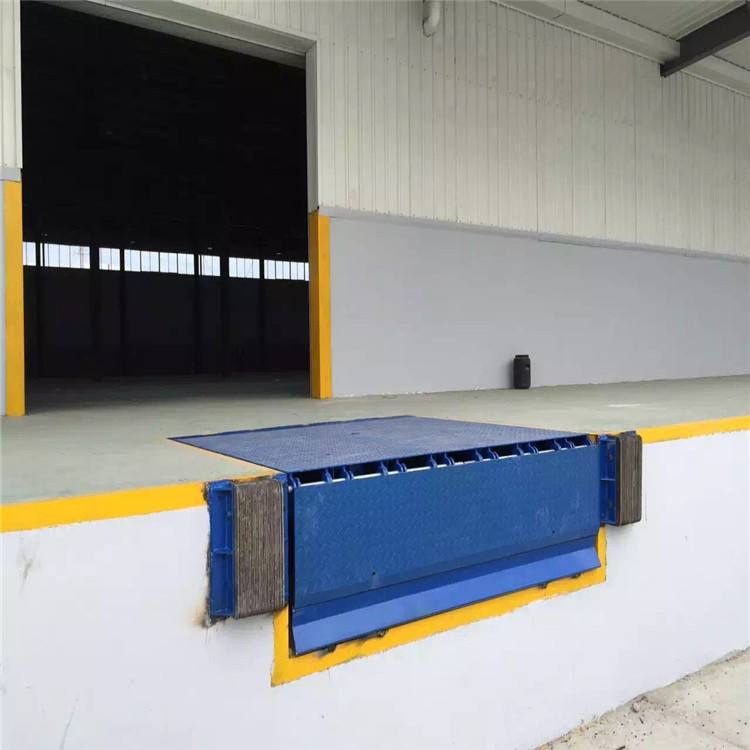

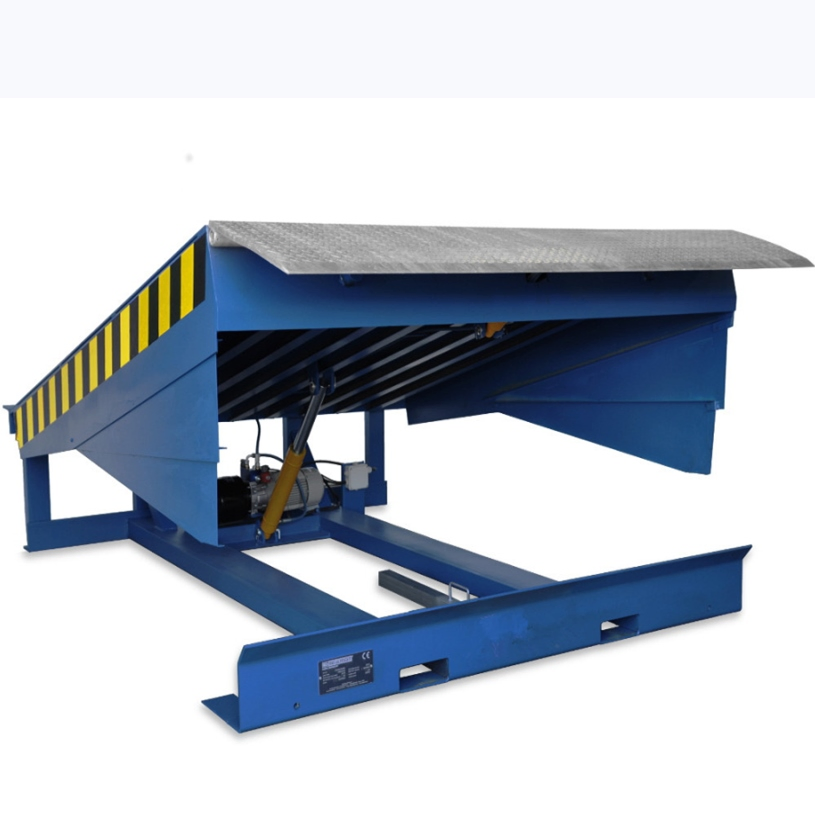

Automatic Stationary Fixed Hydraulic Dock Leveler: Used in loading bays or docks to facilitate forklifts entering truck containers directly. It significantly improves loading and unloading efficiency, making it essential for modern warehouses and factories.

Hydraulic Loading Truck Dock Equipment

Dock Ramps are widely used in logistics centers and dispatch areas. Typically, truck container floors are not level with the loading bay floor, making manual labor necessary. An automatic dock leveler solves this by creating a seamless bridge between the ground and the truck floor using a hydraulic motor, allowing forklifts to transfer goods quickly and safely.

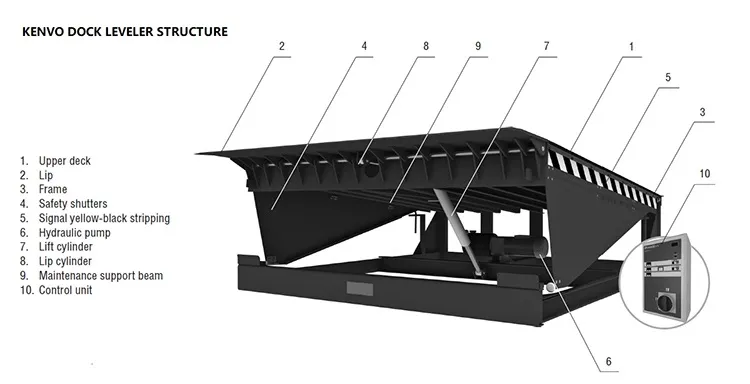

Dock Leveler Description
Key Features
  • The assembly can bear 120% of standard nominal load capacity. Deformation remains within 3mm under 24-hour static pressure and recovers after release.
  • Platform ground is constructed from high-strength steel plate (8mm or thicker) with a grooved anti-skid surface.
  • Hinge and Shaft are treated with Super-High-Temperature heat processing to minimize deformation.
  • Imported hydraulic drive station ensures stable power output and operates efficiently under high frequency with minimal oil temperature increase.
  • Coated with epoxy resin paint for extreme durability and high anti-corrosive performance.

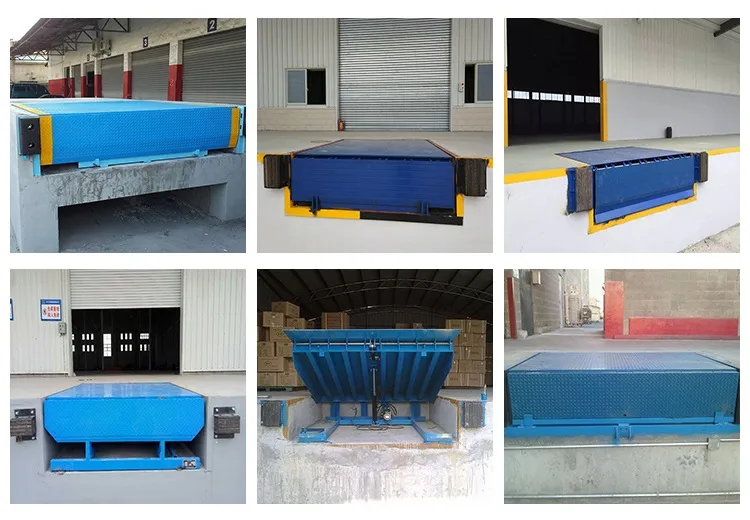

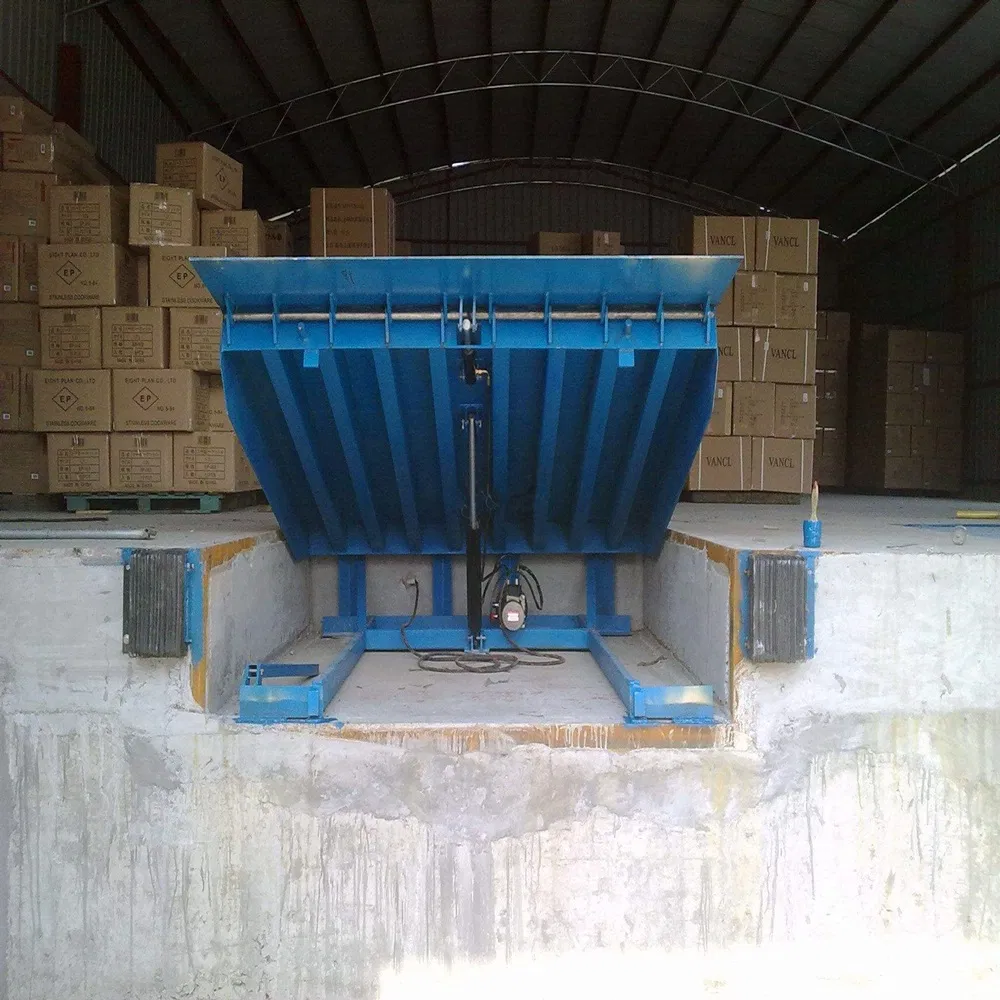

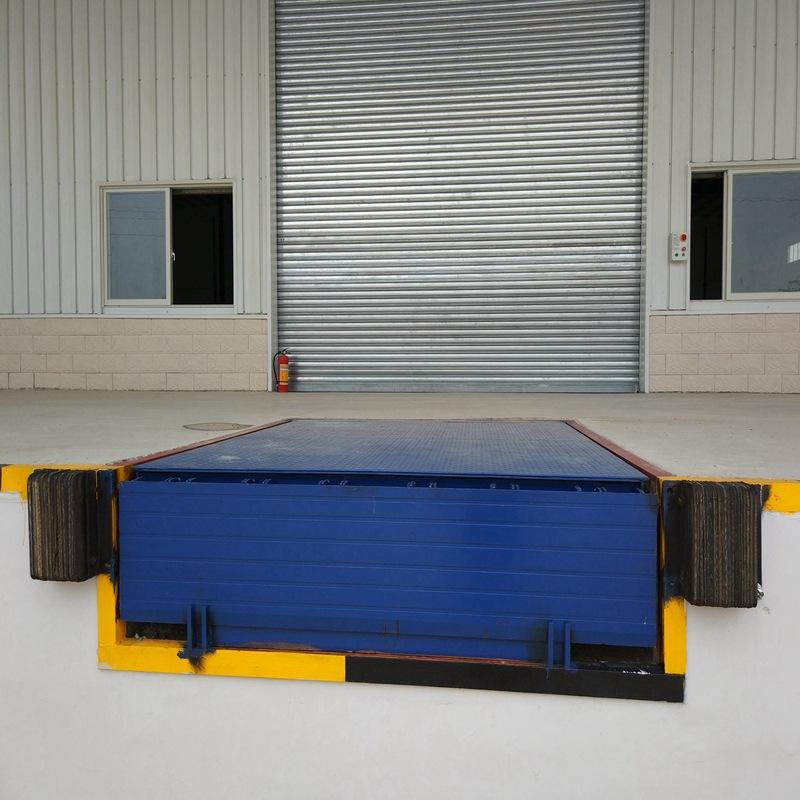

Product Showcase

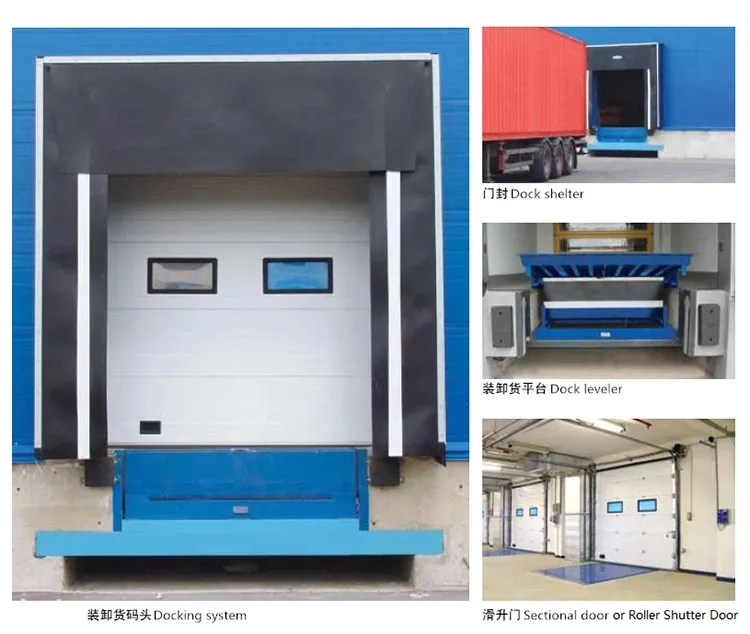

Loading Bay Assembly
Dock Leveler Detail 1
Dock Leveler Detail 2
Dock Leveler Detail 3
Dock Leveler Detail 4
Dock Leveler Detail 5
Dock Leveler Detail 6
Dock Leveler Detail 7
Frequently Asked Questions
What is the main purpose of a hydraulic dock leveler?
It bridges the gap between a warehouse floor and a truck container, allowing forklifts to drive directly into the truck for efficient loading and unloading.
What is the maximum weight capacity supported?
Standard models support 6 to 15 tons, and the assembly is tested to bear up to 120% of its nominal load capacity.
Are the sizes customizable for specific warehouse pits?
Yes, while the standard size is 2500*2000*500mm, customized dimensions are available to fit your specific concrete pit requirements.
How does the platform ensure safety during operation?
The platform is made of high-strength 8mm+ thick steel with a grooved anti-skid surface to prevent forklifts from slipping.
What power supply is required for the hydraulic system?
The system can be configured for either 1-Phase 220V or 3-Phase 380V power supplies, with a motor power ranging from 0.75kw to 1.5kw.
Is the dock leveler resistant to corrosion?
Yes, the surface is treated with powder coating and epoxy resin paint, providing high durability and excellent anti-corrosive properties.
