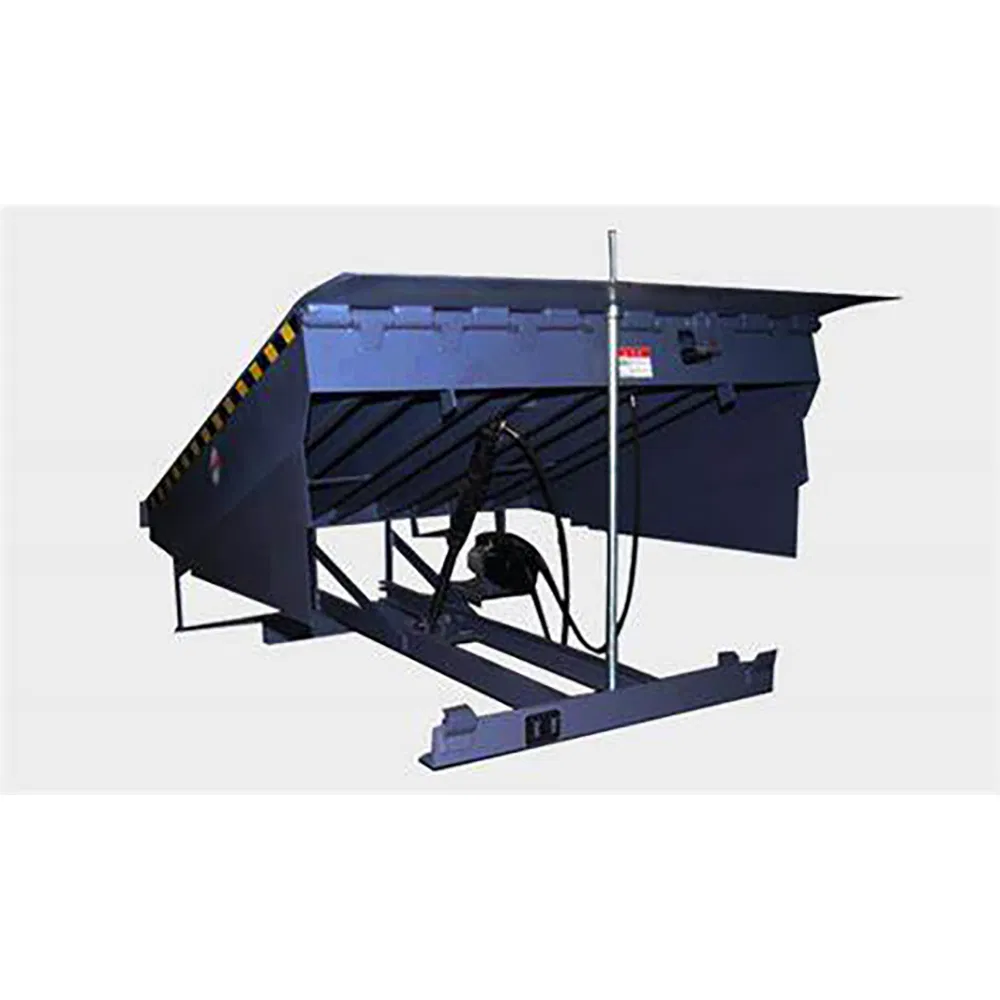

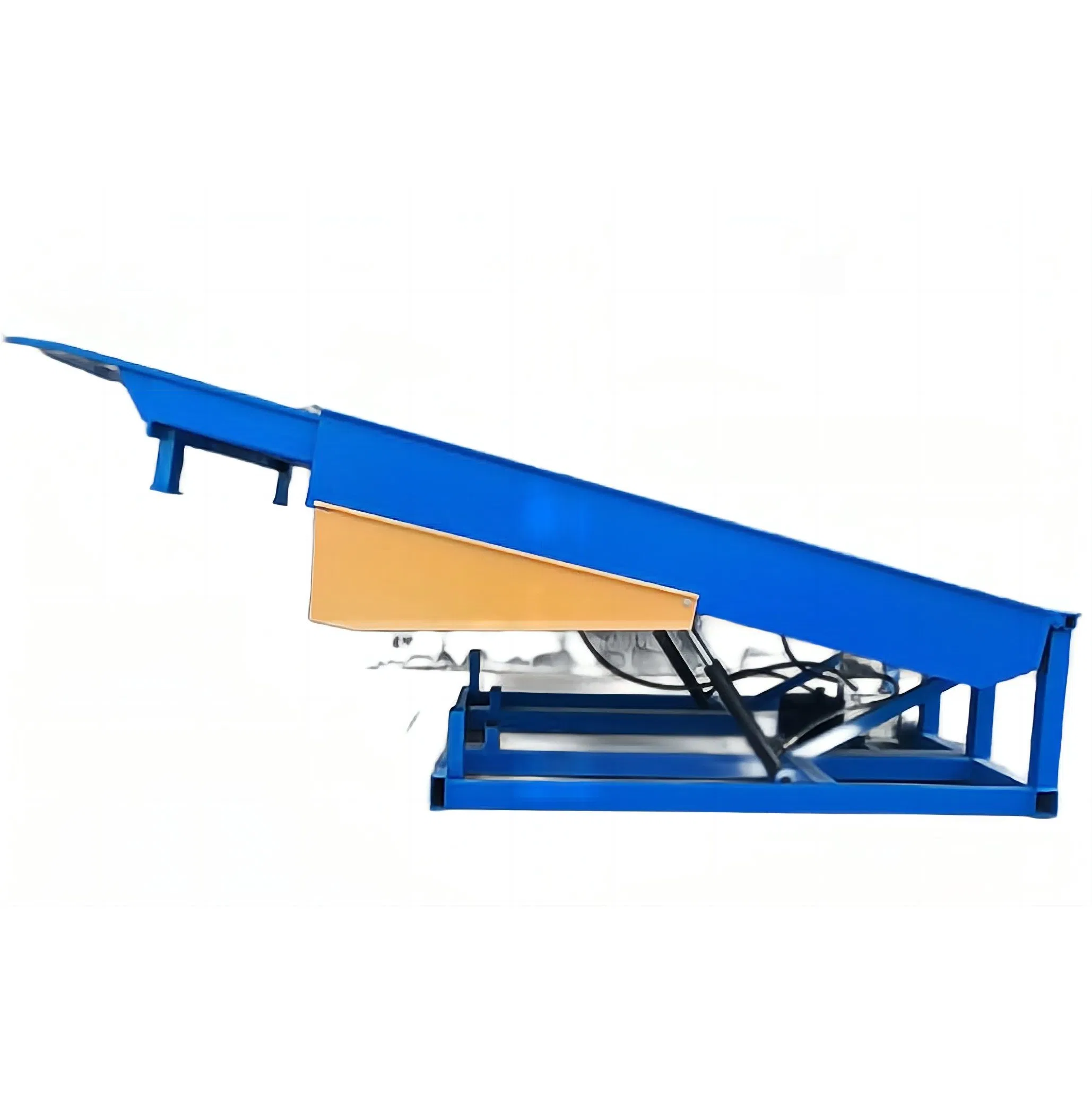

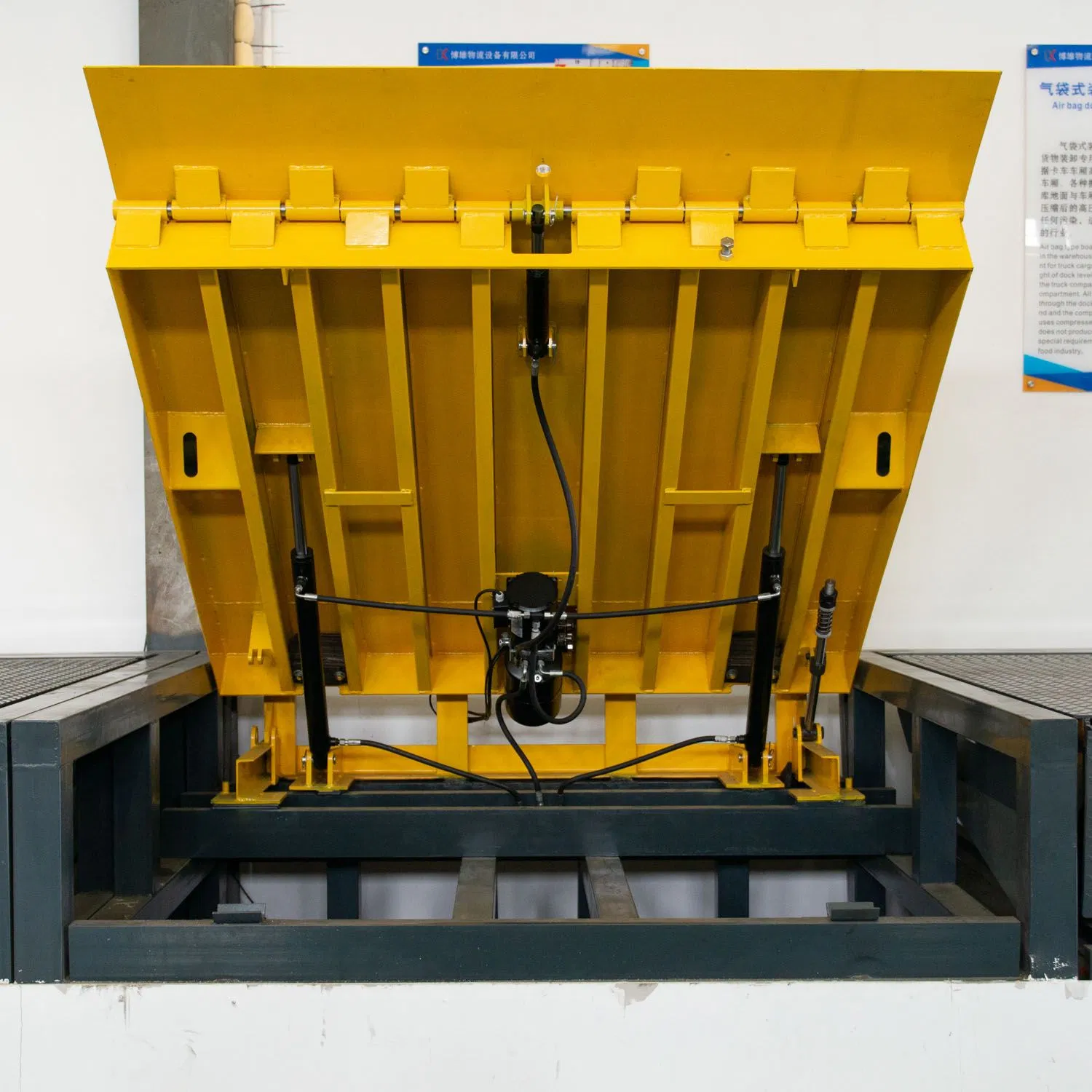

Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
1 / 5
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay
Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay

Manual Automatic Stationary Yard Ramp Fixed Loading Platform Dock Lifting Table Hydraulic Dock Leveler Lifting Equipment for Loading Bay

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
HS Code
84254290
📦

Product Overview

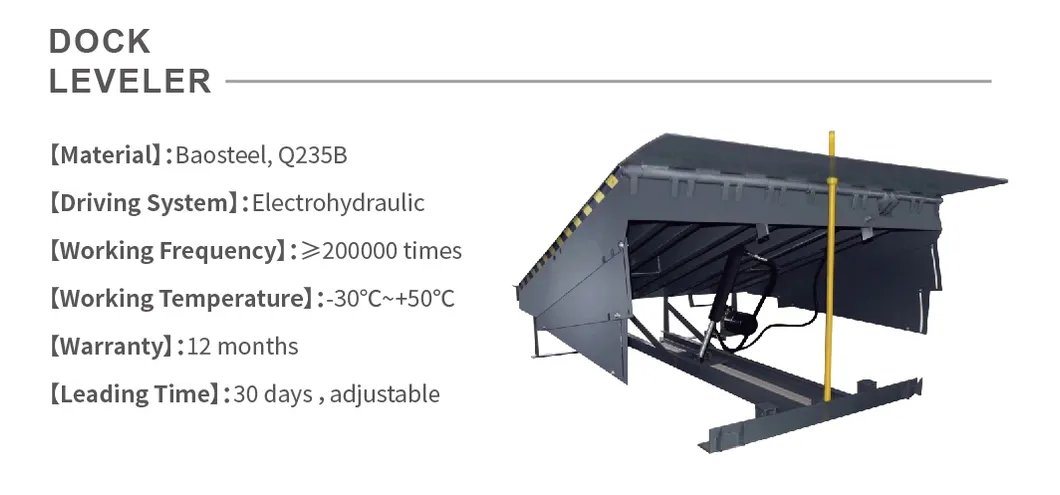

Hydraulic Dock Leveler

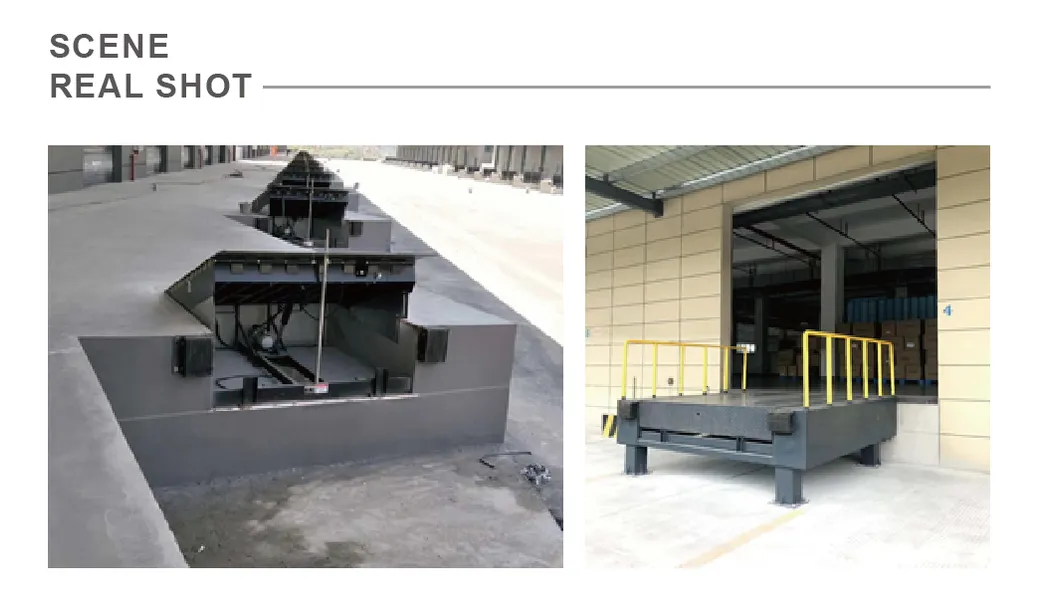

Loading Platform

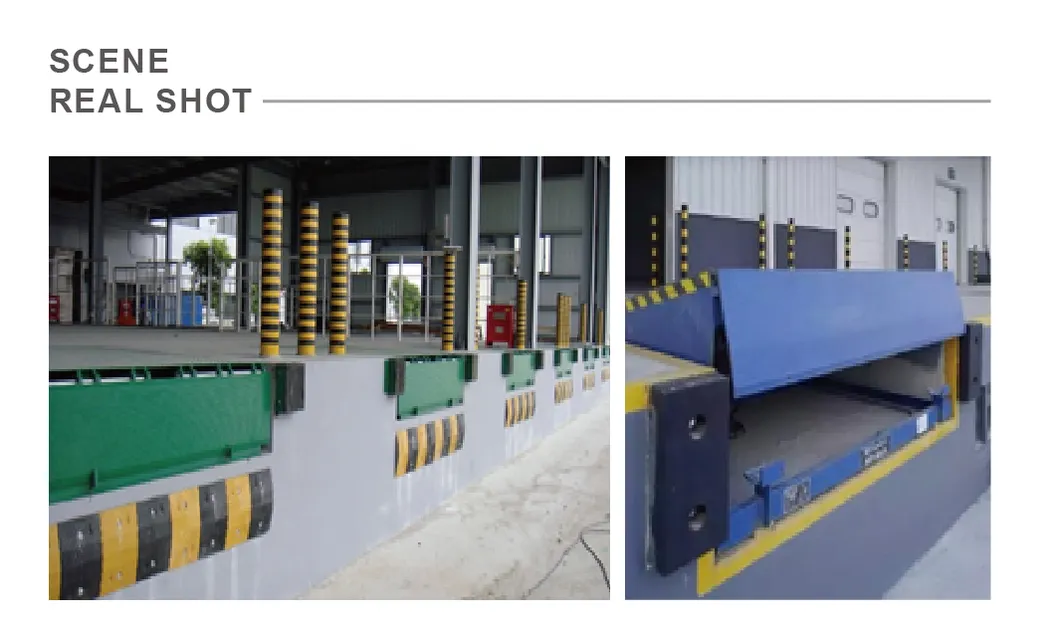

Dock Lifting Table

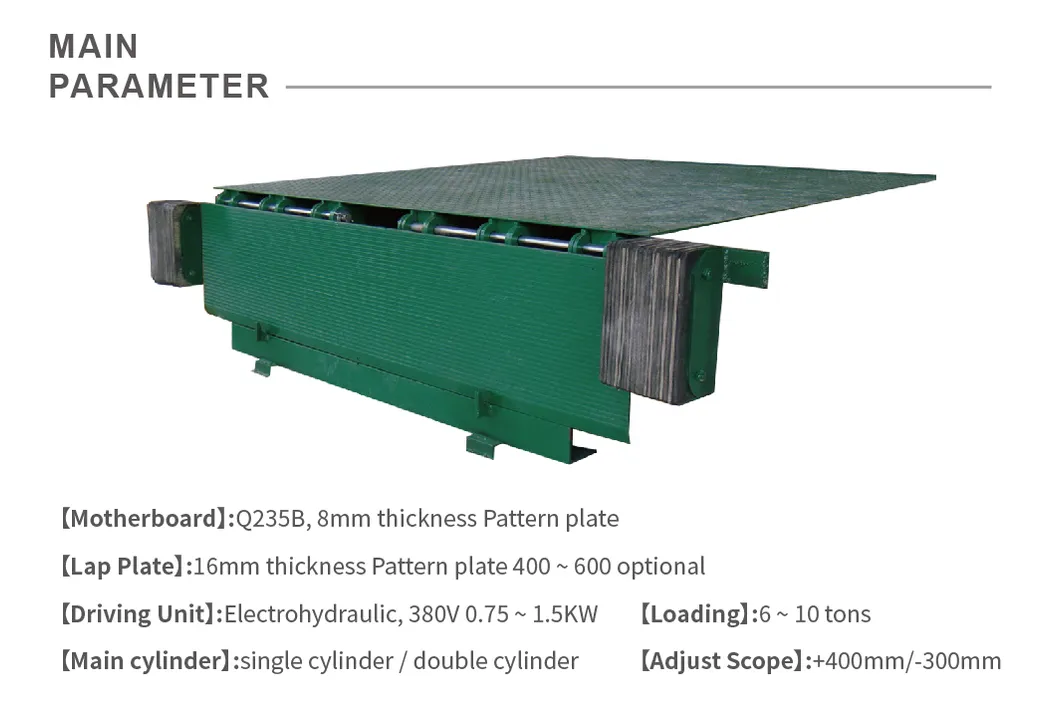

Lifting Equipment

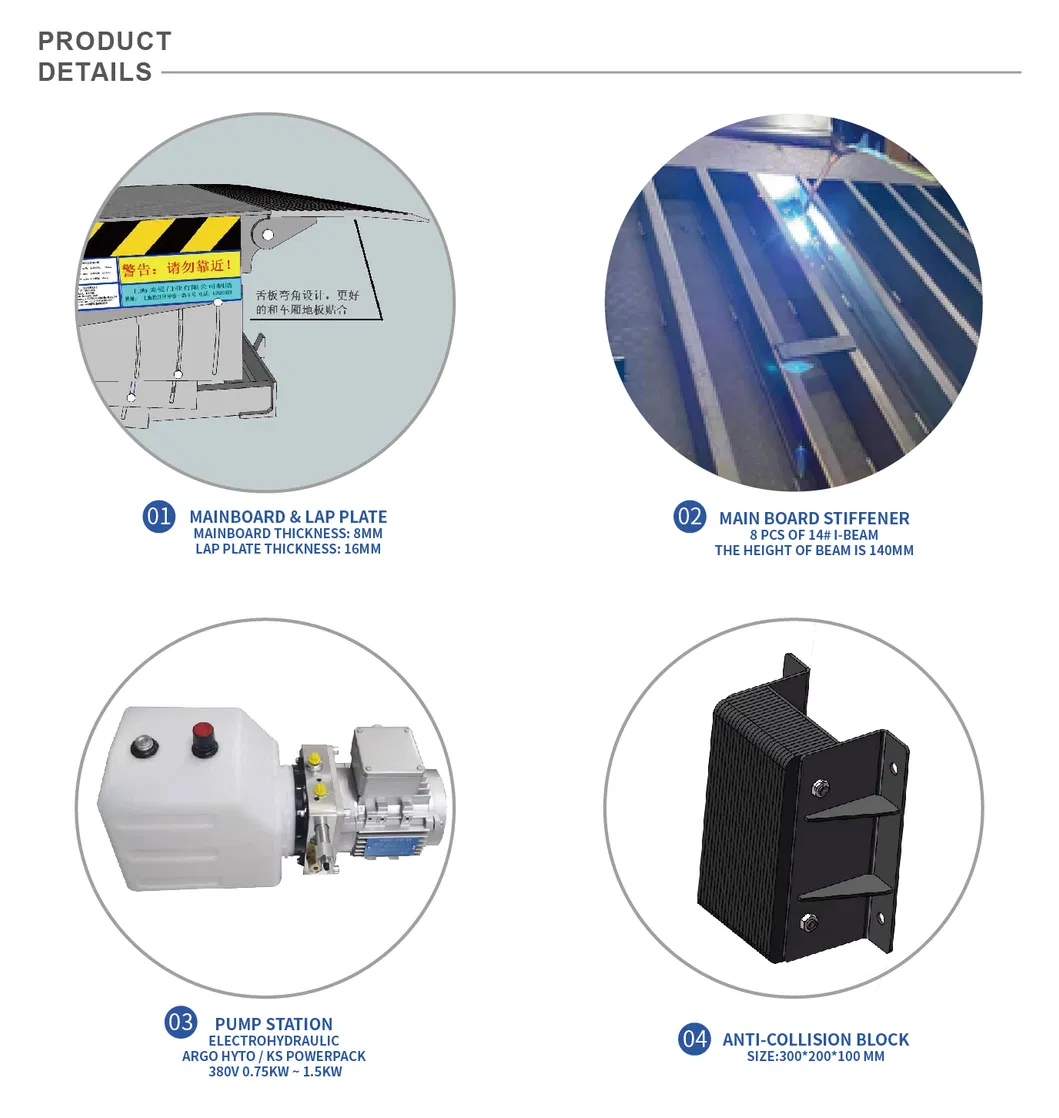

Yard Ramp Details
⚙️

Technical Parameters

DETAILED SPECIFICATIONS

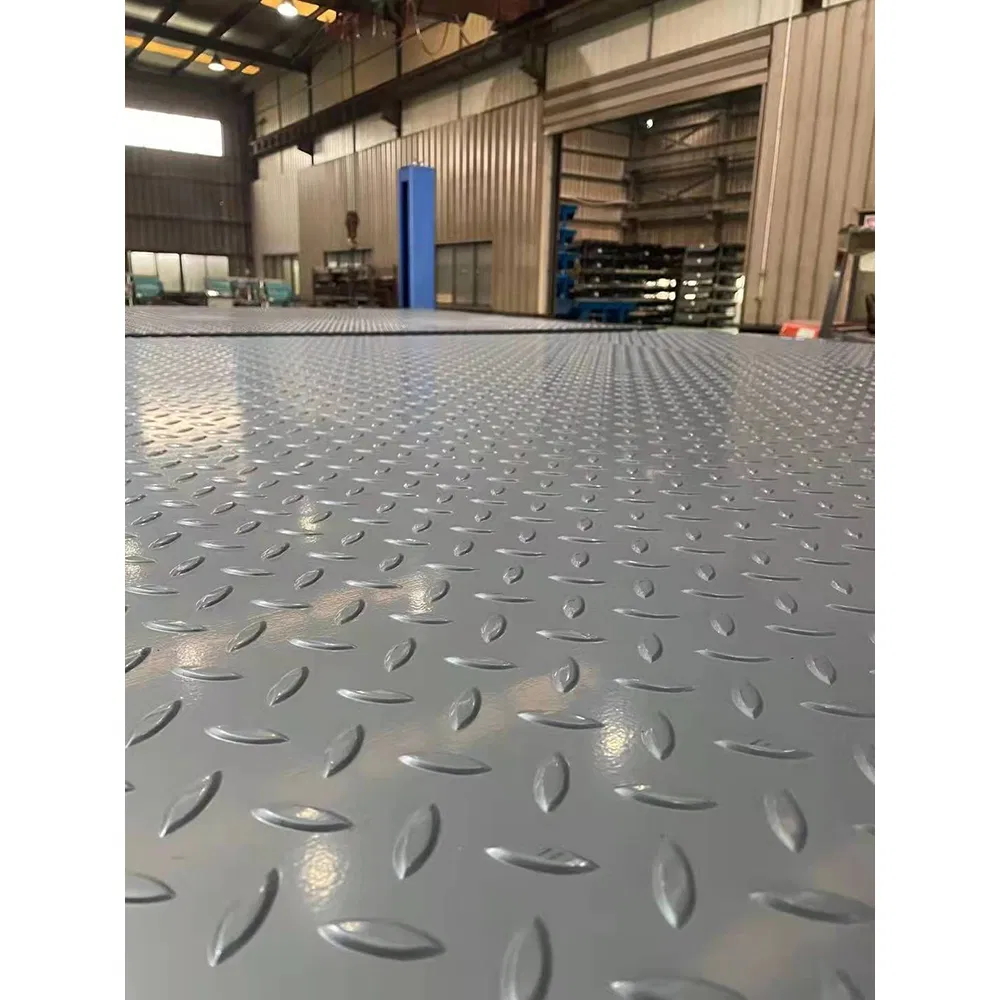

Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting surface treatment and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
DrivingElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main CylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, the height of Beam is 140mm
High Pressure Oil PipeT3683-2001; 60mpa
Side BafflesAutomatic retraction to ensure safety
Hydraulic Oil32# Antiwear hydraulic oil
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times
🚚

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Package Gross Weight
1000.000kg
Transport Package
Wrapping Film
Package Details
Delivery Prep
❓

Frequently Asked Questions

What is the carrying capacity of this dock leveler?
The dynamic loading weight supports options of 6T, 8T, 10T, 12T, and 15T to suit various industrial needs.
Can this equipment operate in extreme weather conditions?
Yes, it is designed to work efficiently in a wide temperature range from -30ºC to +50ºC.
What safety features are included?
Safety is ensured through explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers.
What are the power requirements?
The standard configuration supports 220V 50Hz or 380V 50Hz, with a power output between 0.75 Kw and 1.5 Kw.
What material is used for the main board?
The main board is constructed from Q235B steel plate with an anti-slide pattern, ensuring durability and safety during loading.
Is the product certified for international use?
Yes, the product holds both CE and ISO 9001 certifications, meeting international quality and safety standards.
