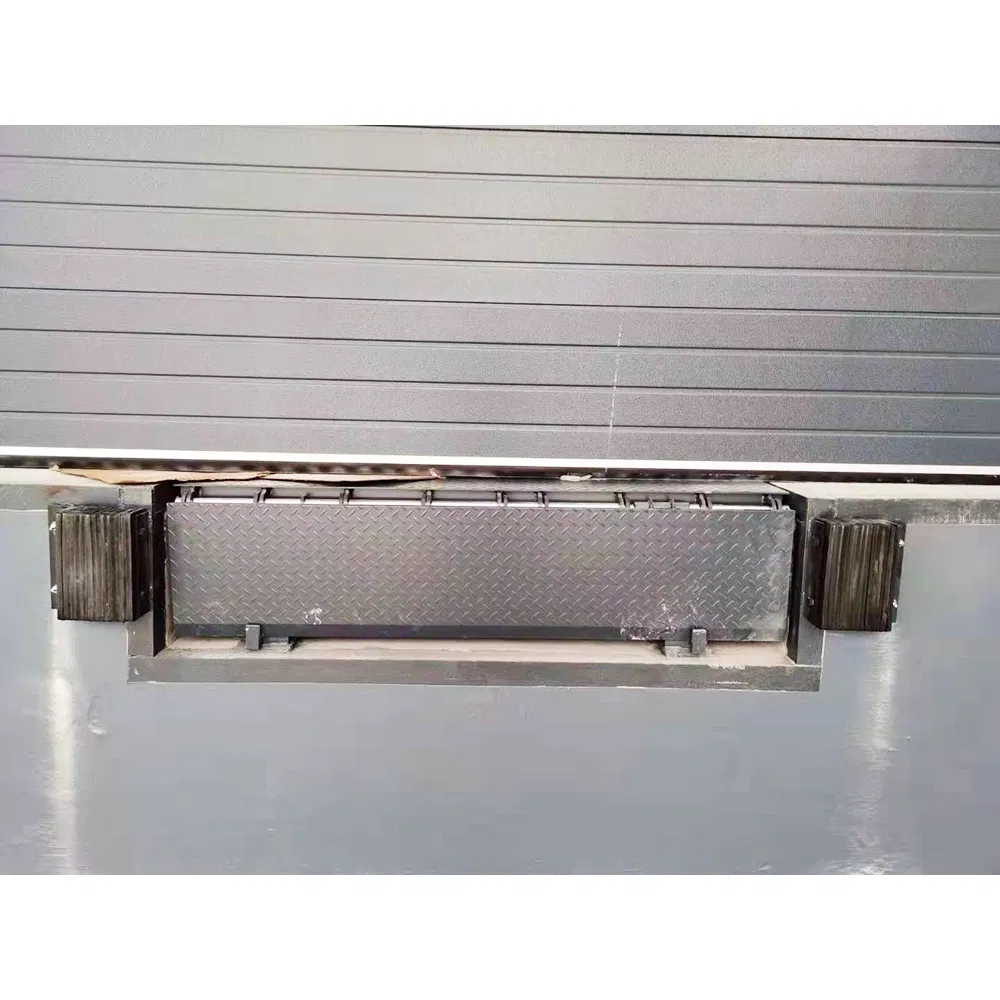

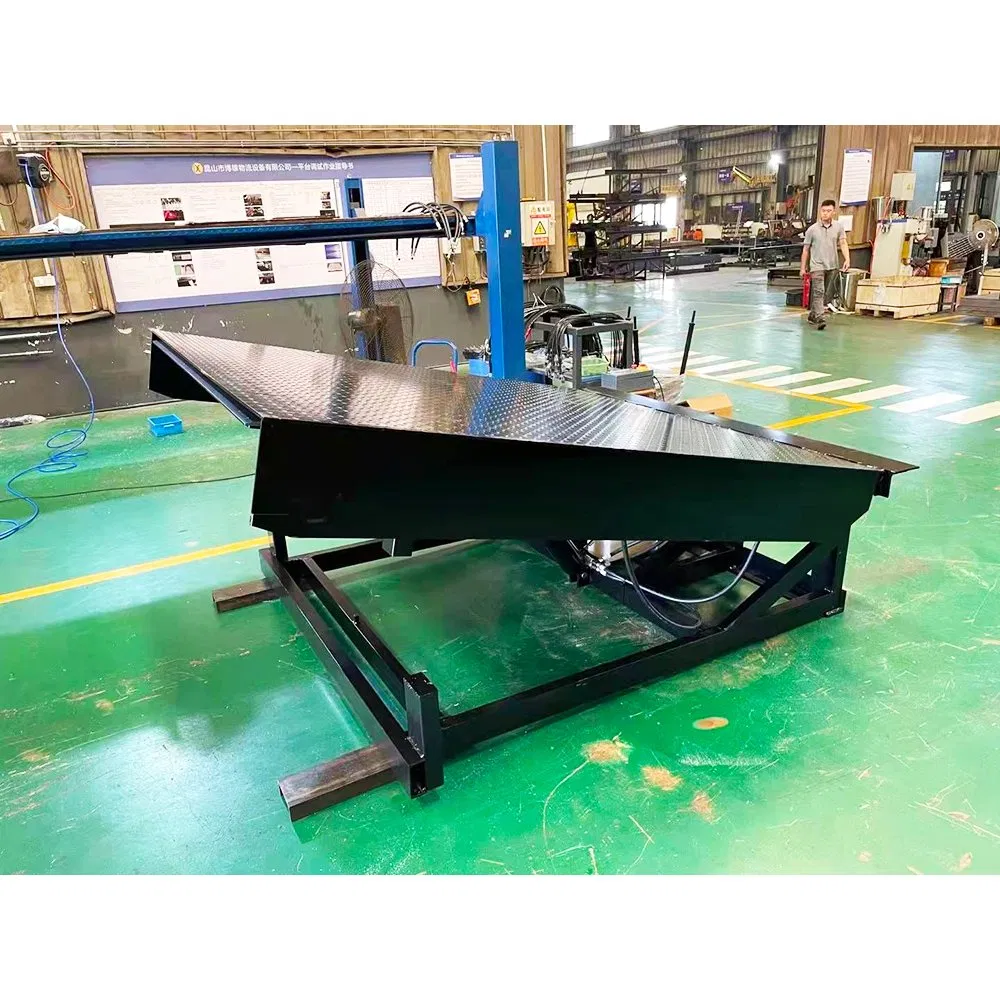

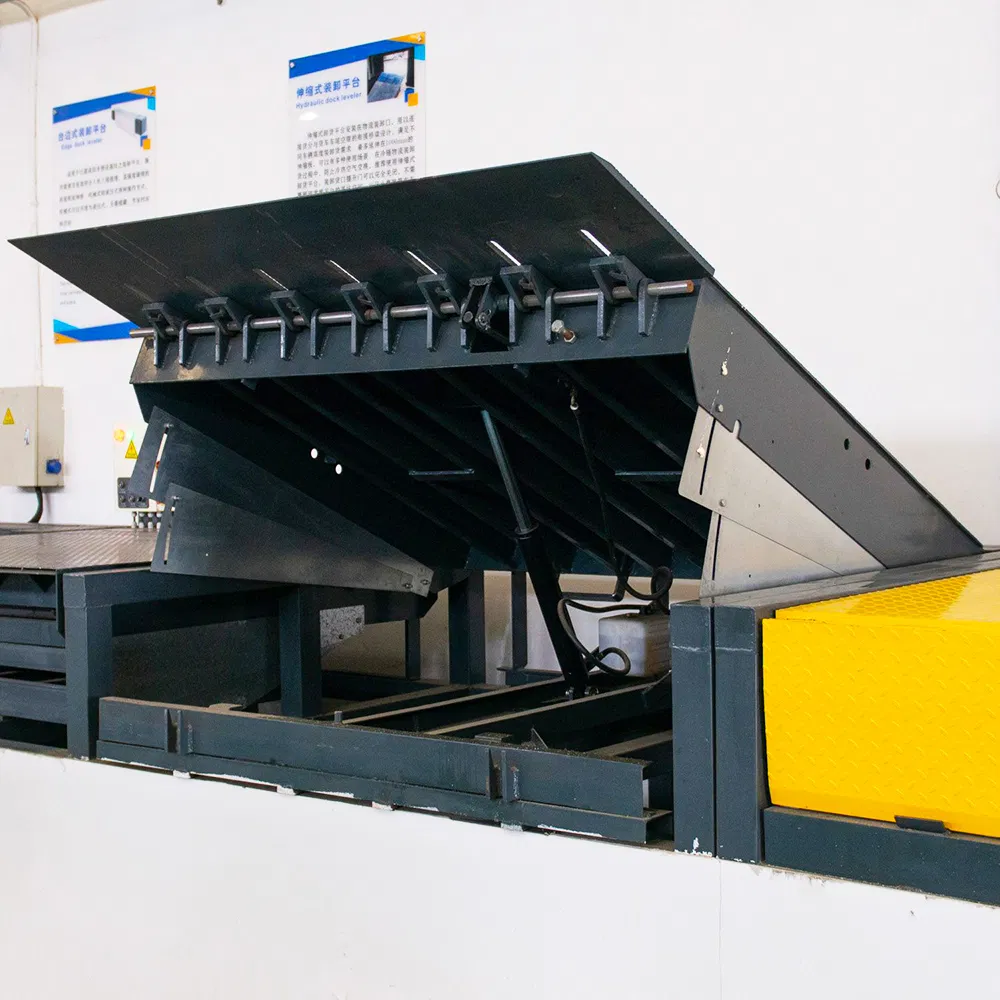

Manual Automatic Stationary Yard Ramp Fixed Loading Platform Hydraulic Dock Leveler Lifting Equipment

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

i

Basic Information

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

P

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

1000.000kg

Transport Package

Wrapping Film

D

Product Description

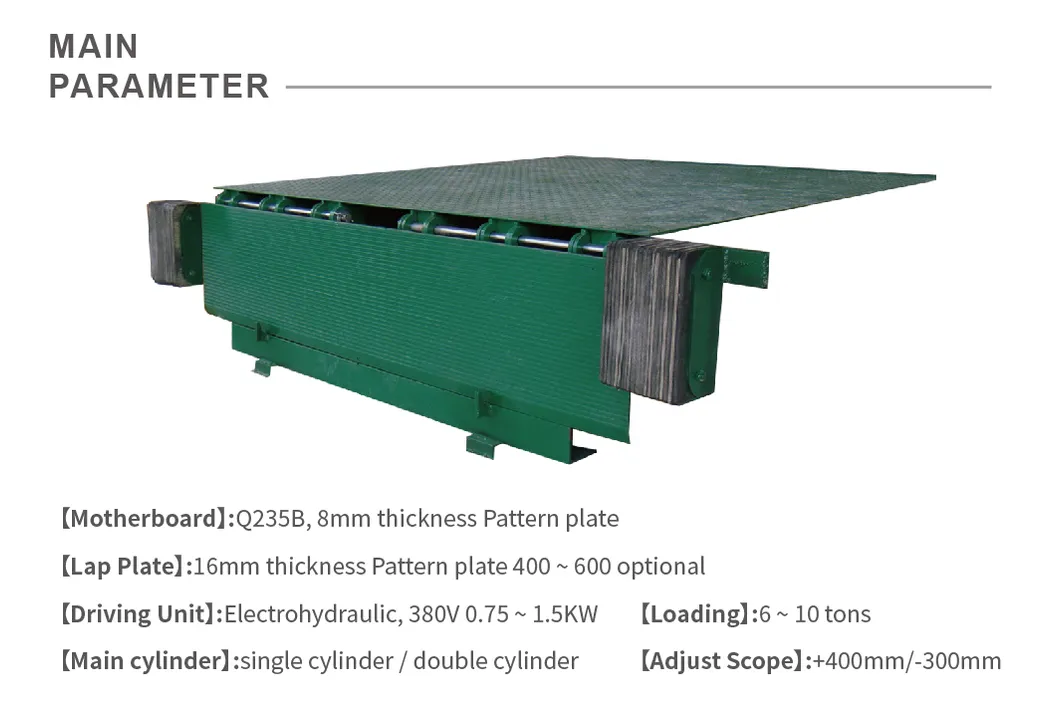

DETAILED PARAMETERS

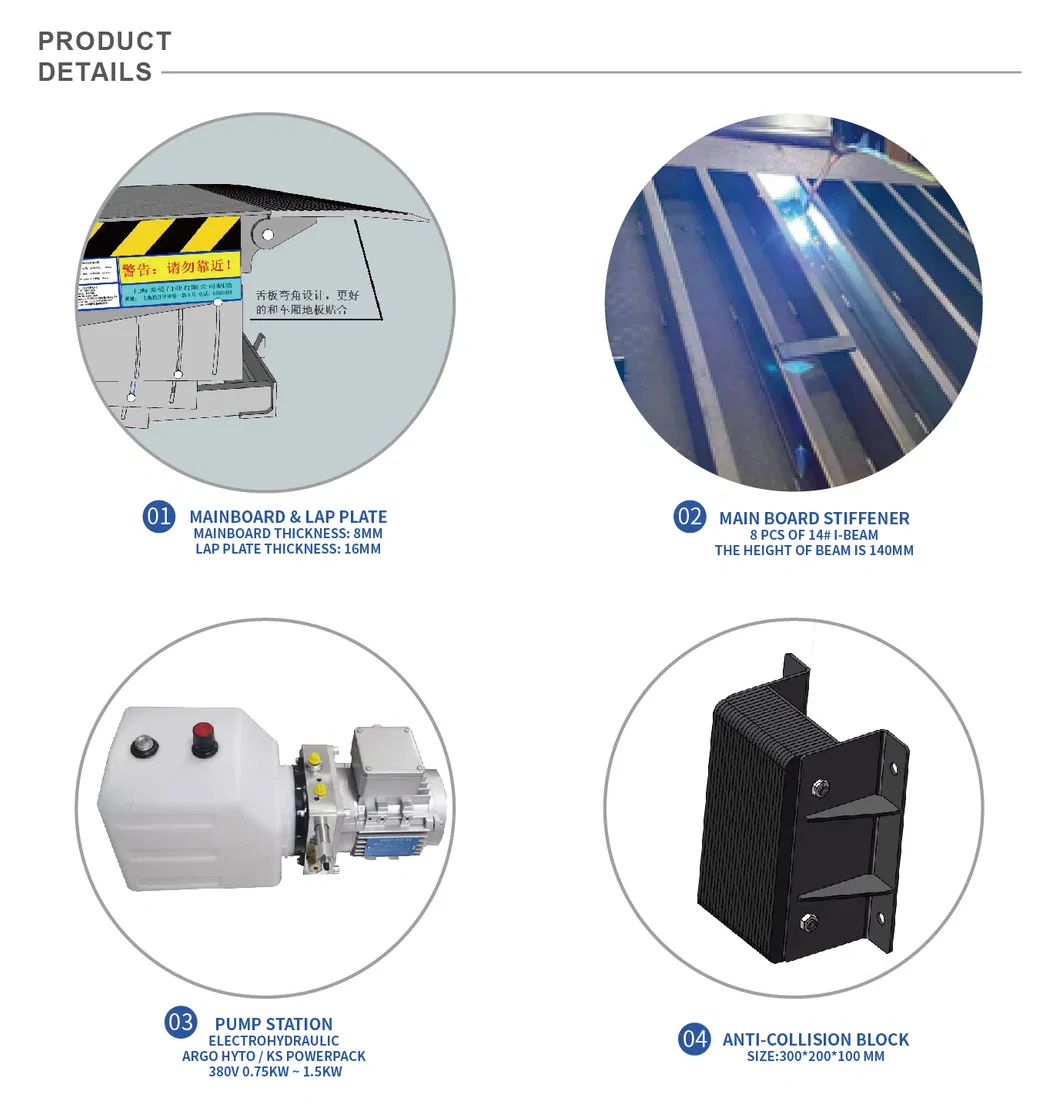

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; The surface treatment is blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12 T / 15T
Driving System	Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main Cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, the height of Beam is 140mm
High Pressure Oil Pipe	T3683-2001; 60mpa
Working Temperature	-30ºC ~ +50ºC
Safety Part	Explosion proof valve; Side Baffles for safety
Working Frequency	≥ 200,000 times

?

Frequently Asked Questions

What is the dynamic load capacity of this dock leveler?

The equipment supports a dynamic load capacity ranging from 6T, 8T, 10T, up to 15T depending on the specific configuration.

What materials are used for the main board and lap plate?

Both are constructed from high-quality Q235B steel plate with an anti-slide pattern. The main board thickness is 6/8mm, and the lap plate thickness is 14/16mm.

Can this equipment operate in extreme weather conditions?

Yes, the hydraulic system and components are designed to operate efficiently in temperatures ranging from -30ºC to +50ºC.

What safety features are included in the hydraulic system?

The system includes explosion-proof valves, automatic retraction side baffles, and high-pressure oil pipes (60mpa) to ensure maximum safety during operation.

What is the adjustment range for the platform?

The dock leveler provides an adjustment scope of +400mm upward and -300mm downward to accommodate various truck heights.

Does the product carry any international certifications?

Yes, the equipment is fully certified with CE and ISO 9001 standards, ensuring compliance with international quality and safety requirements.
