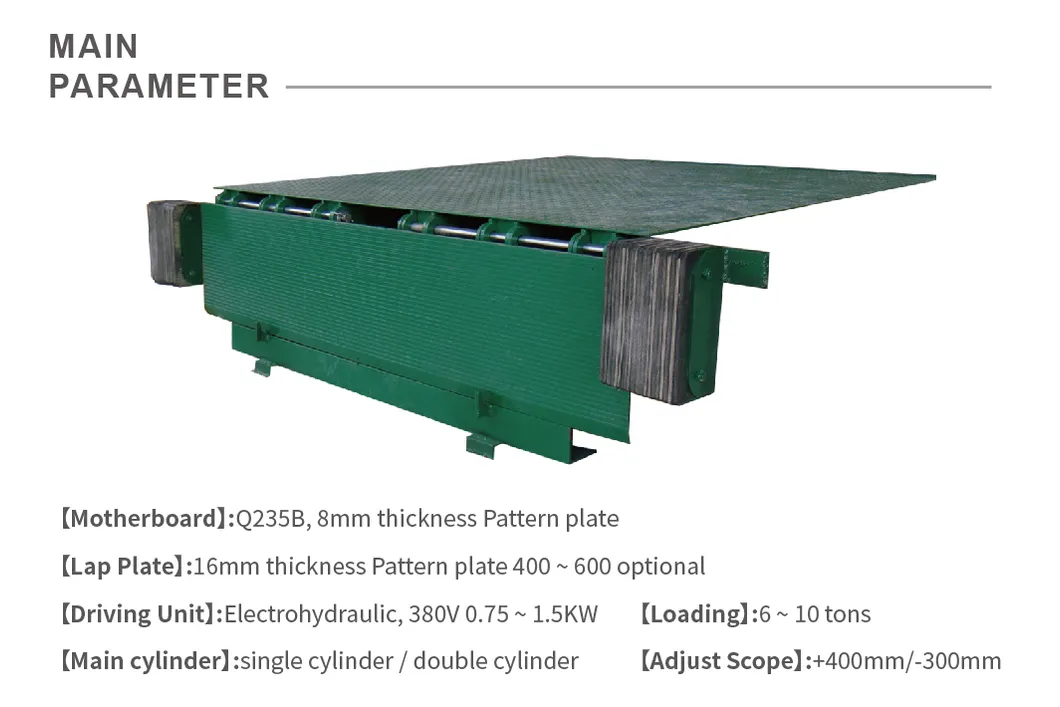

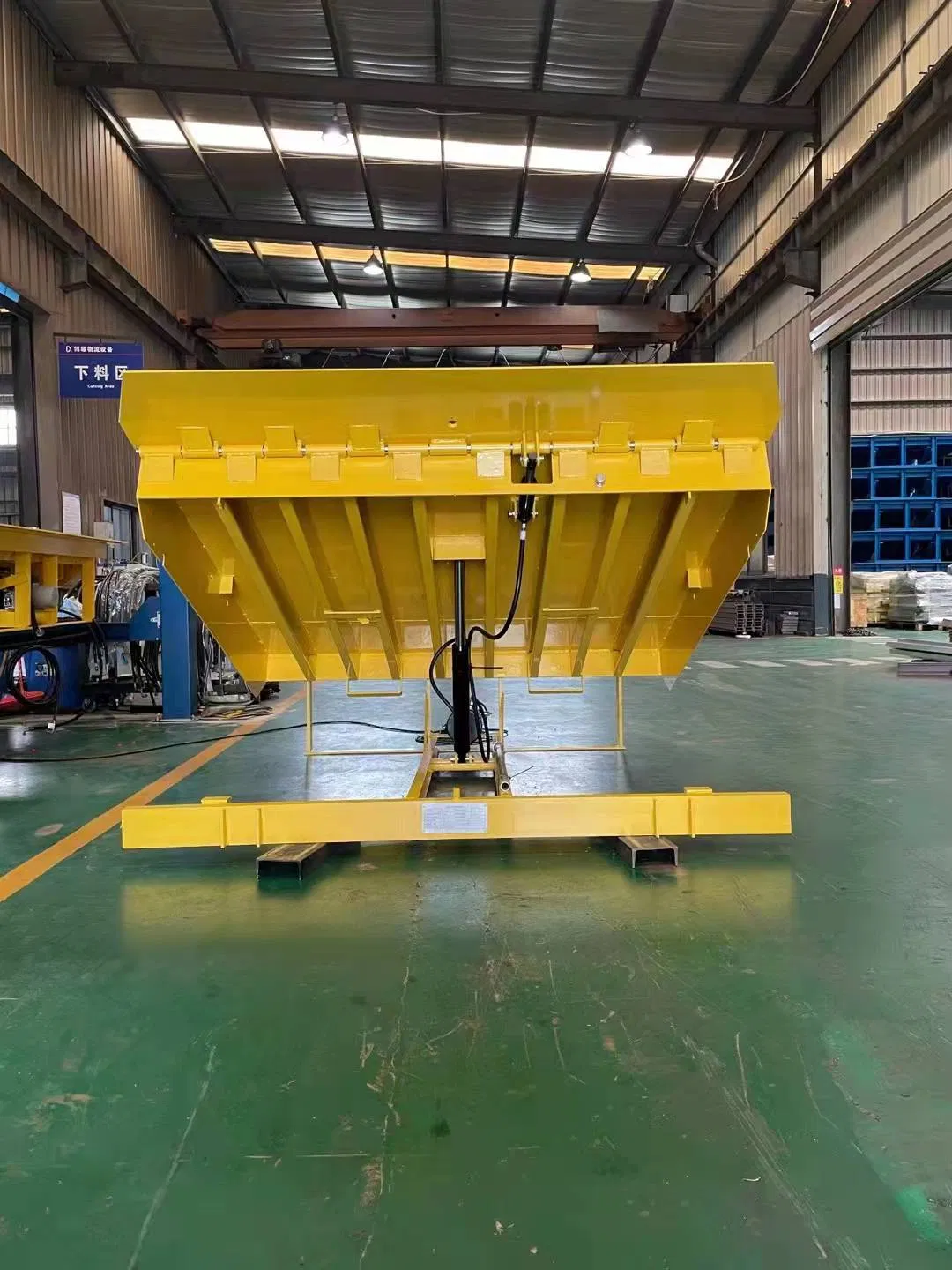

| Component | Technical Specifications |
|---|---|

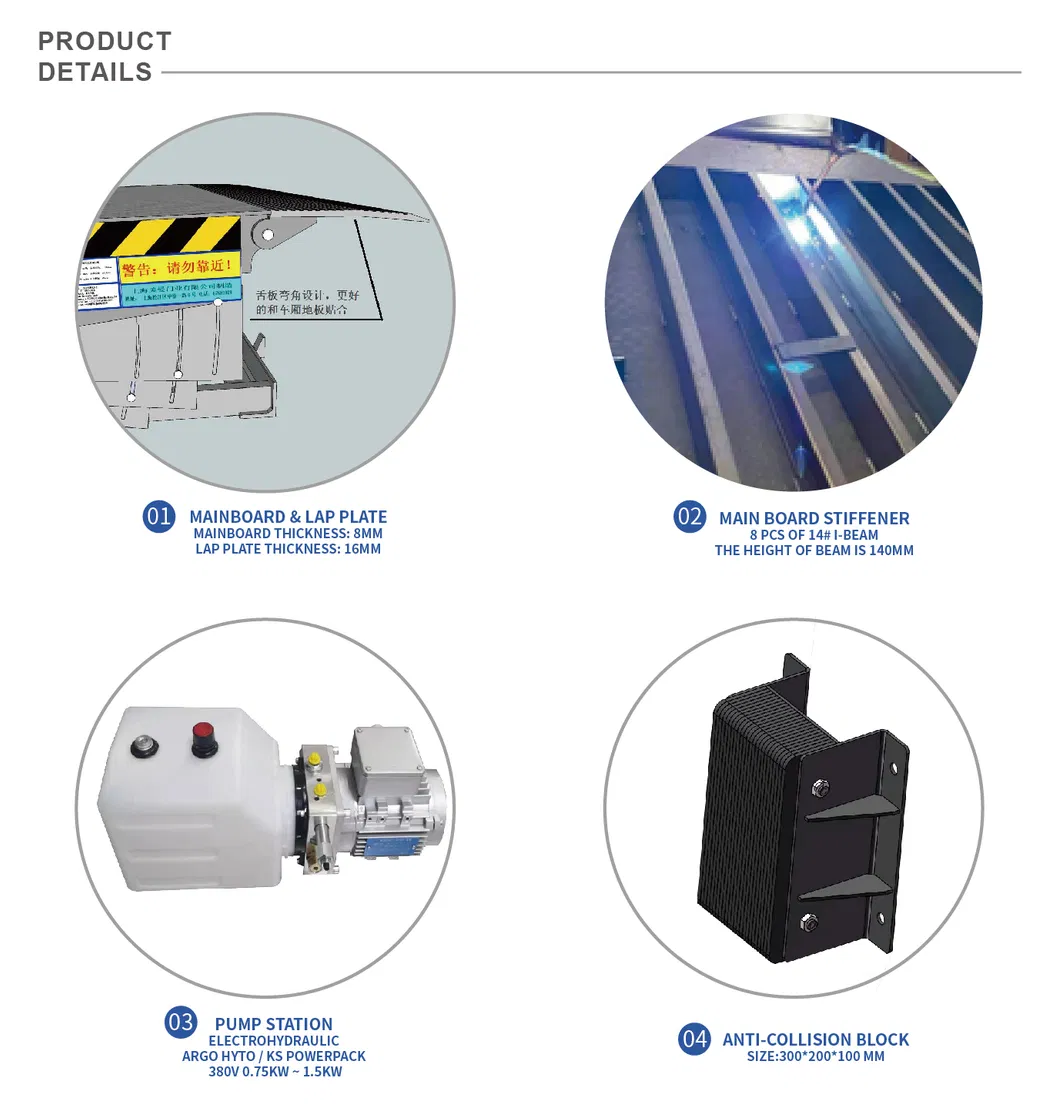

| Main Board | Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating |
| Lap Plate | Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating |
| Hinge | Open type, 8*150mm |
| Loading Weight | Dynamic load: 6T / 8T / 10T / 12 T / 15T |
| Driving System | Electrohydraulic, 380V 0.75KW ~ 1.5KW |
| Control System | Standard 380V English interface |
| Adjust Scope | +400mm / -300mm |
| Adjust Time | Up ≤ 16S; Down ≤ 10S |
| Sealing Parts | Brand: NOK A505 Complete set of seals for oil cylinder |
| Main Cylinder | Single cylinder / double cylinders |
| Main Board Stiffener | 8 pcs of 14# I-Beam, height of Beam is 140mm |
| Working Temperature | -30ºC ~ +50ºC |
| Safety Part | Explosion proof valve |
| Working Frequency | ≥ 200,000 times |
1. Our enterprise specializes in industrial door design, manufacturing, and professional installation solutions.
2. We utilize advanced equipment and technology to design products tailored to specific customer needs and high-quality standards.
3. Product range includes steel doors, fire doors, high-speed doors, sectional doors, roller shutters, and logistic docking systems.
4. Honors and Certifications: China AAA Enterprise, ISO9001: 2000 Management Certification, and CE Certification.
