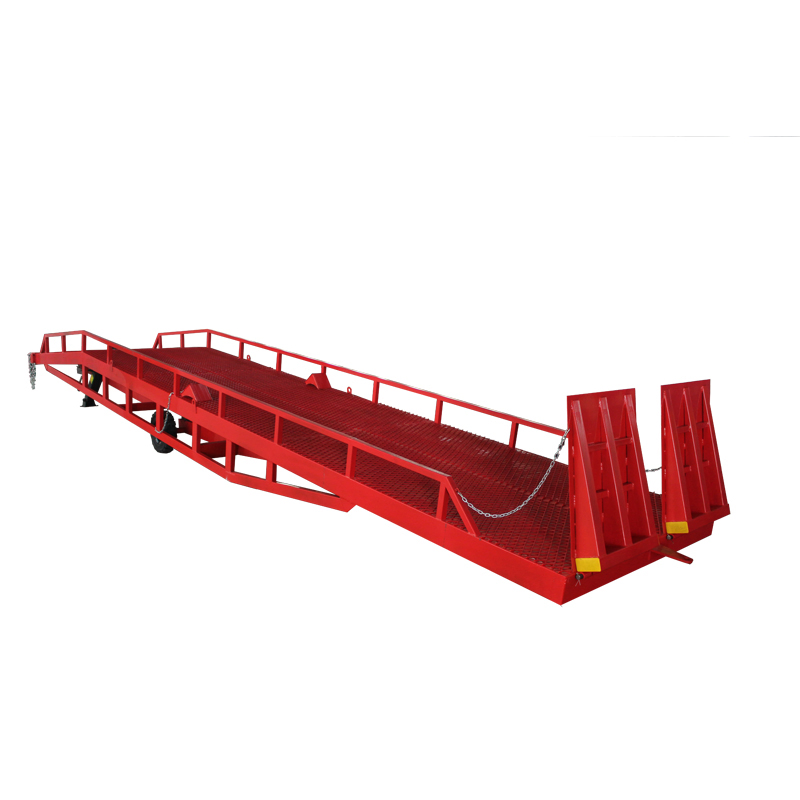

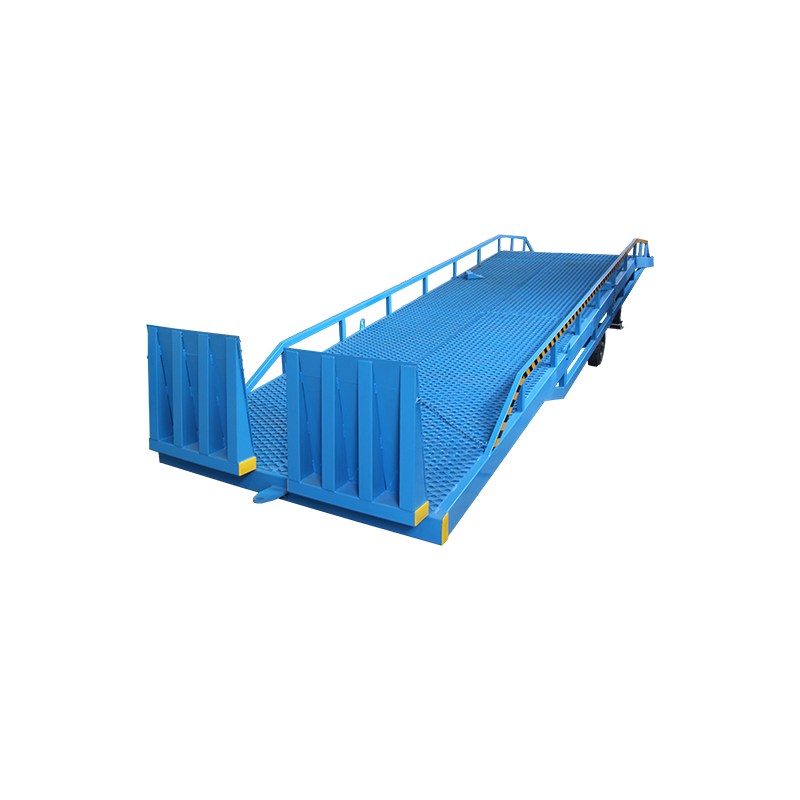

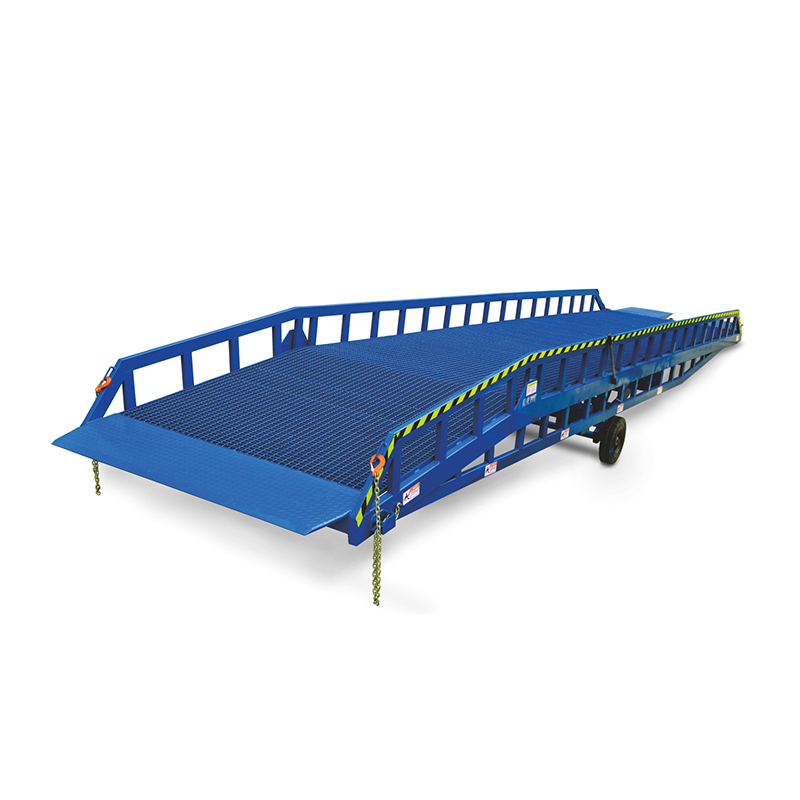

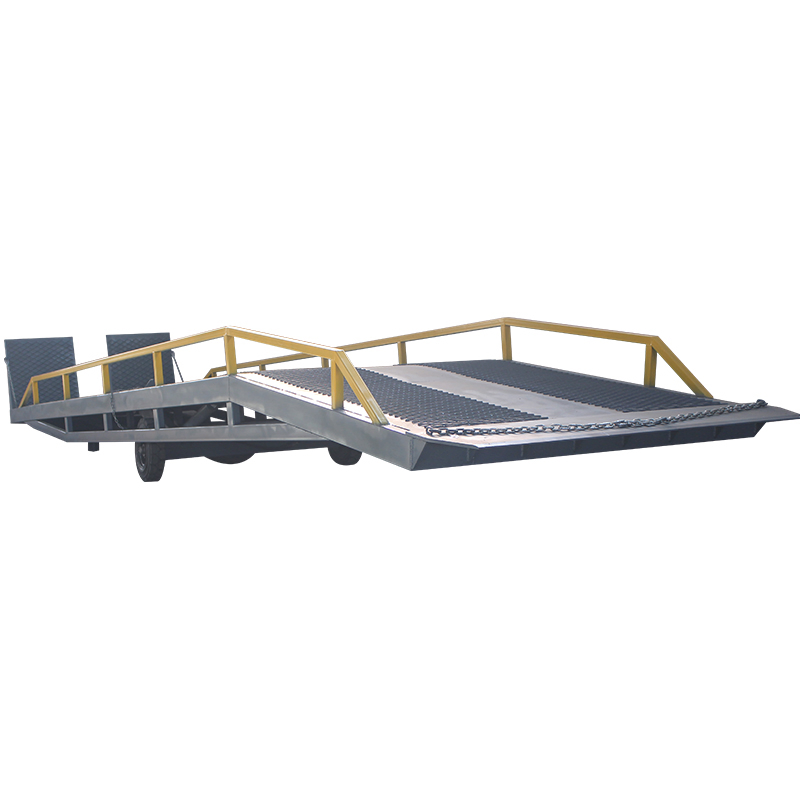

8-12t Adjustable Height Mobile Dock Ramp

1 / 5

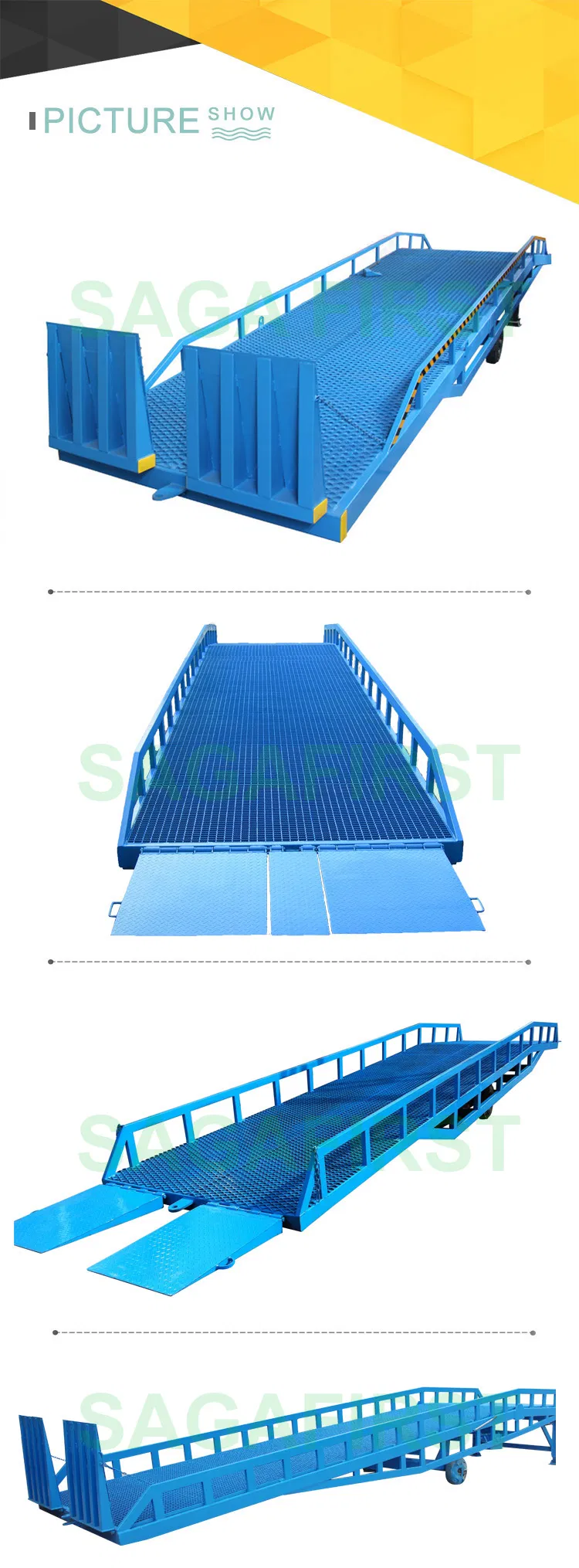

8-12t Adjustable Height Mobile Dock Ramp

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

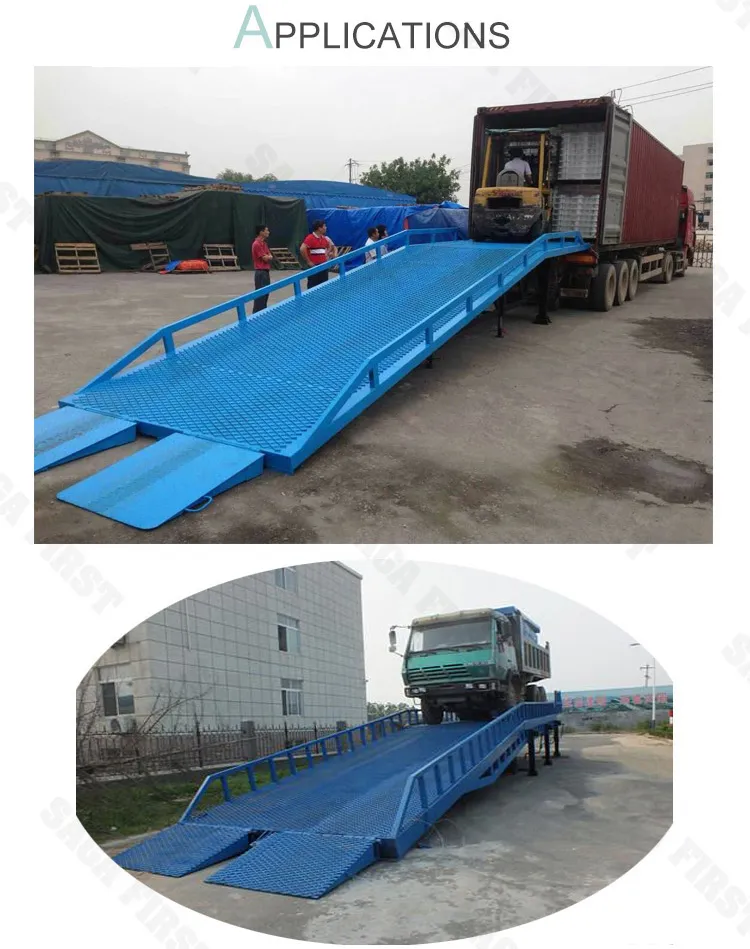

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Lift Chain

Carrying Capacity

Weight Level

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating, Emergency Decline

Certification

GS, CE, RoHS, ISO 9001, SGS

Production Capacity

1000 Sets/Month

HS Code

8428909090

Economic Trailer Container Lift Mobile Dock Ramp

- OEM & ODM Service -

Mobile Dock Yard Ramp is easy to be operated by manually or electrically, requiring almost no maintenance. It is designed for high efficiency in loading and unloading operations.

✓

Capacity & Size: Loading capacity: 6~15ton. Platform size: 1100*2000mm or 1100*2500mm (Customized service available).

✓

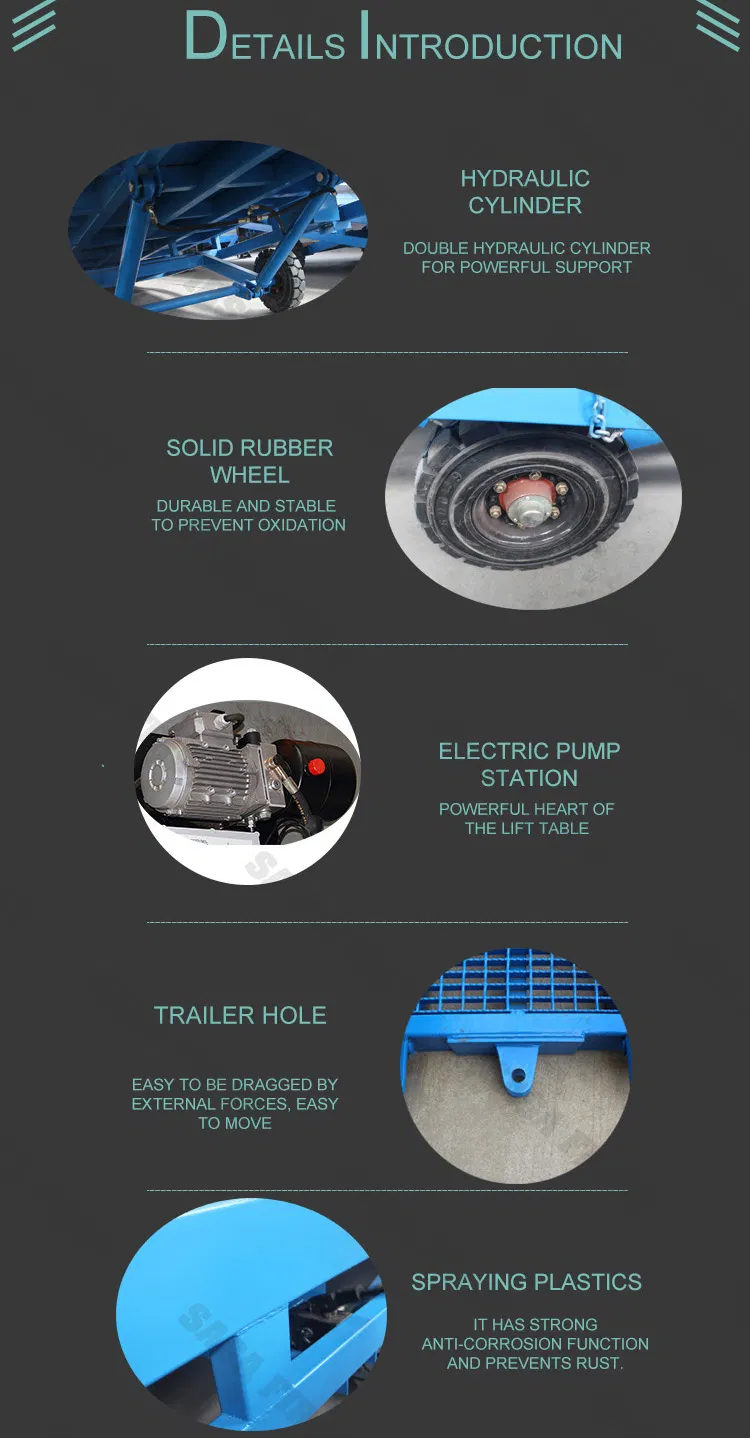

Safety Valves: Includes spillover valve to prevent high pressure and emergency decline valve for power-off situations.

✓

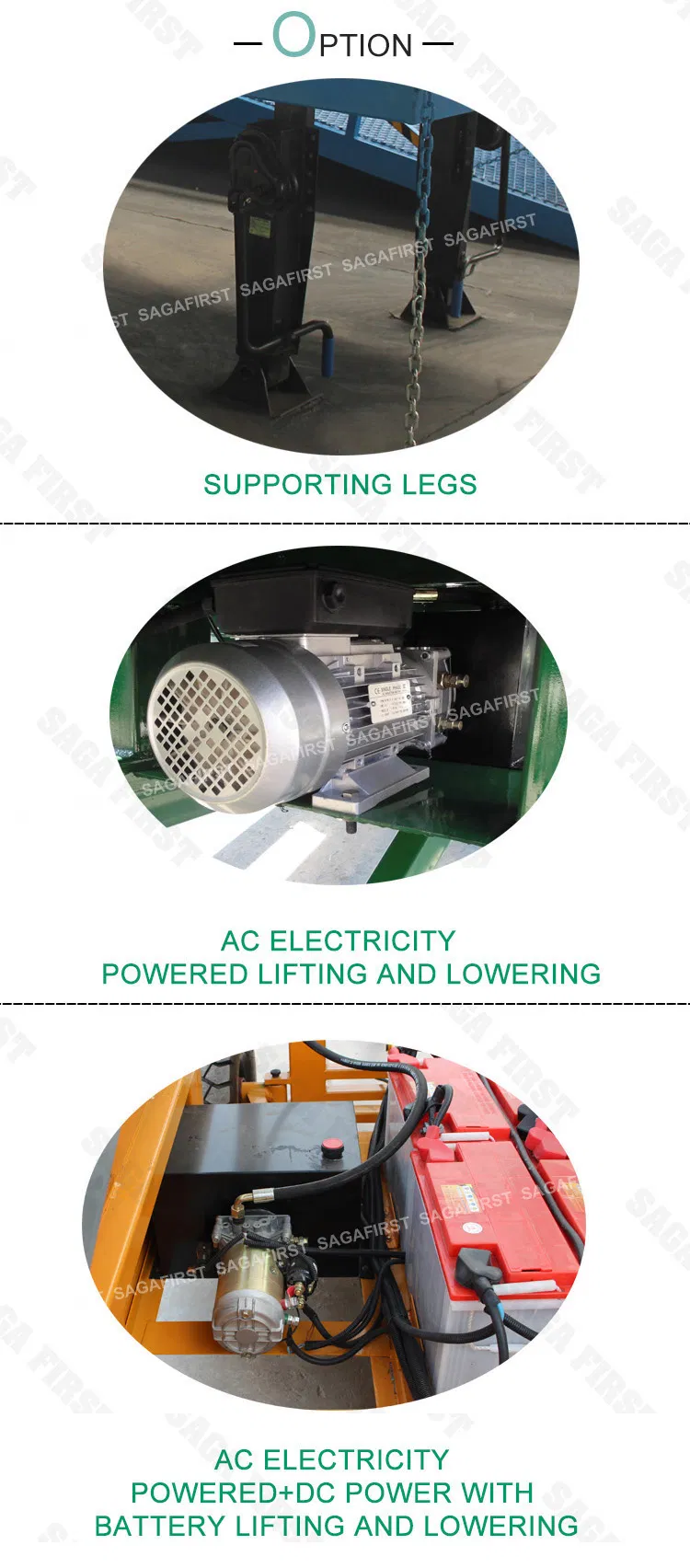

Stability: High strength hydraulic support legs prop up the whole ramp stably during operation.

✓

Durability: Solid rubber tyres with great wear-proof performance and high strength connection chains.

Technical Specifications

Model No.	MDR-8	MDR-10	MDR-12
Load Capacity (t)	8	10	12
Platform Size (mm)	11000*2000	11000*2000	11000*2000
Overall Size(mm)	1120020001400	1120020001400	1120020001400
Adjustable Height(mm)	900~1700	900~1700	900~1700
Platform Materials	4mm checked steel +7mm screen	4mm checked steel +7mm screen	5mm checked steel +8mm screen
Tyre	500-8 solid tyre	600-9 solid tyre	600-9 solid tyre
Net Weight(kg)	2480	2750	3100
