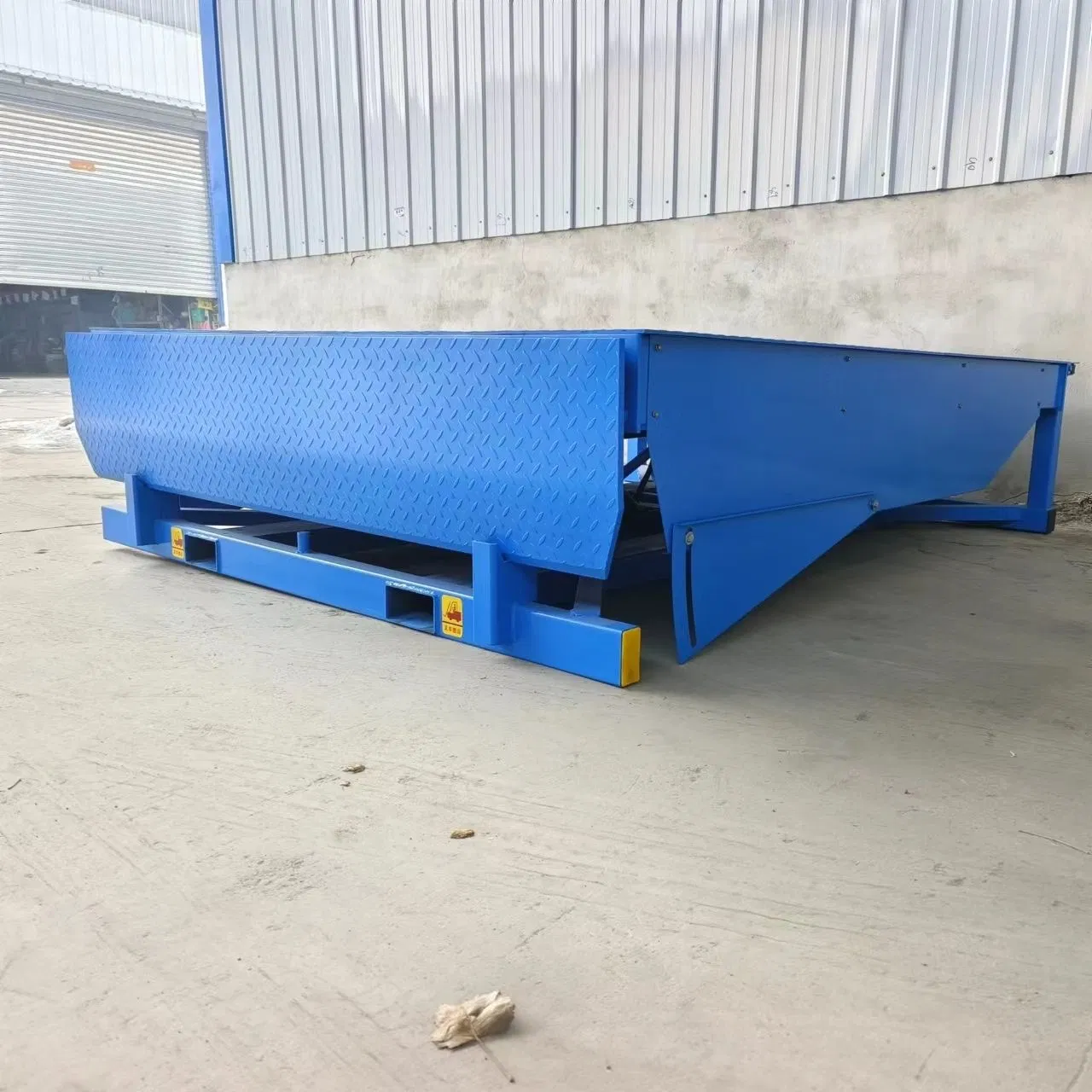

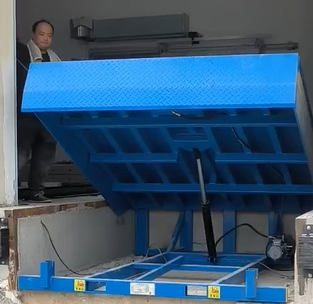

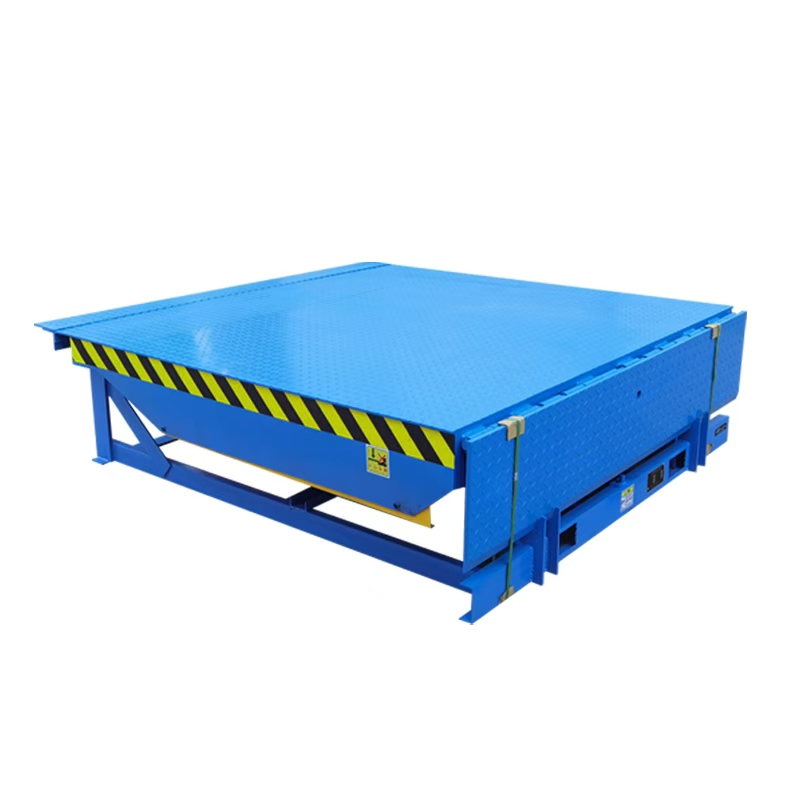

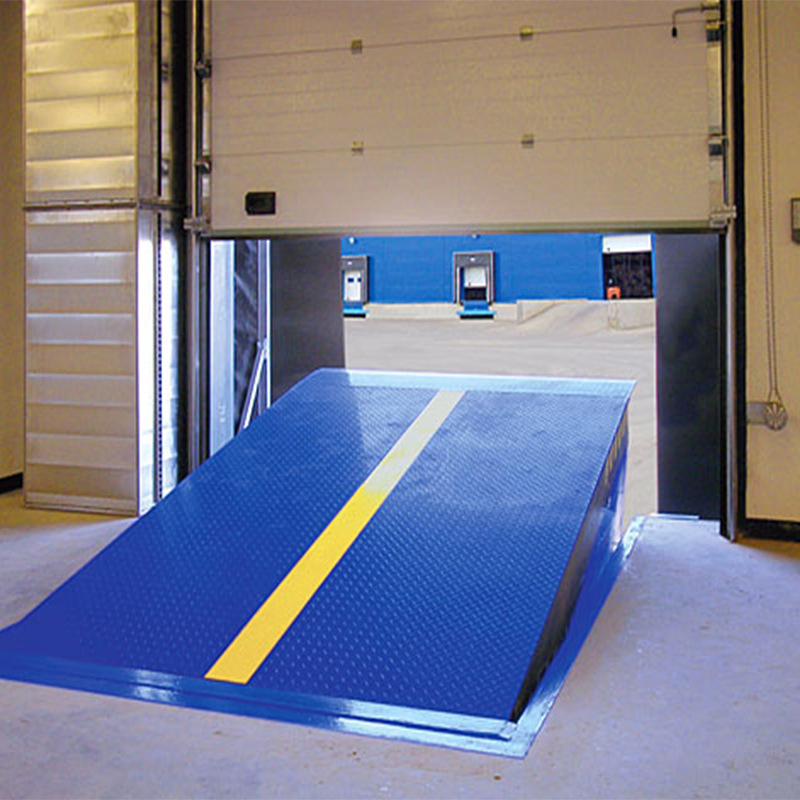

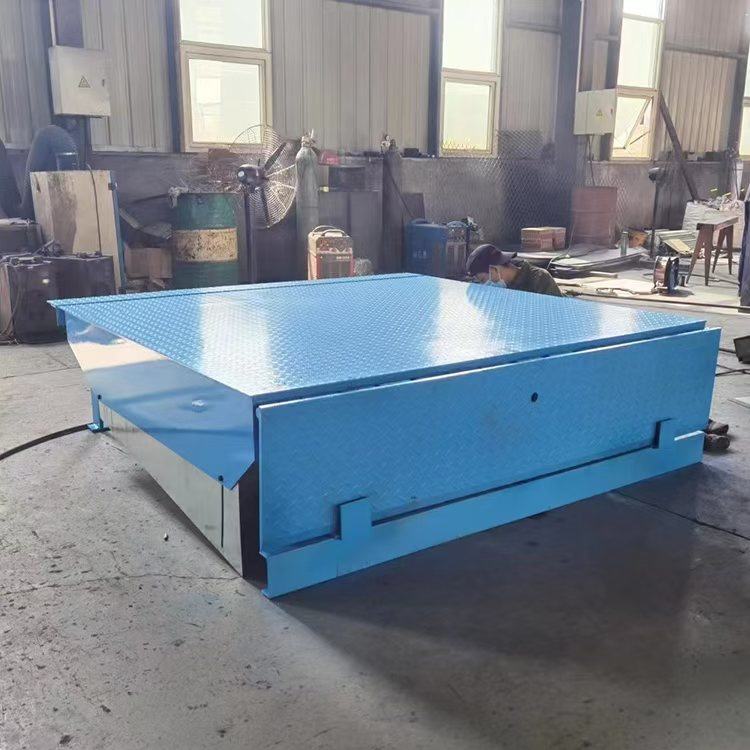

Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
1 / 5
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers
Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers

Heavy-Duty Fixed Loading Dock Bridge for Trucks and Trailers

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
DCQG
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t/8t/10t/12t/15t/20t
Driven Type
AC
Material
Manganese Steel
Certification
CE, ISO 9001
Lift Amplitude
750mm
📦 Packaging & Delivery
Package Size
200.00cm * 250.00cm * 60.00cm
Gross Weight
850.000kg
Transport Package
Wooden Crate or Container
🛠️ Product Description
Fixed boarding bridge is a specialized auxiliary equipment for fast loading and unloading of goods, with height adjustment function. It builds a bridge between the truck and the cargo platform, allowing handling vehicles to enter the interior of the truck for continuous loading and unloading. Ideal for logistics companies, warehouses, and high stack handling operations.
Model Table Size UP/Down Motor Power Power Supply Weight
DCQG-8T
(8T Load)		 2000* 2000* 600mm 400/ 300mm 1.1kw Customized 624KG
2500* 2000* 600mm 400/ 300mm 1.1kw Customized 718KG
3000* 2000* 600mm 400/ 300mm 1.1kw Customized 808kg
DCQG-10T
(10T Load)		 2000* 2000* 600mm 400/ 300mm 1.1kw Customized 700KG
2500* 2000* 600mm 400/ 300mm 1.1kw Customized 808KG
3000* 2000* 600mm 400/ 300mm 1.1kw Customized 926kg
Optional Features Explosion proof, Remote controller, Car Lock Device, Manual and electric dual-use
Monthly production of 1,000 units - Rapid Shipping Available

Standard specifications in stock; customized orders welcomed.

Loading Dock Bridge View 1
Loading Dock Bridge View 2
Loading Dock Bridge View 3
Loading Dock Bridge View 4
📸 Detailed Photos

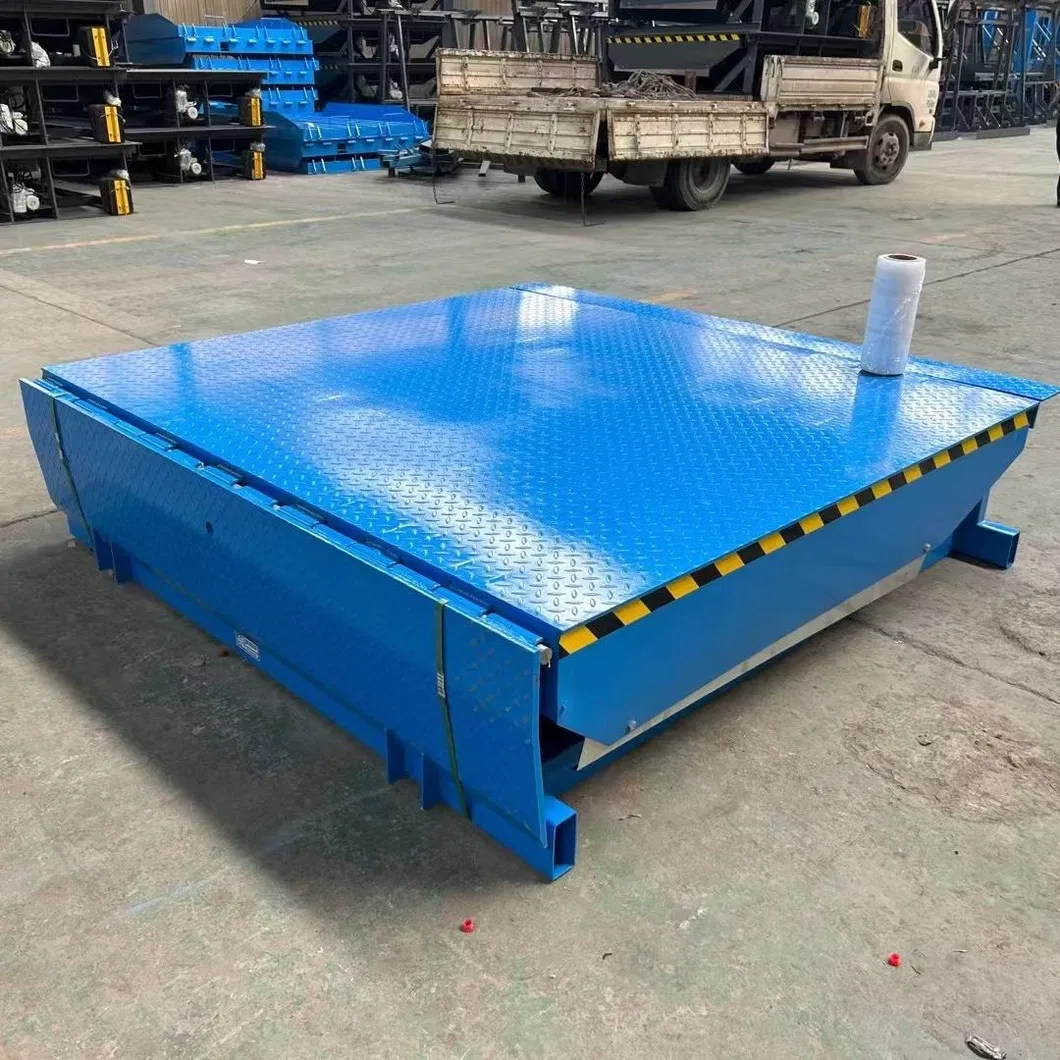

Detail 1

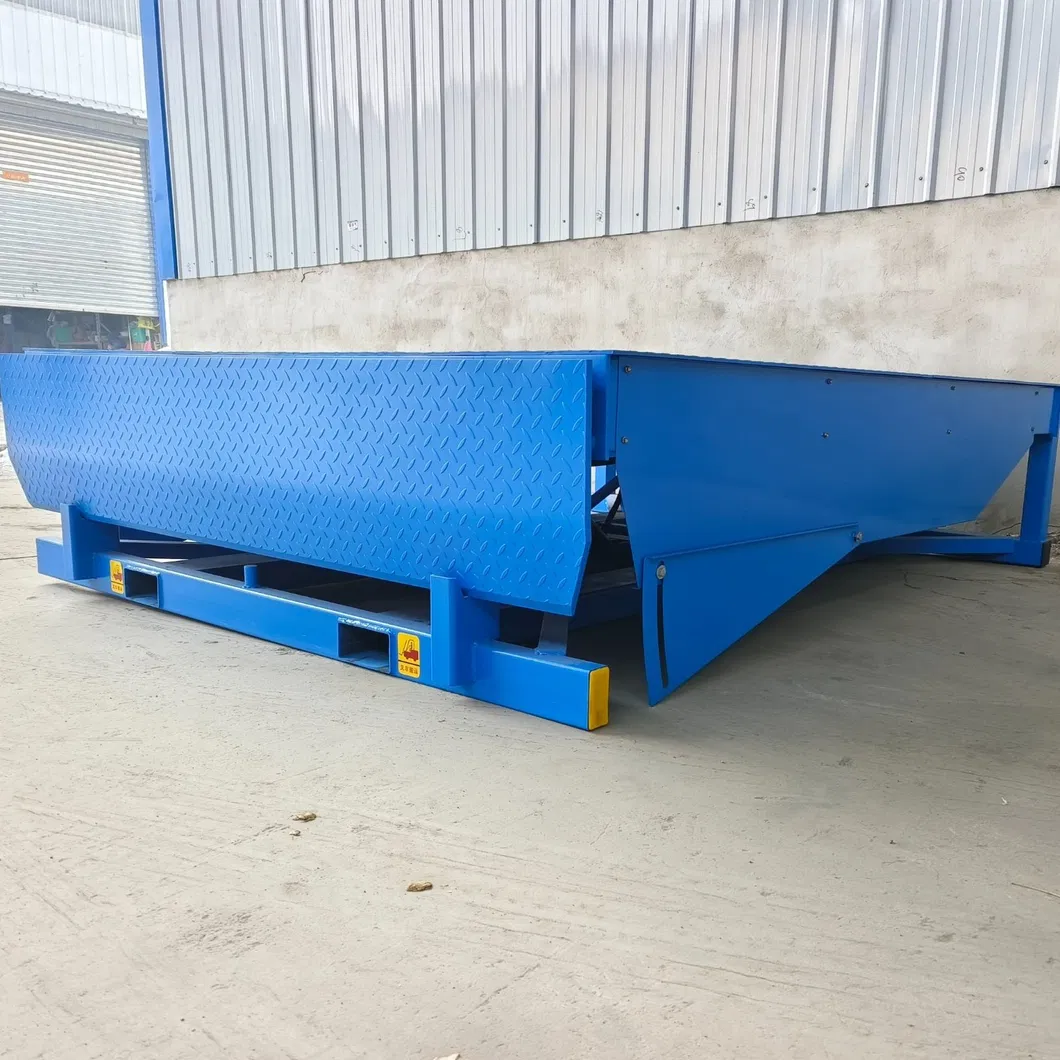

Detail 2

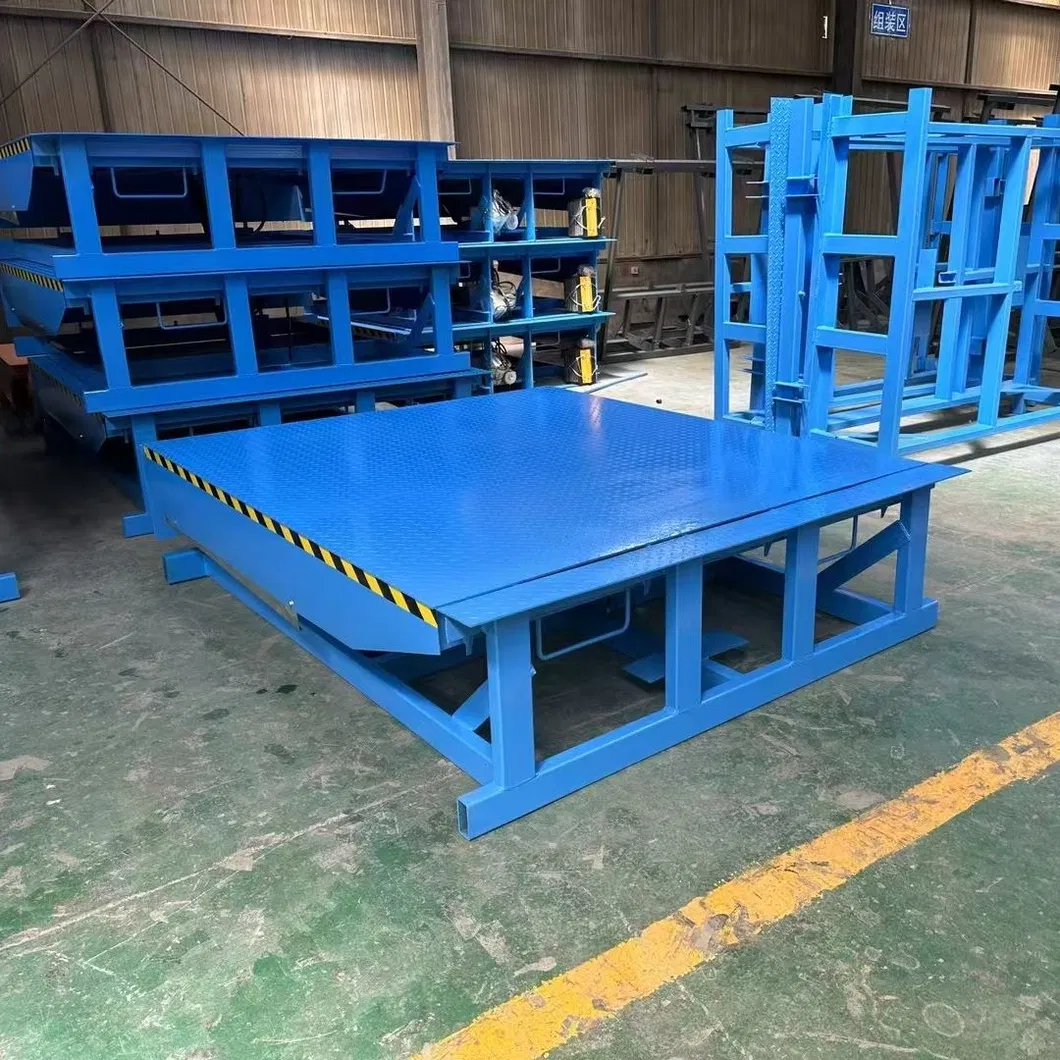

Detail 3

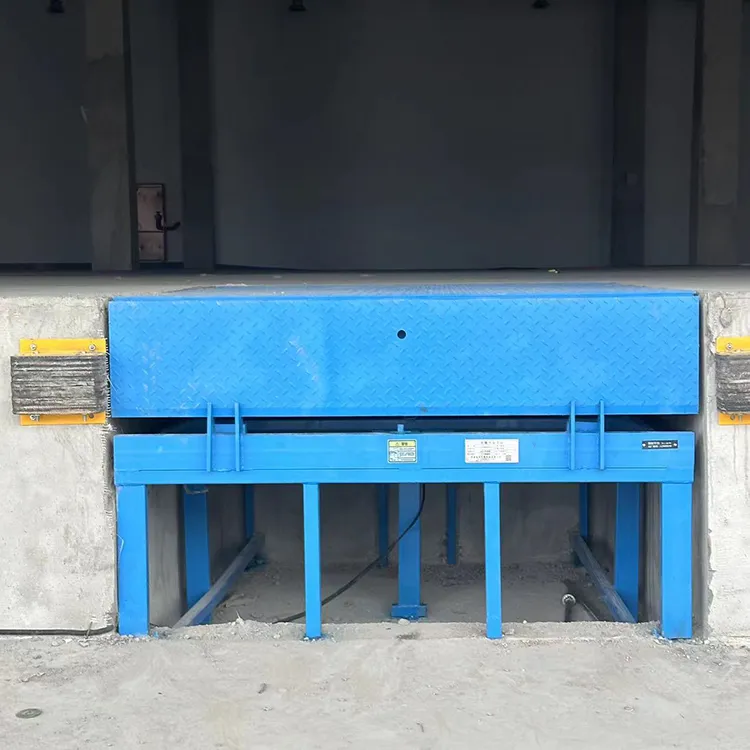

Detail 4

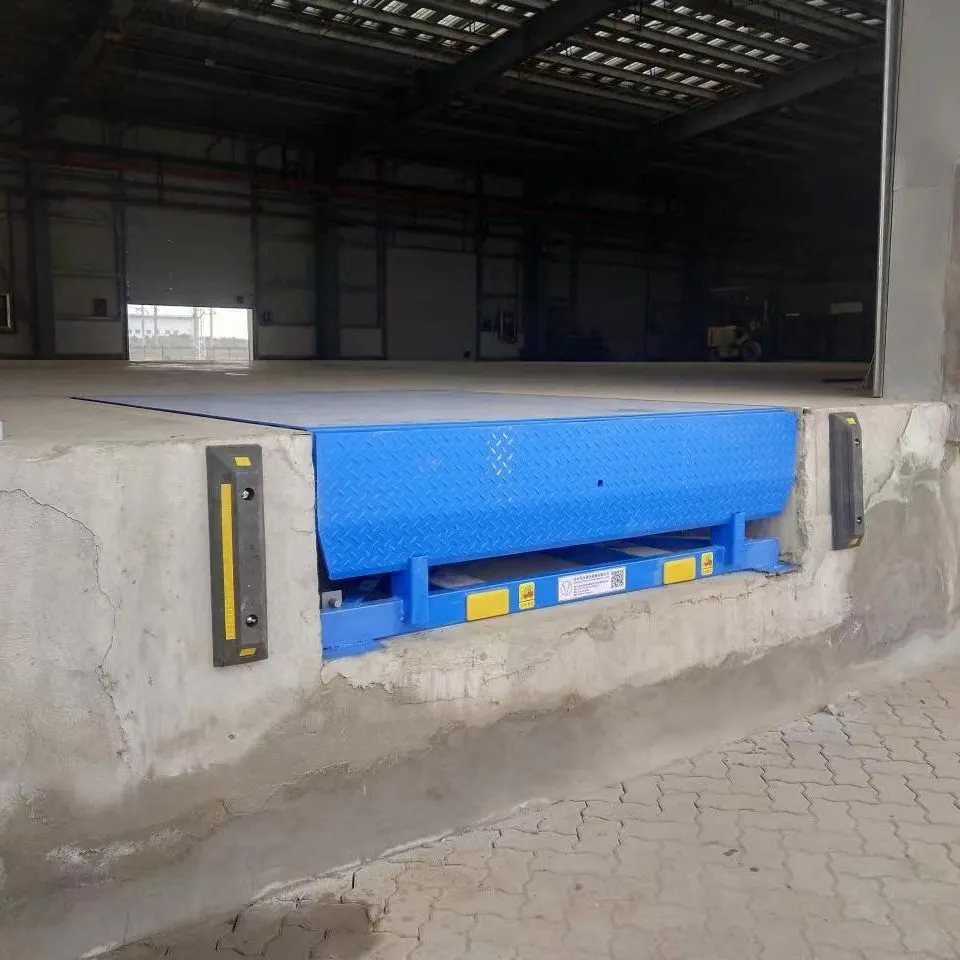

Detail 5

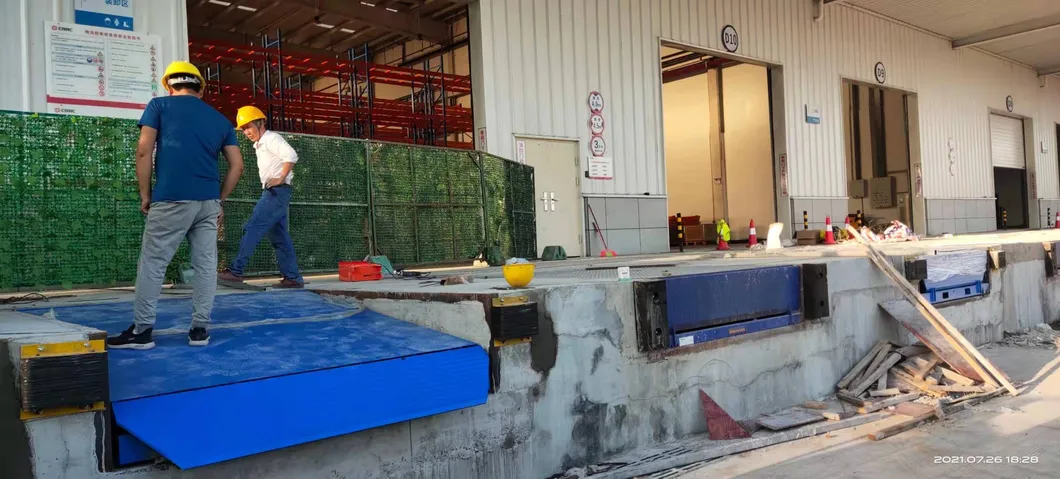

Detail 6
❓ Frequently Asked Questions
What is the primary function of the fixed boarding bridge?
It acts as a bridge between the warehouse platform and trucks, facilitating fast and continuous loading and unloading of goods using handling vehicles.
What load capacities are available for these bridges?
We offer a wide range of capacities including 6t, 8t, 10t, 12t, 15t, and 20t to suit different industrial needs.
Is it possible to customize the specifications?
Yes, while we maintain stock for standard models, we provide non-standard customization on demand to fit specific site requirements.
What materials are used in construction?
The boarding bridges are constructed using high-strength Manganese Steel for durability and heavy-duty performance.
What power supply is required?
The standard driven type is AC, but the specific voltage and power supply can be customized based on your local requirements.
What certifications do these products hold?
Our loading dock bridges are fully certified with CE and ISO 9001 standards, ensuring safety and quality compliance.
