⚙️ Basic Information
Application
Workshop, Shipboard, Warehouse, Building Cranes
Lift Mechanism
Hydraulic Cylinder
Capacity
6t / 8t / 10t / 12t / 15t / 20t
Material
High-Strength Manganese Steel
Certification
CE, ISO 9001
📦 Packaging & Delivery
Package Size
250.00cm * 200.00cm * 60.00cm
Transport
Wooden Crate or Container
📝 Product Description

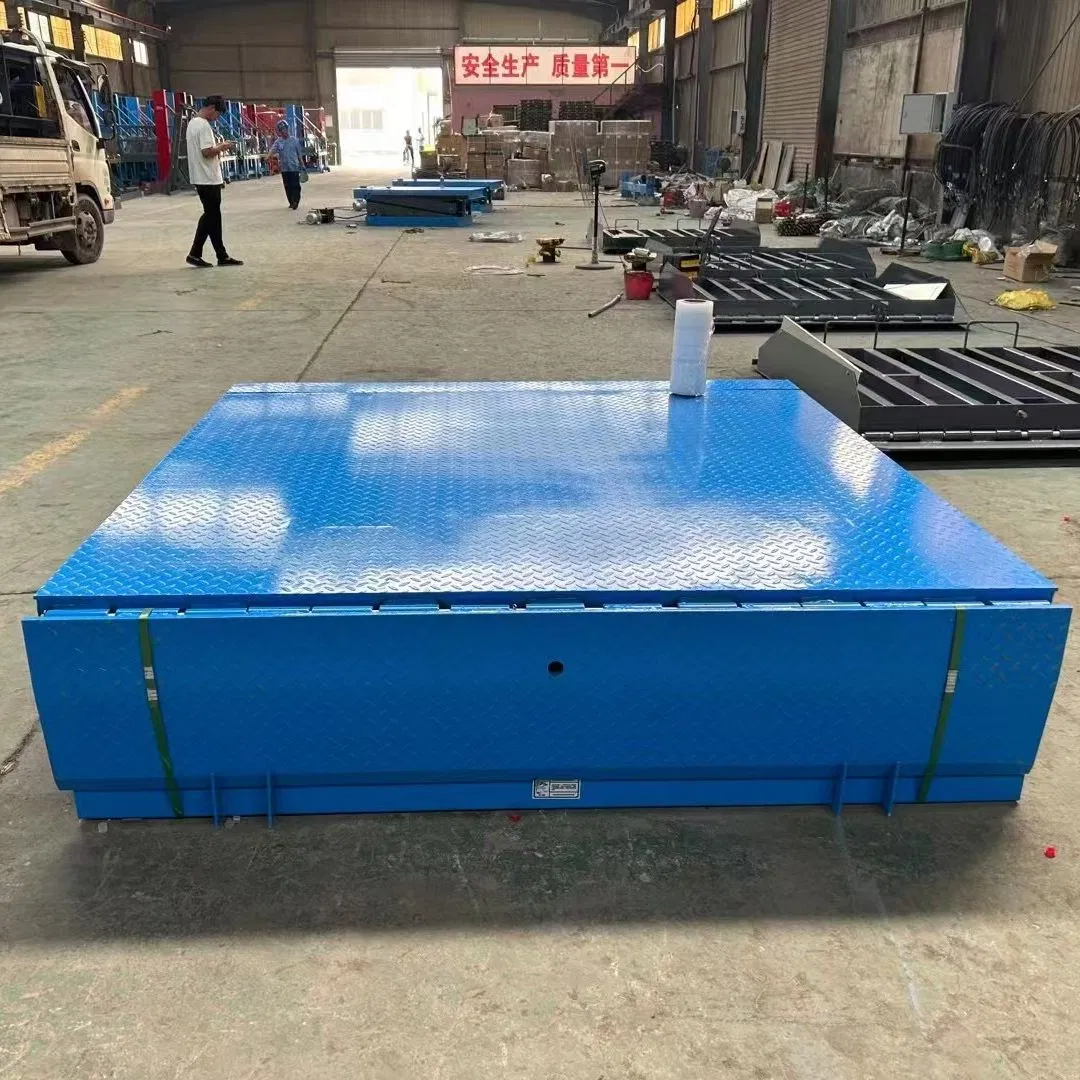

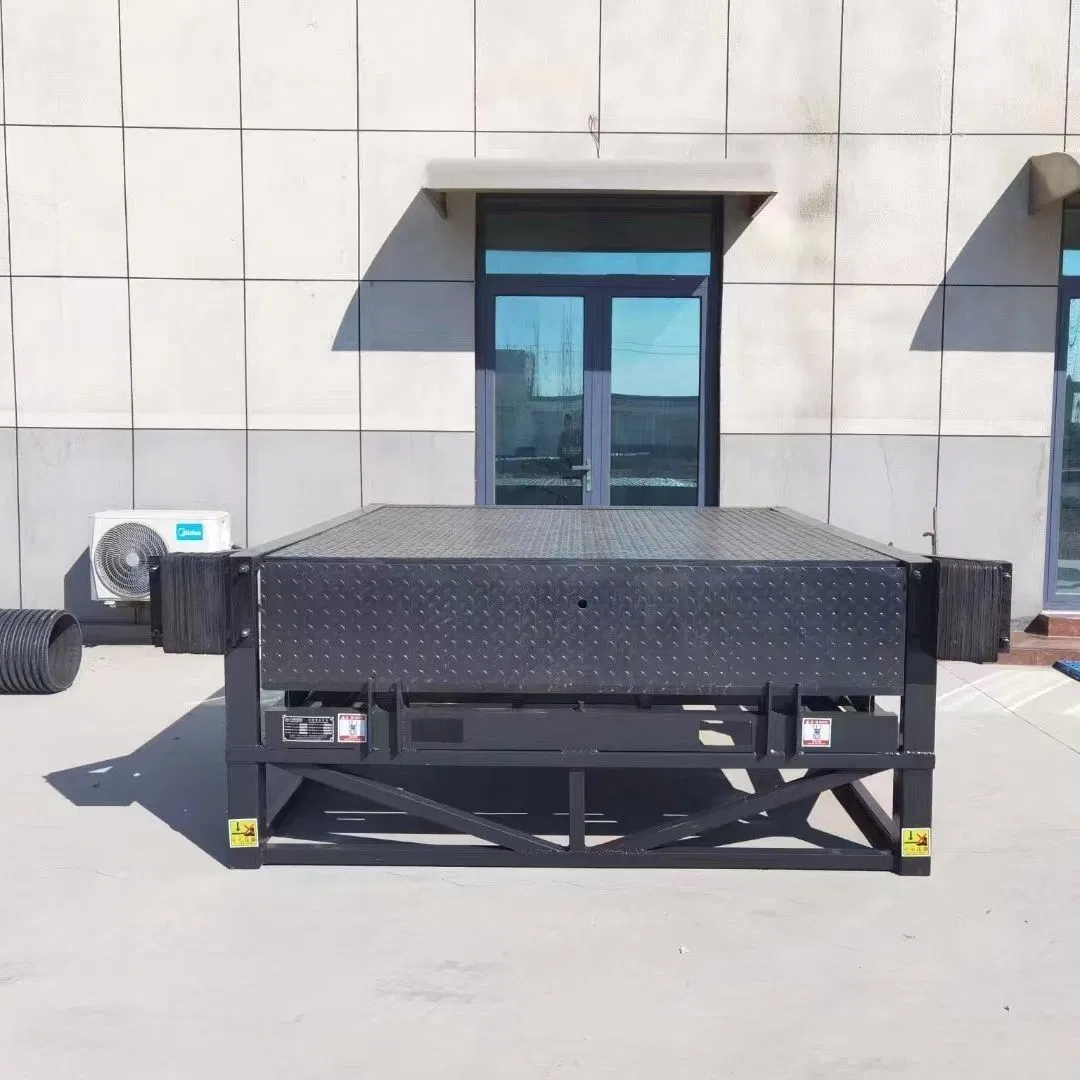

Fixed boarding bridge is a specialized auxiliary equipment for fast loading and unloading of goods, featuring a height adjustment function. It builds a bridge between the truck and the warehouse platform, allowing handling vehicles to enter the truck directly for continuous operations. It is ideally suited for logistics companies, warehouses, and high-stack handling environments.
The above specifications are available in stock; other specifications can be customized.
Monthly production of 1,000 units, ensuring quick shipment.
| Model |
Table Size |
UP/Down |
Power |
Supply |
Weight |
DCQG-8T
(Load 8T) |
2000*2000*600mm |
400/300mm |
1.1kw |
Customized |
624KG |
| 2500*2000*600mm |
400/300mm |
1.1kw |
Customized |
718KG |
| 3000*2000*600mm |
400/300mm |
1.1kw |
Customized |
808KG |
DCQG-10T
(Load 10T) |
2000*2000*600mm |
400/300mm |
1.1kw |
Customized |
700KG |
| 2500*2000*600mm |
400/300mm |
1.1kw |
Customized |
808KG |
| 3000*2000*600mm |
400/300mm |
1.1kw |
Customized |
926KG |
Optional Upgrades: CT4 Explosion proof; Remote controller; Car Lock Device; Manual and electric dual-use.

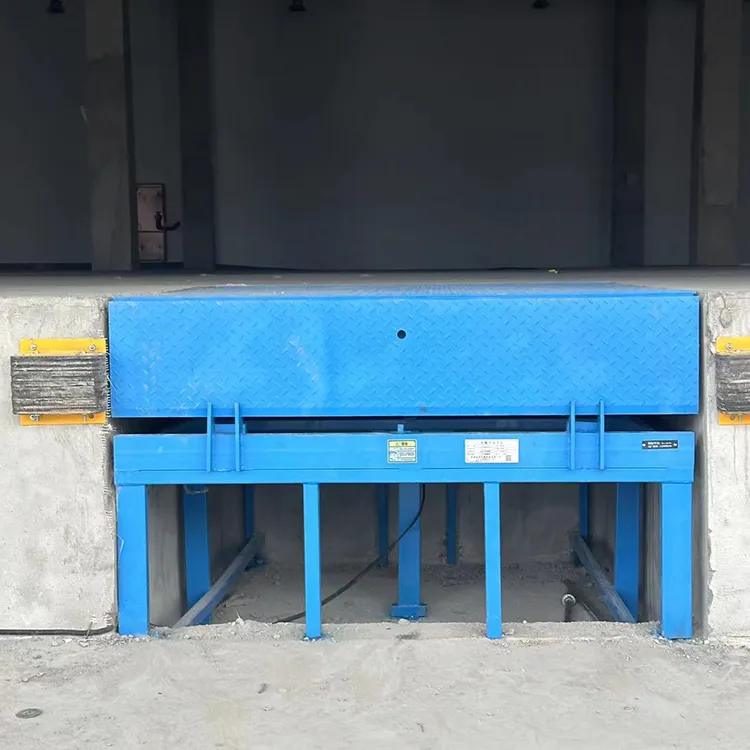

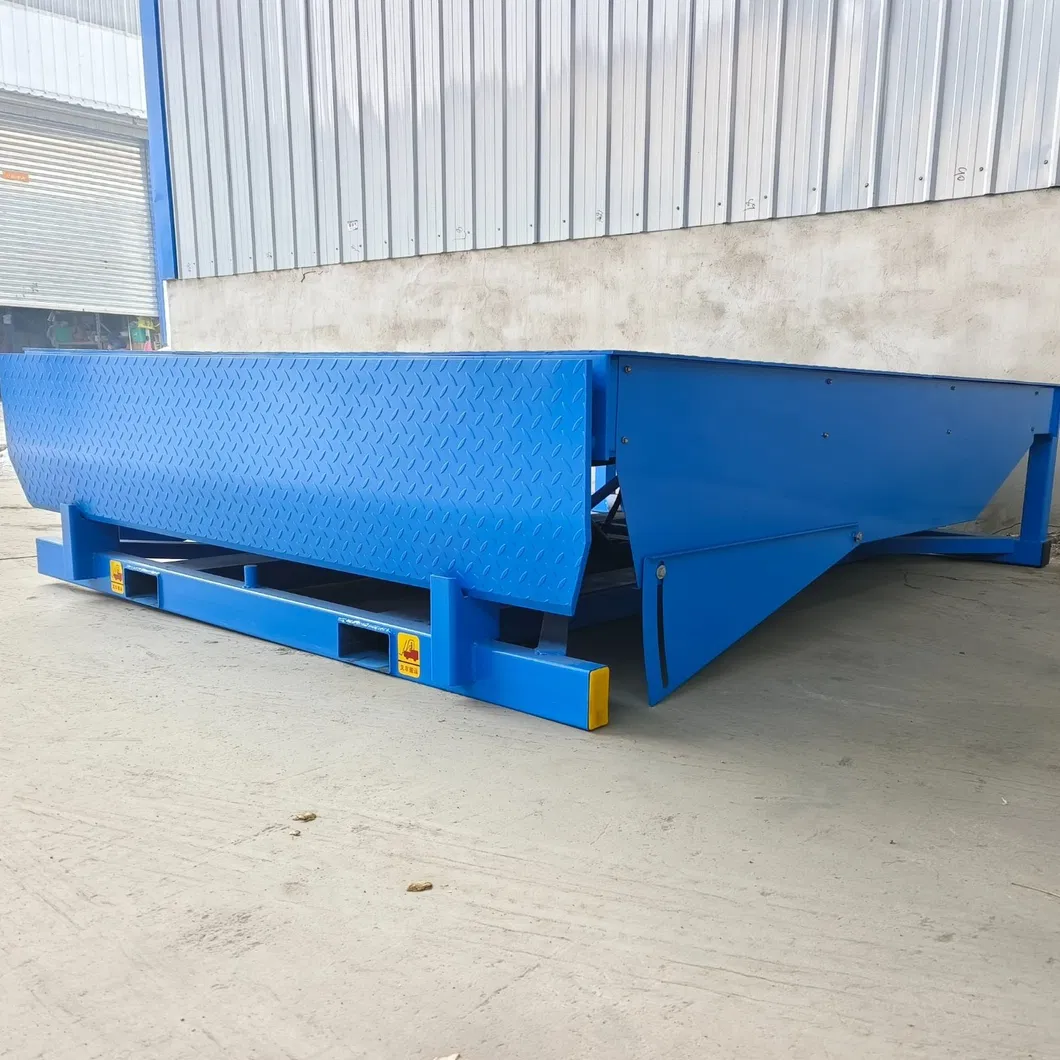

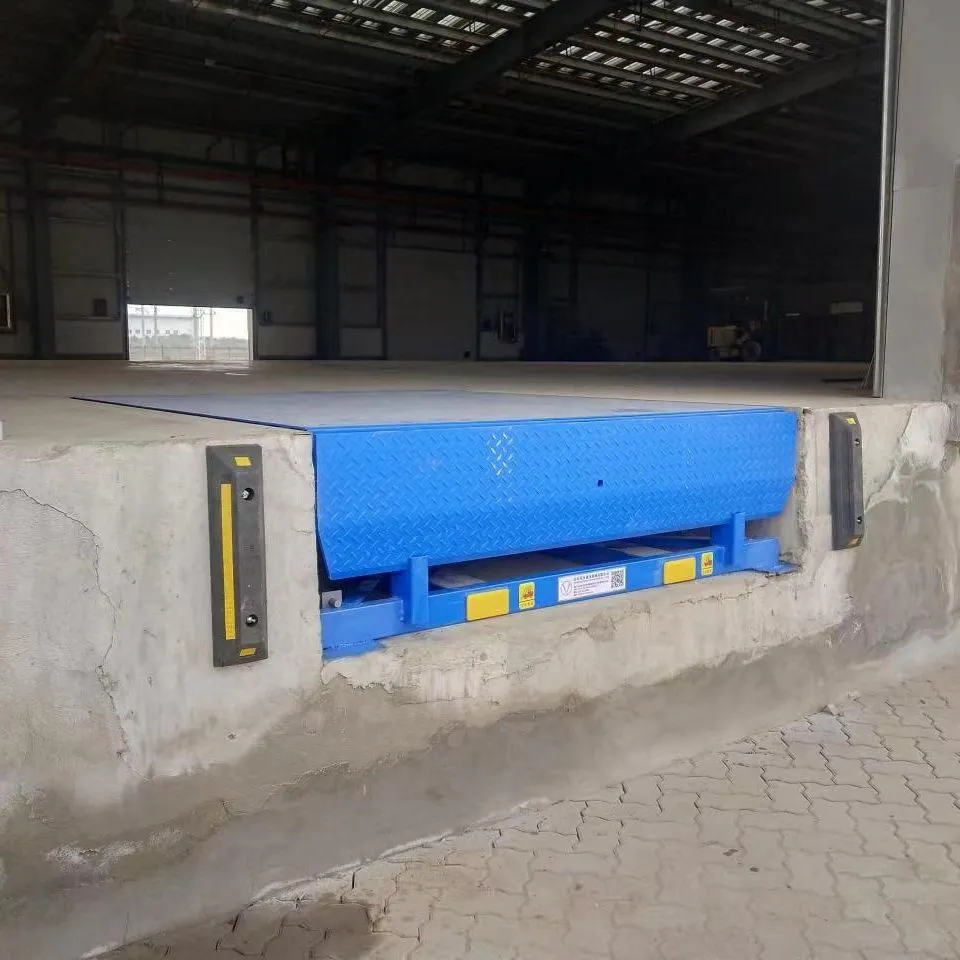

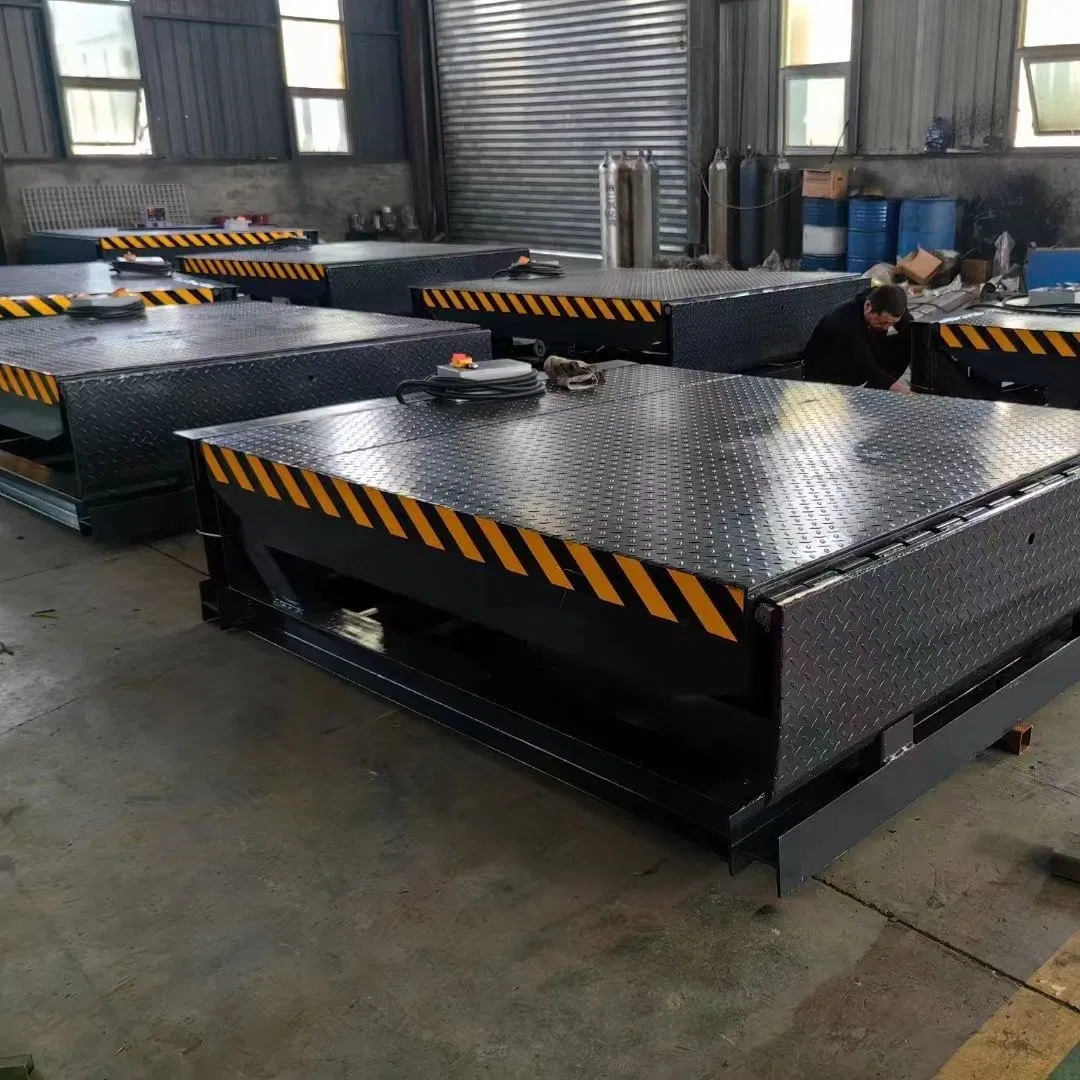

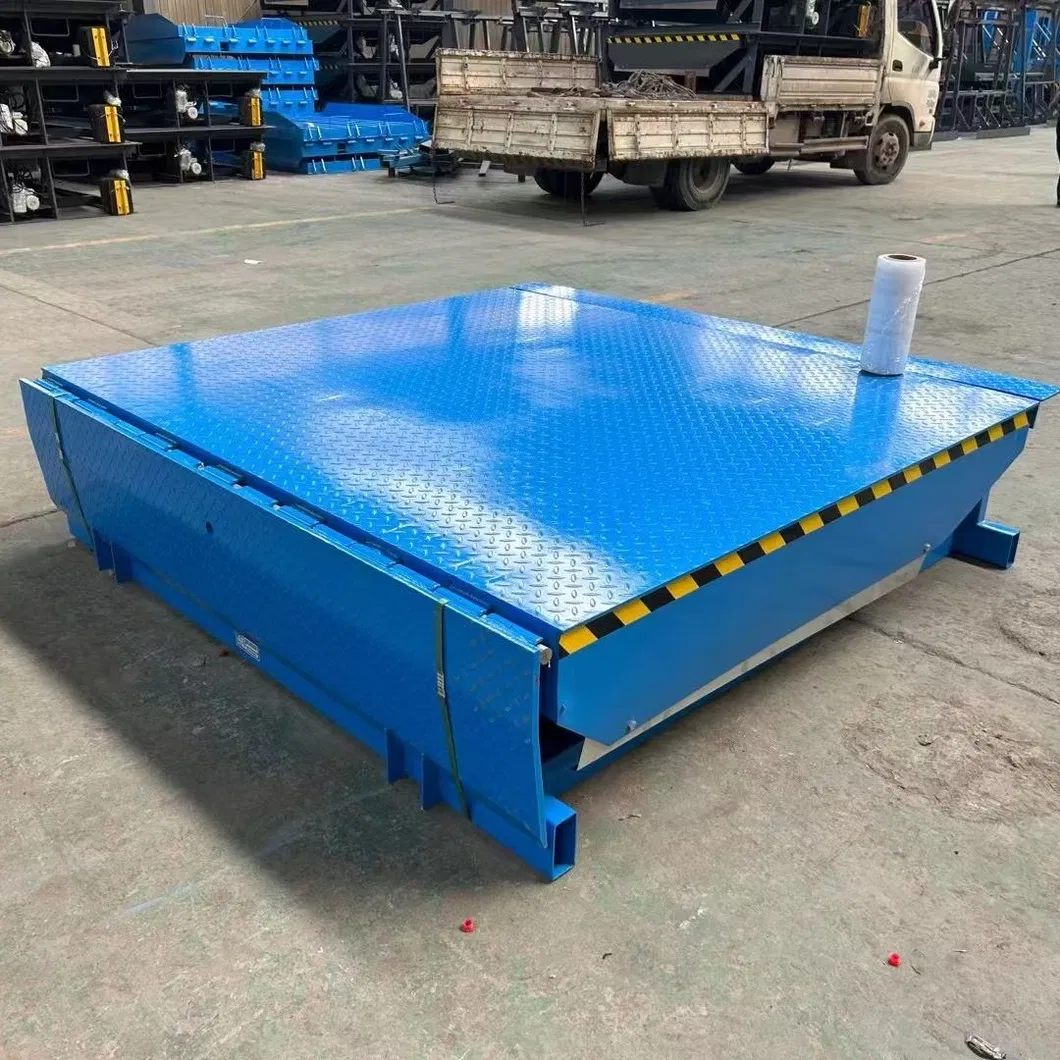

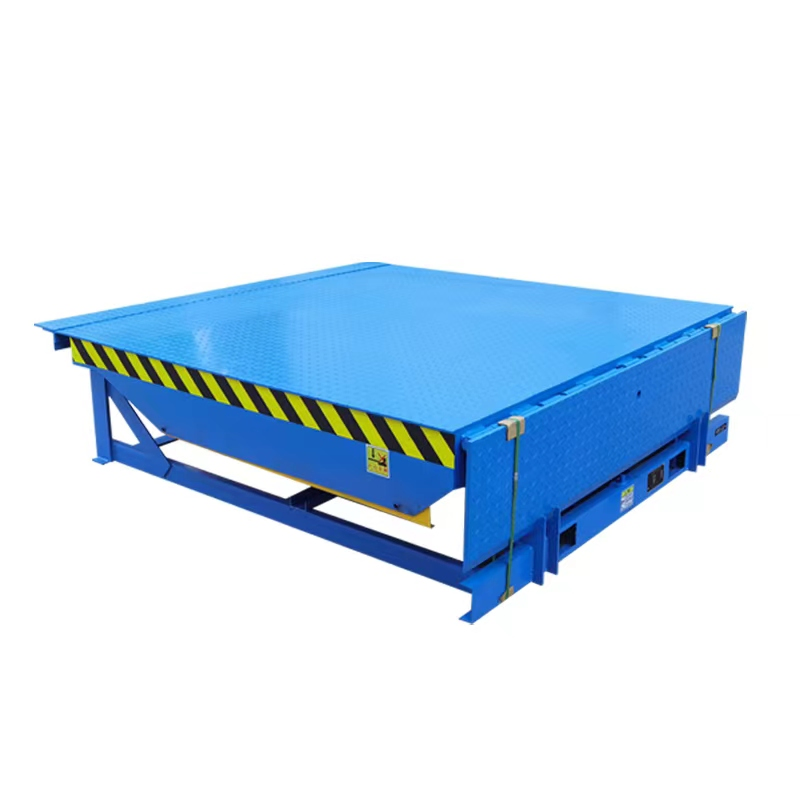

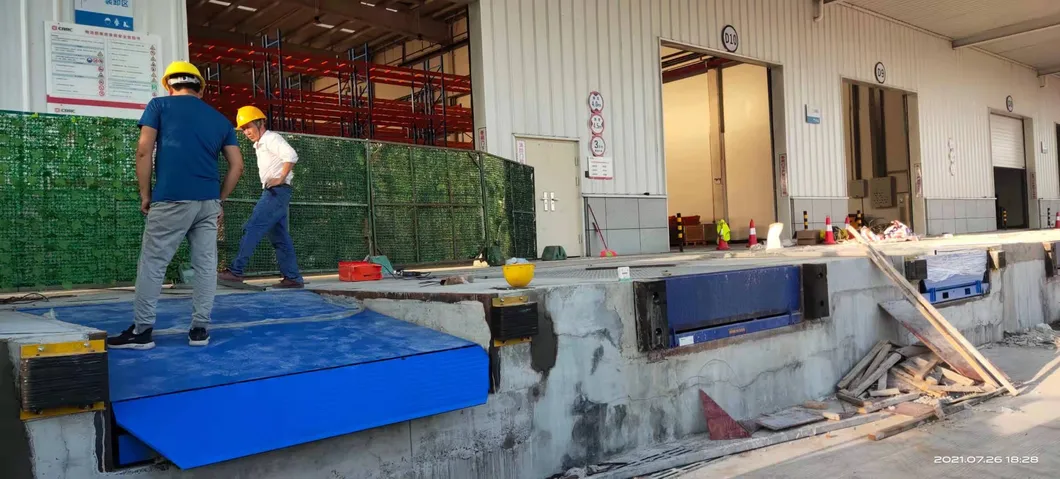

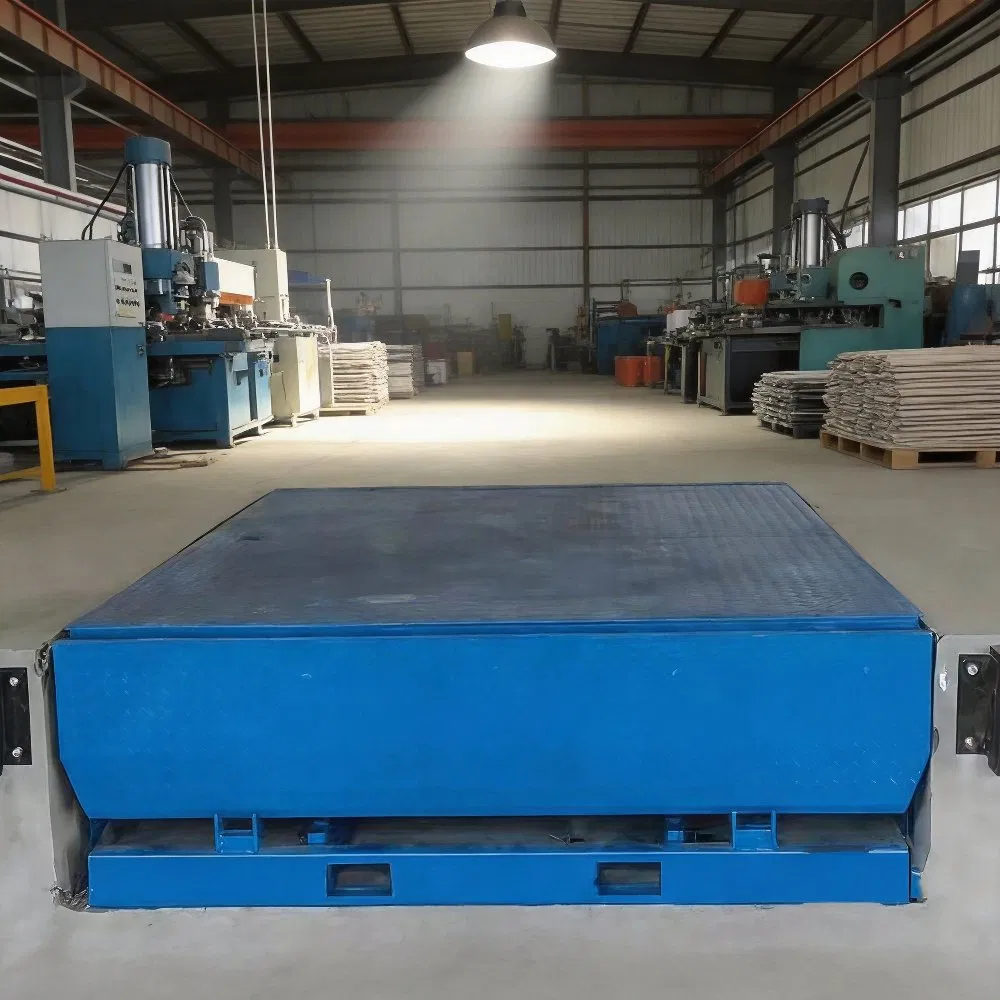

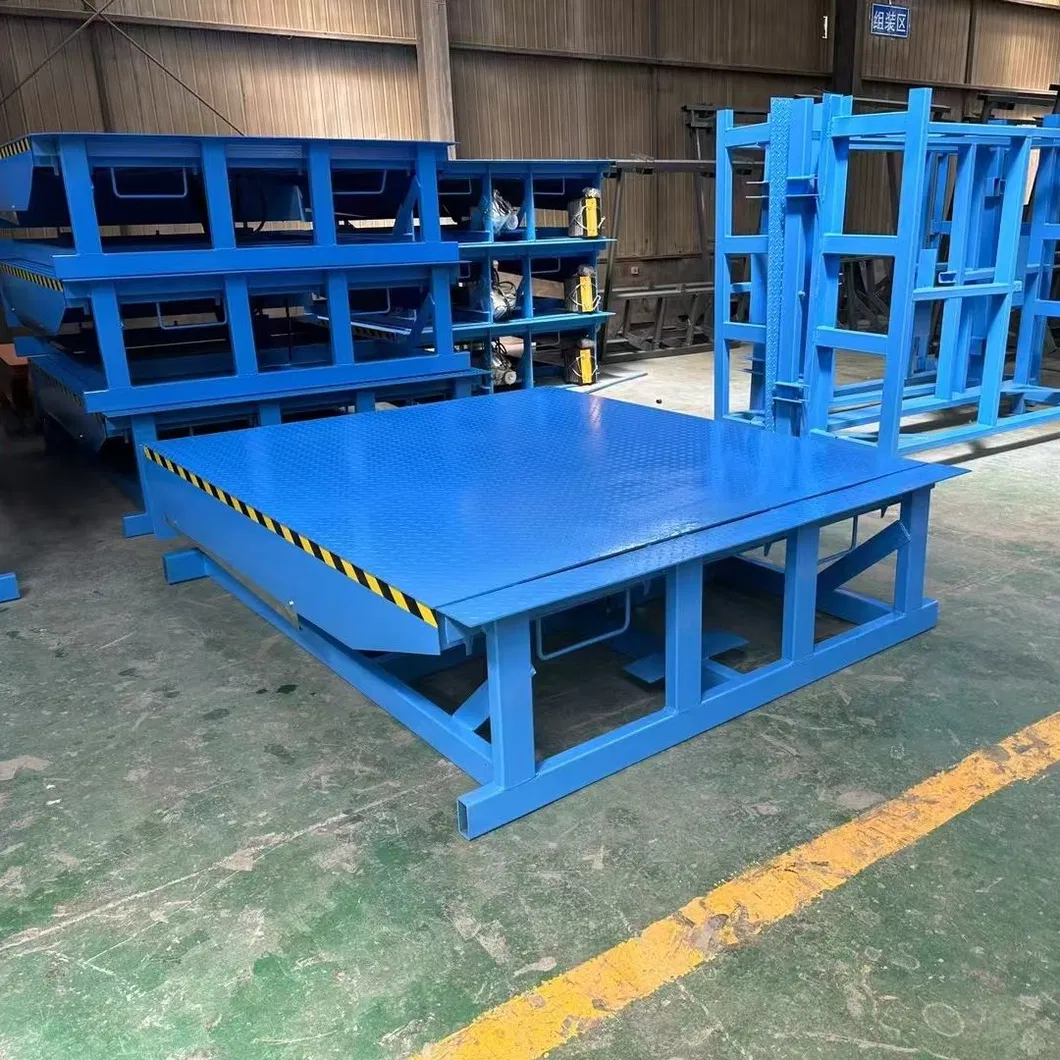

🖼️ Detailed Photos
❓ Frequently Asked Questions
What is the maximum carrying capacity of the DCQG boarding bridge?
The standard models support load capacities ranging from 6t, 8t, 10t, 12t, 15t, up to 20t.
Can the table size and voltage be customized?
Yes, we provide non-standard customization for table dimensions and the voltage can be adjusted to meet your local power supply requirements.
What material is used for the construction of the lift?
The equipment is built using high-quality Manganese Steel for superior durability and safety during heavy-duty operations.
Is it possible to add explosion-proof features?
Yes, we offer an optional CT4 Explosion-proof upgrade for hazardous environments.
What is the typical production capacity for quick shipping?
We maintain a monthly production of approximately 1,000 units, allowing us to ship standard specifications quickly from stock.
Does the equipment come with any certifications?
Yes, all our fixed boarding bridges are CE and ISO 9001 certified, ensuring compliance with international quality and safety standards.
