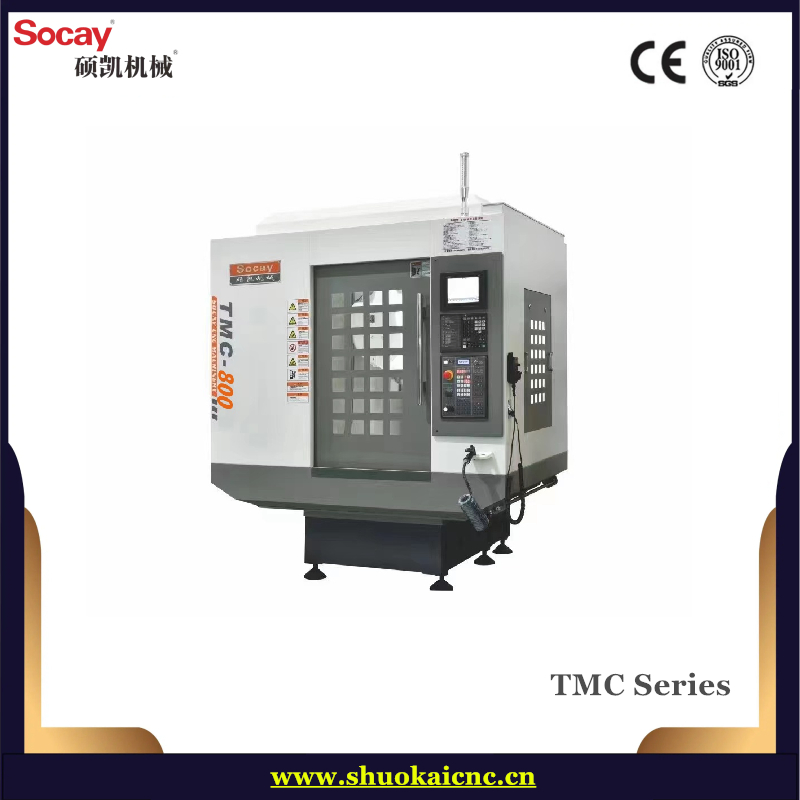

High-Precision CNC Metal Drilling and Tapping Machine System

Basic Information

Model NO.

TMC-800

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement

Point to Point Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Precision

0.01~0.02(mm)

Certification

GS, CE, RoHS, ISO 9001

Capacity

2000 Sets / Year

Package size

460cm * 250cm * 240cm

CNC Metal Drilling and Tapping Machine System

Product Features

TMC600 Tapping Milling and Drilling Machine / Compact Machining Center

This compact machining center is engineered for high-performance drilling, tapping, threading, and milling operations.

✓
The super large column is stable and supports high-speed movement up to 48M/min without deformation.
✓
Ultra-large span base adopts a solid six-point support structure, ensuring high-speed displacement with no vibration.
✓
Three-axis high-speed displacement of 48M/min saves significant processing time.
✓
Low inertia spindle design with direct drive ensures high stability and accurate tool changes.
✓
Fast tool change time of 1.8 seconds via the clamping arm tool magazine.

Technical Specifications

Description	Unit	TMC-600 Data
Work table size	mm	700x420
X/Y/Z-axis travel	mm	600 / 400 / 350
Worktable Loading capacity	kg	300
Max. Spindle Speed	rpm	20000
Spindle taper	-	BT30
Rapid movement rate (X/Y/Z)	m/min	48 / 48 / 48
Magazine capacity	PCS	21
Tool change time (T-T)	sec	1.8
Main motor power	kw	5.5
Machine dimensions	mm	1900 * 2100 * 2300
Total weight	kg	3500

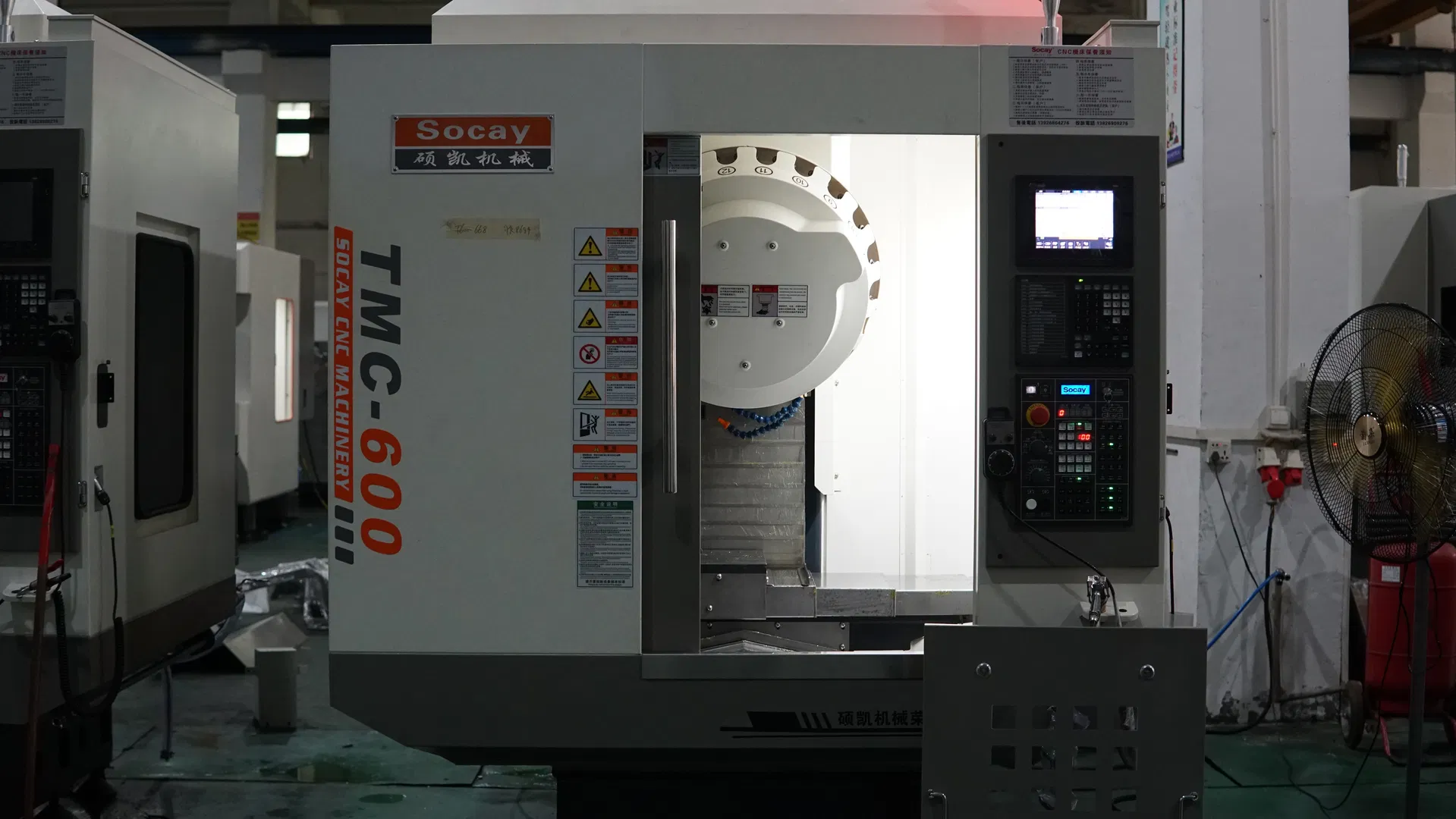

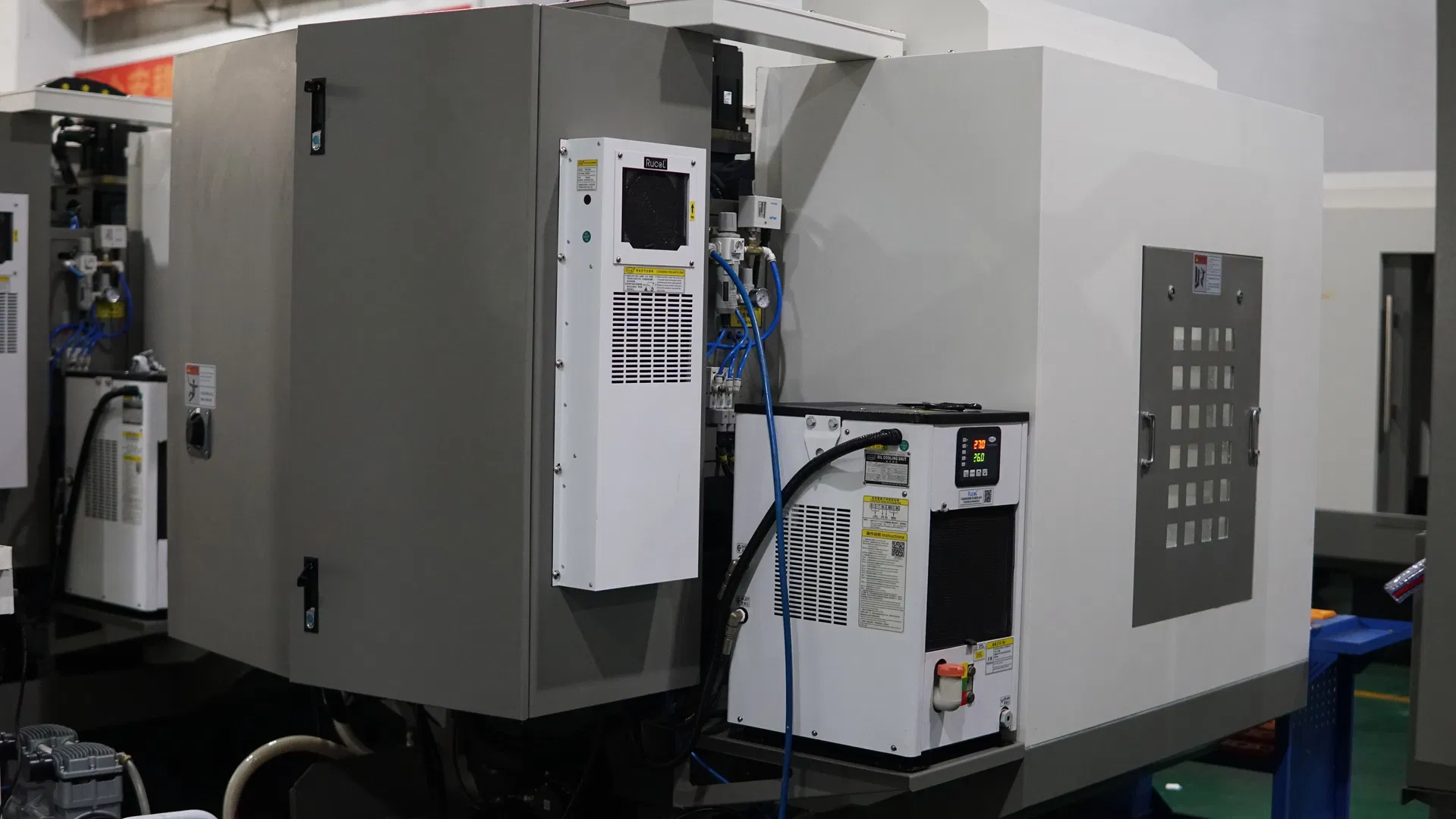

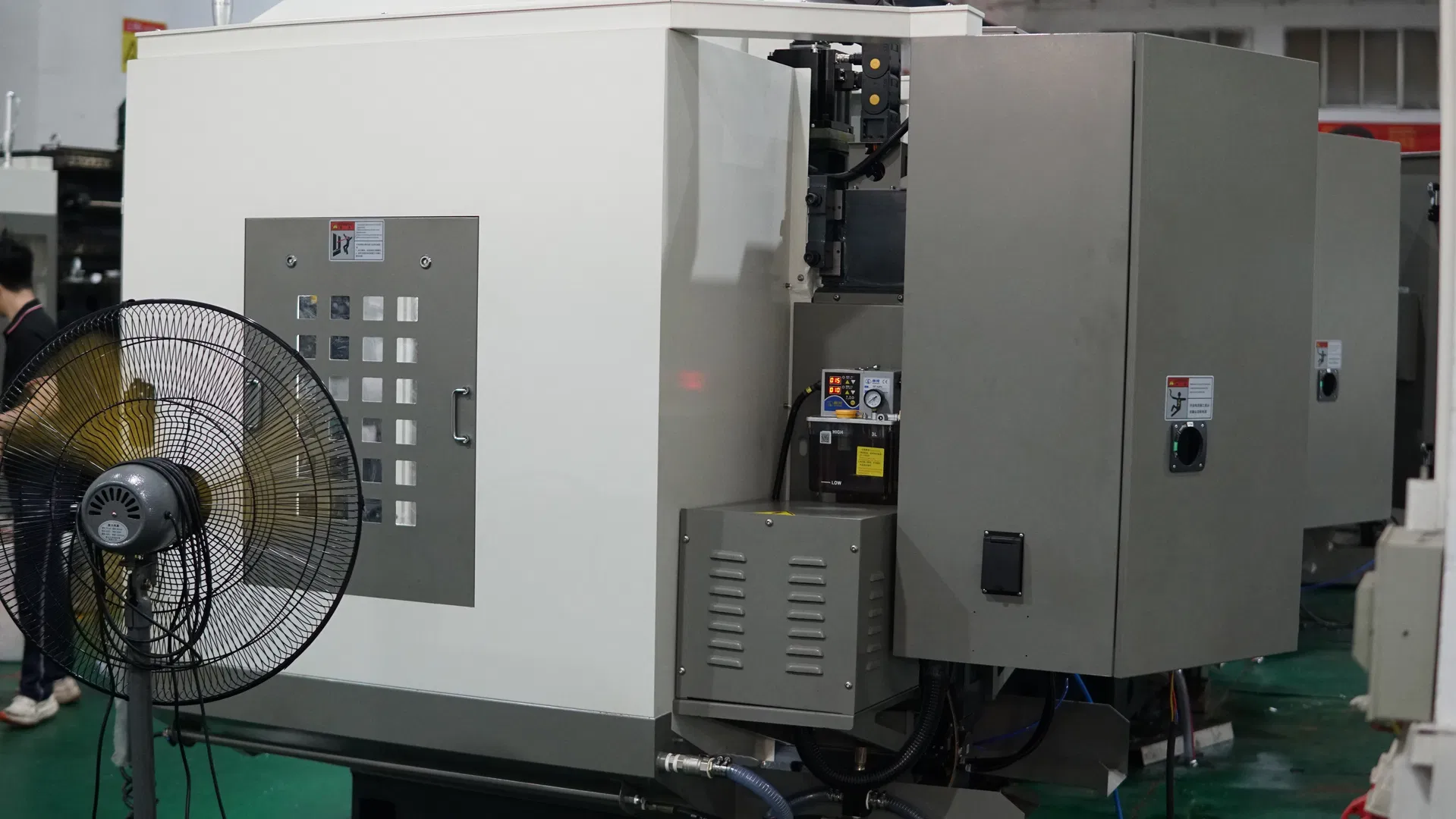

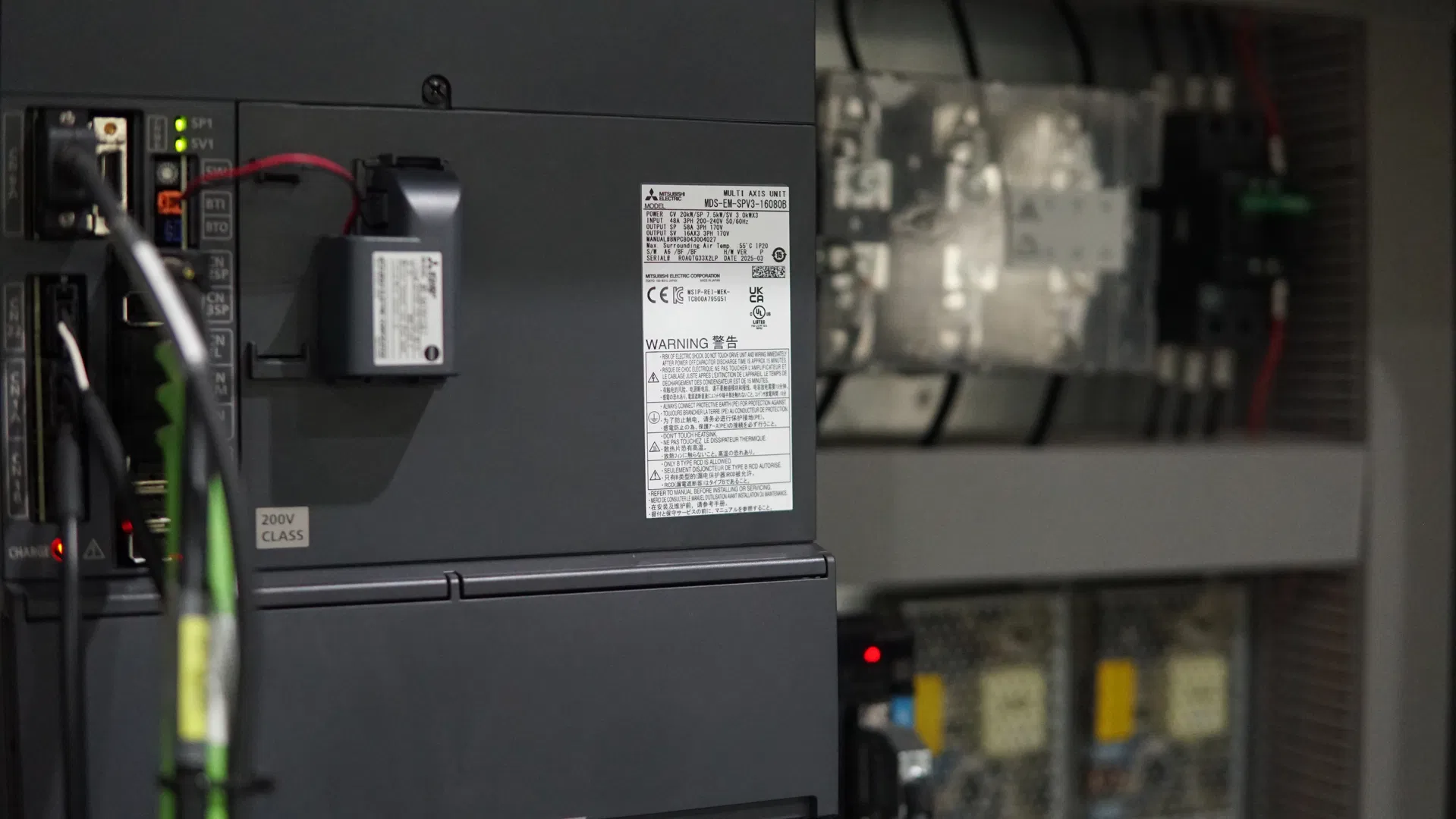

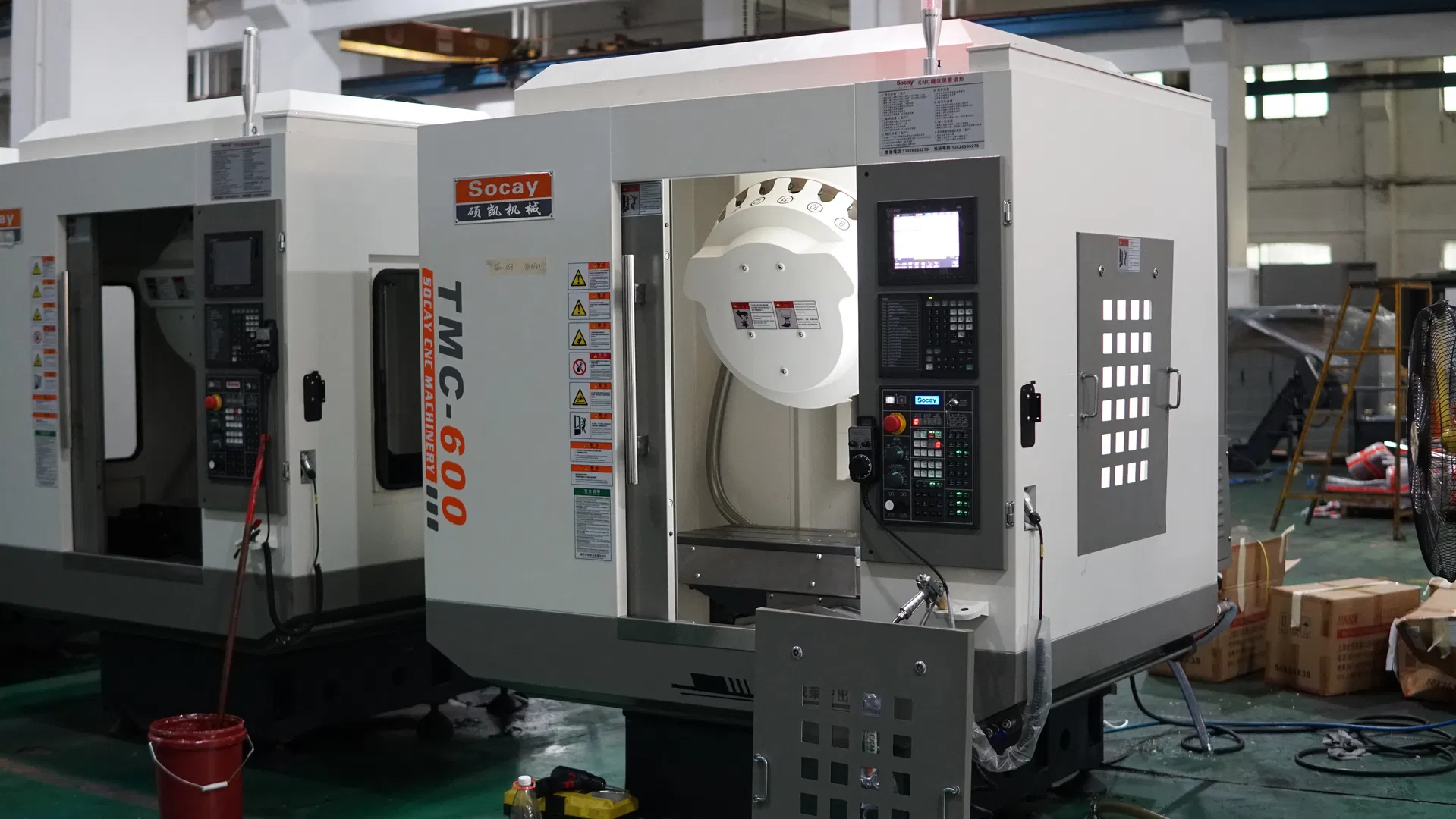

Machine Gallery

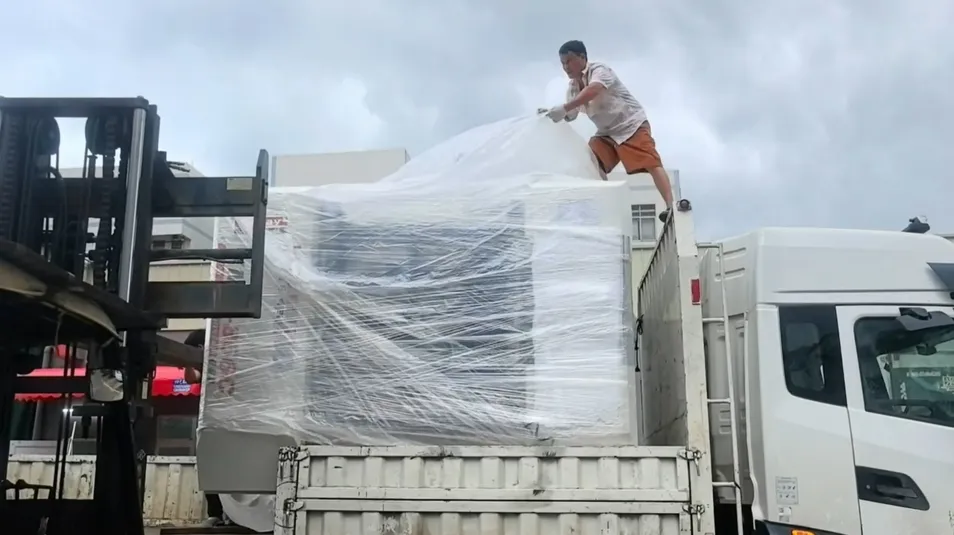

Packaging & Shipping

Standard Packing: Double-layer fumigation-free composite wooden boxes with iron/wooden bottom supports.

●
Ensure machinery is drained of all fluids (oil/gas) before shipping.
●
Secure equipment with padding or custom crates to prevent shifting.
●
Recommended 20GP container for 1-2 machines; 40GP for 2-4 machines.

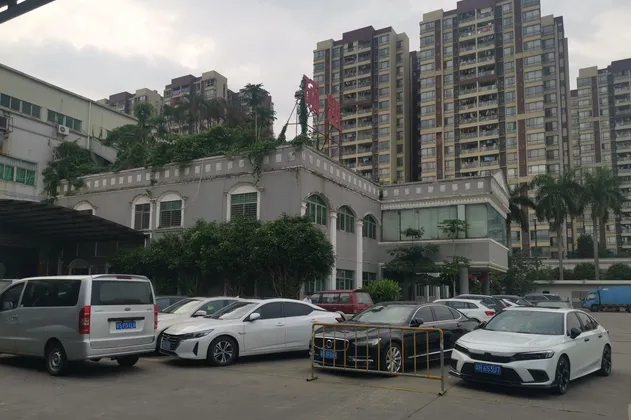

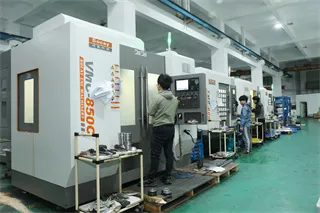

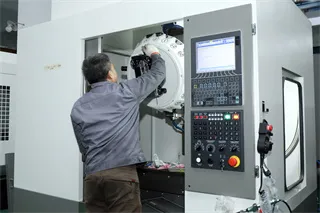

About Our Factory

Our facility spans over 80,000m² with more than 200 skilled workers. With over 30 years of CNC machine manufacturing experience, we maintain strict quality control through a 24-step testing process.

★
Global trade reach in 100+ countries.
★
Partnerships with SIEMENS, FANUC, and SYNTEC.
★
Full ODM and OEM support available.
★
Standard 18-month warranty on machinery.

Frequently Asked Questions

1. What are your main product lines?

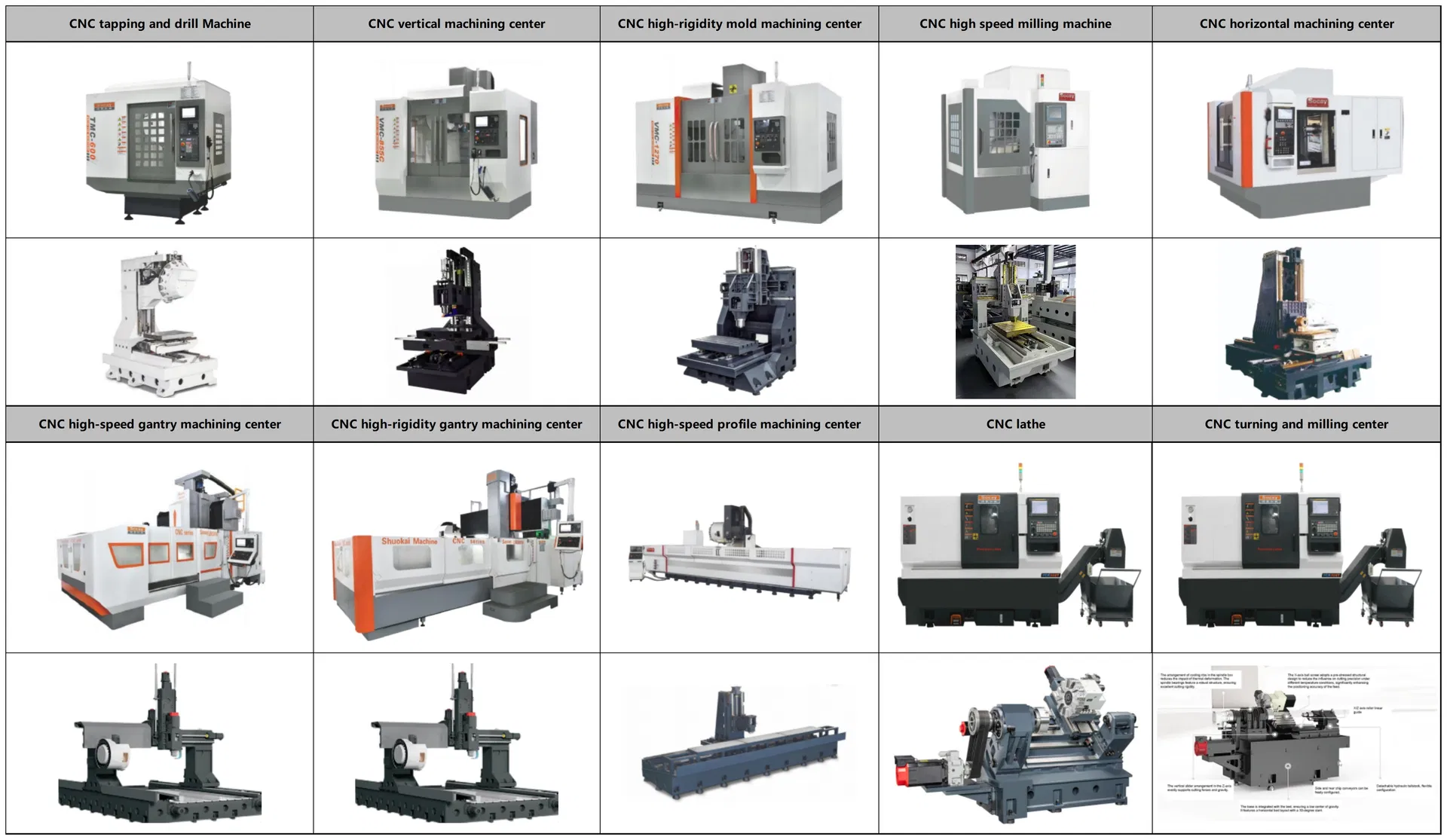

We specialize in a wide range of machinery including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Double Column Centers, and Radial Drilling Machines.

2. Which control systems are available for your CNC machines?

We offer industry-leading control systems including Siemens, GSK, and Fanuc. You can choose the system that best fits your operational requirements.

3. What international trade terms do you accept?

We support standard international trade terms including FOB, CFR, and CIF for global shipping flexibility.

4. How do I choose the most suitable machine for my needs?

Please provide the specific model or technical parameters you require. You can also send us your product pictures, and our technical team will recommend the most suitable machine.

5. Can I receive updates during the manufacturing process?

Yes, we provide regular progress updates and status reports throughout the manufacturing of your machine to ensure transparency.

6. What is the warranty period for your machinery?

We provide a standard warranty period of 18 months for our machines, along with long-term overseas technical guidance and after-sales support.
