💡 Brief Introduction

Long distance overland flat turn belt conveyor is a continuous conveying equipment that uses steel rope core conveyor belts as traction components. Its ultra long conveying distance and super large conveying capacity, as well as the multi-point horizontal turning curve conveying method, can maximize the satisfaction of high yield and efficient material transportation in working faces. It is a large-scale intelligent environmental protection and energy-saving conveying equipment used globally.

🚀 Product Features

This special type of belt conveyor achieves long-distance and curved transportation, performing flat turns as well as vertical convex and concave turns. By adjusting the deflection angle of the idler and using deep groove idler groups, it overcomes centripetal force during operation. The curved track avoids obstacles or unfavorable terrain, simplifying the system and reducing the need for intermediate transfer stations.

✅ Core Advantages

• Continuous long-distance transportation with stable and reliable work
• Large conveying capacity and high production efficiency
• Low noise, low pollution, and low energy consumption
• Simple structure and low operating costs

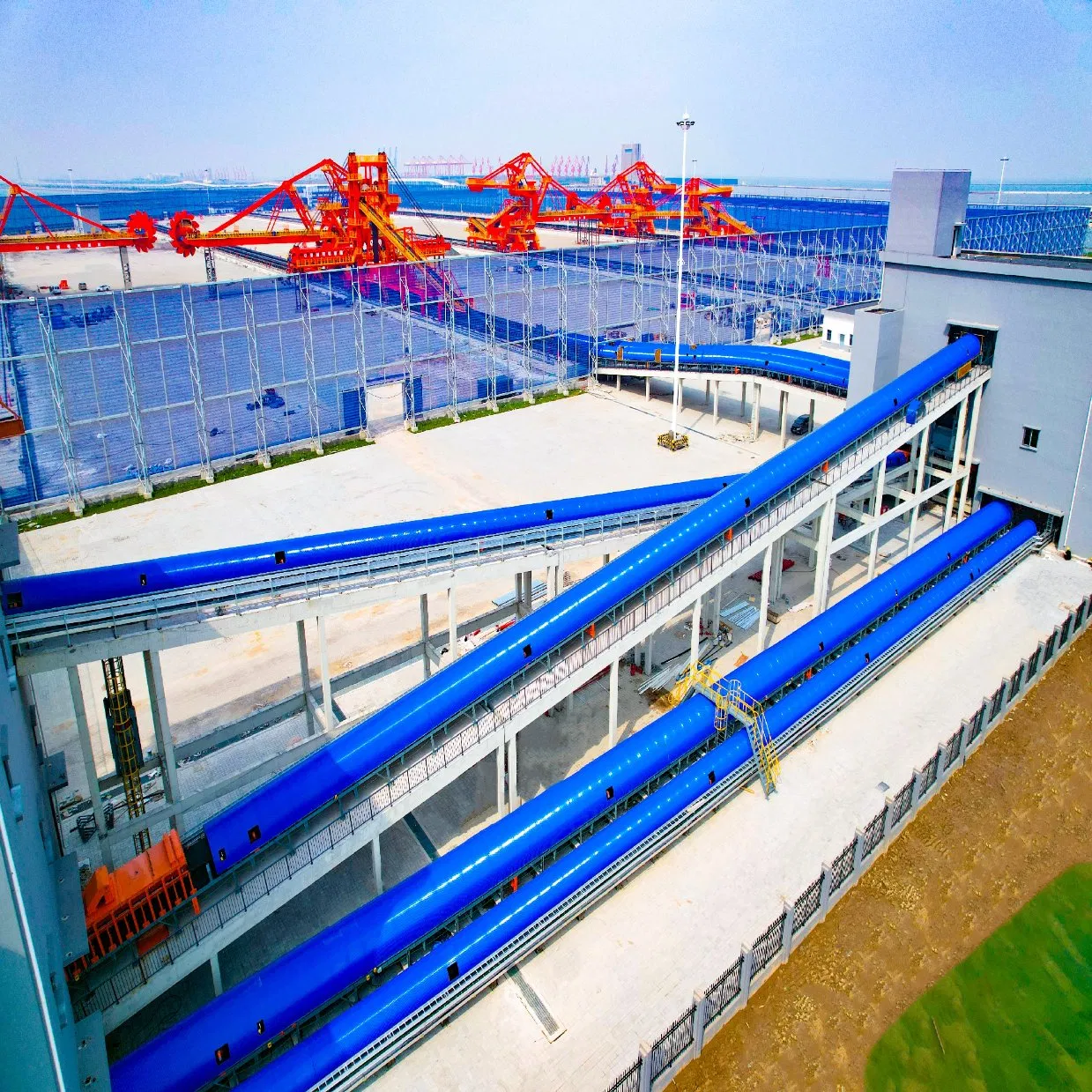

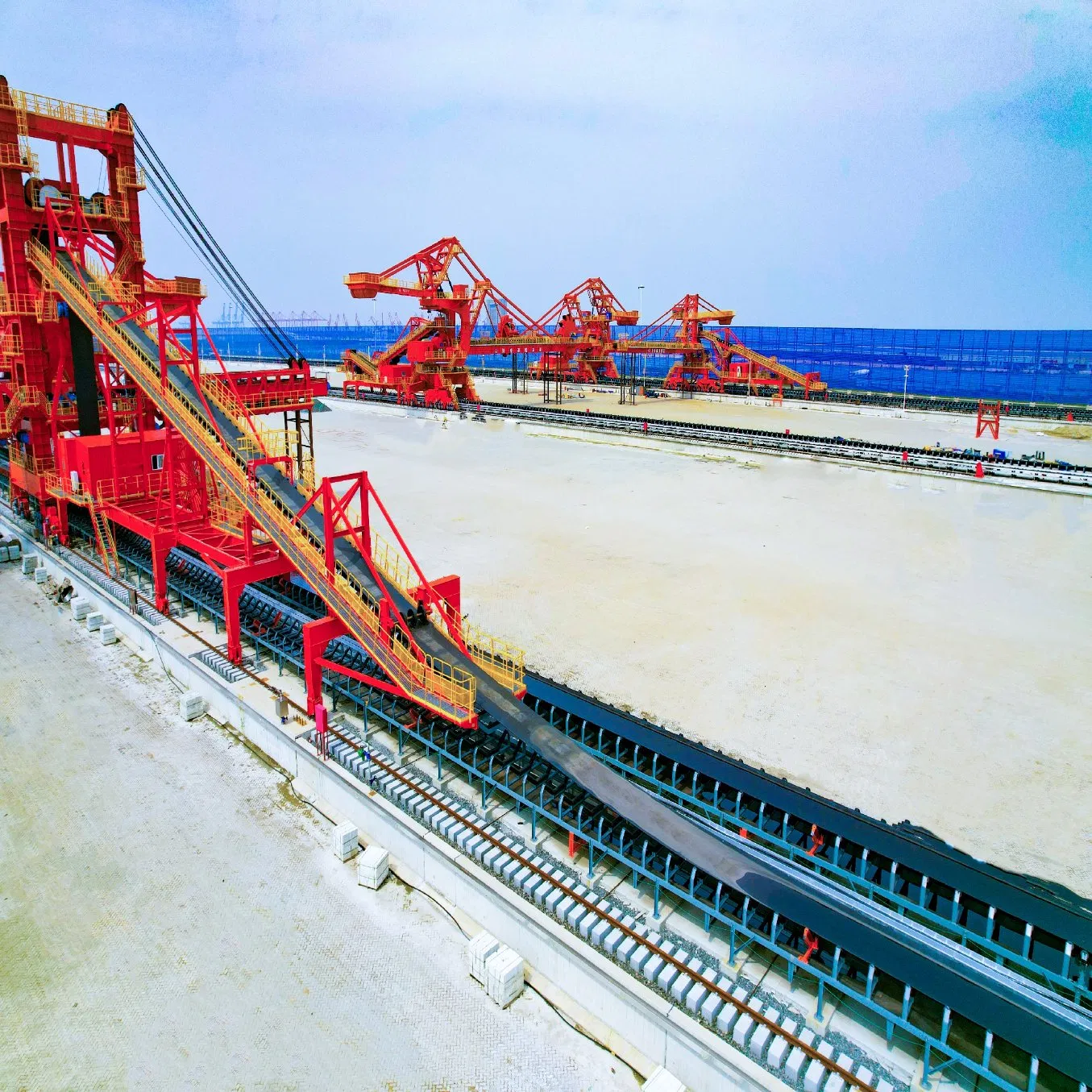

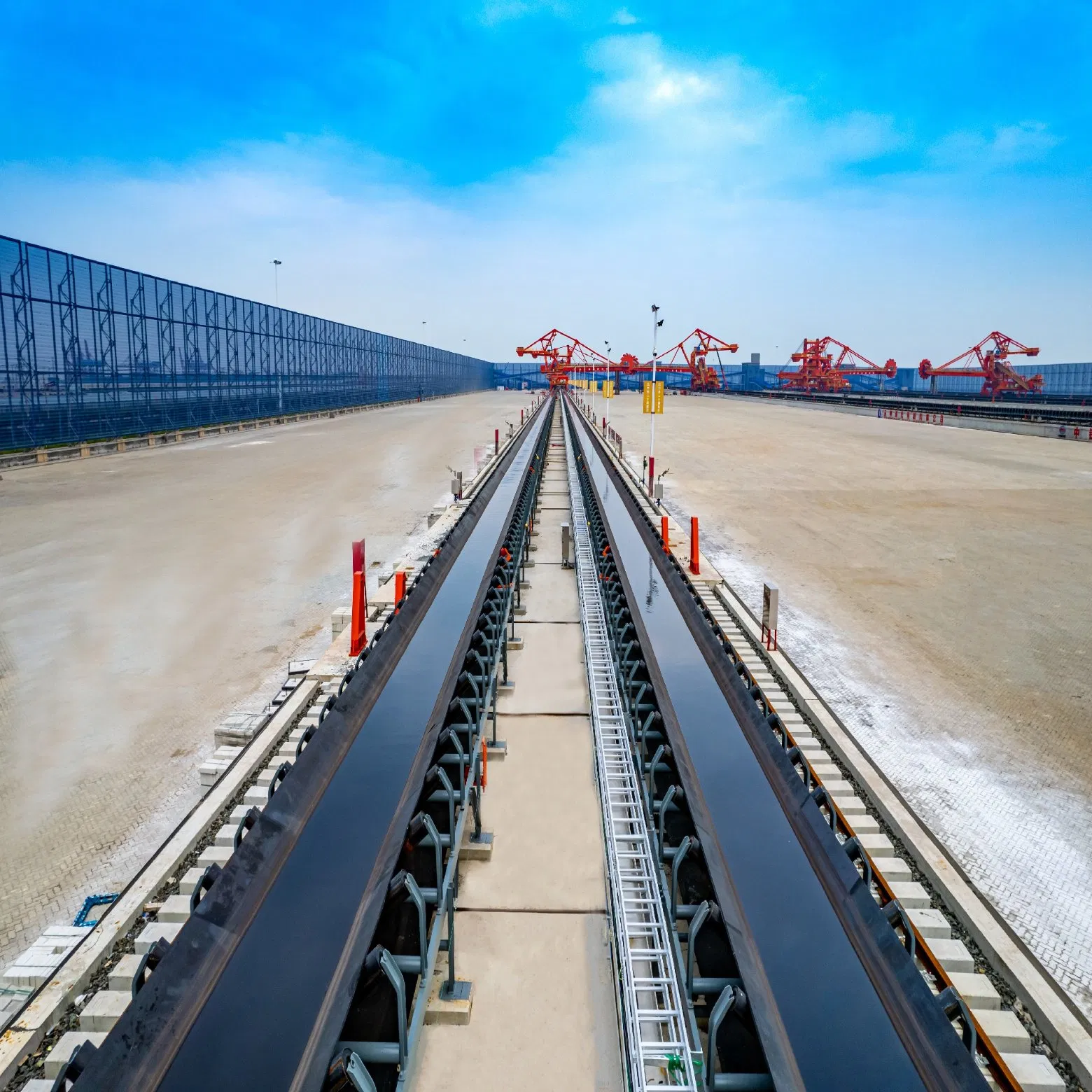

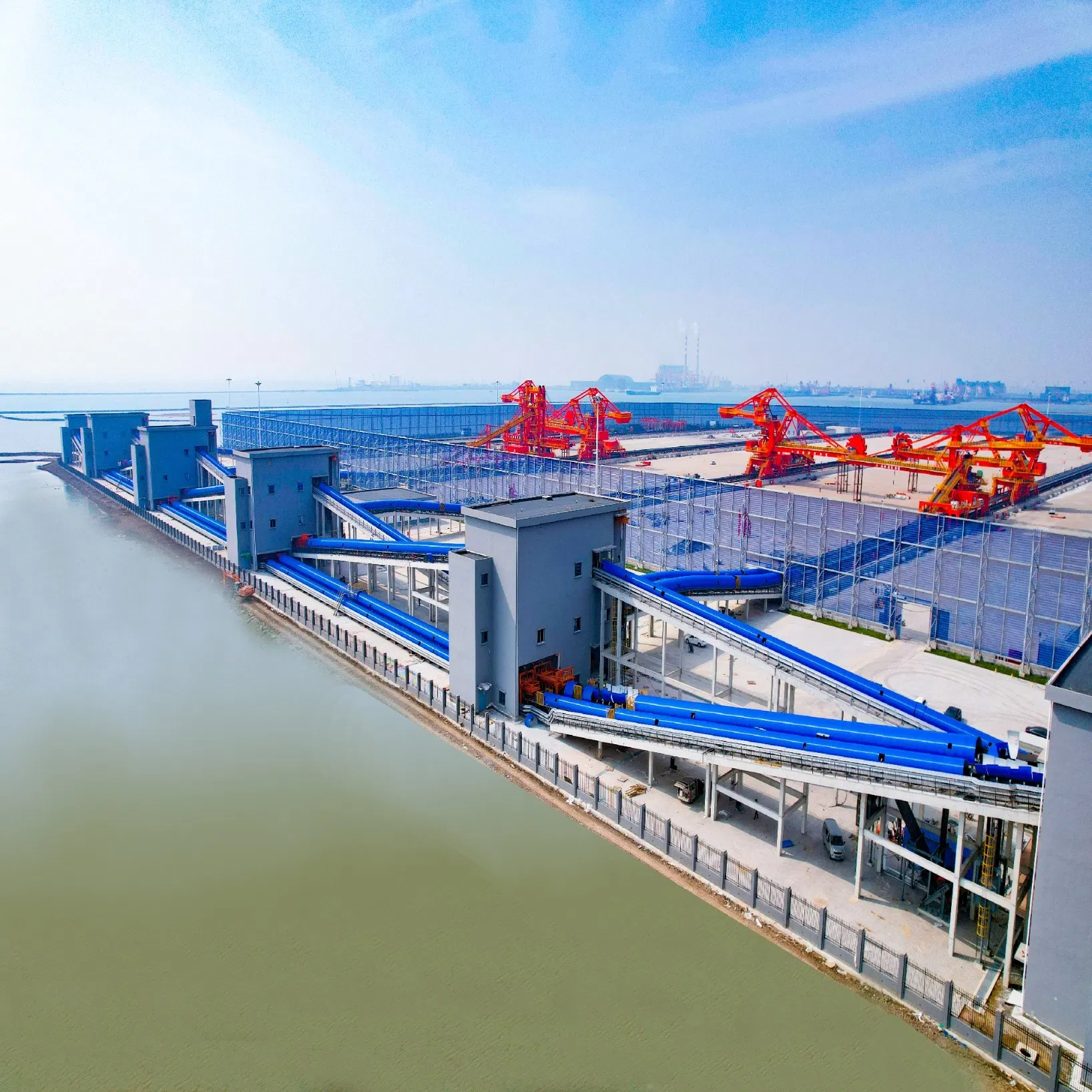

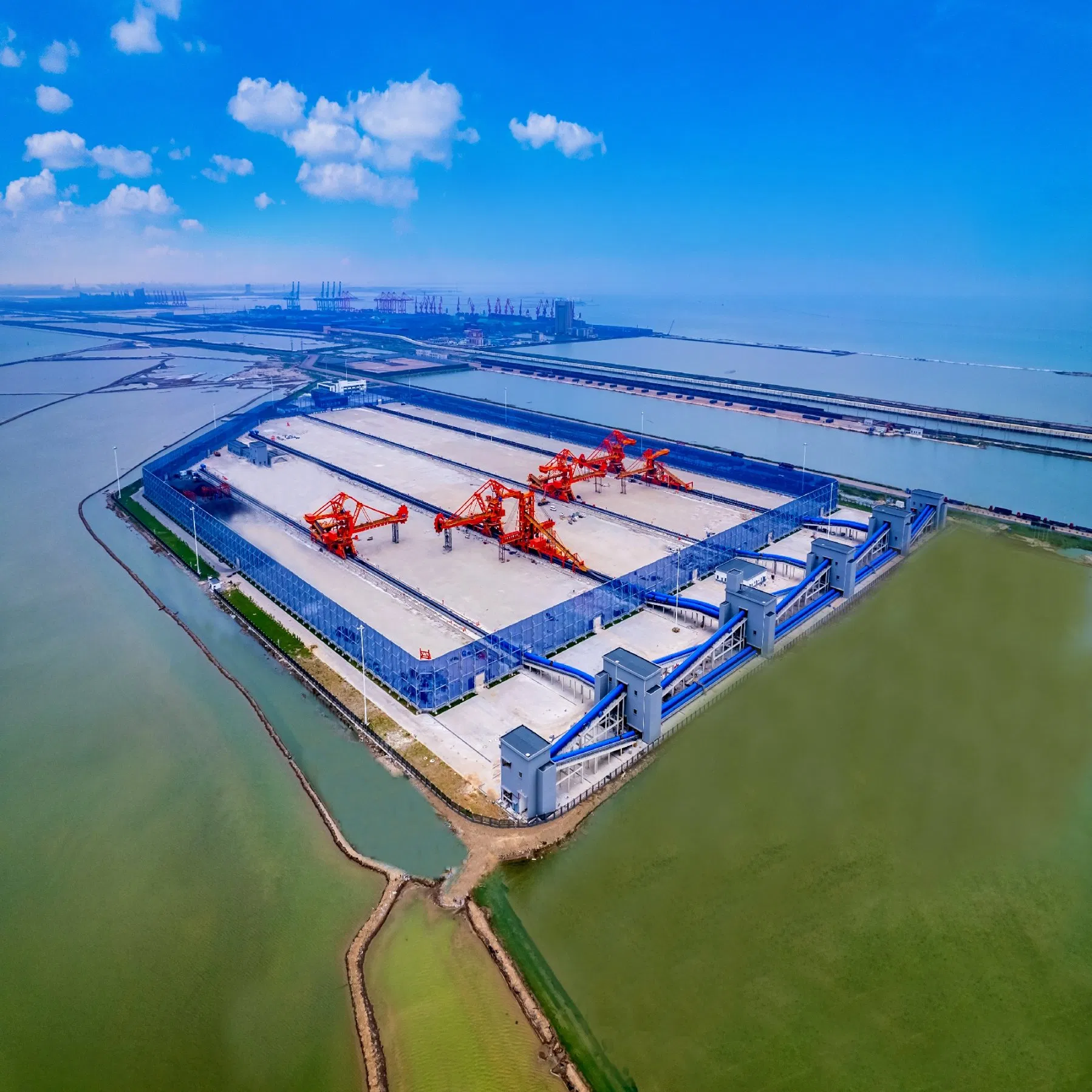

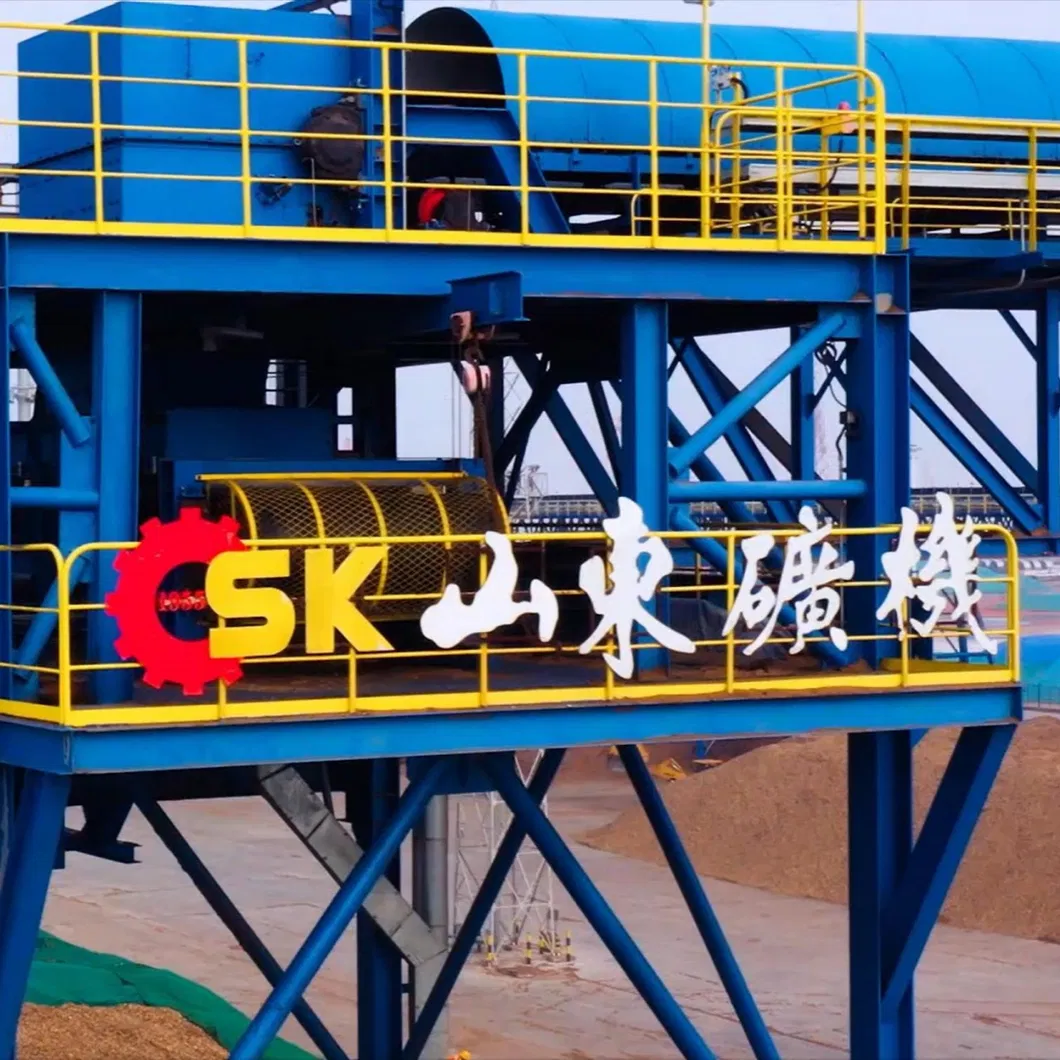

Belt Conveyor EPC Project: Used for specialized storage, screening, and coal blending value-added services. The annual transportation volume of coal by railway is 9 million tons, and ore is 6 million tons.

• Consists of 16 belt conveyors (Width: 1200mm - 2000mm)
• Maximum belt speed: 5.3m/s | Max capacity: 6500t/h
• Total conveying length: 10 km
• Features: Curved coal chute, dry mist dust suppression, scraper cleaner

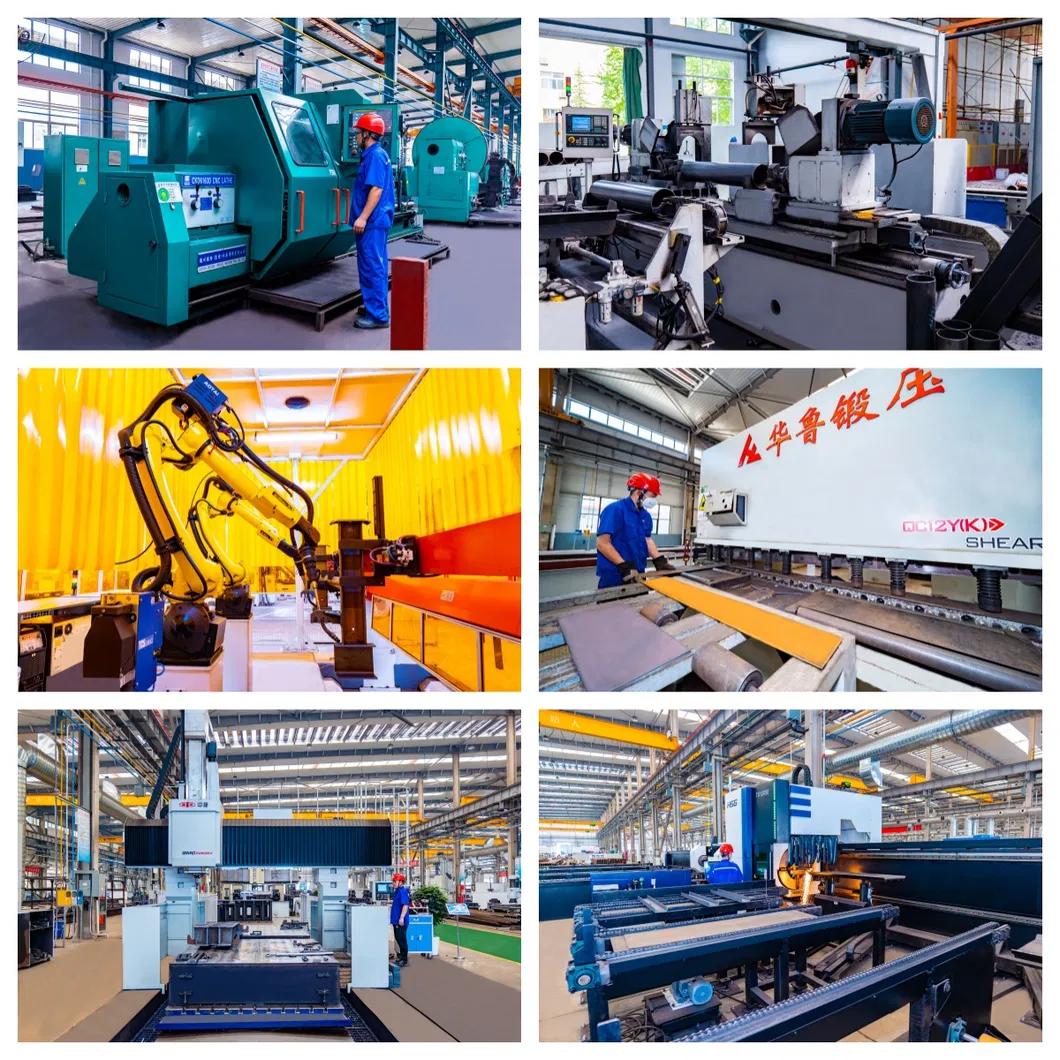

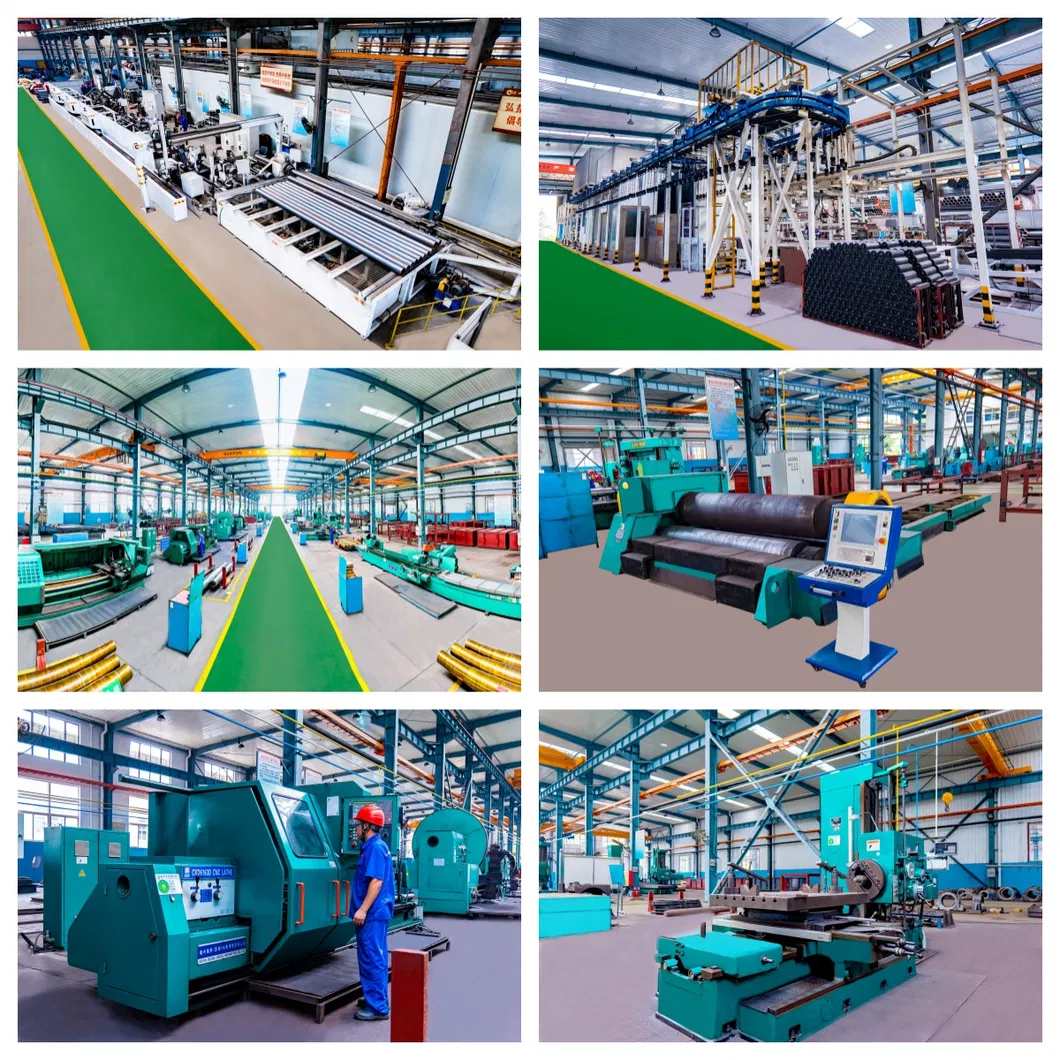

🛠️ Specialized Factories

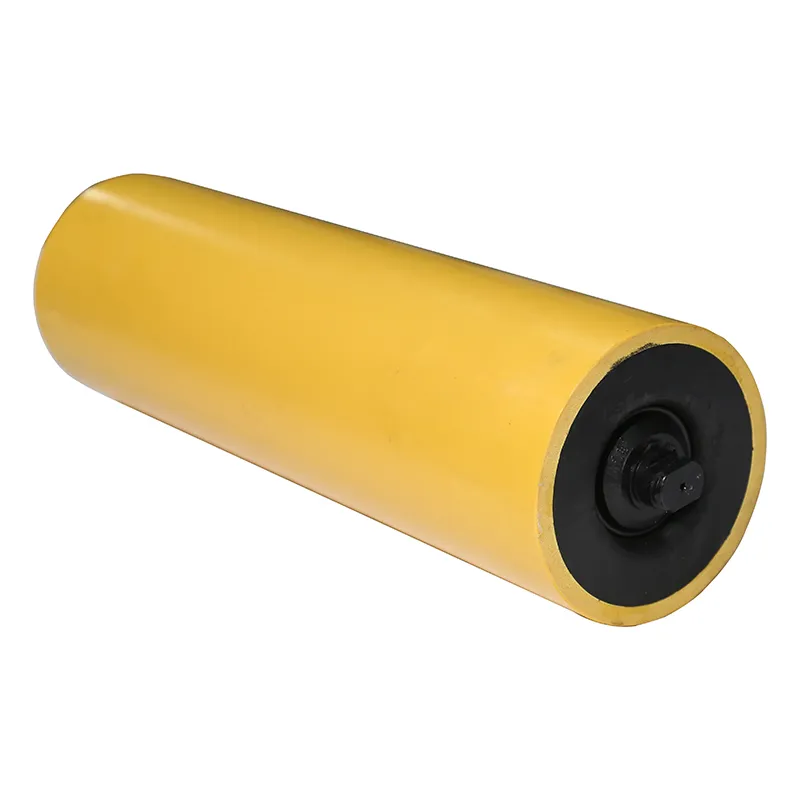

• Conveyor Roller Factory: 3 automatic lines, 1.6 million sets annual capacity.

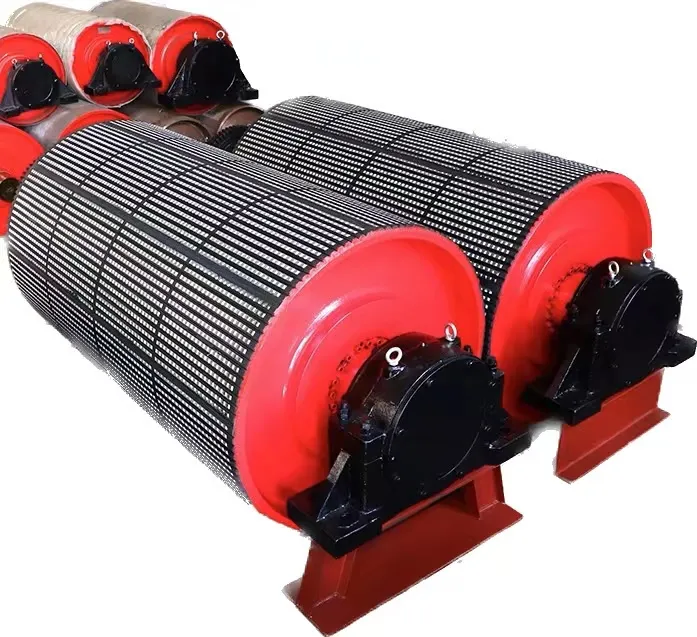

• Conveyor Pulley Factory: Up to φ2200mm diameter, 5000+ sets annually.

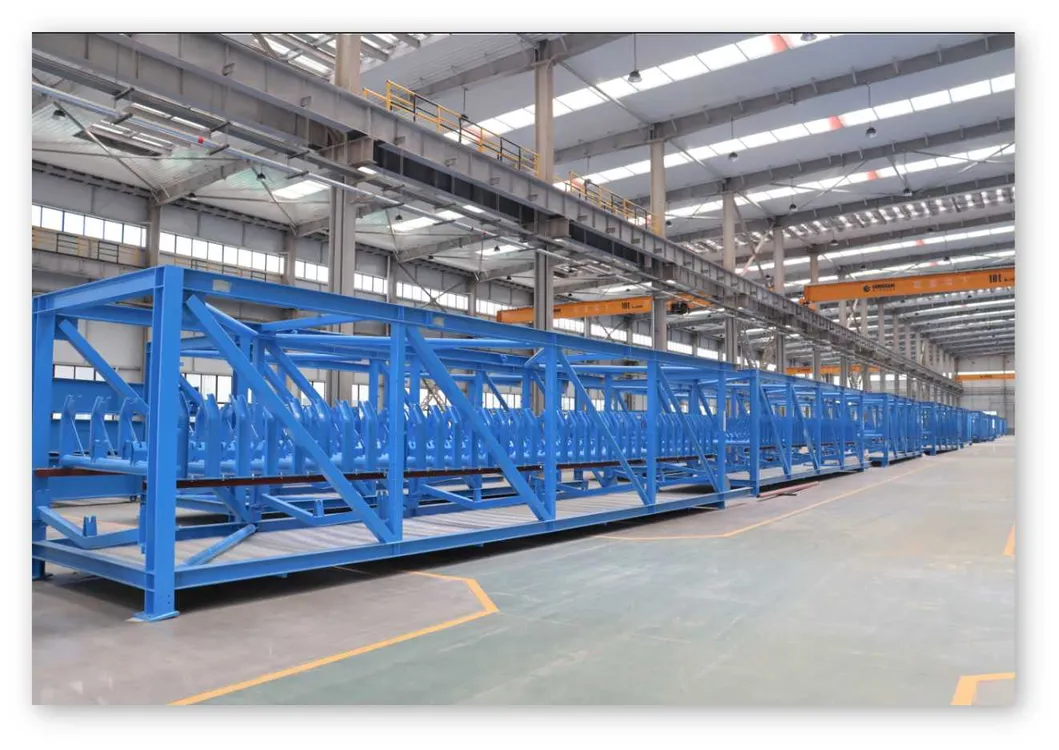

• Steel Structure Factory: 100,000 tons annual production capacity.
• Electric Factory: High standard clean workshop for control systems.
• Auxiliaries Factory: Cleaners, impact beds, and intelligent loading systems.

Our design capabilities cover universal series, overland conveyors, flat turning, large inclined angles, and pipe conveyors (φ150~850mm).

• Maximum belt width: 2400mm
• Maximum conveying capacity: 13,000 t/h
• Single conveyor distance: Up to 12.6 km
• Maximum installed power: 6400KW
