Double Girder Gantry Crane Full Electric Drive System Eco Friendly Operation

Customization:	Available
After-sales Service:	1 Year
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

Certification

RoHS, CE, ISO9001

Condition

New

Operation Form

Pendent Button Control / Remote Control

Type

Common Gantry Crane

Main Girder Form

Single Girder

Power Source

220V/380V/415V or on Request

Girder Type

Box Type / Truss Type

Moving Type

Rail Mounted

Work Duty

A3-A5

Materials

Q235B/Q345B

HS Code

8426193000

Product Overview

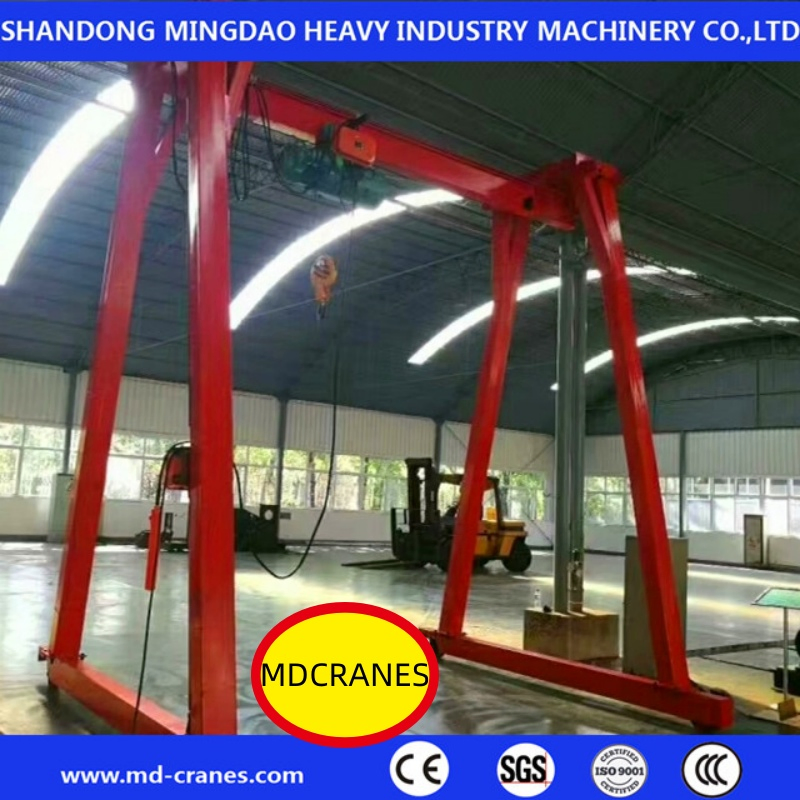

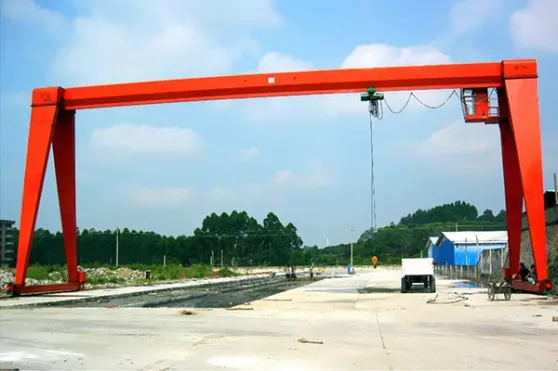

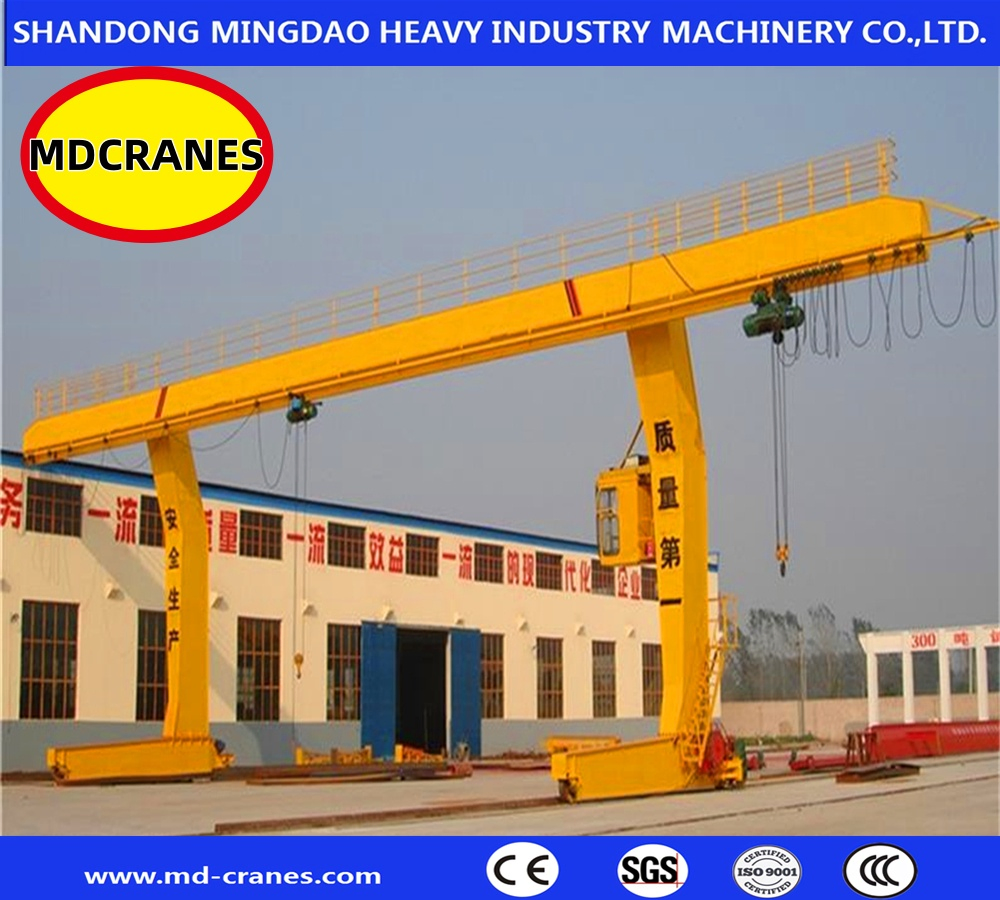

The MH single girder gantry crane is a widely utilized light-duty lifting solution, perfect for both indoor and outdoor environments. It is specifically designed for storage yards, warehouses, workshops, freight yards, and docks. As a typical A-frame gantry crane, it offers a lifting capacity ranging from 3 tons to 16 tons, making it ideal for handling small to medium-sized materials.

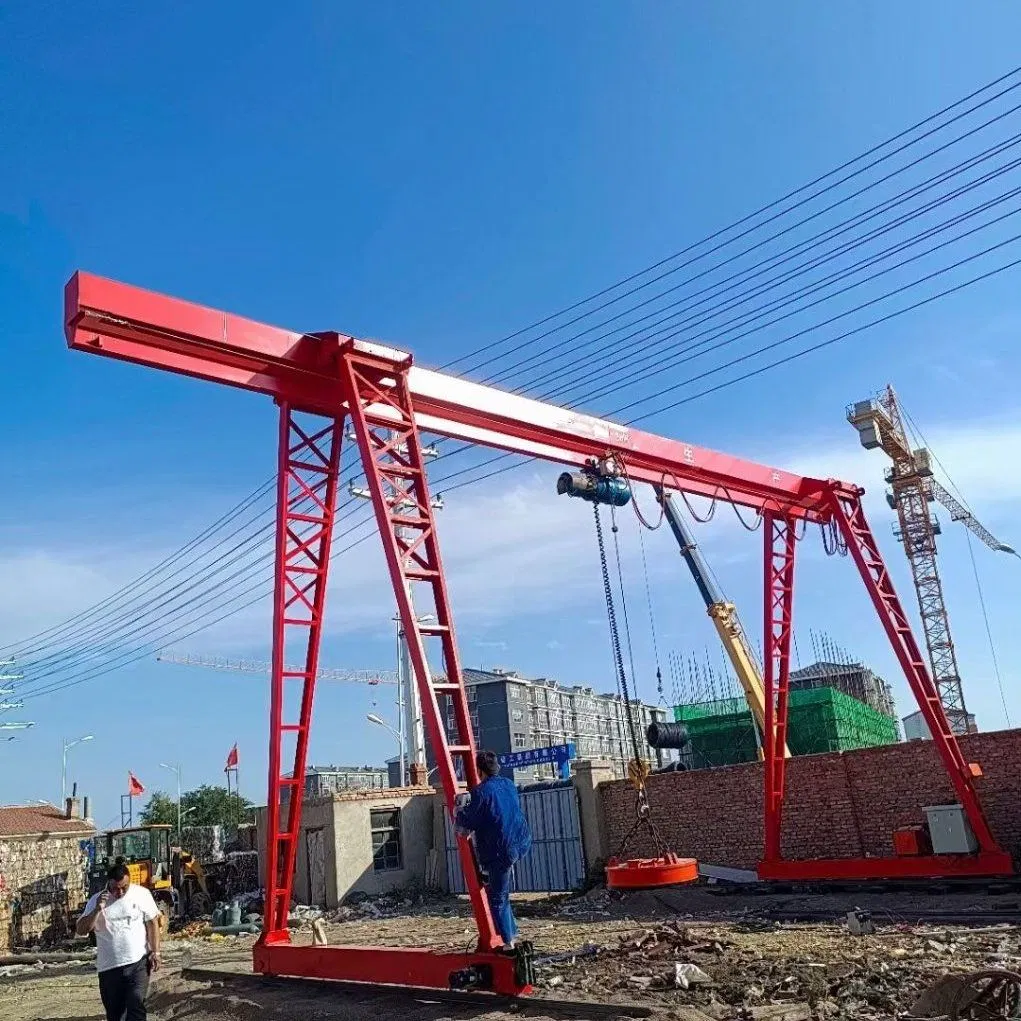

Design Versatility: The metal structure is available in a Box Type for high strength and a slim profile, or a Truss Type designed for outdoor environments to significantly reduce wind resistance.

Main Technical Parameters

Mechanism Item		Specifications
Traveling Mechanism	Traveling Speed	20 m/min
Traveling Mechanism	Motor Type	Cone Squirrel-cage
Lifting Mechanism	Electric Hoist Model	CD1, MD1, HC
	Lifting Capacity	3 - 32 Ton

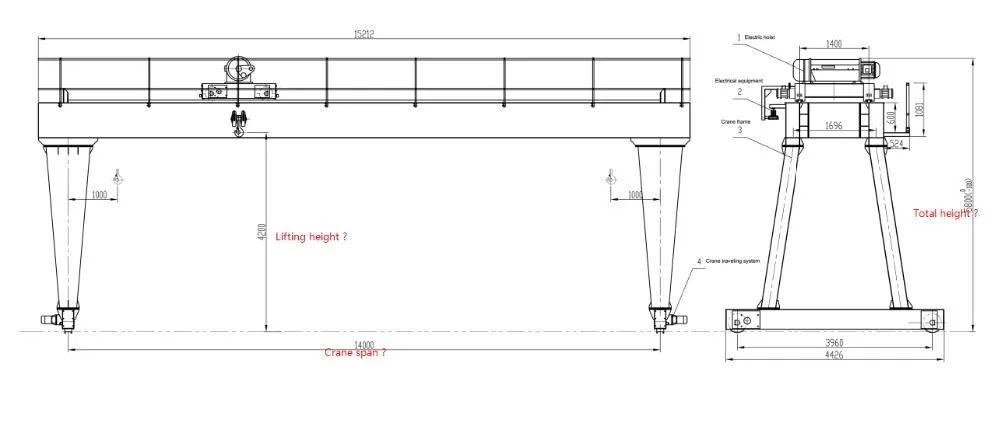

	Span Length	12 - 30 m
	Lifting Height	6, 9 m
	Work Duty	Intermediate Jc=25%
Power Supply		380V 50Hz 3P

Safety Features & Components

To ensure safe operation and prevent mechanical damage, the following safety devices are integrated:

Overload Limit Switch

Rubber Buffers

Emergency Stop System

Voltage Lower Protection

Current Overload Protection

Rail Anchoring Device

Lifting Height Limit Device

Electric Protective Devices

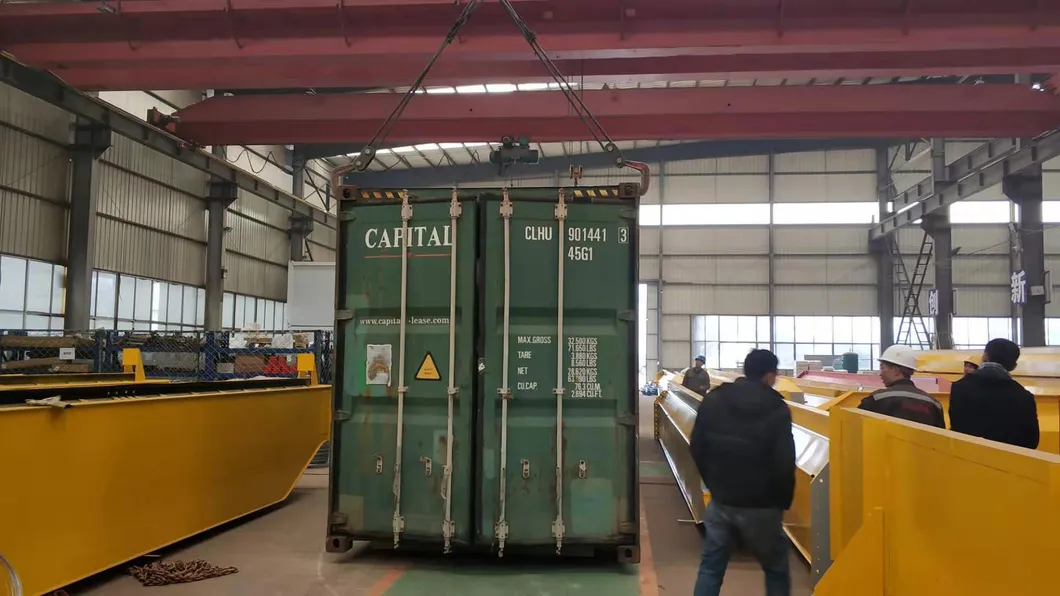

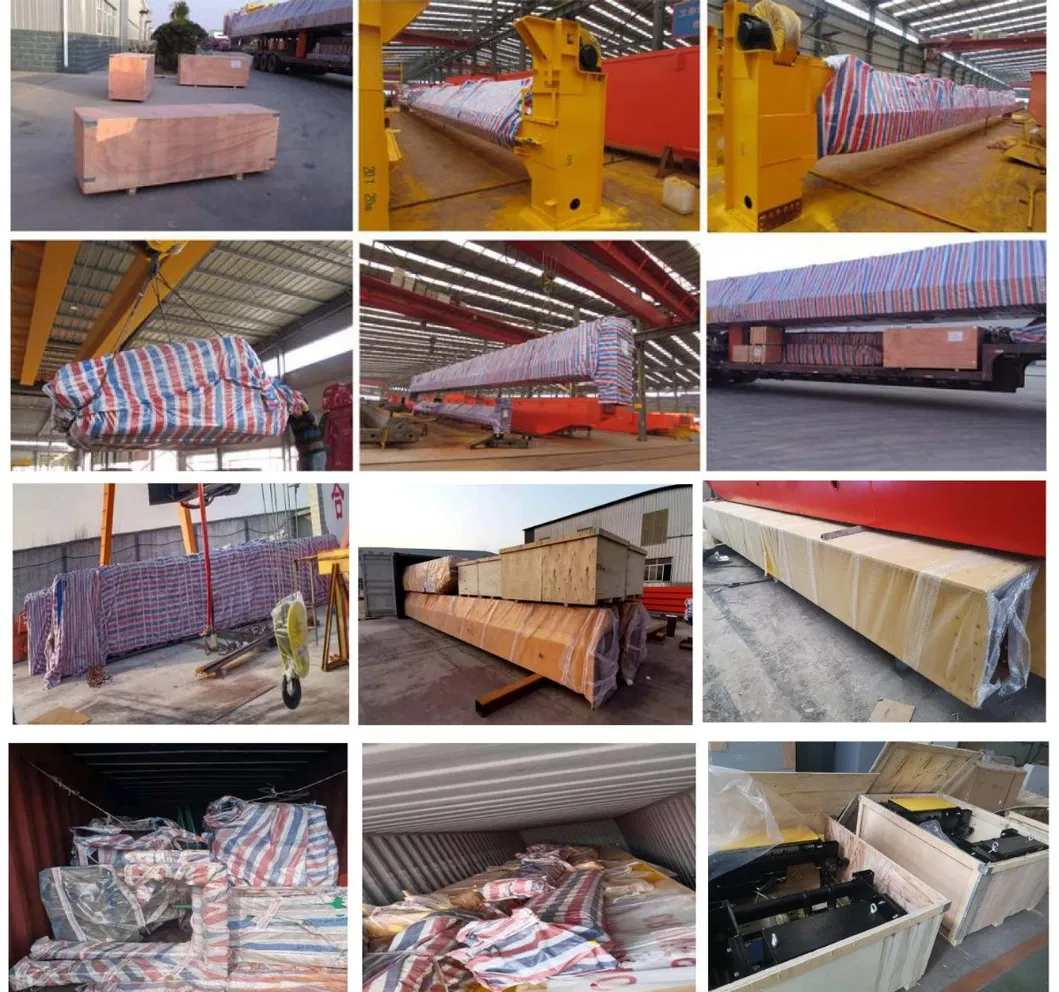

Packaging & Logistics

Package Size

2000.00cm * 200.00cm * 200.00cm

Gross Weight

2000.000kg

Frequently Asked Questions

Q1. Can the gantry cranes be customized? Yes, every workplace condition is unique. All products can be customized based on specific requirements such as lifting capacity, span, and height.

Q2. What operation methods are available? We offer multiple control options including pendent controller with push buttons, radio remote control, or cabin control depending on your preference.

Q3. Is it possible to install a crane in a workshop with low headroom? Yes, we provide specialized designs for low headroom environments to maximize your available lifting space.

Q4. Do you supply additional lifting tools? Certainly. We can provide various lifting attachments such as hooks, electromagnetic lifters, grab buckets, and more.

Q5. What information is needed for a design solution? Please provide the lifting capacity, span length, lifting height, power supply voltage, and details about the material being handled.

Q6. Are the cranes suitable for outdoor use? Yes, especially our truss-type gantry cranes which are specifically designed to withstand strong winds in outdoor workplaces.
