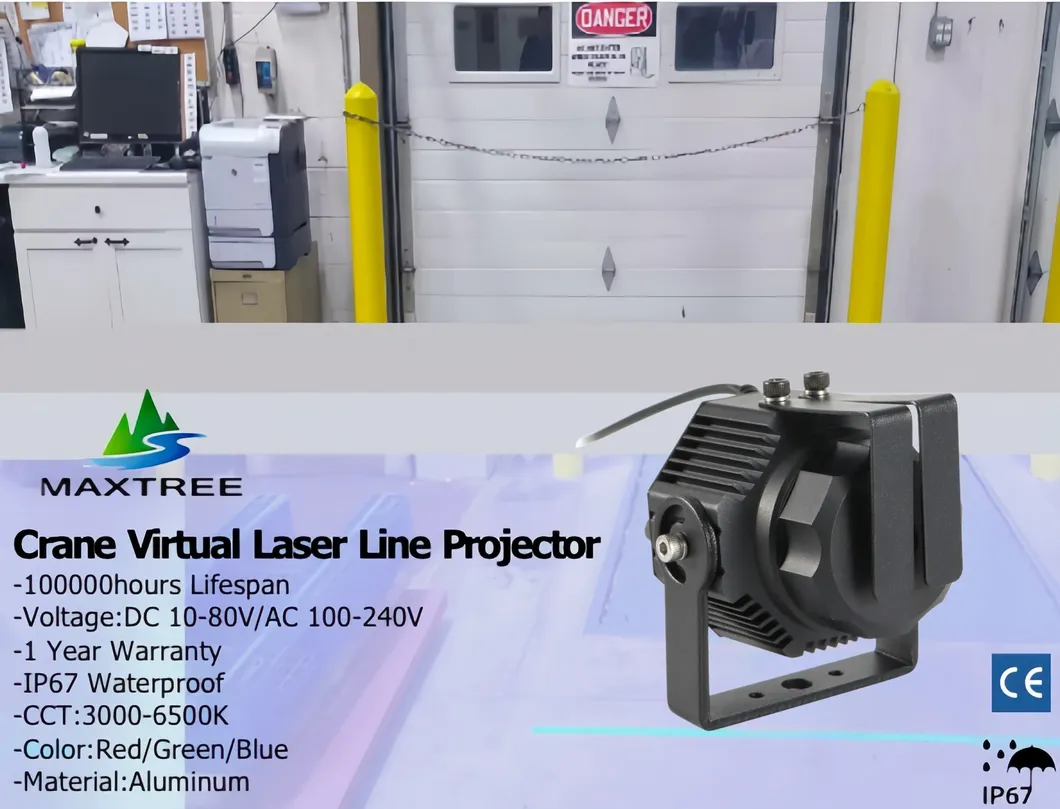

| Model NO. | MXFSL | Warranty | 12 Months |
|---|---|---|---|
| Weight | 0.2kg | Type | Safety Warning Light |
| Power | 1000MW | Application | Overhead Crane |
| Projection Type | Line | IEC Safety | 3r |
| CCT | 3000K-6500K | Feature | Ambient Light Sensing |
| Package Size | 10.10cm * 4.40cm * 6.00cm (Gross Weight: 0.200kg) | ||

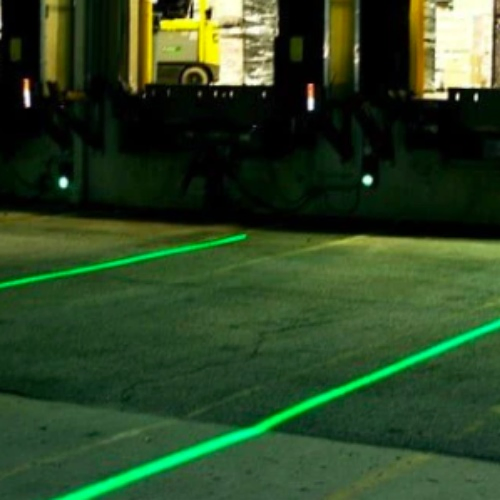

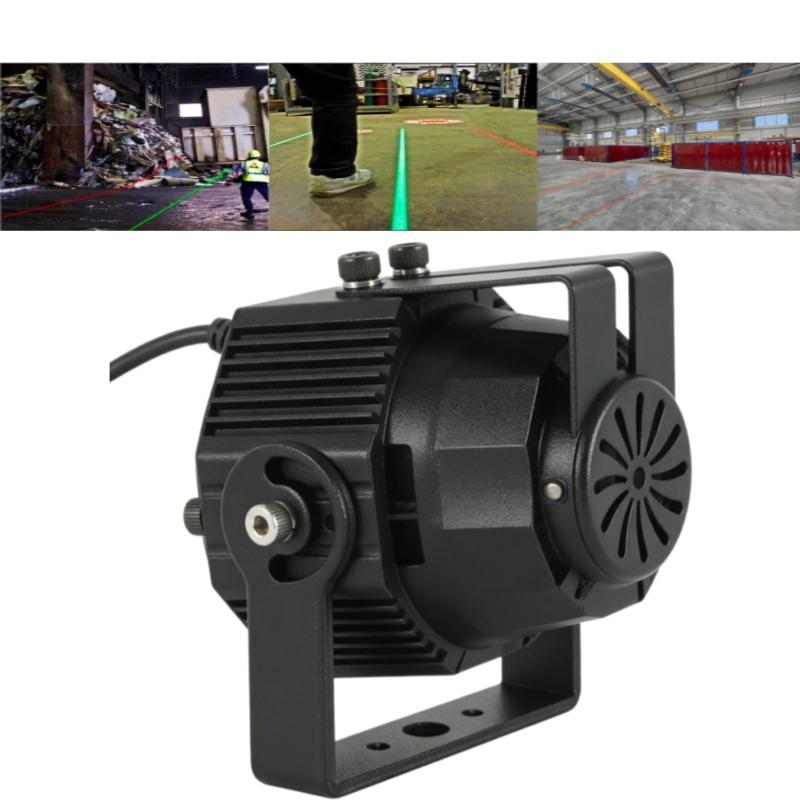

Crane 3R RGB Laser Dock Guidance System for Pedestrian Walkways Safety

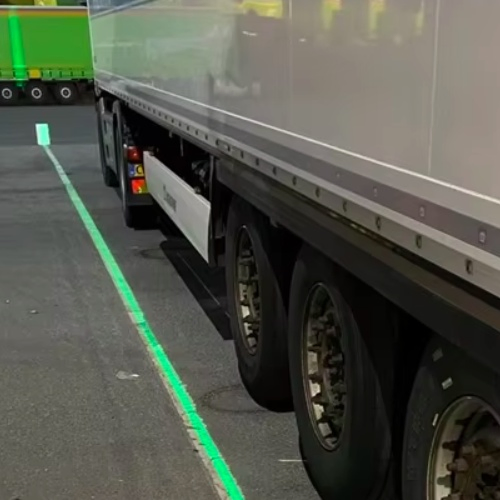

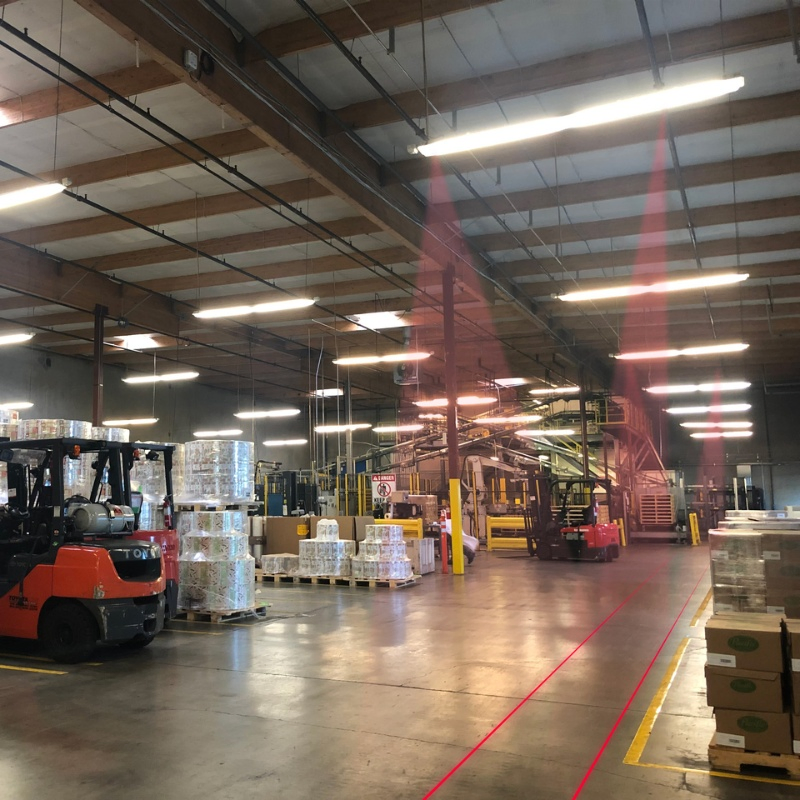

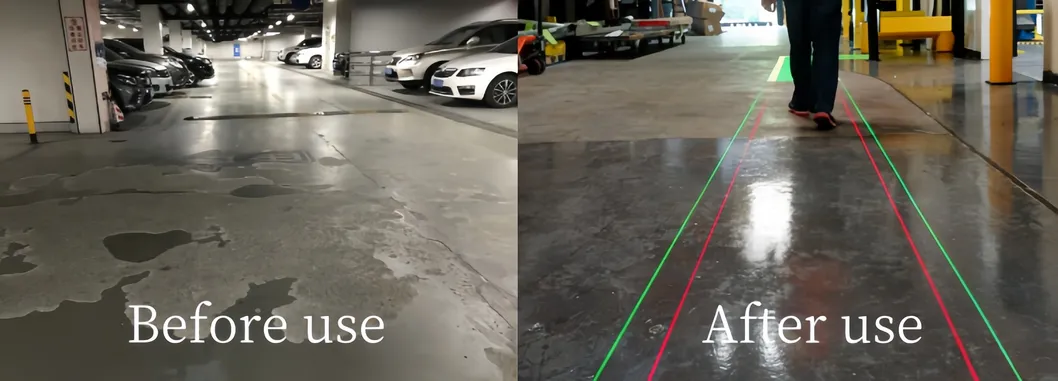

Virtual line lasers create durable floor lines in your warehouse, eliminating the need for ongoing maintenance required with floor tape and paint. These compact, lightweight, and reliable projectors produce a fine line clearly visible in bright conditions and are completely safe for the eyes. They are ideal for walkways, driveways, or virtual signs.
Key Benefits:

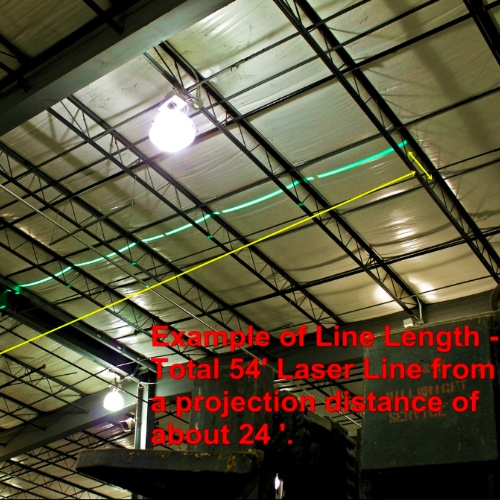

The maximum length and brightness of the projected line depend on the projector's installation height. Reference the charts below:
| ANGLE | DISTANCE | LINE LENGTH APPROX |
|---|---|---|
| 45° | 5M | 4M |
| 60° | 5M | 6.6M |
| 90° | 5M | 8M |
| 110° | 5M | 10M |
| 135° | 5M | 12M |
| ITEM | 24 ft. at 12 ft. dist | 30 ft. at 15 ft. dist | 40 ft. at 20 ft. dist | 60 ft. at 30 ft. dist |
|---|---|---|---|---|
| Green 1000mW | 5952 lux | 3810 lux | 2142 lux | 947 lux |
| Red 1000mW | 2002 lux | 1280 lux | 721 lux | 322 lux |

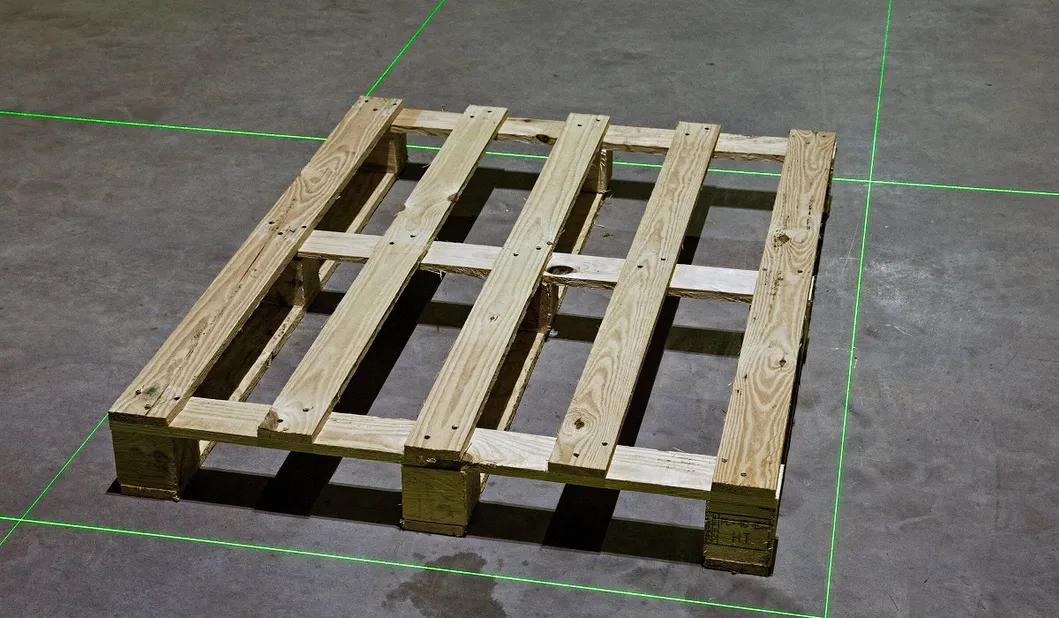

01 / Smart Projection: Uses motion sensors to detect trucks and direct them to lanes.
02 / Maintenance Free: Projected lines prevent damage from heavy forklift and truck traffic.

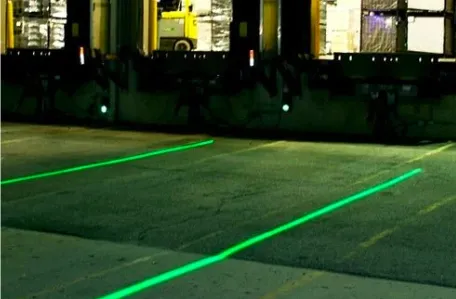

03 / Ambient Sensing: Activates based on environmental light (dusk to dawn).
04 / Eye-Safe: IEC 3R safety rating low-power laser.

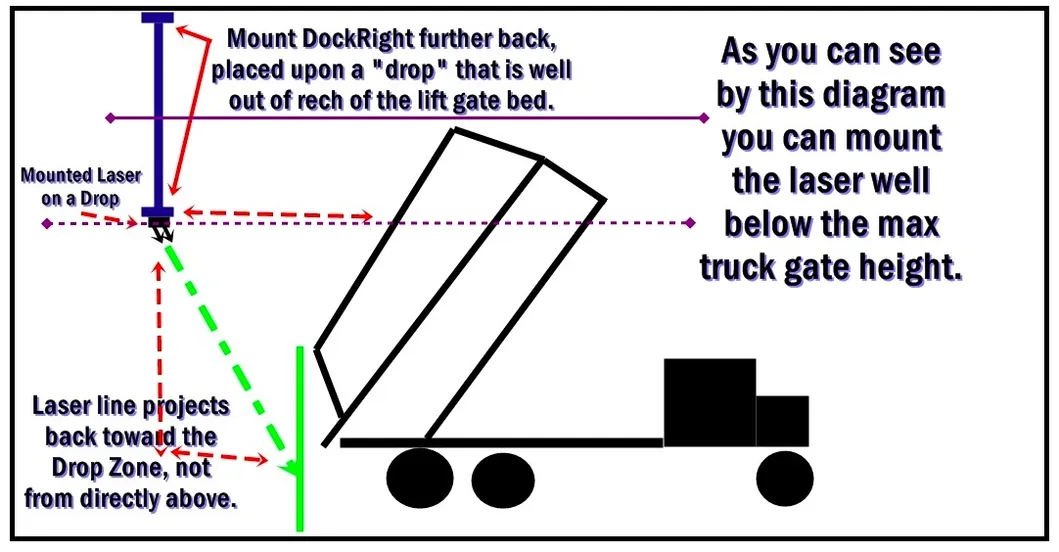

The laser projector is easy to set up and maintain. Install at the desired height, plug it in, and enjoy a smart solution for warehouse operations. No specialized tools are required.

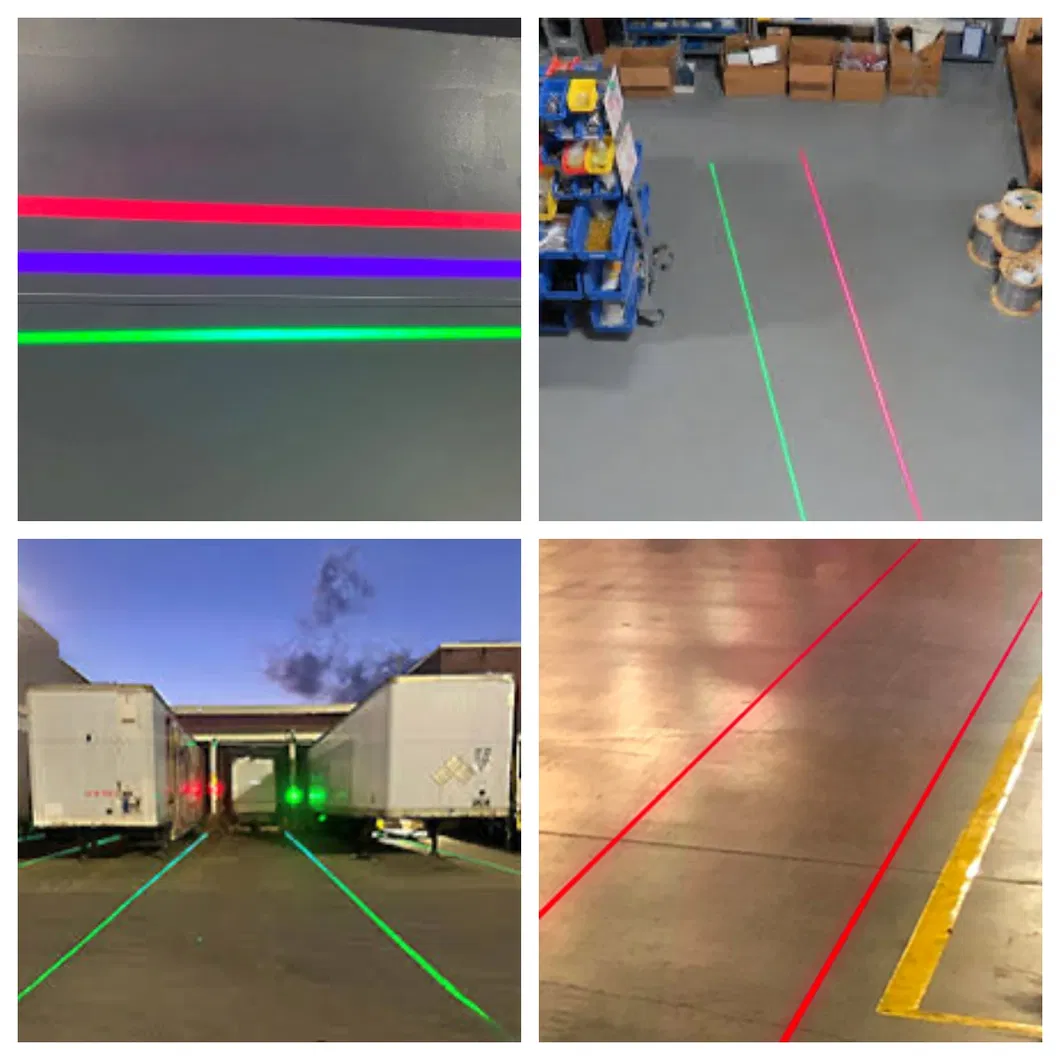

Common Applications:

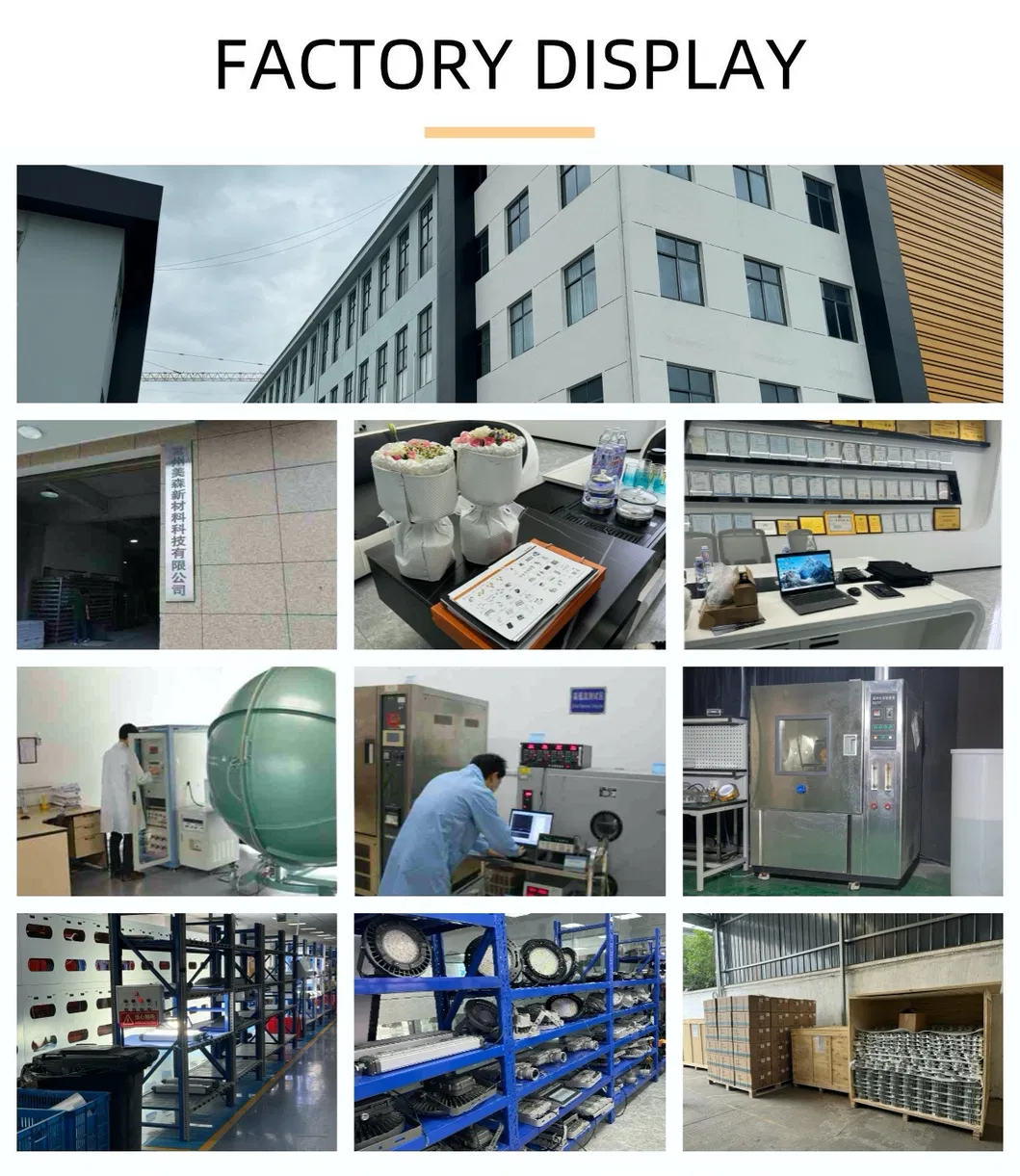

Established in 2016, we are a national high-tech enterprise integrating R&D, production, sales, and service. With over 200 employees and 28 production lines, our monthly output reaches 10,000 units. We cooperate with international brands to introduce advanced technology and automated testing equipment.
