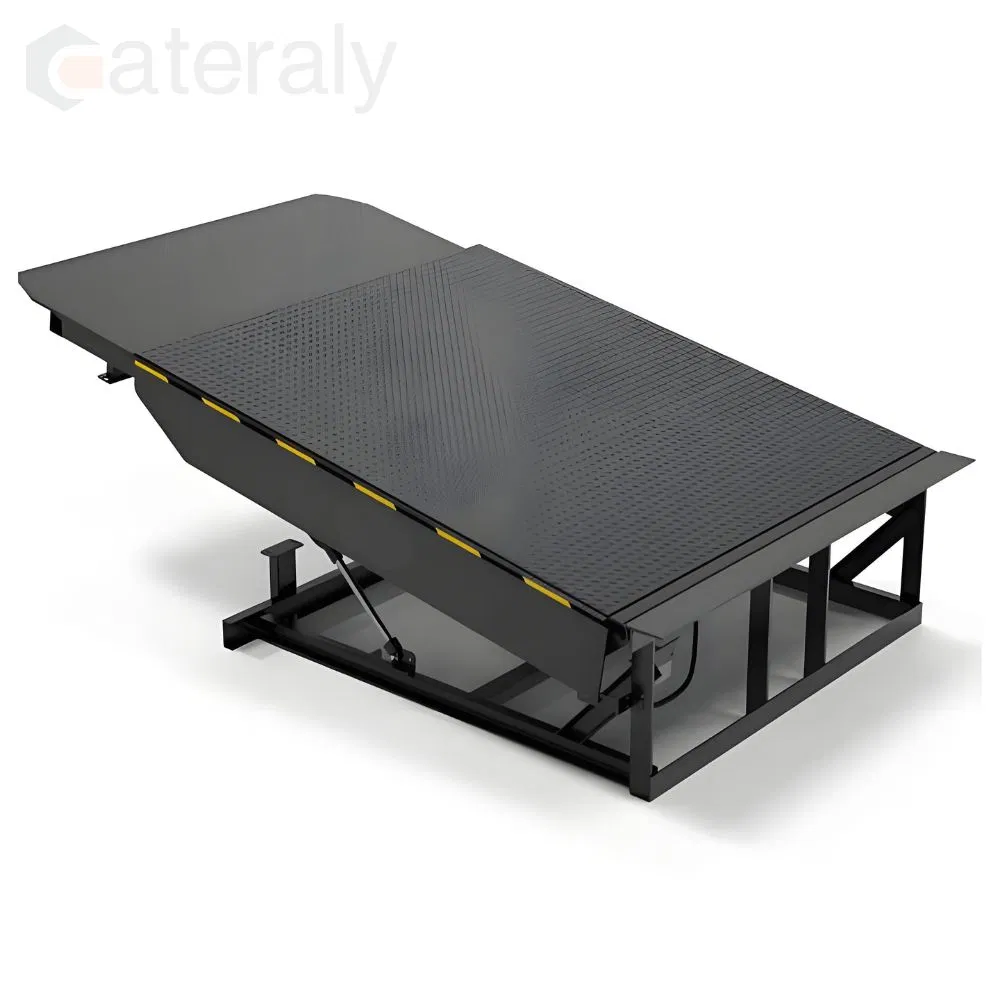

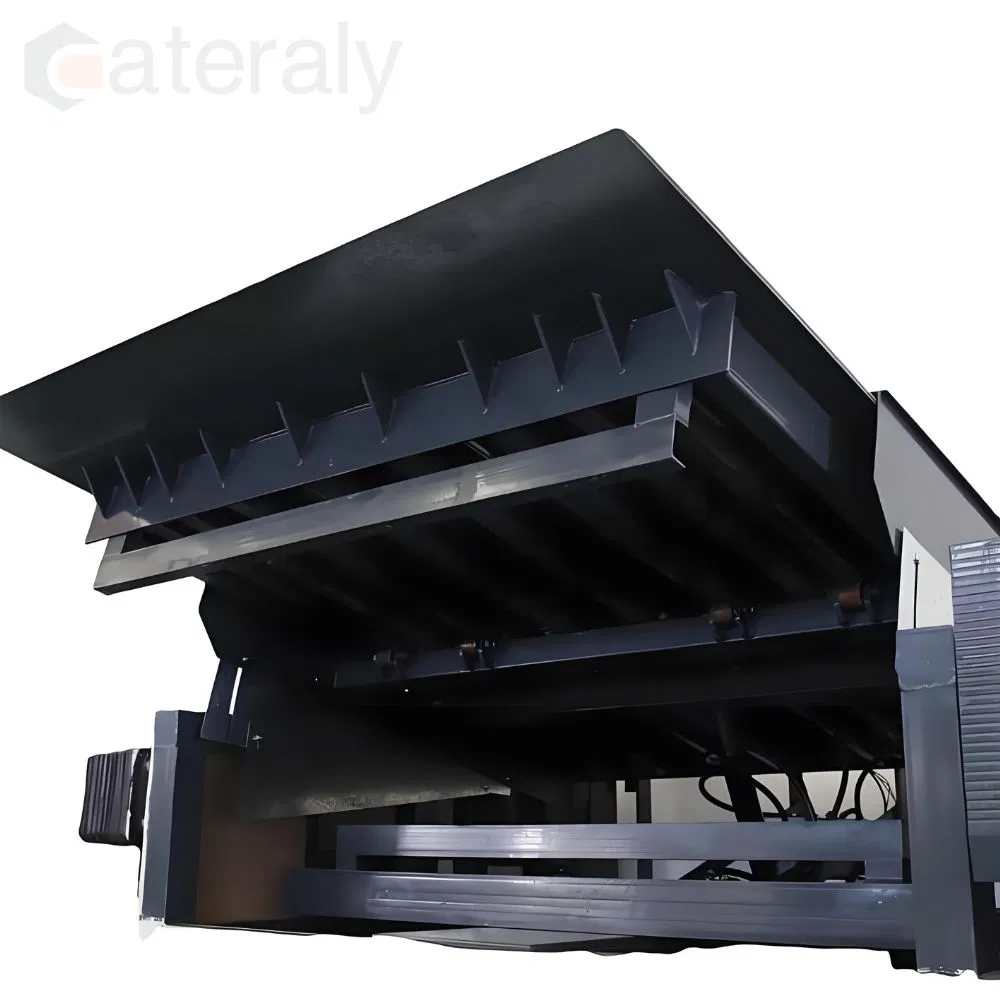

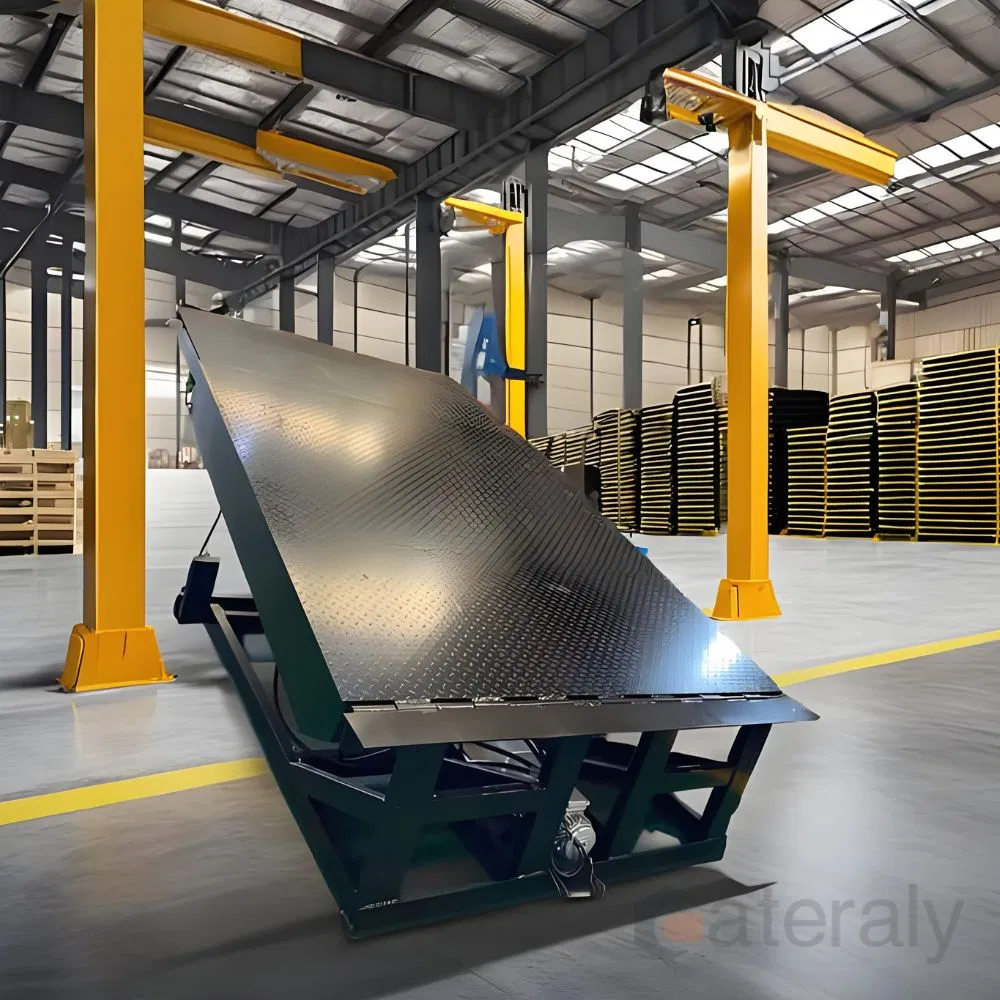

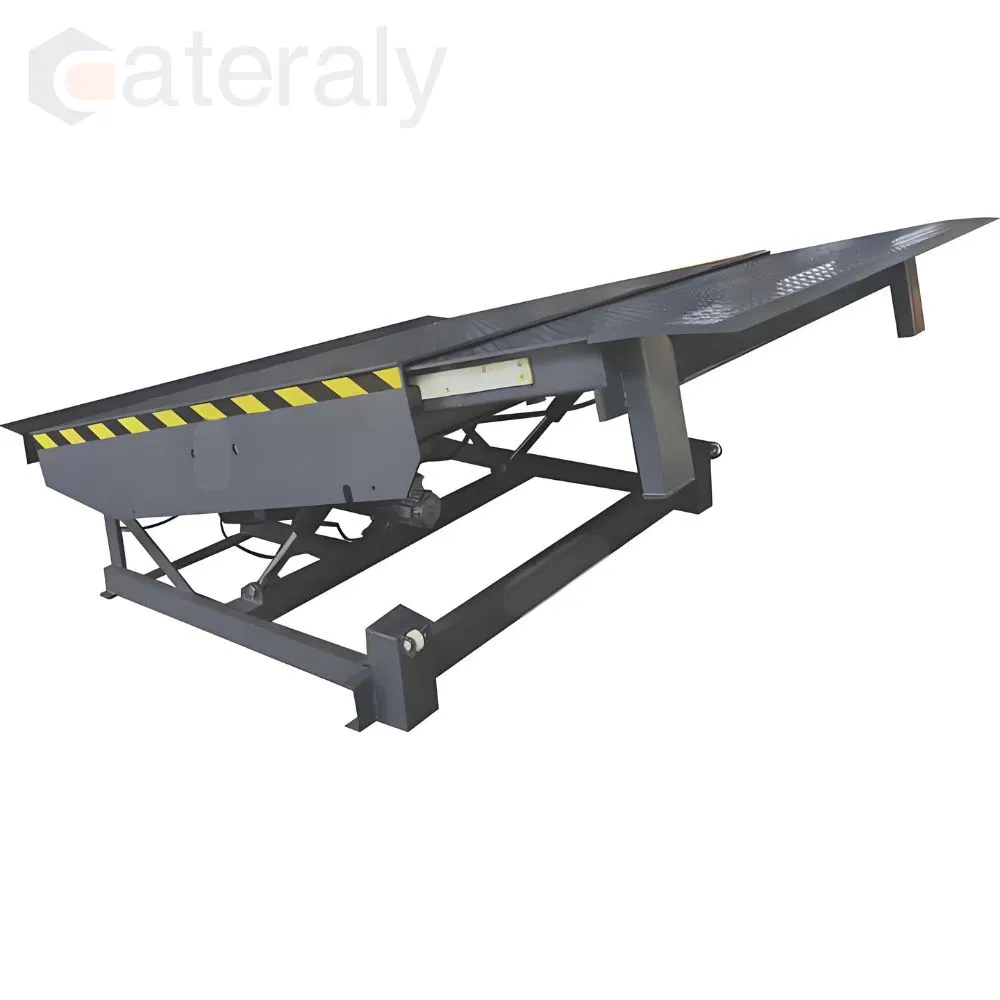

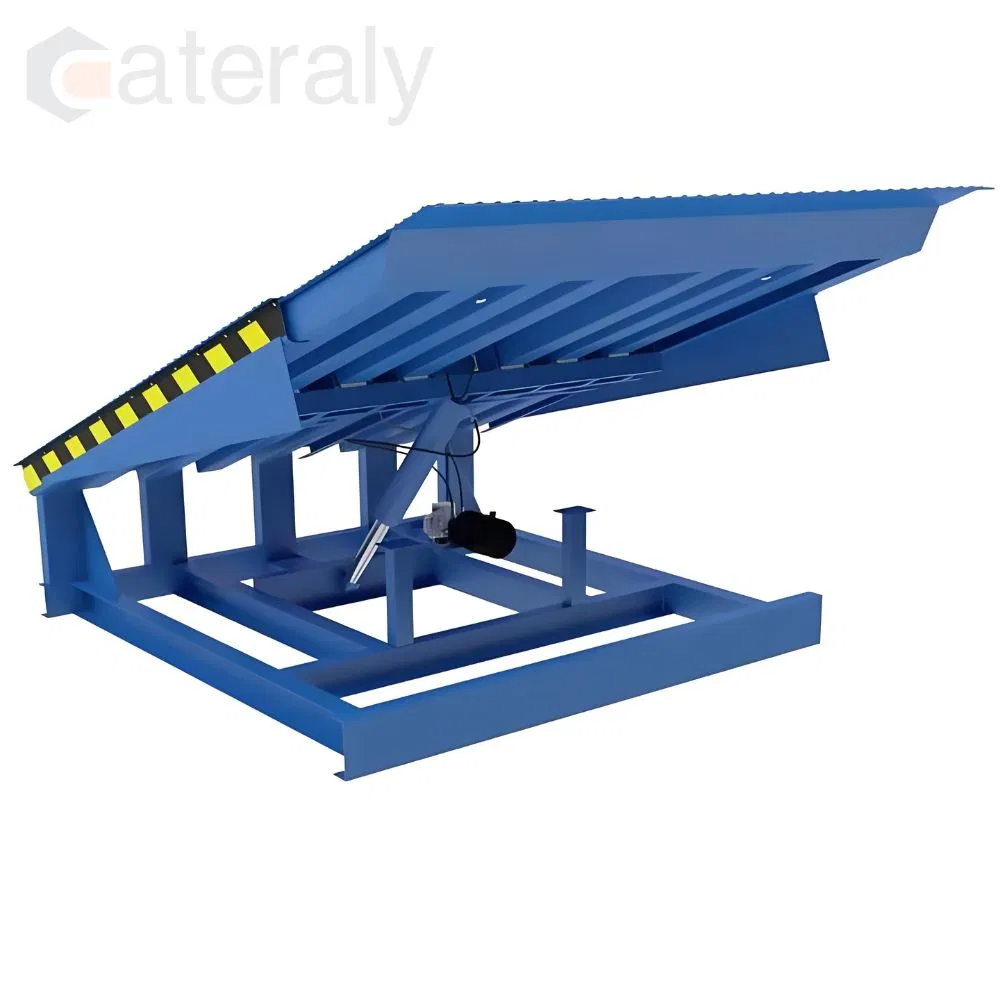

Hydraulic Dock Ramp System for Telescopic Heavy Duty Platforms with Hardware Direct Factory Wholesale

Customization: Available
After-sales Service: Free Replacement of Products and Accessories
Warranty: 1 Year

Product Description

Basic Information
Model NO.
CDL-01
Lift Drive
Hydraulic
Power Source
Manual
Table Size
2500*2500*600mm
Lift Control
Push Button
Min. Height
600mm
Weight
1000 Kg
Load Capacity
6t-10t
Power
0.75kw
Capacity
5000pieces/Year
Packaging & Delivery
Package Size
610.00cm * 610.00cm * 610.00cm
Gross Weight
300.000kg
Transport
Wooden Box
Product Description
Hydraulic Dock Ramp System
Introducing the Dock Leveler, a remarkable piece of auxiliary equipment masterfully crafted to transform the loading and unloading of goods into an extraordinary experience. Specifically engineered for diverse settings such as warehouses, stations, docks, warehousing logistics bases, postal hubs, and logistics distribution centers, this dock leveler paves the way to operational excellence that is simply second to none. By harnessing its advanced capabilities, you'll not only dramatically reduce labor expenses but also supercharge your productivity, accelerating the movement of goods to ensure a seamless and efficient flow that perfectly aligns with today's fast-paced environment.

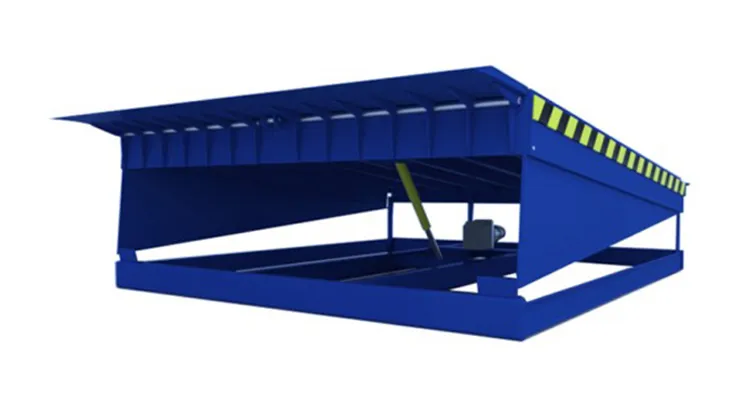

Dock Leveler View 1

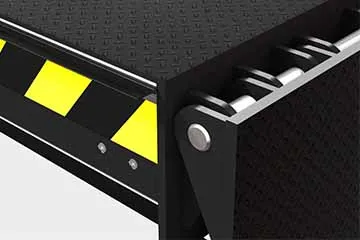

Dock Leveler View 2
Operation Detail 1
Operation Detail 2
Operation Detail 3
Product Parameters
Size:2000x2500x600mm or customized
Loading:6T/8T/10T
Color:Black/Blue/Grey (Option)
Table thickness:8mm thick steel plate
Voltage:380v 50Hz
Power:0.75kw
Life cycle:8-10 years
Application:Warehouse logistics, unloading center
Ambient temperature:0-20ºC to +50ºC
Control box:24V electrovalve, 3/8 threads

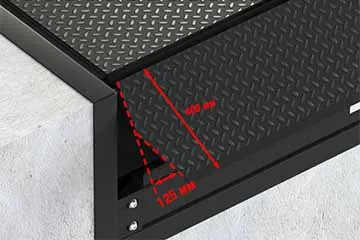

Parameter View 1

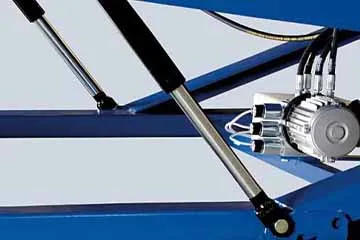

Parameter View 2
Parameter View 3

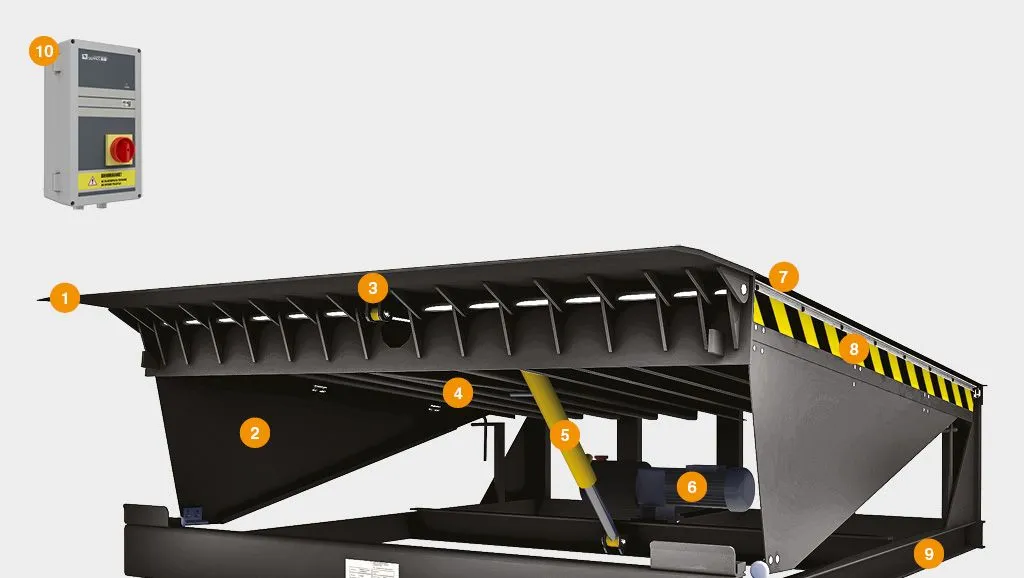

Technical Drawing
Installation Instructions
Streamlining the installation of your dock leveler, we provide meticulously crafted 3D and CAD drawings tailored to your specific installation needs. This ensures that once your pit is prepared, the straightforward yet effective setup of the dock leveler elevates your logistics operations to new heights of convenience and efficiency.
Certifications
Certification 1 Certification 2
Production & Advantages

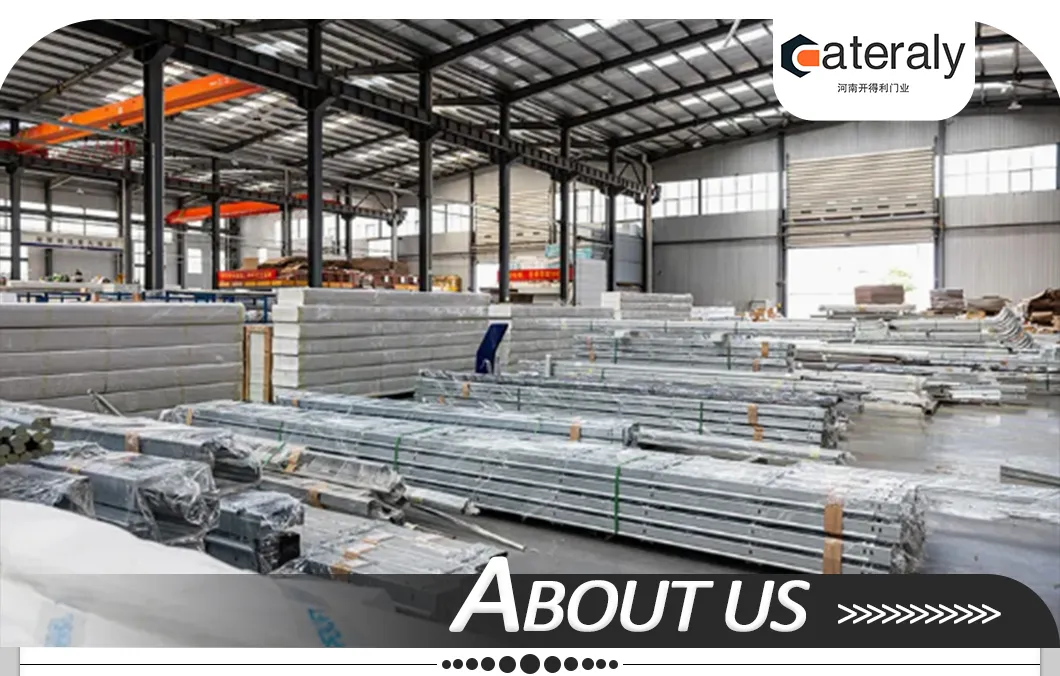

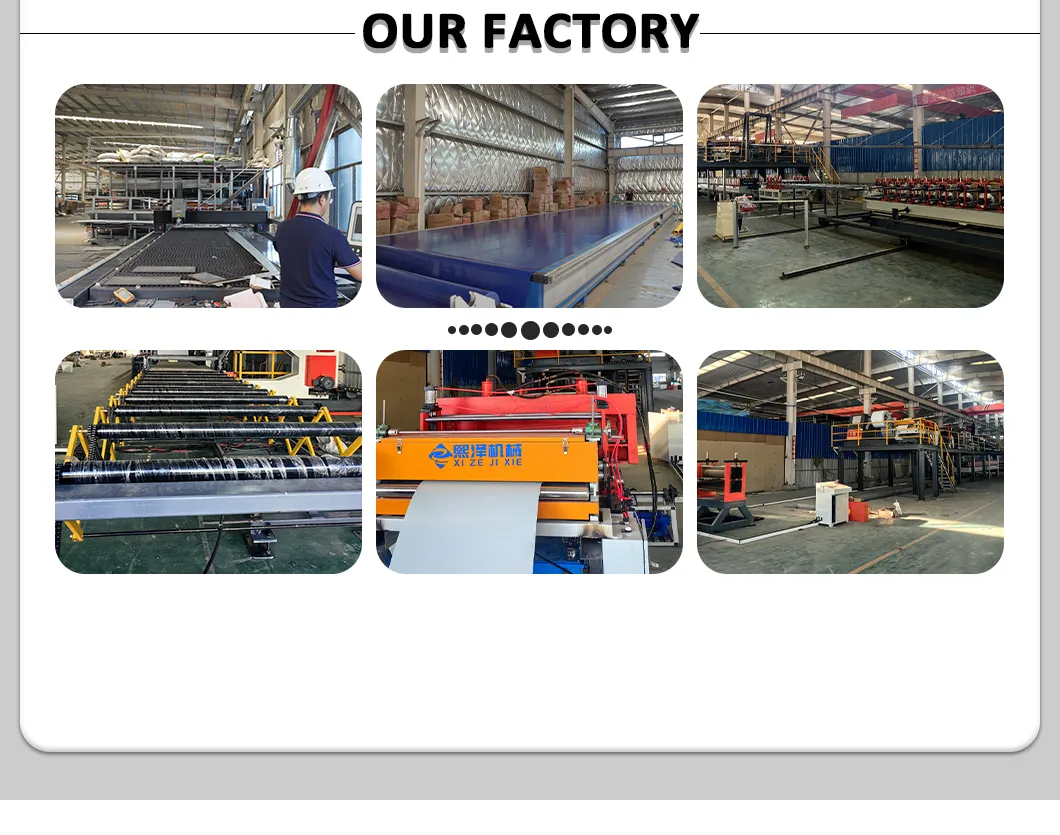

Factory Scene Production Line 1 Production Line 2 Production Line 3 Workshop Key Advantages
Frequently Asked Questions
Why choose us?
We provide the most cost-effective products with high quality, professional technical sales support for both pre-sale and after-sale, and over 28 years of experience in production and customization.
What information is needed for installation?

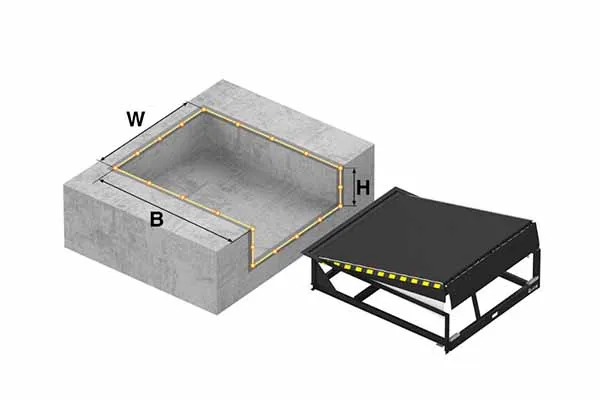

Customers should provide the Pit Size (Length, Width, Height), the Cargo Load requirements (6ton, 8ton, or 10ton), and the specific installation site conditions.
Does the product have integration features?
Yes, it can be used seamlessly with factory sectional doors, door seals, and vehicle restraints for enhanced safety and efficiency.
What is the estimated life cycle of the dock leveler?
Our dock levelers are engineered for durability and typically have a life cycle of 8 to 10 years under standard operating conditions.
Are customized sizes and colors available?
Yes, we offer customization for sizes and provide various color options including sleek Black, vibrant Blue, and sophisticated Grey.
What is the thickness of the platform table?

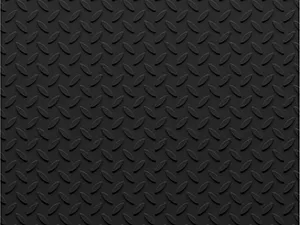

The platform is constructed using a robust 8mm thick steel plate to ensure heavy-duty performance and stability.
