Product Description

Basic Information
Model NO.
MXFSL
Warranty
12 Months
Weight
0.2kg
Type
Safety Warning Light
Power
1000MW
Application
Overhead Crane
Projection Type
Line
Safety Class
IEC 3R
CCT
3000K-6500K
Feature
Ambient Light Sensing
Size
10.1*4.4*6cm
IP Grade
IP67
Product Description

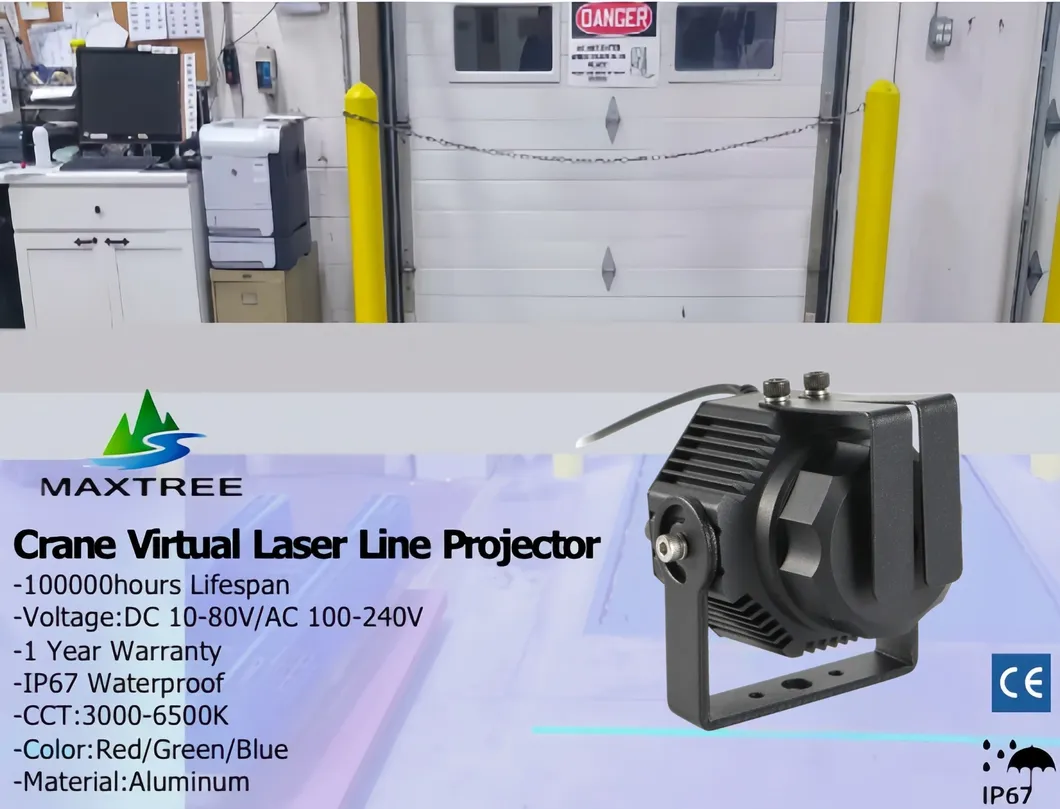

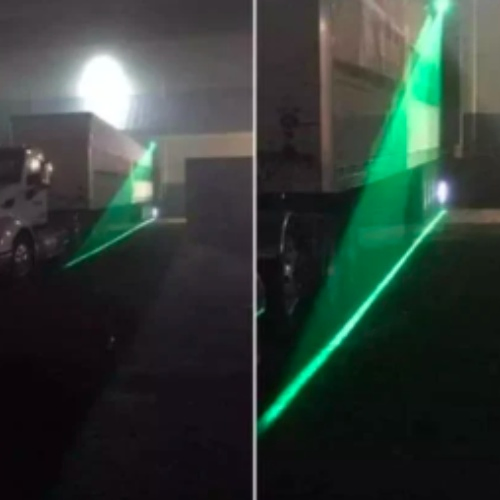

Laser Docking System

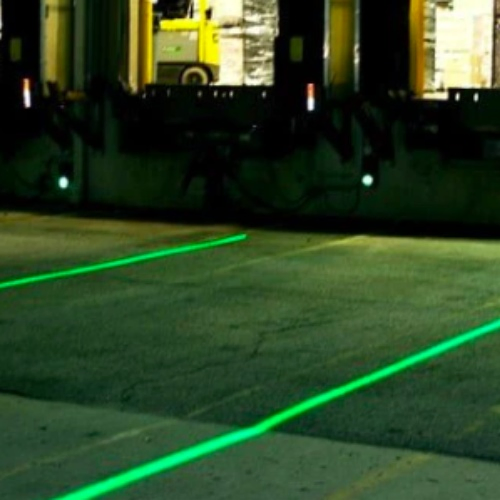

Virtual line lasers create durable, high-visibility floor lines in warehouses and industrial facilities, eliminating the need for constant maintenance associated with floor tape and paint. These systems are compact, lightweight, and reliable, producing a fine line clearly visible even in bright conditions. They are ideal for walkways, driveways, and safety zones.

Key Benefits:
  • Reduce property damage: Achieve seamless docking with virtual navigation channels.
  • Reduce accidents: Improved line visibility in low light or winter conditions.
  • Lower insurance claims: Minimize accidents during heavy-duty operations.
  • Minimize downtime: Reduce unplanned stoppages caused by safety incidents.
Projection Specifications

The maximum length and brightness depend on the installation height. Refer to the table below:

ANGLE DISTANCE APPROX LINE LENGTH
45°5M4M
60°5M6.6M
90°5M8M
110°5M10M
135°5M12M
Illumination Performance (Lux)
ITEM 24 ft. at 12 ft. 30 ft. at 15 ft. 40 ft. at 20 ft. 60 ft. at 30 ft.
Green 1000mW 5952 lux 3810 lux 2142 lux 947 lux
Red 1000mW 2002 lux 1280 lux 721 lux 322 lux
Core Features
Smart Projection Maintenance Free Ambient Sensing

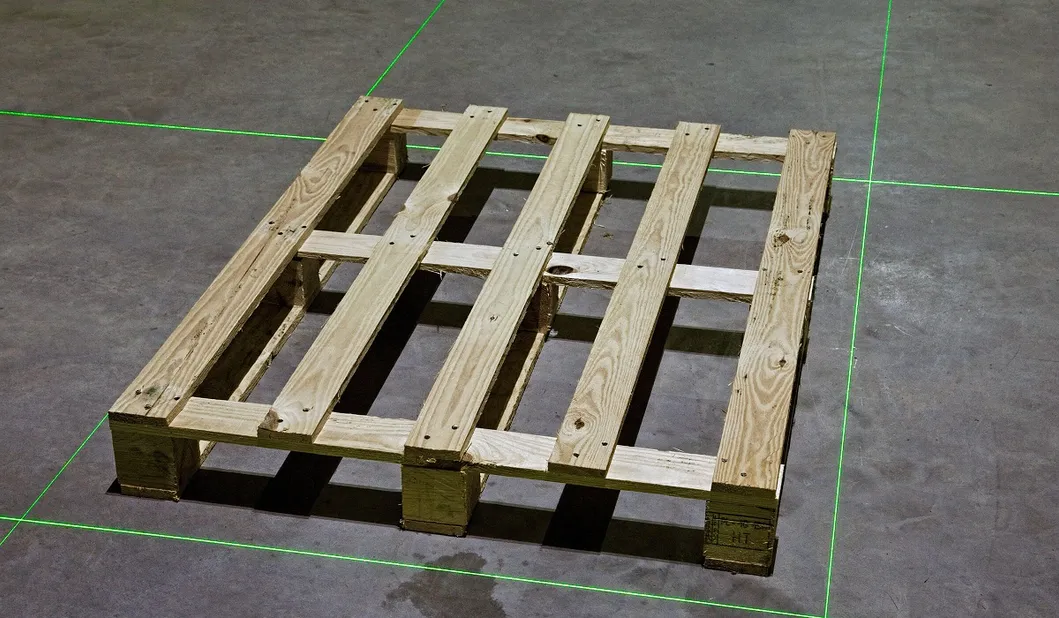

  • Smart Projection: Detects vehicles to direct them precisely to lanes.

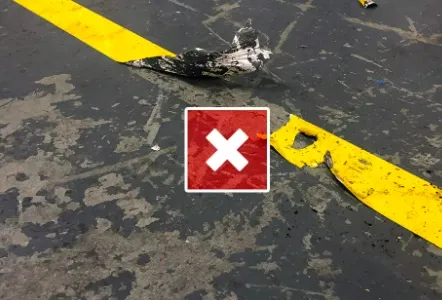

  • No Maintenance: Resistant to interference from forklifts and foot traffic.

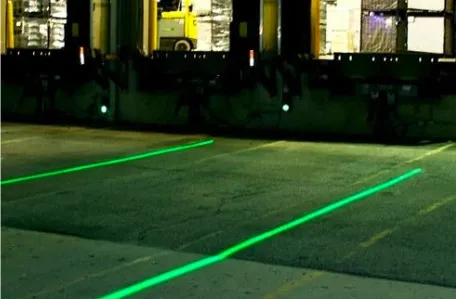

  • Ambient Light Sensing: Automatically activates based on environmental lighting (dusk to dawn).
  • Eye-Safe: IEC 3R safety rating ensures operational safety.
  • Energy-Efficient: Low power consumption with high-intensity output.
Eye Safe Technology
Installation & Application

Plug-and-play simplicity makes installation fast. Adjustable brackets allow for precise beam positioning without specialized tools.

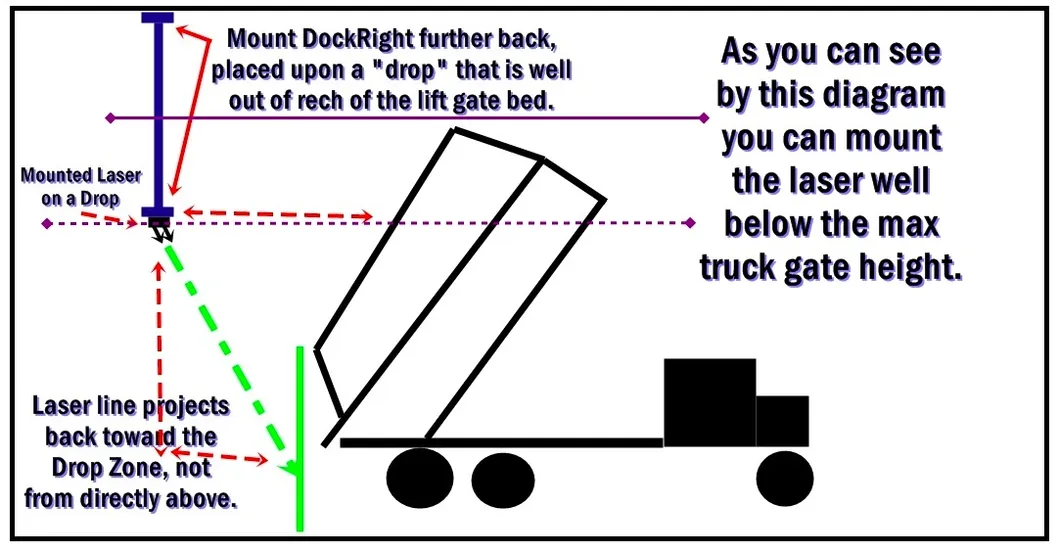

Installation Guide
Ideal For:

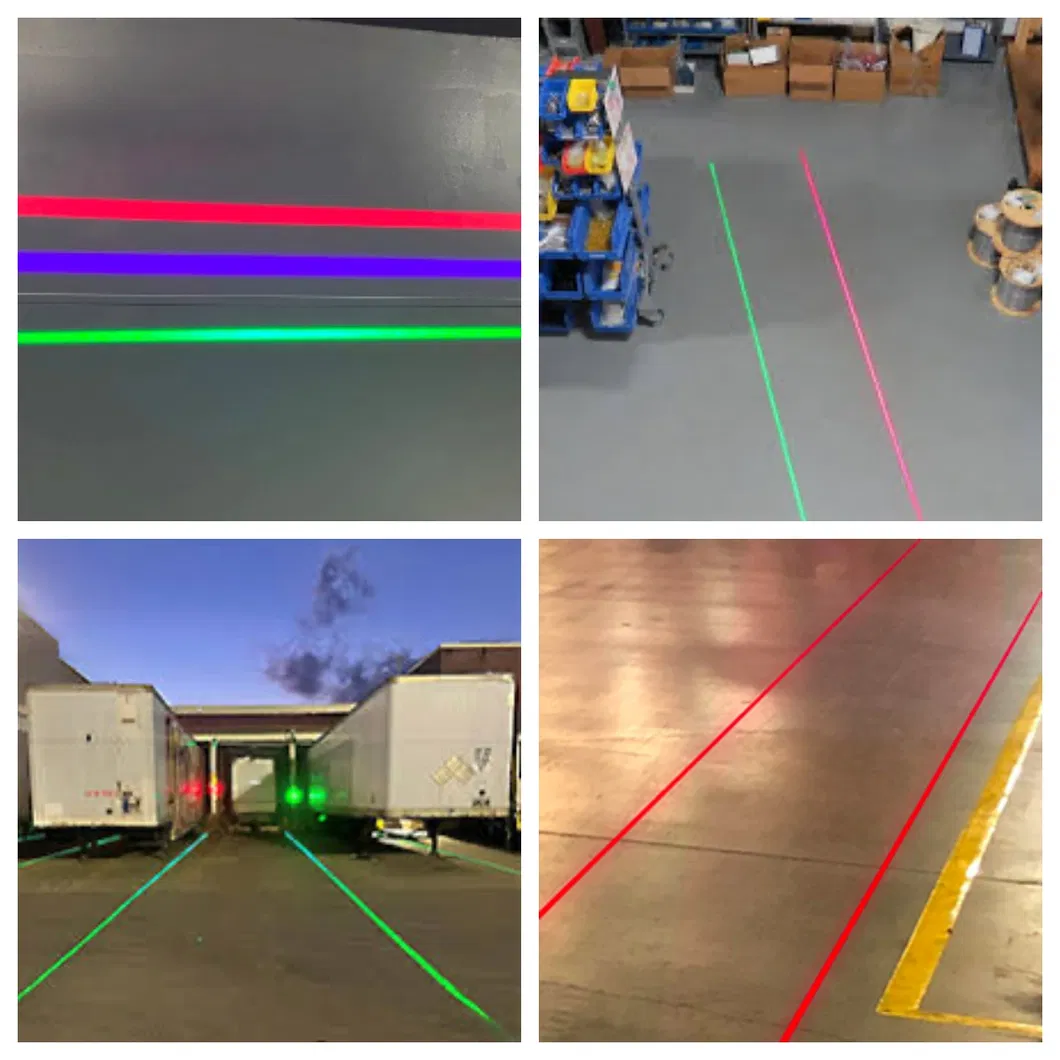

Application View Packaging View
  • Warehouses & Staging Lanes
  • Pedestrian Walkways & Safety Zones
  • Indoor/Outdoor Docks
  • Manufacturing Plants (Heavy Machinery zones)
  • Parking Lots & Rough Industrial Surfaces
Frequently Asked Questions
1. How does the virtual floor laser projector work?
The system uses advanced laser technology to project bright, highly visible lines on the floor. Users can customize the length and position based on the installation height.
2. Can this system be used in outdoor environments?
Yes. The projectors feature an IP67 rating, making them completely waterproof and dustproof, ideal for outdoor docks and loading areas.
3. What kind of maintenance is required?
Maintenance is minimal. The laser has a lifespan of over 30,000 to 100,000 hours. Only occasional cleaning of the lens is recommended to maintain optimal brightness.
4. What are the power requirements?
The system is compatible with multiple power standards, supporting both DC 10-80V and AC 100-240V inputs.
5. Which beam colors are available?
The laser lines are available in three high-visibility colors: Green, Red, and Blue.
6. Is the laser safe for workers' eyes?
Yes, the system is designated with an IEC 3R safety rating, which is considered eye-safe under normal operating conditions.
