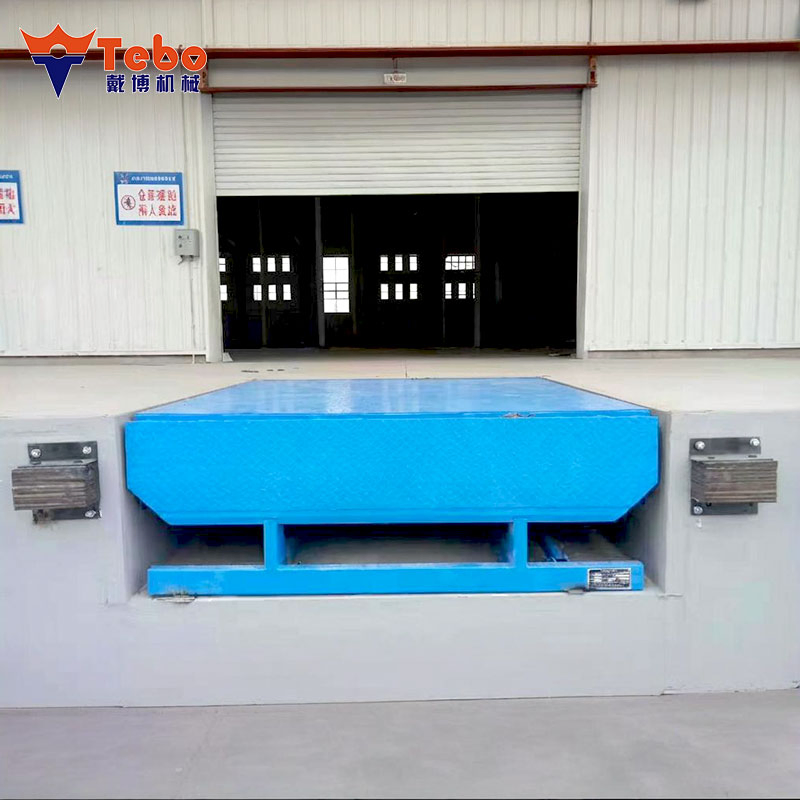

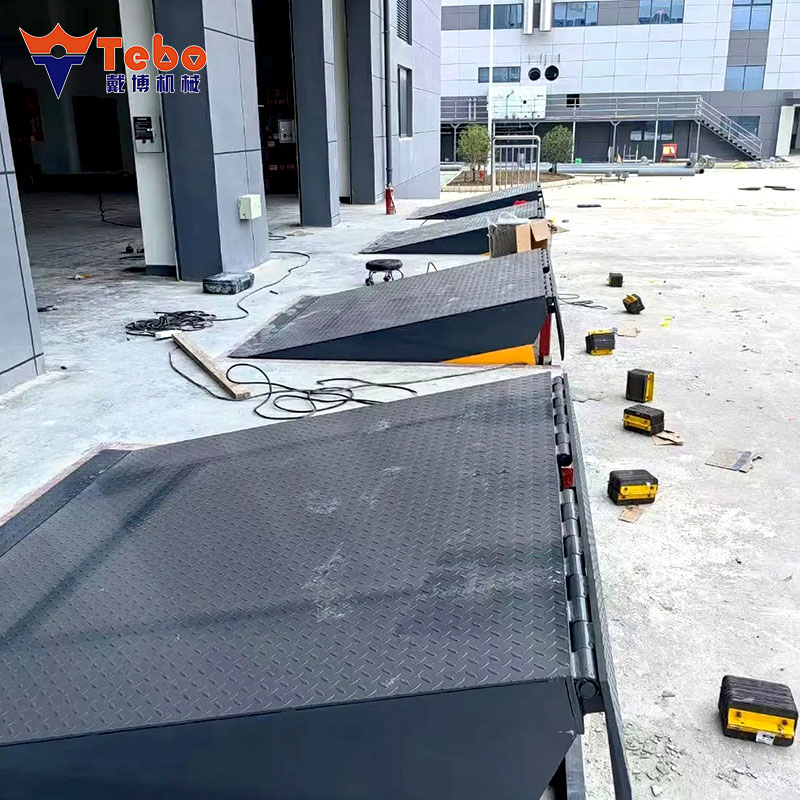

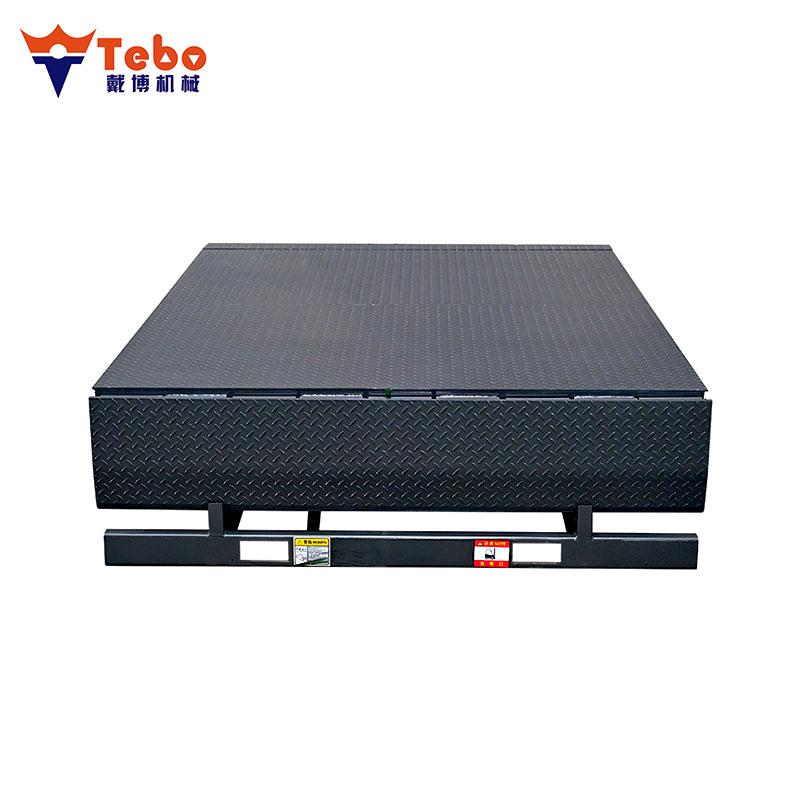

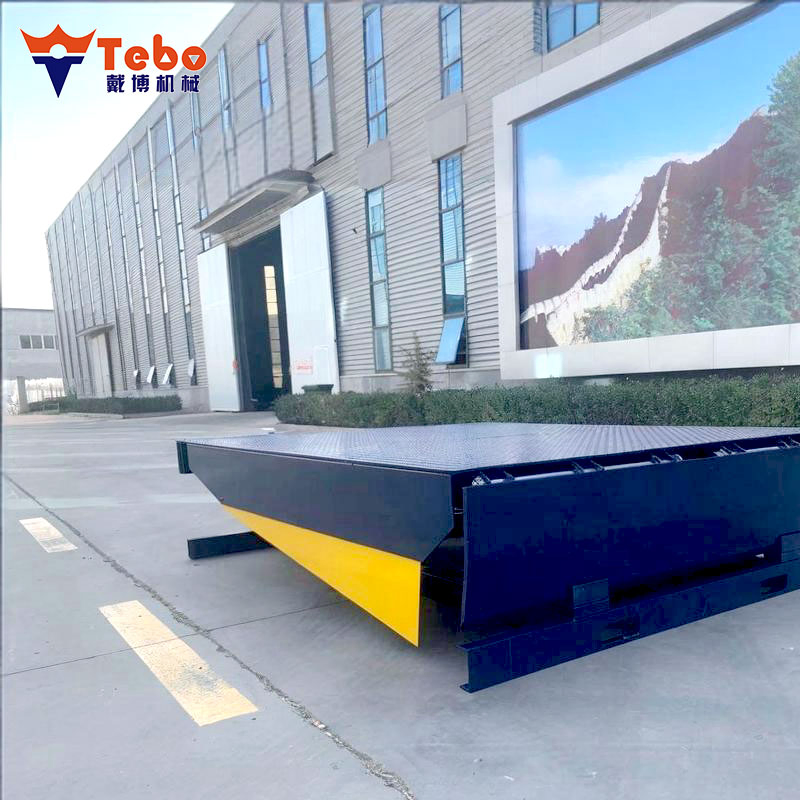

Dock Leveler System for Warehouse Industrial Truck Loading with Reliable Performance

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
TBDL-23
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Special Weight Level
Moves
Stationary
Driven Type
Hydraulic
Certification
GS, CE, RoHS, ISO 9001
Platform Size
2000*2500 mm
Power
0.75 Kw
Pit Size
2080*2540*600 mm
Self Weight
850 Kg
C

Professional Manufacturing

As a professional hydraulic elevator manufacturer strategically located in a major industrial hub, we are equipped with state-of-the-art facilities. We primarily produce freight elevators, home elevators, wheelchair elevators, and car lifts.

Our freight elevators utilize advanced hydraulic technology to ensure smooth operation and strong load-bearing capacity. Our technical team is capable of tailoring the most suitable elevator solutions that meet personalized needs for size, style, and functionality.

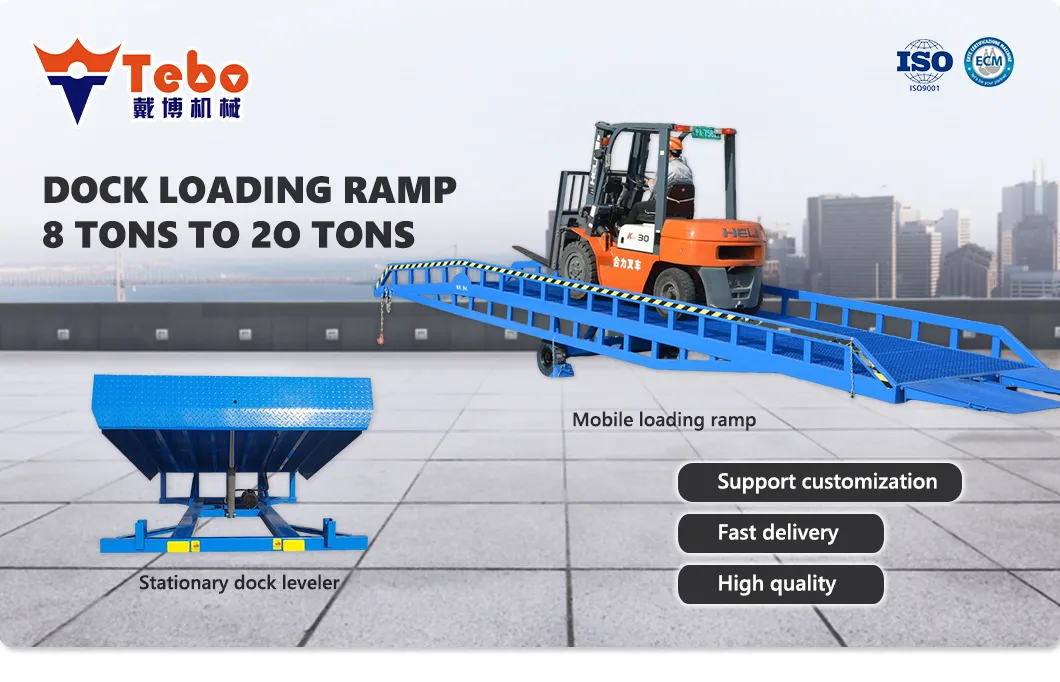

Dock Leveler System Overview
Production Facility
P

Product Description

A dock leveler is a crucial loading and unloading device widely used in the warehousing and logistics industry. It is primarily used to connect transport vehicles with the loading platforms of warehouses or factories. By adjusting the height of the platform, it compensates for the height difference between the transport vehicle and the platform, ensuring smooth transfer of goods.

This device typically consists of a sturdy steel platform, a hydraulic or mechanical lifting system, a connecting device, and a control system. Its design effectively saves space in warehouses and can be moved between different areas, adapting to various loading and unloading scenarios.

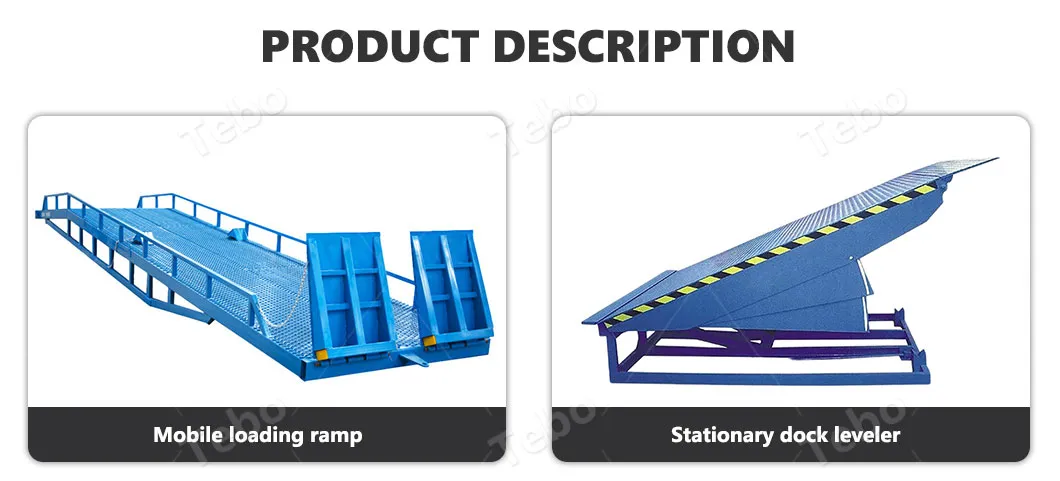

Dock Leveler Application
T

Technical Parameters

Type Platform Size (mm) Working Grade (mm) Upper (mm) Lower (mm) Power (kw) Pit Size (mm) Self Weight (kg)
KPTG6-0.62000*25004003002000.752080*2540*600≈760
KPTG8-0.62000*25004003002000.752080*2540*600≈800
KPTG10-0.62000*25004003002000.752080*2540*600≈850
KPTG12-0.62000*25004003002000.752080*2540*600≈900
Customization Available Based on Requirements
D

Product Details & Certifications

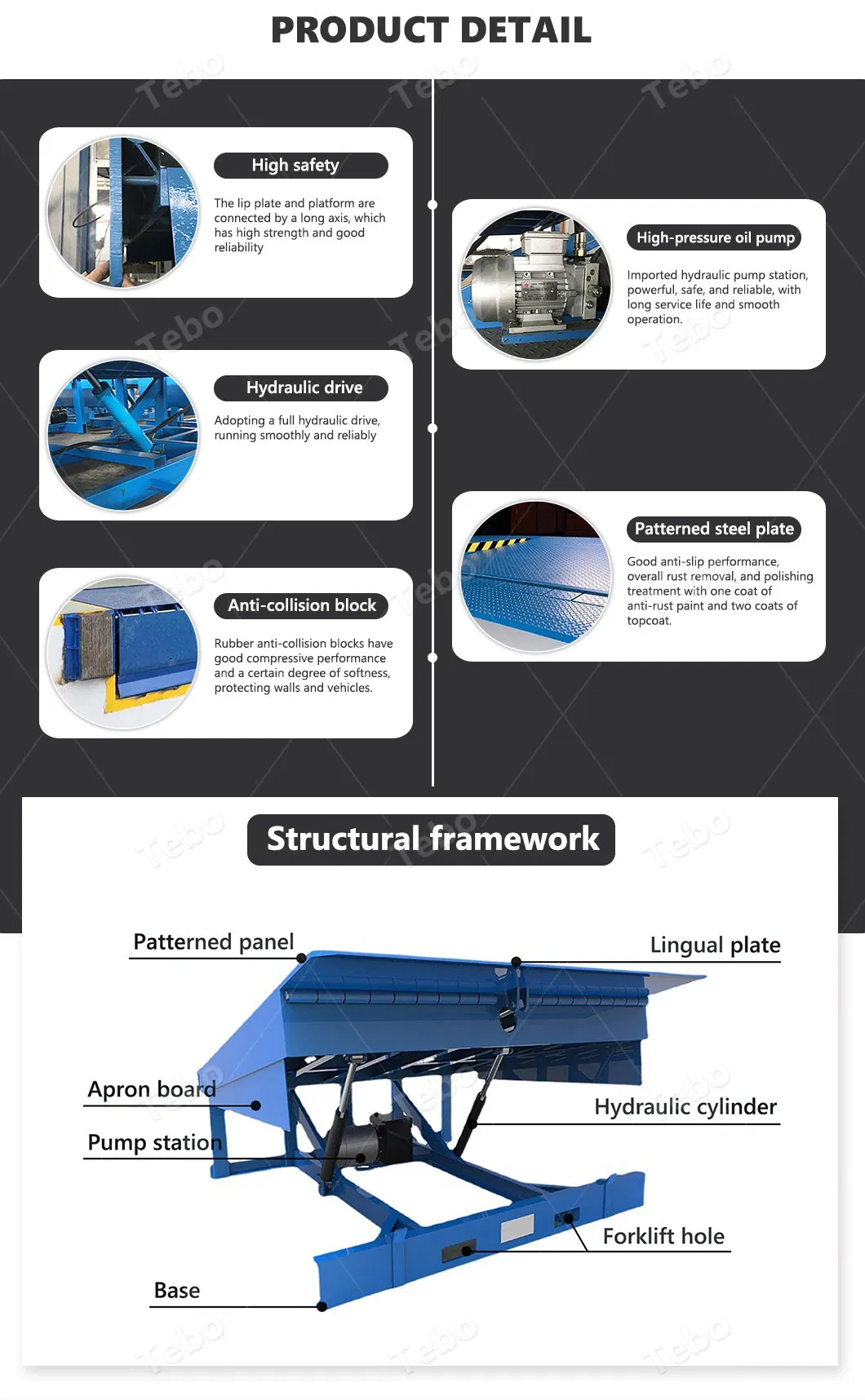

Dock Leveler Detail 1

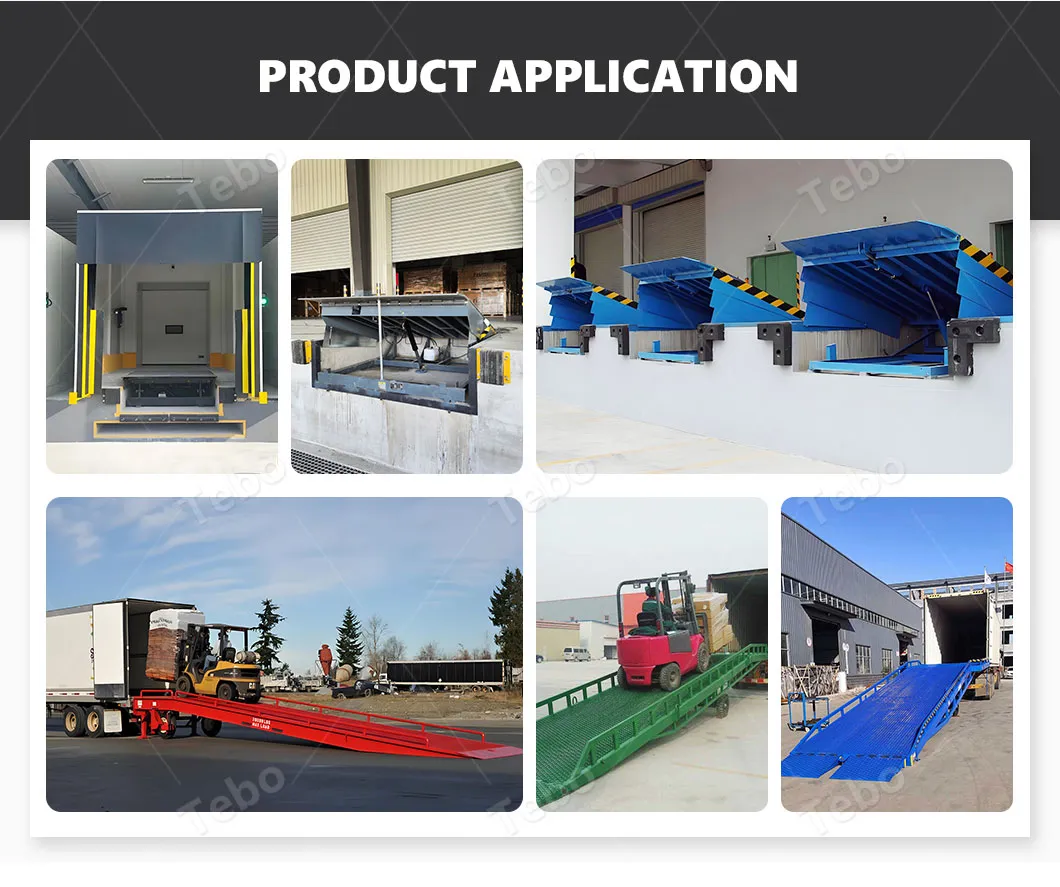

Dock Leveler Detail 2
Dock Leveler Detail 3
Certifications Display

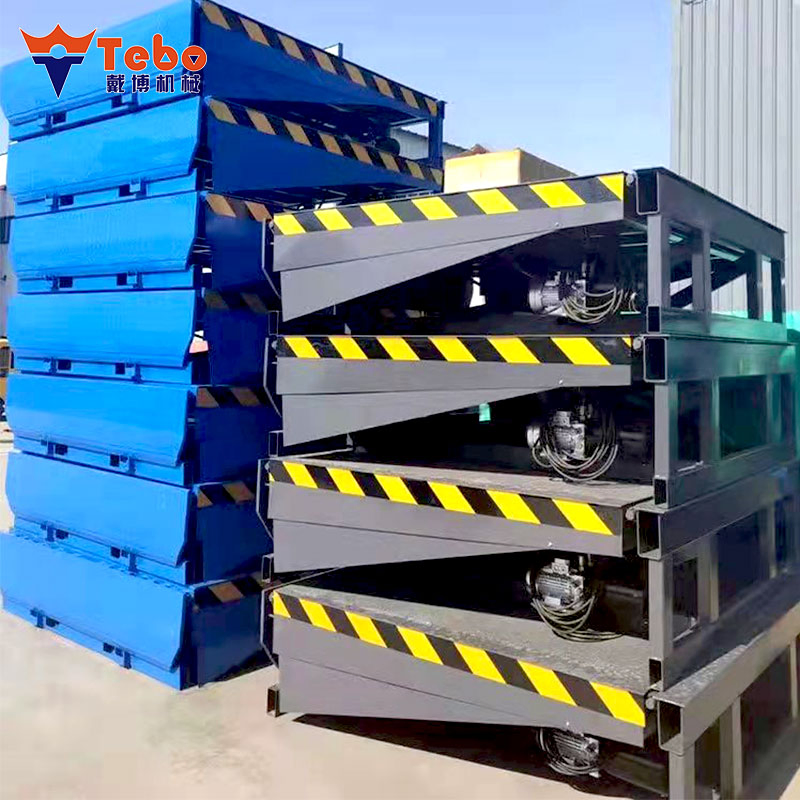

Packaging & Shipping
?

Frequently Asked Questions

What are the main advantages of your dock levelers?
Our equipment is produced in a specialized lift platform base, ensuring high quality and competitive market pricing. We provide a 12-month warranty for the whole equipment and professional after-sales support.
Do you provide support for installation?
Yes, we provide detailed drawings along with assembly and installation manuals. For custom models, our engineers provide bespoke blueprints to ensure a smooth setup process.
Can the platform dimensions be customized?
Absolutely. While we have standard sizes (like 2000*2500 mm), we specialize in tailoring the size, style, and functionality to meet specific client requirements and environment constraints.
How is the equipment packaged for international shipping?
We typically use standard export plywood cases. We can also accommodate special requirements for shipping marks and packaging details based on your needs.
What is the typical lead time for an order?
It depends on the specific product, but standard orders typically take about 10 working days after payment is received. We guarantee shipping as fast as possible.
What are the standard payment terms?
Standard terms include payment before production once the order is confirmed, with the remaining balance due before delivery. We accept EXW, FOB, CFR, and CIF terms.
