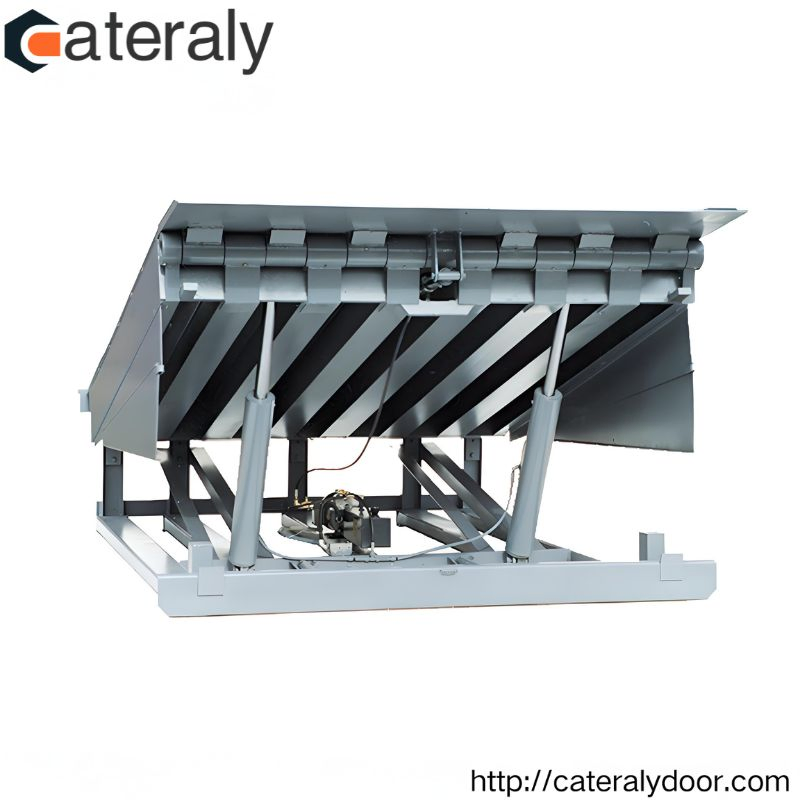

Durable Versatile Hydraulic Leveling System for Industrial Use

Customization: Available
After-sales Service: Free Replacement of Products and Accessories
Warranty: 1 Year

Product Description

i

Overview

Model NO.
CDL-01
Lift Drive
Hydraulic
Power Source
Manual
Table Size
2500*2500*600mm
Lift Control
Push Button
Min. Height
600mm
Weight
1000 Kg
Type
Hydraulic Lift
Load Capacity
6t-10t
Power
0.75kw

Packaging & Delivery:

Package Size
610.00cm * 610.00cm * 610.00cm
Gross Weight
300.000kg
D

Product Description

Hydraulic Leveling System

Introducing the Dock Leveler, an extraordinary auxiliary equipment carefully engineered to redefine the efficiency of loading and unloading goods. Ideal for a wide array of environments including bustling warehouses, critical stations, dynamic docks, expansive warehousing logistics bases, pivotal postal hubs, and vibrant logistics distribution centers. By leveraging its sophisticated capabilities, you can significantly reduce labor expenditure, enhance productivity, and expedite goods movement.

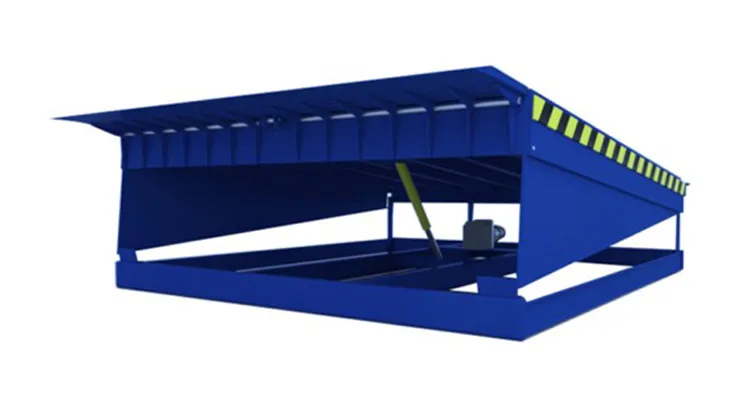

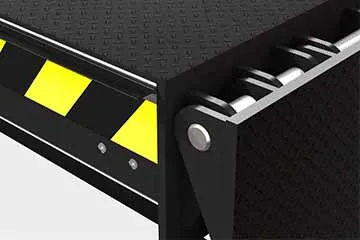

Dock Leveler Detail 1 Dock Leveler Detail 2

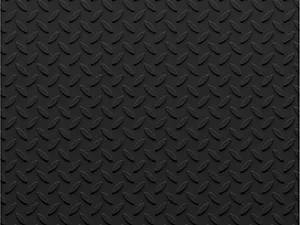

Operation 1 Operation 2 Operation 3
P

Product Parameters

Size:2000x2500x600mm or customized
Loading:6T/8T/10T
Color:Black/Blue/Grey (Option)
Table thickness(mm):8mm thick steel plate
Voltage:380v 50Hz
Power:0.75kw
Life cycle:8-10 years
Ambient temperature:-20ºC to +50ºC
Control box:24V electrovalve, 3/8 threads

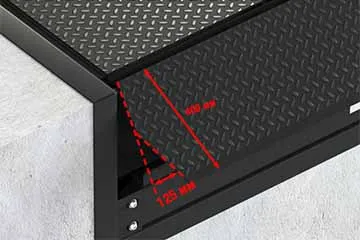

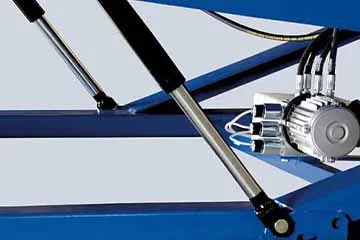

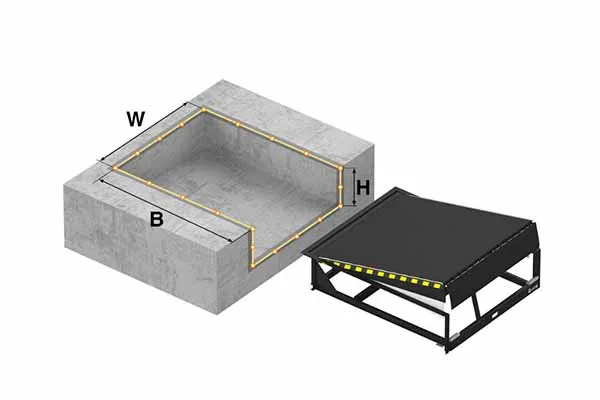

Parameter View 1 Parameter View 2 Parameter View 3

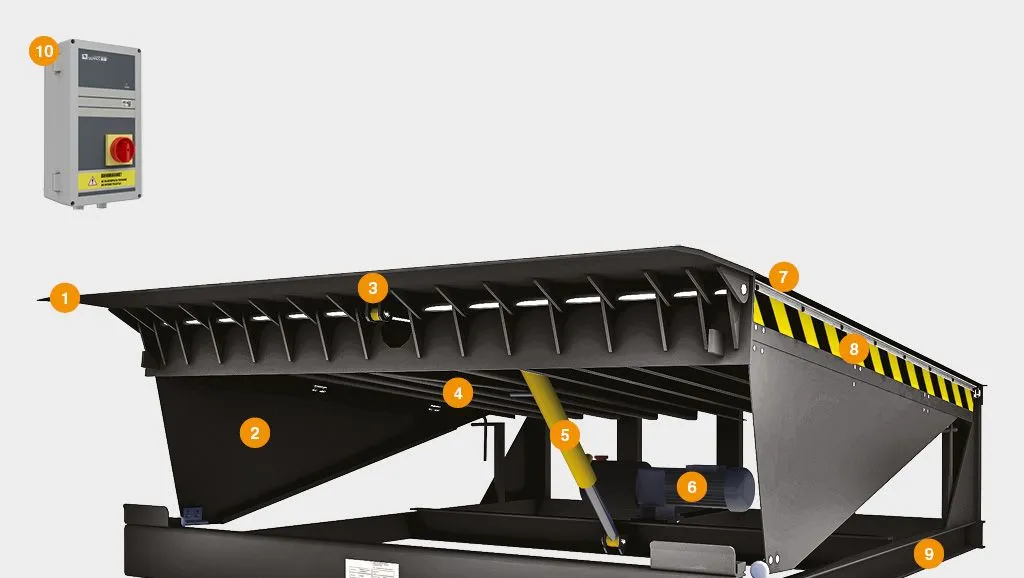

Schematic Diagram
S

Installation Instructions

Streamlining the installation of your dock leveler, we provide meticulously designed 3D and CAD drawings tailored specifically to meet your distinct installation requirements. Once your pit is ready, the uncomplicated setup of the dock leveler ensures that your logistics operations achieve an unprecedented level of convenience and efficiency.

C

Certifications

Certification 1 Certification 2
P

Production Gallery

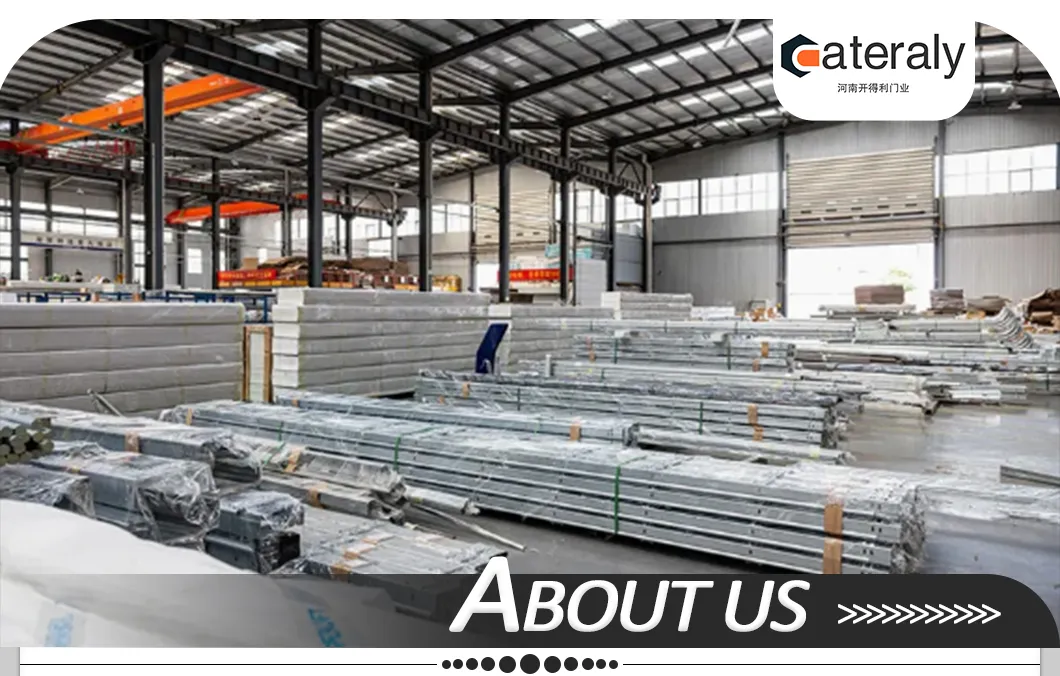

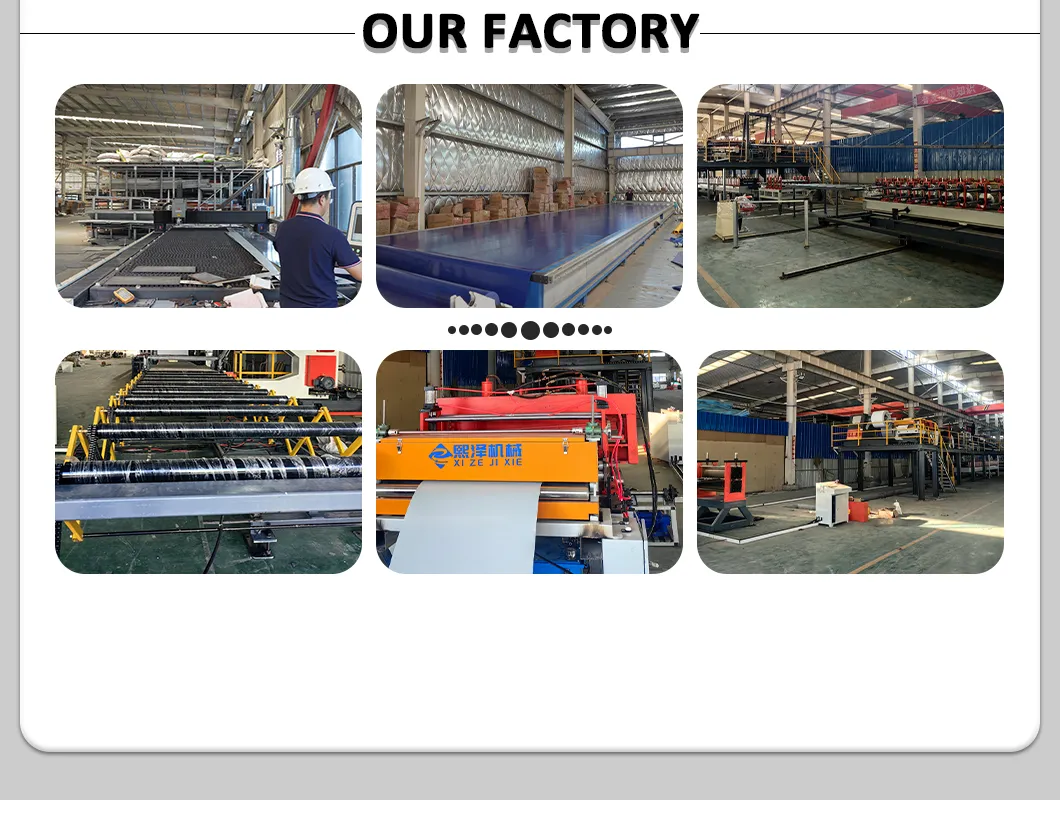

Factory View Production Process 1 Production Process 2 Production Process 3
F

Frequently Asked Questions

Why choose our products?
We offer the most cost-effective products with high quality, professional technical sales support for both pre-sale and after-sale, and over 28 years of production and customization experience.
What information is needed for installation?
Customers should provide the Size (Length, Width, Height), Cargo load requirements (6ton, 8ton, or 10ton), and details regarding the installation pit condition.
Can it be used with other warehouse equipment?
Yes, the dock leveler can be integrated with factory sectional doors, door seals, and vehicle restraints for enhanced safety and performance.
What is the standard lead time for customized orders?
Lead times vary depending on the level of customization, but standard orders are typically processed efficiently to ensure timely delivery for your project.
What voltage options are available?
The standard voltage is 380v 50Hz, however, other voltage configurations can be discussed based on your specific regional power requirements.
Is technical support available after installation?
Yes, we provide comprehensive professional technical support to ensure your equipment continues to operate reliably throughout its 8-10 year life cycle.
