| Model | DL320 |
| Driven Type | Hydraulic / Electric-Hydraulic |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm (W) x 2500mm (L) x 600mm (H) |
| Pit Size | 2030mm (W) x 2500mm (L) x 610mm (H) |
| Adjustment Range | +300 / -300mm |
| Certification | GS, CE, RoHS, ISO 9001 |
| Main Panel | 6mm Patterned Board |

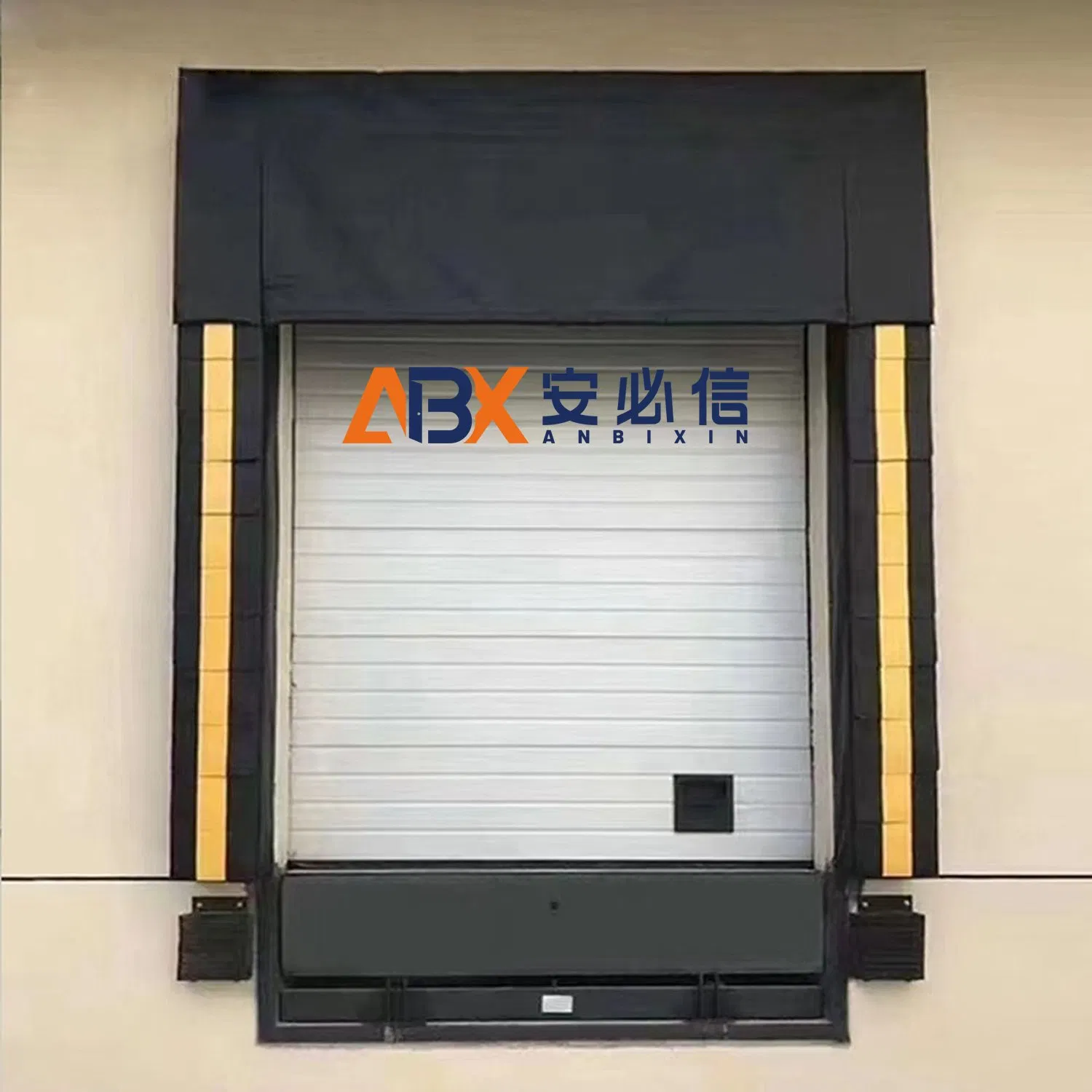

DOCK LEVELER: Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The main function is to build a bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading. It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during operation.
High-traction, anti-slip surface and weather-resistant components guarantee reliable performance in wet or icy conditions.
Fully customizable solutions with options for size, capacity, and control systems to fit your unique facility needs.
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.
| Adjust Time | Up Time ≤ 16s / Down Time ≤ 10s |
| Board Thickness | 12mm / 400mm |
| Skeleton | L-Shaped Bend structure |
| Safety Baffles | Automatically retractable side guards |
| Oil Type | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/- 1MPa |
| Base Frame | 10# Channel Steel Welded H-Shaped structure |
| Lifespan | ≥ 200,000 Use Cycles |
