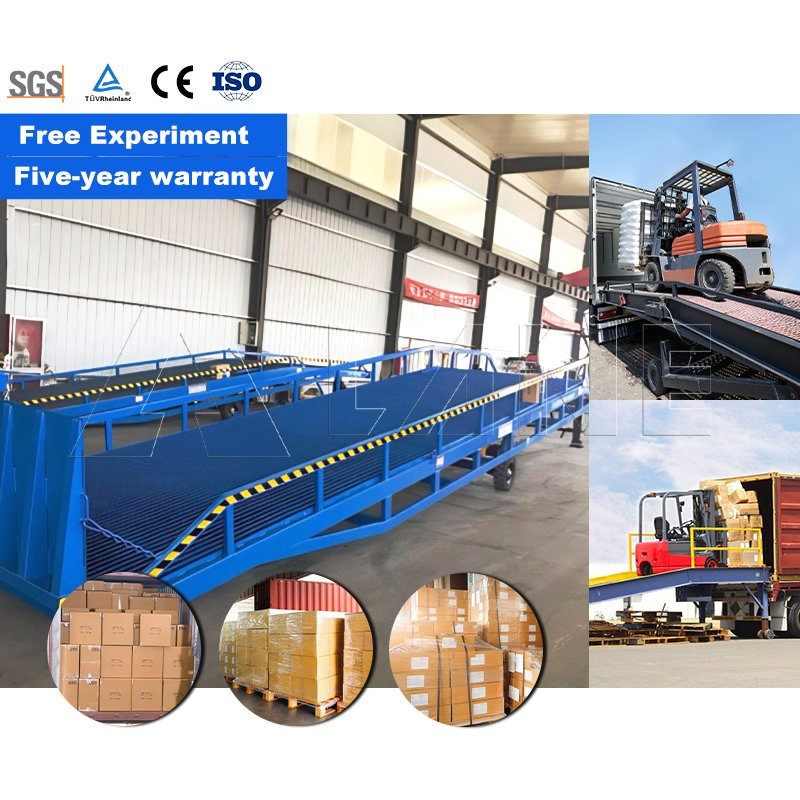

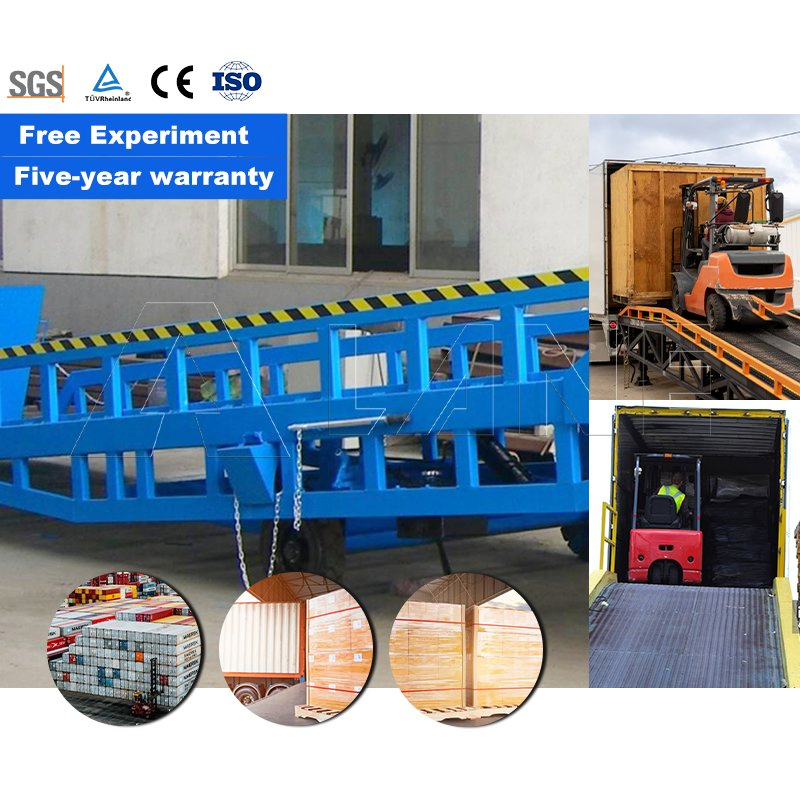

Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
1 / 5
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp
Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp

Warehouse Electric Adjustable Truck Mobile Dock Ramp Container Reloading Trailer Hydraulic Ramp

Customization: Available
After-sales Service: 5 Years
Warranty: 5 Years
Send Inquiry

Product Description

i

Basic Information

Model NO.
DCQ-001
Name
Monle Loading Ramp
Application
Automation Equipment
Function
Greatly Efficiency
Usage
Labor Saving
Advantage
Save Human Resource
Used for
Mobile
Feature
Stability
Material
Carbon Steel
Keyword
Time Saving
Transport Package
Standard Wooden Package
Specification
100kg
Origin
China
Production Capacity
3-10t
P

Packaging & Delivery

Package Size
400.00cm * 500.00cm * 1200.00cm
Gross Weight
500.000kg
D

Product Description

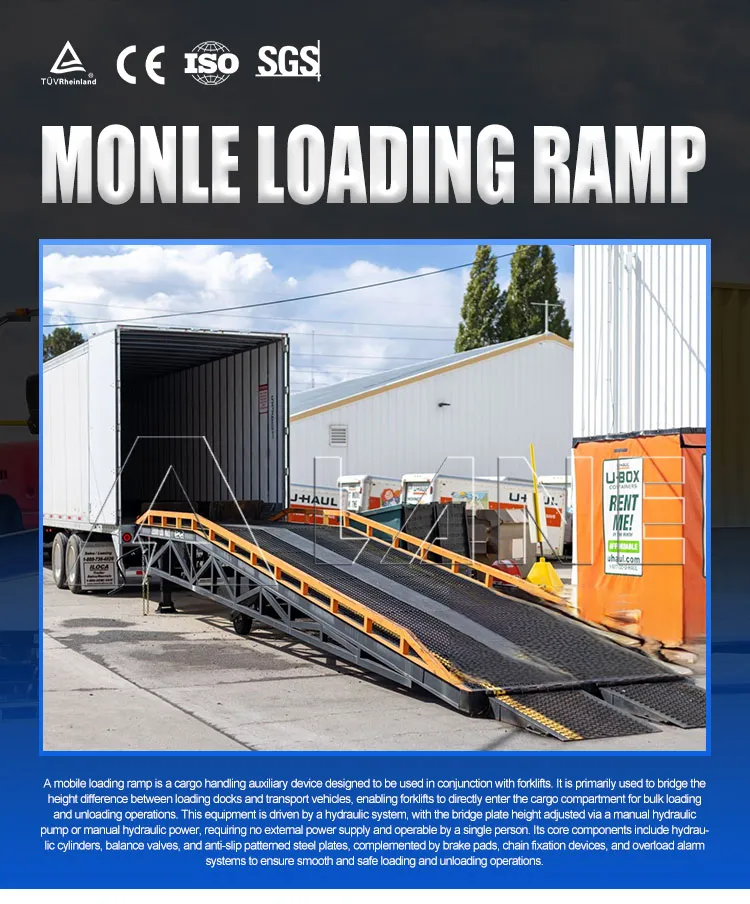

Mobile Dock Ramp
Application Scenarios

A mobile loading ramp is a portable device specifically designed to bridge the height difference between the rear of a truck bed and a loading platform (dock). Essentially a movable ramp, it addresses the issue of mismatched heights between the truck bed floor and the fixed dock, enabling forklifts, hand trucks, or personnel to safely and efficiently access the truck for loading and unloading operations.

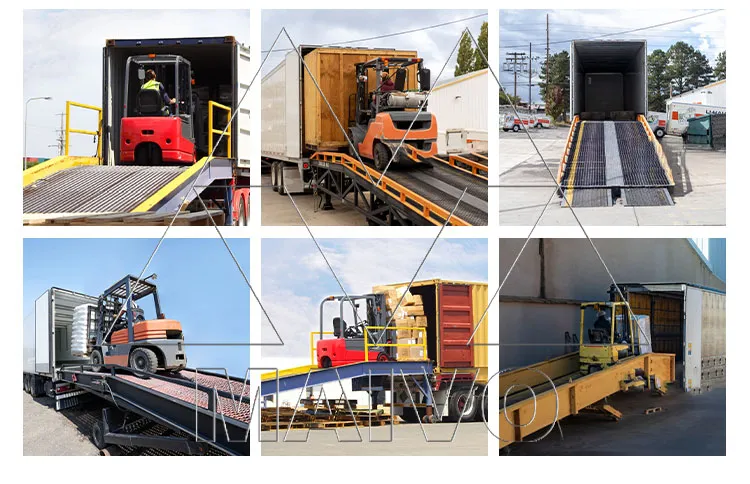

Loading Ramp Scene 1
Loading Ramp Scene 2
Mobile Loading Ramp Usage Steps
01
Position the ramp: Tow the loading ramp to the rear of the truck, ensuring the ramp's centerline aligns with the truck bed's centerline. Engage all wheel brakes.
02
Adjust height: Adjust the lip plate height, raising it slightly below the truck bed's floor level (leaving a 3-5cm buffer distance).
03
Connect to the cargo compartment: Slowly push the ramp forward to fully cover the rear edge of the cargo compartment (overlap ≥ 10 cm). Flip the lip plate hook to secure it to the cargo compartment floor, and attach the safety chain.
04
Slope Transition: Extend the transition plate and pull out the extended ramp at the rear of the bridge body to form a gentle slope against the ground.
05
Load Testing: Have the forklift enter the bridge deck empty, pause for 3 seconds, observe for any abnormal swaying, and gradually increase the load to rated capacity.
06
Loading/unloading operations: Maintain a speed ≤5 km/h; sharp turns or sudden braking on the bridge deck are strictly prohibited.

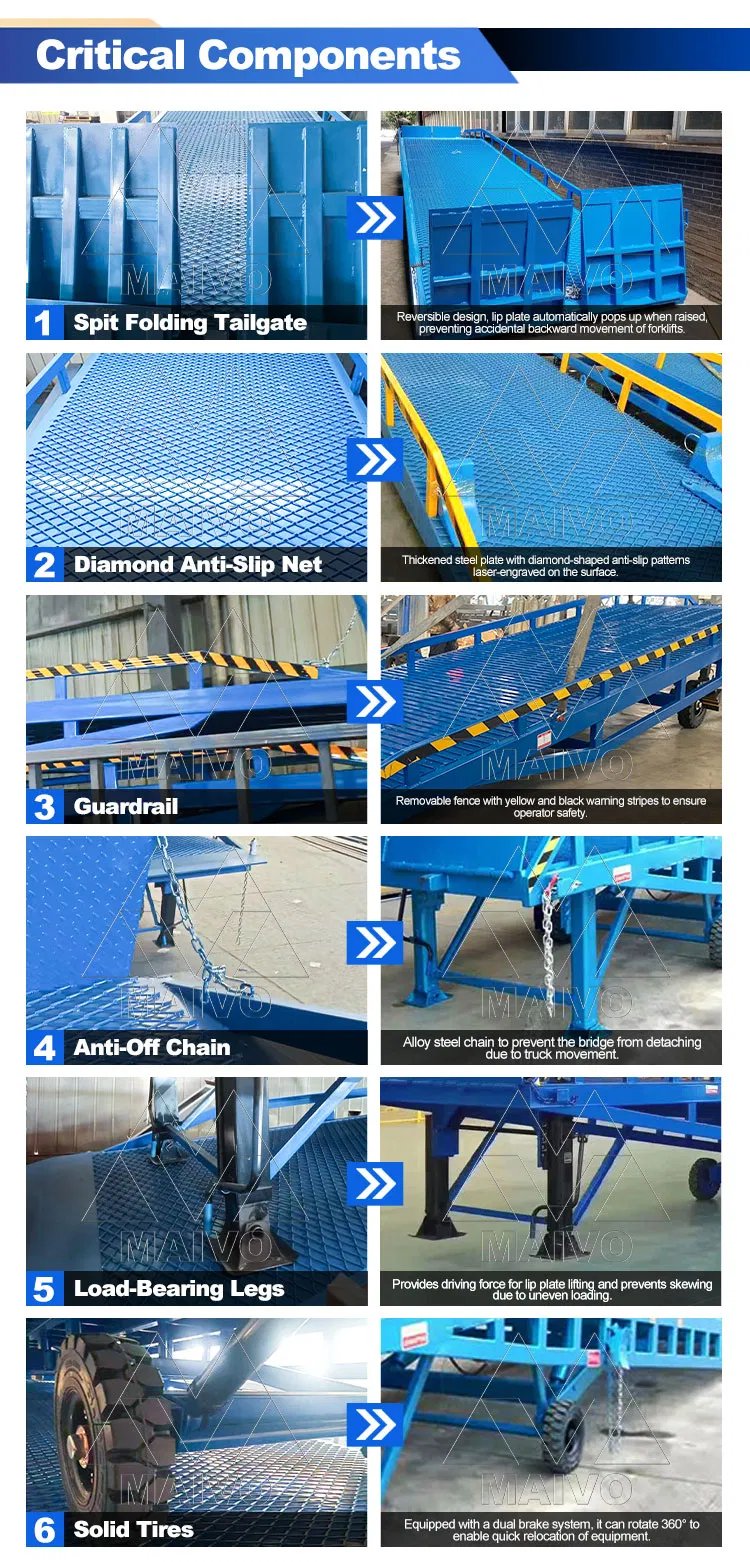

Technical Specifications

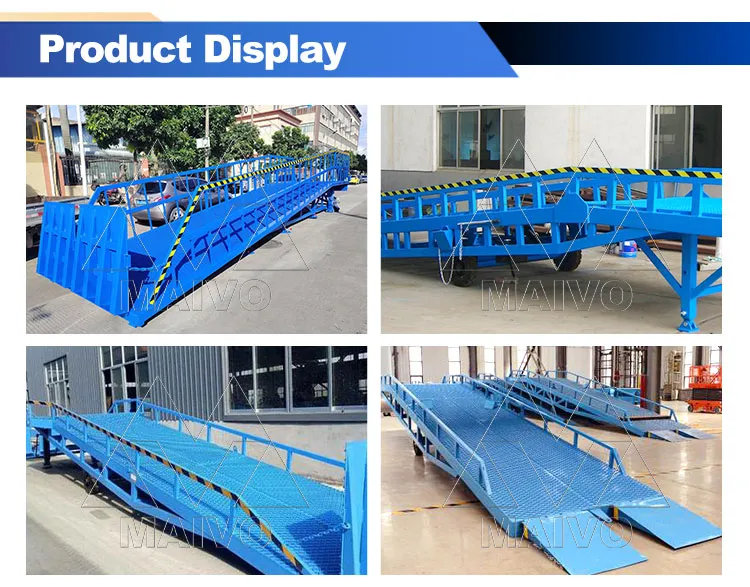

Operation View
Details View
Production Process 1
Production Process 2
Production Process 3
Factory Testing
Final Product
?

Frequently Asked Questions

Can I use this production line to produce multi granularity particles?
Yes, our production line is multifunctional. We can customize ring moulds of different sizes. In this way, you can easily adjust the size of your ball.
How to choose the most suitable machine?
Just tell us your raw materials, capacity (tons / hour) and the size of the final product, and we will choose the machine for you according to your specific situation.
What if our workers don't know how to operate the production line?
Our engineers will instruct the site workers on how to install the machines and build the workshop, and provide field testing and operational training.
Are you a trading company or a manufacturer?
We have a large factory covering an area of 10,000 square meters. Welcome to visit our facilities.
What is the production period for the equipment?
For single machines, production time is 7 days; for a whole production line, the time is no more than 30 days.
What is the quality guarantee and certification?
All of our machines have passed ISO and CE certification. We guarantee the highest quality with a warranty period of 5 years after the shipment date.
