Energy Recovery Hydraulic System with Power Regeneration

Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift
Carrying Capacity:	Weight Level

Basic Information

Model NO.	DL158	Moves	Stationary
Driven Type	Hydraulic	Running Mode	Stationary
Feature	Explosion-Proof, Insulating	Certification	GS, CE, RoHS, ISO 9001
Product Name	Dock Leveler	Keywords	Lifting Table
Rated Load	Net Load 8 Tons, Dynamic Load 6 Tons	Production Capacity	500,000 Pieces/Year

Product Description

🏗️

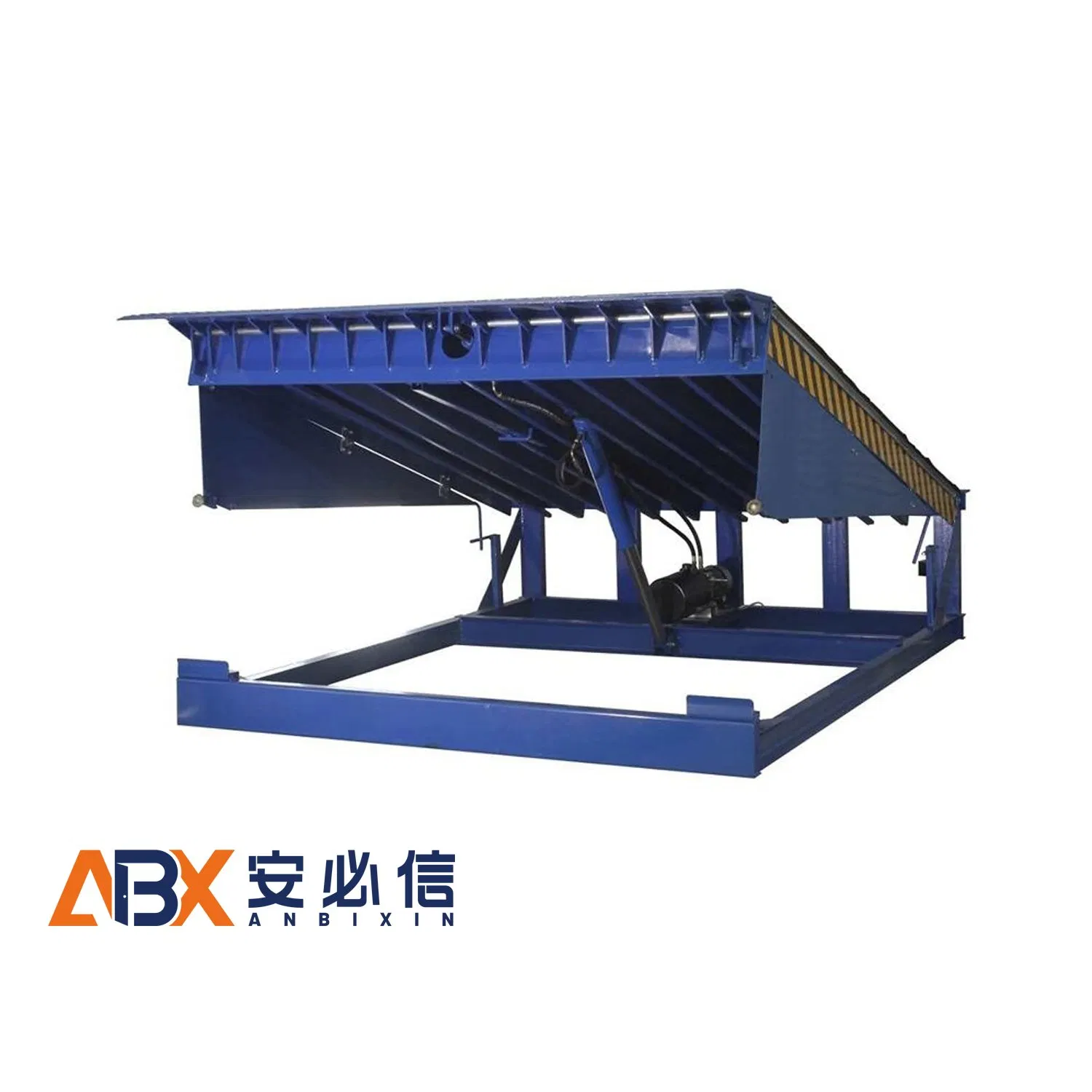

DOCK LEVELER SOLUTIONS

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes. These platforms bridge the gap between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading.

It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions and load-bearing capacity to meet diverse industrial needs.

Detailed Performance

ALL-WEATHER OPERATIONAL CONTINUITY

Featuring a high-traction, anti-slip surface and weather-resistant components, guaranteeing reliable performance in wet, icy, or challenging conditions.

TAILORED INFRASTRUCTURE

Fully customizable solutions with options for size, capacity, and control systems tailored to unique architectural requirements.

ENERGY-SMART PERFORMER

Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.

Technical Parameters

SPECIFICATION DETAILS
Rated Load	Net Load 8 Tons, Dynamic Load 6 Tons
Equipment Dimensions	2000mm Wide, 2500mm Long, 600mm High
Pit Size	Width: 2030mm, Length: 2500mm, Height: 610mm
Power Form	Electric-Hydraulic
Adjustment Range	+300 / -300 mm
Adjust Time	Up Time ≤ 16s, Down Time ≤ 10s
Board Thickness & Length	12mm / 400mm
Main Console Panel	6mm Patterned Board
Motherboard Skeleton	L-Shaped Bend
Side Body Guard	Automatically Retractable Baffles
Hydraulic Oil	32# Anti-Wear Hydraulic Oil (8MPa +/-1MPa)
Base Frame	10# Channel Steel Welded H-Shaped Structure
Durability	≥ 200,000 Cycles

Key Advantages

🔗

EFFORTLESS INTEGRATION

Designed to seamlessly bridge the gap between the loading dock and varying truck heights for smooth flow.

🛡️

SUPERIOR DURABILITY

Constructed with high-strength, industrial-grade steel to withstand heavy loads and continuous use.

⚠️

ENHANCED SAFETY MECHANISMS

Equipped with full-range toe guards and velocity fuses to protect workers and significantly reduce accident risks.

Frequently Asked Questions

Are you a manufacturer or a trading entity?

We are a manufacturer integrating industry and trade, providing comprehensive solutions and direct production oversight.

Can I customize the logo and color of the dock leveler?

Yes, we support on-demand customization, including LOGO branding, specific color requirements, and appearance size adjustments.

What payment methods are accepted?

We support multiple payment methods including T/T, Western Union, Paypal, and cash. Specific terms can be negotiated.

How are the products transported?

We typically choose sea, air, or land transportation based on the goods' condition and your specific delivery requirements.

How can I obtain an accurate quotation?

Please provide your specific demand information and product requirements, and we will customize a professional solution and price quote for you.

What safety features are included in the dock leveler?

Our units include essential safety mechanisms such as full-range toe guards, automatically retractable side baffles, and velocity fuses for equipment protection.
