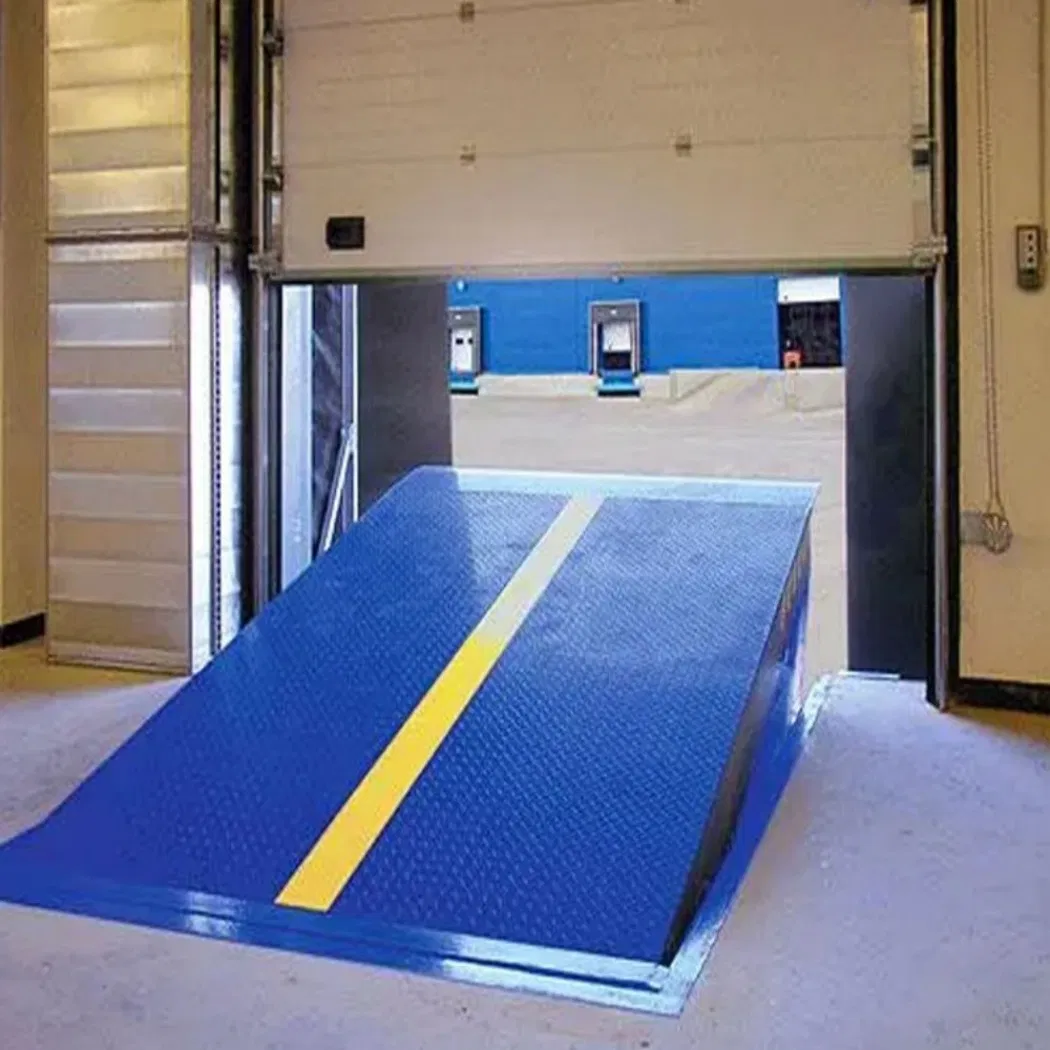

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.
We offer a wide range of dock levelling solutions: Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

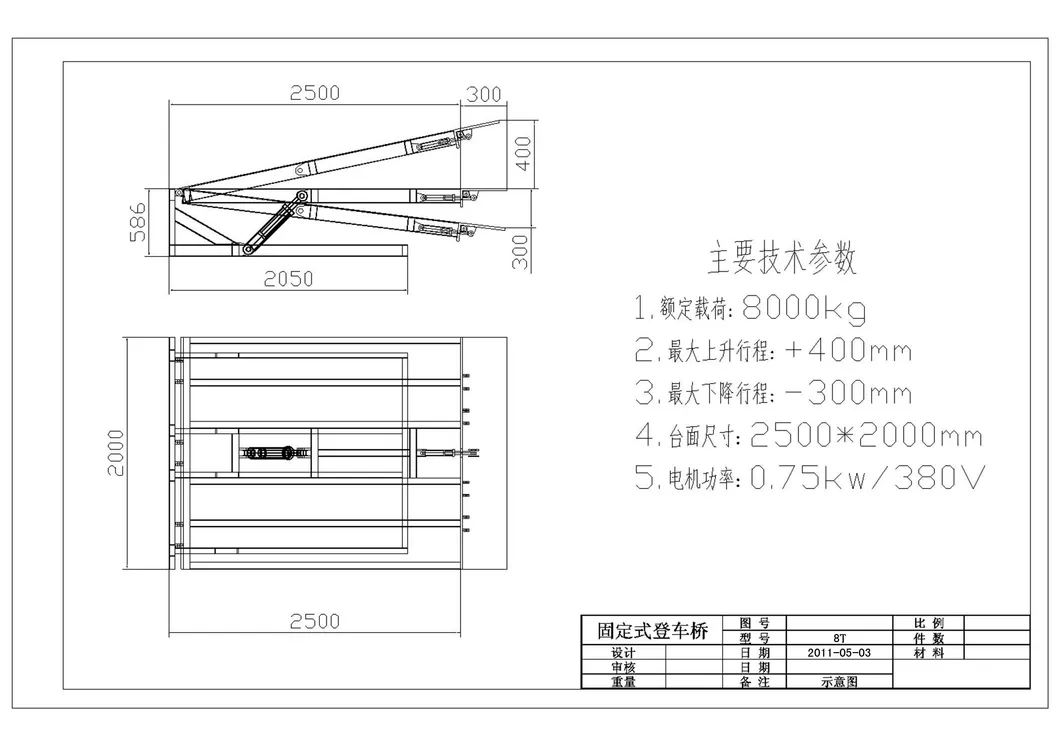

| Model | Capacity (t) | Platform Size | Distance | Lip Board Size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |

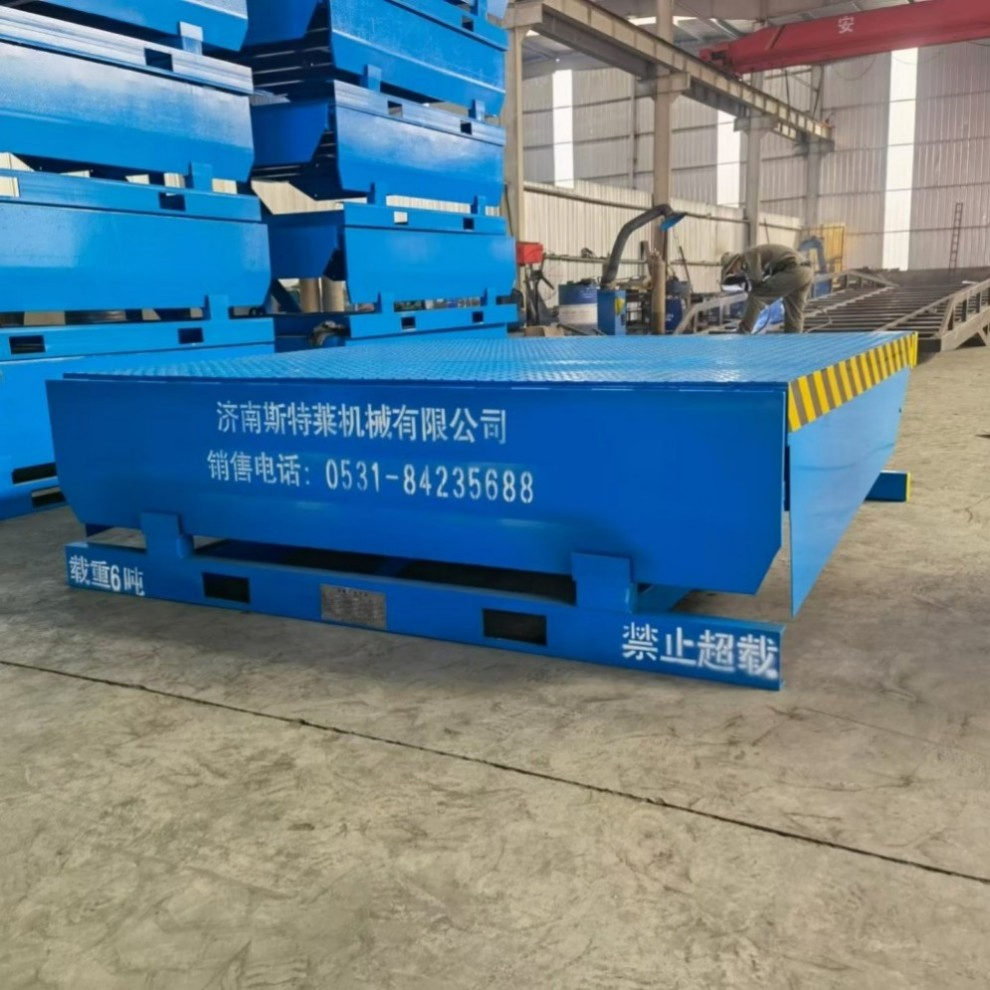

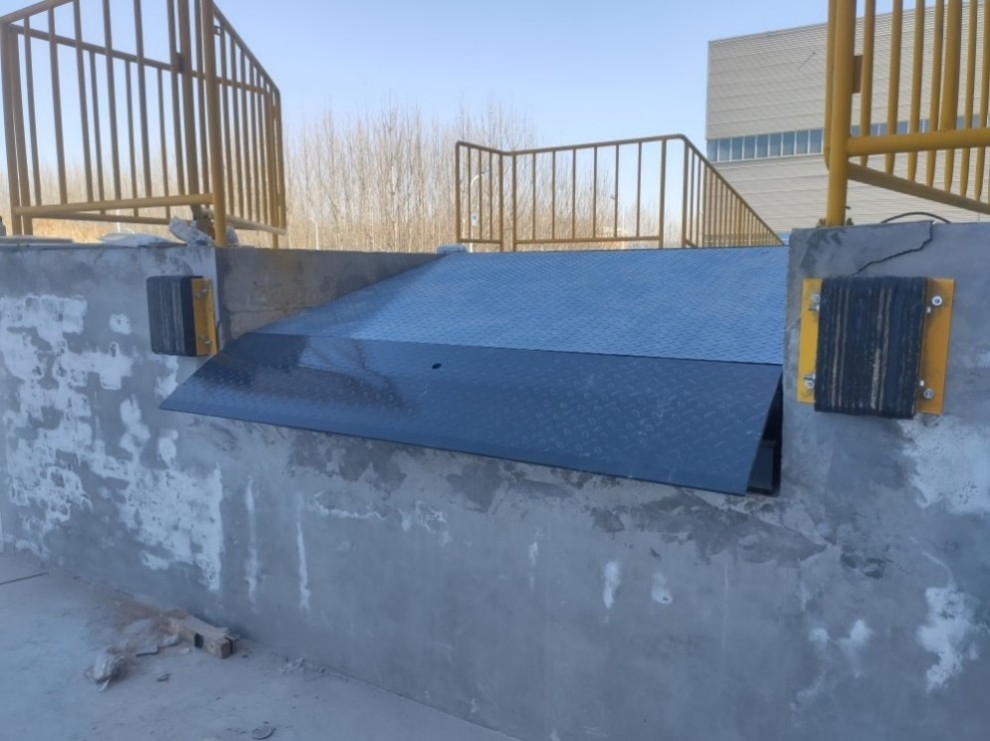

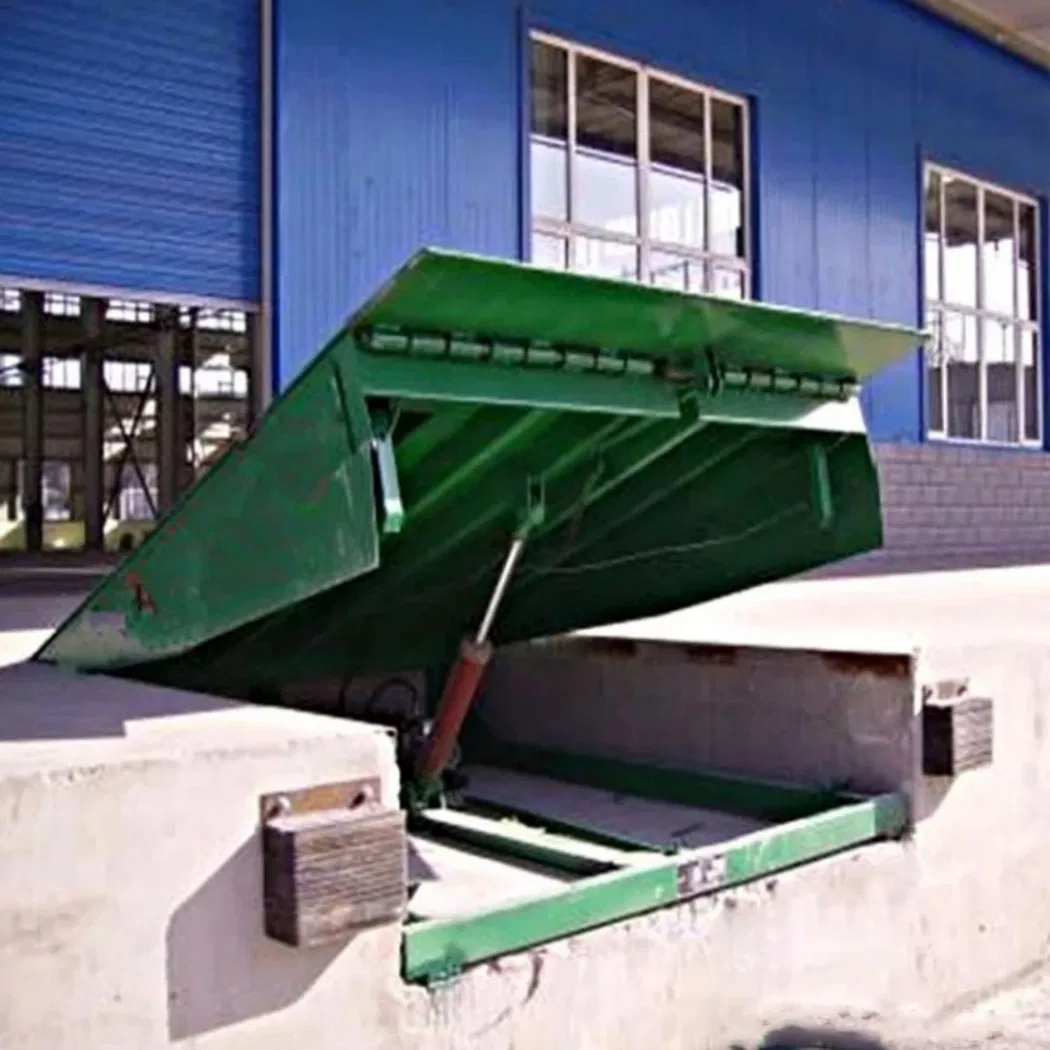

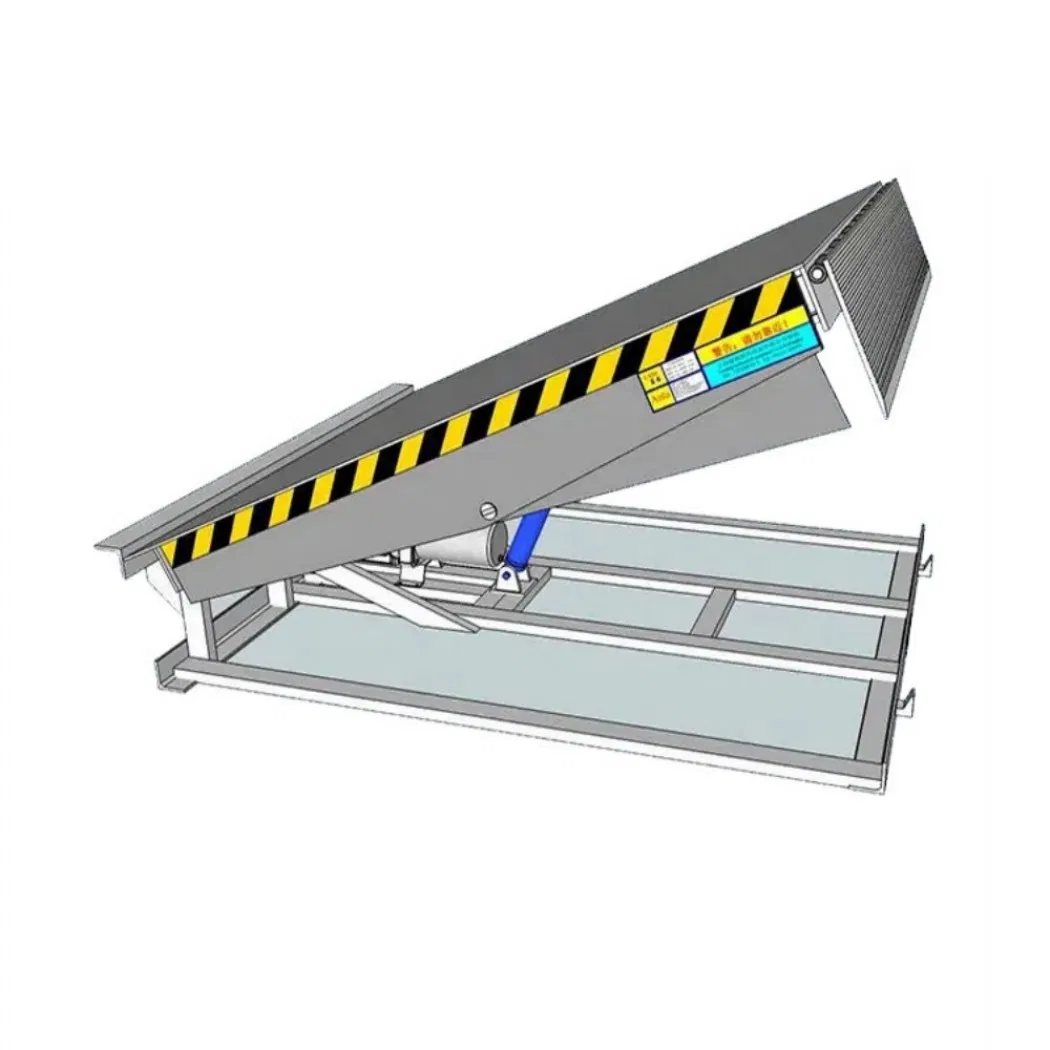

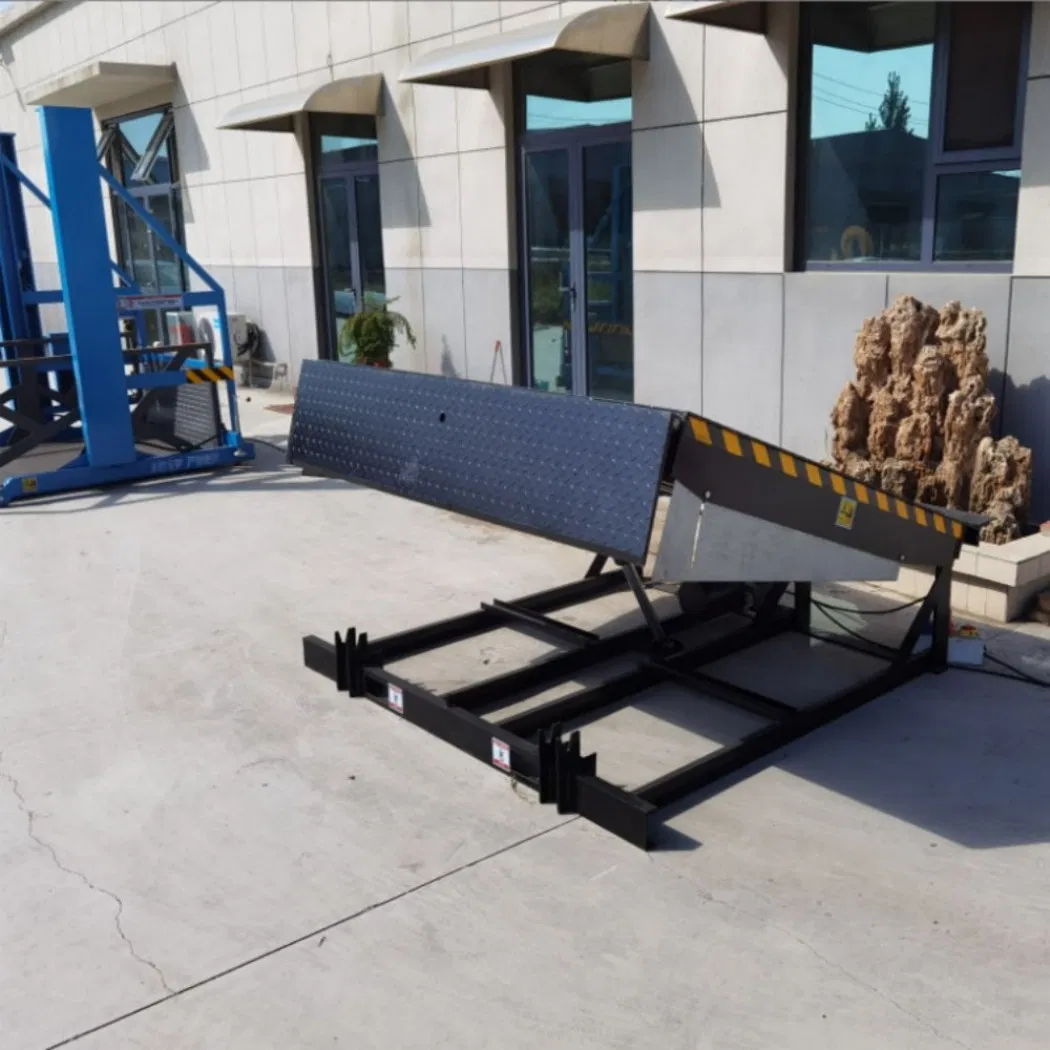

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. Equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.
The adjustable height feature allows it to adapt to different vehicle types, making it suitable for various scenarios such as logistics warehouses, docks, and manufacturing plants.

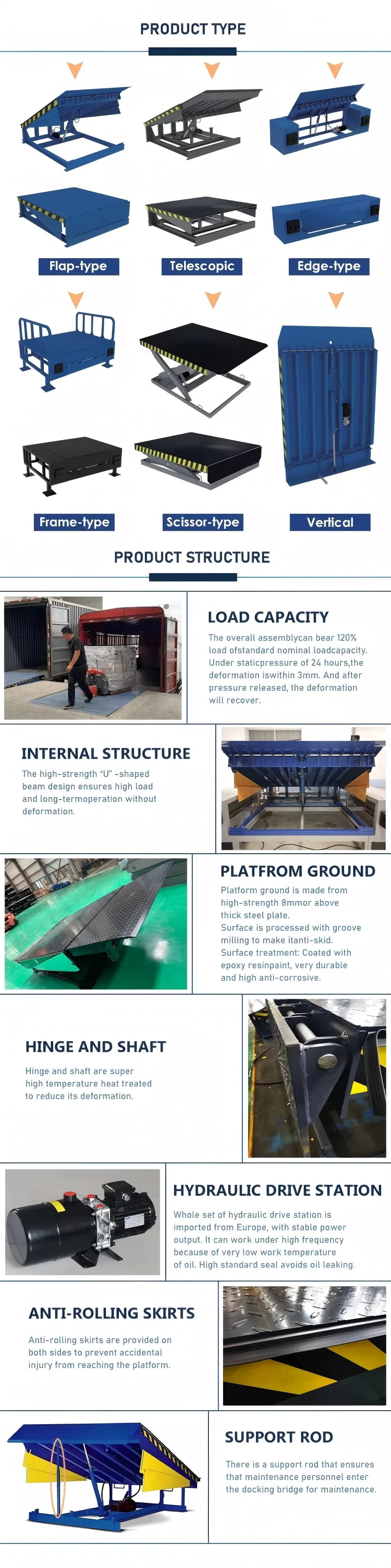

| System | Free maintenance design idea for a long run using application. |
|---|---|
| Design | Hydraulic driving system leads operation of main deck and lip. Pump, pipe, and tank are collected in one part under the deck. Hydraulic velocity fuse ensures automatic stopping during heavy loading. |
| Safety | Full range foot guard, penetrating safety support bar, and front tubular hinge with 25mm diameter latch. Galvanized long shaft treatment to prevent rust. |
| Structure |
• 8mm high strength embossed non-slip steel main plate. • 14# I-beam steel reinforcement (8 channels). • 15mm thickness extension lip plate (L=500mm). • Double wire mesh hydraulic oil tube (max 48MPA). • Sandblasting treatment for superior coating adhesion. |
