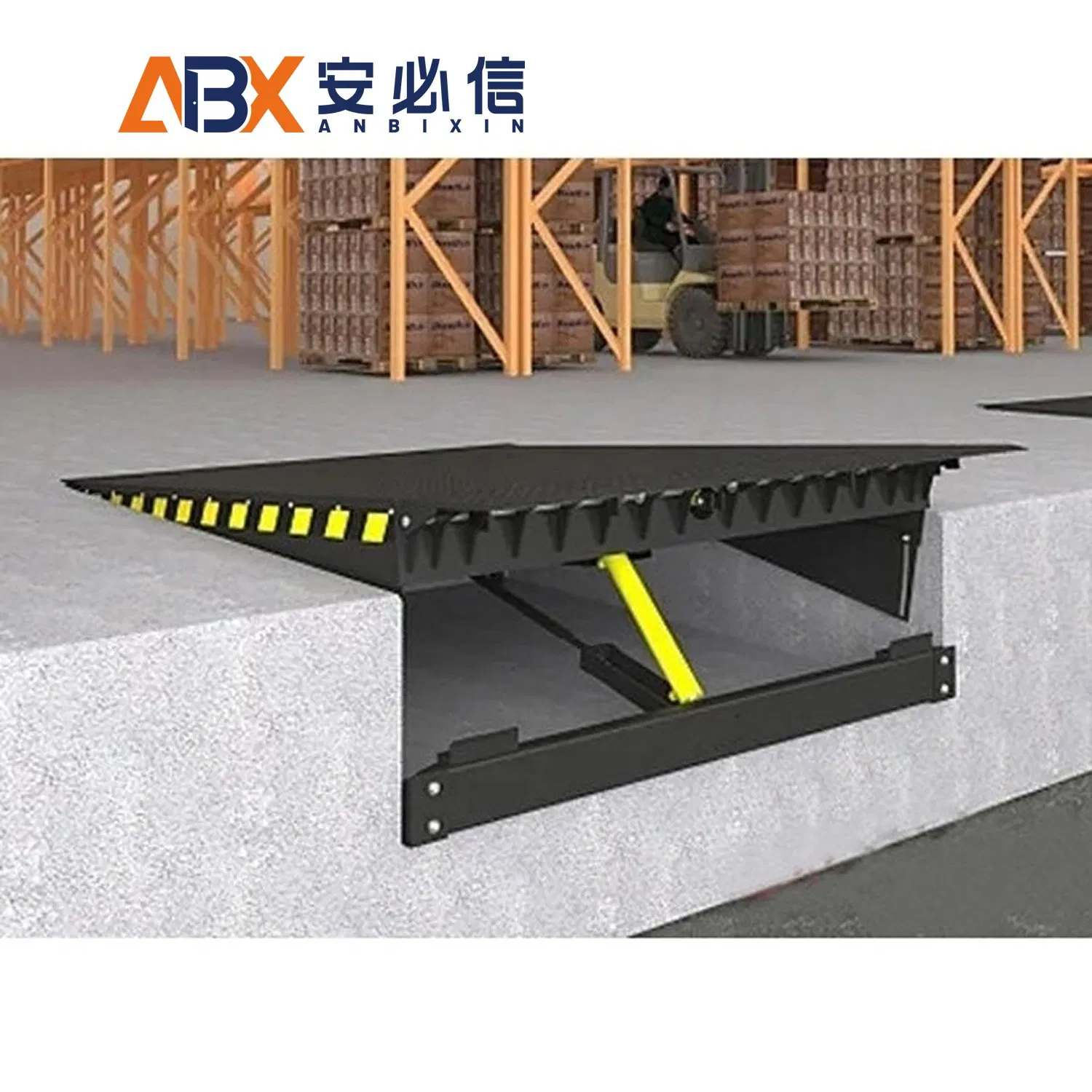

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The loading and unloading platforms are divided into fixed and mobile types. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading. It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during operation.
Featuring a high-traction, anti-slip surface and weather-resistant components, our Dock Leveler guarantees reliable performance in wet, icy, or challenging conditions.
Fully customizable options for size, capacity, and control systems tailored to your unique architectural and operational requirements for seamless integration.
Advanced hydraulic or air-powered systems engineered for low energy consumption without sacrificing power or speed, benefiting green logistics.
| Specification Item | Details |
|---|---|
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm(W) * 2500mm(L) * 600mm(H) |
| Pit Size | 2030mm(W) * 2500mm(L) * 610mm(H) |
| Power Form | Electric-Hydraulic |
| Adjustment Range | +300 / -300 mm |
| Adjust Time | Up Time ≤16s / Down Time ≤10s |
| Board Thickness | 12mm (Length 400mm) |
| Main Console Panel | 6mm Patterned Board |
| Skeleton Structure | L-Shaped Bend |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/- 1MPa |
| Anti-Collision Block | 300*200*100 Laminated Belt Stamping |
| Service Life | ≥ 200,000 Times |
Speeds up loading cycles by providing a stable and reliable platform, boosting overall throughput and efficiency.
Equipped with full-range toe guards and velocity fuses to protect workers and equipment, reducing accident risks.
Robust design and high-quality components reduce downtime and lower lifetime ownership costs.
