| Model NO. | DL458 |
| Product Name | Dock Leveler |
| Moves | Stationary |
| Driven Type | Hydraulic |
| Feature | Explosion-Proof, Insulating |
| Certification | GS, CE, RoHS, ISO 9001 |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Power Form | Electric-Hydraulic |
| Adjustment Range | +300 / -300 mm |
| Production Capacity | 500,000 Pieces/Year |

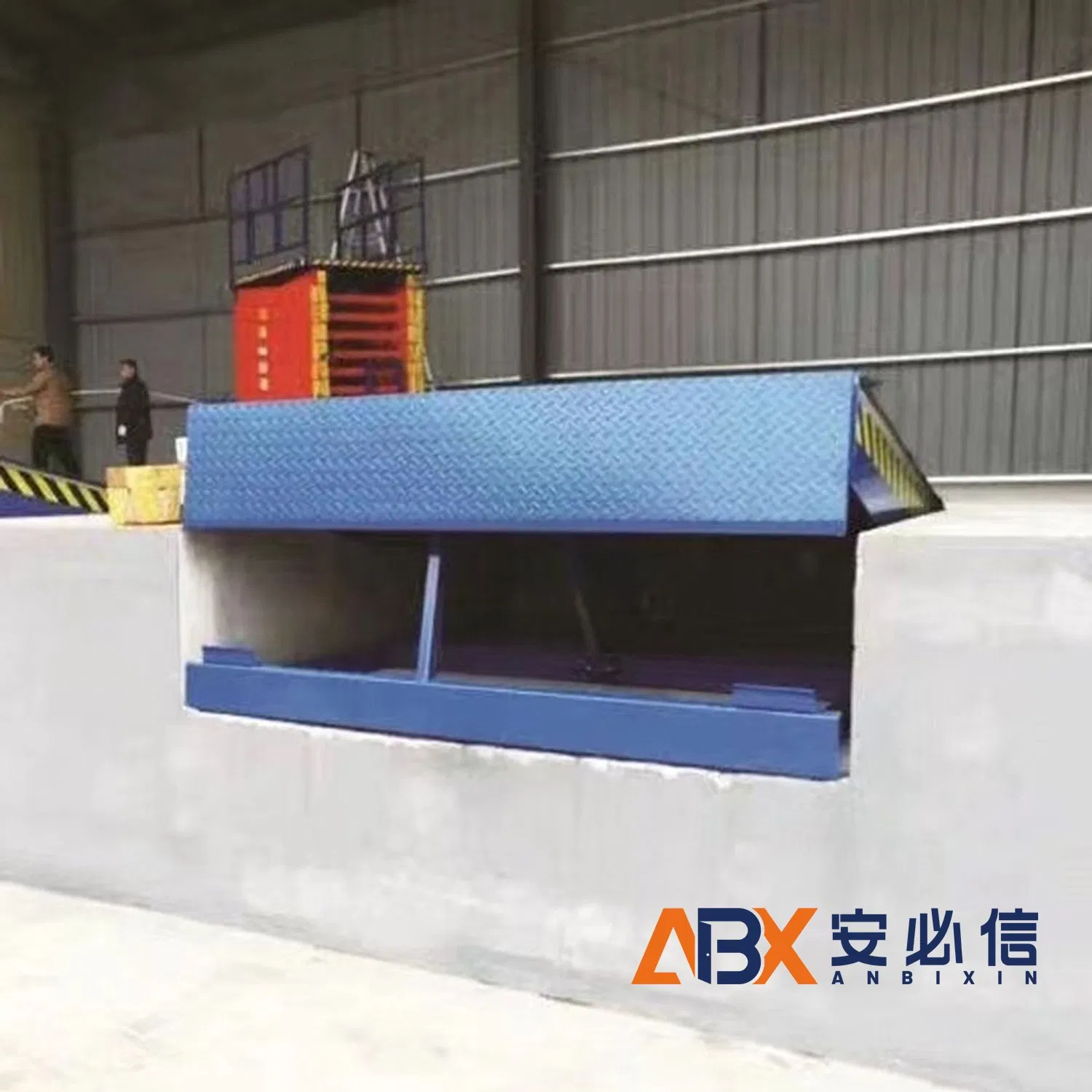

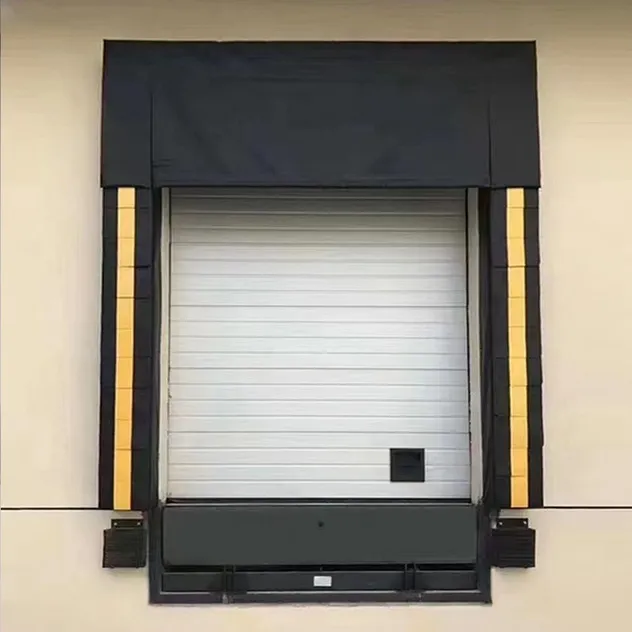

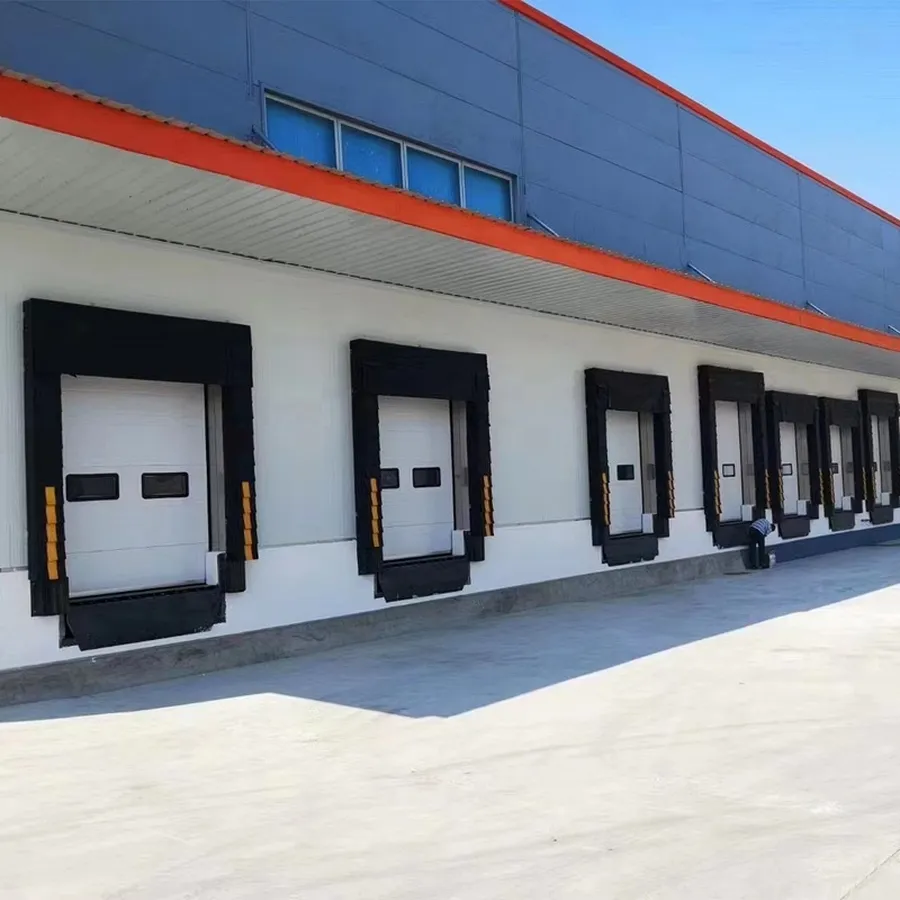

Loading and unloading platforms are essential for hydraulic, pneumatic, or mechanical installations. They empower users to safely and efficiently unload trucks of all heights and sizes.

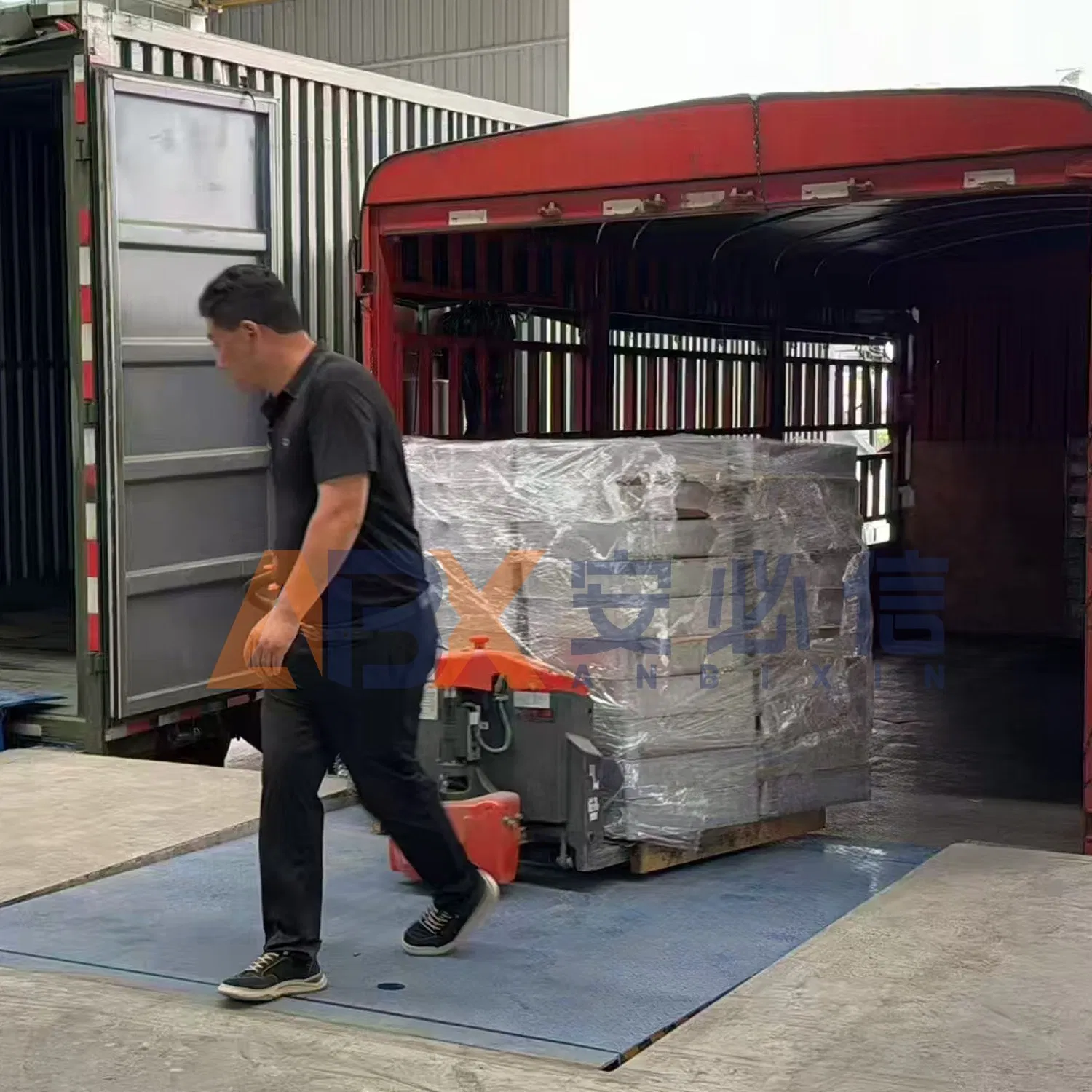

Our solutions bridge the gap between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading operations. The system automatically adjusts its height according to different vehicle models and weight changes during the loading process.
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjust The Time | Up Time ≤16s, Down Time ≤10s |
| Board Thickness | 12mm Plate, 400mm Lip |
| Console Panel | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Side Guard Baffles | Automatically Retractable Safety Baffles |
| Hydraulic Pressure | 8MPa +/- 1MPa |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Service Life | ≥ 200,000 Times |
Enhanced Safety: Equipped with full-range toe guards and velocity fuses to protect workers and equipment, reducing accident risks.
Low Maintenance: Engineered for dependable performance with minimal upkeep, featuring high-quality components that lower lifetime ownership costs.
