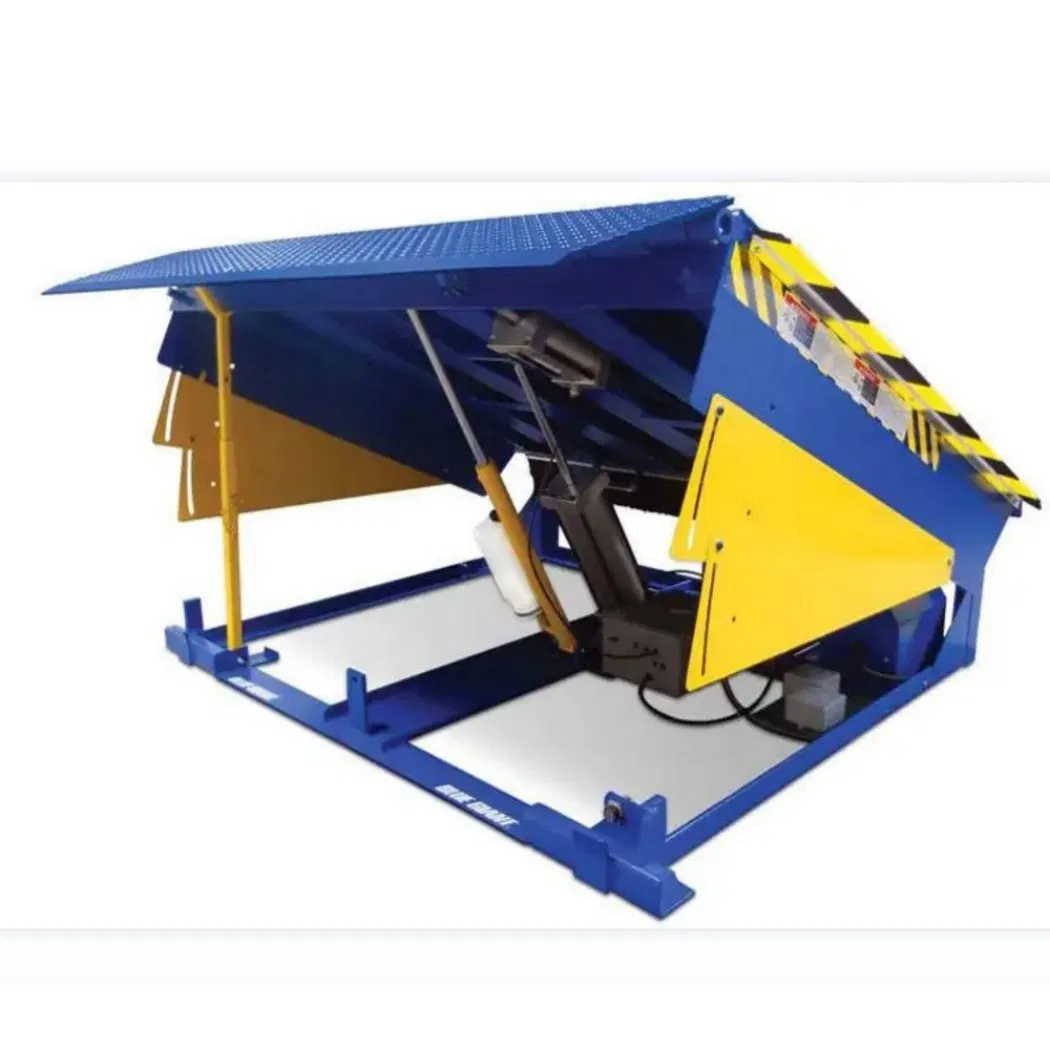

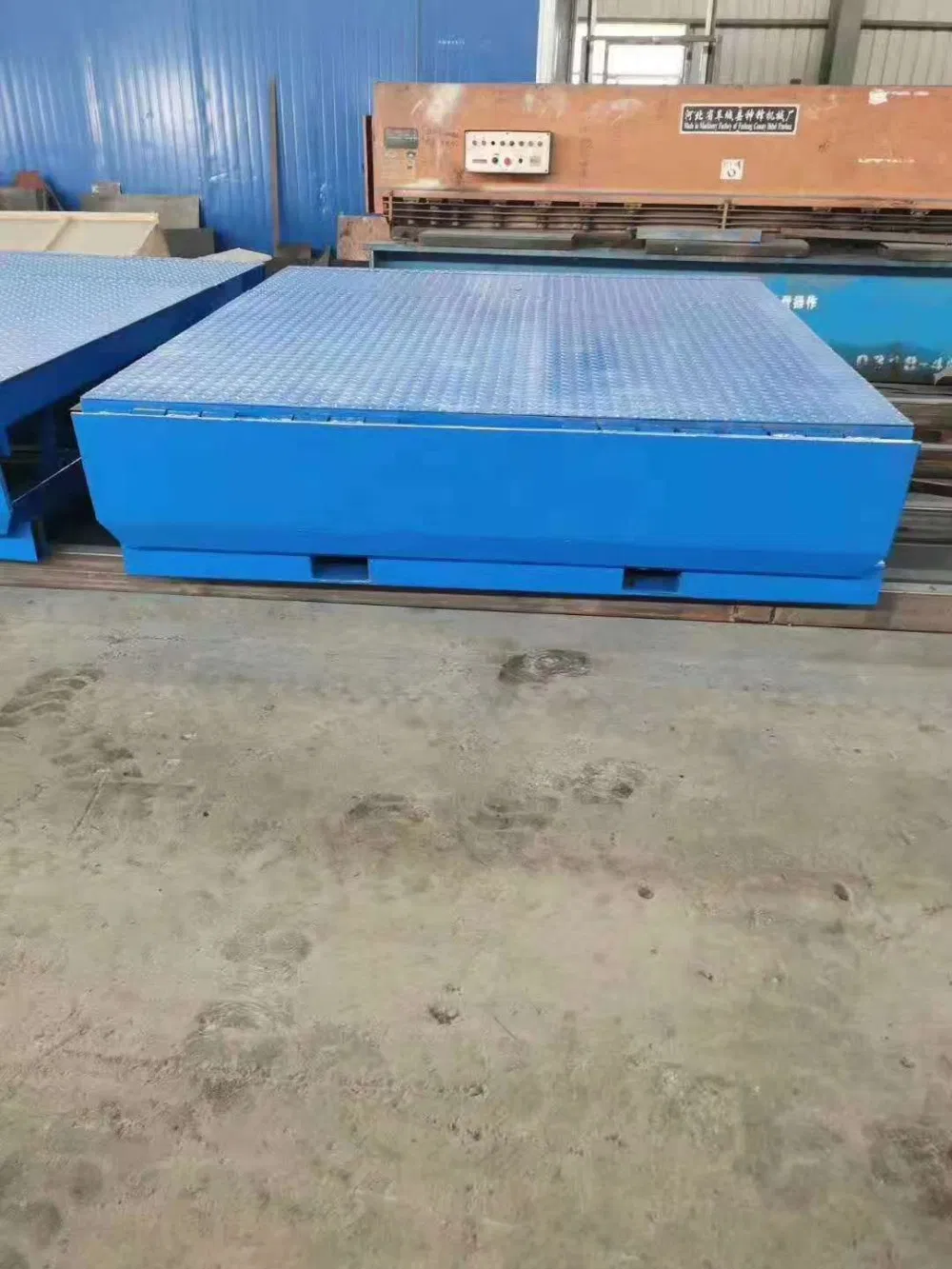

6 Ton 10 Ton Adjusted Hydraulic Towable Dock Leveler Fixed Container Loading Ramp Platform

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

📋

Basic Information

Model NO.:Fixed Dock Leveler

Lift Mechanism:Telescoping Lift

Driven Type:Hydraulic

Material:Steel

Load Capacity:6000-15000kgs

Certification:GS, CE, RoHS, ISO 9001

Application:Workshop, Shipboard, Warehouse, Building Crane

Power Source:Manual / Electric Control

🏗️

Product Description

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential. We offer a wide range of solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

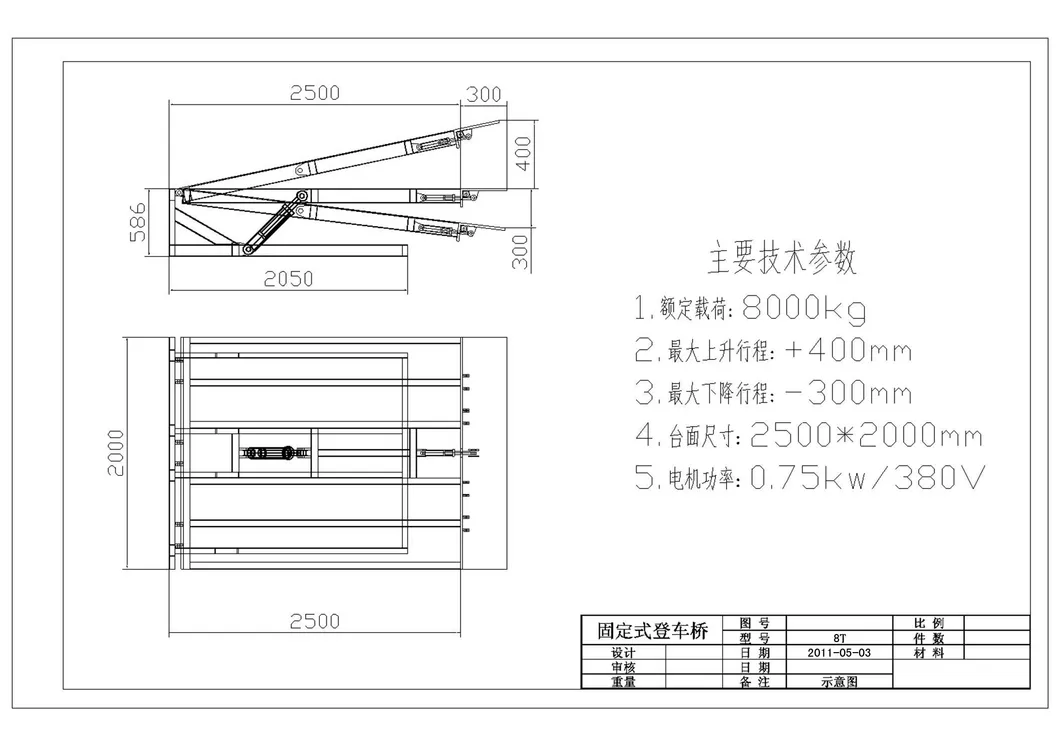

Model	Capacity (Tons)	Platform Size	Distance	Lip Board Size	Motor Power
DCGQ6	6	2500*2000mm	100	400mm	0.75KW
DCGQ8	8	2500*2000mm	100	400mm	0.75KW
DCGQ10	10	2500*2000mm	100	400mm	0.75KW
DCGQ12	12	2500*2000mm	100	400mm	0.75KW
DCGQ6	6	2000*2000mm	100	400mm	0.75KW
DCGQ8	8	2000*2000mm	100	400mm	0.75KW
DCGQ10	10	2000*2000mm	100	400mm	0.75KW
DCGQ12	12	2000*2000mm	100	400mm	0.75KW

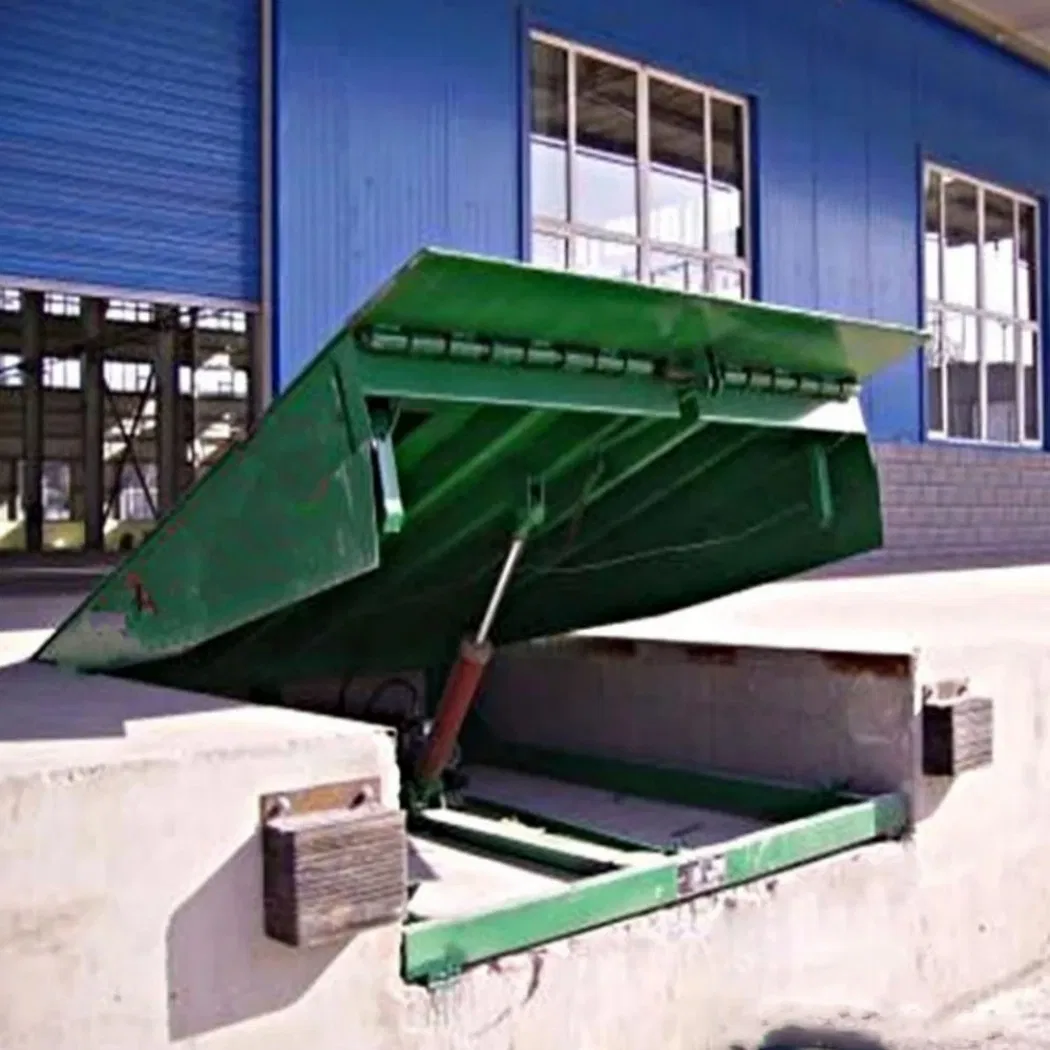

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.

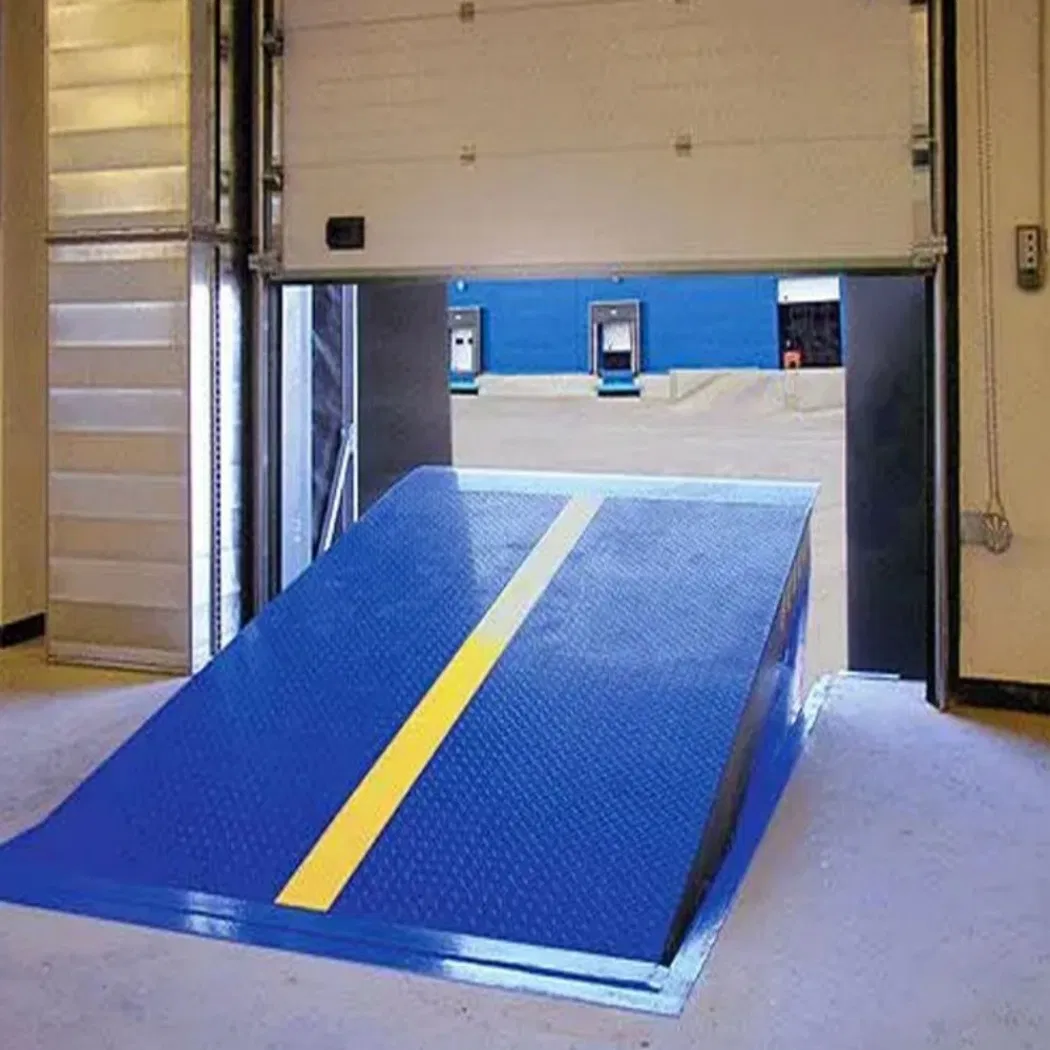

The adjustable height feature allows it to adapt to different vehicle types, making it suitable for various scenarios such as logistics warehouses, docks, and manufacturing plants. It reduces manual handling, lowers labor intensity, and enables mechanized operation.

⚙️

Technical Features & Structure

System	Free maintenance design idea for a long run using application.

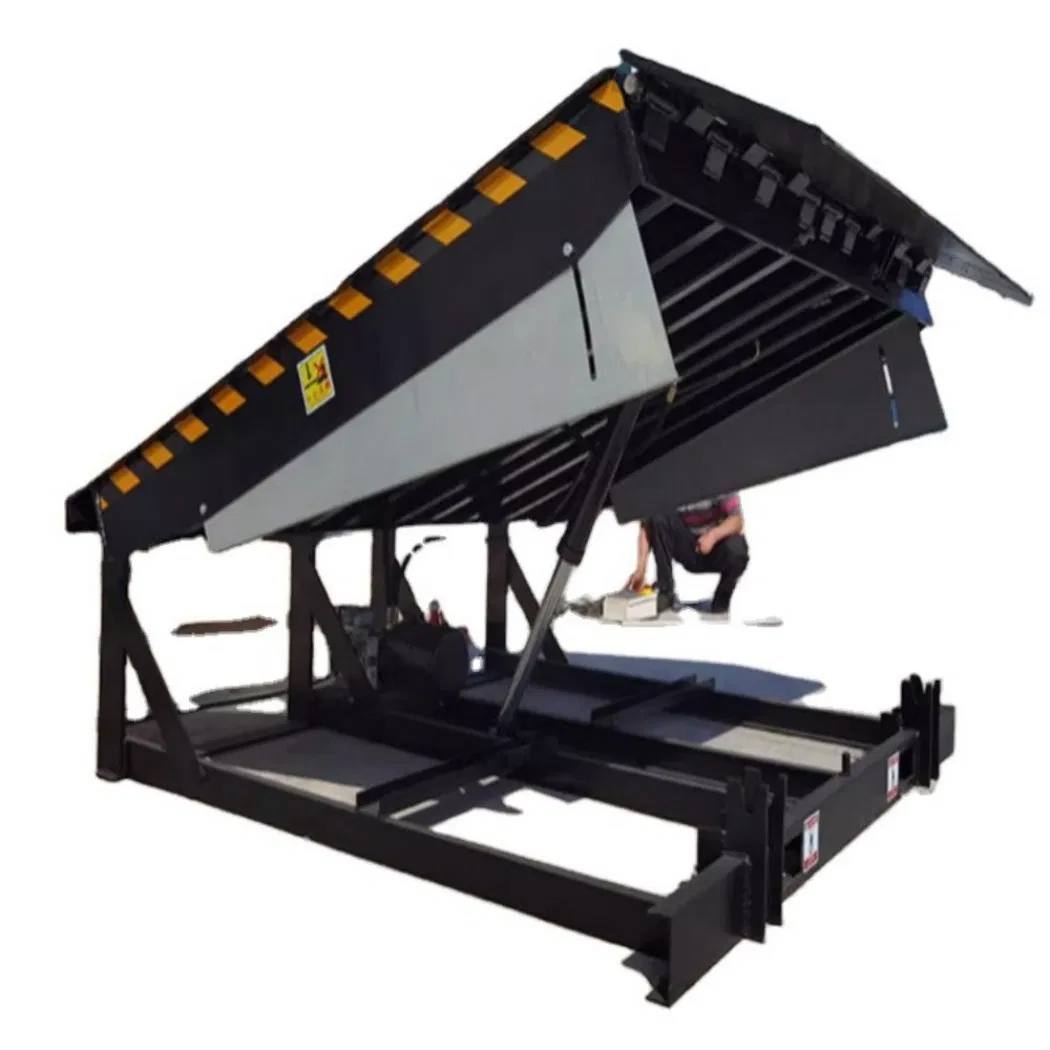

Design	Hydraulic driving system will lead to the operation of the main deck and lip. Hydraulic Pump, Pipe, and Tank are collected in one part under the deck. Hydraulic Velocity fuse (≤75 mm) makes the leveler and heavy loading stop automatically.
Safety	Full range foot guard to ensure safety. Penetrating safety support bar for maintenance support. Front tubular hinge (25mm diameter), rear U-shaped tail plate, and galvanized shaft for long-term rust protection.
Structure	• Main dock plate made of 8 mm high strength embossed non-slip steel. • Deck plate adopts 8 Channels Unique 14# I-beam steel reinforcement. • 15 mm thickness extension lip plate (L=500mm) ensures non-deformation. • Hydraulic Oil Tube adopts double wire mesh construction (max load 48MPA). • Sandblasting treatment for superior coating adhesion and roughness.

📦

Packaging & Shipping

Package Size:250.00cm * 200.00cm * 400.00cm

Gross Weight:1000.000kg

Type:Export Packing / Plywood Cases

❓

Frequently Asked Questions

Q: What information should I provide when inquiring? A: Providing details or drawings is better. Please include: A: lifting capacity, B: span, C: lift height, D: traveling distance, E: power source.

Q: What is your minimum order quantity (MOQ)? A: The minimum order quantity is 1 set.

Q: How is the product packaged? A: The main body is packaged with plywood boxes or plastic woven fabrics; spare parts are secured inside plywood boxes.

Q: What is the typical delivery lead time? A: Within 10 to 40 days after receiving advance payment, depending on detailed requirements and actual production schedules.

Q: Do you provide lifting accessories? A: Yes, we can provide various accessories such as hooks, grab buckets, magnets, pulley blocks, wire ropes, and fiber ropes.

Q: Do you support custom services or OEM? A: Yes, the factory supports full OEM and ODM services to meet specific industrial requirements.
