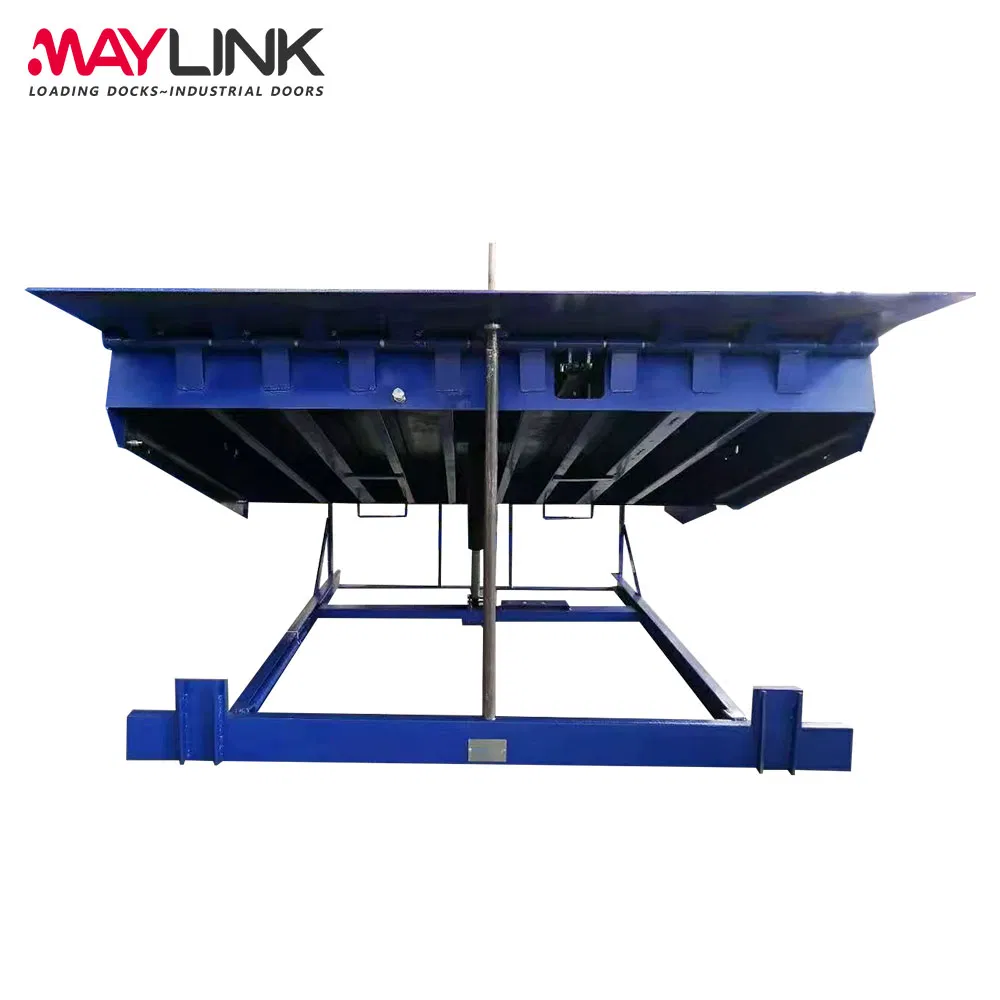

Maylink Adjustable Dock Plate Leveler with Hydraulic Control for Safe Use

1 / 5

Maylink Adjustable Dock Plate Leveler with Hydraulic Control for Safe Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🏗️

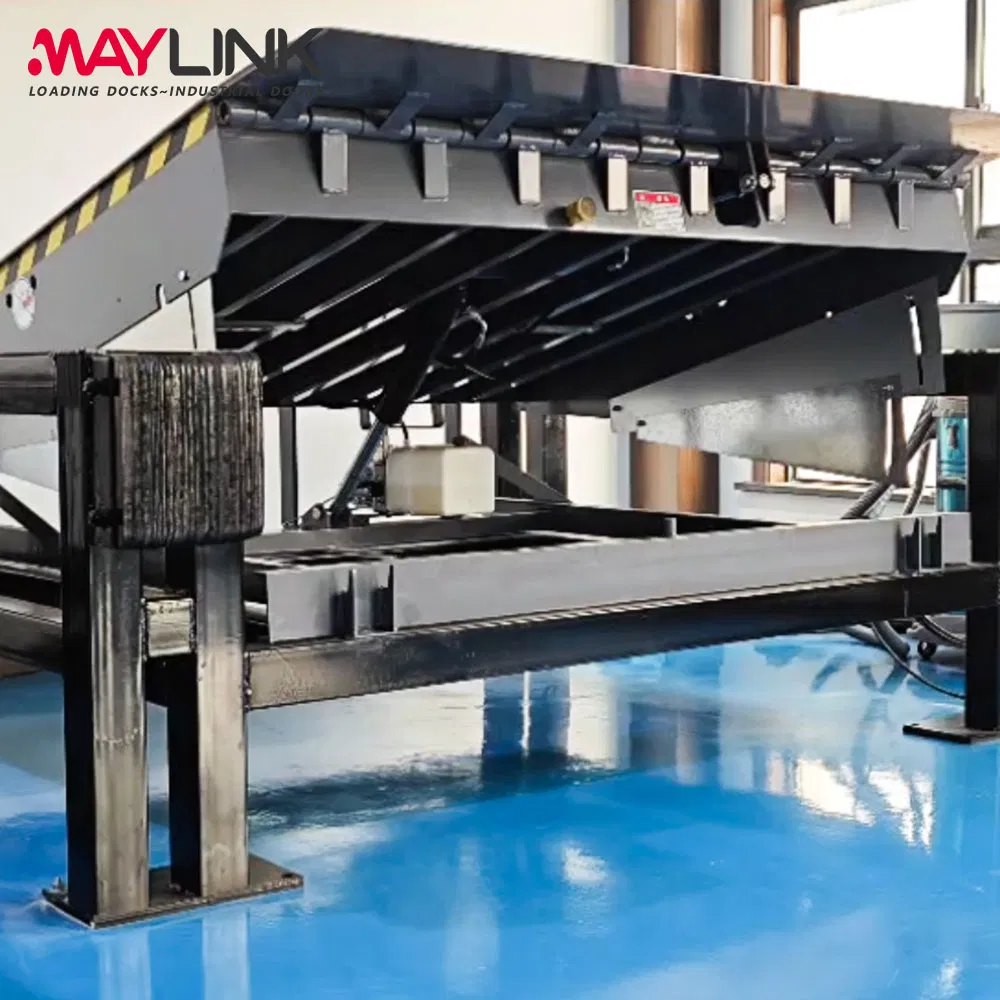

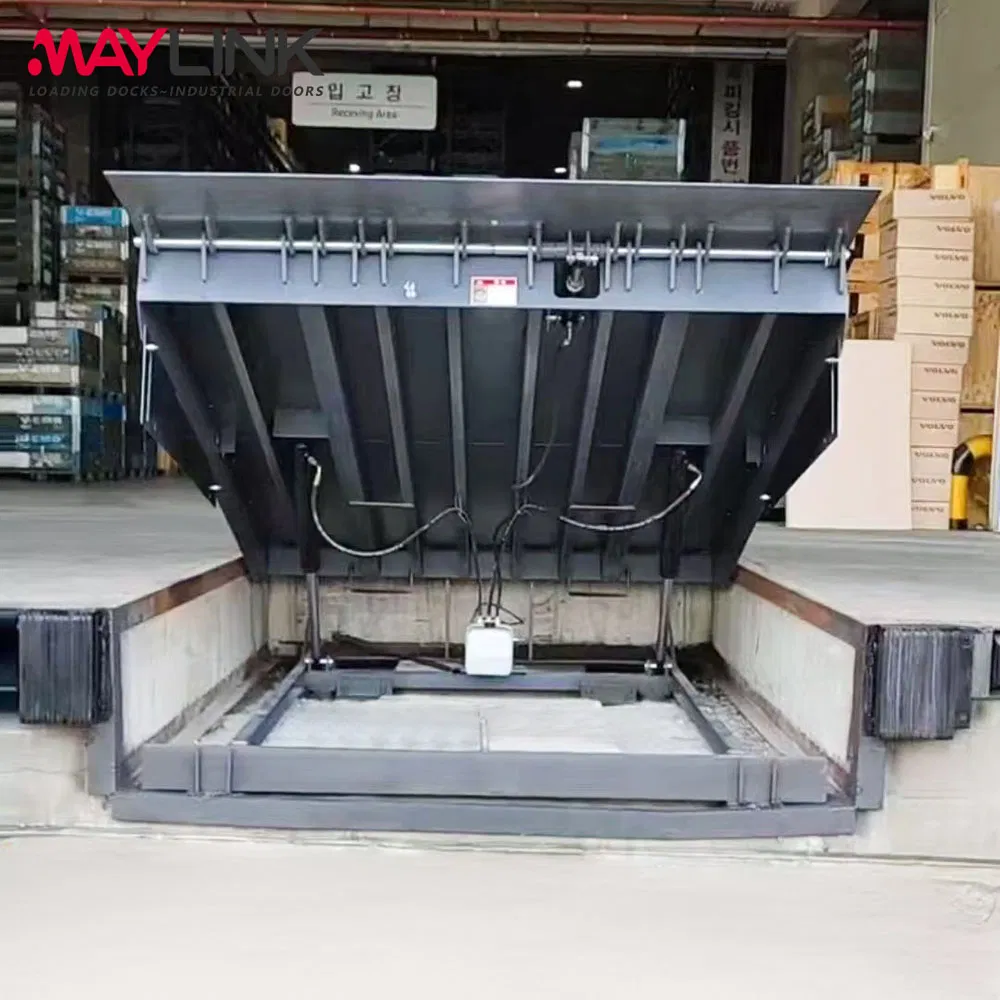

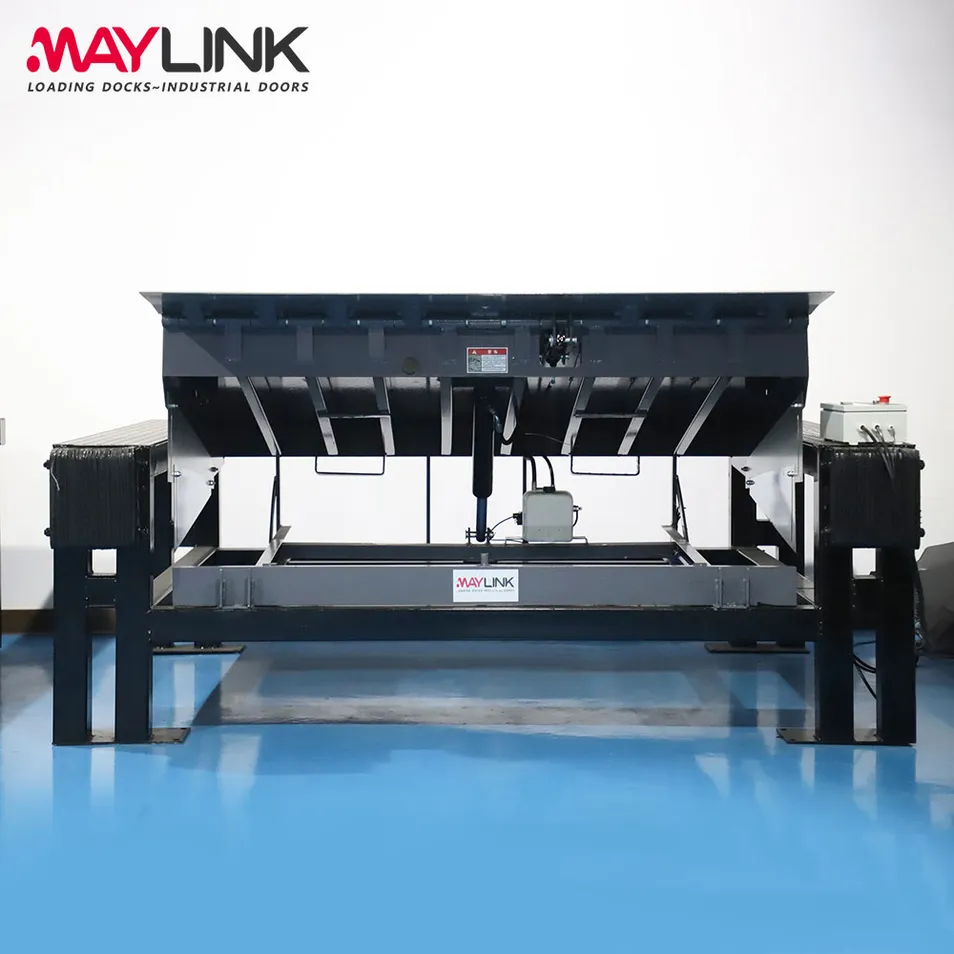

Hydraulic Dock Leveler Overview

The electric hydraulic dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the platform automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading efficiency.

⭐

Why Choose Our Levelers

Unmatched Strength & Durability

Heavy-duty steel frame handles extreme loads (up to 20 tons) with ease, featuring corrosion-resistant finishes for long service life.

Effortless Operation

Smooth, low-noise operation with one-button control reduces manual labor and operator fatigue.

Enhanced Safety

Equipped with lip locks, safety legs, and anti-slip surfaces to prevent accidents during loading and unloading.

Low Maintenance

Fully sealed hydraulic system minimizes servicing needs, delivering reliable performance in tough environments.

📋

Basic Specifications

Model NO.	MLK-HDL-008
Application	Warehousing Docking
Lift Mechanism	Hydraulic Lift
Carrying Capacity	Dynamic Load 8 Tons, Static Load 16 Tons
Driven Type	Hydraulic
Size	W2000mm * L2000mm * H600mm (Customizable)
Power	3 Phase/380V/50Hz, 0.75/1.1/1.5kw
Adjust Range	+350mm, -300mm
Dock Plate	8mm Non-Slip Pattern Steel
Tongue Plate	16mm Non-Slip Pattern Steel
Hydraulic System	German Argo-Hytos / Switzerland Bucher
Certification	CE, RoHS, ISO 9001

⚙️

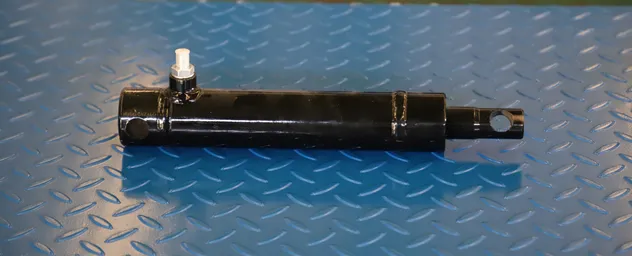

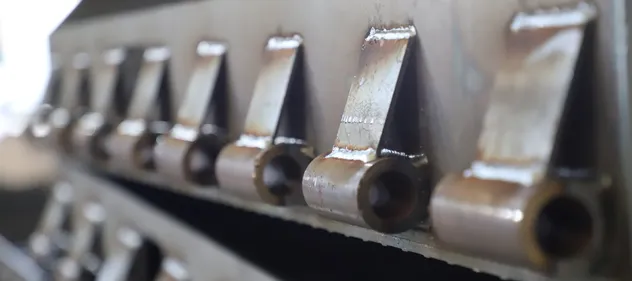

Configuration Chart

🏭

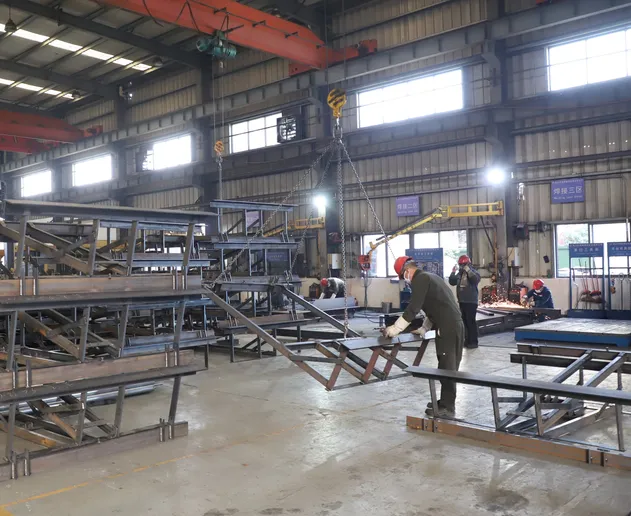

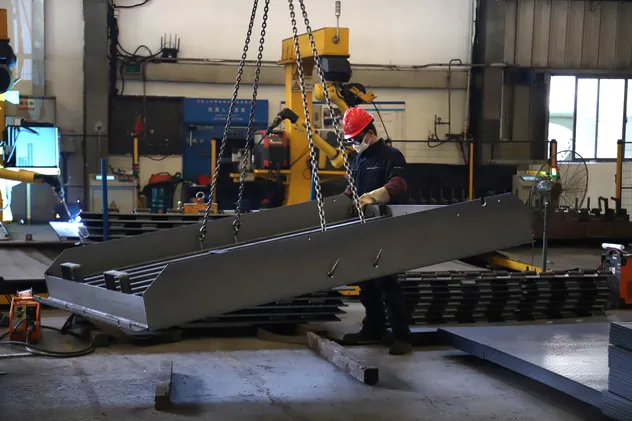

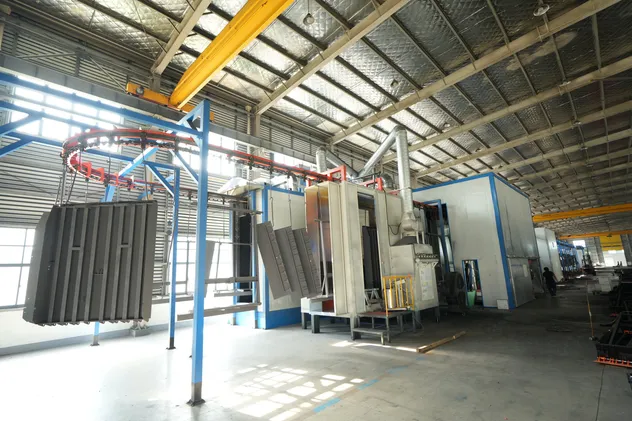

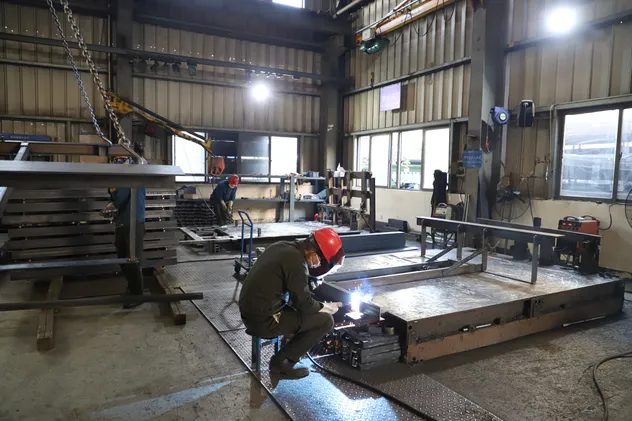

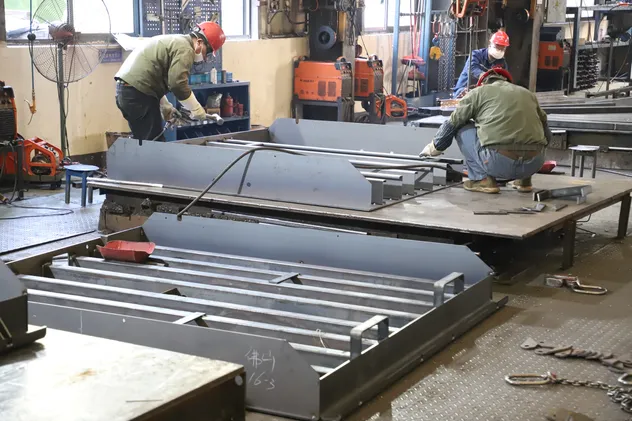

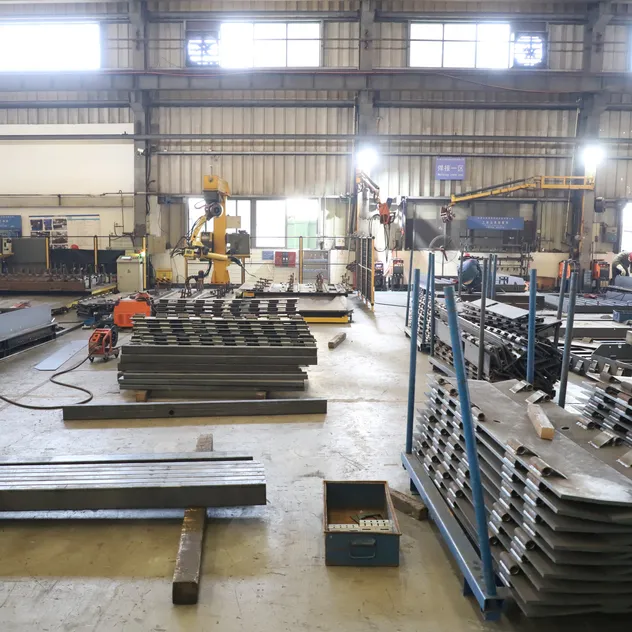

Production Process

📦

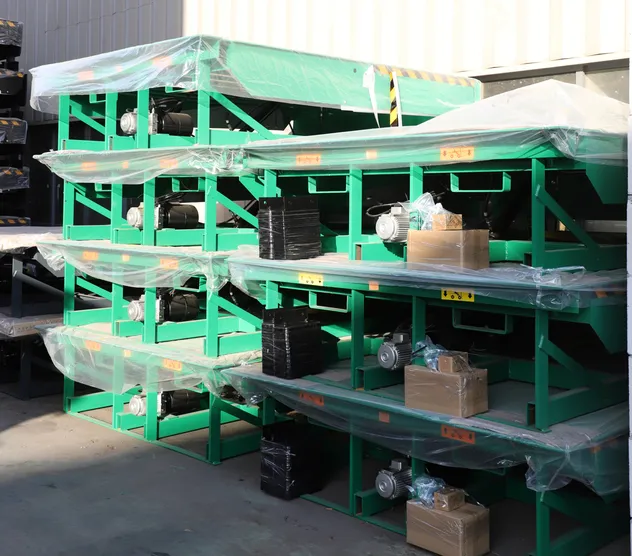

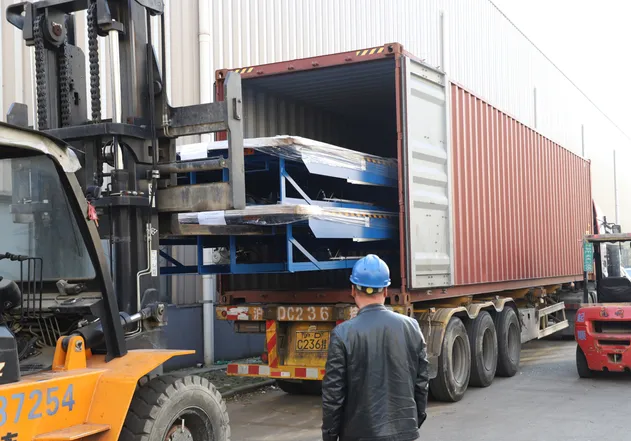

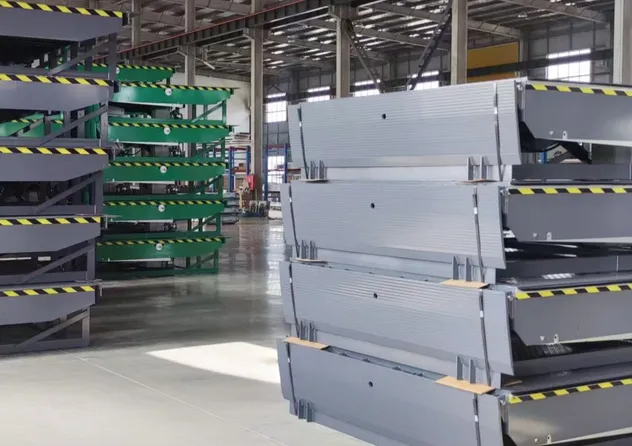

Packing & Delivery

🔍

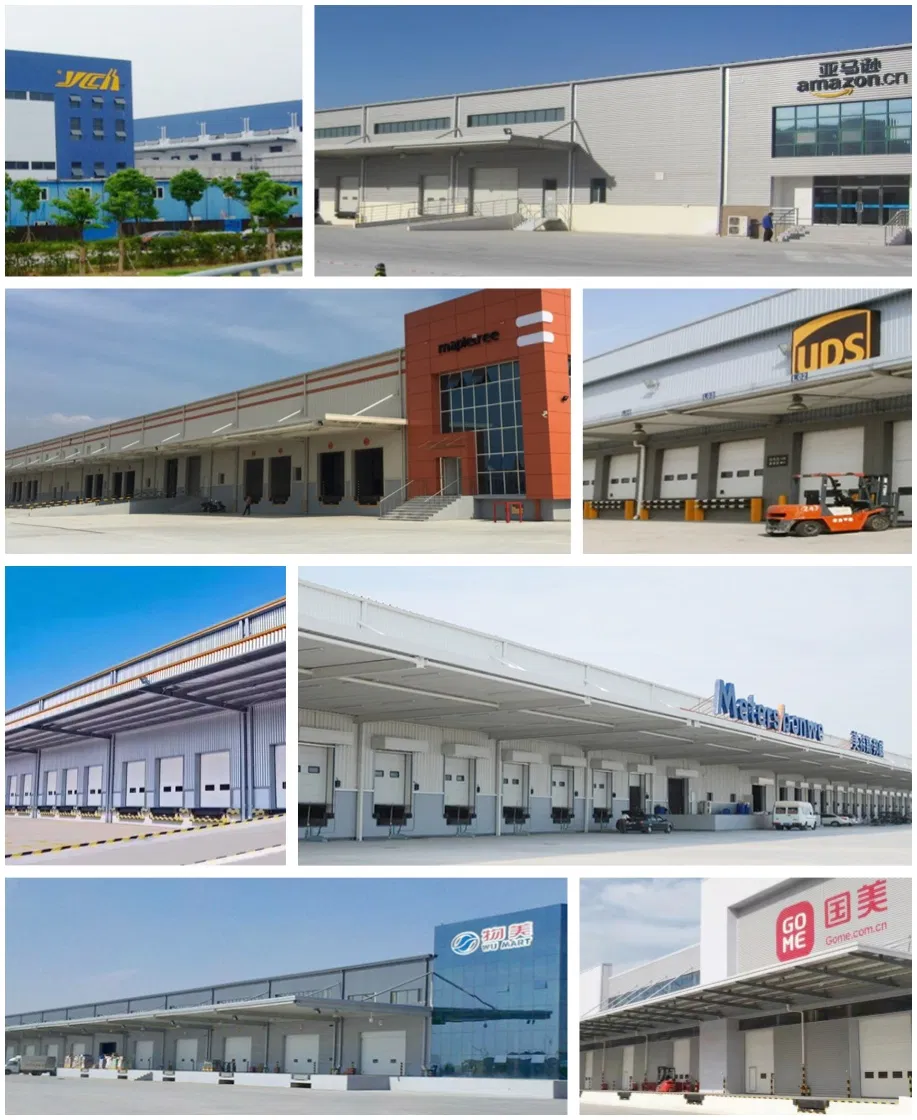

About Our Expertise

Specializing in designing, manufacturing, and installing premium industrial doors and loading dock equipment. Our CE-certified products deliver top-tier performance for logistics, cold chain, manufacturing, and pharma industries. With exports to over 60 countries, we provide high-precision manufacturing at scale using automated production lines.

❓

Frequently Asked Questions

What is the dynamic load capacity of the hydraulic dock leveler?

The standard dynamic load capacity is 8 Tons, with a static load capacity of 16 Tons. Higher capacities (up to 20 Tons) are available upon request.

Can the size of the dock leveler be customized?

Yes. While standard sizes are W2000mm * L2000mm, we can customize the width and length to fit your specific loading dock pit dimensions.

What safety features are included?

Our levelers include an emergency stop button, safety toe guards, an anti-slip pattern steel surface, and safety support legs for maintenance.

What is the typical lead time for an order?

The standard lead time is approximately 2 to 4 weeks depending on the order volume and customization requirements.

Is the hydraulic system reliable for heavy-duty use?

Absolutely. We utilize high-quality German Argo-Hytos or Switzerland Bucher hydraulic systems, designed for high-frequency use in demanding warehouse environments.

Are these products certified for international markets?

Yes, all our dock levelers are CE certified and compliant with ISO 9001 quality management standards.
