| Basic Information | |
|---|---|
| Model NO. | DL048 |
| Moves | Stationary |
| Driven Type | Hydraulic |
| Running Mode | Stationary |
| Feature | Explosion-Proof, Insulating |
| Certification | GS, CE, RoHS, ISO 9001 |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Power Form | Electric-Hydraulic |
| Adjustment Range | +300/-300mm |

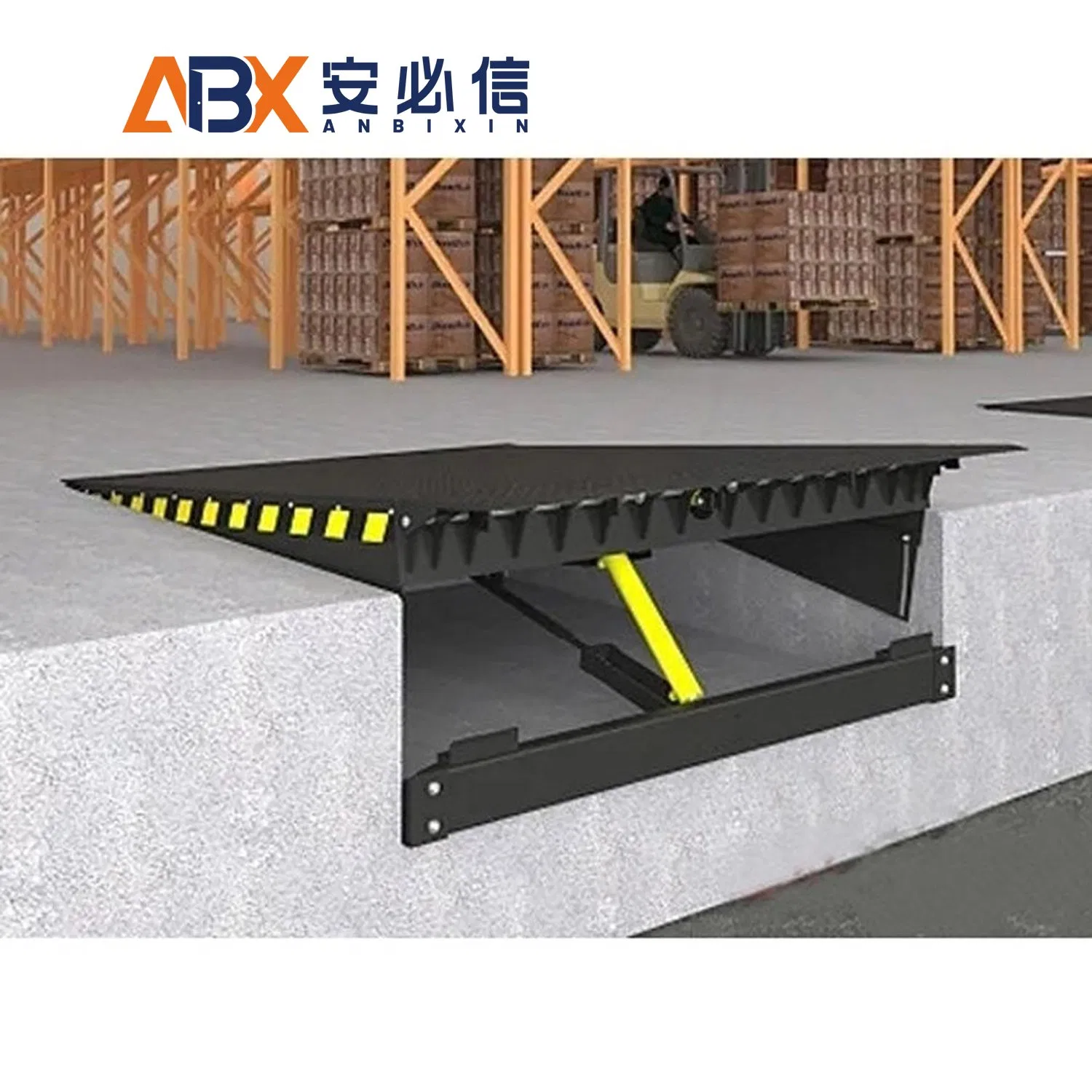

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
Our loading and unloading platforms are divided into fixed and mobile types. The main function is to build a bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading.
It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions and load-bearing capacity to meet diverse user needs.
ALL-WEATHER OPERATIONAL CONTINUITY

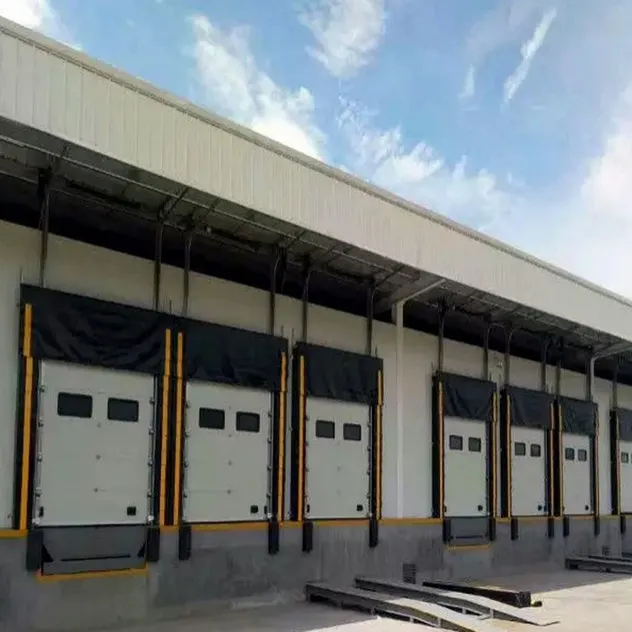

TAILORED FOR UNIQUE INFRASTRUCTURE
THE ENERGY-SMART PERFORMER
| Adjust The Time | Up Time ≤16S, Down Time ≤10S |
| Board Thickness and Length | 12mm / 400mm |
| Main Console Panel Thickness | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Installation | Folded bottom panel for easy maintenance |
| Safety Baffles | Automatically retractable side body guards |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8Mpa +/- 1Mpa |
| Anti-Collision Block | 300*200*100mm Laminated Belt Stamping |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Service Life | ≥ 200,000 Times |
