Brief Introduction
Long distance overland flat turn belt conveyor is a continuous conveying equipment that uses steel rope core conveyor belts as traction components. Its ultra long conveying distance and super large conveying capacity, as well as the multi-point horizontal turning curve conveying method, can maximize the satisfaction of high yield and efficient material transportation in working faces.
💎
Product Features
The long distance overland conveyor is a special type of belt conveyor that achieves long-distance and curved transportation. It can perform flat turns, as well as vertical convex and concave turns, forming a spatial curve. By using a curved track, it can avoid obstacles or unfavorable terrain, simplifying the system and saving investment by reducing the need for intermediate transfer stations.
- Continuous long-distance transportation, stable and reliable work
- Large conveying capacity, high production efficiency
- Low noise, low pollution, low energy consumption
- Simple structure and low operating costs
🏗️
Project Case Study

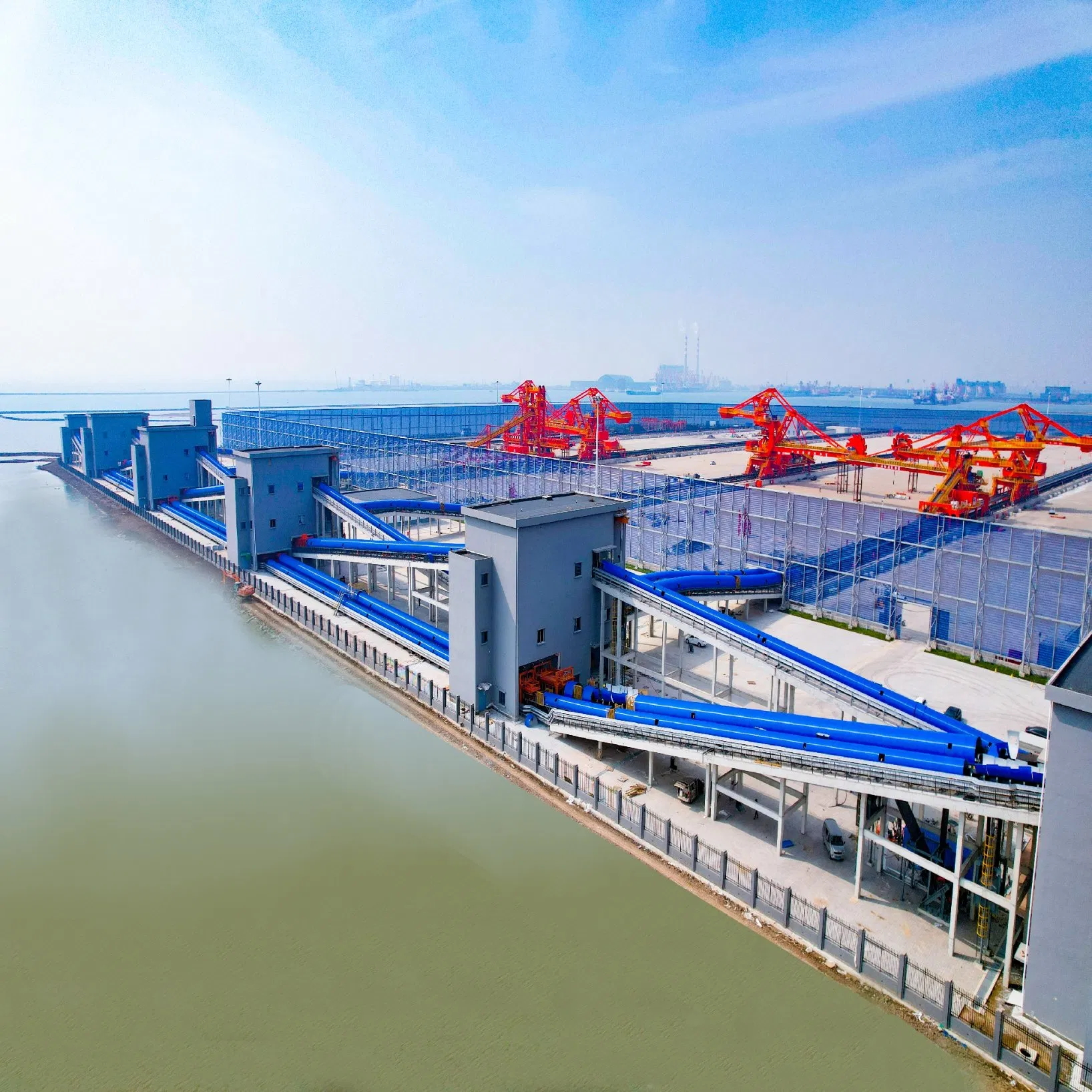

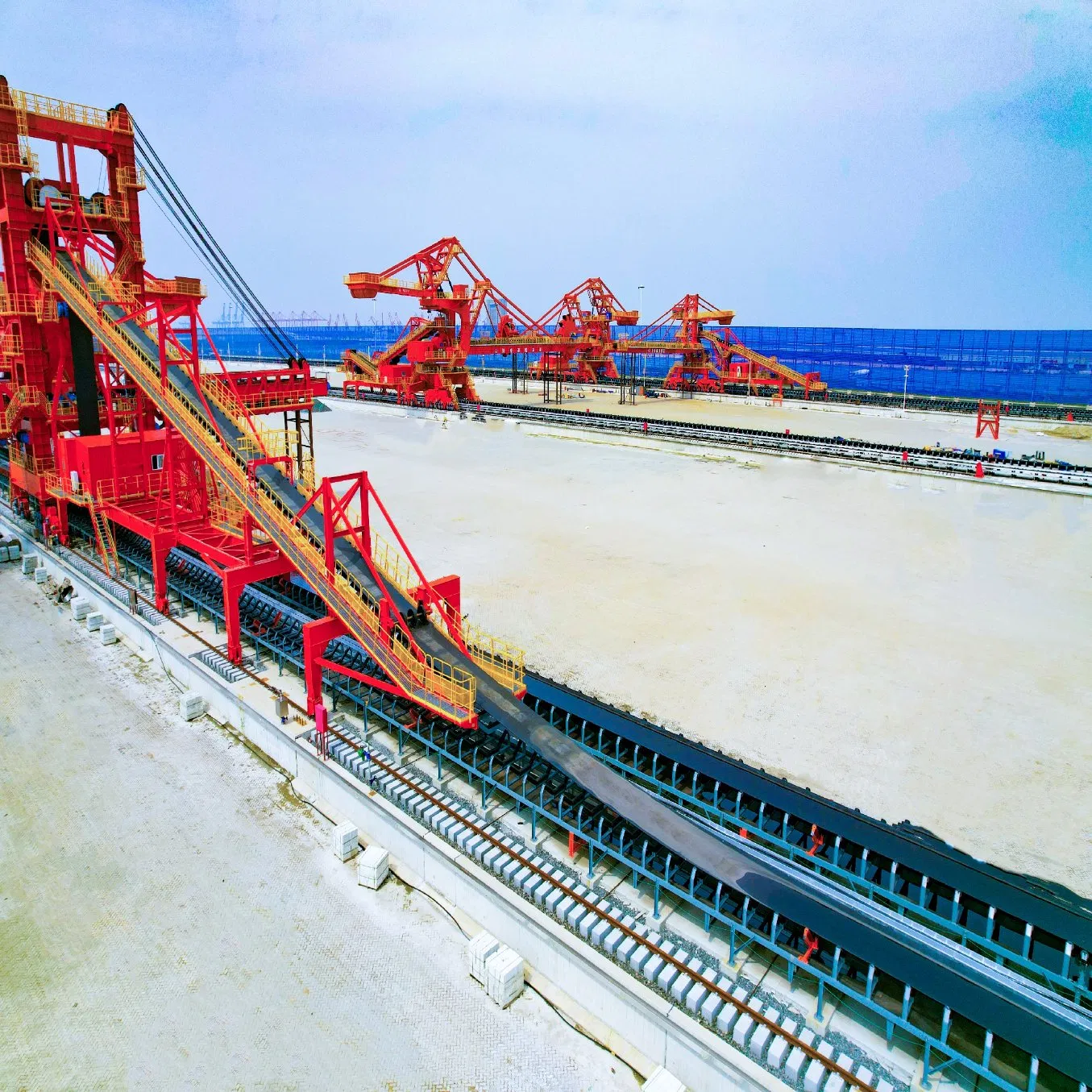

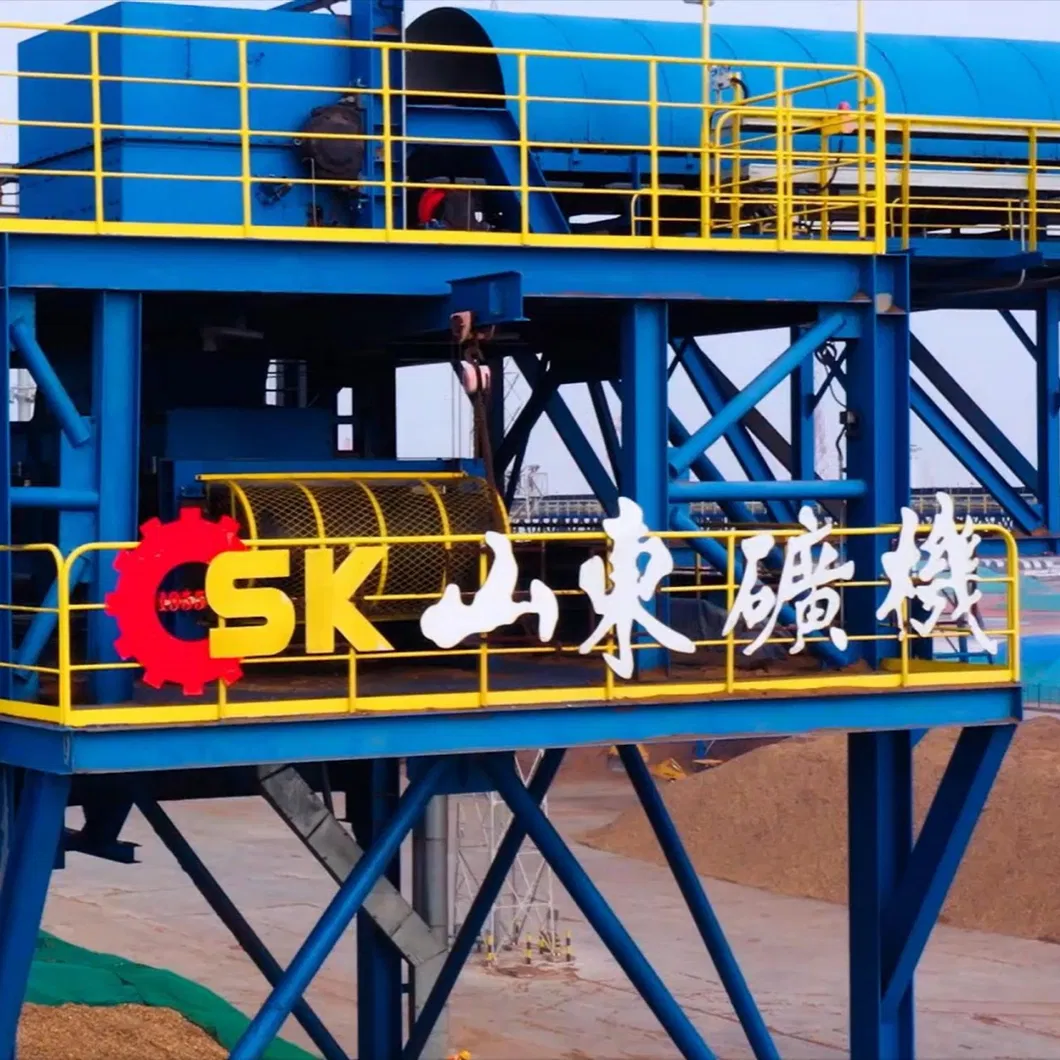

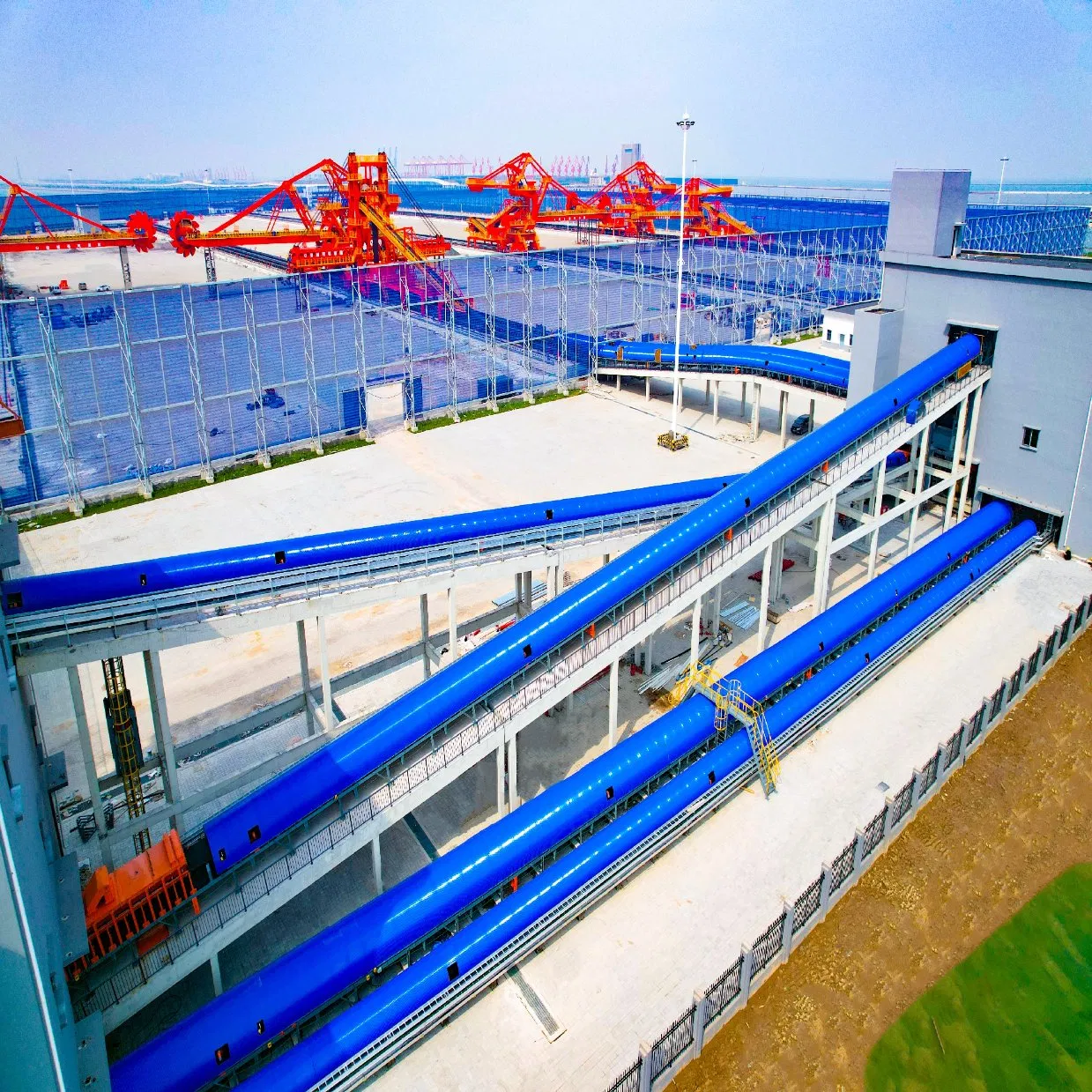

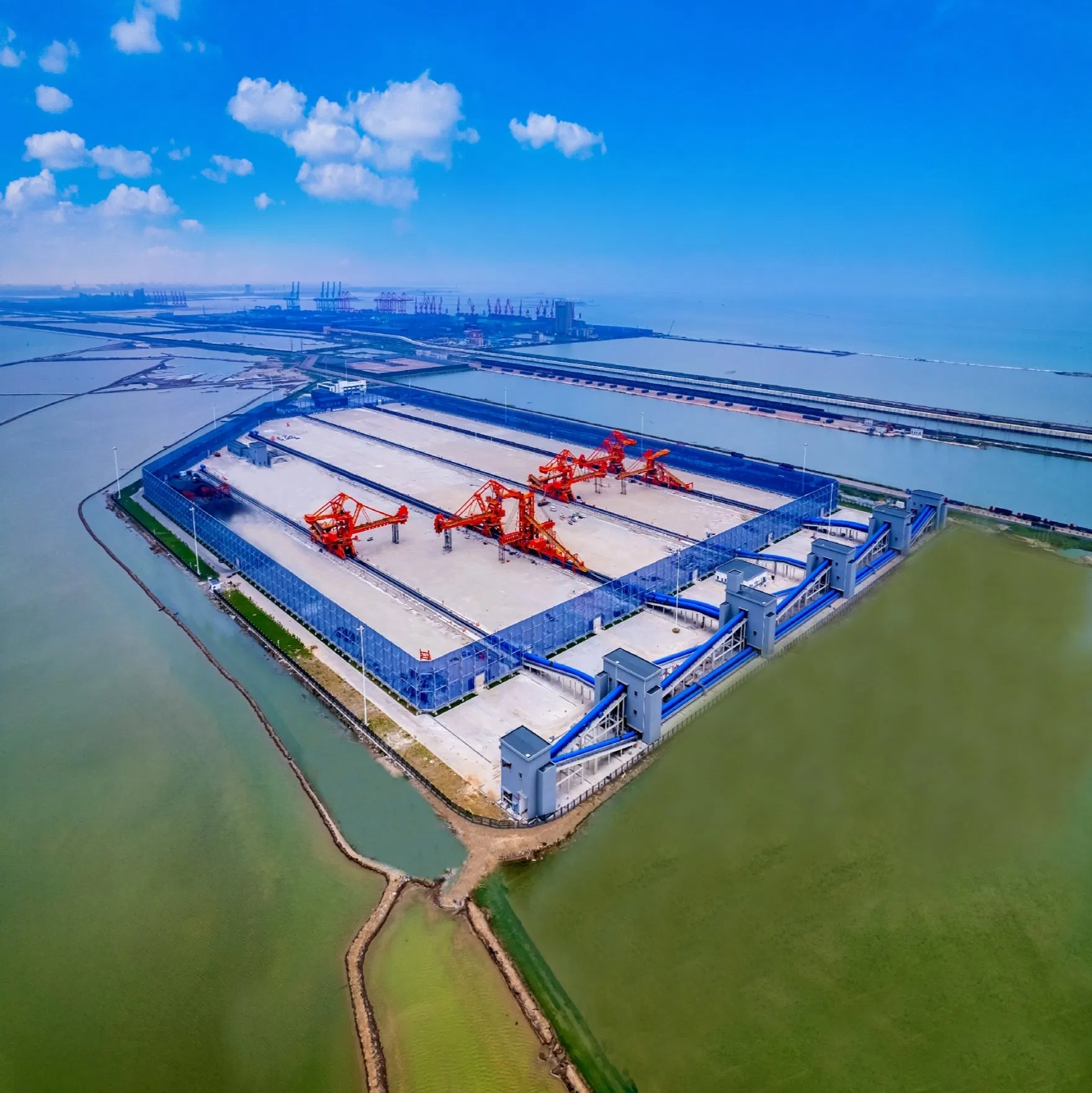

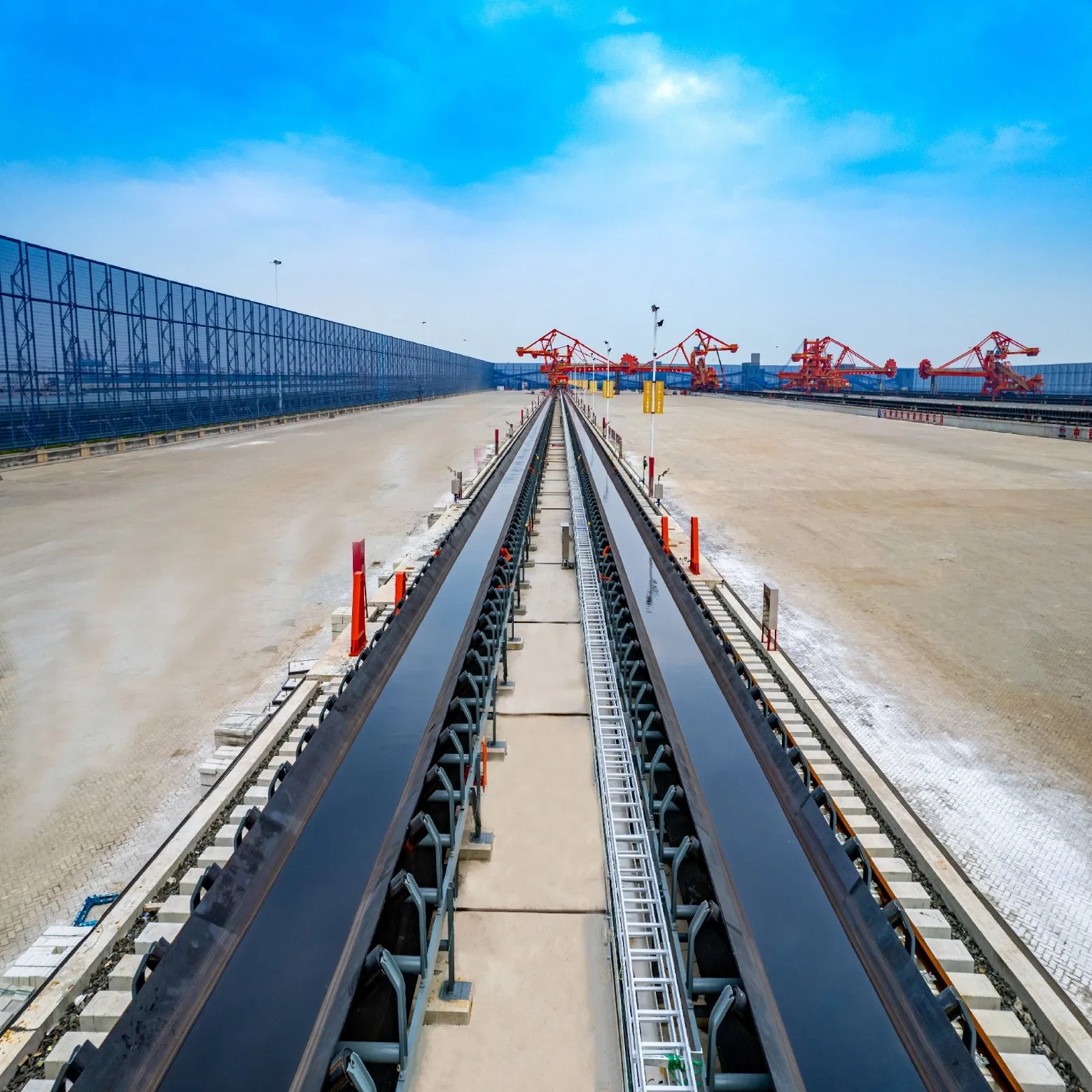

Belt Conveyor EPC Project for Huanghua Port: This conveyor system consists of 16 belt conveyors with a belt width ranging from 1200mm to 2000mm, a maximum belt speed of 5.3m/s, and a total conveying length of 10 km. It includes specialized storage, screening, and coal blending services with an annual transportation volume of 9 million tons of coal.
⚙️
Manufacturing Capability
Our manufacturing capabilities include casting, forging, heat treatment, electroplating, welding, and assembly. We operate specialized factories for key components:

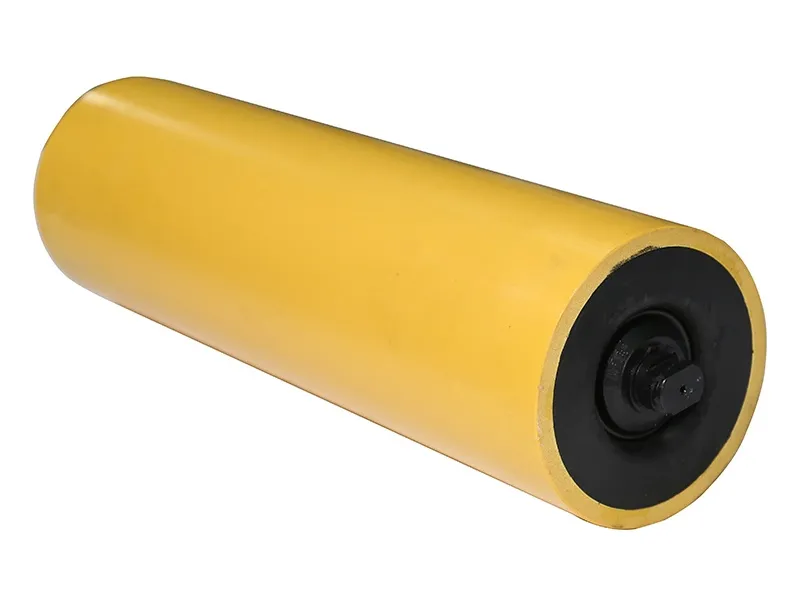

1. Conveyor Roller Factory: Annual production capacity of 1.6 million sets (diameters φ89 to φ219 mm).

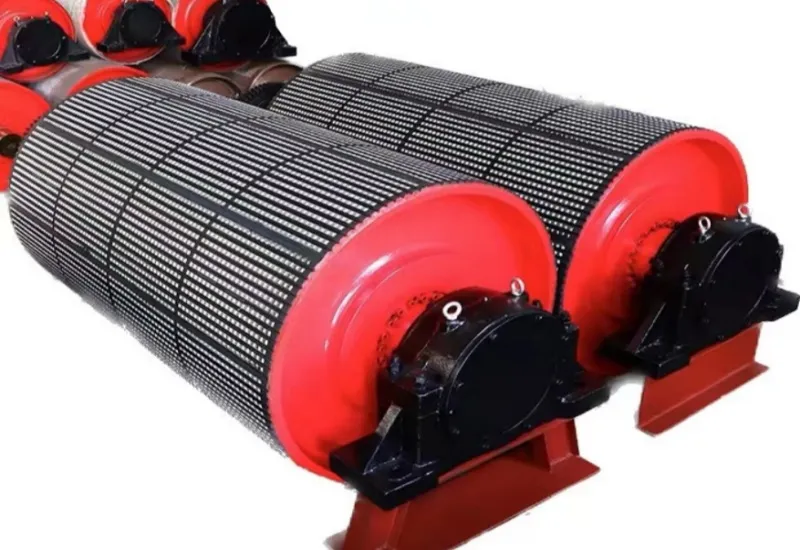

2. Conveyor Pulley Factory: Diameters up to φ2200 mm; annual capacity over 5000 Sets.
3. Electric Factory: High standard workshop producing control systems with advanced testing instruments.
❓
Frequently Asked Questions
1. What is the maximum conveying distance of your belt conveyors?
The maximum transportation distance for a single conveyor in our design range can reach up to 12.6 km.
2. Can these conveyors handle horizontal and vertical turns?
Yes, our long-distance overland conveyors are designed to perform both flat (horizontal) turns and vertical convex or concave turns to navigate complex terrains.
3. What industries are these belt conveyors suitable for?

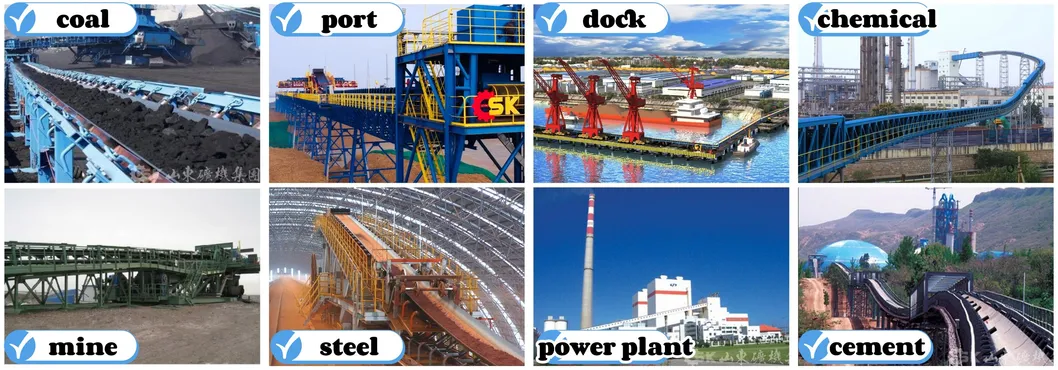

They are widely used in mining, coal, power plants, ports, metallurgy, cement, chemical, and steel industries.
4. What is the range of belt widths available?
We offer belt widths ranging from 650mm to 2400mm, with maximum speeds reaching up to 6.3m/s.
5. What does your EPC General Contracting service include?
Our EPC services include project consultation, engineering design, manufacturing, installation, commissioning, operation and maintenance, and after-sales support.
6. Are the conveyor belts resistant to extreme conditions?
Yes, the conveyor belts can be customized to be oil resistant, heat resistant, and fire resistant based on project requirements.
