| Model NO. | DL049 |
| Product Name | Dock Leveler |
| Driven Type | Hydraulic |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Power Form | Electric-Hydraulic |
| Certification | GS, CE, RoHS, ISO 9001 |
| Adjustment Range | +300/-300mm |

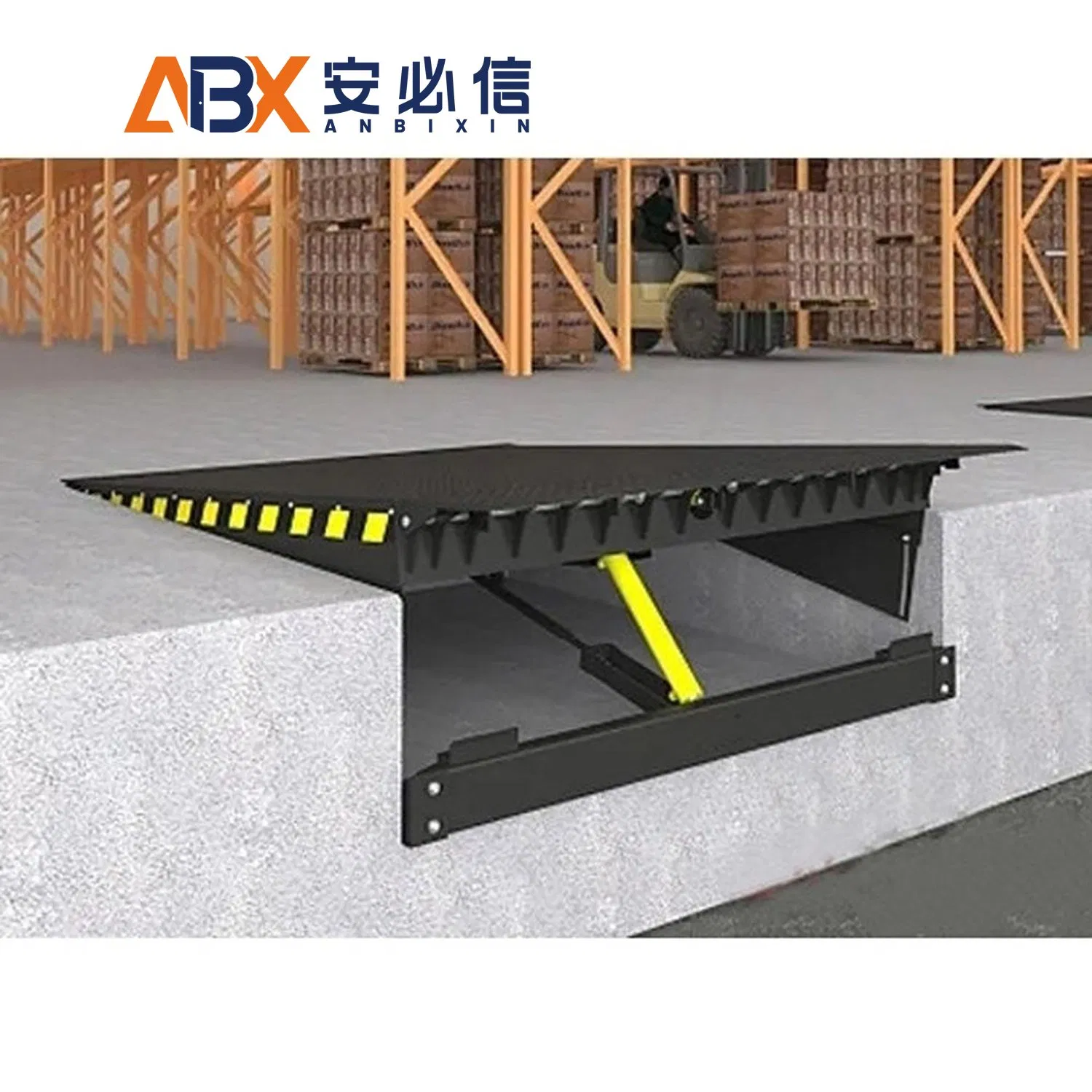

Our loading and unloading platforms are divided into fixed and mobile categories. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed for diverse dimensions and load-bearing needs.
Keep operations running smoothly with a high-traction, anti-slip surface and weather-resistant components, guaranteeing performance in wet or icy conditions.
Customizable solutions with options for size, capacity, and control systems tailored to your unique architectural and operational requirements.
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed, ideal for green logistics.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjustment Time | Up ≤ 16s, Down ≤ 10s |
| Board Thickness | 12mm 400mm |
| Main Console Panel | 6mm Patterned Board |
| Skeleton Structure | L-Shaped Bend |
| Safety Baffles | Automatically Retractable Side Body Guards |
| Hydraulic Oil | 32# Anti-Wear (8MPa +/-1MPa) |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Use Cycle Life | ≥ 200,000 Times |
Constructed with high-strength, industrial-grade steel to withstand heavy loads and continuous use.
Equipped with full-range toe guards and velocity fuses to significantly reduce the risk of accidents.
Speeds up loading cycles by providing a stable and reliable platform for forklifts.
