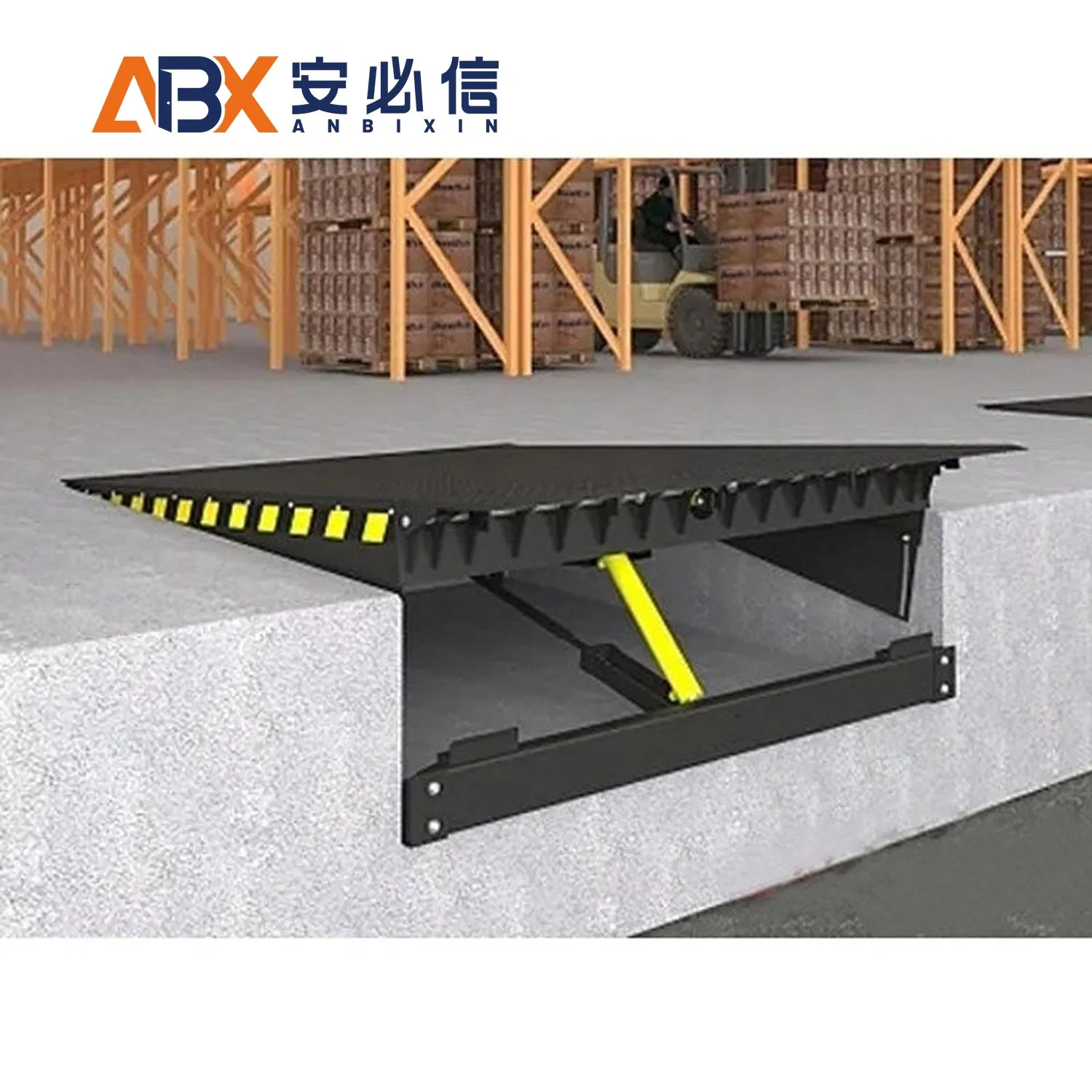

DOCK LEVELER SOLUTIONS
Our loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading. It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during loading.
Featuring a high-traction, anti-slip surface and weather-resistant components, our Dock Leveler guarantees reliable performance in wet, icy, or challenging conditions.
Fully customizable solutions with options for size, capacity, and control systems tailored to your unique architectural and operational requirements.
Advanced hydraulic or air-powered systems engineered for low energy consumption without sacrificing power or speed, supporting green logistics.
| DETAILED SPECIFICATIONS | |
|---|---|
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjustment Range | +300/-300M |
| Adjust Time | Up ≤16S / Down ≤10S |
| Board Thickness & Length | 12mm / 400mm |
| Console Panel Thickness | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Support Bar | Foldable bottom for easy installation & maintenance |
| Side Body Baffles | Automatically retractable safety guards |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil (8Mpa+/-1Mpa) |
| Anti-Collision Block | Laminated Belt Stamping Combination (300*200*100) |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Operating Lifespan | ≥ 200,000 Times |
Designed to bridge the gap between dock and varying truck heights, ensuring smooth flow for forklifts.
High-strength, industrial-grade steel construction to withstand continuous heavy loads.
Full-range toe guards and velocity fuses protect workers and reduce accident risks.
