| Component/Feature | Specification |
|---|---|

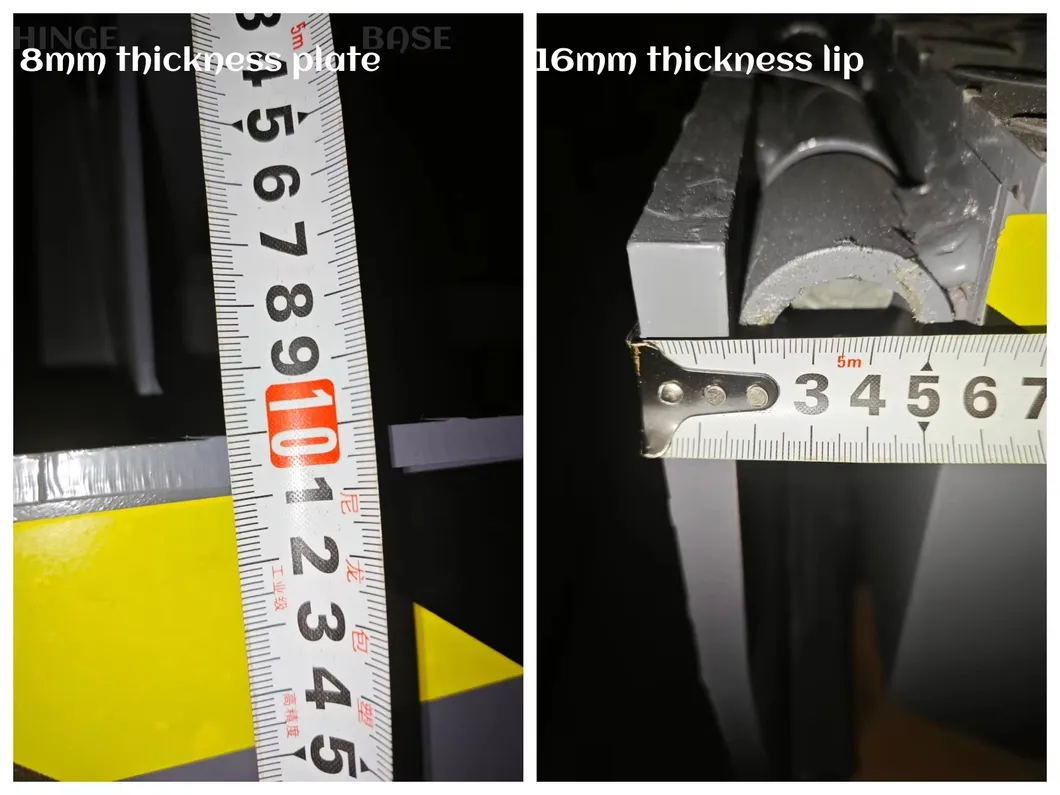

| Upper Plate | 8 mm thickness, anti-skate steelplate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Working Range | +300mm / -260~300mm |
| Service Life | ≥ 200,000 times |
| Operating Temperature | -25ºC ~ +50ºC |
| Noise | < 50db (±5db) |

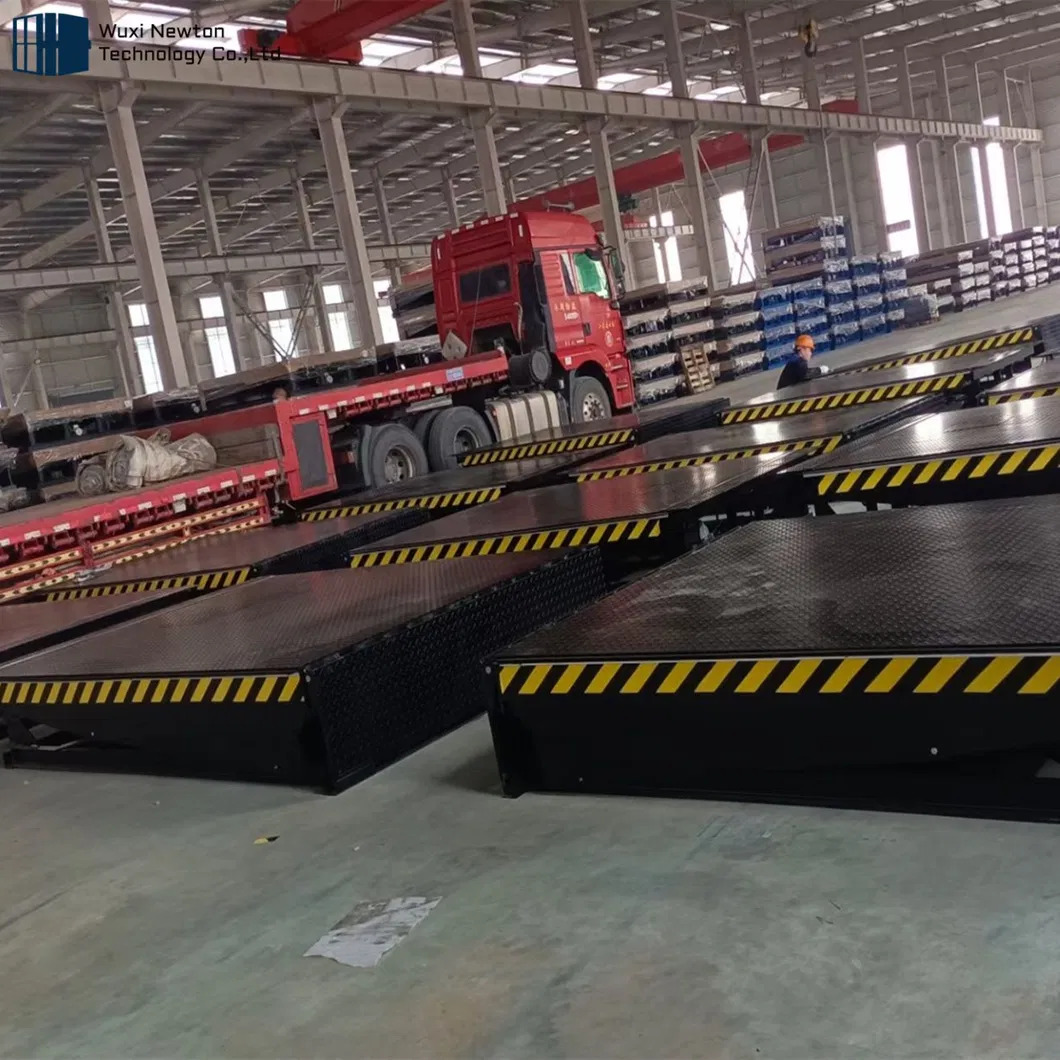

In the field of logistics, our dock leveler enables a fast and safe loading and unloading process. It balances the height difference between the platform ground and the dock of various transport vehicles, whether flatbed or container trucks. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading yards.
Customization available: platform size, load capacity, and lifting height can be tailored to your specific needs.

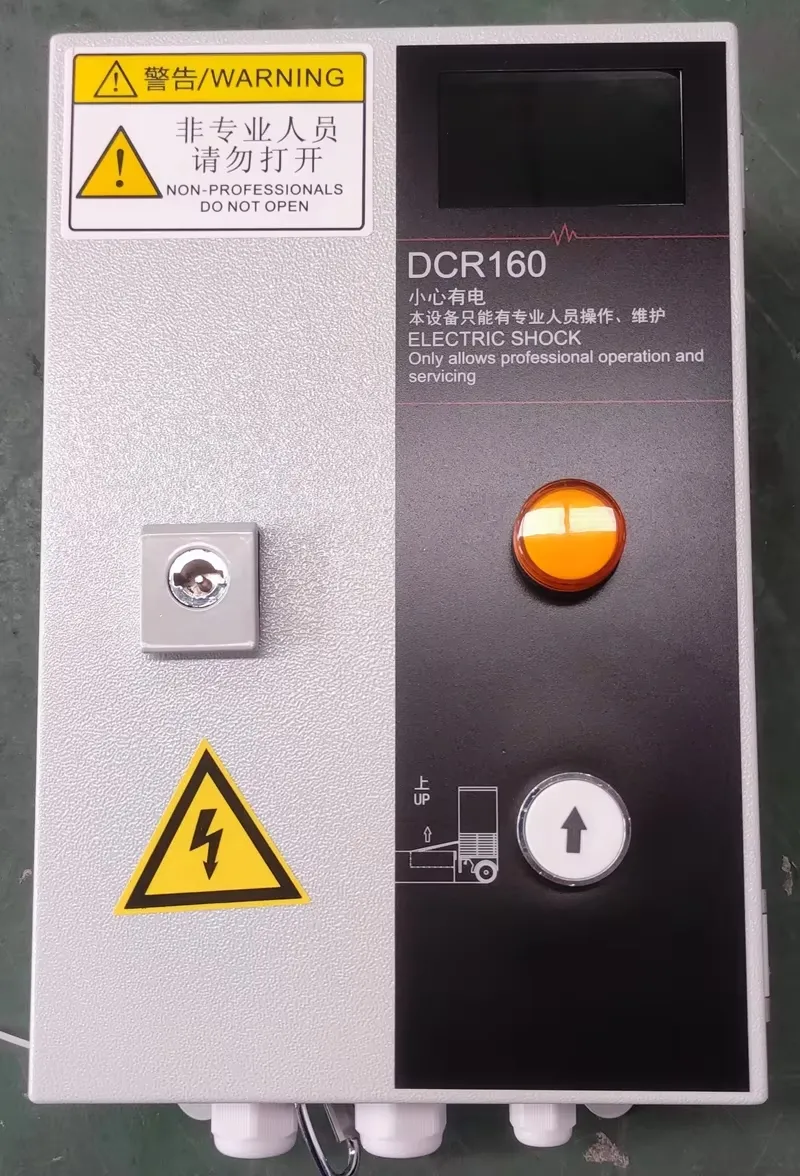

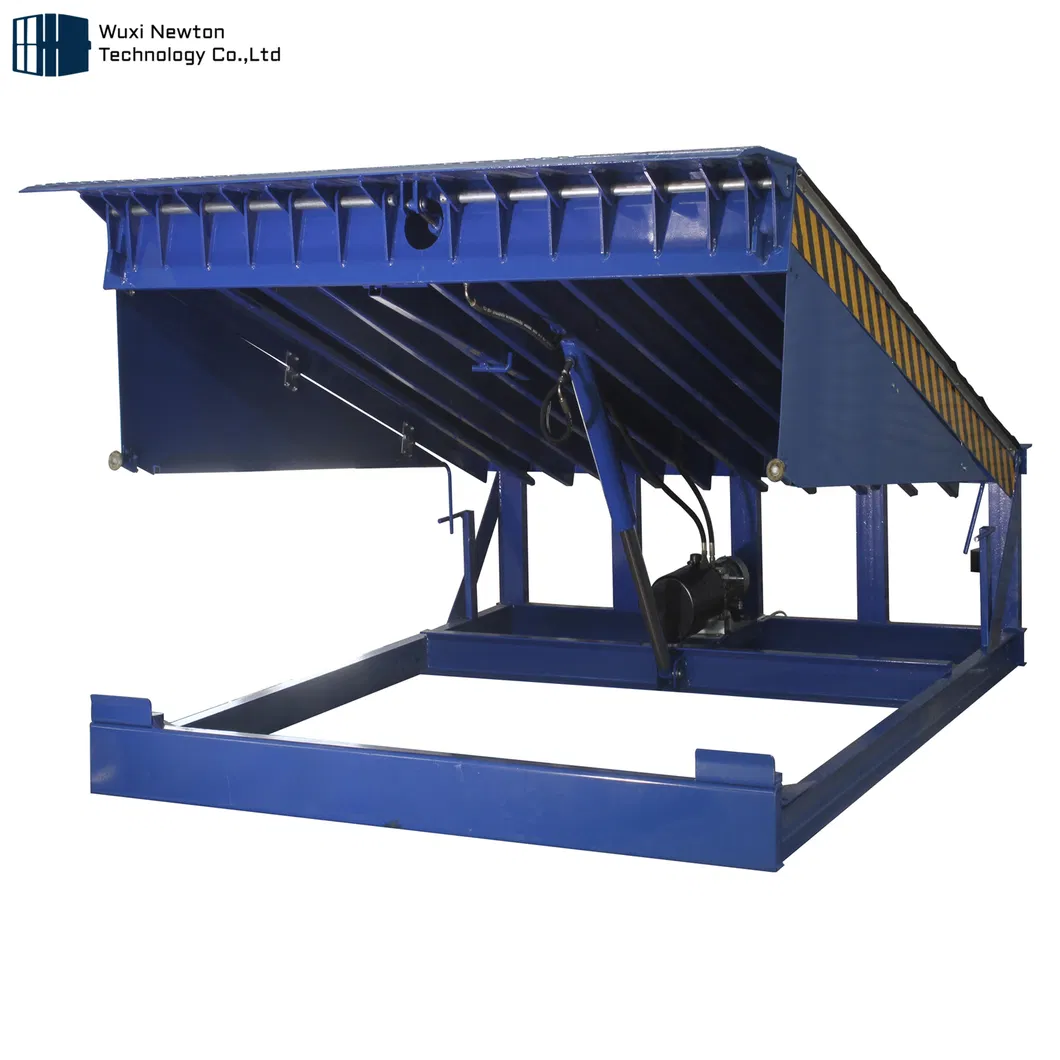

Hydraulic Dock Leveler
Utilizes push-button activation; the safest and most reliable type for loading docks.

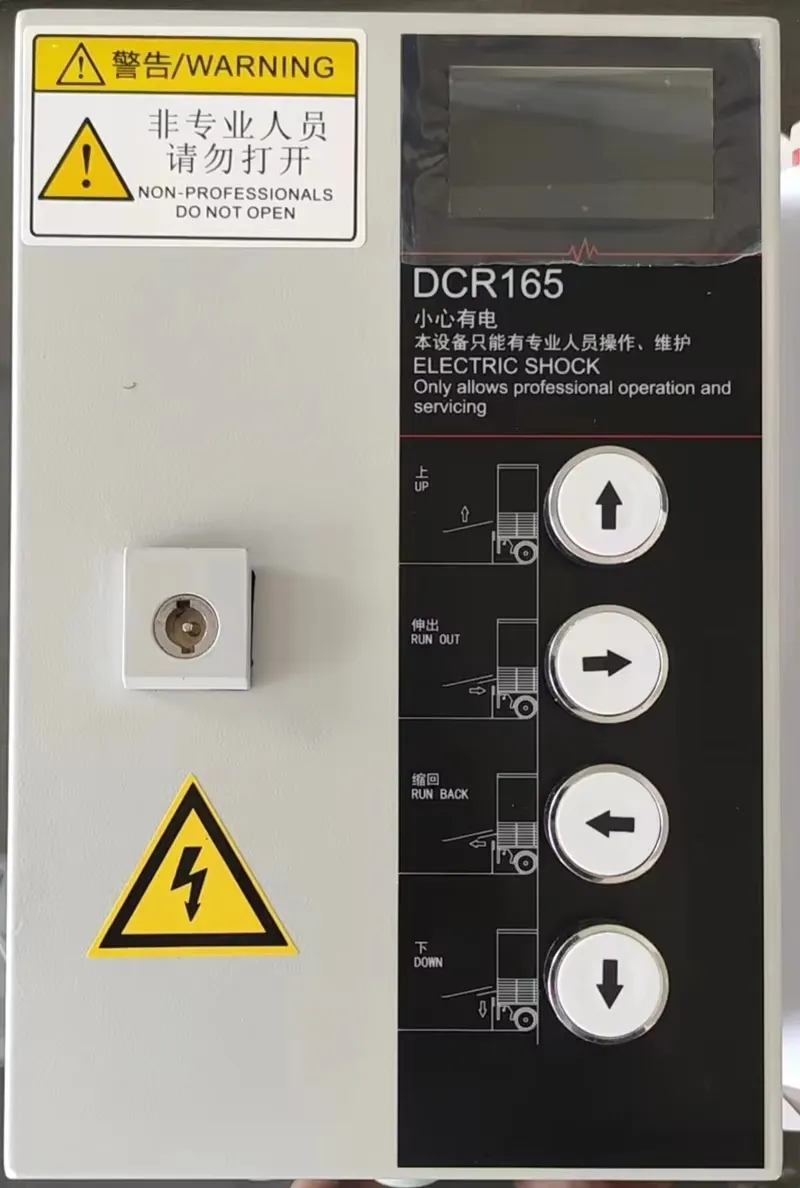

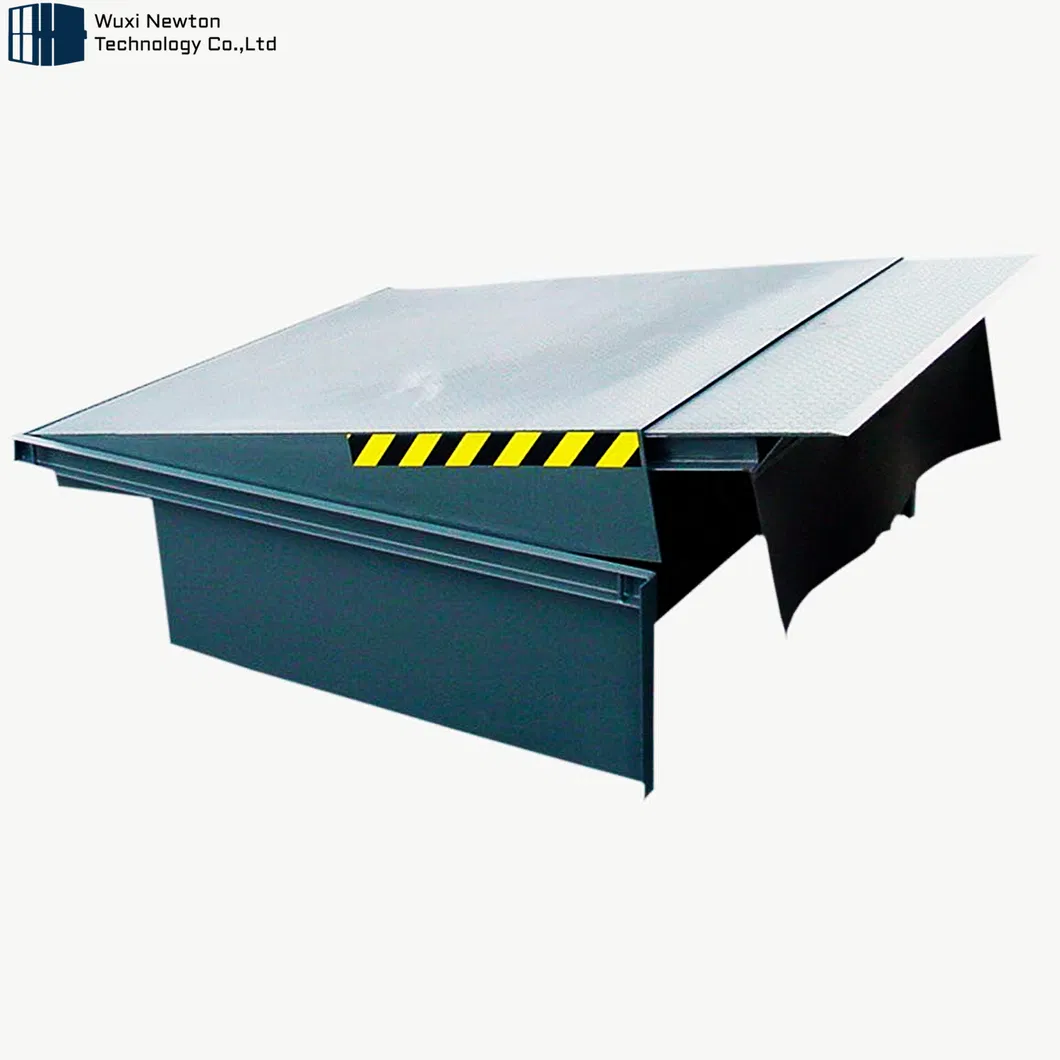

Telescopic Dock Leveler
Features a telescopic lip (1000mm) to adapt to all loading situations, including end loads.

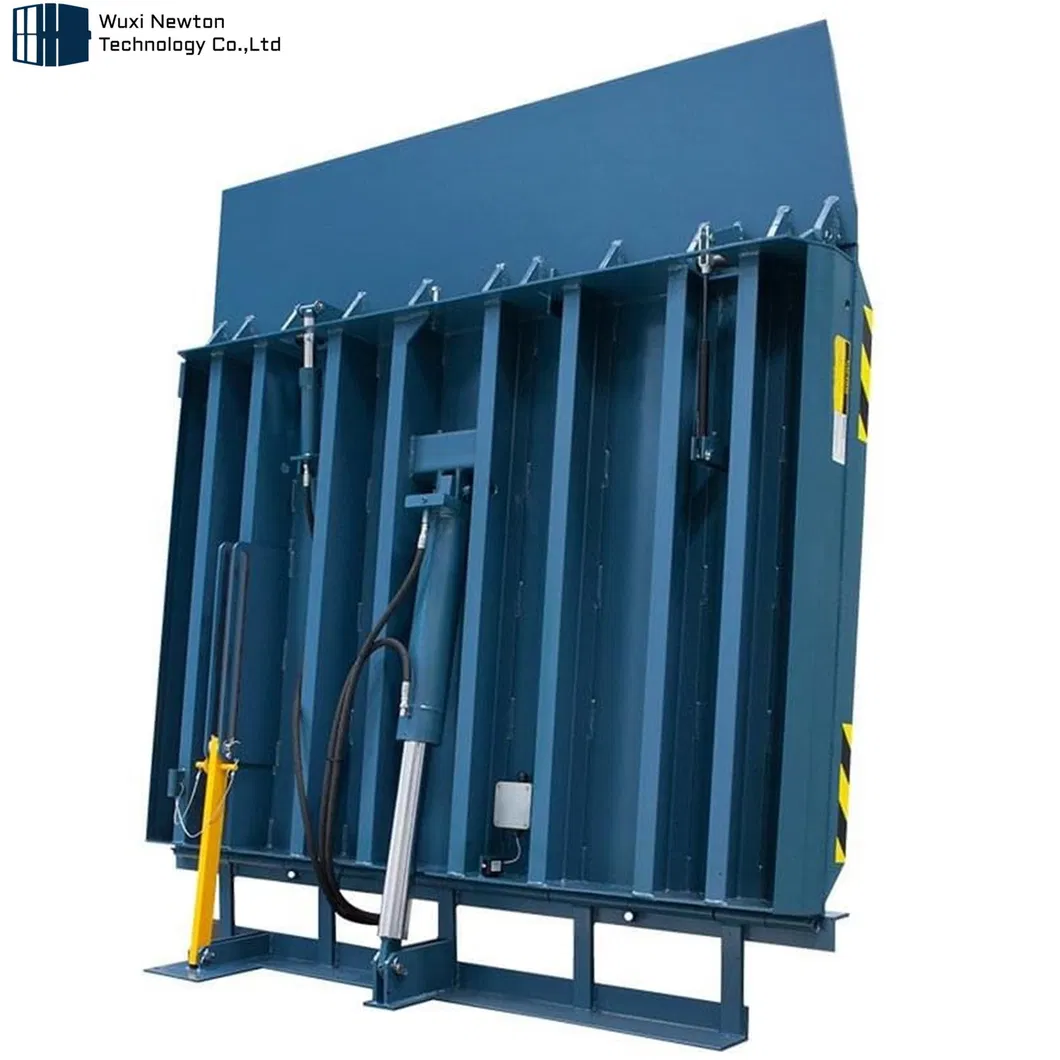

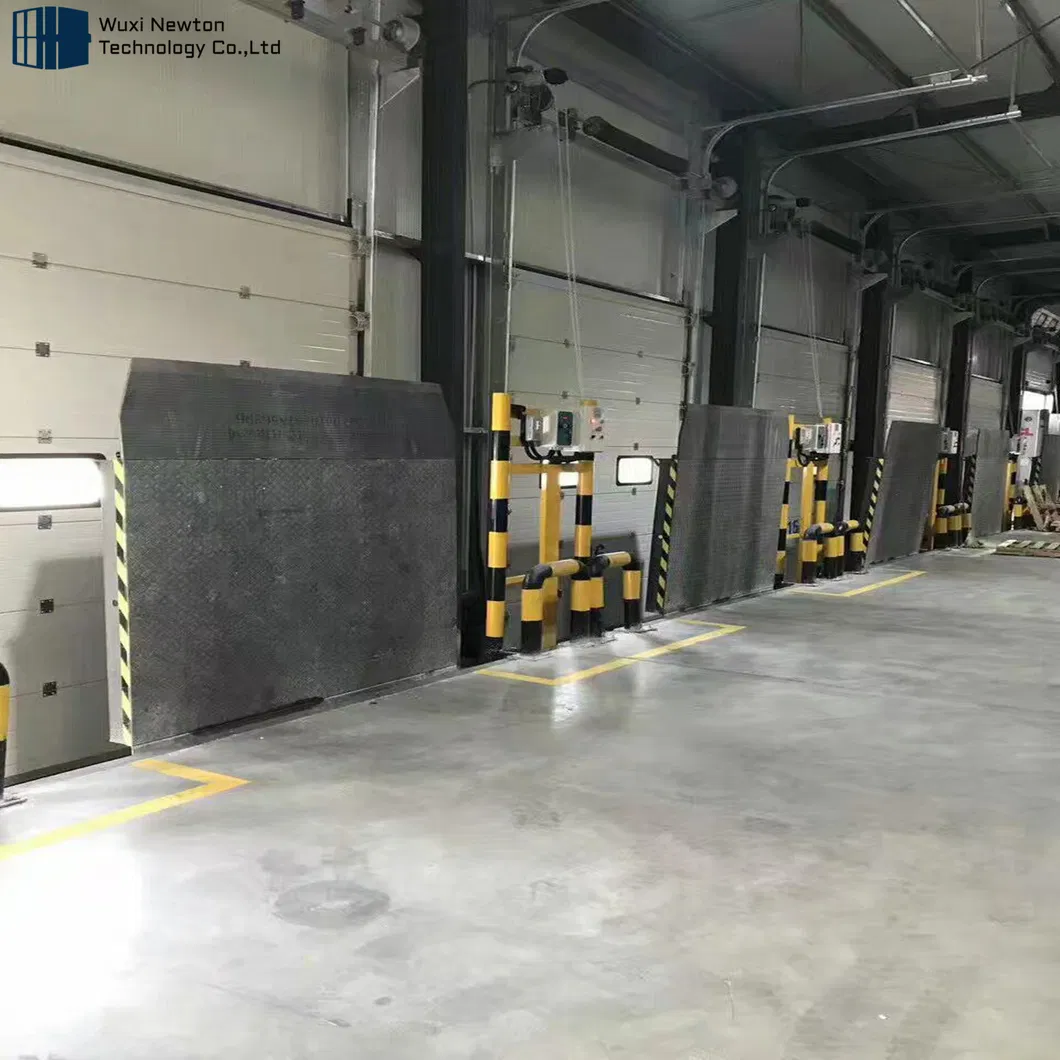

Vertical Dock Leveler
Designed for enhanced pedestrian safety, sanitation, and environmental control.

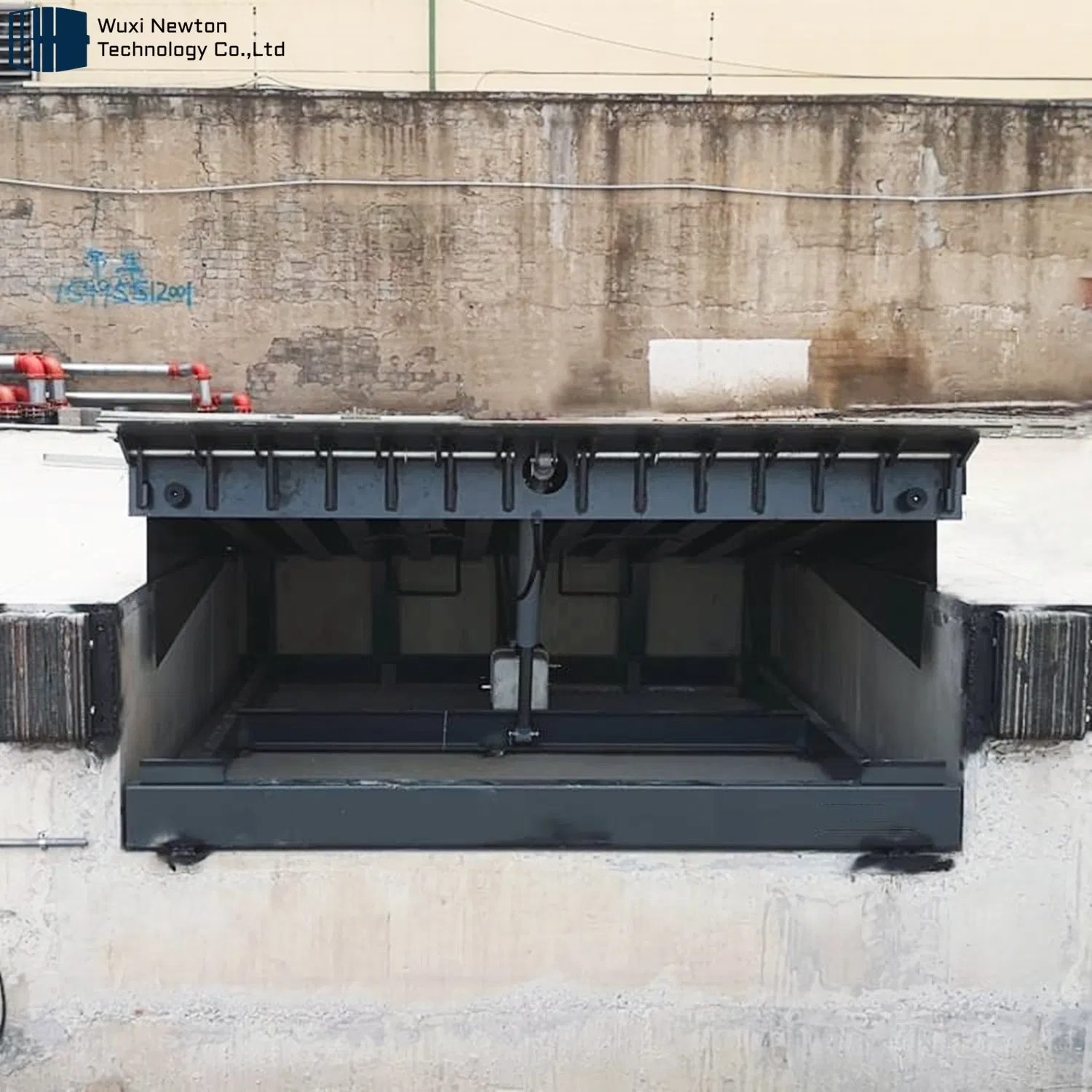

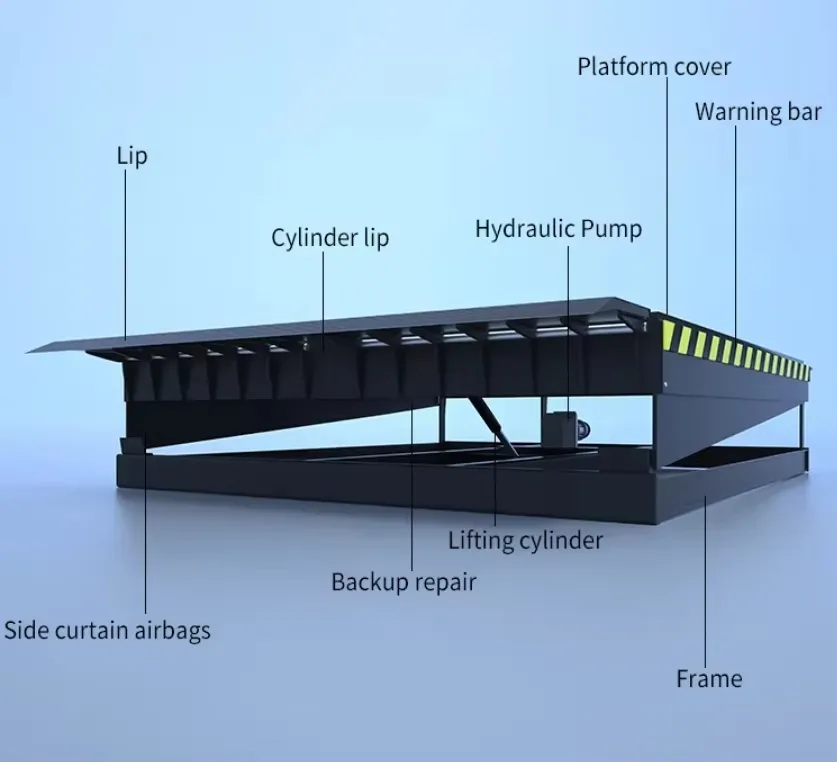

The hydraulic dock leveler ensures stable and safe operation. The hydraulic pump, conduit, and oil storage box are mounted on the bottom of the working table for ease of maintenance.
| Maximum Bearing Weight | 6000kg (60KN) / 10000kg (100KN) |
| Hydraulic Cylinder Power | 1.1KW |
| Power Supply | 380V, Three Phases |
| Control Unit Protection | IP54 / IP55 |
| Surface Treatment | Sa 2 Cleaning, 60~90 um Spraying |
Available in 220V/380V | Equipped with Emergency Stop Button | IP55 Rated
