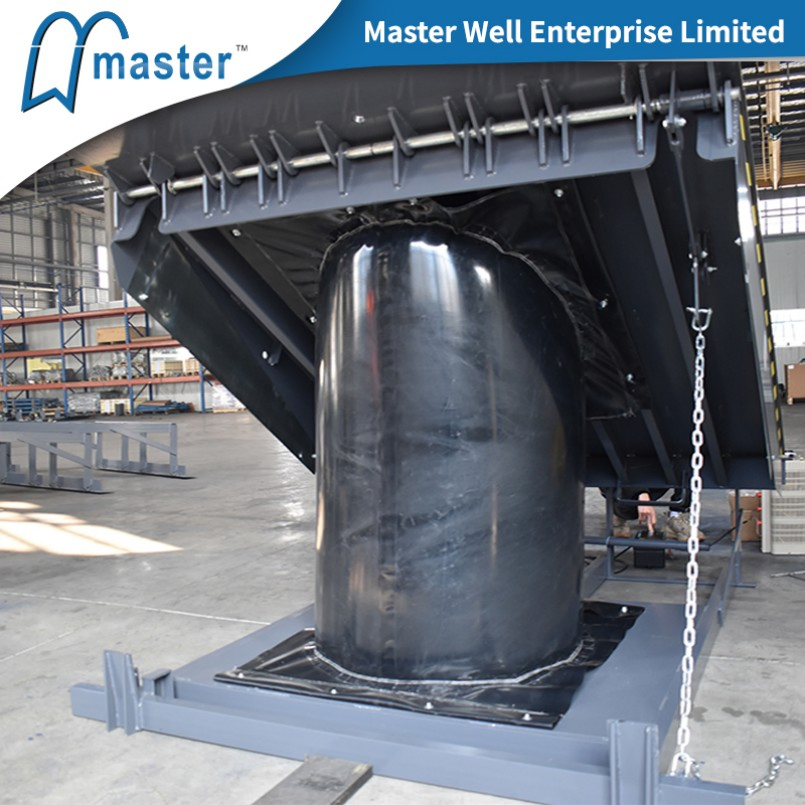

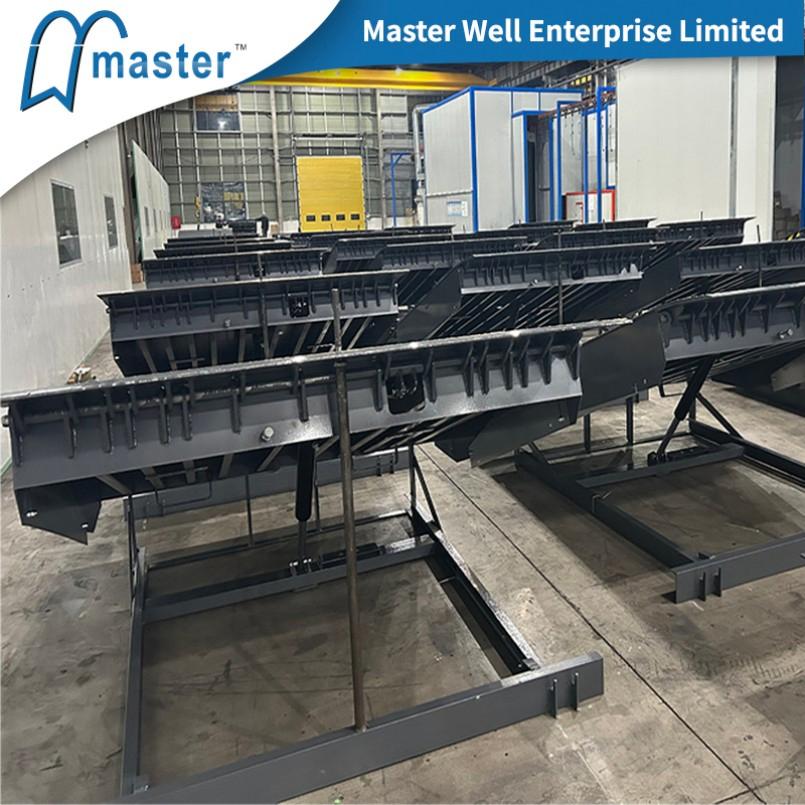

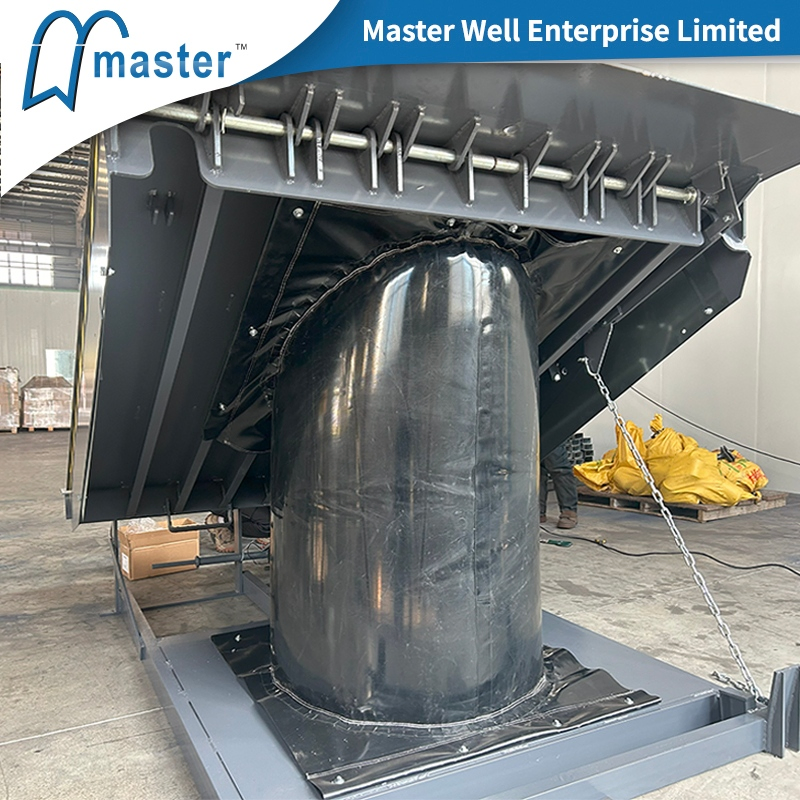

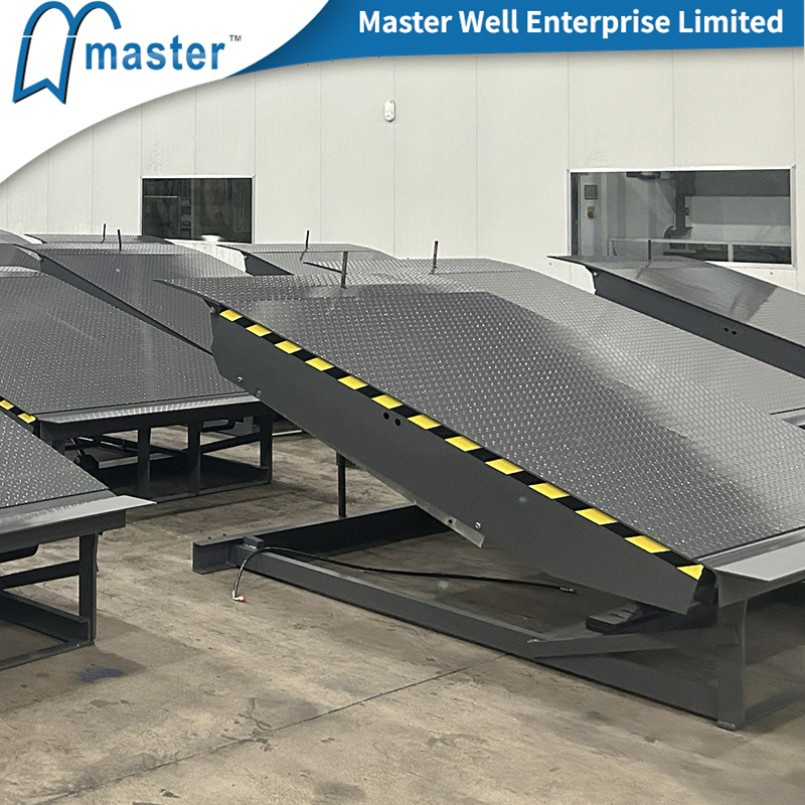

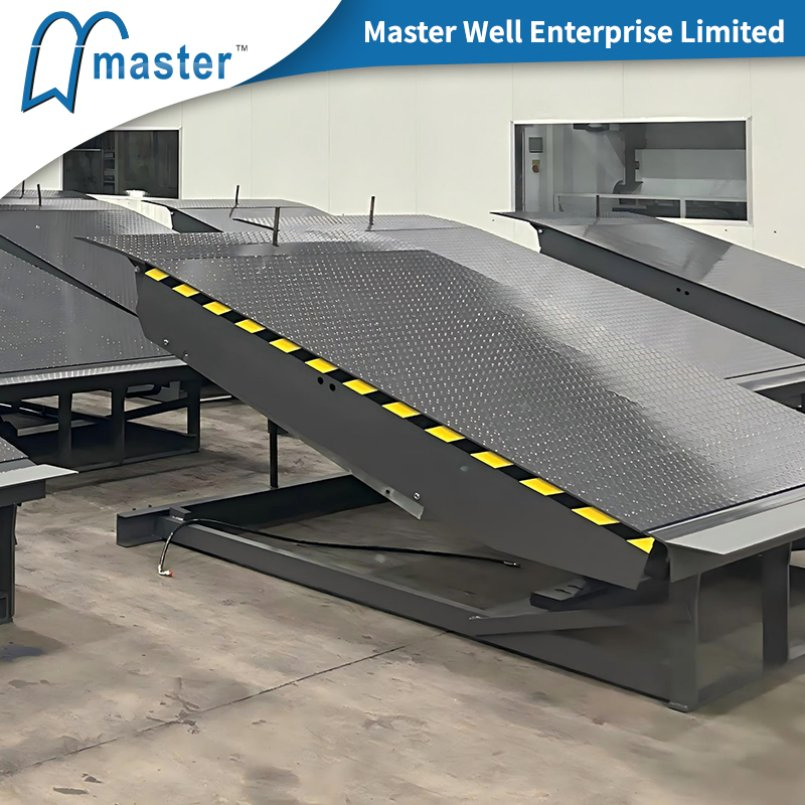

Explosion-Proof Electrical Adjustable Fixed Air Bag Pneumatic Dock Leveler

Customization:	Available
After-sales Service:	Online Service
Warranty:	5 Years

Basic Information

Application

Workshop Crane, Warehouse Crane

Lift Mechanism

Lift

Carrying Capacity

Weight Level

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Certification

CE

Loading Capacity

6000kg/ 8000kg

Bumpers

500*200*100mm

Working Range

-300mm to +300mm

System

0.75kw, 380V/ 50Hz

Support Profile

C Steel Profile

Swinging Lip

Single 16mm Thickness, 400mm Length

Upper Plate

8mm Thick, Anti-Skate Steel Plate

Origin

China

Production Capacity

500 Sets/Month

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 55.00cm

Package Gross Weight

800.000kg

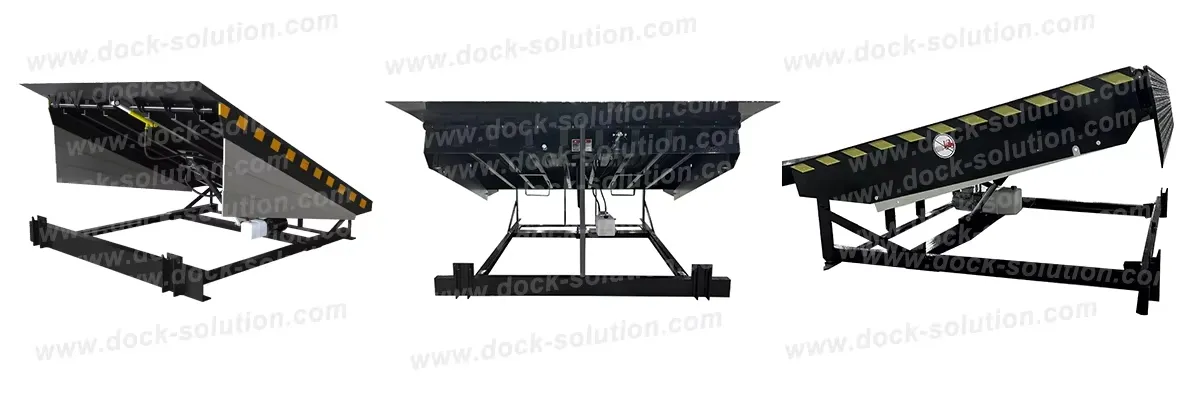

Product Description

Pneumatic Dock Leveler uses a hydraulic power unit to lift the upper main panel of the dock leveler through the main oil cylinder, and a small auxiliary oil cylinder pushes out the lip plate. It is very useful when dock height and truck height are different. Through the principle of the dock leveler's self-weight drop, the lip plate is lifted to the rear of the truck to complete the entire action.

The hydraulic type of dock leveler is currently the most commonly used loading and unloading platform, featuring stable performance, simple operation, low maintenance rate, and easy repair.

Material Specifications

Upper Plate	8 mm thickness, anti-skate steel plate
Swinging Lip	Single 16 mm thickness, 400mm length
Support Profile	C-shaped stiffener/14#I Beam
Sealing Element	Japan Brand NOK A505
Working Range	+300mm / 260~300mm
Adjustment Time	Rise Time ≤16S, Fall time ≤10S
Power	380V/220V
Electric Control Box	24V weak current control
Dynamic Loading Capacity	6,000~25,000KG
Static Loading Capacity	10,000~31,700KG
Anticollision Block	Laminated belt stamping combined
Service Life	≥200,000 times
Operating Temperature	-30℃ ~ +50℃
Color	Blue/Grey/Black, customized available
Noise	<50db (±5db)

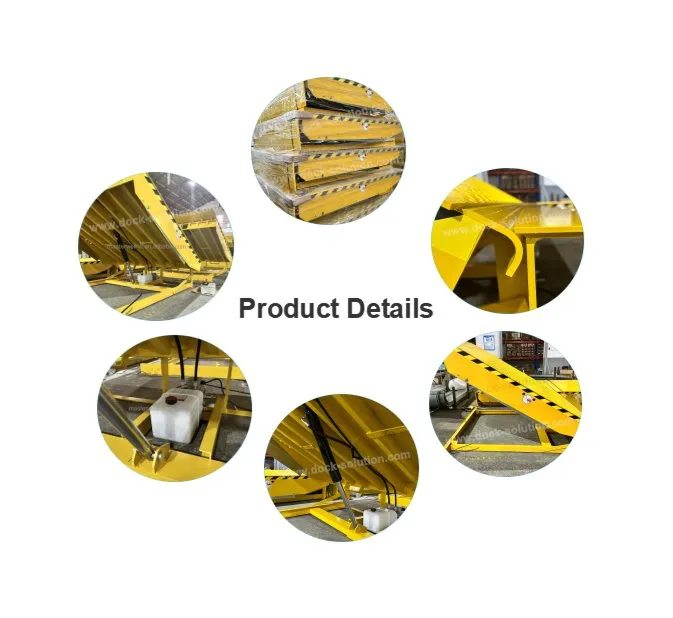

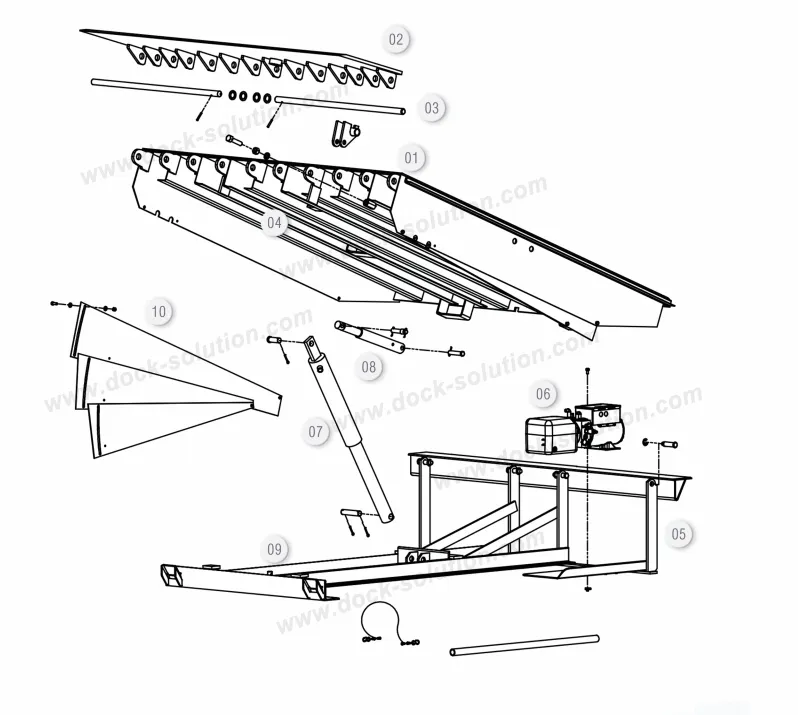

Structural Drawing & Details

1. Upper Plate	6. Power Pack
2. Lip Plate	7. Main Cylinder
3. Hinge (Open)	8. Auxiliary Cylinder
4. Rib Support	9. Frame
5. Support Structure	10. Guard

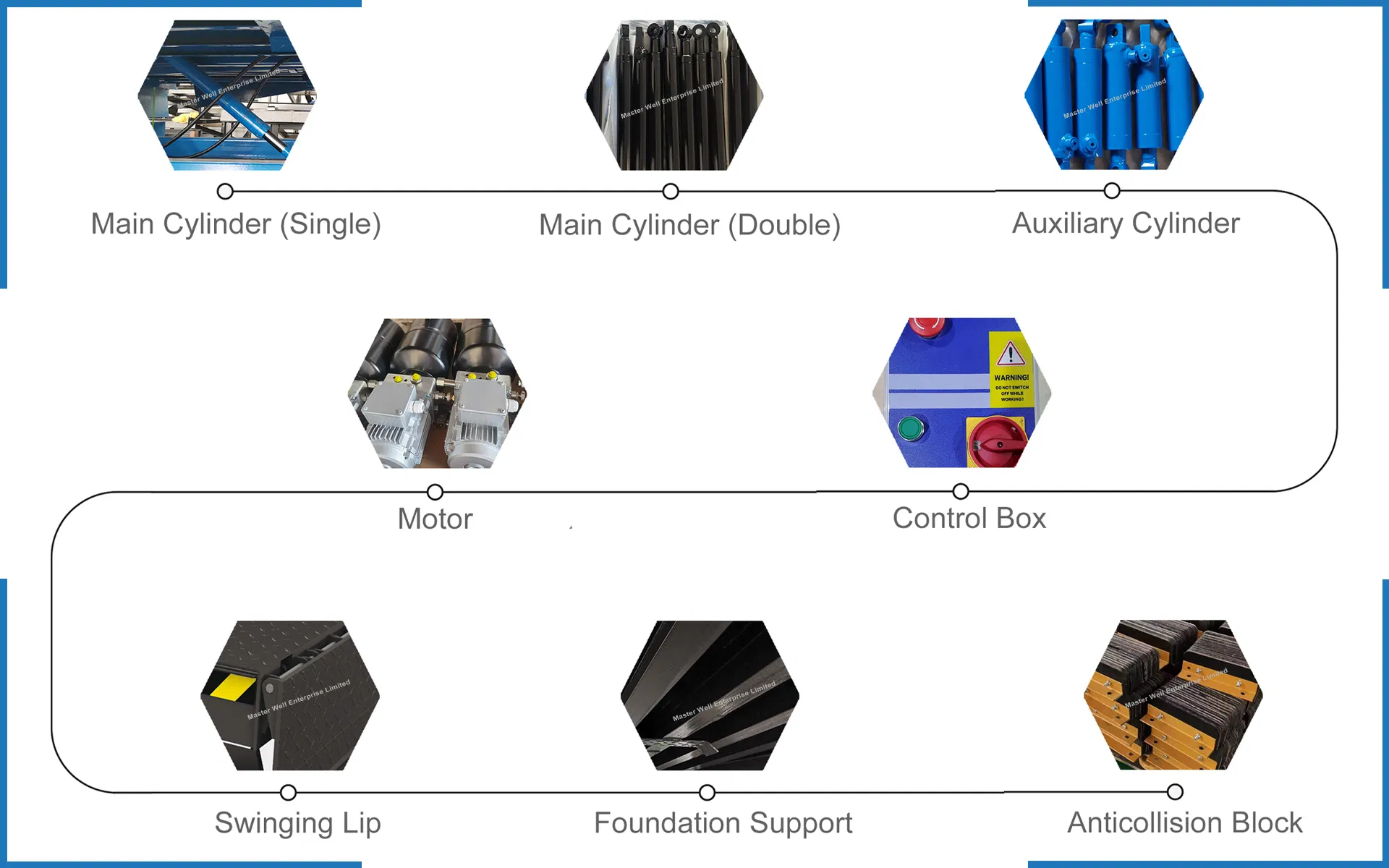

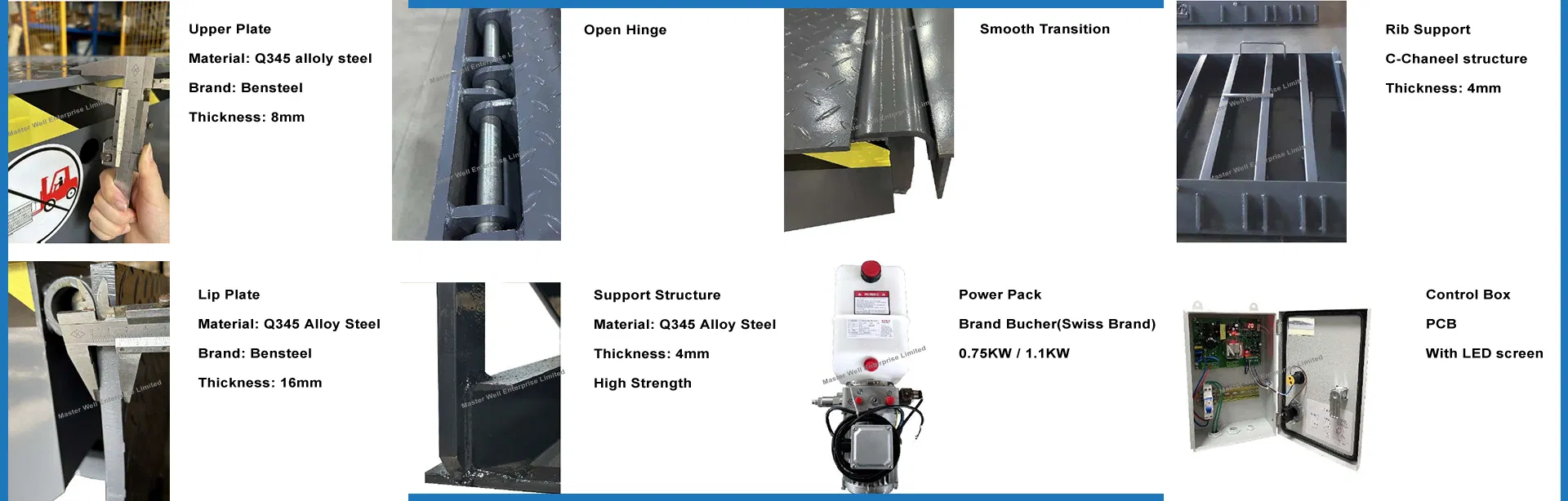

Spare Parts Details

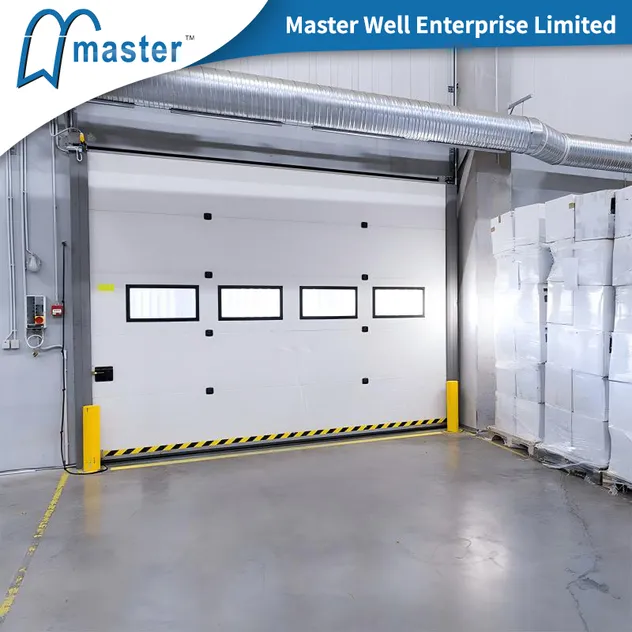

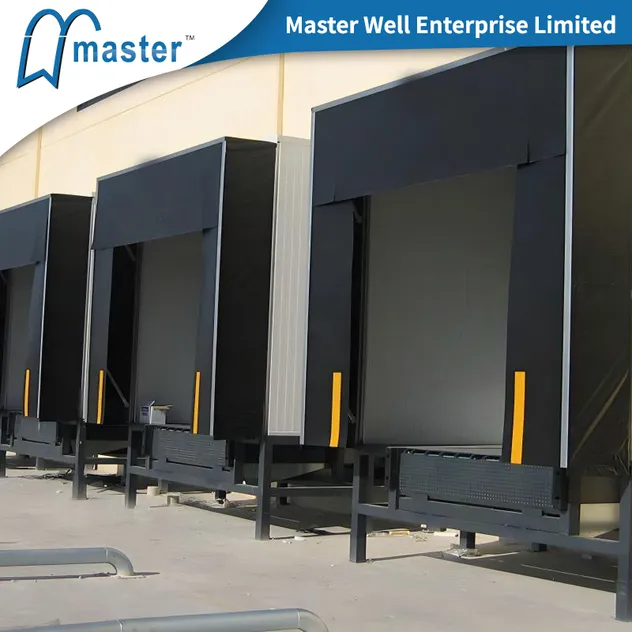

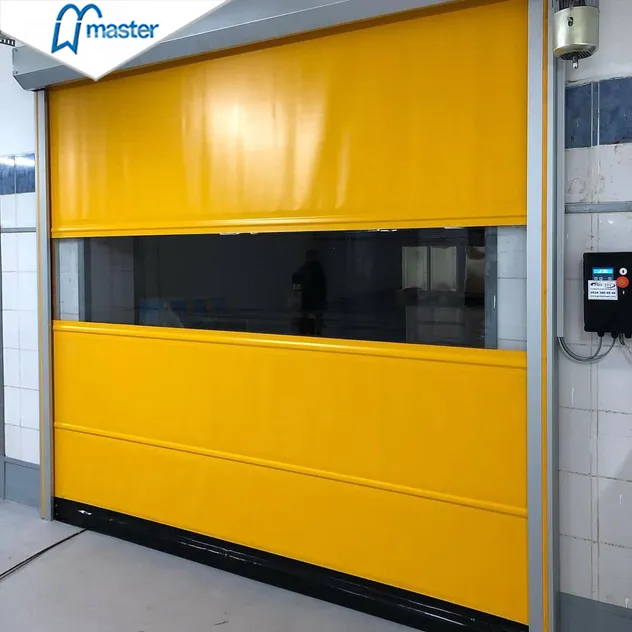

Related Products

Professional Team & Service

Relying on excellent business performance and R&D, our work team includes an International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department, and Research and Development. We are dedicated to providing professional services and solutions for industrial loading needs.

Certifications

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

There is no minimum order requirement for dock levelers; we accommodate both small and large scale orders.

Can you provide products based on custom project drawings?

Yes, our engineering team can review your project drawings to ensure accuracy for all fittings and quantities required.

What payment methods are accepted?

We generally accept T/T, L/C, and Western Union. Other payment terms can be discussed based on your preference.

How can we apply to be a local agent?

Please share your company profile and business plan with us. We are always looking for reliable partners for cooperation.

Do you manufacture accessories and other industrial doors?

Yes, we produce a full range of products including Glass Aluminum Sectional Doors, High-Speed Doors, Rolling Shutters, Dock Seals, and Motorized Gate Openers. We manufacture parts in-house to control quality and cost.

What is the typical lifespan of the dock leveler?

The equipment is designed for high durability with a service life of at least 200,000 operations under normal maintenance conditions.
