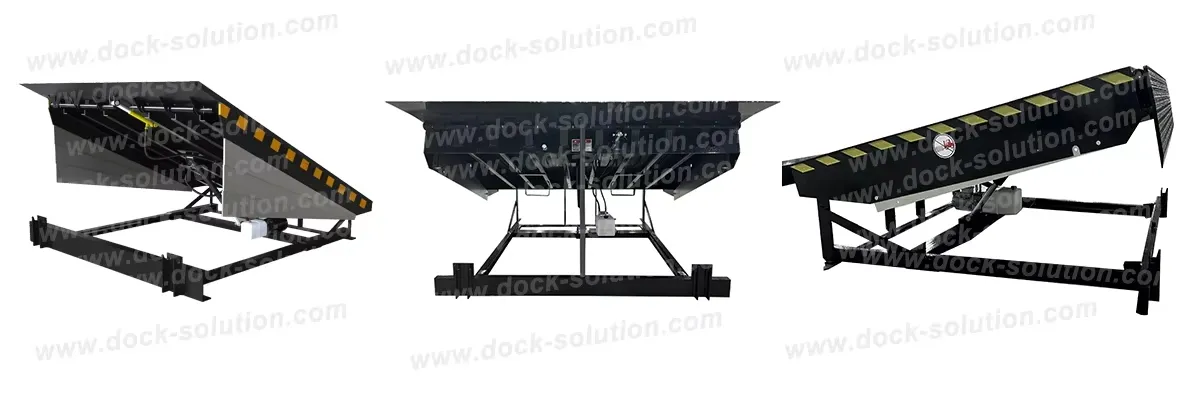

The Dock Leveler uses a hydraulic power unit to lift the upper main panel of the dock leveler through the main oil cylinder, and a small auxiliary oil cylinder pushes out the lip plate. It is very useful when dock height and truck height are different. Through the principle of the dock leveler's self-weight drop, the lip plate is lifted to the rear of the truck to complete the entire action.
The hydraulic type of dock leveler is currently the most commonly used and also the most widely used loading and unloading platform, featuring stable performance, simple operation, low maintenance rate, and easy repair.
| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener/14# I Beam |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Dynamic Loading Capacity | 6,000~25,000KG |
| Static Loading Capacity | 10,000~31,700KG |
| Service Life | ≥200,000 times |
| Operating Temperature | -30℃ to +50℃ |
| Color | Blue/Grey/Black, could be customized |

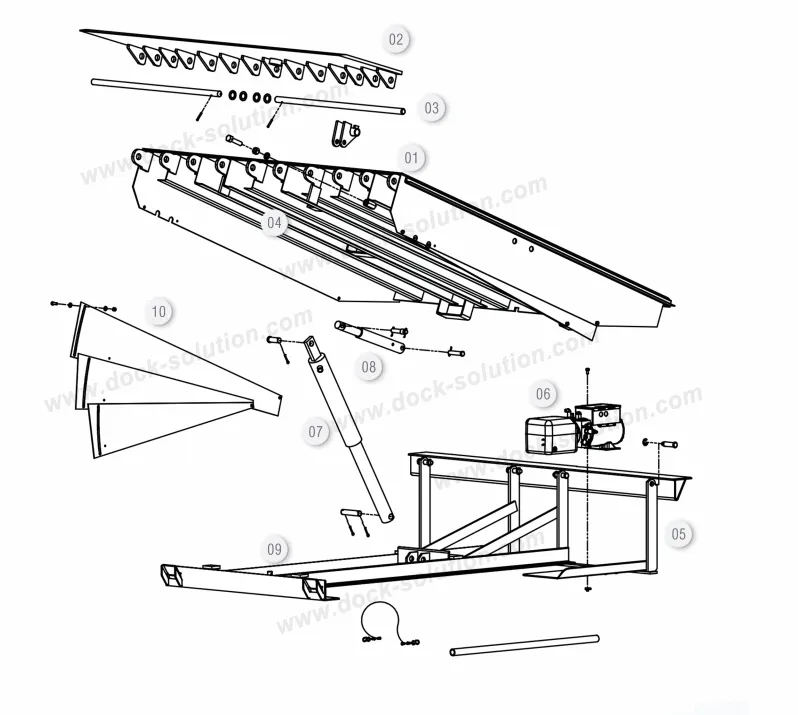

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
