Customization: Available
After-sales Service: Online Support
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.Fixed Dock Leveler
ApplicationWorkshop, Shipboard, Warehouse, Building Crane
Lift MechanismTelescoping Lift
Carrying CapacityWeight Level
MovesStationary
Driven TypeHydraulic
FeatureExplosion-Proof, Insulating
CertificationGS, CE, RoHS, ISO 9001
MaterialSteel
Load6000-15000kgs
Power SourceManual
HS Code8428909090
📦 Product Description
10t Fixed Boarding Electric Car Bridge Customization Warehouse Loading Air Bag Vertical Hydraulic Edge Mechanical Dock Leveler
Dock Leveler Banner
The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential. We offer a wide range of solutions including Hydraulic, Telescoping lip, Mechanical, Vertical standing, Air-powered, EOM and EOD dock levelers.
Model Capacity (t) Platform Size Distance Lip Board Size Motor Power
DCGQ662500*2000mm100400mm0.75KW
DCGQ882500*2000mm100400mm0.75KW
DCGQ10102500*2000mm100400mm0.75KW
DCGQ12122500*2000mm100400mm0.75KW
DCGQ662000*2000mm100400mm0.75KW
DCGQ882000*2000mm100400mm0.75KW
DCGQ10102000*2000mm100400mm0.75KW
DCGQ12122000*2000mm100400mm0.75KW

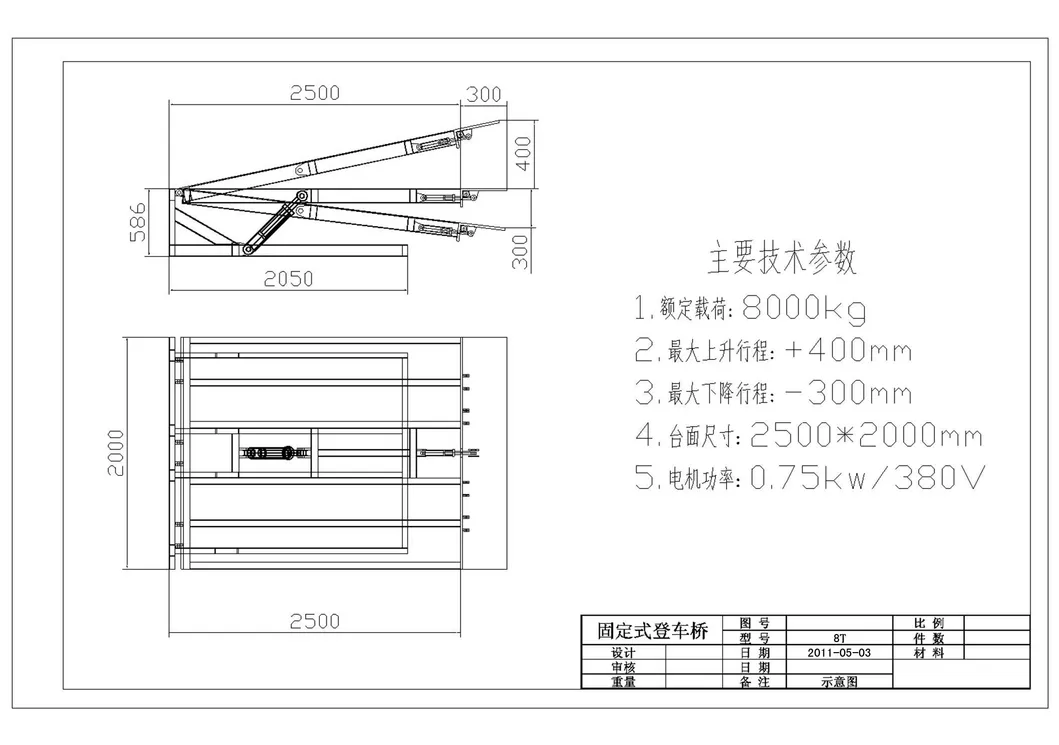

Loading Dock Detail 1

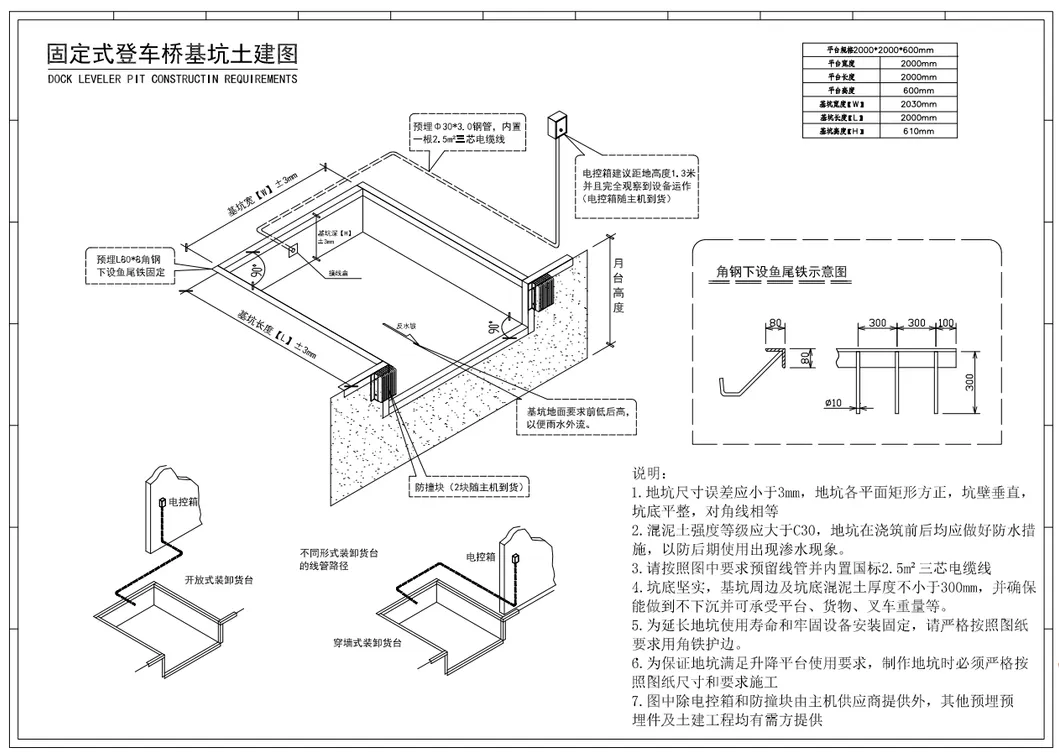

Loading Dock Detail 2

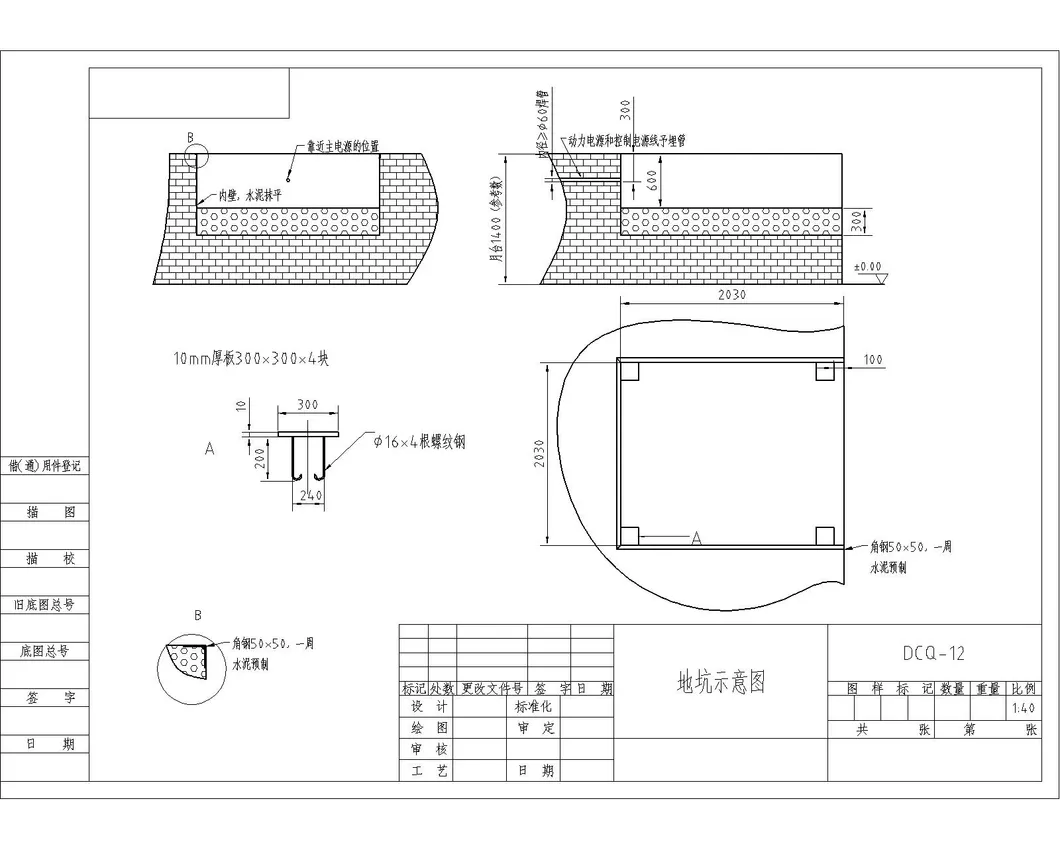

Loading Dock Detail 3
Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Our loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.

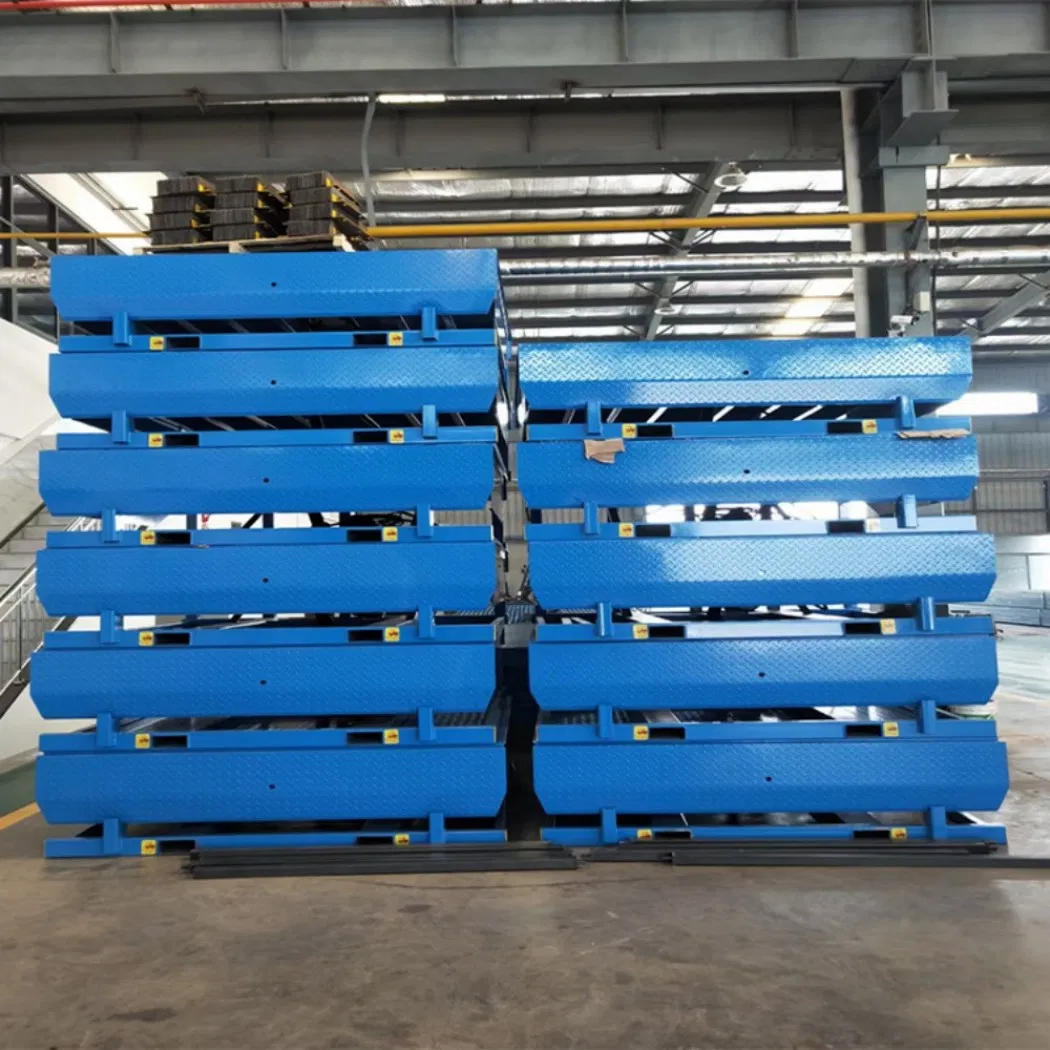

Structure 1

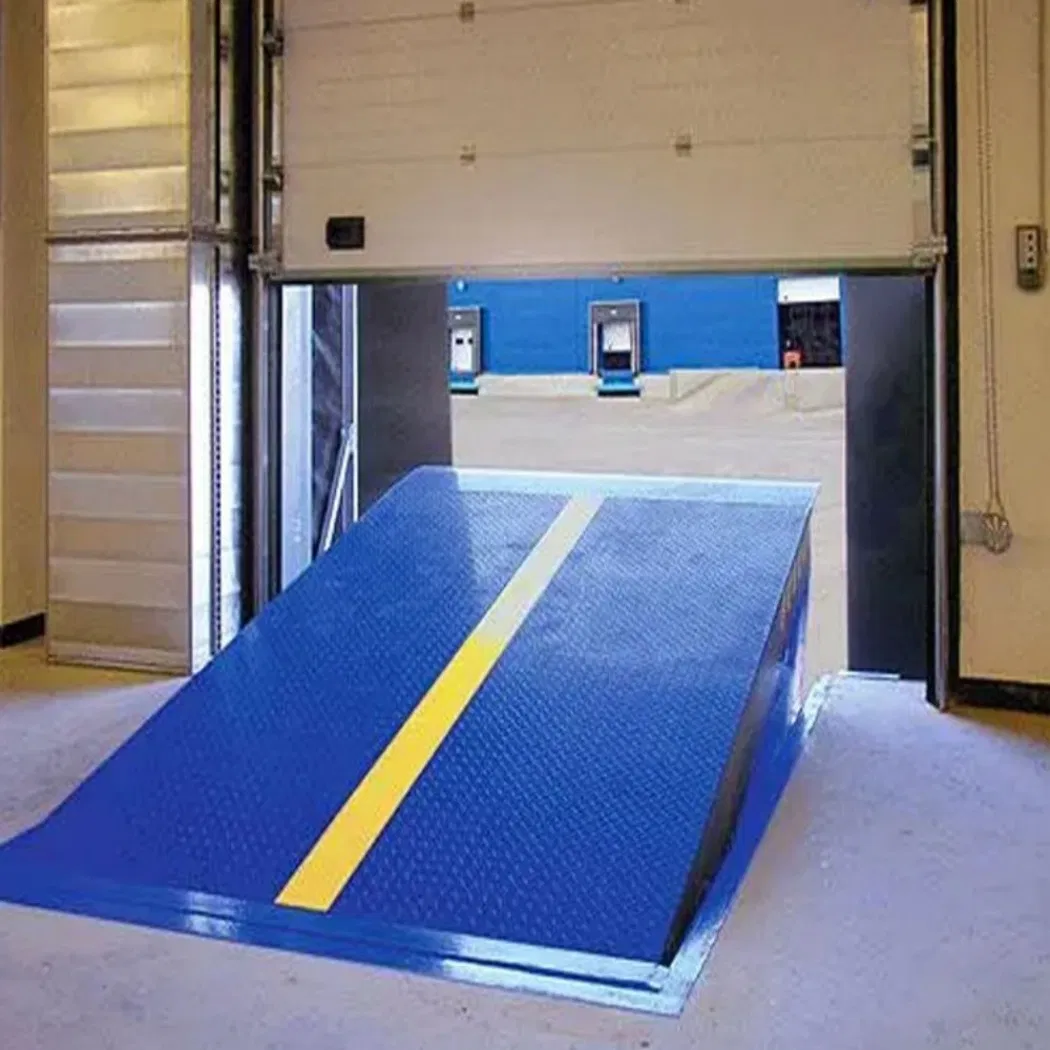

Structure 2

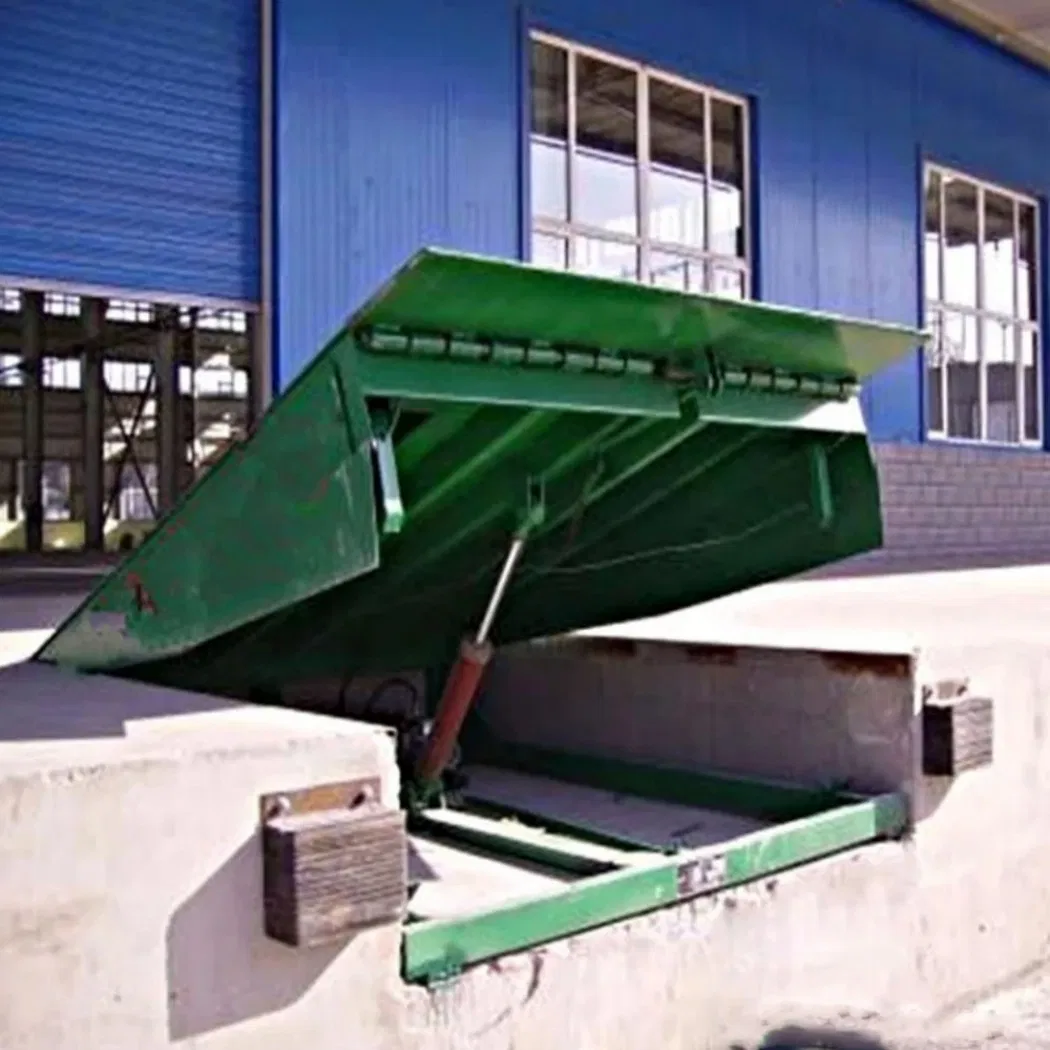

Structure 3

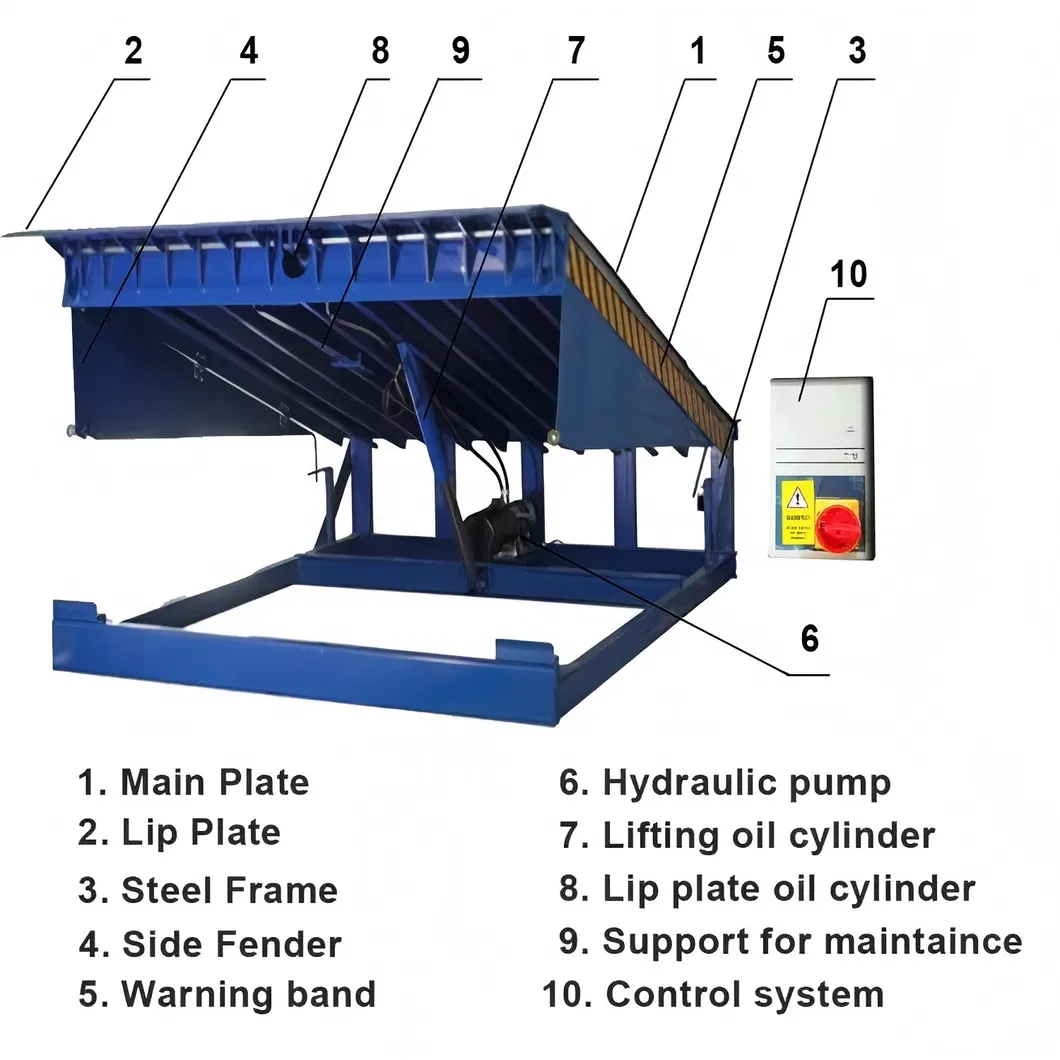

Detailed Structure
⚙️ Technical Features & System
System: Free maintenance design idea for a long run using application.
Design: Hydraulic driving system for main deck and lip; Velocity fuse (≤75 mm) for auto-stop.
Safety: Full range foot guard, safety support bar, and galvanized long shaft to prevent rust.
Structure: 8mm high strength embossed non-slip steel; 14# I-beam steel reinforcement.
Extension Lip: 15mm thickness extension lip plate (L=500mm) for non-deformation.
Durability: Sandblasting treatment for superior coating adhesion and surface cleanliness.

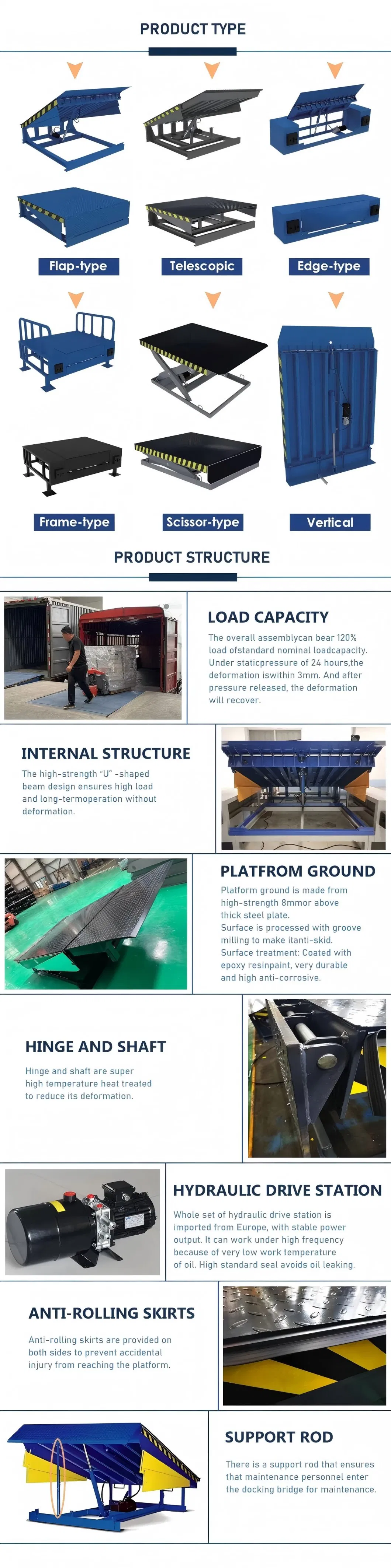

Process Display
🚢 Packaging & Shipping
Company overview display Packaging details
❓ Frequently Asked Questions
What information should I provide when making an inquiry?
Please provide details or drawings regarding life capacity, span, lift height, crane traveling distance, and power source.
What is your minimum order quantity (MOQ)?
The minimum order quantity is 1 set.
How is the product packaged?
The main body is packaged with plywood boxes or plastic woven fabrics; spare parts are secured inside plywood boxes.
What is your typical delivery cycle time?
Delivery usually occurs within 10, 25, or 40 days after receiving the advance payment, depending on specific requirements.
Do you provide lifting accessories?
Yes, we can provide hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, fiber ropes, and more.
Do you offer custom services or OEM/ODM?
Yes, our factory fully supports professional OEM and ODM services to meet your specific needs.
